RZH101G-JRPEE (1989)
Toyota Hiace/Regiusace
(8908-9308)

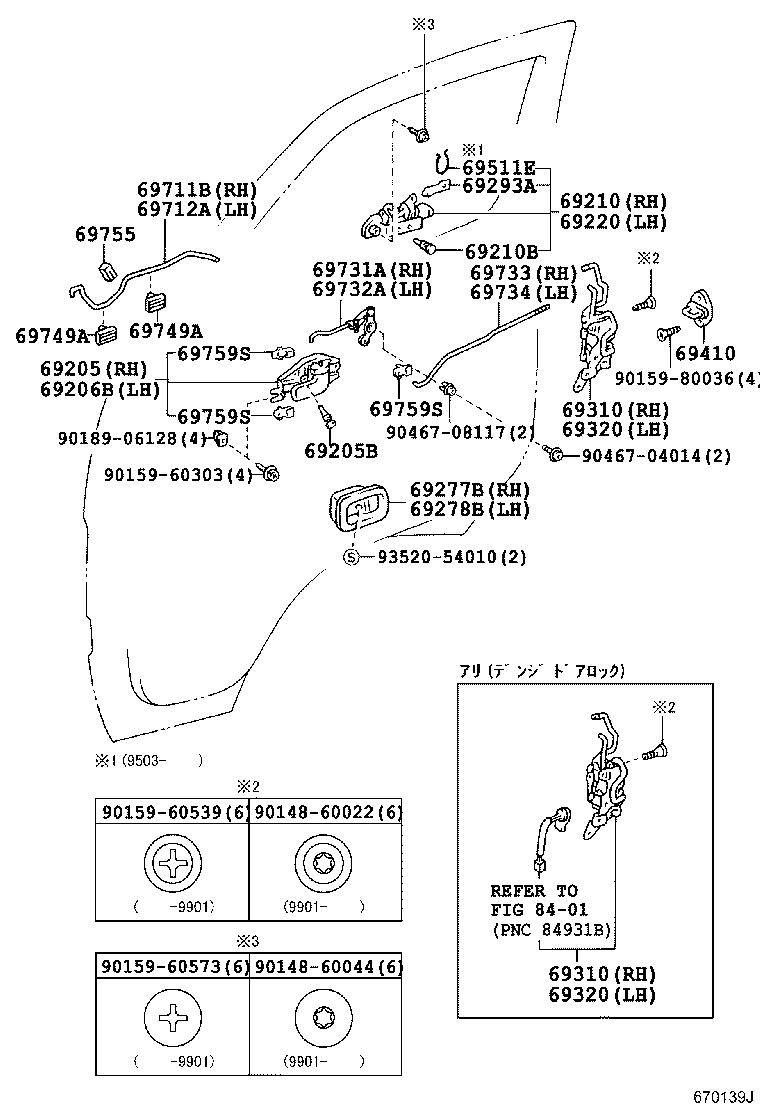

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-26010E0 |
KZH10#,12#,13#,RZH101 ANTEPOPE,TRIM4# |
1 | ||
| 69205-95J0003 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 69205-26010B0 |
KZH10#,LH10#,11#,123,129,RZH10#,112..03S,05S,06S,08S,09S BLUISH GRAY,TRIM1# |
1 | ||
| 69205-95J0002 |
LH123..4FC;LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 69205-95J0002 |
LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 69205-26010E0 |
KZH10#,12#,RZH101..07S,08S,10S ANTEPOPE,TRIM4# |
1 | ||
| 69205-26010B0 |
KZH10#,11#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..CD,CTM,DX,GL,SCM,SCMM,SGL BLUISH GRAY,TRIM1# |
1 | ||
| 69205-26010E0 |
LH113,123,RZH112..HRF;KZH10#,11#,12#,LH125,129,RZH100,101,124..06S,07S,08S,10S,15S ANTEPOPE,TRIM4# |
1 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90541-04018 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90541-04018 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-95J0003 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 69206-26010E0 |
LH113,123,RZH112..HRF;KZH10#,11#,12#,LH125,129,RZH100,101,124..06S,07S,08S,10S,15S ANTEPOPE,TRIM4# |
1 | ||
| 69206-95J0002 |
LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 69206-26010E0 |
KZH10#,12#,RZH101..07S,08S,10S ANTEPOPE,TRIM4# |
1 | ||
| 69206-95J0002 |
LH123..4FC;LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 69206-26010B0 |
KZH10#,LH10#,11#,123,129,RZH10#,112..03S,05S,06S,08S,09S BLUISH GRAY,TRIM1# |
1 | ||
| 69206-26010E0 |
KZH10#,12#,13#,RZH101 ANTEPOPE,TRIM4# |
1 | ||
| 69206-26010B0 |
KZH10#,11#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..CD,CTM,DX,GL,SCM,SCMM,SGL BLUISH GRAY,TRIM1# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-95J03 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 塗装不要 |
1 | ||
| 69210-95J03 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S 塗装不要 |
1 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90541-04014 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
4 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-95J03 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 塗装不要 |
1 | ||
| 69220-95J03 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S 塗装不要 |
1 | ||
| 69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH | ||||
| 69277-95J0002 |
LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 69277-95J00E0 |
KZH106..4FC..CTM;LH113,123,RZH112..HRF;KZH10#,11#,12#,LH125,129,RZH100,101,124..06S,07S,08S,10S,15S ANTELOPE,TRIM4# |
1 | ||
| 69277-95J00B0 |
KZH10#,11#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..CD,CTM,DX,GL,SCM,SCMM,SGL BLUISH GRAY,TRIM1# |
1 | ||
| 69277-95J0003 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 69277-95J00E0 |
KZH10#,12#,13#,RZH101 ANTELOPE,TRIM4# |
1 | ||
| 69277-95J00B0 |
KZH10#,LH10#,11#,123,129,RZH10#,112..03S,05S,06S,08S,09S BLUISH GRAY,TRIM1# |
1 | ||
| 69277-95J00B0 |
KZH10#,LH10#,11#,123,129,RZH10#,112..03S,05S,06S,08S,09S BLUISH GRAY,TRIM1# |
1 | ||
| 69277-95J0002 |
LH123..4FC;LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 69277-95J00B0 |
LH123,129..06S;KZH100..08S..5F;KZH106..4FC..CTM;KZH100..(08S,09S)..4FC;KZH106,LH103,119,RZH100,101..05S,08S;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL) BLUISH GRAY,TRIM1# |
1 | ||
| 69277-95J00E0 |
KZH10#,12#,RZH101..07S,08S,10S ANTELOPE,TRIM4# |
1 | ||
| 69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH | ||||
| 69278-95J0002 |
LH123..4FC;LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 69278-95J00B0 |
KZH10#,LH10#,11#,123,129,RZH10#,112..03S,05S,06S,08S,09S BLUISH GRAY,TRIM1# |
1 | ||
| 69278-95J00E0 |
KZH10#,12#,RZH101..07S,08S,10S ANTELOPE,TRIM4# |
1 | ||
| 69278-95J00B0 |
LH123,129..06S;KZH100..08S..5F;KZH106..4FC..CTM;KZH100..(08S,09S)..4FC;KZH106,LH103,119,RZH100,101..05S,08S;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL) BLUISH GRAY,TRIM1# |
1 | ||
| 69278-95J0002 |
LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 69278-95J00B0 |
KZH10#,11#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..CD,CTM,DX,GL,SCM,SCMM,SGL BLUISH GRAY,TRIM1# |
1 | ||
| 69278-95J00B0 |
KZH10#,LH10#,11#,123,129,RZH10#,112..03S,05S,06S,08S,09S BLUISH GRAY,TRIM1# |
1 | ||
| 69278-95J0003 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 69278-95J00E0 |
KZH106..4FC..CTM;LH113,123,RZH112..HRF;KZH10#,11#,12#,LH125,129,RZH100,101,124..06S,07S,08S,10S,15S ANTELOPE,TRIM4# |
1 | ||
| 69278-95J00E0 |
KZH10#,12#,13#,RZH101 ANTELOPE,TRIM4# |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 左側 |
1 | ||
| 69293-12040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 右側 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-26010 |
LH10#,113,119,120,125,RZH10#,112..CTM,GCGE,GCGN,GL,SCM,SCMM,SGL |
1 | ||
| 69030-95J02 |
LH10#,113,119,125,RZH10#,112..CTM,GL,SCM,SCMM,SGL |
1 | ||
| 69030-26040 |
KZH11#..4FC;KZH10#,12#,13#,LH103,11#,RZH100,101..(03S,05S,08S,10S)..(DX,GCGE,GCGN,SCM,SCMM,SGL) ｱﾘ(ﾏｽﾀｰｽｲﾂﾁ ｼｷ ﾊﾟﾜｰﾄﾞｱﾛﾂｸ & ﾊﾟﾜｰｳｲﾝﾄﾞｳ) |
1 | ||
| 69030-26040 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..DX,GCGE,GCGN,GL,SCM,SCMM,SGL ｱﾘ(ﾏｽﾀｰｽｲﾂﾁ ｼｷ ﾊﾟﾜｰﾄﾞｱﾛﾂｸ & ﾊﾟﾜｰｳｲﾝﾄﾞｳ) |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-26010 |
LH10#,113,119,120,125,RZH10#,112..CTM,GCGE,GCGN,GL,SCM,SCMM,SGL |
1 | ||
| 69030-95J02 |
LH10#,113,119,125,RZH10#,112..CTM,GL,SCM,SCMM,SGL |
1 | ||
| 69030-26040 |
KZH11#..4FC;KZH10#,12#,13#,LH103,11#,RZH100,101..(03S,05S,08S,10S)..(DX,GCGE,GCGN,SCM,SCMM,SGL) ｱﾘ(ﾏｽﾀｰｽｲﾂﾁ ｼｷ ﾊﾟﾜｰﾄﾞｱﾛﾂｸ & ﾊﾟﾜｰｳｲﾝﾄﾞｳ) |
1 | ||
| 69030-26040 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..DX,GCGE,GCGN,GL,SCM,SCMM,SGL ｱﾘ(ﾏｽﾀｰｽｲﾂﾁ ｼｷ ﾊﾟﾜｰﾄﾞｱﾛﾂｸ & ﾊﾟﾜｰｳｲﾝﾄﾞｳ) |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-26010 |
LH10#,113,119,120,125,RZH10#,112..CTM,GCGE,GCGN,GL,SCM,SCMM,SGL |
1 | ||
| 69040-95J02 |
LH10#,113,119,125,RZH10#,112..CTM,GL,SCM,SCMM,SGL |
1 | ||
| 69040-26011 |
LH113..5D..DX;LH113..09S..DX;LH113..CD,GL,SGL;LH113..V2..4D..DX;KZH11#,LH10#,119,RZH102,11#;KZH10#,12#,13#,LH113,12#,RZH100,101,124,133..(HRF,MRF,SMRF)..4D..(03S,06S,08S,09S,10S,15S) ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ) |
1 | ||
| 69040-26100 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..DX,GCGE,GCGN,GL,SCM,SCMM,SGL ｱﾘ(ﾏｽﾀｰｽｲﾂﾁ ｼｷ ﾊﾟﾜｰﾄﾞｱﾛﾂｸ & ﾊﾟﾜｰｳｲﾝﾄﾞｳ) |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-26010 |
LH10#,113,119,120,125,RZH10#,112..CTM,GCGE,GCGN,GL,SCM,SCMM,SGL |
1 | ||
| 69040-95J02 |
LH10#,113,119,125,RZH10#,112..CTM,GL,SCM,SCMM,SGL |
1 | ||
| 69040-26011 |
LH113..5D..DX;LH113..09S..DX;LH113..CD,GL,SGL;LH113..V2..4D..DX;KZH11#,LH10#,119,RZH102,11#;KZH10#,12#,13#,LH113,12#,RZH100,101,124,133..(HRF,MRF,SMRF)..4D..(03S,06S,08S,09S,10S,15S) ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ) |
1 | ||
| 69040-26100 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..DX,GCGE,GCGN,GL,SCM,SCMM,SGL ｱﾘ(ﾏｽﾀｰｽｲﾂﾁ ｼｷ ﾊﾟﾜｰﾄﾞｱﾛﾂｸ & ﾊﾟﾜｰｳｲﾝﾄﾞｳ) |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-14050 |
LH10#,11#,12#,140,RZH10#,11#,12# |
2 | ||
| 69410-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 69410-20070 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12# |
2 | ||
| 69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69711-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69712-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 69731A - LINK, FRONT DOOR INSIDE LOCKING, NO.1 RH | ||||
| 69731-95J00 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 69750-26030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 69732A - LINK, FRONT DOOR INSIDE LOCKING, NO.1 LH | ||||
| 69732-95J00 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 69760-26030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1 | ||||
| 69749-20030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
6 | ||
| 69749-50010 |
LH10#,11#,12#,RZH10#,11#,12# |
6 | ||
| 69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1 | ||||
| 69749-20030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
6 | ||
| 69749-50010 |
LH10#,11#,12#,RZH10#,11#,12# |
6 | ||
| 69750B - LINK ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-95J00 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 69755 - SILENCER, FRONT DOOR LOCK LINK | ||||
| 69759-95500 |
LH100,102,107,113,119,RZH100,101..05S,07S,08S |
2 | ||
| 69759-95500 |
LH123,129..06S;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL);KZH10#,11#,12#,LH103,119,RZH100,101..05S,07S,08S,10S |
2 | ||
| 69759-95500 |
LH120..GCGE,GCGN;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL);LH100,102,107,110,117,119,RZH100,101..05S,07S,08S,10S |
2 | ||
| 69759-95500 |
LH113..V1..SRF..4D..(05S,06S)..(DX,SGL);LH119,123,129..4D..(05S,06S,08S)..(DX,SGL);KZH10#,11#,12#,LH103,RZH100,101..05S,07S,08S,10S |
2 | ||
| 69759-95500 |
KZH11#..4FC;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL);LH119,123,129..4D..(05S,06S,08S)..(DX,SGL);KZH10#,12#,13#,LH103,184,186,RZH101..(03S,05S,07S,08S,10S,15S)..(DX,GCGE,GCGN,SCL,SCM,SCMM,SGL) |
2 | ||
| 69759-95500 |
LH10#,11#,12#,RZH10#,11#,12# |
2 | ||
| 69759S - SNAP, FRONT DOOR INSIDE HANDLE | ||||
| 69759-24070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 右側,ｲｴﾛｰ |
2 | ||
| 69759-24040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133 右側,ﾋﾟﾝｸ |
1 | ||
| 69759-14050 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 左側,ﾋﾟﾝｸ |
2 | ||
| 69759-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133 左側,ﾚｯﾄﾞ |
1 | ||
| 69759S - SNAP, FRONT DOOR INSIDE HANDLE | ||||
| 69759-24070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 右側,ｲｴﾛｰ |
2 | ||
| 69759-24040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133 右側,ﾋﾟﾝｸ |
1 | ||
| 69759-14050 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 左側,ﾋﾟﾝｸ |
2 | ||
| 69759-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133 左側,ﾚｯﾄﾞ |
1 | ||
| 69760A - LINK ASSY, FRONT DOOR INSIDE LOCKING, LH | ||||
| 69760-95J00 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90159-60358 | ||||
| 90159-60522 | ||||
| 90159-80001 | ||||
| 90189-06128 | ||||
| 90208-06001 | ||||
| 90467-04014 | ||||
| 90467-08117 | ||||
| 93520-54010 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(9308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-26010E0 |
KZH10#,12#,13#,RZH101 ANTEPOPE,TRIM4# |
1 | ||
| 69205-95J0003 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 69205-26010B0 |
KZH10#,LH10#,11#,123,129,RZH10#,112..03S,05S,06S,08S,09S BLUISH GRAY,TRIM1# |
1 | ||
| 69205-95J0002 |
LH123..4FC;LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 69205-95J0002 |
LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 69205-26010E0 |
KZH10#,12#,RZH101..07S,08S,10S ANTEPOPE,TRIM4# |
1 | ||
| 69205-26010B0 |
KZH10#,11#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..CD,CTM,DX,GL,SCM,SCMM,SGL BLUISH GRAY,TRIM1# |
1 | ||
| 69205-26010E0 |
LH113,123,RZH112..HRF;KZH10#,11#,12#,LH125,129,RZH100,101,124..06S,07S,08S,10S,15S ANTEPOPE,TRIM4# |
1 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90541-04018 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-95J0003 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 69206-26010E0 |
LH113,123,RZH112..HRF;KZH10#,11#,12#,LH125,129,RZH100,101,124..06S,07S,08S,10S,15S ANTEPOPE,TRIM4# |
1 | ||
| 69206-95J0002 |
LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 69206-26010E0 |
KZH10#,12#,RZH101..07S,08S,10S ANTEPOPE,TRIM4# |
1 | ||
| 69206-95J0002 |
LH123..4FC;LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 69206-26010B0 |
KZH10#,LH10#,11#,123,129,RZH10#,112..03S,05S,06S,08S,09S BLUISH GRAY,TRIM1# |
1 | ||
| 69206-26010E0 |
KZH10#,12#,13#,RZH101 ANTEPOPE,TRIM4# |
1 | ||
| 69206-26010B0 |
KZH10#,11#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..CD,CTM,DX,GL,SCM,SCMM,SGL BLUISH GRAY,TRIM1# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-95J03 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 塗装不要 |
1 | ||
| 69210-95J03 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S 塗装不要 |
1 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90541-04014 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
4 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-95J03 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 塗装不要 |
1 | ||
| 69220-95J03 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S 塗装不要 |
1 | ||
| 69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH | ||||
| 69277-95J0002 |
LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 69277-95J00E0 |
KZH106..4FC..CTM;LH113,123,RZH112..HRF;KZH10#,11#,12#,LH125,129,RZH100,101,124..06S,07S,08S,10S,15S ANTELOPE,TRIM4# |
1 | ||
| 69277-95J00B0 |
KZH10#,11#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..CD,CTM,DX,GL,SCM,SCMM,SGL BLUISH GRAY,TRIM1# |
1 | ||
| 69277-95J0003 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 69277-95J00E0 |
KZH10#,12#,13#,RZH101 ANTELOPE,TRIM4# |
1 | ||
| 69277-95J00B0 |
KZH10#,LH10#,11#,123,129,RZH10#,112..03S,05S,06S,08S,09S BLUISH GRAY,TRIM1# |
1 | ||
| 69277-95J00B0 |
KZH10#,LH10#,11#,123,129,RZH10#,112..03S,05S,06S,08S,09S BLUISH GRAY,TRIM1# |
1 | ||
| 69277-95J0002 |
LH123..4FC;LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 69277-95J00B0 |
LH123,129..06S;KZH100..08S..5F;KZH106..4FC..CTM;KZH100..(08S,09S)..4FC;KZH106,LH103,119,RZH100,101..05S,08S;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL) BLUISH GRAY,TRIM1# |
1 | ||
| 69277-95J00E0 |
KZH10#,12#,RZH101..07S,08S,10S ANTELOPE,TRIM4# |
1 | ||
| 69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH | ||||
| 69278-95J0002 |
LH123..4FC;LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 69278-95J00B0 |
KZH10#,LH10#,11#,123,129,RZH10#,112..03S,05S,06S,08S,09S BLUISH GRAY,TRIM1# |
1 | ||
| 69278-95J00E0 |
KZH10#,12#,RZH101..07S,08S,10S ANTELOPE,TRIM4# |
1 | ||
| 69278-95J00B0 |
LH123,129..06S;KZH100..08S..5F;KZH106..4FC..CTM;KZH100..(08S,09S)..4FC;KZH106,LH103,119,RZH100,101..05S,08S;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL) BLUISH GRAY,TRIM1# |
1 | ||
| 69278-95J0002 |
LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 69278-95J00B0 |
KZH10#,11#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..CD,CTM,DX,GL,SCM,SCMM,SGL BLUISH GRAY,TRIM1# |
1 | ||
| 69278-95J00B0 |
KZH10#,LH10#,11#,123,129,RZH10#,112..03S,05S,06S,08S,09S BLUISH GRAY,TRIM1# |
1 | ||
| 69278-95J0003 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 69278-95J00E0 |
KZH106..4FC..CTM;LH113,123,RZH112..HRF;KZH10#,11#,12#,LH125,129,RZH100,101,124..06S,07S,08S,10S,15S ANTELOPE,TRIM4# |
1 | ||
| 69278-95J00E0 |
KZH10#,12#,13#,RZH101 ANTELOPE,TRIM4# |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 左側 |
1 | ||
| 69293-12040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 右側 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-26010 |
LH10#,113,119,120,125,RZH10#,112..CTM,GCGE,GCGN,GL,SCM,SCMM,SGL |
1 | ||
| 69030-95J02 |
LH10#,113,119,125,RZH10#,112..CTM,GL,SCM,SCMM,SGL |
1 | ||
| 69030-26040 |
KZH11#..4FC;KZH10#,12#,13#,LH103,11#,RZH100,101..(03S,05S,08S,10S)..(DX,GCGE,GCGN,SCM,SCMM,SGL) ｱﾘ(ﾏｽﾀｰｽｲﾂﾁ ｼｷ ﾊﾟﾜｰﾄﾞｱﾛﾂｸ & ﾊﾟﾜｰｳｲﾝﾄﾞｳ) |
1 | ||
| 69030-26040 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..DX,GCGE,GCGN,GL,SCM,SCMM,SGL ｱﾘ(ﾏｽﾀｰｽｲﾂﾁ ｼｷ ﾊﾟﾜｰﾄﾞｱﾛﾂｸ & ﾊﾟﾜｰｳｲﾝﾄﾞｳ) |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-26010 |
LH10#,113,119,120,125,RZH10#,112..CTM,GCGE,GCGN,GL,SCM,SCMM,SGL |
1 | ||
| 69030-95J02 |
LH10#,113,119,125,RZH10#,112..CTM,GL,SCM,SCMM,SGL |
1 | ||
| 69030-26040 |
KZH11#..4FC;KZH10#,12#,13#,LH103,11#,RZH100,101..(03S,05S,08S,10S)..(DX,GCGE,GCGN,SCM,SCMM,SGL) ｱﾘ(ﾏｽﾀｰｽｲﾂﾁ ｼｷ ﾊﾟﾜｰﾄﾞｱﾛﾂｸ & ﾊﾟﾜｰｳｲﾝﾄﾞｳ) |
1 | ||
| 69030-26040 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..DX,GCGE,GCGN,GL,SCM,SCMM,SGL ｱﾘ(ﾏｽﾀｰｽｲﾂﾁ ｼｷ ﾊﾟﾜｰﾄﾞｱﾛﾂｸ & ﾊﾟﾜｰｳｲﾝﾄﾞｳ) |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-26010 |
LH10#,113,119,120,125,RZH10#,112..CTM,GCGE,GCGN,GL,SCM,SCMM,SGL |
1 | ||
| 69040-95J02 |
LH10#,113,119,125,RZH10#,112..CTM,GL,SCM,SCMM,SGL |
1 | ||
| 69040-26011 |
LH113..5D..DX;LH113..09S..DX;LH113..CD,GL,SGL;LH113..V2..4D..DX;KZH11#,LH10#,119,RZH102,11#;KZH10#,12#,13#,LH113,12#,RZH100,101,124,133..(HRF,MRF,SMRF)..4D..(03S,06S,08S,09S,10S,15S) ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ) |
1 | ||
| 69040-26100 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..DX,GCGE,GCGN,GL,SCM,SCMM,SGL ｱﾘ(ﾏｽﾀｰｽｲﾂﾁ ｼｷ ﾊﾟﾜｰﾄﾞｱﾛﾂｸ & ﾊﾟﾜｰｳｲﾝﾄﾞｳ) |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-26010 |
LH10#,113,119,120,125,RZH10#,112..CTM,GCGE,GCGN,GL,SCM,SCMM,SGL |
1 | ||
| 69040-95J02 |
LH10#,113,119,125,RZH10#,112..CTM,GL,SCM,SCMM,SGL |
1 | ||
| 69040-26011 |
LH113..5D..DX;LH113..09S..DX;LH113..CD,GL,SGL;LH113..V2..4D..DX;KZH11#,LH10#,119,RZH102,11#;KZH10#,12#,13#,LH113,12#,RZH100,101,124,133..(HRF,MRF,SMRF)..4D..(03S,06S,08S,09S,10S,15S) ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ) |
1 | ||
| 69040-26100 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..DX,GCGE,GCGN,GL,SCM,SCMM,SGL ｱﾘ(ﾏｽﾀｰｽｲﾂﾁ ｼｷ ﾊﾟﾜｰﾄﾞｱﾛﾂｸ & ﾊﾟﾜｰｳｲﾝﾄﾞｳ) |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-14050 |
LH10#,11#,12#,140,RZH10#,11#,12# |
2 | ||
| 69410-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 69410-20070 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12# |
2 | ||
| 69511E - RETAINER, FRONT DOOR LOCK CYLINDER | ||||
| 69511-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
2 | ||
| 69511-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S |
2 | ||
| 69511-26010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69711-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69712-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 69731A - LINK, FRONT DOOR INSIDE LOCKING, NO.1 RH | ||||
| 69731-95J00 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 69750-26030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 69732A - LINK, FRONT DOOR INSIDE LOCKING, NO.1 LH | ||||
| 69732-95J00 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 69760-26030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 69733 - LINK, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69733-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 69734 - LINK, FRONT DOOR INSIDE LOCKING, LH | ||||
| 69734-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1 | ||||
| 69749-20030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
6 | ||
| 69749-50010 |
LH10#,11#,12#,RZH10#,11#,12# |
6 | ||
| 69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1 | ||||
| 69749-20030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
6 | ||
| 69749-50010 |
LH10#,11#,12#,RZH10#,11#,12# |
6 | ||
| 69755 - SILENCER, FRONT DOOR LOCK LINK | ||||
| 69759-95500 |
LH100,102,107,113,119,RZH100,101..05S,07S,08S |
2 | ||
| 69759-95500 |
LH123,129..06S;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL);KZH10#,11#,12#,LH103,119,RZH100,101..05S,07S,08S,10S |
2 | ||
| 69759-95500 |
LH120..GCGE,GCGN;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL);LH100,102,107,110,117,119,RZH100,101..05S,07S,08S,10S |
2 | ||
| 69759-95500 |
LH113..V1..SRF..4D..(05S,06S)..(DX,SGL);LH119,123,129..4D..(05S,06S,08S)..(DX,SGL);KZH10#,11#,12#,LH103,RZH100,101..05S,07S,08S,10S |
2 | ||
| 69759-95500 |
KZH11#..4FC;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL);LH119,123,129..4D..(05S,06S,08S)..(DX,SGL);KZH10#,12#,13#,LH103,184,186,RZH101..(03S,05S,07S,08S,10S,15S)..(DX,GCGE,GCGN,SCL,SCM,SCMM,SGL) |
2 | ||
| 69759-95500 |
LH10#,11#,12#,RZH10#,11#,12# |
2 | ||
| 69759S - SNAP, FRONT DOOR INSIDE HANDLE | ||||
| 69759-24070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 右側,ｲｴﾛｰ |
2 | ||
| 69759-24040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133 右側,ﾋﾟﾝｸ |
1 | ||
| 69759-14050 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 左側,ﾋﾟﾝｸ |
2 | ||
| 69759-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133 左側,ﾚｯﾄﾞ |
1 | ||
| 69759S - SNAP, FRONT DOOR INSIDE HANDLE | ||||
| 69759-24070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 右側,ｲｴﾛｰ |
2 | ||
| 69759-24040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133 右側,ﾋﾟﾝｸ |
1 | ||
| 69759-14050 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 左側,ﾋﾟﾝｸ |
2 | ||
| 69759-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133 左側,ﾚｯﾄﾞ |
1 | ||
| 69759S - SNAP, FRONT DOOR INSIDE HANDLE | ||||
| 69759-24070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 右側,ｲｴﾛｰ |
2 | ||
| 69759-24040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133 右側,ﾋﾟﾝｸ |
1 | ||
| 69759-14050 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 左側,ﾋﾟﾝｸ |
2 | ||
| 69759-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133 左側,ﾚｯﾄﾞ |
1 | ||
| Common parts | ||||
| 90148-60022 | ||||
| 90148-60044 | ||||
| 90159-60303 | ||||
| 90159-60539 | ||||
| 90159-60573 | ||||
| 90159-80036 | ||||
| 90189-06128 | ||||
| 90467-04014 | ||||
| 90467-08117 | ||||
| 93520-54010 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
