RZH100G-MRPGE (1989)
Toyota Hiace/Regiusace

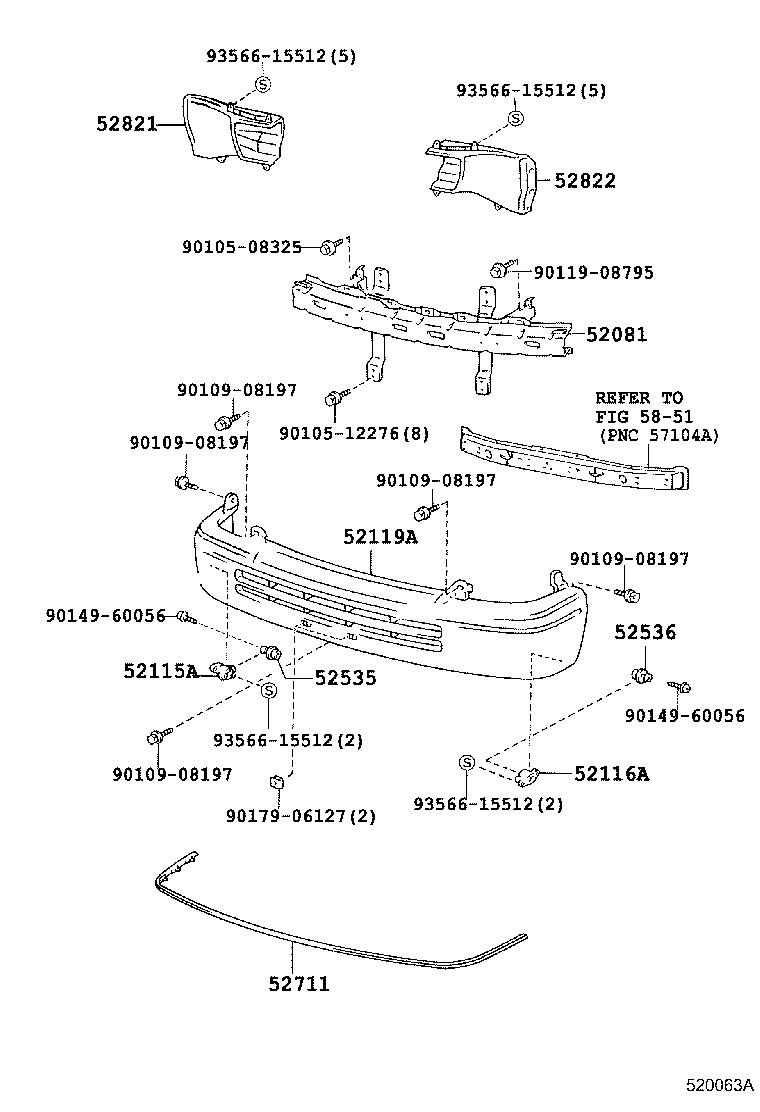

(8908-9308)LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..HRF,SRF ; (9308-99
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52081 - STAY SUB-ASSY, FRONT BUMPER | ||||
| 52081-95J04 |
LH100,107,RZH100,101..MRF,SMRF |
1 | ||
| 52081-26040 |
LH100,107,120,RZH100,101..HRF,MRF,SMRF |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-95J04 |
LH100,107,120,RZH100,101..HRF,MRF,SMRF |
1 | ||
| 52115-95J04 |
LH100,107,RZH100,101..MRF,SMRF |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-95J02 |
LH100,107,RZH100,101..MRF,SMRF |
1 | ||
| 52116-95J02 |
LH100,107,120,RZH100,101..HRF,MRF,SMRF |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-95J2604 |
LH100,107,RZH100,101..08S ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),LIGHT BLUE M.,8E8 |
1 | ||
| 52119-95J2707 |
LH100,107,RZH100,101..08S LIGHT GREEN M.,29M ,9D5 |
1 | ||
| 52119-95J2706 |
LH100,107,RZH100,101..08S LIGHT BROWN M.,21N ,4K6 |
1 | ||
| 52119-95J2607 |
LH100,107,RZH100,101..08S ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),LIGHT GREEN M.,29M ,9D5 |
1 | ||
| 52119-95J2614 |
LH100,107,RZH100,101..08S ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),GRAYISH BLUE M.,20N ,8G8 |
1 | ||
| 52119-95J2606 |
LH100,107,RZH100,101..08S ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),LIGHT BROWN M.,21N ,4K6 |
1 | ||
| 52119-95J2714 |
LH100,107,RZH100,101..08S GRAYISH BLUE M.,20N ,8G8 |
1 | ||
| 52119-95J2704 |
LH100,107,RZH100,101..08S LIGHT BLUE M.,8E8 |
1 | ||
| 52119-26070E2 |
KZH10#,12#,RZH100,101..08S,10S BEIGE M,4K1 |
1 | ||
| 52119-26090J1 |
KZH10#,RZH100,101..08S ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),GRAYISH BLUE MM,20N ,8G8 |
1 | ||
| 52119-26070J1 |
KZH10#,RZH100,101..08S GRAYISH BLUE MM,20N ,8G8 |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-95J00 |
LH10#,11#,123,125,129,140,RZH10#,11#,12# 長さ=15 |
1 | ||
| 52535-95J00 |
LH10#,11#,12#,140,RZH10#,11#,12# 長さ=15 |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52535-95J00 |
LH10#,11#,12#,140,RZH10#,11#,12# 長さ=15 |
1 | ||
| 52535-95J00 |
LH10#,11#,123,125,129,140,RZH10#,11#,12# 長さ=15 |
1 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-95J01 |
LH100,107,120,RZH100,101..GCGE,GCGN,SCL,SCM,SCMM ﾒｯｷ |
1 | ||
| 52821 - DUCT, AIR INTAKE, RH | ||||
| 52821-95J00 |
LH100,107,RZH100,101..MRF,SMRF |
1 | ||
| 52821-95J00 |
LH100,107,120,RZH100,101..HRF,MRF,SMRF |
1 | ||
| 52822 - DUCT, AIR INTAKE, LH | ||||
| 52822-95J00 |
LH100,107,120,RZH100,101..HRF,MRF,SMRF |
1 | ||
| 52822-95J00 |
LH100,107,RZH100,101..MRF,SMRF |
1 | ||
| Common parts | ||||
| 90105-08325 | ||||
| 90105-12276 | ||||
| 90109-08197 | ||||
| 90119-08795 | ||||
| 90149-60056 | ||||
| 90179-06127 | ||||
| 93566-15512 | ||||
| Linked diagrams | ||||
| 5851 | ||||

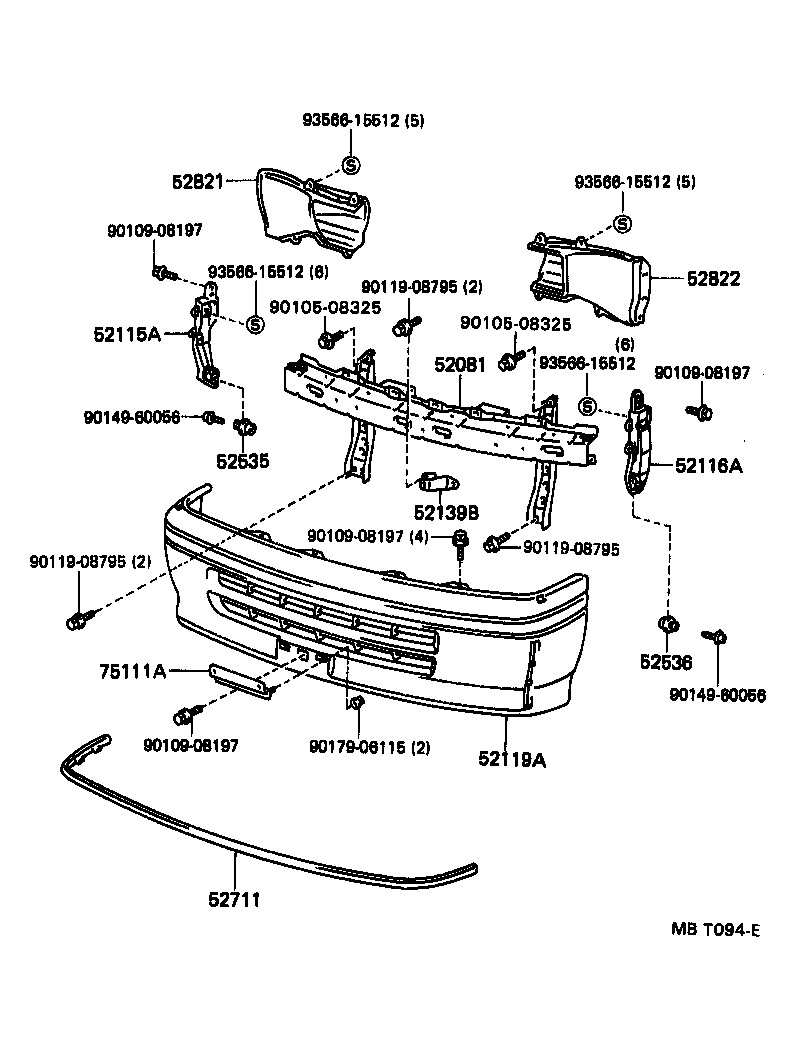

(8908-9205)MRF,SMRF ; (9205-9308)LH100,107,120,RZH100,101..HRF,MRF,SMRF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52081 - STAY SUB-ASSY, FRONT BUMPER | ||||
| 52081-95J04 |
LH100,107,RZH100,101..MRF,SMRF |
1 | ||
| 52081-26040 |
LH100,107,120,RZH100,101..HRF,MRF,SMRF |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-95J04 |
LH100,107,120,RZH100,101..HRF,MRF,SMRF |
1 | ||
| 52115-95J04 |
LH100,107,RZH100,101..MRF,SMRF |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-95J02 |
LH100,107,RZH100,101..MRF,SMRF |
1 | ||
| 52116-95J02 |
LH100,107,120,RZH100,101..HRF,MRF,SMRF |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-95J2604 |
LH100,107,RZH100,101..08S ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),LIGHT BLUE M.,8E8 |
1 | ||
| 52119-95J2707 |
LH100,107,RZH100,101..08S LIGHT GREEN M.,29M ,9D5 |
1 | ||
| 52119-95J2706 |
LH100,107,RZH100,101..08S LIGHT BROWN M.,21N ,4K6 |
1 | ||
| 52119-95J2607 |
LH100,107,RZH100,101..08S ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),LIGHT GREEN M.,29M ,9D5 |
1 | ||
| 52119-95J2614 |
LH100,107,RZH100,101..08S ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),GRAYISH BLUE M.,20N ,8G8 |
1 | ||
| 52119-95J2606 |
LH100,107,RZH100,101..08S ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),LIGHT BROWN M.,21N ,4K6 |
1 | ||
| 52119-95J2714 |
LH100,107,RZH100,101..08S GRAYISH BLUE M.,20N ,8G8 |
1 | ||
| 52119-95J2704 |
LH100,107,RZH100,101..08S LIGHT BLUE M.,8E8 |
1 | ||
| 52119-26070E2 |
KZH10#,12#,RZH100,101..08S,10S BEIGE M,4K1 |
1 | ||
| 52119-26090J1 |
KZH10#,RZH100,101..08S ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),GRAYISH BLUE MM,20N ,8G8 |
1 | ||
| 52119-26070J1 |
KZH10#,RZH100,101..08S GRAYISH BLUE MM,20N ,8G8 |
1 | ||
| 52139B - BRACE, FRONT BUMPER, CENTER | ||||
| 52139-95J00 |
LH100,107,120,RZH100,101..HRF,MRF,SMRF |
1 | ||
| 52139-95J00 |
LH100,107,RZH100,101..MRF,SMRF |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-95J00 |
LH10#,11#,123,125,129,140,RZH10#,11#,12# 長さ=15 |
1 | ||
| 52535-95J00 |
LH10#,11#,12#,140,RZH10#,11#,12# 長さ=15 |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52535-95J00 |
LH10#,11#,12#,140,RZH10#,11#,12# 長さ=15 |
1 | ||
| 52535-95J00 |
LH10#,11#,123,125,129,140,RZH10#,11#,12# 長さ=15 |
1 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-95J01 |
LH100,107,120,RZH100,101..GCGE,GCGN,SCL,SCM,SCMM ﾒｯｷ |
1 | ||
| 52821 - DUCT, AIR INTAKE, RH | ||||
| 52821-95J00 |
LH100,107,RZH100,101..MRF,SMRF |
1 | ||
| 52821-95J00 |
LH100,107,120,RZH100,101..HRF,MRF,SMRF |
1 | ||
| 52822 - DUCT, AIR INTAKE, LH | ||||
| 52822-95J00 |
LH100,107,120,RZH100,101..HRF,MRF,SMRF |
1 | ||
| 52822-95J00 |
LH100,107,RZH100,101..MRF,SMRF |
1 | ||
| 75111A - BRACKET, FRONT LICENSE PLATE | ||||
| 75111-95J04 |
LH100,107,RZH100,101..MRF,SMRF |
1 | ||
| 75111-95J04 |
LH100,107,120,RZH100,101..HRF,MRF,SMRF |
1 | ||
| Common parts | ||||
| 90105-08325 | ||||
| 90109-08197 | ||||
| 90119-08795 | ||||
| 90149-60056 | ||||
| 90179-06115 | ||||
| 93566-15512 | ||||
