RZH100G-MRMGE (1989)
Toyota Hiace/Regiusace
(8908-9907)RZH100,101,110,111

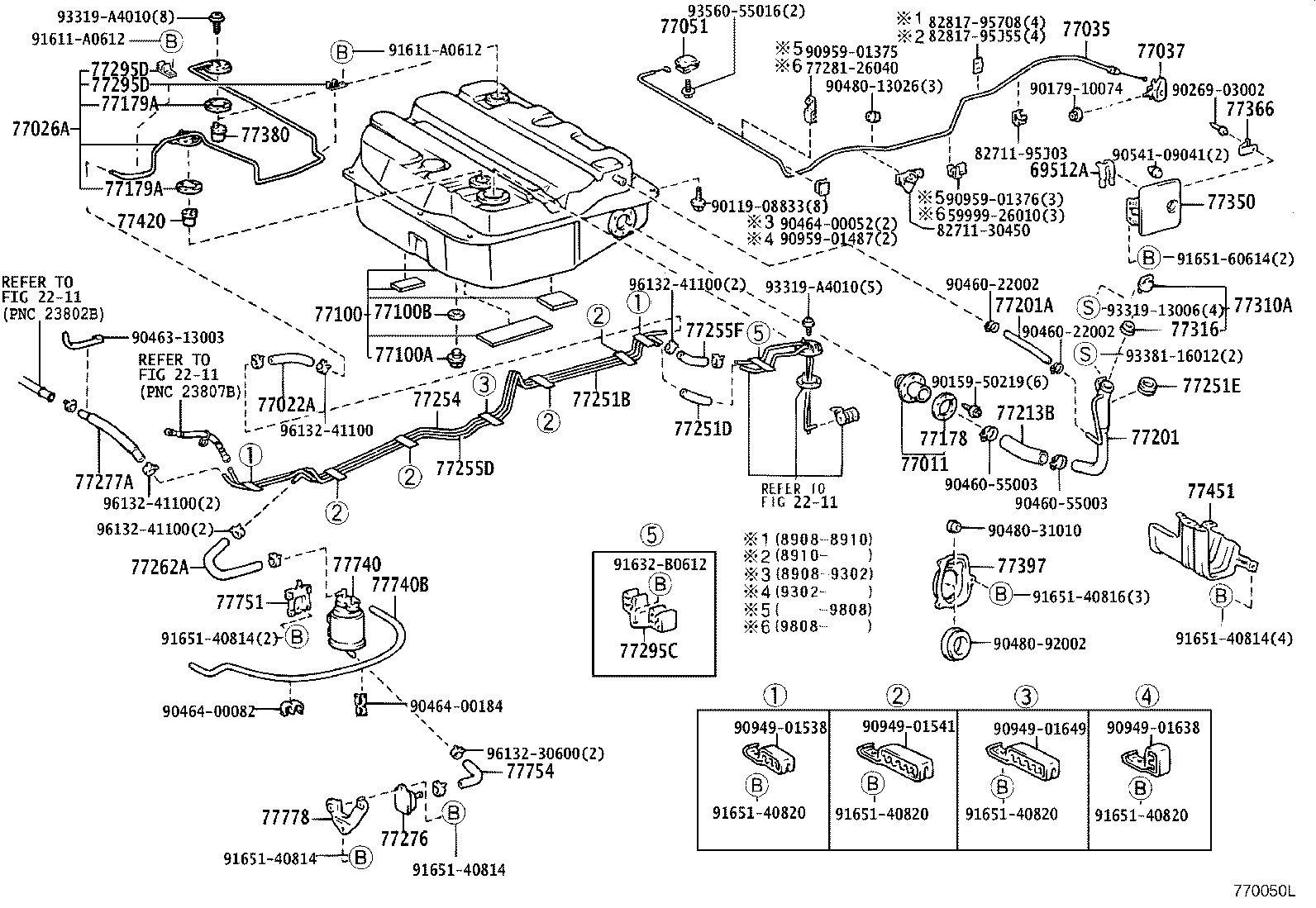

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06020 |
RZH112..CBR;RZH112..V1..EFI;RZH10#,110,111,12#,133..COM,V1,WG *H,L=150 |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-26040 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12#..COM,V1,WG |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-95J07 |
KZH10#,LH10#,140,RZH10#..05S,06S,07S,08S,09S |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-32010 |
LH113,119,RZH112;KZH10#,11#,12#,13#,LH10#,110,115,117,12#,140,RZH10#,110,111,12#,133..CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL,SW |
1 | ||
| 77051 - LEVER SUB-ASSY, FUEL LID OPEN | ||||
| 77051-95J0102 |
LH123..4FC;LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 77051-95J0102 |
LH100,107,110,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 77051-95J0103 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-26460 |
RZH100,101,110 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133..COM,V1,WG |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG |
2 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG |
2 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-26141 |
LH10#,11#,12#,140,RZH10#,11#,12#..COM,V1,WG |
1 | ||
| 77201-26140 |
LH10#,11#,12#,140,RZH10#,11#,12#..COM,V1,WG |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 95311-13032 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG 長さ=320 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-26080 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-26530 |
RZH10#..(V1,WG)..EFI |
1 | ||
| 77251E - SHIELD, FUEL TANK INLET PIPE | ||||
| 77251-10010 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77263-26080 |
RZH10#..V1,WG |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-26260 |
RZH10#..V1,WG |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-06020 |
RZH10#,11#,12#..COM,V1,WG *H,L=190 |
1 | ||
| 77262A - HOSE, FUEL, NO.1(FOR FUEL TANK TO CANISTER CENTER TUBE) | ||||
| 95333-06030 |
RZH10#,11#,12# |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-26080 |
RZH10#,11#,124,133..EFI |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12118 |
RZH10#;RZH112..V2 長さ=300 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-12100 |
RZH10#,11#,12# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-12050 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-95J01 |
LH10#,11#,12#,140,RZH10#,11#,12#..05S,06S,07S,08S,09S,10S,15S |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
LH10#,11#,12#,140,RZH10#,11#,12#..COM,V1,WG |
1 | ||
| 77397 - PLATE, FUEL INLET PIPE SEAL | ||||
| 77397-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG |
1 | ||
| 77420 - VALVE ASSY, FUEL CUT OFF, NO.2 | ||||
| 77420-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG |
1 | ||
| 77451 - PROTECTOR, FUEL INLET HOSE | ||||
| 77451-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-26030 |
RZH100,102,11#,12# |
1 | ||
| 77740B - HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER) | ||||
| 90999-92004 |
RZH10#,11#,12# *H,L=900,ﾏｰｸ=#* |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-26040 |
RZH100,110 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 90445-12236 |
RZH100,110 長さ=110 |
1 | ||
| 77778 - BRACKET, FUEL HOSE PROTECTOR | ||||
| 77778-26010 |
RZH10#,11#,12#,133 |
1 | ||
| Common parts | ||||
| 59999-26010 | ||||
| 77281-26040 | ||||
| 82711-30450 | ||||
| 82711-95J03 | ||||
| 82817-95708 | ||||
| 82817-95J55 | ||||
| 90119-08833 | ||||
| 90159-50219 | ||||
| 90179-10074 | ||||
| 90269-03002 | ||||
| 90460-22002 | ||||
| 90460-55003 | ||||
| 90463-13003 | ||||
| 90464-00052 | ||||
| 90464-00082 | ||||
| 90464-00184 | ||||
| 90480-13026 | ||||
| 90480-31010 | ||||
| 90480-92002 | ||||
| 90541-09041 | ||||
| 90949-01538 | ||||
| 90949-01541 | ||||
| 90949-01638 | ||||
| 90949-01649 | ||||
| 90959-01375 | ||||
| 90959-01376 | ||||
| 90959-01487 | ||||
| 91611-A0612 | ||||
| 91632-B0612 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91651-40820 | ||||
| 91651-60614 | ||||
| 93319-13006 | ||||
| 93319-A4010 | ||||
| 93381-16012 | ||||
| 93560-55016 | ||||
| 96132-30600 | ||||
| 96132-41100 | ||||
| Linked diagrams | ||||
| 2211 | ||||
