RZH100G-MRMGE (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1993
Engine 1RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8908-9808)RZH10#,11#,12#,133

Click highlighted areas on diagram

diagram 44730 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730F 44758 44761 44764G 44771 44772 44774 44774 44776 8271112200 9046110734 9046110734 9046110734 9046110734 9046110734 91611B0816 91611B0816 91611B0816
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-24020

RZH10#,11#,12#,133

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 8
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51031

RZH10#,11#,12#,133

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-26060

RZH10#,11#,12#,133

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-26170

RZH10#,11#,12#

 1
44764G - TUBE, CONNECTOR TO BRAKE BOOSTER
44764-26070

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-26090

RZH10#,11#,12#,133

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-26130

RZH10#,11#,12#,133

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-26190

RZH10#,11#,124,125,133..EFI

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-26190

RZH10#,11#,124,125,133..EFI

 1
44776 - HOSE, BRAKE BOOSTER
44776-26020

KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133

ｱﾘ(ABS)

 1
Common parts
82711-12200
90461-10734
91611-B0816

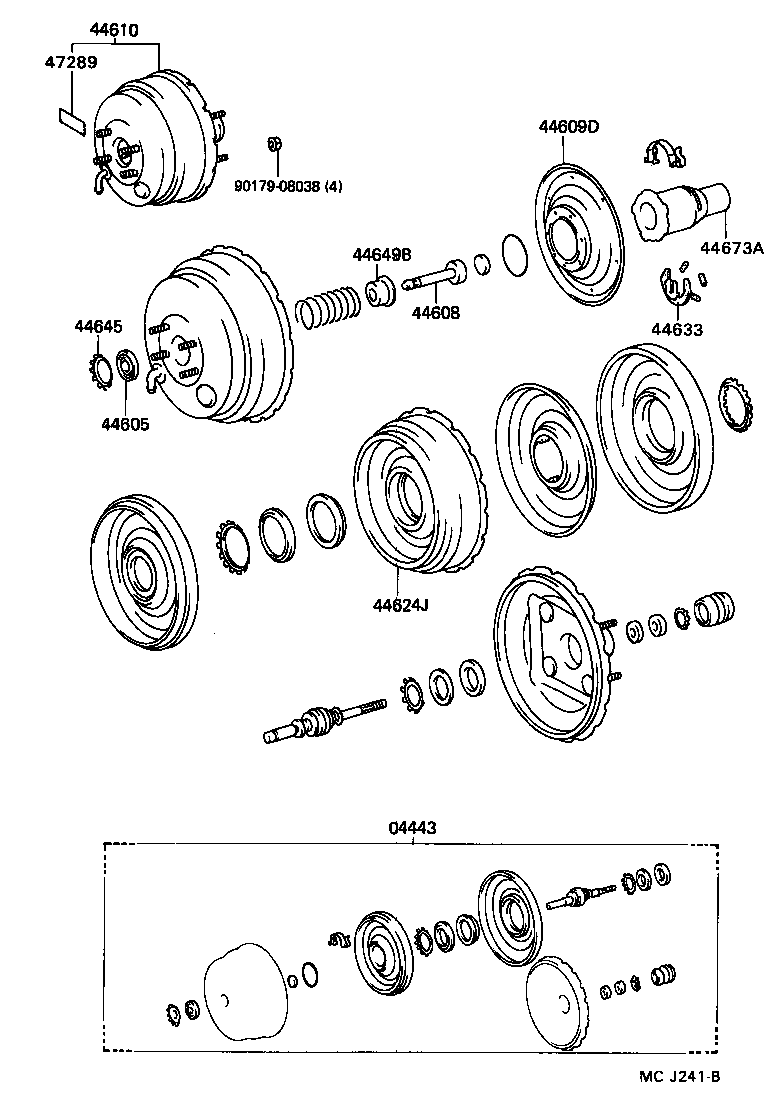

ILLUST NO. 1 OF 2(8908-9808)RZH100,101,110,111,133

Click highlighted areas on diagram

JKC

diagram 04443 44605 44608 44609D 44610 44624J 44633 44645 44649B 44673A 47289 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-26420

RZH100,101,110

 1
04443-26420

RZH100,110;RZH101..07S,08S

 1
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-30350

RZH100,101,110

 1
44605-30350

RZH100,110;RZH101..07S,08S

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-2B460

RZH100,101,110

 1
44608-2B460

RZH100,110;RZH101..07S,08S

 1
44609D - PLATE & RETAINER SUB-ASSY, BOOSTER
44609-2B640

RZH100,101,110

 1
44609-2B640

RZH100,110;RZH101..07S,08S

 1
44610 - BOOSTER ASSY, BRAKE
44610-26410

RZH100,110;RZH101..07S,08S

 1
44610-26410

RZH100,101,110

 1
44624J - PLATE, BOOSTER CENTER
44624-2B640

RZH100,110;RZH101..07S,08S

 1
44624-2B640

RZH100,101,110

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-2B460

RZH100,101,110

 1
44633-2B460

RZH100,110;RZH101..07S,08S

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-10080

RZH101..07S,08S;LH100,110,120,140,RZH100,110

 1
44645-10080

LH100,110,120,RZH100,101,110

 1
44649B - RETAINER, BOOSTER SPRING
44649-2B460

RZH100,101,110

 1
44649-2B460

RZH100,110;RZH101..07S,08S

 1
44673A - BODY, BOOSTER VALVE
44673-2B500

RZH100,101,110

 1
44673-2B500

RZH100,110;RZH101..07S,08S

 1
Common parts
90179-08038
