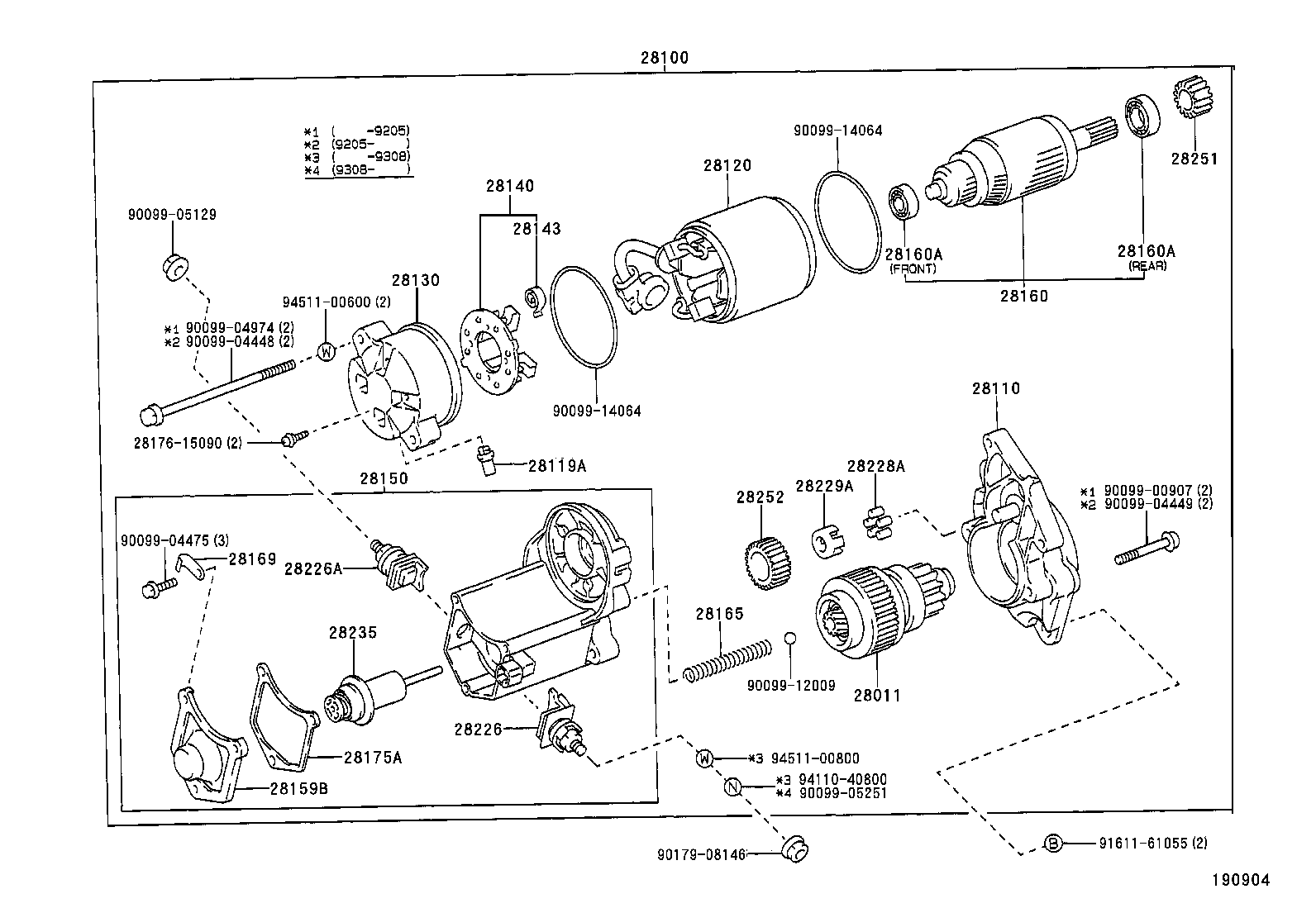

RZH100G-MRMGE (1989)
Toyota Hiace/Regiusace
(8908-9308)1RZ#,2RZE
12V 1.4KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-26042 |
1RZ#,2RZE..RZH10#,11#,12#,133 12V 1.0KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-75030 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.4KW |
1 | ||
| 28100-75010 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.0KW |
1 | ||
| 28100-75050 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.4KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-75050 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.4KW |
1 | ||
| 28110-75010 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.0KW |
1 | ||
| 28110-75030 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.4KW |
1 | ||
| 28119A - COVER, STARTER END FRAME | ||||
| 28199-72020 |
1RZ#,2RZE..RZH10#,11#,12# 12V 2.0KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-15090 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.4KW |
1 | ||
| 28120-26071 |
1RZ#,2RZE..RZH10#,11#,12#,133 12V 1.0KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-64100 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.4KW |
1 | ||
| 28130-15020 |
1RZ#,2RZE..RZH10#,11#,12#,133 12V 1.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-26070 |
1RZ#,2RZE..RZH10#,11#,12#,133 12V 1.0KW |
1 | ||
| 28140-15090 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.4KW |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
1RZ#,2RZE..RZH10#,11#,12#,133 ｶﾝﾚｲﾁ ｼﾖｳ |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-45050 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.4KW |
1 | ||
| 28150-41060 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.0KW |
1 | ||
| 28150-75050 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.4KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-15091 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.4KW |
1 | ||
| 28160-26071 |
1RZ#,2RZE..RZH10#,11#,12#,133 12V 1.0KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10143 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.4KW,ﾌﾛﾝﾄ |
1 | ||
| 90099-10197 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.4KW,ﾘﾔ |
1 | ||
| 90099-10113 |
1RZ#,2RZE..RZH10#,11#,12#,133 12V 1.0KW,ﾘﾔ |
1 | ||
| 90099-10144 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.4KW,ﾘﾔ |
1 | ||
| 28253-45020 |
1RZ#,2RZE..RZH10#,11#,12#,133 12V 1.0KW,ﾌﾛﾝﾄ |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10143 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.4KW,ﾌﾛﾝﾄ |
1 | ||
| 90099-10197 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.4KW,ﾘﾔ |
1 | ||
| 90099-10113 |
1RZ#,2RZE..RZH10#,11#,12#,133 12V 1.0KW,ﾘﾔ |
1 | ||
| 90099-10144 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.4KW,ﾘﾔ |
1 | ||
| 28253-45020 |
1RZ#,2RZE..RZH10#,11#,12#,133 12V 1.0KW,ﾌﾛﾝﾄ |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-76070 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.4KW |
1 | ||
| 28165-26040 |
1RZ#,2RZE..RZH10#,111,112,124,133;1KZTE,1RZ#..KZH10#,11#,12#,RZH110,12#..5F 12V 1.0KW |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-76070 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.4KW |
1 | ||
| 28226-72080 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.0KW |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-72010 |
1RZ#,2RZE..RZH10#,11#,12# 12V 2.2KW |
1 | ||
| 28228A - ROLLER, STARTER CLUTCH | ||||
| 28228-26040 |
1RZ#,2RZE..RZH10#,111,112,124,125,133;5L,1RZ#..LH16#,17#,18#,RZH110,122,124..5F 12V 2.2KW |
5 | ||
| 28229A - RETAINER, STARTER IDLE GEAR | ||||
| 28229-74070 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.4KW |
1 | ||
| 28229-26040 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.0KW |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-35080 |
1RZ#,2RZE..RZH10#,111,112,124,133;1KZTE,1RZ#..KZH10#,11#,12#,RZH110,12#..5F 12V 1.0KW |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28251-15090 |
1RZ#,2RZE..RZH10#,11#,12# |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
1RZ#,2RZE..RZH10#,11#,12#,133 12V 1.0KW |
1 | ||
| Common parts | ||||
| 28176-15090 | ||||
| 90099-00907 | ||||
| 90099-04448 | ||||
| 90099-04449 | ||||
| 90099-04475 | ||||
| 90099-04974 | ||||
| 90099-05129 | ||||
| 90099-05251 | ||||
| 90099-12009 | ||||
| 90099-14064 | ||||
| 90179-08146 | ||||
| 91611-61055 | ||||
| 94110-40800 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
(8908-9808)1RZ#,2RZE
12V 1.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-26042 |
1RZ#,2RZE..RZH10#,11#,12#,133 12V 1.0KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-75030 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.4KW |
1 | ||
| 28100-75010 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.0KW |
1 | ||
| 28100-75050 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.4KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-75050 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.4KW |
1 | ||
| 28110-75010 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.0KW |
1 | ||
| 28110-75030 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.4KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-15090 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.4KW |
1 | ||
| 28120-26071 |
1RZ#,2RZE..RZH10#,11#,12#,133 12V 1.0KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-64100 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.4KW |
1 | ||
| 28130-15020 |
1RZ#,2RZE..RZH10#,11#,12#,133 12V 1.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-26070 |
1RZ#,2RZE..RZH10#,11#,12#,133 12V 1.0KW |
1 | ||
| 28140-15090 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.4KW |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
1RZ#,2RZE..RZH10#,11#,12#,133 ｶﾝﾚｲﾁ ｼﾖｳ |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-45050 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.4KW |
1 | ||
| 28150-41060 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.0KW |
1 | ||
| 28150-75050 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.4KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-15091 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.4KW |
1 | ||
| 28160-26071 |
1RZ#,2RZE..RZH10#,11#,12#,133 12V 1.0KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10143 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.4KW,ﾌﾛﾝﾄ |
1 | ||
| 90099-10197 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.4KW,ﾘﾔ |
1 | ||
| 90099-10113 |
1RZ#,2RZE..RZH10#,11#,12#,133 12V 1.0KW,ﾘﾔ |
1 | ||
| 90099-10144 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.4KW,ﾘﾔ |
1 | ||
| 28253-45020 |
1RZ#,2RZE..RZH10#,11#,12#,133 12V 1.0KW,ﾌﾛﾝﾄ |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10143 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.4KW,ﾌﾛﾝﾄ |
1 | ||
| 90099-10197 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.4KW,ﾘﾔ |
1 | ||
| 90099-10113 |
1RZ#,2RZE..RZH10#,11#,12#,133 12V 1.0KW,ﾘﾔ |
1 | ||
| 90099-10144 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.4KW,ﾘﾔ |
1 | ||
| 28253-45020 |
1RZ#,2RZE..RZH10#,11#,12#,133 12V 1.0KW,ﾌﾛﾝﾄ |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-76070 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.4KW |
1 | ||
| 28165-26040 |
1RZ#,2RZE..RZH10#,111,112,124,133;1KZTE,1RZ#..KZH10#,11#,12#,RZH110,12#..5F 12V 1.0KW |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-76070 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.4KW |
1 | ||
| 28226-72080 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.0KW |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-72010 |
1RZ#,2RZE..RZH10#,11#,12# 12V 2.2KW |
1 | ||
| 28228A - ROLLER, STARTER CLUTCH | ||||
| 28228-26040 |
1RZ#,2RZE..RZH10#,111,112,124,125,133;5L,1RZ#..LH16#,17#,18#,RZH110,122,124..5F 12V 2.2KW |
5 | ||
| 28229A - RETAINER, STARTER IDLE GEAR | ||||
| 28229-74070 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.4KW |
1 | ||
| 28229-26040 |
1RZ#,2RZE..RZH10#,11#,12# 12V 1.0KW |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-35080 |
1RZ#,2RZE..RZH10#,111,112,124,133;1KZTE,1RZ#..KZH10#,11#,12#,RZH110,12#..5F 12V 1.0KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
1RZ#,2RZE..RZH10#,11#,12#,133 12V 1.0KW |
1 | ||
| Common parts | ||||
| 90099-00902 | ||||
| 90099-00907 | ||||
| 90099-04473 | ||||
| 90099-04562 | ||||
| 90099-05129 | ||||
| 90099-05251 | ||||
| 90099-12009 | ||||
| 90179-08146 | ||||
| 91611-61055 | ||||
| 91612-61055 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
