RZH100G-JRPEE (1989)
Toyota Hiace/Regiusace

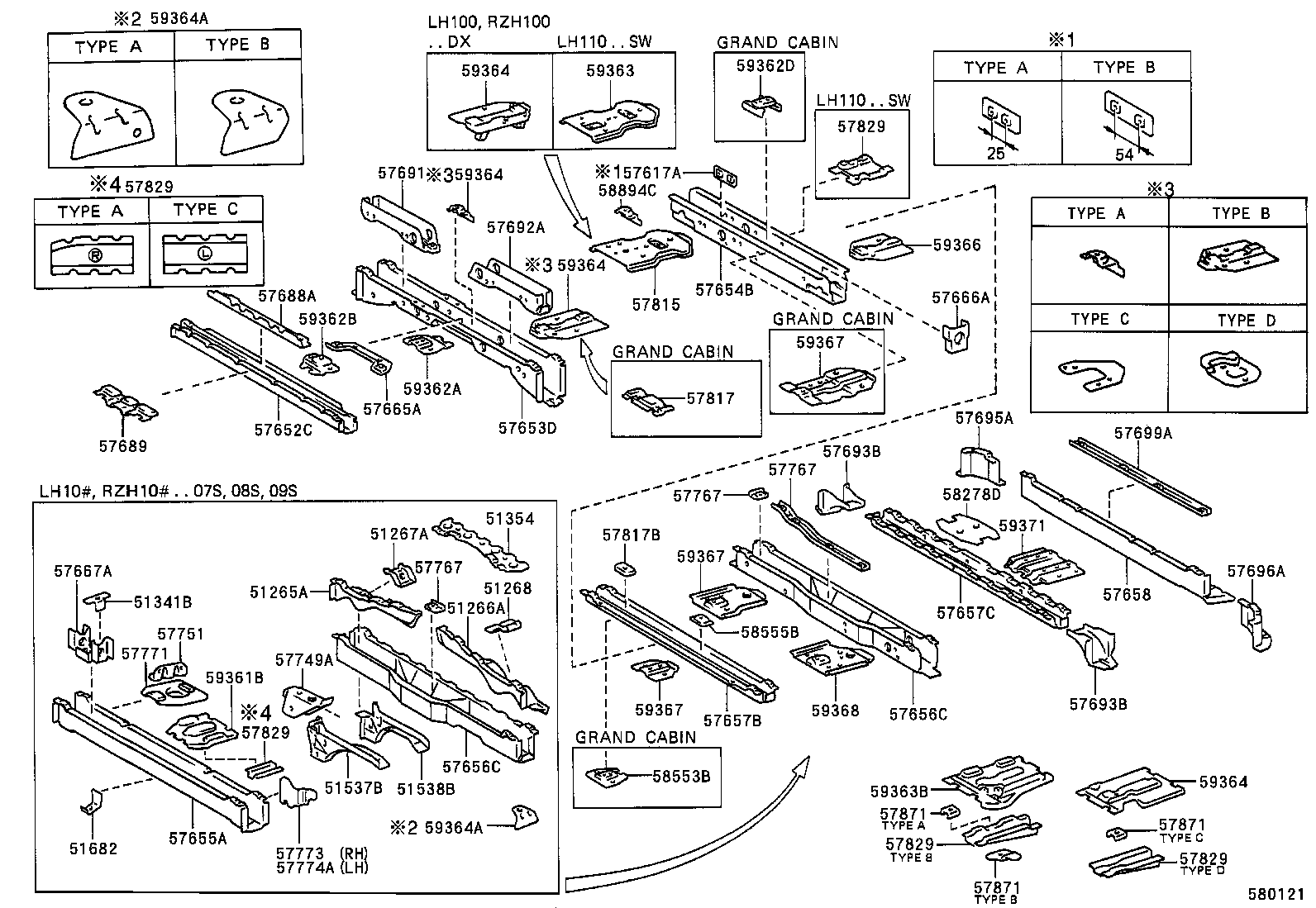

ILLUST NO. 1 OF 4(8908-9308)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 57442-95J00 | ||||
| 90950-01006 | ||||
| 90950-01027 | ||||
| 90950-01036 | ||||
| 90950-01038 | ||||
| 90950-01272 | ||||
| 90950-01429 | ||||
| 90950-01510 | ||||
| 90950-01691 | ||||
| 90950-01759 | ||||
| 90950-01849 | ||||
ILLUST NO. 2 OF 4(8908- )LH102,103,109,113,119,123,129,16#,17#,182,188,RZH102,112,122,18#,TRH102,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57023 - MEMBER SUB-ASSY, REAR SIDE, RH | ||||
| 57023-95N27 |
LH100,RZH100,101..07S,08S |
1 | ||
| 57024 - MEMBER SUB-ASSY, REAR SIDE, LH | ||||
| 57024-95N15 |
LH100,RZH100,101..07S,08S |
1 | ||
| 57078 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER | ||||
| 57069-95J08 |
LH100,107,RZH100,101..MRF,SMRF |
1 | ||
| 57069-95J08 |
KZH10#,11#,12#,LH125,RZH100,101,124 ﾅｼ(ｽﾃﾂﾌﾟ ﾀｲﾌﾟ ﾘﾔ ﾊﾞﾝﾊﾟ) |
1 | ||
| 57069-95J08 |
LH100,107,120,RZH100,101..HRF,MRF,SMRF |
1 | ||
| 57069-95J08 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH125,129,RZH100,101,124 ﾅｼ(ｽﾃﾂﾌﾟ ﾀｲﾌﾟ ﾘﾔ ﾊﾞﾝﾊﾟ) |
1 | ||
| 57079 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER | ||||
| 57068-95J07 |
LH119..05S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH100,107,110,115,117,120,125,RZH100,101,110,124..CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM ﾅｼ(ｽﾃﾂﾌﾟ ﾀｲﾌﾟ ﾘﾔ ﾊﾞﾝﾊﾟ) |
1 | ||
| 57068-95J07 |
LH113..V1..SRF..4D..06S..5F..DX;LH100,107,110,115,120,125,RZH100,101,110,124 ﾅｼ(ｽﾃﾂﾌﾟ ﾀｲﾌﾟ ﾘﾔ ﾊﾞﾝﾊﾟ) |
1 | ||
| 57068-95J07 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH125,129,RZH100,101,124 ﾅｼ(ｽﾃﾂﾌﾟ ﾀｲﾌﾟ ﾘﾔ ﾊﾞﾝﾊﾟ) |
1 | ||
| 57068-95J07 |
LH100,107,110,115,120,125,RZH100,101,110,124 ﾅｼ(ｽﾃﾂﾌﾟ ﾀｲﾌﾟ ﾘﾔ ﾊﾞﾝﾊﾟ) |
1 | ||
| 57068-95J07 |
LH113..V1..SRF..4D..06S..DX;LH100,107,110,115,117,120,125,RZH100,101,110,124..CTM,DX,GL,SCL,SCM,SCMM ﾅｼ(ｽﾃﾂﾌﾟ ﾀｲﾌﾟ ﾘﾔ ﾊﾞﾝﾊﾟ) |
1 | ||
| 57307B - OUTRIGGER SUB-ASSY, NO.4 RH | ||||
| 57317-95J08 |
KZH10#,11#,12#,13#,LH10#,11#,123,125,129,140,16#,17#,18#,RZH10#,11#,12#,133..(COM,V1,WG)..4D ﾌﾛﾝﾄ |
1 | ||
| 57317-95J06 |
KZH10#,11#,12#,13#,LH10#,11#,123,125,129,140,16#,17#,18#,RZH10#,11#,12#,133..(COM,V1,WG)..4D ﾘﾔ |
1 | ||
| 57307B - OUTRIGGER SUB-ASSY, NO.4 RH | ||||
| 57317-95J08 |
KZH10#,11#,12#,13#,LH10#,11#,123,125,129,140,16#,17#,18#,RZH10#,11#,12#,133..(COM,V1,WG)..4D ﾌﾛﾝﾄ |
1 | ||
| 57317-95J06 |
KZH10#,11#,12#,13#,LH10#,11#,123,125,129,140,16#,17#,18#,RZH10#,11#,12#,133..(COM,V1,WG)..4D ﾘﾔ |
1 | ||
| 57308B - OUTRIGGER SUB-ASSY, NO.4 LH | ||||
| 57308-95J11 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG |
1 | ||
| 57311 - OUTRIGGER, NO.1 RH | ||||
| 57301-95J08 |
LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..(COM,V1,WG)..4D |
1 | ||
| 57361A - COVER, NO.2 OUTERIGGER HOLE | ||||
| 57094-95J00 |
LH102,113,RZH102,112..4D..CD;LH10#,11#,12#,140,RZH10#,11#,12#..05S,06S,07S,08S,09S,10S,15S |
2 | ||
| 57361-95J01 |
LH100,107,110,115,117,120,125,RZH100,101,110,124..CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 57362A - PACKING, NO.2 OUTRIGGER HOLE COVER | ||||
| 57362-95J01 |
LH102,113,RZH102,112..4D..CD;LH10#,11#,12#,140,RZH10#,11#,12#..05S,06S,07S,08S,09S,10S,15S |
2 | ||
| 57362-95J01 |
LH100,107,110,115,117,120,125,RZH100,101,110,124..CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 57413 - RAIL, FLOOR SIDE, CENTER RH | ||||
| 57413-95N03 |
LH100,107,RZH100,101..07S,08S |
1 | ||
| 57414 - RAIL, FLOOR SIDE, CENTER LH | ||||
| 57414-95J85 |
LH100,107,RZH100,101..07S,08S |
1 | ||
| 57415 - RAIL, FLOOR SIDE, REAR RH | ||||
| 57047-95J23 |
LH100,107,RZH100,101..DX,SCM |
1 | ||
| 57047-95J28 |
LH100,107,RZH100,101..SCM ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 57416 - RAIL, FLOOR SIDE, REAR LH | ||||
| 57048-95J06 |
LH100,107,RZH100,101..DX,SCM |
1 | ||
| 57516 - BRACKET SUB-ASSY, PARKING BRAKE, LH | ||||
| 57516-95J02 |
KZH10#,LH100,107,RZH100,101..08S,09S |
1 | ||
| 58022A - REINFORCEMENT SUB-ASSY, HEADER PANEL | ||||
| 58022-95J06 |
LH10#,11#,123,125,129,RZH10#,11#,12# |
1 | ||
| 58106 - BRACKET SUB-ASSY, BRAKE TUBE CONNECTOR, NO.2 | ||||
| 58106-95A00 |
LH10#,11#,123,125,129,RZH10#,11#,12#..COM,V1,WG |
3 | ||
| 58106-95A00 |
LH107..08S;LH100,RZH100,101 |
2 | ||
| 58106-95A00 |
LH107..08S;LH119..05S;KZH10#,11#,12#,LH100,RZH100,101 |
2 | ||
| 58106 - BRACKET SUB-ASSY, BRAKE TUBE CONNECTOR, NO.2 | ||||
| 58106-95A00 |
LH10#,11#,123,125,129,RZH10#,11#,12#..COM,V1,WG |
3 | ||
| 58106-95A00 |
LH107..08S;LH100,RZH100,101 |
2 | ||
| 58106-95A00 |
LH107..08S;LH119..05S;KZH10#,11#,12#,LH100,RZH100,101 |
2 | ||
| 58194 - RETAINER, ENGINE COVER HINGE | ||||
| 58194-95J03 |
KZH10#,11#,LH10#,11#,123,125,129,140,RZH10#,11#,12# |
1 | ||
| 58207C - COVER SUB-ASSY, TRANSMISSION SERVICE HOLE | ||||
| 58207-95J09 |
LH100,107,RZH100,101..07S,08S |
1 | ||
| 58209B - COVER SUB-ASSY, BATTERY SERVICE HOLE | ||||
| 58209-95J01 |
LH10#,11#,123,125,129,RZH10#,11#,12# |
1 | ||
| 58221A - PANEL, HEADER | ||||
| 58221-95P17 |
LH100,107,RZH100,101..07S,08S |
1 | ||
| 58221-26030 |
RZH100,101..07S,08S |
1 | ||
| 58221-26031 |
RZH100,101..07S,08S |
1 | ||
| 58223F - REINFORCEMENT, HEADER PANEL, NO.2 | ||||
| 58223-95J01 |
LH10#,11#,123,125,129,RZH10#,11#,12#..4D |
1 | ||
| 58223F - REINFORCEMENT, HEADER PANEL, NO.2 | ||||
| 58223-95J01 |
LH10#,11#,123,125,129,RZH10#,11#,12#..4D |
1 | ||
| 58273C - REINFORCEMENT, BELT ANCHOR TO CENTER FLOOR | ||||
| 58273-95J00 |
LH10#,11#,123,125,129,RZH10#,11#,12# |
1 | ||
| 58304B - STEP SUB-ASSY, REAR FLOOR, LH | ||||
| 58304-95J74 |
RZH100,101;LH100,110,115,120,125,RZH110,124..5F..(CTM,DX,GL) |
1 | ||
| 58304-95N17 |
RZH100,101..MRF,SMRF ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 58304-95J74 |
LH113..SGL;LH100,102,107,110,115,117,120,125,RZH100,101,110,124..05S,07S,08S,09S,10S,15S |
1 | ||
| 58304-95N16 |
LH100,107,110,115,117,120,125,RZH100,101,110,124..CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 58304-95J74 |
KZH10#,11#,12#,LH103,11#,125,RZH100,101,112,124..05S,07S,08S,09S,10S,15S |
1 | ||
| 58307H - BRACKET SUB-ASSY, BRAKE TUBE CONN, NO.1 | ||||
| 58307-95701 |
RZH102,112..850K;LH102,113..V1..SP;LH10#,11#,123,125,129,RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM,SGL |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-95P06 |
LH100,107,RZH100,101..08S |
1 | ||
| 58311-26150 |
KZH10#,RZH100,101..08S ｱﾘ(TEMS) |
1 | ||
| 58311-26160 |
KZH10#,RZH100,101..08S |
1 | ||
| 58311-95P77 |
LH100,107,RZH100,101..08S ｱﾘ(TEMS) |
1 | ||
| 58311-26530 |
KZH10#,RZH100,101..08S ｱﾘ(TEMS) |
1 | ||
| 58311-26510 |
KZH10#,RZH100,101..08S |
1 | ||
| 58445D - LOCK, BATTERY SERVICE HOLE COVER | ||||
| 58445-95J01 |
LH10#,11#,123,125,129,RZH10#,11#,12# |
1 | ||
| 58446C - PROTECTOR, BATTERY | ||||
| 58446-95J02 |
LH10#,11#,123,125,129,RZH10#,11#,12# |
1 | ||
| 58449B - PACKING, BATTERY SERVICE HOLE COVER | ||||
| 58449-95J00 |
LH10#,11#,123,125,129,RZH10#,11#,12# |
1 | ||
| 58450A - PACKING, BATTERY SERVICE HOLE COVER | ||||
| 58449-95J00 |
LH10#,11#,123,125,129,RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM,SGL |
1 | ||
| 58449-95J00 |
LH10#,11#,123,125,129,140,RZH10#,11#,12# |
1 | ||
| 58451B - COVER, AIR CLEANER SERVICE HOLE | ||||
| 58405-95J01 |
LH10#,11#,RZH10#,11#..CTM,DX,GL,SCM,SCMM,SGL |
1 | ||
| 58405-95J01 |
LH10#,11#,12#,140,RZH10#,11#,12#..05S,06S,07S,08S,09S,10S,15S |
1 | ||
| 58405-95J01 |
LH10#,11#,140,RZH10#,11#..05S,06S,07S,08S,09S,10S,15S |
1 | ||
| 58458C - KNOB, BATTERY SERVICE HOLE COVER | ||||
| 58458-95J01 |
LH10#,11#,123,125,129,RZH10#,11#,12# |
1 | ||
| 58465B - PACKING, TRANSMISSION SERVICE HOLE COVER | ||||
| 58465-95J05 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG |
1 | ||
| 58466E - SILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1 | ||||
| 58327-95J08 |
LH10#,11#,12#,140,RZH10#,11#,12#..COM,V1,WG |
1 | ||
| 58475B - PACKING, INSPECTION HOLE COVER | ||||
| 58475-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 59209A - COVER SUB-ASSY, INSPECTION HOLE | ||||
| 59209-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| Common parts | ||||
| 57442-95J00 | ||||
| 90119-06598 | ||||
| 90119-10099 | ||||
| 90333-20001 | ||||
| 90467-0501801 | ||||
| 90480-01520 | ||||
| 90904-67033 | ||||
| 90950-01006 | ||||
| 90950-01027 | ||||
| 90950-01036 | ||||
| 90950-01038 | ||||
| 90950-01424 | ||||
| 90950-01429 | ||||
| 90950-01687 | ||||
| 90950-01691 | ||||
| 90950-01849 | ||||
| 91631-B0614 | ||||
| 91651-40814 | ||||
| 91651-60614 | ||||
| 93311-16010 | ||||
| 94171-20800 | ||||
ILLUST NO. 2 OF 4(8908- )KZH10#,11#,LH100,107,110,117,120,140,RZH100,101,110,111
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51058 - BRACKET SUB-ASSY, LOWER CONTROL LINK, RH | ||||
| 51058-95J02 |
KZH100,LH100,RZH100,101 |
1 | ||
| 51059 - BRACKET SUB-ASSY, LOWER CONTROL LINK, LH | ||||
| 51059-95J03 |
KZH100,LH100,RZH100,101 |
1 | ||
| 57023 - MEMBER SUB-ASSY, REAR SIDE, RH | ||||
| 57023-95N27 |
LH100,RZH100,101..07S,08S |
1 | ||
| 57024 - MEMBER SUB-ASSY, REAR SIDE, LH | ||||
| 57024-95N15 |
LH100,RZH100,101..07S,08S |
1 | ||
| 57075 - BRACKET SUB-ASSY, UPPER CONTROL LINK, RH | ||||
| 57075-95J02 |
LH100,107,RZH100,101 |
1 | ||
| 57076 - BRACKET SUB-ASSY, UPPER CONTROL LINK, LH | ||||
| 57076-95J02 |
LH100,107,RZH100,101 |
1 | ||
| 57078 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER | ||||
| 57069-95J08 |
LH100,107,RZH100,101..MRF,SMRF |
1 | ||
| 57069-95J08 |
KZH10#,11#,12#,LH125,RZH100,101,124 ﾅｼ(ｽﾃﾂﾌﾟ ﾀｲﾌﾟ ﾘﾔ ﾊﾞﾝﾊﾟ) |
1 | ||
| 57069-95J08 |
LH100,107,120,RZH100,101..HRF,MRF,SMRF |
1 | ||
| 57069-95J08 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH125,129,RZH100,101,124 ﾅｼ(ｽﾃﾂﾌﾟ ﾀｲﾌﾟ ﾘﾔ ﾊﾞﾝﾊﾟ) |
1 | ||
| 57079 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER | ||||
| 57068-95J07 |
LH119..05S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH100,107,110,115,117,120,125,RZH100,101,110,124..CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM ﾅｼ(ｽﾃﾂﾌﾟ ﾀｲﾌﾟ ﾘﾔ ﾊﾞﾝﾊﾟ) |
1 | ||
| 57068-95J07 |
LH113..V1..SRF..4D..06S..5F..DX;LH100,107,110,115,120,125,RZH100,101,110,124 ﾅｼ(ｽﾃﾂﾌﾟ ﾀｲﾌﾟ ﾘﾔ ﾊﾞﾝﾊﾟ) |
1 | ||
| 57068-95J07 |
LH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH125,129,RZH100,101,124 ﾅｼ(ｽﾃﾂﾌﾟ ﾀｲﾌﾟ ﾘﾔ ﾊﾞﾝﾊﾟ) |
1 | ||
| 57068-95J07 |
LH100,107,110,115,120,125,RZH100,101,110,124 ﾅｼ(ｽﾃﾂﾌﾟ ﾀｲﾌﾟ ﾘﾔ ﾊﾞﾝﾊﾟ) |
1 | ||
| 57068-95J07 |
LH113..V1..SRF..4D..06S..DX;LH100,107,110,115,117,120,125,RZH100,101,110,124..CTM,DX,GL,SCL,SCM,SCMM ﾅｼ(ｽﾃﾂﾌﾟ ﾀｲﾌﾟ ﾘﾔ ﾊﾞﾝﾊﾟ) |
1 | ||
| 57307B - OUTRIGGER SUB-ASSY, NO.4 RH | ||||
| 57317-95J08 |
KZH10#,11#,12#,13#,LH10#,11#,123,125,129,140,16#,17#,18#,RZH10#,11#,12#,133..(COM,V1,WG)..4D ﾌﾛﾝﾄ |
1 | ||
| 57317-95J06 |
KZH10#,11#,12#,13#,LH10#,11#,123,125,129,140,16#,17#,18#,RZH10#,11#,12#,133..(COM,V1,WG)..4D ﾘﾔ |
1 | ||
| 57307B - OUTRIGGER SUB-ASSY, NO.4 RH | ||||
| 57317-95J08 |
KZH10#,11#,12#,13#,LH10#,11#,123,125,129,140,16#,17#,18#,RZH10#,11#,12#,133..(COM,V1,WG)..4D ﾌﾛﾝﾄ |
1 | ||
| 57317-95J06 |
KZH10#,11#,12#,13#,LH10#,11#,123,125,129,140,16#,17#,18#,RZH10#,11#,12#,133..(COM,V1,WG)..4D ﾘﾔ |
1 | ||
| 57308B - OUTRIGGER SUB-ASSY, NO.4 LH | ||||
| 57308-95J11 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG |
1 | ||
| 57311 - OUTRIGGER, NO.1 RH | ||||
| 57301-95J08 |
LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..(COM,V1,WG)..4D |
1 | ||
| 57361A - COVER, NO.2 OUTERIGGER HOLE | ||||
| 57094-95J00 |
LH102,113,RZH102,112..4D..CD;LH10#,11#,12#,140,RZH10#,11#,12#..05S,06S,07S,08S,09S,10S,15S |
2 | ||
| 57361-95J01 |
LH100,107,110,115,117,120,125,RZH100,101,110,124..CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 57362A - PACKING, NO.2 OUTRIGGER HOLE COVER | ||||
| 57362-95J01 |
LH102,113,RZH102,112..4D..CD;LH10#,11#,12#,140,RZH10#,11#,12#..05S,06S,07S,08S,09S,10S,15S |
2 | ||
| 57362-95J01 |
LH100,107,110,115,117,120,125,RZH100,101,110,124..CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 57413 - RAIL, FLOOR SIDE, CENTER RH | ||||
| 57413-95N03 |
LH100,107,RZH100,101..07S,08S |
1 | ||
| 57414 - RAIL, FLOOR SIDE, CENTER LH | ||||
| 57414-95J85 |
LH100,107,RZH100,101..07S,08S |
1 | ||
| 57415 - RAIL, FLOOR SIDE, REAR RH | ||||
| 57047-95J23 |
LH100,107,RZH100,101..DX,SCM |
1 | ||
| 57047-95J28 |
LH100,107,RZH100,101..SCM ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 57416 - RAIL, FLOOR SIDE, REAR LH | ||||
| 57048-95J06 |
LH100,107,RZH100,101..DX,SCM |
1 | ||
| 57516 - BRACKET SUB-ASSY, PARKING BRAKE, LH | ||||
| 57516-95J02 |
KZH10#,LH100,107,RZH100,101..08S,09S |
1 | ||
| 57637A - REINFORCEMENT, REAR FLOOR SIDE, RH | ||||
| 57637-95J00 |
KZH10#,LH100,107,RZH100,101 |
2 | ||
| 58022A - REINFORCEMENT SUB-ASSY, HEADER PANEL | ||||
| 58022-95J06 |
LH10#,11#,123,125,129,RZH10#,11#,12# |
1 | ||
| 58106 - BRACKET SUB-ASSY, BRAKE TUBE CONNECTOR, NO.2 | ||||
| 58106-95A00 |
LH10#,11#,123,125,129,RZH10#,11#,12#..COM,V1,WG |
3 | ||
| 58106-95A00 |
LH107..08S;LH100,RZH100,101 |
2 | ||
| 58106-95A00 |
LH107..08S;LH119..05S;KZH10#,11#,12#,LH100,RZH100,101 |
2 | ||
| 58194 - RETAINER, ENGINE COVER HINGE | ||||
| 58194-95J03 |
KZH10#,11#,LH10#,11#,123,125,129,140,RZH10#,11#,12# |
1 | ||
| 58207C - COVER SUB-ASSY, TRANSMISSION SERVICE HOLE | ||||
| 58207-95J09 |
LH100,107,RZH100,101..07S,08S |
1 | ||
| 58209B - COVER SUB-ASSY, BATTERY SERVICE HOLE | ||||
| 58209-95J01 |
LH10#,11#,123,125,129,RZH10#,11#,12# |
1 | ||
| 58221A - PANEL, HEADER | ||||
| 58221-95P17 |
LH100,107,RZH100,101..07S,08S |
1 | ||
| 58221-26030 |
RZH100,101..07S,08S |
1 | ||
| 58221-26031 |
RZH100,101..07S,08S |
1 | ||
| 58223F - REINFORCEMENT, HEADER PANEL, NO.2 | ||||
| 58223-95J01 |
LH10#,11#,123,125,129,RZH10#,11#,12#..4D |
1 | ||
| 58273C - REINFORCEMENT, BELT ANCHOR TO CENTER FLOOR | ||||
| 58273-95J00 |
LH10#,11#,123,125,129,RZH10#,11#,12# |
1 | ||
| 58304B - STEP SUB-ASSY, REAR FLOOR, LH | ||||
| 58304-95J74 |
RZH100,101;LH100,110,115,120,125,RZH110,124..5F..(CTM,DX,GL) |
1 | ||
| 58304-95N17 |
RZH100,101..MRF,SMRF ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 58304-95J74 |
LH113..SGL;LH100,102,107,110,115,117,120,125,RZH100,101,110,124..05S,07S,08S,09S,10S,15S |
1 | ||
| 58304-95N16 |
LH100,107,110,115,117,120,125,RZH100,101,110,124..CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 58304-95J74 |
KZH10#,11#,12#,LH103,11#,125,RZH100,101,112,124..05S,07S,08S,09S,10S,15S |
1 | ||
| 58307F - COVER SUB-ASSY, REAR FLOOR STEP | ||||
| 58307-95J15D4 |
LH100,107,110,115,117,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 58307-95J15D4 |
LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 58307-95J1503 |
LH100,107,RZH100,101..08S,09S GRAY,TRIM1# |
1 | ||
| 58307-95J15E0 |
KZH10#,12#,LH125,RZH100,101,124..07S,08S,10S,15S ANTELOPE,TRIM4# |
1 | ||
| 58307-95J15B0 |
KZH10#,RZH100,101..08S BLUISH GRAY,TRIM1# |
1 | ||
| 58307H - BRACKET SUB-ASSY, BRAKE TUBE CONN, NO.1 | ||||
| 58307-95701 |
RZH102,112..850K;LH102,113..V1..SP;LH10#,11#,123,125,129,RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM,SGL |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-95P06 |
LH100,107,RZH100,101..08S |
1 | ||
| 58311-26150 |
KZH10#,RZH100,101..08S ｱﾘ(TEMS) |
1 | ||
| 58311-26160 |
KZH10#,RZH100,101..08S |
1 | ||
| 58311-95P77 |
LH100,107,RZH100,101..08S ｱﾘ(TEMS) |
1 | ||
| 58311-26530 |
KZH10#,RZH100,101..08S ｱﾘ(TEMS) |
1 | ||
| 58311-26510 |
KZH10#,RZH100,101..08S |
1 | ||
| 58348D - COVER, REAR ABSORBER SERVICE HOLE, RH | ||||
| 58348-95J01 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133..03S,08S,09S,10S |
2 | ||
| 58348-95J0002 |
LH100,107,RZH100,101..07S,08S NEW MAROON,TRIM3# |
2 | ||
| 58348-95J0003 |
LH100,107,RZH100,101..08S GRAY,TRIM1# |
2 | ||
| 58445D - LOCK, BATTERY SERVICE HOLE COVER | ||||
| 58445-95J01 |
LH10#,11#,123,125,129,RZH10#,11#,12# |
1 | ||
| 58446C - PROTECTOR, BATTERY | ||||
| 58446-95J02 |
LH10#,11#,123,125,129,RZH10#,11#,12# |
1 | ||
| 58449B - PACKING, BATTERY SERVICE HOLE COVER | ||||
| 58449-95J00 |
LH10#,11#,123,125,129,RZH10#,11#,12# |
1 | ||
| 58450A - PACKING, BATTERY SERVICE HOLE COVER | ||||
| 58449-95J00 |
LH10#,11#,123,125,129,RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM,SGL |
1 | ||
| 58449-95J00 |
LH10#,11#,123,125,129,140,RZH10#,11#,12# |
1 | ||
| 58451B - COVER, AIR CLEANER SERVICE HOLE | ||||
| 58405-95J01 |
LH10#,11#,RZH10#,11#..CTM,DX,GL,SCM,SCMM,SGL |
1 | ||
| 58405-95J01 |
LH10#,11#,12#,140,RZH10#,11#,12#..05S,06S,07S,08S,09S,10S,15S |
1 | ||
| 58405-95J01 |
LH10#,11#,140,RZH10#,11#..05S,06S,07S,08S,09S,10S,15S |
1 | ||
| 58458C - KNOB, BATTERY SERVICE HOLE COVER | ||||
| 58458-95J01 |
LH10#,11#,123,125,129,RZH10#,11#,12# |
1 | ||
| 58465B - PACKING, TRANSMISSION SERVICE HOLE COVER | ||||
| 58465-95J05 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG |
1 | ||
| 58466E - SILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1 | ||||
| 58327-95J08 |
LH10#,11#,12#,140,RZH10#,11#,12#..COM,V1,WG |
1 | ||
| 58475B - PACKING, INSPECTION HOLE COVER | ||||
| 58475-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 59209A - COVER SUB-ASSY, INSPECTION HOLE | ||||
| 59209-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| Common parts | ||||
| 57442-95J00 | ||||
| 90119-06598 | ||||
| 90119-08623 | ||||
| 90119-10099 | ||||
| 90119-10281 | ||||
| 90189-04070 | ||||
| 90467-0501822 | ||||
| 90904-67033 | ||||
| 90950-01027 | ||||
| 90950-01038 | ||||
| 90950-01181 | ||||
| 90950-01272 | ||||
| 90950-01424 | ||||
| 90950-01429 | ||||
| 90950-01687 | ||||
| 90950-01824 | ||||
| 90950-01849 | ||||
| 90950-01889 | ||||
| 91631-B0614 | ||||
| 91651-40612 | ||||
| 91651-40814 | ||||
| 91651-60614 | ||||
| 93311-16010 | ||||
| 93540-54014 | ||||
| 93560-55020 | ||||
ILLUST NO. 3 OF 4(8908- )LH102,103,109,113,119,123,129,16#,17#,182,188,RZH102,112,122,18#,TRH102,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57617A - RETAINER, EXHAUST PIPE BRACKET | ||||
| 57617-95J09 |
LH10#,11#,123,125,129,140,RZH10#,11#,12# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57617-95J10 |
LH10#,11#,123,125,129,140,RZH10#,11#,12# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57652C - MEMBER, REAR FLOOR CROSS, NO.1 | ||||
| 57652-95J04 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 57653D - MEMBER, REAR FLOOR CROSS, NO.2 | ||||
| 57653-95J05 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,RZH10#,11#,12#,133..COM,V1,WG |
1 | ||
| 57654B - MEMBER, REAR FLOOR CROSS, NO.3 | ||||
| 57654-95J05 |
KZH10#,LH100,107,RZH100,101 |
1 | ||
| 57654B - MEMBER, REAR FLOOR CROSS, NO.3 | ||||
| 57654-95J05 |
KZH10#,LH100,107,RZH100,101 |
1 | ||
| 57656C - MEMBER, REAR FLOOR CROOS, NO.5 | ||||
| 57656-95J03 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
1 | ||
| 57657C - CROSSMEMBER, REAR FLOOR, NO.6 | ||||
| 57657-95J05 |
LH10#,11#,123,125,129,RZH10#,11#,12#..COM,V1,WG |
1 | ||
| 57657-95J05 |
LH102,107,109,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..(CD,CTM,DX,GL,SCL,SCM,SCMM,SGL) |
1 | ||
| 57658 - MEMBER, REAR FLOOR CROSS, NO.7 | ||||
| 57658-95J01 |
LH10#,11#,12#,RZH10#,11#,12#..COM,V1,WG |
1 | ||
| 57688A - REINFORCEMENT, REAR FLOOR CROSSMEMBER | ||||
| 57688-95J02 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG |
1 | ||
| 57691 - BRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER RH | ||||
| 57691-95J01 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133..COM,V1,WG |
1 | ||
| 57692A - BRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER LH | ||||
| 57692-95J01 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133..COM,V1,WG |
1 | ||
| 57693B - BRACE, REAR FLOOR NO.6 CROSSMEMBER | ||||
| 57693-95J01 |
LH102,107,109,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..(CD,CTM,DX,GL,SCL,SCM,SCMM,SGL) |
2 | ||
| 57693-95J01 |
LH10#,11#,123,125,129,RZH10#,11#,12#..COM,V1,WG |
2 | ||
| 57693B - BRACE, REAR FLOOR NO.6 CROSSMEMBER | ||||
| 57693-95J01 |
LH102,107,109,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..(CD,CTM,DX,GL,SCL,SCM,SCMM,SGL) |
2 | ||
| 57693-95J01 |
LH10#,11#,123,125,129,RZH10#,11#,12#..COM,V1,WG |
2 | ||
| 57695A - EXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, RH | ||||
| 57695-95J01 |
LH10#,11#,12#,RZH10#,11#,12#..COM,V1,WG |
1 | ||
| 57696A - EXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, LH | ||||
| 57696-95J00 |
LH10#,11#,12#,RZH10#,11#,12#..COM,V1,WG |
1 | ||
| 57699A - RETAINER, FUEL TANK SET BAND | ||||
| 57699-95J01 |
LH10#,11#,12#,RZH10#,11#,12#..COM,V1,WG |
1 | ||
| 57767 - RETAINER, FUEL TANK BAND | ||||
| 57767-95J02 |
LH100,107,120,RZH100,101 |
3 | ||
| 57767-95J02 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| 57767 - RETAINER, FUEL TANK BAND | ||||
| 57767-95J02 |
LH100,107,120,RZH100,101 |
3 | ||
| 57767-95J02 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| 57829 - REINFORCEMENT, SEAT LEG | ||||
| 57829-95J03 |
LH100,107,RZH100,101 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57829-95J03 |
RZH100;LH100,107,RZH101..MRF,SMRF TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57829-95J02 |
RZH100;LH100,107,RZH101..MRF,SMRF TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57829-95J02 |
LH100,107,RZH100,101 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 59361B - RETAINER, REAR SEAT, NO.1 A | ||||
| 59361-95J04 |
LH100..(MRF,SMRF)..(08S,09S);KZH10#,LH107,RZH100,101..08S,09S |
1 | ||
| 59361-95J04 |
LH100,107,RZH100,101..08S,09S TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 59361-95J03 |
RZH100..08S,09S;LH100,107,RZH101..(MRF,SMRF)..(08S,09S) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 59361-95J03 |
LH100,107,RZH100,101..08S,09S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 59361B - RETAINER, REAR SEAT, NO.1 A | ||||
| 59361-95J04 |
LH100..(MRF,SMRF)..(08S,09S);KZH10#,LH107,RZH100,101..08S,09S |
1 | ||
| 59361-95J04 |
LH100,107,RZH100,101..08S,09S TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 59361-95J03 |
RZH100..08S,09S;LH100,107,RZH101..(MRF,SMRF)..(08S,09S) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 59361-95J03 |
LH100,107,RZH100,101..08S,09S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 59362A - RETAINER, REAR SEAT, NO.1 B | ||||
| 59306-26030 |
KZH10#,RZH100,101 |
1 | ||
| 59363 - RETAINER, REAR SEAT, NO.1 C | ||||
| 59363-95J03 |
LH100,107,RZH100,101..08S,09S TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 59363-95J03 |
LH100..(MRF,SMRF)..(08S,09S);KZH10#,LH107,RZH100,101..08S,09S |
1 | ||
| 59363B - RETAINER, REAR SEAT, NO.1 C | ||||
| 59363-95J02 |
LH100,107,RZH100,101 |
1 | ||
| 59363-95J02 |
RZH100;LH100,107,RZH101..MRF,SMRF |
1 | ||
| 59364A - RETAINER, REAR SEAT, NO.1 D | ||||
| 59364-95J03 |
LH100,107,RZH100,101..08S,09S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 59364-95J06 |
LH100,107,RZH100,101..08S,09S TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 59364-95J03 |
LH100,120..CTM,GCGE,SCM,SCMM;KZH10#,120,LH107,RZH100,101..CTM,DX,GCGE,SCM,SCMM TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 59364-95J06 |
LH100,120..CTM,GCGE,SCM,SCMM;KZH10#,120,LH107,RZH100,101..CTM,DX,GCGE,SCM,SCMM TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
ILLUST NO. 3 OF 4(8908-9308)LH100,107,110,117,140,RZH100,101,110
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51265A - BRACKET, REAR SHOCK ABSORBER, RH | ||||
| 51265-95J02 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
1 | ||
| 51266A - BRACKET, REAR SHOCK ABSORBER, LH | ||||
| 51266-95J02 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
1 | ||
| 51267A - REINFORCEMENT, REAR SHOCK ABSORBER MOUNTING, RH | ||||
| 51267-95J00 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
1 | ||
| 51268 - REINFORCEMENT, REAR SHOCK ABSORBER MOUNTING, LH | ||||
| 51268-95J00 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
1 | ||
| 51341B - GUSSET, FRAME NO.4 CROSSMEMBER, RH | ||||
| 51341-95J00 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
2 | ||
| 51354 - PLATE, REAR SHOCK ABSORBER MEMBER | ||||
| 51354-95J02 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
1 | ||
| 51537B - BRACKET, LATERAL ROD SUPPORT, FRONT | ||||
| 51537-95J00 |
LH100,107,RZH100,101 |
1 | ||
| 51538B - BRACKET, LATERAL ROD SUPPORT, REAR | ||||
| 51538-95J00 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
1 | ||
| 51682 - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 51682-95J00 |
LH102,103,113,162,172,RZH102,112..V2;KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
1 | ||
| 57617A - RETAINER, EXHAUST PIPE BRACKET | ||||
| 57617-95J09 |
LH10#,11#,123,125,129,140,RZH10#,11#,12# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57617-95J10 |
LH10#,11#,123,125,129,140,RZH10#,11#,12# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57652C - MEMBER, REAR FLOOR CROSS, NO.1 | ||||
| 57652-95J04 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 57653D - MEMBER, REAR FLOOR CROSS, NO.2 | ||||
| 57653-95J05 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,RZH10#,11#,12#,133..COM,V1,WG |
1 | ||
| 57654B - MEMBER, REAR FLOOR CROSS, NO.3 | ||||
| 57654-95J05 |
KZH10#,LH100,107,RZH100,101 |
1 | ||
| 57655A - MEMBER, REAR FLOOR CROSS, NO.4 | ||||
| 57655-95J05 |
LH102,103,113,RZH112..V2;KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
1 | ||
| 57656C - MEMBER, REAR FLOOR CROOS, NO.5 | ||||
| 57656-95J03 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
1 | ||
| 57656C - MEMBER, REAR FLOOR CROOS, NO.5 | ||||
| 57656-95J03 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
1 | ||
| 57657C - CROSSMEMBER, REAR FLOOR, NO.6 | ||||
| 57657-95J05 |
LH10#,11#,123,125,129,RZH10#,11#,12#..COM,V1,WG |
1 | ||
| 57657-95J05 |
LH102,107,109,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..(CD,CTM,DX,GL,SCL,SCM,SCMM,SGL) |
1 | ||
| 57658 - MEMBER, REAR FLOOR CROSS, NO.7 | ||||
| 57658-95J01 |
LH10#,11#,12#,RZH10#,11#,12#..COM,V1,WG |
1 | ||
| 57666A - REINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.3 | ||||
| 57666-95J01 |
LH100,107,RZH100,101 |
2 | ||
| 57667A - REINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.4 | ||||
| 57667-95J01 |
LH100,107,RZH100,101 |
2 | ||
| 57688A - REINFORCEMENT, REAR FLOOR CROSSMEMBER | ||||
| 57688-95J02 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG |
1 | ||
| 57689 - REINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.2 | ||||
| 57689-95J01 |
LH100,107,RZH100,101,111 |
1 | ||
| 57691 - BRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER RH | ||||
| 57691-95J01 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133..COM,V1,WG |
1 | ||
| 57692A - BRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER LH | ||||
| 57692-95J01 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133..COM,V1,WG |
1 | ||
| 57693B - BRACE, REAR FLOOR NO.6 CROSSMEMBER | ||||
| 57693-95J01 |
LH102,107,109,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..(CD,CTM,DX,GL,SCL,SCM,SCMM,SGL) |
2 | ||
| 57693-95J01 |
LH10#,11#,123,125,129,RZH10#,11#,12#..COM,V1,WG |
2 | ||
| 57693B - BRACE, REAR FLOOR NO.6 CROSSMEMBER | ||||
| 57693-95J01 |
LH102,107,109,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..(CD,CTM,DX,GL,SCL,SCM,SCMM,SGL) |
2 | ||
| 57693-95J01 |
LH10#,11#,123,125,129,RZH10#,11#,12#..COM,V1,WG |
2 | ||
| 57695A - EXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, RH | ||||
| 57695-95J01 |
LH10#,11#,12#,RZH10#,11#,12#..COM,V1,WG |
1 | ||
| 57696A - EXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, LH | ||||
| 57696-95J00 |
LH10#,11#,12#,RZH10#,11#,12#..COM,V1,WG |
1 | ||
| 57699A - RETAINER, FUEL TANK SET BAND | ||||
| 57699-95J01 |
LH10#,11#,12#,RZH10#,11#,12#..COM,V1,WG |
1 | ||
| 57749A - REINFORCEMENT, LATERAL ROD BRACKET, NO.2 | ||||
| 57749-95J01 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
1 | ||
| 57751 - SUPPORT, REAR SUSPENSION SPRING, OUTER RH | ||||
| 57751-95J01 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
2 | ||
| 57767 - RETAINER, FUEL TANK BAND | ||||
| 57767-95J02 |
LH100,107,120,RZH100,101 |
3 | ||
| 57767-95J02 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| 57767 - RETAINER, FUEL TANK BAND | ||||
| 57767-95J02 |
LH100,107,120,RZH100,101 |
3 | ||
| 57767-95J02 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| 57767 - RETAINER, FUEL TANK BAND | ||||
| 57767-95J02 |
LH100,107,120,RZH100,101 |
3 | ||
| 57767-95J02 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| 57771 - PLATE, REAR SPRING, RH | ||||
| 57771-95J00 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
2 | ||
| 57773 - REINFORCEMENT, REAR SPRING | ||||
| 57773-95J00 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
1 | ||
| 57774A - REINFORCEMENT, REAR SPRING, LH | ||||
| 57774-95J00 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
1 | ||
| 57829 - REINFORCEMENT, SEAT LEG | ||||
| 57829-95J03 |
LH100,107,RZH100,101 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57829-95J03 |
RZH100;LH100,107,RZH101..MRF,SMRF TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57829-95J02 |
RZH100;LH100,107,RZH101..MRF,SMRF TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57829-95J02 |
LH100,107,RZH100,101 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57829 - REINFORCEMENT, SEAT LEG | ||||
| 57829-95J03 |
LH100,107,RZH100,101 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57829-95J03 |
RZH100;LH100,107,RZH101..MRF,SMRF TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57829-95J02 |
RZH100;LH100,107,RZH101..MRF,SMRF TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57829-95J02 |
LH100,107,RZH100,101 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57829 - REINFORCEMENT, SEAT LEG | ||||
| 57829-95J03 |
LH100,107,RZH100,101 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57829-95J03 |
RZH100;LH100,107,RZH101..MRF,SMRF TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57829-95J02 |
RZH100;LH100,107,RZH101..MRF,SMRF TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57829-95J02 |
LH100,107,RZH100,101 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57829 - REINFORCEMENT, SEAT LEG | ||||
| 57829-95J03 |
LH100,107,RZH100,101 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57829-95J03 |
RZH100;LH100,107,RZH101..MRF,SMRF TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57829-95J02 |
RZH100;LH100,107,RZH101..MRF,SMRF TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57829-95J02 |
LH100,107,RZH100,101 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57829 - REINFORCEMENT, SEAT LEG | ||||
| 57829-95J02 |
RZH100;LH100,107,RZH101..MRF,SMRF TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57829-95J03 |
LH100,107,RZH100,101 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57829-95J03 |
RZH100;LH100,107,RZH101..MRF,SMRF TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57829-95J02 |
LH100,107,RZH100,101 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57871 - PATCH, REAR NO.1 SEAT LEG, REAR NO.1 | ||||
| 57871-95J00 |
RZH100;LH100,107,RZH101..MRF,SMRF TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57871-95J01 |
RZH100;LH100,107,RZH101..MRF,SMRF TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57871-95J01 |
LH100,107,RZH100,101 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57871-95J00 |
LH100,107,RZH100,101 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57871 - PATCH, REAR NO.1 SEAT LEG, REAR NO.1 | ||||
| 57871-95J00 |
RZH100;LH100,107,RZH101..MRF,SMRF TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57871-95J01 |
RZH100;LH100,107,RZH101..MRF,SMRF TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57871-95J01 |
LH100,107,RZH100,101 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57871-95J00 |
LH100,107,RZH100,101 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57871 - PATCH, REAR NO.1 SEAT LEG, REAR NO.1 | ||||
| 57871-95J00 |
RZH100;LH100,107,RZH101..MRF,SMRF TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57871-95J01 |
RZH100;LH100,107,RZH101..MRF,SMRF TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57871-95J01 |
LH100,107,RZH100,101 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57871-95J00 |
LH100,107,RZH100,101 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 59361B - RETAINER, REAR SEAT, NO.1 A | ||||
| 59361-95J04 |
LH100..(MRF,SMRF)..(08S,09S);KZH10#,LH107,RZH100,101..08S,09S |
1 | ||
| 59361-95J04 |
LH100,107,RZH100,101..08S,09S TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 59361-95J03 |
RZH100..08S,09S;LH100,107,RZH101..(MRF,SMRF)..(08S,09S) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 59361-95J03 |
LH100,107,RZH100,101..08S,09S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 59362A - RETAINER, REAR SEAT, NO.1 B | ||||
| 59306-26030 |
KZH10#,RZH100,101 |
1 | ||
| 59362B - RETAINER, REAR SEAT, NO.1 B | ||||
| 59306-95J02 |
KZH10#,RZH100,101 |
1 | ||
| 59363 - RETAINER, REAR SEAT, NO.1 C | ||||
| 59363-95J03 |
LH100,107,RZH100,101..08S,09S TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 59363-95J03 |
LH100..(MRF,SMRF)..(08S,09S);KZH10#,LH107,RZH100,101..08S,09S |
1 | ||
| 59363B - RETAINER, REAR SEAT, NO.1 C | ||||
| 59363-95J02 |
LH100,107,RZH100,101 |
1 | ||
| 59363-95J02 |
RZH100;LH100,107,RZH101..MRF,SMRF |
1 | ||
| 59364A - RETAINER, REAR SEAT, NO.1 D | ||||
| 59364-95J03 |
LH100,107,RZH100,101..08S,09S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 59364-95J06 |
LH100,107,RZH100,101..08S,09S TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 59364-95J03 |
LH100,120..CTM,GCGE,SCM,SCMM;KZH10#,120,LH107,RZH100,101..CTM,DX,GCGE,SCM,SCMM TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 59364-95J06 |
LH100,120..CTM,GCGE,SCM,SCMM;KZH10#,120,LH107,RZH100,101..CTM,DX,GCGE,SCM,SCMM TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 59364A - RETAINER, REAR SEAT, NO.1 D | ||||
| 59364-95J03 |
LH100,107,RZH100,101..08S,09S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 59364-95J06 |
LH100,107,RZH100,101..08S,09S TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 59364-95J03 |
LH100,120..CTM,GCGE,SCM,SCMM;KZH10#,120,LH107,RZH100,101..CTM,DX,GCGE,SCM,SCMM TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 59364-95J06 |
LH100,120..CTM,GCGE,SCM,SCMM;KZH10#,120,LH107,RZH100,101..CTM,DX,GCGE,SCM,SCMM TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
ILLUST NO. 3 OF 4(9308- )KZH10#,11#,RZH100,101,111
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51265A - BRACKET, REAR SHOCK ABSORBER, RH | ||||
| 51265-95J02 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
1 | ||
| 51266A - BRACKET, REAR SHOCK ABSORBER, LH | ||||
| 51266-95J02 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
1 | ||
| 51267A - REINFORCEMENT, REAR SHOCK ABSORBER MOUNTING, RH | ||||
| 51267-95J00 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
1 | ||
| 51268 - REINFORCEMENT, REAR SHOCK ABSORBER MOUNTING, LH | ||||
| 51268-95J00 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
1 | ||
| 51341B - GUSSET, FRAME NO.4 CROSSMEMBER, RH | ||||
| 51341-95J00 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
2 | ||
| 51354 - PLATE, REAR SHOCK ABSORBER MEMBER | ||||
| 51354-95J02 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
1 | ||
| 51537B - BRACKET, LATERAL ROD SUPPORT, FRONT | ||||
| 51537-95J00 |
LH100,107,RZH100,101 |
1 | ||
| 51538B - BRACKET, LATERAL ROD SUPPORT, REAR | ||||
| 51538-95J00 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
1 | ||
| 51682 - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 51682-95J00 |
LH102,103,113,162,172,RZH102,112..V2;KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
1 | ||
| 57617A - RETAINER, EXHAUST PIPE BRACKET | ||||
| 57617-95J09 |
LH10#,11#,123,125,129,140,RZH10#,11#,12# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57617-95J10 |
LH10#,11#,123,125,129,140,RZH10#,11#,12# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57617A - RETAINER, EXHAUST PIPE BRACKET | ||||
| 57617-95J09 |
LH10#,11#,123,125,129,140,RZH10#,11#,12# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57617-95J10 |
LH10#,11#,123,125,129,140,RZH10#,11#,12# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57617A - RETAINER, EXHAUST PIPE BRACKET | ||||
| 57617-95J09 |
LH10#,11#,123,125,129,140,RZH10#,11#,12# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57617-95J10 |
LH10#,11#,123,125,129,140,RZH10#,11#,12# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57652C - MEMBER, REAR FLOOR CROSS, NO.1 | ||||
| 57652-95J04 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 57653D - MEMBER, REAR FLOOR CROSS, NO.2 | ||||
| 57653-95J05 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,RZH10#,11#,12#,133..COM,V1,WG |
1 | ||
| 57654B - MEMBER, REAR FLOOR CROSS, NO.3 | ||||
| 57654-95J05 |
KZH10#,LH100,107,RZH100,101 |
1 | ||
| 57654B - MEMBER, REAR FLOOR CROSS, NO.3 | ||||
| 57654-95J05 |
KZH10#,LH100,107,RZH100,101 |
1 | ||
| 57654B - MEMBER, REAR FLOOR CROSS, NO.3 | ||||
| 57654-95J05 |
KZH10#,LH100,107,RZH100,101 |
1 | ||
| 57655A - MEMBER, REAR FLOOR CROSS, NO.4 | ||||
| 57655-95J05 |
LH102,103,113,RZH112..V2;KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
1 | ||
| 57656C - MEMBER, REAR FLOOR CROOS, NO.5 | ||||
| 57656-95J03 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
1 | ||
| 57657C - CROSSMEMBER, REAR FLOOR, NO.6 | ||||
| 57657-95J05 |
LH10#,11#,123,125,129,RZH10#,11#,12#..COM,V1,WG |
1 | ||
| 57657-95J05 |
LH102,107,109,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..(CD,CTM,DX,GL,SCL,SCM,SCMM,SGL) |
1 | ||
| 57658 - MEMBER, REAR FLOOR CROSS, NO.7 | ||||
| 57658-95J01 |
LH10#,11#,12#,RZH10#,11#,12#..COM,V1,WG |
1 | ||
| 57666A - REINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.3 | ||||
| 57666-95J01 |
LH100,107,RZH100,101 |
2 | ||
| 57666A - REINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.3 | ||||
| 57666-95J01 |
LH100,107,RZH100,101 |
2 | ||
| 57667A - REINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.4 | ||||
| 57667-95J01 |
LH100,107,RZH100,101 |
2 | ||
| 57688A - REINFORCEMENT, REAR FLOOR CROSSMEMBER | ||||
| 57688-95J02 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG |
1 | ||
| 57689 - REINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.2 | ||||
| 57689-95J01 |
LH100,107,RZH100,101,111 |
1 | ||
| 57691 - BRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER RH | ||||
| 57691-95J01 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133..COM,V1,WG |
1 | ||
| 57692A - BRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER LH | ||||
| 57692-95J01 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133..COM,V1,WG |
1 | ||
| 57693B - BRACE, REAR FLOOR NO.6 CROSSMEMBER | ||||
| 57693-95J01 |
LH102,107,109,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..(CD,CTM,DX,GL,SCL,SCM,SCMM,SGL) |
2 | ||
| 57693-95J01 |
LH10#,11#,123,125,129,RZH10#,11#,12#..COM,V1,WG |
2 | ||
| 57693B - BRACE, REAR FLOOR NO.6 CROSSMEMBER | ||||
| 57693-95J01 |
LH102,107,109,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..(CD,CTM,DX,GL,SCL,SCM,SCMM,SGL) |
2 | ||
| 57693-95J01 |
LH10#,11#,123,125,129,RZH10#,11#,12#..COM,V1,WG |
2 | ||
| 57695A - EXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, RH | ||||
| 57695-95J01 |
LH10#,11#,12#,RZH10#,11#,12#..COM,V1,WG |
1 | ||
| 57696A - EXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, LH | ||||
| 57696-95J00 |
LH10#,11#,12#,RZH10#,11#,12#..COM,V1,WG |
1 | ||
| 57699A - RETAINER, FUEL TANK SET BAND | ||||
| 57699-95J01 |
LH10#,11#,12#,RZH10#,11#,12#..COM,V1,WG |
1 | ||
| 57749A - REINFORCEMENT, LATERAL ROD BRACKET, NO.2 | ||||
| 57749-95J01 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
1 | ||
| 57751 - SUPPORT, REAR SUSPENSION SPRING, OUTER RH | ||||
| 57751-95J01 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
2 | ||
| 57767 - RETAINER, FUEL TANK BAND | ||||
| 57767-95J02 |
LH100,107,120,RZH100,101 |
3 | ||
| 57767-95J02 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| 57771 - PLATE, REAR SPRING, RH | ||||
| 57771-95J00 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
2 | ||
| 57773 - REINFORCEMENT, REAR SPRING | ||||
| 57773-95J00 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
1 | ||
| 57774A - REINFORCEMENT, REAR SPRING, LH | ||||
| 57774-95J00 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
1 | ||
| 57829 - REINFORCEMENT, SEAT LEG | ||||
| 57829-95J03 |
LH100,107,RZH100,101 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57829-95J03 |
RZH100;LH100,107,RZH101..MRF,SMRF TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57829-95J02 |
RZH100;LH100,107,RZH101..MRF,SMRF TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57829-95J02 |
LH100,107,RZH100,101 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 59361B - RETAINER, REAR SEAT, NO.1 A | ||||
| 59361-95J04 |
LH100..(MRF,SMRF)..(08S,09S);KZH10#,LH107,RZH100,101..08S,09S |
1 | ||
| 59361-95J04 |
LH100,107,RZH100,101..08S,09S TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 59361-95J03 |
RZH100..08S,09S;LH100,107,RZH101..(MRF,SMRF)..(08S,09S) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 59361-95J03 |
LH100,107,RZH100,101..08S,09S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 59362A - RETAINER, REAR SEAT, NO.1 B | ||||
| 59306-26030 |
KZH10#,RZH100,101 |
1 | ||
| 59362B - RETAINER, REAR SEAT, NO.1 B | ||||
| 59306-95J02 |
KZH10#,RZH100,101 |
1 | ||
| 59363 - RETAINER, REAR SEAT, NO.1 C | ||||
| 59363-95J03 |
LH100,107,RZH100,101..08S,09S TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 59363-95J03 |
LH100..(MRF,SMRF)..(08S,09S);KZH10#,LH107,RZH100,101..08S,09S |
1 | ||
| 59363B - RETAINER, REAR SEAT, NO.1 C | ||||
| 59363-95J02 |
LH100,107,RZH100,101 |
1 | ||
| 59363-95J02 |
RZH100;LH100,107,RZH101..MRF,SMRF |
1 | ||
| 59364A - RETAINER, REAR SEAT, NO.1 D | ||||
| 59364-95J03 |
LH100,107,RZH100,101..08S,09S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 59364-95J06 |
LH100,107,RZH100,101..08S,09S TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 59364-95J03 |
LH100,120..CTM,GCGE,SCM,SCMM;KZH10#,120,LH107,RZH100,101..CTM,DX,GCGE,SCM,SCMM TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 59364-95J06 |
LH100,120..CTM,GCGE,SCM,SCMM;KZH10#,120,LH107,RZH100,101..CTM,DX,GCGE,SCM,SCMM TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 59364A - RETAINER, REAR SEAT, NO.1 D | ||||
| 59364-95J03 |
LH100,107,RZH100,101..08S,09S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 59364-95J06 |
LH100,107,RZH100,101..08S,09S TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 59364-95J03 |
LH100,120..CTM,GCGE,SCM,SCMM;KZH10#,120,LH107,RZH100,101..CTM,DX,GCGE,SCM,SCMM TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 59364-95J06 |
LH100,120..CTM,GCGE,SCM,SCMM;KZH10#,120,LH107,RZH100,101..CTM,DX,GCGE,SCM,SCMM TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
ILLUST NO. 1 OF 4(9308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 57442-95J00 | ||||
| 90333-30002 | ||||
| 90333-30008 | ||||
| 90333-40001 | ||||
| 90950-01126 | ||||
| 90950-01181 | ||||
| 90950-01272 | ||||
| 90950-01429 | ||||
| 90950-01510 | ||||
| 90950-01691 | ||||
| 90950-01759 | ||||
| 90950-01824 | ||||
| 90950-01849 | ||||
| 90950-01864 | ||||
| 90950-01889 | ||||
| 90950-01913 | ||||
| 91651-40814 | ||||
ILLUST NO. 4 OF 4(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58266B - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-95J01 |
LH100,102,110,113,115,123,125,140,RZH10#,11#,12#..COM,V1,WG TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 58266-95J01 |
LH10#,11#,120,123,125,140,RZH10#,11#,12#..COM,V1,WG TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 58266-95J01 |
KZH10#,11#,12#,LH103,113,123,125,RZH10#,112,124..COM,V1,WG TYPE B:ｲﾗｽﾄ参照 |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
