RZH100G-JRMNE (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1995
Engine 1RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

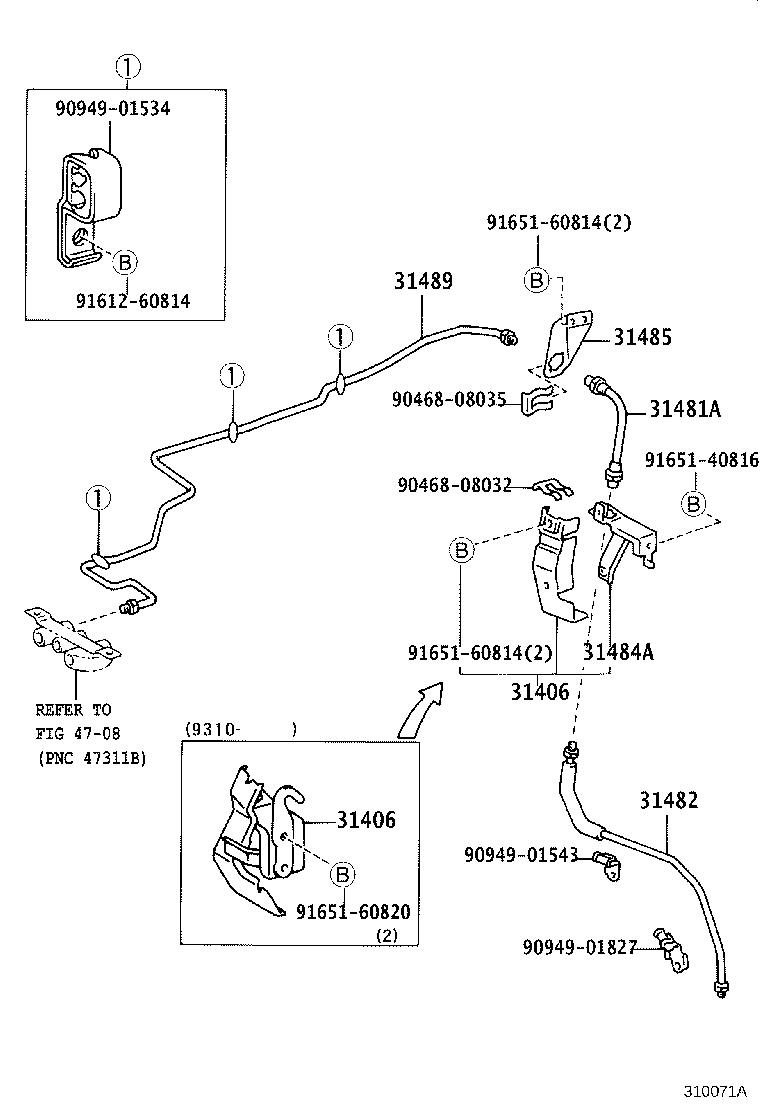

ILLUST NO. 2 OF 2(9308-9508)RZH100,102,112,124..5F

Click highlighted areas on diagram

diagram 31406 31406 31481A 31482 31484A 31485 31489 9046808032 9046808035 9094901534 9094901543 9094901827 9161260814 9165140816 9165160814 9165160814 9165160820
Part # Description Qty Price
31406 - BRACKET SUB-ASSY, FLEXIBLE HOSE
31406-26041

RZH100,102,11#,12#..5F

 1
31406-26042

RZH100,102,112,124..5F

 1
31406 - BRACKET SUB-ASSY, FLEXIBLE HOSE
31406-26041

RZH100,102,11#,12#..5F

 1
31406-26042

RZH100,102,112,124..5F

 1
31481A - HOSE, CLUTCH, NO.1
90931-01036

RZH100,102,11#,12#..5F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-26160

RZH100,102,11#,12#..5F

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-26121

RZH100,102,11#,12#..5F

 1
31484-26120

RZH100,102,11#,12#..5F

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31485-26080

LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI)

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-26200

LH10#,11#,12#,RZH100,102,112,124..5F

 1
31489-26190

LH10#,11#,12#,140,RZH100,102,11#,12#..5F

 1
Common parts
90468-08032
90468-08035
90949-01534
90949-01543
90949-01827
91612-60814
91651-40816
91651-60814
91651-60820

ILLUST NO. 2 OF 2(8908-9308)RZH100,102,11#,12#..5F

Click highlighted areas on diagram

diagram 31349 31406 31481A 31482 31484A 31485 31489 9046808032 9094901534 9094901543 9094901827 9161160814 9165140814 9165140816 9165160814 9699112080
Part # Description Qty Price
31349 - INSULATOR, CLUTCH CABLE HEAT
31349-26030

RZH100,102,11#,12#..5F

 1
31406 - BRACKET SUB-ASSY, FLEXIBLE HOSE
31406-26041

RZH100,102,11#,12#..5F

 1
31406-26042

RZH100,102,112,124..5F

 1
31481A - HOSE, CLUTCH, NO.1
90931-01036

RZH100,102,11#,12#..5F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-26160

RZH100,102,11#,12#..5F

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-26121

RZH100,102,11#,12#..5F

 1
31484-26120

RZH100,102,11#,12#..5F

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31485-26080

LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI)

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-26200

LH10#,11#,12#,RZH100,102,112,124..5F

 1
31489-26190

LH10#,11#,12#,140,RZH100,102,11#,12#..5F

 1
Common parts
90468-08032
90949-01534
90949-01543
90949-01827
91611-60814
91651-40814
91651-40816
91651-60814
96991-12080
