RZH100G-JRMNE (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1995
Engine 1RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )1RZ#,2RZE

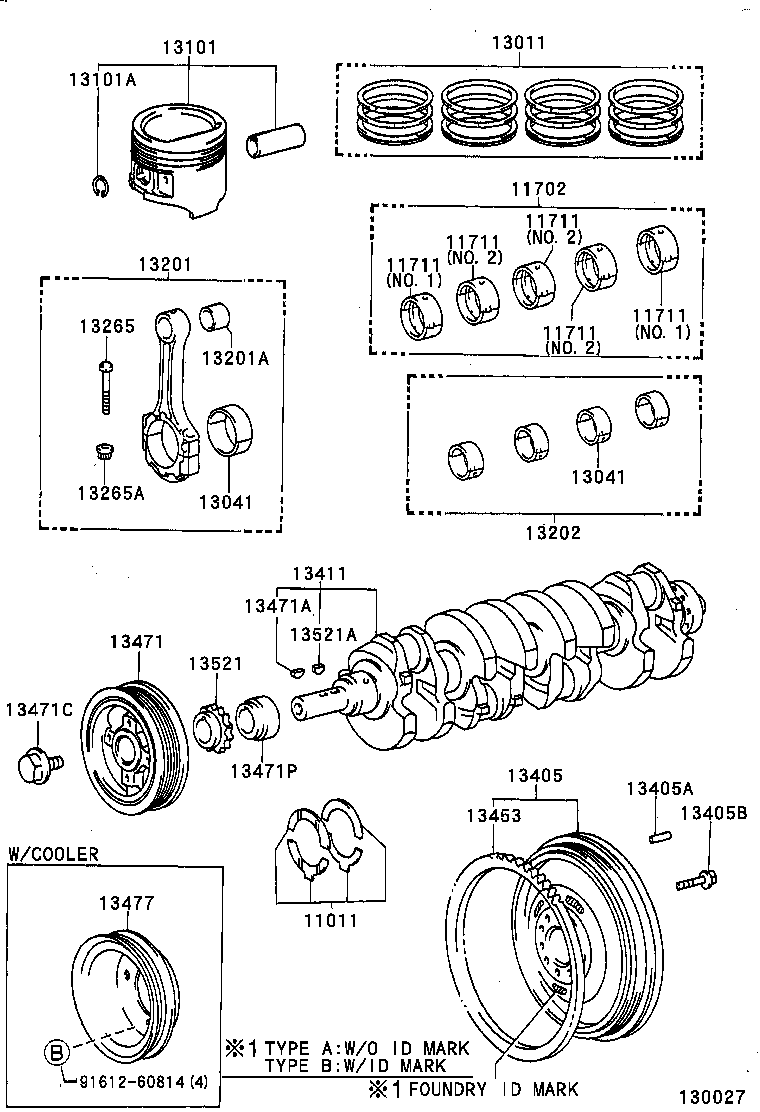

Click highlighted areas on diagram

diagram 11011 11702 11711 11711 11711 11711 11711 13011 13041 13041 13101 13101A 13201 13201A 13202 13265 13265A 13405 13405A 13405B 13411 13453 13471 13471A 13471C 13471P 13477 13521 13521A 9161260814
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11011-75010

1RZ#,2RZE..RZH10#,11#,12#,133

STD

 1
11702 - BEARING SET, CRANKSHAFT
11704-75010

1RZ#,2RZE..RZH10#,11#,12#

U/S 0.25

 1
11711 - BEARING, CRANKSHAFT
11071-7501001

1RZ#,2RZE..RZH10#,11#,12#

ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1,ﾏｰｸ 1,NO.2

 3
11701-7501003

1RZ#,2RZE..RZH10#,11#,12#

ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3,ﾏｰｸ 3,NO.1

 2
11071-7501002

1RZ#,2RZE..RZH10#,11#,12#

ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2,ﾏｰｸ 2,NO.2

 3
11701-7501002

1RZ#,2RZE..RZH10#,11#,12#

ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2,ﾏｰｸ 2,NO.1

 2
11701-7501001

1RZ#,2RZE..RZH10#,11#,12#

ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1,ﾏｰｸ 1,NO.1

 2
11071-7501003

1RZ#,2RZE..RZH10#,11#,12#

ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3,ﾏｰｸ 3,NO.2

 3
11711 - BEARING, CRANKSHAFT
11071-7501001

1RZ#,2RZE..RZH10#,11#,12#

ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1,ﾏｰｸ 1,NO.2

 3
11701-7501003

1RZ#,2RZE..RZH10#,11#,12#

ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3,ﾏｰｸ 3,NO.1

 2
11071-7501002

1RZ#,2RZE..RZH10#,11#,12#

ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2,ﾏｰｸ 2,NO.2

 3
11701-7501002

1RZ#,2RZE..RZH10#,11#,12#

ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2,ﾏｰｸ 2,NO.1

 2
11701-7501001

1RZ#,2RZE..RZH10#,11#,12#

ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1,ﾏｰｸ 1,NO.1

 2
11071-7501003

1RZ#,2RZE..RZH10#,11#,12#

ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3,ﾏｰｸ 3,NO.2

 3
11711 - BEARING, CRANKSHAFT
11071-7501001

1RZ#,2RZE..RZH10#,11#,12#

ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1,ﾏｰｸ 1,NO.2

 3
11701-7501003

1RZ#,2RZE..RZH10#,11#,12#

ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3,ﾏｰｸ 3,NO.1

 2
11071-7501002

1RZ#,2RZE..RZH10#,11#,12#

ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2,ﾏｰｸ 2,NO.2

 3
11701-7501002

1RZ#,2RZE..RZH10#,11#,12#

ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2,ﾏｰｸ 2,NO.1

 2
11701-7501001

1RZ#,2RZE..RZH10#,11#,12#

ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1,ﾏｰｸ 1,NO.1

 2
11071-7501003

1RZ#,2RZE..RZH10#,11#,12#

ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3,ﾏｰｸ 3,NO.2

 3
11711 - BEARING, CRANKSHAFT
11071-7501001

1RZ#,2RZE..RZH10#,11#,12#

ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1,ﾏｰｸ 1,NO.2

 3
11701-7501003

1RZ#,2RZE..RZH10#,11#,12#

ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3,ﾏｰｸ 3,NO.1

 2
11071-7501002

1RZ#,2RZE..RZH10#,11#,12#

ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2,ﾏｰｸ 2,NO.2

 3
11701-7501002

1RZ#,2RZE..RZH10#,11#,12#

ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2,ﾏｰｸ 2,NO.1

 2
11701-7501001

1RZ#,2RZE..RZH10#,11#,12#

ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1,ﾏｰｸ 1,NO.1

 2
11071-7501003

1RZ#,2RZE..RZH10#,11#,12#

ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3,ﾏｰｸ 3,NO.2

 3
11711 - BEARING, CRANKSHAFT
11071-7501001

1RZ#,2RZE..RZH10#,11#,12#

ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1,ﾏｰｸ 1,NO.2

 3
11701-7501003

1RZ#,2RZE..RZH10#,11#,12#

ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3,ﾏｰｸ 3,NO.1

 2
11071-7501002

1RZ#,2RZE..RZH10#,11#,12#

ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2,ﾏｰｸ 2,NO.2

 3
11701-7501002

1RZ#,2RZE..RZH10#,11#,12#

ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2,ﾏｰｸ 2,NO.1

 2
11701-7501001

1RZ#,2RZE..RZH10#,11#,12#

ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1,ﾏｰｸ 1,NO.1

 2
11071-7501003

1RZ#,2RZE..RZH10#,11#,12#

ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3,ﾏｰｸ 3,NO.2

 3
13011 - RING SET, PISTON
13011-75020

1RZ#..RZH100,102,110,112,12#

STD

 1
13013-75020

1RZ#..RZH100,102,11#,12#

O/S 0.50

 4
13041 - BEARING, CONNECTING ROD
13041-7501002

1RZ#,2RZE..RZH10#,11#,12#

ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2,ﾏｰｸ 2

 4
13041-7501003

1RZ#,2RZE..RZH10#,11#,12#

ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3,ﾏｰｸ 3

 4
13041-7501001

1RZ#,2RZE..RZH10#,11#,12#

ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1,ﾏｰｸ 1

 4
13041 - BEARING, CONNECTING ROD
13041-7501002

1RZ#,2RZE..RZH10#,11#,12#

ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2,ﾏｰｸ 2

 4
13041-7501003

1RZ#,2RZE..RZH10#,11#,12#

ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3,ﾏｰｸ 3

 4
13041-7501001

1RZ#,2RZE..RZH10#,11#,12#

ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1,ﾏｰｸ 1

 4
13101 - PISTON SUB-ASSY, W/PIN
13101-75010

1RZ#..RZH100,102,110,112,12#

STD

 4
13103-75010

1RZ#..RZH100,102,110,112,12#

O/S 0.50

 4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90521-28003

1RZ#,2RZE..RZH10#,11#,12#,133

 8
13201 - ROD SUB-ASSY, CONNECTING
13201-79165

1RZ#,2RZE..RZH10#,11#,12#

 4
13201-79166

1RZ#,2RZE..RZH10#,11#,12#

 4
13201A - BUSH(FOR CONNECTING ROD SMALL END)
90999-73125

1RZ#,2RZE..RZH10#,11#,12#

 4
13202 - BEARING SET, CONNECTING ROD
13204-75010

1RZ#,2RZE..RZH10#,11#,12#

U/S 0.25

 1
13265 - BOLT, CONNECTING ROD
13265-75011

1RZ#,2RZE..RZH10#,11#,12#

 8
13265-75010

1RZ#,2RZE..RZH10#,11#,12#

 8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90179-09007

1RZ#,2RZE..RZH10#,11#,12#

 8
13405 - FLYWHEEL SUB-ASSY
13405-75010

1RZE..RZH100,110..5F

 1
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-08054

1RZ#..RZH100,102,110,112,122,124..5F

長さ=23,外径=8

 3
13405B - BOLT, FLYWHEEL SETTING
90105-10207

1RZ#..RZH100,102,110,112,122,124..5F

 10
13411 - CRANKSHAFT
13411-75900

1RZ#,2RZE..RZH10#,11#,12#,133

 1
13453 - GEAR, FLYWHEEL RING
13453-20010

1RZ#..RZH100,102,110,112,122,124..5F

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
13471 - PULLEY, CRANKSHAFT
13408-75010

1RZ#,2RZE..RZH10#,11#,12#

 1
13408-75020

1RZE,2RZE..RZH10#,112,124

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
95161-20519

1RZ#,2RZE..RZH10#,11#,12#

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90105-16033

1RZ#,2RZE..RZH10#,11#,12#

 1
13471P - SPACER(FOR CRANKSHAFT PULLEY)
90561-33001

1RZ#,2RZE..RZH10#,11#,12#,133

 1
13477 - PULLEY, CRANKSHAFT, NO.2
88451-95J01

1RZ..RZH102,112..GL;1RZ#,2RZE..RZH100,101,11#,12#..(07S,08S,09S,10S,15S)..(CTM,DX,SCL,SCM,SCMM)

ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ)

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-75010

1RZ#,2RZE..RZH10#,11#,12#,133

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
95161-20519

1RZ#,2RZE..RZH10#,11#,12#

 1
Common parts
91612-60814
