RZH100G-JRMEE (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1993
Engine 1RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908-9308)CTM,GCGE,GCGN,SCL,SCM,SCMM ; (9005-9308)LH113..V1..DX ; (9103-9308)LH119

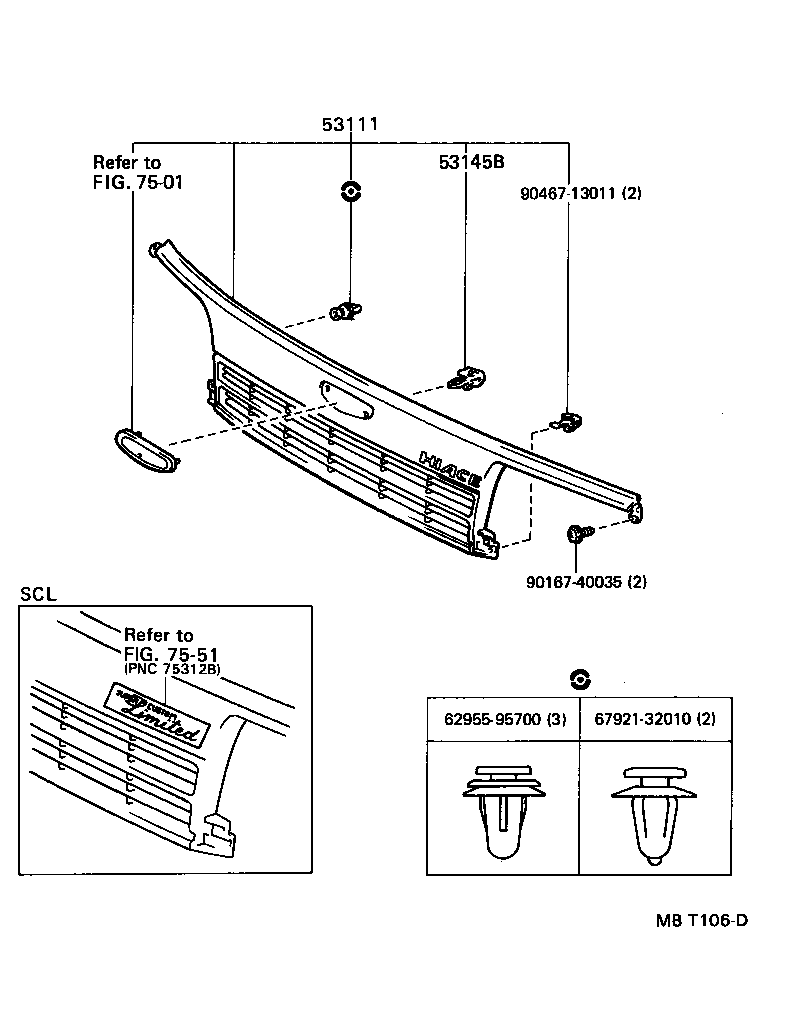

Click highlighted areas on diagram

diagram 53111 53145B 6295595700 6792132010 7501 7551 9016740035 9046713011
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53100-95J25

LH100,107,120,RZH100,101..GCGE,GCGN,SCM,SCMM

ﾒｯｷ

 1
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-95J01

LH100,107,120,RZH100,101..HRF,MRF,SMRF

 3
Common parts
62955-95700
67921-32010
90167-40035
90467-13011
Linked diagrams
7501
7551
