RZH100G-JRMEE (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1993
Engine 1RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )1RZE,2RZE

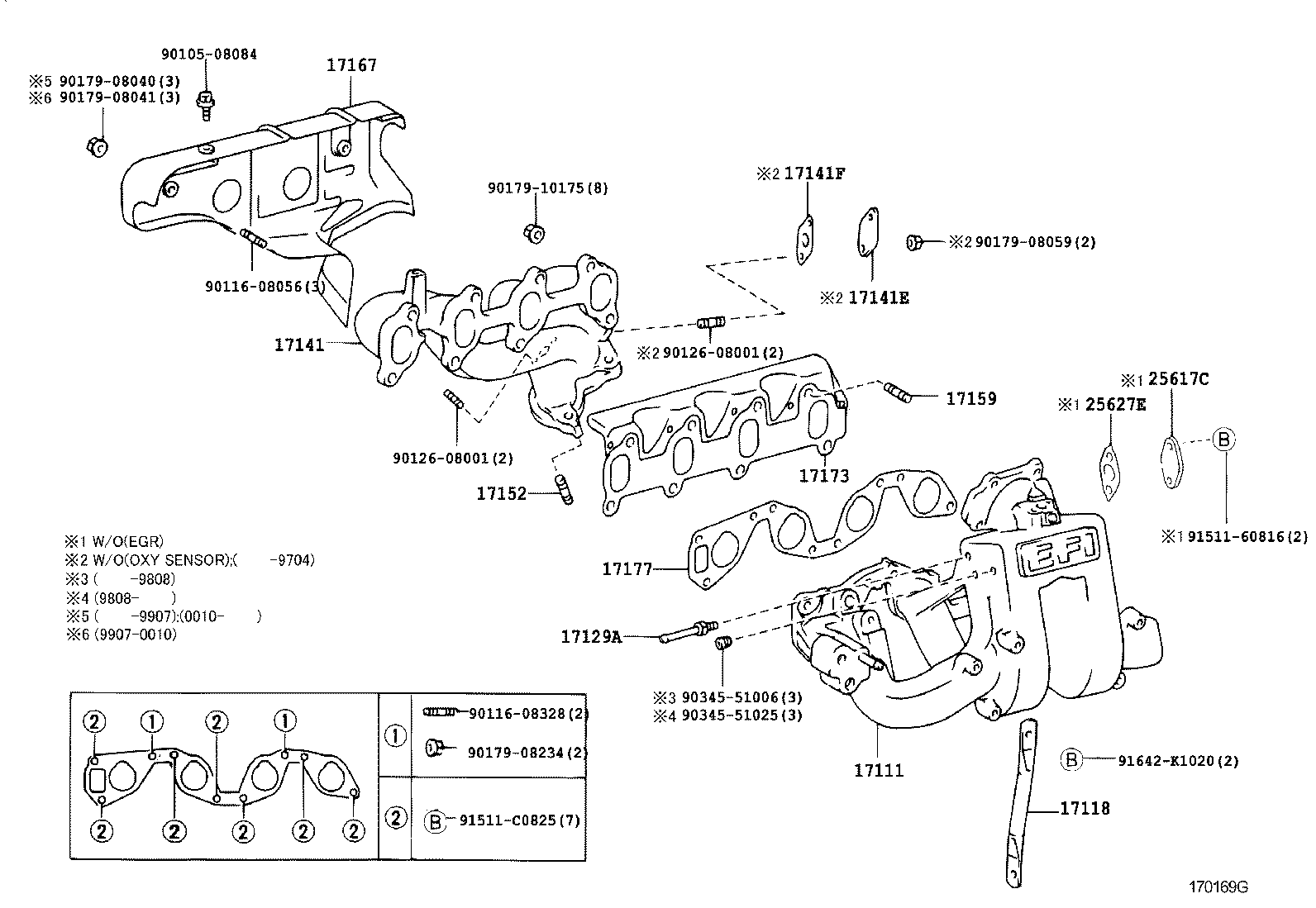

Click highlighted areas on diagram

diagram 17111 17118 17129A 17141 17141E 17141F 17152 17159 17167 17173 17177 25617C 25627E 9010508084 9011608056 9011608328 9012608001 9012608001 9017908040 9017908041 9017908059 9017908234 9017910175 9034551006 9034551025 9151160816 91511C0825 91642K1020
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-75010

1RZE,2RZE..RZH100,101,110

 1
17118 - STAY, MANIFOLD
17118-75020

1RZE,2RZE..RZH10#,11#,124,125,133

 1
17129A - UNION, NO.1
90404-51319

1RZE,2RZE..RZH10#,11#,124,125,133

 1
17141 - MANIFOLD, EXHAUST
17141-75010

1RZ#,2RZE..RZH10#,11#,12#

 1
17141E - PLATE, EXHAUST MANIFOLD
17148-41010

1RZ#,2RZE..RZH10#,11#,12#

 1
17141F - GASKET(FOR EXHAUST MANIFOLD PLATE)
89466-20020

1RZ#,2RZE..RZH10#,11#,12#

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10149

1RZ#,2RZE..RZH10#,11#,12#,133

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10163

1RZ#,2RZE..RZH10#,11#,12#,133

 8
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17107-75010

1RZE,2RZE..RZH10#,11#,124,133

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-75010

1RZ#,2RZE..RZH10#,11#,12#,133

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-75010

1RZ#,2RZE..RZH10#,11#,12#

 1
Common parts
90105-08084
90116-08056
90116-08328
90126-08001
90179-08040
90179-08041
90179-08059
90179-08234
90179-10175
90345-51006
90345-51025
91511-60816
91511-C0825
91642-K1020

(8908-9308)1RZ

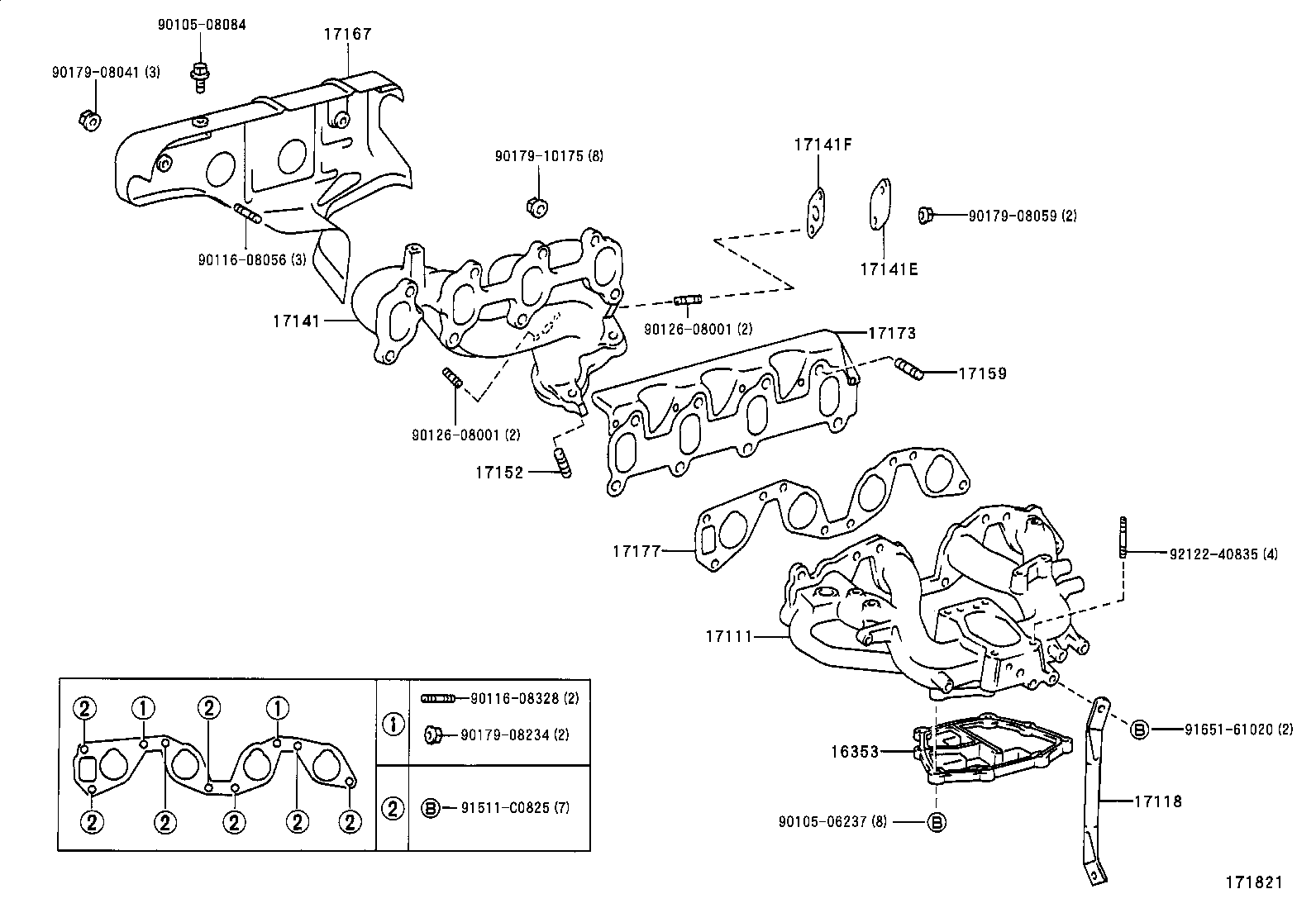

Click highlighted areas on diagram

diagram 16353 17111 17118 17141 17141E 17141F 17152 17159 17167 17173 17177 9010506237 9010508084 9011608056 9011608328 9012608001 9012608001 9017908041 9017908059 9017908234 9017910175 91511C0825 9165161020 9212240835
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-75010

1RZE,2RZE..RZH100,101,110

 1
17118 - STAY, MANIFOLD
17118-75020

1RZE,2RZE..RZH10#,11#,124,125,133

 1
17141 - MANIFOLD, EXHAUST
17141-75010

1RZ#,2RZE..RZH10#,11#,12#

 1
17141E - PLATE, EXHAUST MANIFOLD
17148-41010

1RZ#,2RZE..RZH10#,11#,12#

 1
17141F - GASKET(FOR EXHAUST MANIFOLD PLATE)
89466-20020

1RZ#,2RZE..RZH10#,11#,12#

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10149

1RZ#,2RZE..RZH10#,11#,12#,133

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10163

1RZ#,2RZE..RZH10#,11#,12#,133

 8
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17107-75010

1RZE,2RZE..RZH10#,11#,124,133

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-75010

1RZ#,2RZE..RZH10#,11#,12#,133

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-75010

1RZ#,2RZE..RZH10#,11#,12#

 1
Common parts
90105-06237
90105-08084
90116-08056
90116-08328
90126-08001
90179-08041
90179-08059
90179-08234
90179-10175
91511-C0825
91651-61020
92122-40835
