RZH100G-GRMDE (1989)
Toyota Hiace/Regiusace

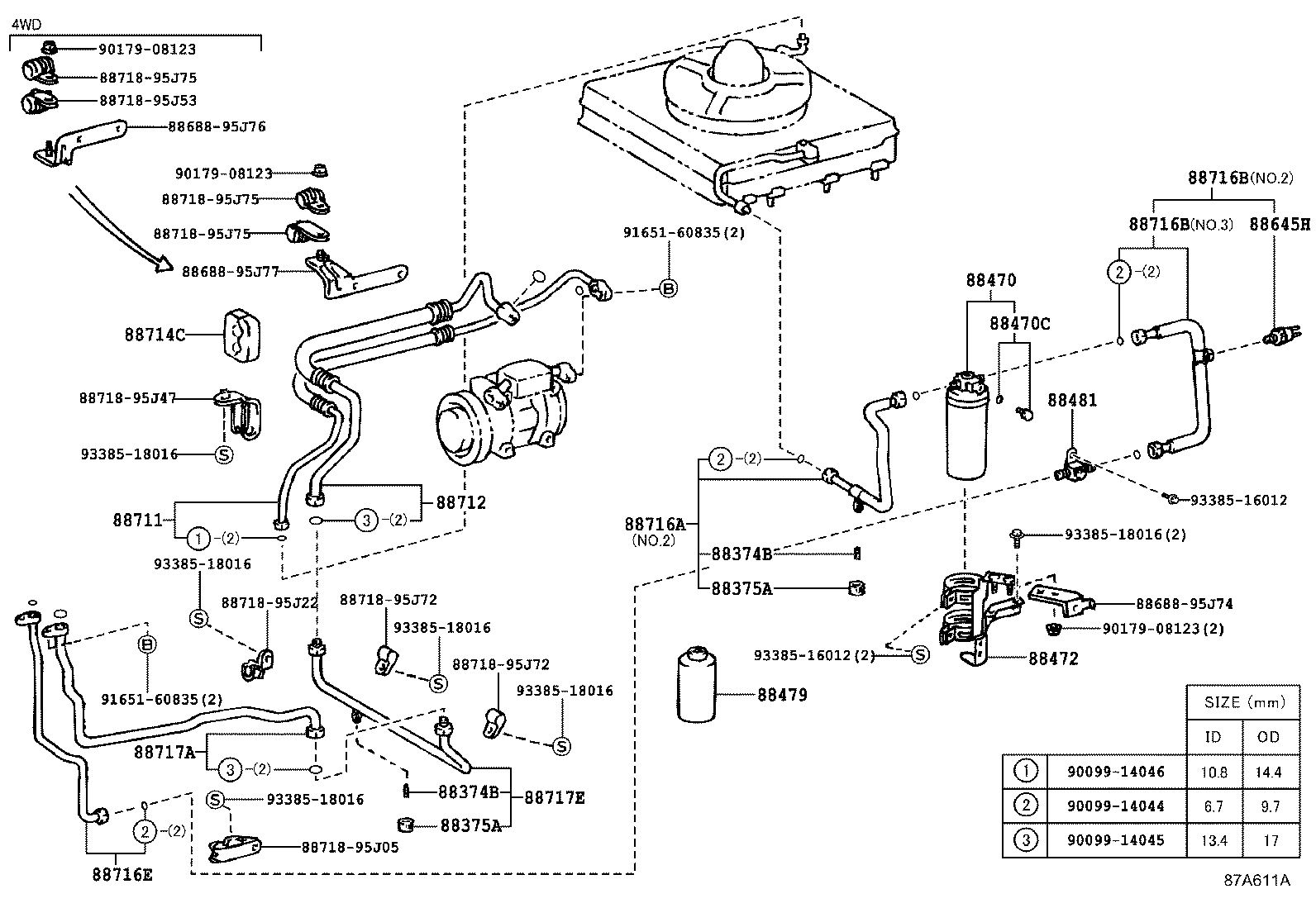

ILLUST NO. 2 OF 5(8908-9308)

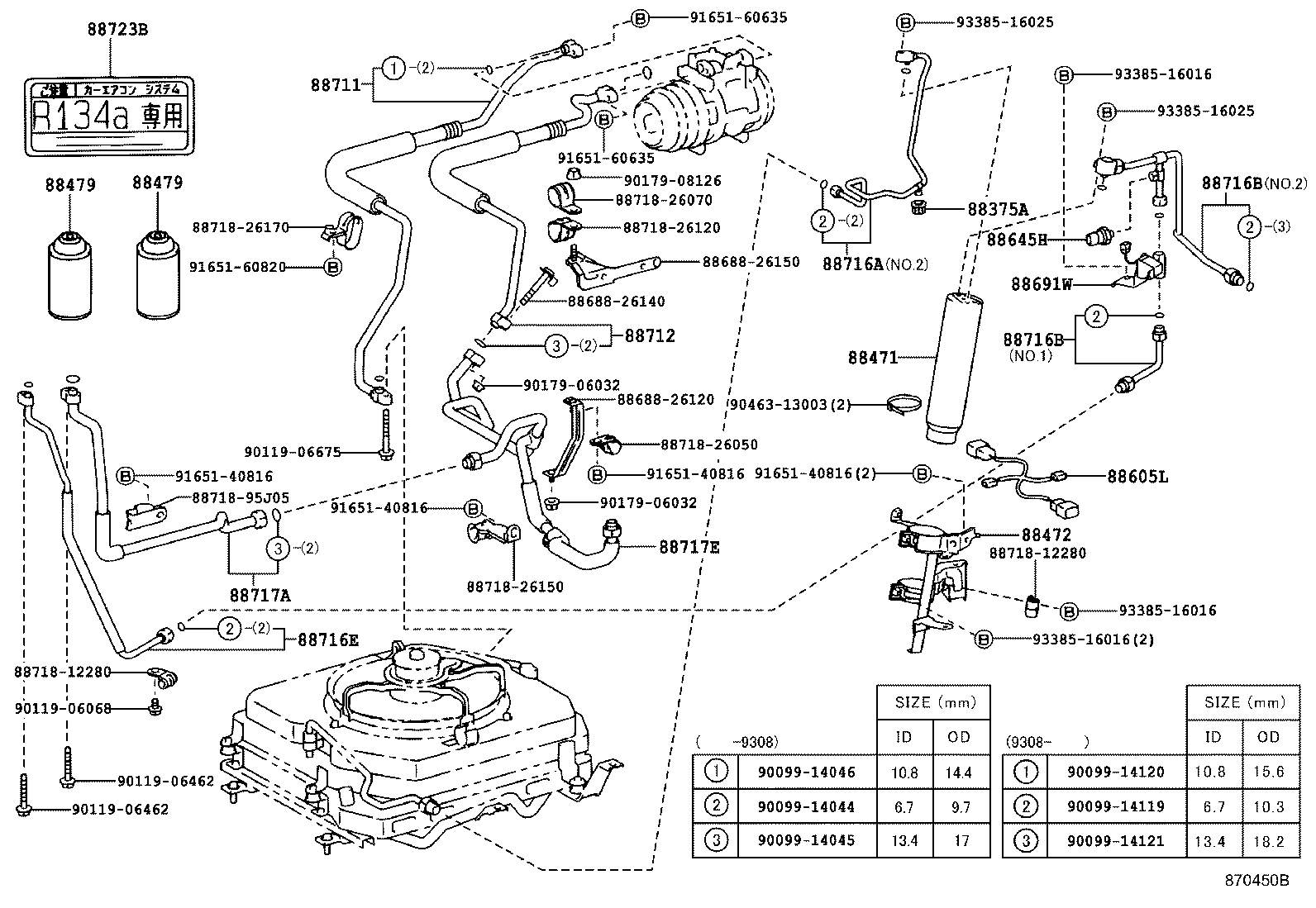

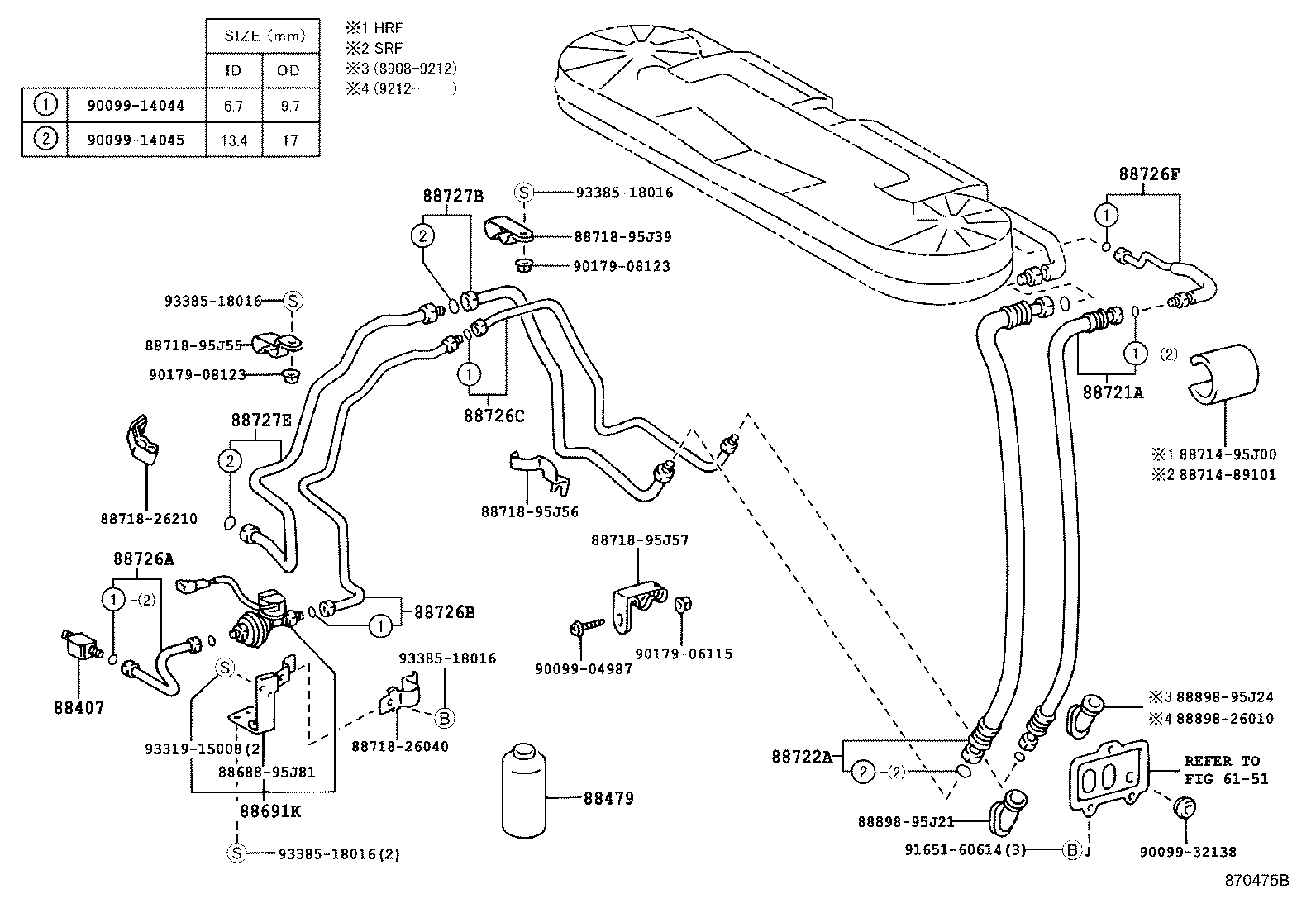

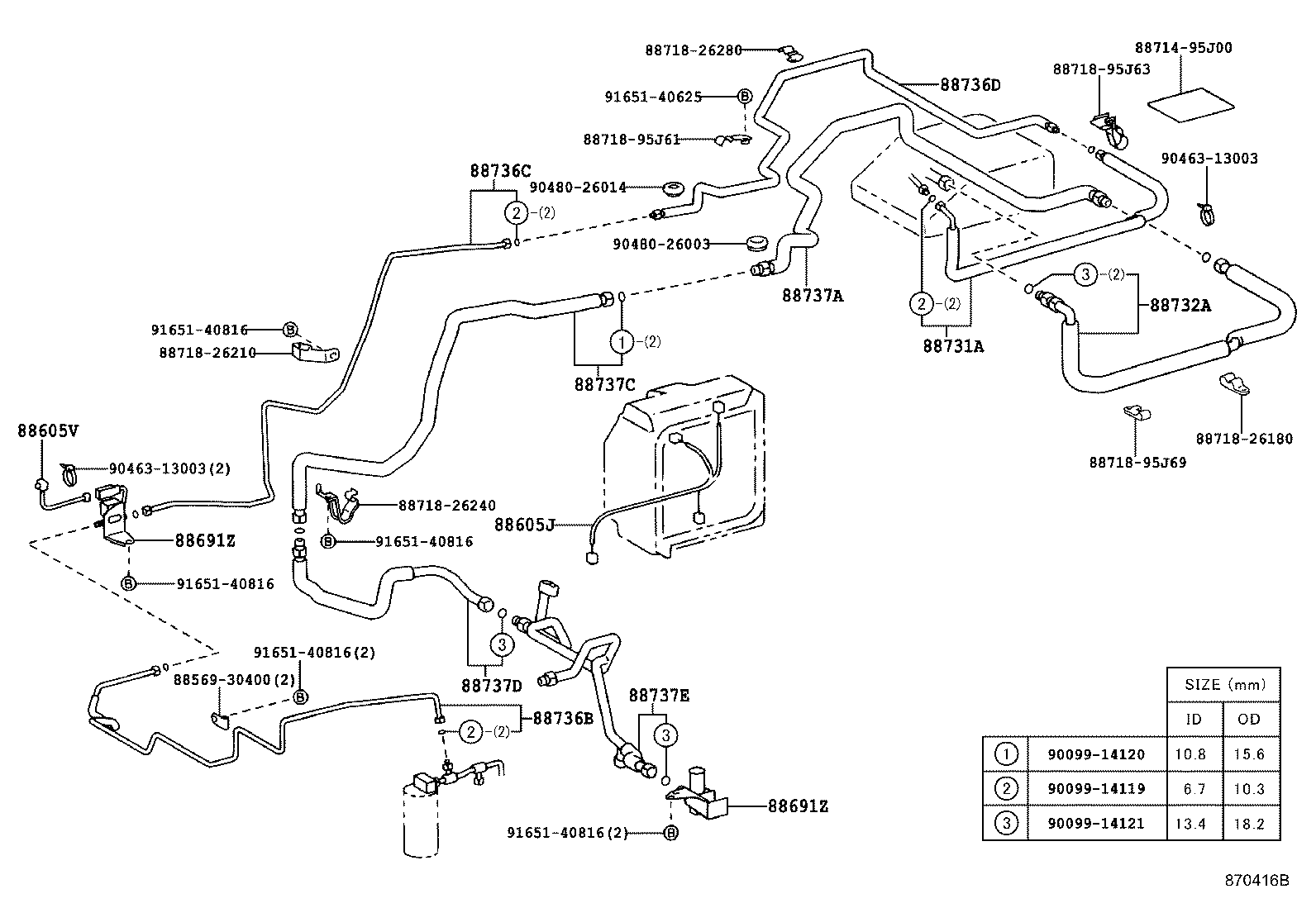

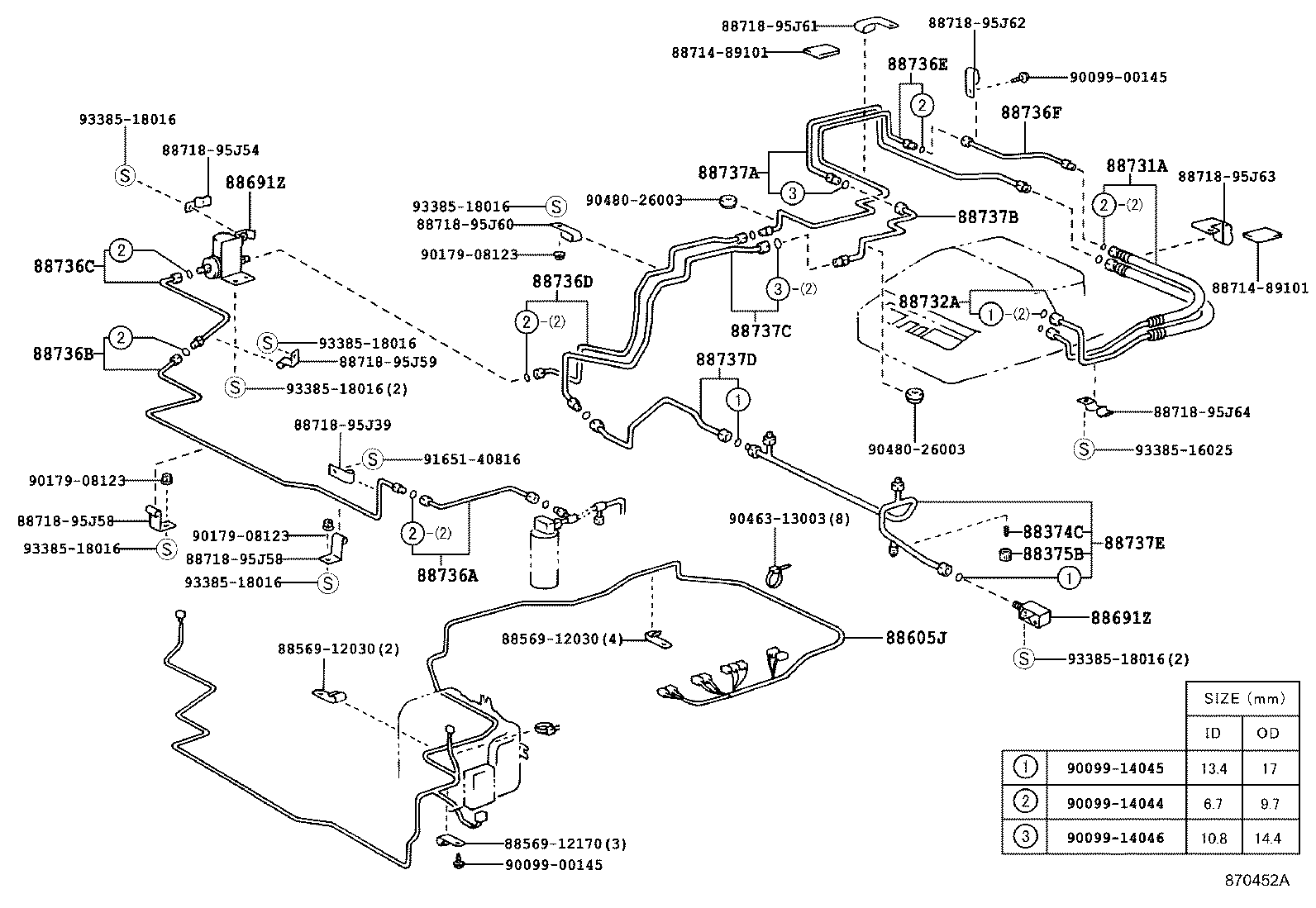

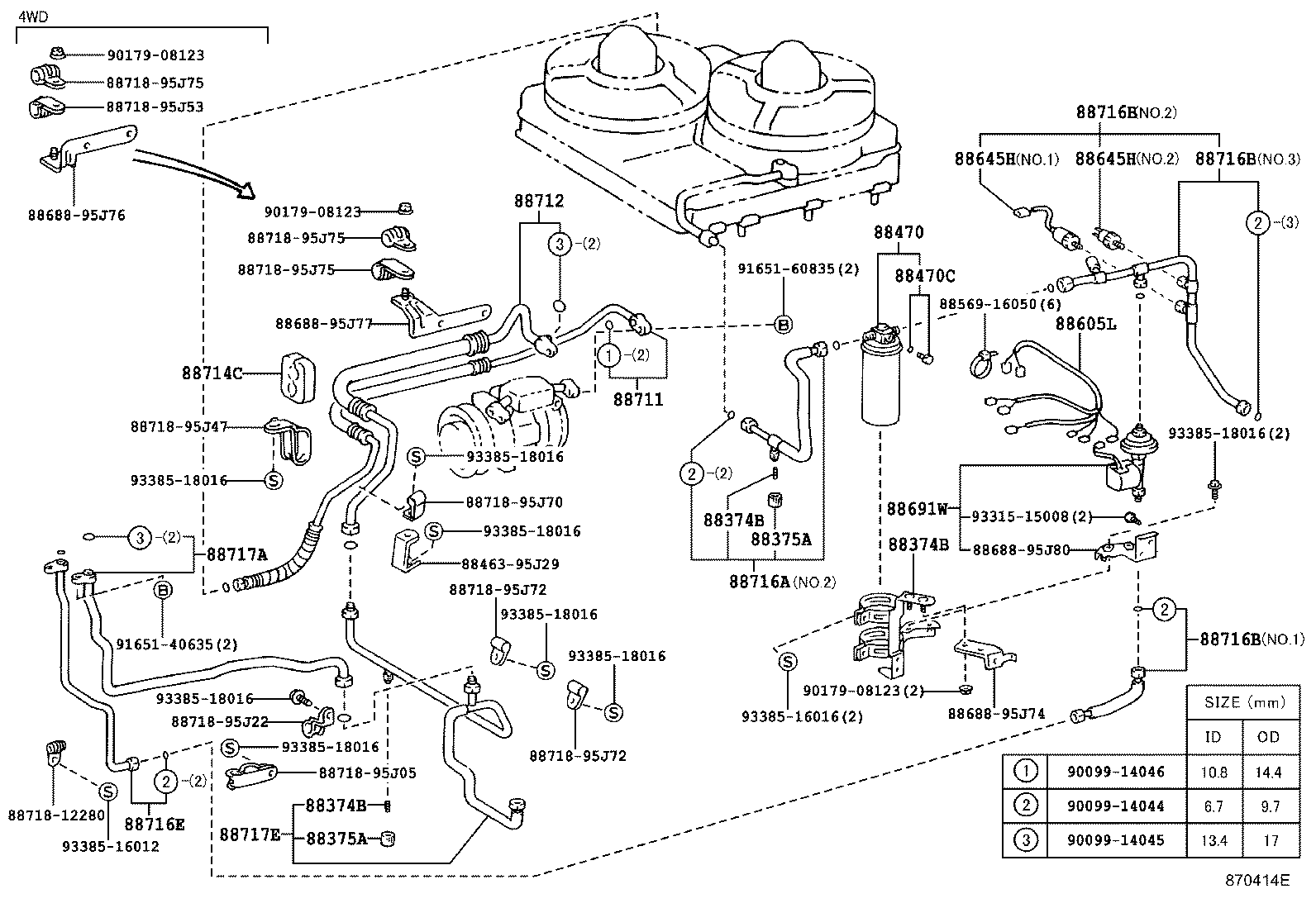

FRONT PIPING--DUAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-12020 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL |
2 | ||
| 88374-12020 |
RZH101..08S;LH10#,11#,12#,140,RZH100,102,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL,SW |
2 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-12020 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL |
2 | ||
| 88374-12020 |
RZH101..08S;LH10#,11#,12#,140,RZH100,102,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL,SW |
2 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-12020 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL |
2 | ||
| 88374-12020 |
RZH101..08S;LH10#,11#,12#,140,RZH100,102,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL,SW |
2 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-20010 |
RZH101..08S;LH10#,11#,12#,140,RZH100,102,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL,SW ﾘｷｯﾄﾞ側 |
1 | ||
| 88375-30270 |
RZH101..08S;LH100..SCM..TDE;LH100..(08S,09S)..(DSL,TD);LH100..4FC..(CTM,SCMM)..TDE;LH102,107,109,11#,12#,140,RZH100,102,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL,SW 吸入側 |
1 | ||
| 88375-30270 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL 吸入側 |
1 | ||
| 88375-20010 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL ﾘｷｯﾄﾞ側 |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-20010 |
RZH101..08S;LH10#,11#,12#,140,RZH100,102,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL,SW ﾘｷｯﾄﾞ側 |
1 | ||
| 88375-30270 |
RZH101..08S;LH100..SCM..TDE;LH100..(08S,09S)..(DSL,TD);LH100..4FC..(CTM,SCMM)..TDE;LH102,107,109,11#,12#,140,RZH100,102,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL,SW 吸入側 |
1 | ||
| 88375-30270 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL 吸入側 |
1 | ||
| 88375-20010 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL ﾘｷｯﾄﾞ側 |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-20080 |
RZH101..07S,08S;LH10#,11#,12#,140,RZH100,102,11#,12# |
1 | ||
| 88470-20080 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL |
1 | ||
| 88470-20080 |
RZH101..08S;LH10#,11#,12#,RZH100,102,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL |
1 | ||
| 88470C - BOLT, FUSE | ||||
| 88475-20040 |
RZH101..08S;LH10#,11#,12#,140,RZH100,102,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL,SW |
1 | ||
| 88475-20040 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL |
1 | ||
| 88605L - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-95N32 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,左側 |
1 | ||
| 88605-26030 |
LH113,RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH102,107,109,113,119,RZH101,102,112..CTM,GL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) 右側 |
1 | ||
| 88605-26030 |
LH113..5D..GL;RZH112..09S..DX;LH102,107,109,119,140,RZH101,102,112..GL,SCM,SCMM,SGL,SW;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,08S,09S);LH100,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM,SW) 右側 |
1 | ||
| 88605-26030 |
LH113,RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH102,107,109,113,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) 右側 |
1 | ||
| 88605-26030 |
LH113..5D..GL;RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM,SW) 右側 |
1 | ||
| 88605-95N32 |
LH120,129..5F;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,123,125,RZH100,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,左側 |
1 | ||
| 88605-95N32 |
LH113..5D..GL;LH113..V1..SRF..4D..(DX,GL,SGL);LH120,RZH112..(09S,10S)..5F..DX;LH102,109,119,140,RZH102,112..GL,SGL,SW;LH100,107,110,115,117,119,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,左側 |
1 | ||
| 88605-26030 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH102,107,109,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,08S,09S);LH100,110,115,117,120,125,140,RZH110,124..5F..(CTM,DX,GL,SCM,SCMM,SW) 右側 |
1 | ||
| 88605-26790 |
LH10#,11#,RZH102,112..GL,SGL;KZH10#,11#,12#,LH125,RZH100,101,112,124..07S,08S,09S,10S,15S ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88605-26200 |
LH123..4FC;LH113..5D..GL;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,LH119,123,125,RZH100,101,112,124..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88605-95N32 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,左側 |
1 | ||
| 88605-95N32 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124..CTM,DX,GL,SCM,SCMM,SW ﾃﾞﾕｱﾙ ｴｱｺﾝ,左側 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-95J02 |
LH129,RZH100;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) NO.1 |
1 | ||
| 88645-10020 |
LH119..09S;LH109,119..GL,SGL;LH100,102,107,110,113,115,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL NO.2 |
1 | ||
| 88645-95J02 |
LH113..5D..GL;RZH112..09S..DX;LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S);LH100,107,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) NO.1 |
1 | ||
| 88645-95J02 |
LH129,RZH100;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) NO.1 |
1 | ||
| 88645-95J02 |
LH129,RZH100;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..CTM,GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) NO.1 |
1 | ||
| 88645-26010 |
LH123..4FC;LH113..5D..GL;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,LH119,123,125,RZH100,101,112,124..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88645-26010 |
LH123..4FC;LH113..5D..GL;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,LH119,123,125,RZH100,101,112,124..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88645-10020 |
LH119..09S;LH109,119,RZH101..GL,SCM,SCMM,SGL;LH100,102,107,110,113,115,117,12#,140,RZH100,102,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL,SW NO.2 |
1 | ||
| 88645-95J02 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH102,109,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S);LH100,107,110,115,117,120,125,140,RZH110,124..CTM,DX,GL,SCM,SCMM,SW NO.1 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-95J02 |
LH129,RZH100;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) NO.1 |
1 | ||
| 88645-10020 |
LH119..09S;LH109,119..GL,SGL;LH100,102,107,110,113,115,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL NO.2 |
1 | ||
| 88645-95J02 |
LH113..5D..GL;RZH112..09S..DX;LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S);LH100,107,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) NO.1 |
1 | ||
| 88645-95J02 |
LH129,RZH100;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) NO.1 |
1 | ||
| 88645-95J02 |
LH129,RZH100;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..CTM,GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) NO.1 |
1 | ||
| 88645-26010 |
LH123..4FC;LH113..5D..GL;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,LH119,123,125,RZH100,101,112,124..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88645-26010 |
LH123..4FC;LH113..5D..GL;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,LH119,123,125,RZH100,101,112,124..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88645-10020 |
LH119..09S;LH109,119,RZH101..GL,SCM,SCMM,SGL;LH100,102,107,110,113,115,117,12#,140,RZH100,102,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL,SW NO.2 |
1 | ||
| 88645-95J02 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH102,109,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S);LH100,107,110,115,117,120,125,140,RZH110,124..CTM,DX,GL,SCM,SCMM,SW NO.1 |
1 | ||
| 88691W - VALVE, MAGNET | ||||
| 88690-95J42 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) |
1 | ||
| 88690-95J42 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88690-95J42 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) |
1 | ||
| 88690-95J42 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88690-95J42 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95J12 |
RZH102,112..GL;RZH100,101,11#,12#..(07S,08S,09S,10S,15S)..(CTM,DX,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88711-95J12 |
RZH101,102,112..GL,SCL,SCM,SCMM;RZH100,11#,12#..(07S,08S,09S,10S,15S)..(CTM,DX,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88711-95J12 |
RZH102,112..GL;RZH100,101,11#,124..(08S,09S,10S,15S)..(CTM,DX,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ(ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ) |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95J22 |
RZH101..07S,08S;RZH100,102,11#,12# |
1 | ||
| 88712-95J22 |
RZH10#,11#,12# |
1 | ||
| 88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88714-95J13 |
LH113..09S..DX;LH129,RZH102,112,122;LH102,109,113,119..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,124..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88714-95J13 |
LH113..09S..DX;LH129,RZH102,112,122;LH102,109,113,119,RZH101..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,124..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88714-95J13 |
LH113..5D..GL;LH129,RZH102,112,122;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,124..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) |
1 | ||
| 88714-95J13 |
LH123..4FC;LH113..5D..GL;LH119,123..09S;LH102,109,119..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);LH100,107,110,115,117,120,125,140,RZH10#,11#,12# |
1 | ||
| 88714-95J13 |
LH113..5D..GL;RZH102,112,122;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,124..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-26340 |
KZH10#,11#,12#,RZH100,101 NO.2 |
1 | ||
| 88716-26060 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-26060 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-95N10 |
LH113..5D..GL;RZH112..09S..DX;LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S);LH100,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GCGN,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N10 |
LH129,RZH100;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N10 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH100,110,115,117,120,125,140,RZH110,124..5F;LH102,107,109,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-26060 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-26060 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-26060 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-26260 |
LH103,11#,123,129,RZH10#,112;KZH10#,11#,12#,LH109,125,RZH124..5F NO.1 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95J80 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95J80 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N09 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-95N08 |
LH113..5D..GL;RZH112..09S..DX;LH120,129,RZH100..DSL,EFI,TDE;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.3 |
1 | ||
| 88716-95N08 |
LH129,RZH100;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..CTM,GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.3 |
1 | ||
| 88716-95N08 |
LH129,RZH100;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.3 |
1 | ||
| 88716-95J80 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N09 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-95J80 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N09 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-95N09 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-95N09 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-26350 |
LH123..4FC;LH113..5D..GL;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,LH119,123,125,RZH100,101,112,124..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95J80 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N08 |
LH113..5D..GL;RZH112..09S..DX;LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S);LH100,107,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.3 |
1 | ||
| 88716-95N08 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH102,109,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S);LH100,107,110,115,117,120,125,140,RZH110,124..CTM,DX,GL,SCM,SCMM,SW ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.3 |
1 | ||
| 88716-26330 |
LH123..4FC;LH113..5D..GL;LH113..V1..SRF..4D..(DX,GL,SGL);LH10#,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH119,123,125,RZH100,112,124..(08S,09S,15S)..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-26550 |
KZH10#,11#,12#,RZH100,101 ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88716-26550 |
LH123..4FC;RZH100..09S;LH10#,11#..GL,SGL;KZH10#,11#,12#,LH123,125..07S,08S,09S,10S,15S ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95J80 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95J80 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N09 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-95N08 |
LH113..5D..GL;RZH112..09S..DX;LH120,129,RZH100..DSL,EFI,TDE;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.3 |
1 | ||
| 88716-95N08 |
LH129,RZH100;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..CTM,GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.3 |
1 | ||
| 88716-95N08 |
LH129,RZH100;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.3 |
1 | ||
| 88716-95J80 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N09 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-95J80 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N09 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-95N09 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-95N09 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-26350 |
LH123..4FC;LH113..5D..GL;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,LH119,123,125,RZH100,101,112,124..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95J80 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N08 |
LH113..5D..GL;RZH112..09S..DX;LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S);LH100,107,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.3 |
1 | ||
| 88716-95N08 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH102,109,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S);LH100,107,110,115,117,120,125,140,RZH110,124..CTM,DX,GL,SCM,SCMM,SW ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.3 |
1 | ||
| 88716-26330 |
LH123..4FC;LH113..5D..GL;LH113..V1..SRF..4D..(DX,GL,SGL);LH10#,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH119,123,125,RZH100,112,124..(08S,09S,15S)..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-26550 |
KZH10#,11#,12#,RZH100,101 ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88716-26550 |
LH123..4FC;RZH100..09S;LH10#,11#..GL,SGL;KZH10#,11#,12#,LH123,125..07S,08S,09S,10S,15S ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95J80 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95J80 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N09 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-95N08 |
LH113..5D..GL;RZH112..09S..DX;LH120,129,RZH100..DSL,EFI,TDE;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.3 |
1 | ||
| 88716-95N08 |
LH129,RZH100;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..CTM,GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.3 |
1 | ||
| 88716-95N08 |
LH129,RZH100;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.3 |
1 | ||
| 88716-95J80 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N09 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-95J80 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N09 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-95N09 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-95N09 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-26350 |
LH123..4FC;LH113..5D..GL;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,LH119,123,125,RZH100,101,112,124..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95J80 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N08 |
LH113..5D..GL;RZH112..09S..DX;LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S);LH100,107,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.3 |
1 | ||
| 88716-95N08 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH102,109,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S);LH100,107,110,115,117,120,125,140,RZH110,124..CTM,DX,GL,SCM,SCMM,SW ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.3 |
1 | ||
| 88716-26330 |
LH123..4FC;LH113..5D..GL;LH113..V1..SRF..4D..(DX,GL,SGL);LH10#,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH119,123,125,RZH100,112,124..(08S,09S,15S)..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-26550 |
KZH10#,11#,12#,RZH100,101 ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88716-26550 |
LH123..4FC;RZH100..09S;LH10#,11#..GL,SGL;KZH10#,11#,12#,LH123,125..07S,08S,09S,10S,15S ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-26040 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88716-26040 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88716-26040 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88716-26040 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88716-26110 |
KZH10#,11#,12#,RZH100,101 |
1 | ||
| 88716-26040 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-95J40 |
LH10#,11#,12#,RZH10#,11#,12# |
1 | ||
| 88717-95J40 |
RZH101..07S,08S;LH10#,11#,12#,140,RZH100,102,11#,12# |
1 | ||
| 88717-26150 |
KZH10#,11#,12#,LH10#,11#,12#,RZH10#,112,124 |
1 | ||
| 88717E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-95J41 |
LH113,RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH102,107,109,113,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ(ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ) |
1 | ||
| 88717-95J41 |
LH113,RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH102,107,109,113,119,RZH101,102,112..CTM,GL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ(ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ) |
1 | ||
| 88717-95J41 |
LH100..5F..TD;LH107,120,RZH100,110;LH113,RZH101..(V1,WG)..(MRF,SMRF,SRF)..4D..(06S,07S,08S)..(DX,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88717-95J41 |
LH107,117,RZH100,101,110;LH100,120..(HRF,MRF,SMRF)..5F ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88717-26180 |
LH123..4FC;LH113..5D..GL;LH113..V1..SRF..4D..(DX,GL,SGL);LH10#,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH119,123,125,RZH100,112,124..(08S,09S,15S)..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ(ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ) |
1 | ||
| Common parts | ||||
| 88463-95J29 | ||||
| 88569-16050 | ||||
| 88688-95J74 | ||||
| 88688-95J76 | ||||
| 88688-95J77 | ||||
| 88688-95J80 | ||||
| 88718-12280 | ||||
| 88718-95J05 | ||||
| 88718-95J22 | ||||
| 88718-95J47 | ||||
| 88718-95J53 | ||||
| 88718-95J70 | ||||
| 88718-95J72 | ||||
| 88718-95J75 | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 90099-14046 | ||||
| 90179-08123 | ||||
| 91651-40635 | ||||
| 91651-60835 | ||||
| 93315-15008 | ||||
| 93385-16012 | ||||
| 93385-16016 | ||||
| 93385-18016 | ||||
ILLUST NO. 4 OF 5(9308-9508)
COOL BOX PIPING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88569-30400 | ||||
| 88714-95J00 | ||||
| 88718-26180 | ||||
| 88718-26210 | ||||
| 88718-26240 | ||||
| 88718-26280 | ||||
| 88718-95J61 | ||||
| 88718-95J63 | ||||
| 88718-95J69 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90463-13003 | ||||
| 90480-26003 | ||||
| 90480-26014 | ||||
| 91651-40625 | ||||
| 91651-40816 | ||||

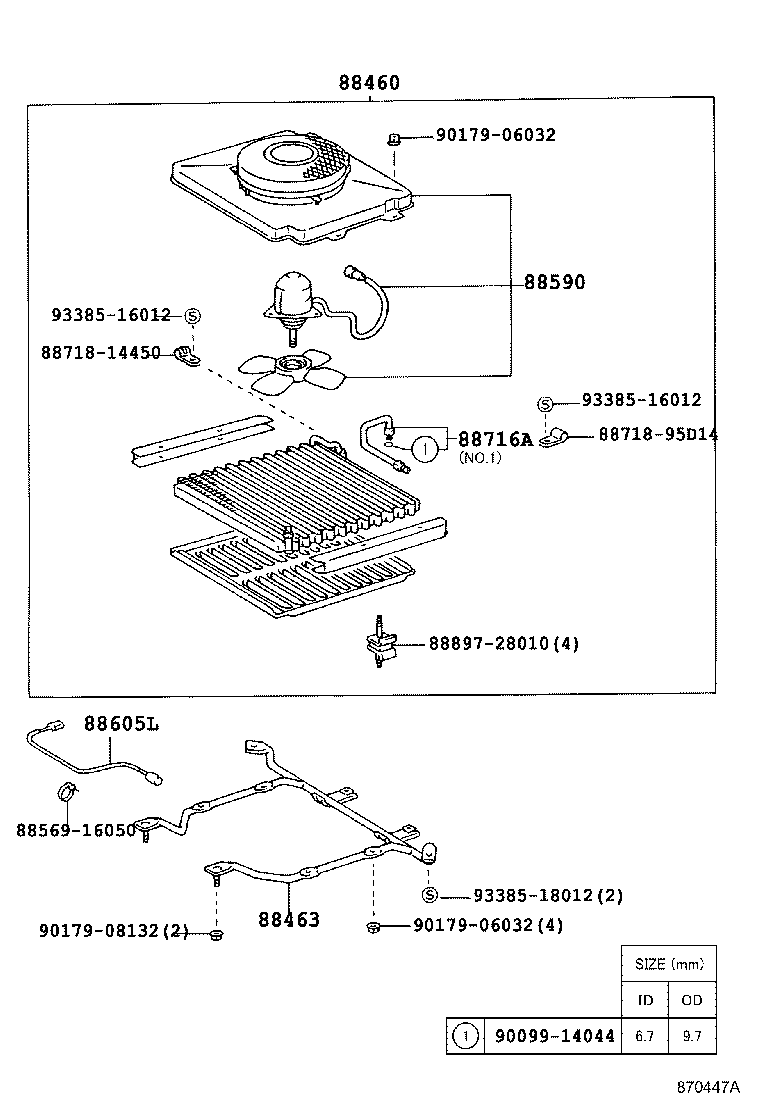

ILLUST NO. 1 OF 5(8908-9308)
CONDENSER--SINGLE(DEALER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J01 |
LH129,RZH100;LH113,RZH112..09S..DX;LH102,107,109,113,119,RZH101,102,112..CTM,GL,SCL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ(ﾒ-ｶ ｵﾌﾟｼﾖﾝ) |
1 | ||
| 88460-95J23 |
LH120,RZH100,110..08S,09S,10S;LH113,RZH101..(V1,WG)..(MRF,SMRF,SRF)..4D..(06S,08S)..(DX,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88460-95J23 |
LH113..V1..SRF..4D..06S..DX;LH100,120..(HRF,MRF,SMRF)..5F;LH107,117,RZH100,101,110..08S,09S,10S ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88460-95J01 |
LH129,RZH100;LH113,RZH112..09S..DX;LH102,107,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ(ﾒ-ｶ ｵﾌﾟｼﾖﾝ) |
1 | ||
| 88460-95J23 |
LH119..05S;LH113..V1..SRF..4D..06S..DX;LH107,117,RZH100,101,110..08S,09S,10S;LH100,120..(HRF,MRF,SMRF)..5F..(CTM,DX,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88460-26140 |
RZH100,101;KZH10#,11#,12#..5F |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-95J26 |
LH129,RZH100;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88463-95J26 |
LH129,RZH100;LH113,RZH112..09S..DX;LH102,107,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88463-95J26 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH100,110,115,117,120,125,140,RZH110,124..5F;LH102,107,109,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88463-95J26 |
LH113..5D..GL;RZH112..09S..DX;LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S);LH100,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GCGN,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88463-95J26 |
LH129,RZH100;LH113,RZH112..09S..DX;LH102,107,109,113,119,RZH101,102,112..CTM,GL,SCL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-95J01 |
LH113,RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH102,107,109,113,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
2 | ||
| 88590-95J01 |
LH113,RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH102,107,109,113,119,RZH101,102,112..CTM,GL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
2 | ||
| 88590-26050 |
LH100..5F..TD;LH107,120,RZH100,110;LH113,RZH101..(V1,WG)..(MRF,SMRF,SRF)..4D..(06S,07S,08S)..(DX,SCL,SCM,SCMM) 右側 |
1 | ||
| 88590-95J01 |
LH113..5D..GL;RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,110,115,119,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
2 | ||
| 88590-26050 |
LH107,117,RZH100,101,110..08S,09S,10S;LH100,120..(HRF,MRF,SMRF)..5F..(CTM,DX,SCM,SCMM) |
2 | ||
| 88590-26050 |
LH113..V1..SRF..4D..06S..DX;LH107,117,RZH100,101,110..08S,09S,10S;LH100,120..(HRF,MRF,SMRF)..5F..(CTM,DX,SCM,SCMM) 右側 |
1 | ||
| 88590-26080 |
LH119..09S;LH123..4FC;LH113..5D..GL;LH10#,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;KZH10#,11#,12#,LH123,125,RZH112,124..(08S,09S,10S,15S)..5F;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,08S,09S) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88605L - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-95N32 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,左側 |
1 | ||
| 88605-26030 |
LH113,RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH102,107,109,113,119,RZH101,102,112..CTM,GL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) 右側 |
1 | ||
| 88605-26030 |
LH113..5D..GL;RZH112..09S..DX;LH102,107,109,119,140,RZH101,102,112..GL,SCM,SCMM,SGL,SW;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,08S,09S);LH100,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM,SW) 右側 |
1 | ||
| 88605-26030 |
LH113,RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH102,107,109,113,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) 右側 |
1 | ||
| 88605-26030 |
LH113..5D..GL;RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM,SW) 右側 |
1 | ||
| 88605-95N32 |
LH120,129..5F;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,123,125,RZH100,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,左側 |
1 | ||
| 88605-95N32 |
LH113..5D..GL;LH113..V1..SRF..4D..(DX,GL,SGL);LH120,RZH112..(09S,10S)..5F..DX;LH102,109,119,140,RZH102,112..GL,SGL,SW;LH100,107,110,115,117,119,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,左側 |
1 | ||
| 88605-26030 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH102,107,109,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,08S,09S);LH100,110,115,117,120,125,140,RZH110,124..5F..(CTM,DX,GL,SCM,SCMM,SW) 右側 |
1 | ||
| 88605-26790 |
LH10#,11#,RZH102,112..GL,SGL;KZH10#,11#,12#,LH125,RZH100,101,112,124..07S,08S,09S,10S,15S ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88605-26200 |
LH123..4FC;LH113..5D..GL;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,LH119,123,125,RZH100,101,112,124..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88605-95N32 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,左側 |
1 | ||
| 88605-95N32 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124..CTM,DX,GL,SCM,SCMM,SW ﾃﾞﾕｱﾙ ｴｱｺﾝ,左側 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-26060 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-26060 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-95N10 |
LH113..5D..GL;RZH112..09S..DX;LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S);LH100,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GCGN,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N10 |
LH129,RZH100;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N10 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH100,110,115,117,120,125,140,RZH110,124..5F;LH102,107,109,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-26060 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-26060 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-26060 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-26340 |
KZH10#,11#,12#,RZH100,101 NO.2 |
1 | ||
| 88716-26260 |
LH103,11#,123,129,RZH10#,112;KZH10#,11#,12#,LH109,125,RZH124..5F NO.1 |
1 | ||
| Common parts | ||||
| 88569-16050 | ||||
| 88718-14450 | ||||
| 88718-95D14 | ||||
| 88897-28010 | ||||
| 90099-14044 | ||||
| 90179-06032 | ||||
| 90179-08132 | ||||
| 93385-16012 | ||||
| 93385-18012 | ||||

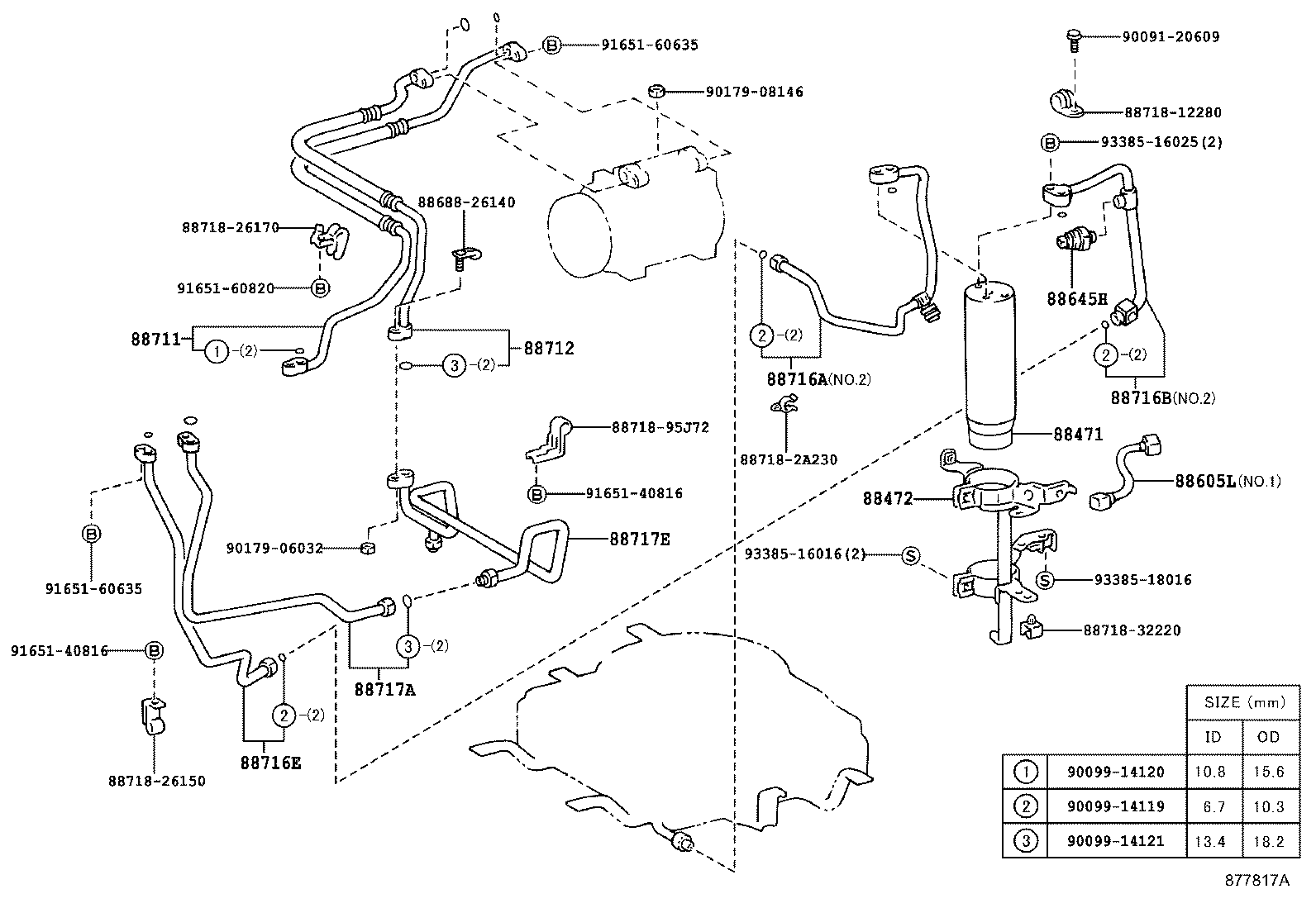

ILLUST NO. 2 OF 5(8908-9808)
FRONT PIPING--DUAL(MAKER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-20010 |
RZH101..08S;LH10#,11#,12#,140,RZH100,102,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL,SW ﾘｷｯﾄﾞ側 |
1 | ||
| 88375-30270 |
RZH101..08S;LH100..SCM..TDE;LH100..(08S,09S)..(DSL,TD);LH100..4FC..(CTM,SCMM)..TDE;LH102,107,109,11#,12#,140,RZH100,102,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL,SW 吸入側 |
1 | ||
| 88375-30270 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL 吸入側 |
1 | ||
| 88375-20010 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL ﾘｷｯﾄﾞ側 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95J02 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL |
1 | ||
| 88472-95J02 |
RZH101..07S,08S;LH10#,11#,12#,140,RZH100,102,11#,12# |
1 | ||
| 88472-95J02 |
RZH101..08S;LH10#,11#,12#,RZH100,102,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL |
1 | ||
| 88472-26090 |
KZH10#,11#,12#,LH10#,11#,12#,RZH10#,112,124 |
1 | ||
| 88472-26050 |
KZH10#,11#,12#,LH10#,11#,12#,RZH10#,112,124 |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02004 |
LH129,RZH100;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) 250G |
4 | ||
| 90986-02004 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) 250G |
4 | ||
| 90986-02004 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) 250G |
4 | ||
| 90986-02004 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) 250G |
4 | ||
| 90986-02004 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 250G |
4 | ||
| 90986-02008 |
LH123..4FC;LH113..5D..GL;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,LH119,123,125,RZH100,101,112,124..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM) 200G |
4 | ||
| 90986-02004 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) 250G |
4 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02004 |
LH129,RZH100;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) 250G |
4 | ||
| 90986-02004 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) 250G |
4 | ||
| 90986-02004 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) 250G |
4 | ||
| 90986-02004 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) 250G |
4 | ||
| 90986-02004 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 250G |
4 | ||
| 90986-02008 |
LH123..4FC;LH113..5D..GL;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,LH119,123,125,RZH100,101,112,124..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM) 200G |
4 | ||
| 90986-02004 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) 250G |
4 | ||
| 88605L - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-95N32 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,左側 |
1 | ||
| 88605-26030 |
LH113,RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH102,107,109,113,119,RZH101,102,112..CTM,GL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) 右側 |
1 | ||
| 88605-26030 |
LH113..5D..GL;RZH112..09S..DX;LH102,107,109,119,140,RZH101,102,112..GL,SCM,SCMM,SGL,SW;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,08S,09S);LH100,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM,SW) 右側 |
1 | ||
| 88605-26030 |
LH113,RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH102,107,109,113,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) 右側 |
1 | ||
| 88605-26030 |
LH113..5D..GL;RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM,SW) 右側 |
1 | ||
| 88605-95N32 |
LH120,129..5F;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,123,125,RZH100,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,左側 |
1 | ||
| 88605-95N32 |
LH113..5D..GL;LH113..V1..SRF..4D..(DX,GL,SGL);LH120,RZH112..(09S,10S)..5F..DX;LH102,109,119,140,RZH102,112..GL,SGL,SW;LH100,107,110,115,117,119,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,左側 |
1 | ||
| 88605-26030 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH102,107,109,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,08S,09S);LH100,110,115,117,120,125,140,RZH110,124..5F..(CTM,DX,GL,SCM,SCMM,SW) 右側 |
1 | ||
| 88605-26790 |
LH10#,11#,RZH102,112..GL,SGL;KZH10#,11#,12#,LH125,RZH100,101,112,124..07S,08S,09S,10S,15S ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88605-26200 |
LH123..4FC;LH113..5D..GL;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,LH119,123,125,RZH100,101,112,124..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88605-95N32 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,左側 |
1 | ||
| 88605-95N32 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124..CTM,DX,GL,SCM,SCMM,SW ﾃﾞﾕｱﾙ ｴｱｺﾝ,左側 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-95J02 |
LH129,RZH100;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) NO.1 |
1 | ||
| 88645-10020 |
LH119..09S;LH109,119..GL,SGL;LH100,102,107,110,113,115,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL NO.2 |
1 | ||
| 88645-95J02 |
LH113..5D..GL;RZH112..09S..DX;LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S);LH100,107,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) NO.1 |
1 | ||
| 88645-95J02 |
LH129,RZH100;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) NO.1 |
1 | ||
| 88645-95J02 |
LH129,RZH100;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..CTM,GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) NO.1 |
1 | ||
| 88645-26010 |
LH123..4FC;LH113..5D..GL;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,LH119,123,125,RZH100,101,112,124..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88645-26010 |
LH123..4FC;LH113..5D..GL;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,LH119,123,125,RZH100,101,112,124..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88645-10020 |
LH119..09S;LH109,119,RZH101..GL,SCM,SCMM,SGL;LH100,102,107,110,113,115,117,12#,140,RZH100,102,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL,SW NO.2 |
1 | ||
| 88645-95J02 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH102,109,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S);LH100,107,110,115,117,120,125,140,RZH110,124..CTM,DX,GL,SCM,SCMM,SW NO.1 |
1 | ||
| 88691W - VALVE, MAGNET | ||||
| 88690-95J42 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) |
1 | ||
| 88690-95J42 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88690-95J42 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) |
1 | ||
| 88690-95J42 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88690-95J42 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95J12 |
RZH102,112..GL;RZH100,101,11#,12#..(07S,08S,09S,10S,15S)..(CTM,DX,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88711-95J12 |
RZH101,102,112..GL,SCL,SCM,SCMM;RZH100,11#,12#..(07S,08S,09S,10S,15S)..(CTM,DX,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88711-95J12 |
RZH102,112..GL;RZH100,101,11#,124..(08S,09S,10S,15S)..(CTM,DX,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ(ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ) |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95J22 |
RZH101..07S,08S;RZH100,102,11#,12# |
1 | ||
| 88712-95J22 |
RZH10#,11#,12# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-26340 |
KZH10#,11#,12#,RZH100,101 NO.2 |
1 | ||
| 88716-26060 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-26060 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-95N10 |
LH113..5D..GL;RZH112..09S..DX;LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S);LH100,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GCGN,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N10 |
LH129,RZH100;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N10 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH100,110,115,117,120,125,140,RZH110,124..5F;LH102,107,109,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-26060 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-26060 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-26060 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-26260 |
LH103,11#,123,129,RZH10#,112;KZH10#,11#,12#,LH109,125,RZH124..5F NO.1 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95J80 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95J80 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N09 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-95N08 |
LH113..5D..GL;RZH112..09S..DX;LH120,129,RZH100..DSL,EFI,TDE;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.3 |
1 | ||
| 88716-95N08 |
LH129,RZH100;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..CTM,GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.3 |
1 | ||
| 88716-95N08 |
LH129,RZH100;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.3 |
1 | ||
| 88716-95J80 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N09 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-95J80 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N09 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-95N09 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-95N09 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-26350 |
LH123..4FC;LH113..5D..GL;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,LH119,123,125,RZH100,101,112,124..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95J80 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N08 |
LH113..5D..GL;RZH112..09S..DX;LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S);LH100,107,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.3 |
1 | ||
| 88716-95N08 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH102,109,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S);LH100,107,110,115,117,120,125,140,RZH110,124..CTM,DX,GL,SCM,SCMM,SW ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.3 |
1 | ||
| 88716-26330 |
LH123..4FC;LH113..5D..GL;LH113..V1..SRF..4D..(DX,GL,SGL);LH10#,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH119,123,125,RZH100,112,124..(08S,09S,15S)..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-26550 |
KZH10#,11#,12#,RZH100,101 ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88716-26550 |
LH123..4FC;RZH100..09S;LH10#,11#..GL,SGL;KZH10#,11#,12#,LH123,125..07S,08S,09S,10S,15S ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95J80 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95J80 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N09 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-95N08 |
LH113..5D..GL;RZH112..09S..DX;LH120,129,RZH100..DSL,EFI,TDE;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.3 |
1 | ||
| 88716-95N08 |
LH129,RZH100;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..CTM,GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.3 |
1 | ||
| 88716-95N08 |
LH129,RZH100;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.3 |
1 | ||
| 88716-95J80 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N09 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-95J80 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N09 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-95N09 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-95N09 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-26350 |
LH123..4FC;LH113..5D..GL;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,LH119,123,125,RZH100,101,112,124..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95J80 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N08 |
LH113..5D..GL;RZH112..09S..DX;LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S);LH100,107,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.3 |
1 | ||
| 88716-95N08 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH102,109,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S);LH100,107,110,115,117,120,125,140,RZH110,124..CTM,DX,GL,SCM,SCMM,SW ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.3 |
1 | ||
| 88716-26330 |
LH123..4FC;LH113..5D..GL;LH113..V1..SRF..4D..(DX,GL,SGL);LH10#,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH119,123,125,RZH100,112,124..(08S,09S,15S)..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-26550 |
KZH10#,11#,12#,RZH100,101 ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88716-26550 |
LH123..4FC;RZH100..09S;LH10#,11#..GL,SGL;KZH10#,11#,12#,LH123,125..07S,08S,09S,10S,15S ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-26040 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88716-26040 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88716-26040 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88716-26040 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88716-26110 |
KZH10#,11#,12#,RZH100,101 |
1 | ||
| 88716-26040 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-95J40 |
LH10#,11#,12#,RZH10#,11#,12# |
1 | ||
| 88717-95J40 |
RZH101..07S,08S;LH10#,11#,12#,140,RZH100,102,11#,12# |
1 | ||
| 88717-26150 |
KZH10#,11#,12#,LH10#,11#,12#,RZH10#,112,124 |
1 | ||
| 88717E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-95J41 |
LH113,RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH102,107,109,113,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ(ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ) |
1 | ||
| 88717-95J41 |
LH113,RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH102,107,109,113,119,RZH101,102,112..CTM,GL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ(ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ) |
1 | ||
| 88717-95J41 |
LH100..5F..TD;LH107,120,RZH100,110;LH113,RZH101..(V1,WG)..(MRF,SMRF,SRF)..4D..(06S,07S,08S)..(DX,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88717-95J41 |
LH107,117,RZH100,101,110;LH100,120..(HRF,MRF,SMRF)..5F ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88717-26180 |
LH123..4FC;LH113..5D..GL;LH113..V1..SRF..4D..(DX,GL,SGL);LH10#,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH119,123,125,RZH100,112,124..(08S,09S,15S)..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ(ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ) |
1 | ||
| Common parts | ||||
| 88688-26120 | ||||
| 88688-26140 | ||||
| 88688-26150 | ||||
| 88718-12280 | ||||
| 88718-26050 | ||||
| 88718-26070 | ||||
| 88718-26120 | ||||
| 88718-26150 | ||||
| 88718-26170 | ||||
| 88718-95J05 | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 90099-14046 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06068 | ||||
| 90119-06462 | ||||
| 90119-06675 | ||||
| 90179-06032 | ||||
| 90179-08126 | ||||
| 90463-13003 | ||||
| 91651-40816 | ||||
| 91651-60635 | ||||
| 91651-60820 | ||||
| 93385-16016 | ||||
| 93385-16025 | ||||

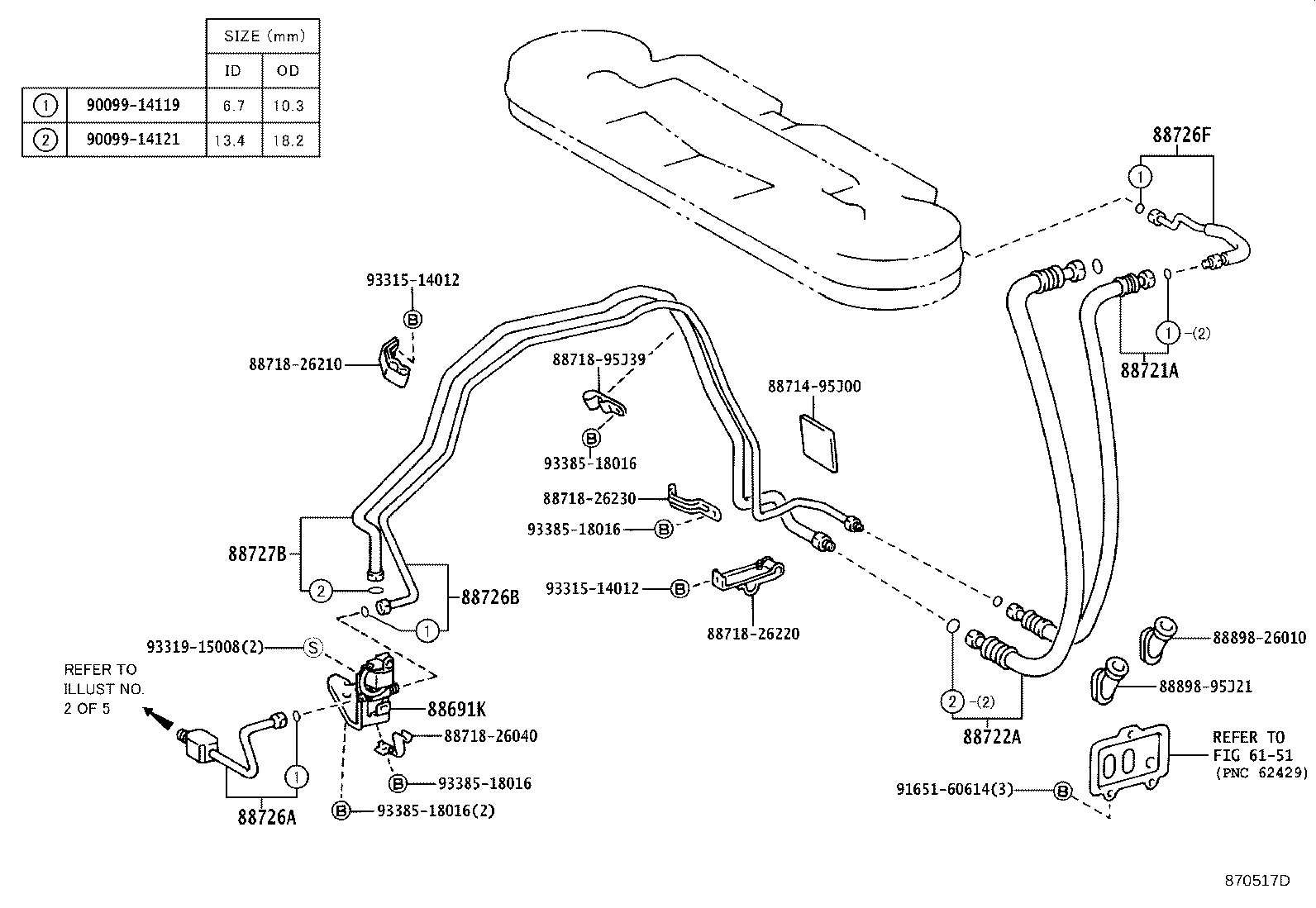

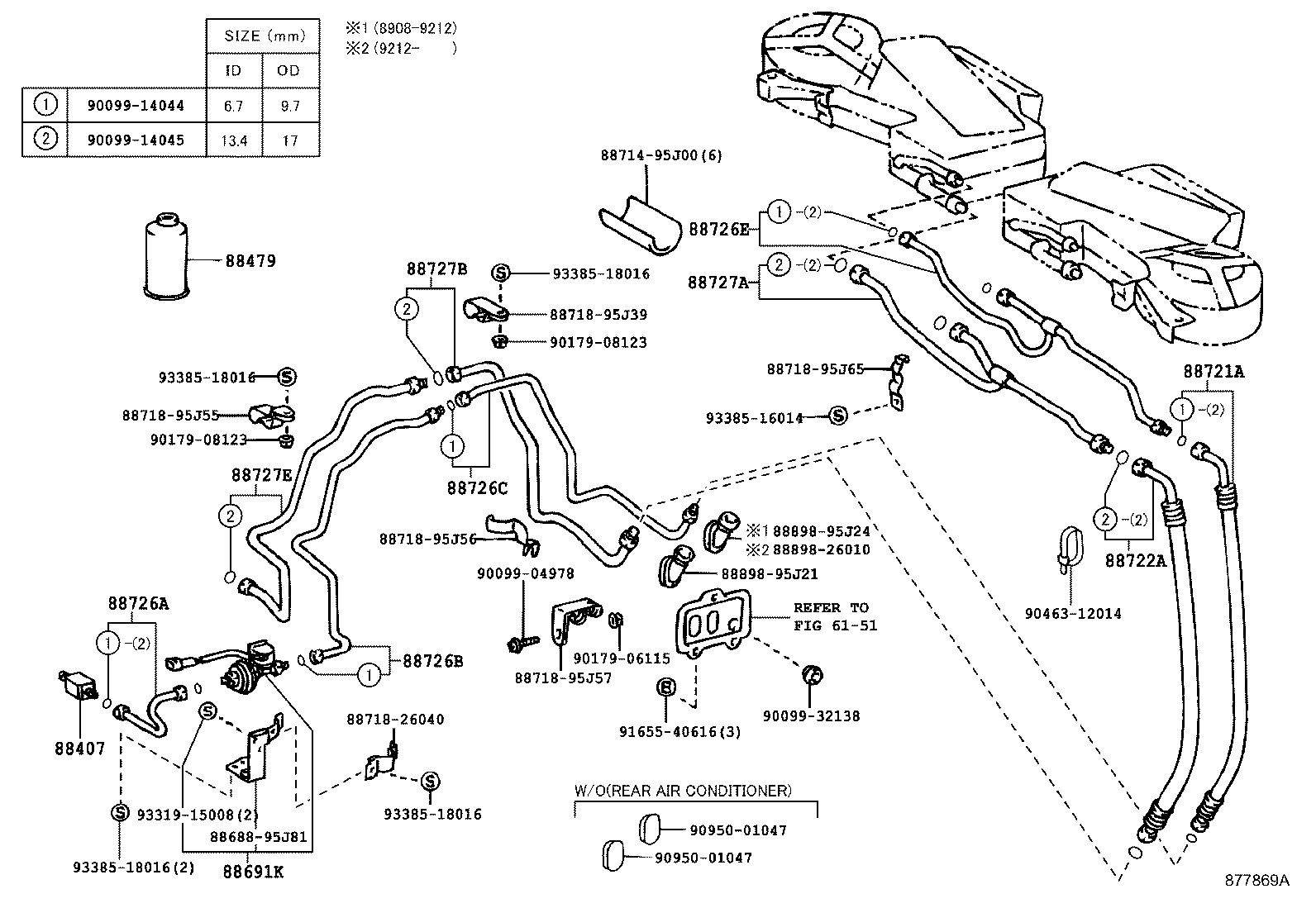

ILLUST NO. 4 OF 5(8908-9308)
COOL BOX PIPING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88569-12030 | ||||
| 88569-12170 | ||||
| 88714-89101 | ||||
| 88718-95J39 | ||||
| 88718-95J54 | ||||
| 88718-95J58 | ||||
| 88718-95J59 | ||||
| 88718-95J60 | ||||
| 88718-95J61 | ||||
| 88718-95J62 | ||||
| 88718-95J63 | ||||
| 88718-95J64 | ||||
| 90099-00145 | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 90099-14046 | ||||
| 90179-08123 | ||||
| 90463-13003 | ||||
| 90480-26003 | ||||
| 91651-40816 | ||||
| 93385-16025 | ||||
| 93385-18016 | ||||
ILLUST NO. 3 OF 5(8908-9308)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88407 - GLASS SUB-ASSY, SIGHT | ||||
| 88407-95701 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) |
1 | ||
| 88407-95701 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88407-95701 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) |
1 | ||
| 88407-95701 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) |
1 | ||
| 88407-95701 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) |
1 | ||
| 88407-95701 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02004 |
LH129,RZH100;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) 250G |
4 | ||
| 90986-02004 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) 250G |
4 | ||
| 90986-02004 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) 250G |
4 | ||
| 90986-02004 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) 250G |
4 | ||
| 90986-02004 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 250G |
4 | ||
| 90986-02008 |
LH123..4FC;LH113..5D..GL;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,LH119,123,125,RZH100,101,112,124..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM) 200G |
4 | ||
| 90986-02004 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) 250G |
4 | ||
| 88691K - VALVE ASSY, MAGNET | ||||
| 88690-95J44 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88690-95J44 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 |
1 | ||
| 88690-95J44 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88690-95J44 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) |
1 | ||
| 88690-95J44 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) |
1 | ||
| 88721A - HOSE, LIQUID, A | ||||
| 88721-95J05 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF |
1 | ||
| 88722A - HOSE, SUCTION, A | ||||
| 88712-95J16 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95J87 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88716-95J87 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) |
1 | ||
| 88716-26270 |
LH123..4FC;LH113..5D..GL;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,LH119,123,125,RZH100,101,112,124..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM) |
1 | ||
| 88716-95J87 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 |
1 | ||
| 88716-95J87 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) |
1 | ||
| 88716-95J87 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88726B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95N00 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88716-95N00 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88716-26190 |
LH123..4FC;LH113..5D..GL;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,LH119,123,125,RZH100,101,112,124..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM) |
1 | ||
| 88716-95N00 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) |
1 | ||
| 88716-95N00 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) |
1 | ||
| 88716-95N00 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 |
1 | ||
| 88726C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-95N01 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) |
1 | ||
| 88716-95N01 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88716-95N01 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88716-95N01 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 |
1 | ||
| 88716-95N01 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) |
1 | ||
| 88727B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-95J50 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) |
1 | ||
| 88717-95J50 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 |
1 | ||
| 88717-95J50 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88717-26300 |
LH123..4FC;LH113..5D..GL;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,LH119,123,125,RZH100,101,112,124..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM) |
1 | ||
| 88717-95J50 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) |
1 | ||
| 88717-95J50 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88727E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-95J49 |
LH113,RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH102,109,113,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88717-95J49 |
LH113..5D..GL;RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88717-95J49 |
LH120..4FC;LH113..5D..GL;LH120,RZH112..(09S,10S)..5F..DX;LH102,107,109,119,140,RZH101,102,112..GL,SCM,SCMM,SGL,SW;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,08S,09S);LH100,110,115,117,119,123,125,RZH110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88717-95J49 |
LH113..5D..GL;LH120,123..4FC;LH119,123,RZH112..09S..DX;LH102,107,109,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,08S,09S);LH100,110,115,117,120,125,140,RZH110,124..CTM,DX,GL,SCL,SCM,SCMM,SW ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88717-95J49 |
LH113,RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH102,109,113,119,RZH101,102,112..CTM,GL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| Common parts | ||||
| 88688-95J81 | ||||
| 88714-89101 | ||||
| 88714-95J00 | ||||
| 88718-26040 | ||||
| 88718-26210 | ||||
| 88718-95J39 | ||||
| 88718-95J55 | ||||
| 88718-95J56 | ||||
| 88718-95J57 | ||||
| 88898-26010 | ||||
| 88898-95J21 | ||||
| 88898-95J24 | ||||
| 90099-04987 | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 90099-32138 | ||||
| 90179-06115 | ||||
| 90179-08123 | ||||
| 91651-60614 | ||||
| 93319-15008 | ||||
| 93385-18016 | ||||
| Linked diagrams | ||||
| 6151 | ||||
ILLUST NO. 5 OF 5(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02004 |
LH129,RZH100;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) 250G |
4 | ||
| 90986-02004 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) 250G |
4 | ||
| 90986-02004 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) 250G |
4 | ||
| 90986-02004 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) 250G |
4 | ||
| 90986-02004 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 250G |
4 | ||
| 90986-02008 |
LH123..4FC;LH113..5D..GL;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,LH119,123,125,RZH100,101,112,124..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM) 200G |
4 | ||
| 90986-02004 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) 250G |
4 | ||
ILLUST NO. 3 OF 5(9308- )KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133,18#
REAR PIPING(DEALER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88691K - VALVE ASSY, MAGNET | ||||
| 88690-95J44 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88690-95J44 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 |
1 | ||
| 88690-95J44 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88690-95J44 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) |
1 | ||
| 88690-95J44 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) |
1 | ||
| 88721A - HOSE, LIQUID, A | ||||
| 88721-95J05 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF |
1 | ||
| 88722A - HOSE, SUCTION, A | ||||
| 88712-95J16 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95J87 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88716-95J87 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) |
1 | ||
| 88716-26270 |
LH123..4FC;LH113..5D..GL;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,LH119,123,125,RZH100,101,112,124..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM) |
1 | ||
| 88716-95J87 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 |
1 | ||
| 88716-95J87 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) |
1 | ||
| 88716-95J87 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88726B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95N00 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88716-95N00 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88716-26190 |
LH123..4FC;LH113..5D..GL;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,LH119,123,125,RZH100,101,112,124..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM) |
1 | ||
| 88716-95N00 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) |
1 | ||
| 88716-95N00 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) |
1 | ||
| 88716-95N00 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 |
1 | ||
| 88727B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-95J50 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) |
1 | ||
| 88717-95J50 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 |
1 | ||
| 88717-95J50 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88717-26300 |
LH123..4FC;LH113..5D..GL;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,LH119,123,125,RZH100,101,112,124..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM) |
1 | ||
| 88717-95J50 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) |
1 | ||
| 88717-95J50 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| Common parts | ||||
| 88714-95J00 | ||||
| 88718-26040 | ||||
| 88718-26210 | ||||
| 88718-26220 | ||||
| 88718-26230 | ||||
| 88718-95J39 | ||||
| 88898-26010 | ||||
| 88898-95J21 | ||||
| 90099-14119 | ||||
| 90099-14121 | ||||
| 91651-60614 | ||||
| 93315-14012 | ||||
| 93319-15008 | ||||
| 93385-18016 | ||||
| Linked diagrams | ||||
| 6151 | ||||
ILLUST NO. 2 OF 5(9308-9508)
FRONT PIPING--SINGLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95J02 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL |
1 | ||
| 88472-95J02 |
RZH101..07S,08S;LH10#,11#,12#,140,RZH100,102,11#,12# |
1 | ||
| 88472-95J02 |
RZH101..08S;LH10#,11#,12#,RZH100,102,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL |
1 | ||
| 88472-26090 |
KZH10#,11#,12#,LH10#,11#,12#,RZH10#,112,124 |
1 | ||
| 88472-26050 |
KZH10#,11#,12#,LH10#,11#,12#,RZH10#,112,124 |
1 | ||
| 88605L - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-95N32 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,左側 |
1 | ||
| 88605-26030 |
LH113,RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH102,107,109,113,119,RZH101,102,112..CTM,GL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) 右側 |
1 | ||
| 88605-26030 |
LH113..5D..GL;RZH112..09S..DX;LH102,107,109,119,140,RZH101,102,112..GL,SCM,SCMM,SGL,SW;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,08S,09S);LH100,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM,SW) 右側 |
1 | ||
| 88605-26030 |
LH113,RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH102,107,109,113,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) 右側 |
1 | ||
| 88605-26030 |
LH113..5D..GL;RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM,SW) 右側 |
1 | ||
| 88605-95N32 |
LH120,129..5F;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,123,125,RZH100,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,左側 |
1 | ||
| 88605-95N32 |
LH113..5D..GL;LH113..V1..SRF..4D..(DX,GL,SGL);LH120,RZH112..(09S,10S)..5F..DX;LH102,109,119,140,RZH102,112..GL,SGL,SW;LH100,107,110,115,117,119,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,左側 |
1 | ||
| 88605-26030 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH102,107,109,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,08S,09S);LH100,110,115,117,120,125,140,RZH110,124..5F..(CTM,DX,GL,SCM,SCMM,SW) 右側 |
1 | ||
| 88605-26790 |
LH10#,11#,RZH102,112..GL,SGL;KZH10#,11#,12#,LH125,RZH100,101,112,124..07S,08S,09S,10S,15S ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88605-26200 |
LH123..4FC;LH113..5D..GL;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,LH119,123,125,RZH100,101,112,124..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88605-95N32 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,左側 |
1 | ||
| 88605-95N32 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124..CTM,DX,GL,SCM,SCMM,SW ﾃﾞﾕｱﾙ ｴｱｺﾝ,左側 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-95J02 |
LH129,RZH100;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) NO.1 |
1 | ||
| 88645-10020 |
LH119..09S;LH109,119..GL,SGL;LH100,102,107,110,113,115,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL NO.2 |
1 | ||
| 88645-95J02 |
LH113..5D..GL;RZH112..09S..DX;LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S);LH100,107,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) NO.1 |
1 | ||
| 88645-95J02 |
LH129,RZH100;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) NO.1 |
1 | ||
| 88645-95J02 |
LH129,RZH100;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..CTM,GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) NO.1 |
1 | ||
| 88645-26010 |
LH123..4FC;LH113..5D..GL;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,LH119,123,125,RZH100,101,112,124..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88645-26010 |
LH123..4FC;LH113..5D..GL;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,LH119,123,125,RZH100,101,112,124..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88645-10020 |
LH119..09S;LH109,119,RZH101..GL,SCM,SCMM,SGL;LH100,102,107,110,113,115,117,12#,140,RZH100,102,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL,SW NO.2 |
1 | ||
| 88645-95J02 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH102,109,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S);LH100,107,110,115,117,120,125,140,RZH110,124..CTM,DX,GL,SCM,SCMM,SW NO.1 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95J12 |
RZH102,112..GL;RZH100,101,11#,12#..(07S,08S,09S,10S,15S)..(CTM,DX,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88711-95J12 |
RZH101,102,112..GL,SCL,SCM,SCMM;RZH100,11#,12#..(07S,08S,09S,10S,15S)..(CTM,DX,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88711-95J12 |
RZH102,112..GL;RZH100,101,11#,124..(08S,09S,10S,15S)..(CTM,DX,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ(ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ) |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95J22 |
RZH101..07S,08S;RZH100,102,11#,12# |
1 | ||
| 88712-95J22 |
RZH10#,11#,12# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-26340 |
KZH10#,11#,12#,RZH100,101 NO.2 |
1 | ||
| 88716-26060 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-26060 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-95N10 |
LH113..5D..GL;RZH112..09S..DX;LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S);LH100,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GCGN,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N10 |
LH129,RZH100;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N10 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH100,110,115,117,120,125,140,RZH110,124..5F;LH102,107,109,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-26060 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-26060 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-26060 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-26260 |
LH103,11#,123,129,RZH10#,112;KZH10#,11#,12#,LH109,125,RZH124..5F NO.1 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95J80 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95J80 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N09 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-95N08 |
LH113..5D..GL;RZH112..09S..DX;LH120,129,RZH100..DSL,EFI,TDE;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.3 |
1 | ||
| 88716-95N08 |
LH129,RZH100;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..CTM,GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.3 |
1 | ||
| 88716-95N08 |
LH129,RZH100;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.3 |
1 | ||
| 88716-95J80 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N09 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-95J80 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N09 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-95N09 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-95N09 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-26350 |
LH123..4FC;LH113..5D..GL;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,LH119,123,125,RZH100,101,112,124..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95J80 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N08 |
LH113..5D..GL;RZH112..09S..DX;LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S);LH100,107,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.3 |
1 | ||
| 88716-95N08 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH102,109,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S);LH100,107,110,115,117,120,125,140,RZH110,124..CTM,DX,GL,SCM,SCMM,SW ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.3 |
1 | ||
| 88716-26330 |
LH123..4FC;LH113..5D..GL;LH113..V1..SRF..4D..(DX,GL,SGL);LH10#,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH119,123,125,RZH100,112,124..(08S,09S,15S)..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-26550 |
KZH10#,11#,12#,RZH100,101 ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88716-26550 |
LH123..4FC;RZH100..09S;LH10#,11#..GL,SGL;KZH10#,11#,12#,LH123,125..07S,08S,09S,10S,15S ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-26040 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88716-26040 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88716-26040 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88716-26040 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88716-26110 |
KZH10#,11#,12#,RZH100,101 |
1 | ||
| 88716-26040 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-95J40 |
LH10#,11#,12#,RZH10#,11#,12# |
1 | ||
| 88717-95J40 |
RZH101..07S,08S;LH10#,11#,12#,140,RZH100,102,11#,12# |
1 | ||
| 88717-26150 |
KZH10#,11#,12#,LH10#,11#,12#,RZH10#,112,124 |
1 | ||
| 88717E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-95J41 |
LH113,RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH102,107,109,113,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ(ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ) |
1 | ||
| 88717-95J41 |
LH113,RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH102,107,109,113,119,RZH101,102,112..CTM,GL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ(ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ) |
1 | ||
| 88717-95J41 |
LH100..5F..TD;LH107,120,RZH100,110;LH113,RZH101..(V1,WG)..(MRF,SMRF,SRF)..4D..(06S,07S,08S)..(DX,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88717-95J41 |
LH107,117,RZH100,101,110;LH100,120..(HRF,MRF,SMRF)..5F ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88717-26180 |
LH123..4FC;LH113..5D..GL;LH113..V1..SRF..4D..(DX,GL,SGL);LH10#,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH119,123,125,RZH100,112,124..(08S,09S,15S)..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ(ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ) |
1 | ||
| Common parts | ||||
| 88688-26140 | ||||
| 88718-12280 | ||||
| 88718-26150 | ||||
| 88718-26170 | ||||
| 88718-2A230 | ||||
| 88718-32220 | ||||
| 88718-95J72 | ||||
| 90091-20609 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90179-06032 | ||||
| 90179-08146 | ||||
| 91651-40816 | ||||
| 91651-60635 | ||||
| 91651-60820 | ||||
| 93385-16016 | ||||
| 93385-16025 | ||||
| 93385-18016 | ||||
ILLUST NO. 3 OF 5(8908-9308)
REAR PIPING---TWIN TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88407 - GLASS SUB-ASSY, SIGHT | ||||
| 88407-95701 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) |
1 | ||
| 88407-95701 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88407-95701 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) |
1 | ||
| 88407-95701 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) |
1 | ||
| 88407-95701 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) |
1 | ||
| 88407-95701 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02004 |
LH129,RZH100;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) 250G |
4 | ||
| 90986-02004 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) 250G |
4 | ||
| 90986-02004 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) 250G |
4 | ||
| 90986-02004 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) 250G |
4 | ||
| 90986-02004 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 250G |
4 | ||
| 90986-02008 |
LH123..4FC;LH113..5D..GL;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,LH119,123,125,RZH100,101,112,124..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM) 200G |
4 | ||
| 90986-02004 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) 250G |
4 | ||
| 88691K - VALVE ASSY, MAGNET | ||||
| 88690-95J44 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88690-95J44 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 |
1 | ||
| 88690-95J44 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88690-95J44 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) |
1 | ||
| 88690-95J44 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) |
1 | ||
| 88721A - HOSE, LIQUID, A | ||||
| 88721-95J05 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF |
1 | ||
| 88722A - HOSE, SUCTION, A | ||||
| 88712-95J16 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95J87 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88716-95J87 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) |
1 | ||
| 88716-26270 |
LH123..4FC;LH113..5D..GL;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,LH119,123,125,RZH100,101,112,124..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM) |
1 | ||
| 88716-95J87 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 |
1 | ||
| 88716-95J87 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) |
1 | ||
| 88716-95J87 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88726B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95N00 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88716-95N00 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88716-26190 |
LH123..4FC;LH113..5D..GL;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,LH119,123,125,RZH100,101,112,124..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM) |
1 | ||
| 88716-95N00 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) |
1 | ||
| 88716-95N00 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) |
1 | ||
| 88716-95N00 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 |
1 | ||
| 88726C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-95N01 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) |
1 | ||
| 88716-95N01 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88716-95N01 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88716-95N01 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 |
1 | ||
| 88716-95N01 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) |
1 | ||
| 88727B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-95J50 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) |
1 | ||
| 88717-95J50 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 |
1 | ||
| 88717-95J50 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88717-26300 |
LH123..4FC;LH113..5D..GL;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,LH119,123,125,RZH100,101,112,124..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM) |
1 | ||
| 88717-95J50 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) |
1 | ||
| 88717-95J50 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88727E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-95J49 |
LH113,RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH102,109,113,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88717-95J49 |
LH113..5D..GL;RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88717-95J49 |
LH120..4FC;LH113..5D..GL;LH120,RZH112..(09S,10S)..5F..DX;LH102,107,109,119,140,RZH101,102,112..GL,SCM,SCMM,SGL,SW;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,08S,09S);LH100,110,115,117,119,123,125,RZH110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88717-95J49 |
LH113..5D..GL;LH120,123..4FC;LH119,123,RZH112..09S..DX;LH102,107,109,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,08S,09S);LH100,110,115,117,120,125,140,RZH110,124..CTM,DX,GL,SCL,SCM,SCMM,SW ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88717-95J49 |
LH113,RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH102,109,113,119,RZH101,102,112..CTM,GL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| Common parts | ||||
| 88688-95J81 | ||||
| 88714-95J00 | ||||
| 88718-26040 | ||||
| 88718-95J39 | ||||
| 88718-95J55 | ||||
| 88718-95J56 | ||||
| 88718-95J57 | ||||
| 88718-95J65 | ||||
| 88898-26010 | ||||
| 88898-95J21 | ||||
| 88898-95J24 | ||||
| 90099-04978 | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 90099-32138 | ||||
| 90179-06115 | ||||
| 90179-08123 | ||||
| 90463-12014 | ||||
| 90950-01047 | ||||
| 91655-40616 | ||||
| 93319-15008 | ||||
| 93385-16014 | ||||
| 93385-18016 | ||||
| Linked diagrams | ||||
| 6151 | ||||

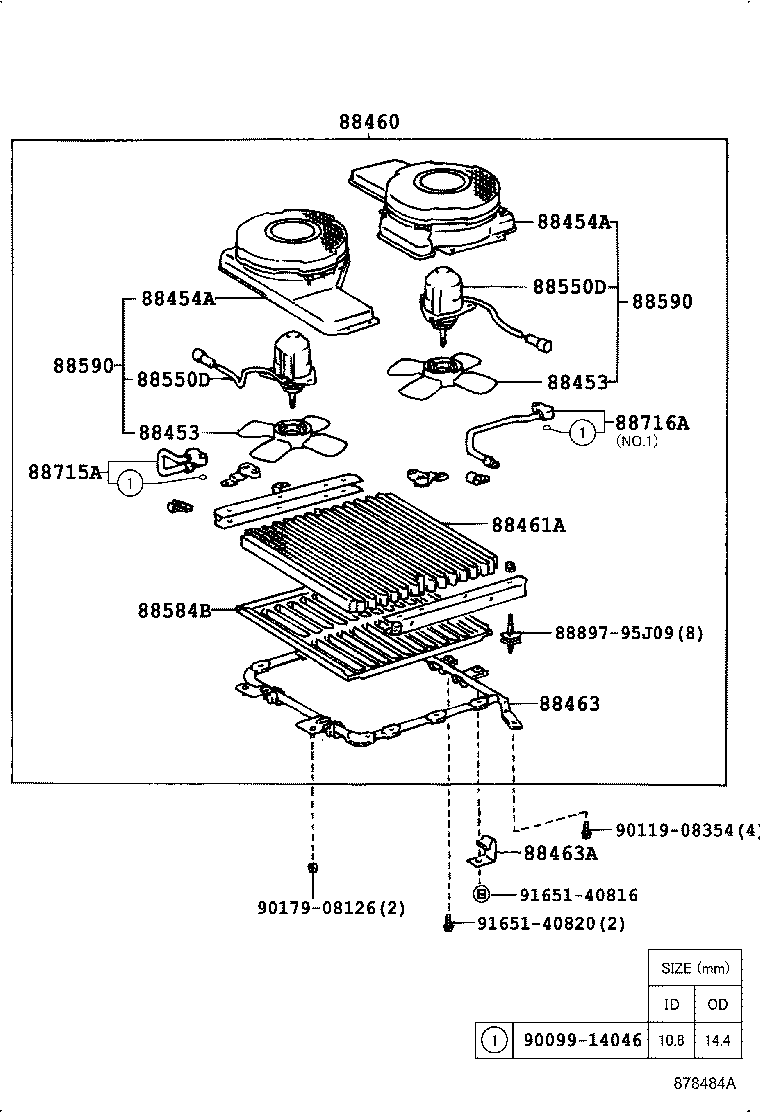

ILLUST NO. 1 OF 5(8908-9308)
CONDENSER--DUAL(MAKER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J01 |
LH129,RZH100;LH113,RZH112..09S..DX;LH102,107,109,113,119,RZH101,102,112..CTM,GL,SCL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ(ﾒ-ｶ ｵﾌﾟｼﾖﾝ) |
1 | ||
| 88460-95J23 |
LH120,RZH100,110..08S,09S,10S;LH113,RZH101..(V1,WG)..(MRF,SMRF,SRF)..4D..(06S,08S)..(DX,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88460-95J23 |
LH113..V1..SRF..4D..06S..DX;LH100,120..(HRF,MRF,SMRF)..5F;LH107,117,RZH100,101,110..08S,09S,10S ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88460-95J01 |
LH129,RZH100;LH113,RZH112..09S..DX;LH102,107,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ(ﾒ-ｶ ｵﾌﾟｼﾖﾝ) |
1 | ||
| 88460-95J23 |
LH119..05S;LH113..V1..SRF..4D..06S..DX;LH107,117,RZH100,101,110..08S,09S,10S;LH100,120..(HRF,MRF,SMRF)..5F..(CTM,DX,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88460-26140 |
RZH100,101;KZH10#,11#,12#..5F |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-26020 |
LH103,11#,123,129,RZH10#,112;KZH10#,11#,12#,LH109,125,RZH124..5F |
1 | ||
| 88461-95J10 |
LH100..5F..TD;RZH101..07S,08S;LH107,120,RZH100,110 |
1 | ||
| 88461-95J10 |
LH107,RZH100,101,110;LH100,120..(HRF,MRF,SMRF)..5F |
1 | ||
| 88461-95J10 |
LH119..05S;LH107,117,RZH100,101,110;LH113..V1..SRF..4D..06S..DX;LH100,120..(HRF,MRF,SMRF)..5F |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-95J26 |
LH129,RZH100;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88463-95J26 |
LH129,RZH100;LH113,RZH112..09S..DX;LH102,107,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88463-95J26 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH100,110,115,117,120,125,140,RZH110,124..5F;LH102,107,109,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88463-95J26 |
LH113..5D..GL;RZH112..09S..DX;LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S);LH100,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GCGN,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88463-95J26 |
LH129,RZH100;LH113,RZH112..09S..DX;LH102,107,109,113,119,RZH101,102,112..CTM,GL,SCL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88550D - MOTOR ASSY, BLOWER | ||||
| 88550-26010 |
LH113..V1..SRF..4D..06S..DX;LH107,117,RZH100,101,110..08S,09S,10S;LH100,120..(HRF,MRF,SMRF)..5F..(CTM,DX,SCM,SCMM) 右側 |
1 | ||
| 88550-26010 |
LH100..5F..TD;LH107,120,RZH100,110;LH113,RZH101..(V1,WG)..(MRF,SMRF,SRF)..4D..(06S,07S,08S)..(DX,SCL,SCM,SCMM) 右側 |
1 | ||
| 88550-26010 |
LH100..SMRF;LH100,120..5F..(DX,SCMM)..TDE;LH107,117,RZH100,101,110..08S,09S,10S |
2 | ||
| 88550D - MOTOR ASSY, BLOWER | ||||
| 88550-26010 |
LH113..V1..SRF..4D..06S..DX;LH107,117,RZH100,101,110..08S,09S,10S;LH100,120..(HRF,MRF,SMRF)..5F..(CTM,DX,SCM,SCMM) 右側 |
1 | ||
| 88550-26010 |
LH100..5F..TD;LH107,120,RZH100,110;LH113,RZH101..(V1,WG)..(MRF,SMRF,SRF)..4D..(06S,07S,08S)..(DX,SCL,SCM,SCMM) 右側 |
1 | ||
| 88550-26010 |
LH100..SMRF;LH100,120..5F..(DX,SCMM)..TDE;LH107,117,RZH100,101,110..08S,09S,10S |
2 | ||
| 88584B - GUIDE, COOLER AIR | ||||
| 88584-95J01 |
LH119..05S;LH107,117,RZH100,101,110;LH113..V1..SRF..4D..06S..DX;LH100,120..(HRF,MRF,SMRF)..5F |
1 | ||
| 88584-95J01 |
LH107,RZH100,101,110;LH100,120..(HRF,MRF,SMRF)..5F |
1 | ||
| 88584-95J01 |
LH100..5F..TD;RZH101..07S,08S;LH107,120,RZH100,110 |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-95J01 |
LH113,RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH102,107,109,113,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
2 | ||
| 88590-95J01 |
LH113,RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH102,107,109,113,119,RZH101,102,112..CTM,GL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
2 | ||
| 88590-26050 |
LH100..5F..TD;LH107,120,RZH100,110;LH113,RZH101..(V1,WG)..(MRF,SMRF,SRF)..4D..(06S,07S,08S)..(DX,SCL,SCM,SCMM) 右側 |
1 | ||
| 88590-95J01 |
LH113..5D..GL;RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,110,115,119,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
2 | ||
| 88590-26050 |
LH107,117,RZH100,101,110..08S,09S,10S;LH100,120..(HRF,MRF,SMRF)..5F..(CTM,DX,SCM,SCMM) |
2 | ||
| 88590-26050 |
LH113..V1..SRF..4D..06S..DX;LH107,117,RZH100,101,110..08S,09S,10S;LH100,120..(HRF,MRF,SMRF)..5F..(CTM,DX,SCM,SCMM) 右側 |
1 | ||
| 88590-26080 |
LH119..09S;LH123..4FC;LH113..5D..GL;LH10#,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;KZH10#,11#,12#,LH123,125,RZH112,124..(08S,09S,10S,15S)..5F;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,08S,09S) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-95J01 |
LH113,RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH102,107,109,113,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
2 | ||
| 88590-95J01 |
LH113,RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH102,107,109,113,119,RZH101,102,112..CTM,GL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
2 | ||
| 88590-26050 |
LH100..5F..TD;LH107,120,RZH100,110;LH113,RZH101..(V1,WG)..(MRF,SMRF,SRF)..4D..(06S,07S,08S)..(DX,SCL,SCM,SCMM) 右側 |
1 | ||
| 88590-95J01 |
LH113..5D..GL;RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,110,115,119,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
2 | ||
| 88590-26050 |
LH107,117,RZH100,101,110..08S,09S,10S;LH100,120..(HRF,MRF,SMRF)..5F..(CTM,DX,SCM,SCMM) |
2 | ||
| 88590-26050 |
LH113..V1..SRF..4D..06S..DX;LH107,117,RZH100,101,110..08S,09S,10S;LH100,120..(HRF,MRF,SMRF)..5F..(CTM,DX,SCM,SCMM) 右側 |
1 | ||
| 88590-26080 |
LH119..09S;LH123..4FC;LH113..5D..GL;LH10#,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;KZH10#,11#,12#,LH123,125,RZH112,124..(08S,09S,10S,15S)..5F;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,08S,09S) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-26080 |
LH107,117,RZH100,101,110;LH113..V1..SRF..4D..06S..DX;LH100,120..(HRF,MRF,SMRF)..5F |
1 | ||
| 88715-26080 |
LH100..5F..TD;LH107,120,RZH100,110;LH113,RZH101..(V1,WG)..(MRF,SMRF,SRF)..4D..(06S,07S,08S)..(DX,SCL,SCM,SCMM) |
1 | ||
| 88715-26150 |
LH103,11#,123,129,RZH10#,112;KZH10#,11#,12#,LH109,125,RZH124..5F |
1 | ||
| 88715-26080 |
LH119..05S;LH107,117,RZH100,101,110;LH113..V1..SRF..4D..06S..DX;LH100,120..(HRF,MRF,SMRF)..5F |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-26060 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-26060 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-95N10 |
LH113..5D..GL;RZH112..09S..DX;LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S);LH100,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GCGN,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N10 |
LH129,RZH100;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N10 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH100,110,115,117,120,125,140,RZH110,124..5F;LH102,107,109,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-26060 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-26060 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-26060 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-26340 |
KZH10#,11#,12#,RZH100,101 NO.2 |
1 | ||
| 88716-26260 |
LH103,11#,123,129,RZH10#,112;KZH10#,11#,12#,LH109,125,RZH124..5F NO.1 |
1 | ||
| Common parts | ||||
| 88897-95J09 | ||||
| 90099-14046 | ||||
| 90119-08354 | ||||
| 90179-08126 | ||||
| 91651-40816 | ||||
| 91651-40820 | ||||
ILLUST NO. 2 OF 5(8908-9308)
FRONT PIPING--SINGLE(DEALER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-12020 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL |
2 | ||
| 88374-12020 |
RZH101..08S;LH10#,11#,12#,140,RZH100,102,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL,SW |
2 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-12020 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL |
2 | ||
| 88374-12020 |
RZH101..08S;LH10#,11#,12#,140,RZH100,102,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL,SW |
2 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-20010 |
RZH101..08S;LH10#,11#,12#,140,RZH100,102,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL,SW ﾘｷｯﾄﾞ側 |
1 | ||
| 88375-30270 |
RZH101..08S;LH100..SCM..TDE;LH100..(08S,09S)..(DSL,TD);LH100..4FC..(CTM,SCMM)..TDE;LH102,107,109,11#,12#,140,RZH100,102,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL,SW 吸入側 |
1 | ||
| 88375-30270 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL 吸入側 |
1 | ||
| 88375-20010 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL ﾘｷｯﾄﾞ側 |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-20010 |
RZH101..08S;LH10#,11#,12#,140,RZH100,102,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL,SW ﾘｷｯﾄﾞ側 |
1 | ||
| 88375-30270 |
RZH101..08S;LH100..SCM..TDE;LH100..(08S,09S)..(DSL,TD);LH100..4FC..(CTM,SCMM)..TDE;LH102,107,109,11#,12#,140,RZH100,102,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL,SW 吸入側 |
1 | ||
| 88375-30270 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL 吸入側 |
1 | ||
| 88375-20010 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL ﾘｷｯﾄﾞ側 |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-20080 |
RZH101..07S,08S;LH10#,11#,12#,140,RZH100,102,11#,12# |
1 | ||
| 88470-20080 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL |
1 | ||
| 88470-20080 |
RZH101..08S;LH10#,11#,12#,RZH100,102,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL |
1 | ||
| 88470C - BOLT, FUSE | ||||
| 88475-20040 |
RZH101..08S;LH10#,11#,12#,140,RZH100,102,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL,SW |
1 | ||
| 88475-20040 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95J02 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL |
1 | ||
| 88472-95J02 |
RZH101..07S,08S;LH10#,11#,12#,140,RZH100,102,11#,12# |
1 | ||
| 88472-95J02 |
RZH101..08S;LH10#,11#,12#,RZH100,102,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL |
1 | ||
| 88472-26090 |
KZH10#,11#,12#,LH10#,11#,12#,RZH10#,112,124 |
1 | ||
| 88472-26050 |
KZH10#,11#,12#,LH10#,11#,12#,RZH10#,112,124 |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02004 |
LH129,RZH100;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) 250G |
4 | ||
| 90986-02004 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) 250G |
4 | ||
| 90986-02004 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) 250G |
4 | ||
| 90986-02004 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) 250G |
4 | ||
| 90986-02004 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 250G |
4 | ||
| 90986-02008 |
LH123..4FC;LH113..5D..GL;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,LH119,123,125,RZH100,101,112,124..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM) 200G |
4 | ||
| 90986-02004 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) 250G |
4 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-95J02 |
LH129,RZH100;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) NO.1 |
1 | ||
| 88645-10020 |
LH119..09S;LH109,119..GL,SGL;LH100,102,107,110,113,115,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL NO.2 |
1 | ||
| 88645-95J02 |
LH113..5D..GL;RZH112..09S..DX;LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S);LH100,107,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) NO.1 |
1 | ||
| 88645-95J02 |
LH129,RZH100;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) NO.1 |
1 | ||
| 88645-95J02 |
LH129,RZH100;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..CTM,GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) NO.1 |
1 | ||
| 88645-26010 |
LH123..4FC;LH113..5D..GL;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,LH119,123,125,RZH100,101,112,124..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88645-26010 |
LH123..4FC;LH113..5D..GL;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,LH119,123,125,RZH100,101,112,124..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88645-10020 |
LH119..09S;LH109,119,RZH101..GL,SCM,SCMM,SGL;LH100,102,107,110,113,115,117,12#,140,RZH100,102,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL,SW NO.2 |
1 | ||
| 88645-95J02 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH102,109,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S);LH100,107,110,115,117,120,125,140,RZH110,124..CTM,DX,GL,SCM,SCMM,SW NO.1 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95J12 |
RZH102,112..GL;RZH100,101,11#,12#..(07S,08S,09S,10S,15S)..(CTM,DX,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88711-95J12 |
RZH101,102,112..GL,SCL,SCM,SCMM;RZH100,11#,12#..(07S,08S,09S,10S,15S)..(CTM,DX,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88711-95J12 |
RZH102,112..GL;RZH100,101,11#,124..(08S,09S,10S,15S)..(CTM,DX,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ(ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ) |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95J22 |
RZH101..07S,08S;RZH100,102,11#,12# |
1 | ||
| 88712-95J22 |
RZH10#,11#,12# |
1 | ||
| 88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88714-95J13 |
LH113..09S..DX;LH129,RZH102,112,122;LH102,109,113,119..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,124..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88714-95J13 |
LH113..09S..DX;LH129,RZH102,112,122;LH102,109,113,119,RZH101..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,124..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88714-95J13 |
LH113..5D..GL;LH129,RZH102,112,122;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,124..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) |
1 | ||
| 88714-95J13 |
LH123..4FC;LH113..5D..GL;LH119,123..09S;LH102,109,119..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);LH100,107,110,115,117,120,125,140,RZH10#,11#,12# |
1 | ||
| 88714-95J13 |
LH113..5D..GL;RZH102,112,122;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,124..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-26340 |
KZH10#,11#,12#,RZH100,101 NO.2 |
1 | ||
| 88716-26060 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-26060 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-95N10 |
LH113..5D..GL;RZH112..09S..DX;LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S);LH100,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GCGN,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N10 |
LH129,RZH100;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N10 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH100,110,115,117,120,125,140,RZH110,124..5F;LH102,107,109,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-26060 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-26060 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-26060 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-26260 |
LH103,11#,123,129,RZH10#,112;KZH10#,11#,12#,LH109,125,RZH124..5F NO.1 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95J80 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95J80 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N09 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-95N08 |
LH113..5D..GL;RZH112..09S..DX;LH120,129,RZH100..DSL,EFI,TDE;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.3 |
1 | ||
| 88716-95N08 |
LH129,RZH100;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..CTM,GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.3 |
1 | ||
| 88716-95N08 |
LH129,RZH100;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.3 |
1 | ||
| 88716-95J80 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N09 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-95J80 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N09 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-95N09 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-95N09 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-26350 |
LH123..4FC;LH113..5D..GL;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,LH119,123,125,RZH100,101,112,124..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95J80 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N08 |
LH113..5D..GL;RZH112..09S..DX;LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S);LH100,107,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.3 |
1 | ||
| 88716-95N08 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH102,109,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S);LH100,107,110,115,117,120,125,140,RZH110,124..CTM,DX,GL,SCM,SCMM,SW ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.3 |
1 | ||
| 88716-26330 |
LH123..4FC;LH113..5D..GL;LH113..V1..SRF..4D..(DX,GL,SGL);LH10#,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH119,123,125,RZH100,112,124..(08S,09S,15S)..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-26550 |
KZH10#,11#,12#,RZH100,101 ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88716-26550 |
LH123..4FC;RZH100..09S;LH10#,11#..GL,SGL;KZH10#,11#,12#,LH123,125..07S,08S,09S,10S,15S ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95J80 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95J80 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N09 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-95N08 |
LH113..5D..GL;RZH112..09S..DX;LH120,129,RZH100..DSL,EFI,TDE;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.3 |
1 | ||
| 88716-95N08 |
LH129,RZH100;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..CTM,GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.3 |
1 | ||
| 88716-95N08 |
LH129,RZH100;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.3 |
1 | ||
| 88716-95J80 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N09 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-95J80 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N09 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-95N09 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-95N09 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-26350 |
LH123..4FC;LH113..5D..GL;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,LH119,123,125,RZH100,101,112,124..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95J80 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N08 |
LH113..5D..GL;RZH112..09S..DX;LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S);LH100,107,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.3 |
1 | ||
| 88716-95N08 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH102,109,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S);LH100,107,110,115,117,120,125,140,RZH110,124..CTM,DX,GL,SCM,SCMM,SW ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.3 |
1 | ||
| 88716-26330 |
LH123..4FC;LH113..5D..GL;LH113..V1..SRF..4D..(DX,GL,SGL);LH10#,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH119,123,125,RZH100,112,124..(08S,09S,15S)..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-26550 |
KZH10#,11#,12#,RZH100,101 ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88716-26550 |
LH123..4FC;RZH100..09S;LH10#,11#..GL,SGL;KZH10#,11#,12#,LH123,125..07S,08S,09S,10S,15S ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-26040 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88716-26040 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88716-26040 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88716-26040 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88716-26110 |
KZH10#,11#,12#,RZH100,101 |
1 | ||
| 88716-26040 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-95J40 |
LH10#,11#,12#,RZH10#,11#,12# |
1 | ||
| 88717-95J40 |
RZH101..07S,08S;LH10#,11#,12#,140,RZH100,102,11#,12# |
1 | ||
| 88717-26150 |
KZH10#,11#,12#,LH10#,11#,12#,RZH10#,112,124 |
1 | ||
| 88717E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-95J41 |
LH113,RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH102,107,109,113,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ(ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ) |
1 | ||
| 88717-95J41 |
LH113,RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH102,107,109,113,119,RZH101,102,112..CTM,GL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ(ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ) |
1 | ||
| 88717-95J41 |
LH100..5F..TD;LH107,120,RZH100,110;LH113,RZH101..(V1,WG)..(MRF,SMRF,SRF)..4D..(06S,07S,08S)..(DX,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88717-95J41 |
LH107,117,RZH100,101,110;LH100,120..(HRF,MRF,SMRF)..5F ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88717-26180 |
LH123..4FC;LH113..5D..GL;LH113..V1..SRF..4D..(DX,GL,SGL);LH10#,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH119,123,125,RZH100,112,124..(08S,09S,15S)..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ(ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ) |
1 | ||
| Common parts | ||||
| 88688-95J74 | ||||
| 88688-95J76 | ||||
| 88688-95J77 | ||||
| 88718-95J05 | ||||
| 88718-95J22 | ||||
| 88718-95J47 | ||||
| 88718-95J53 | ||||
| 88718-95J72 | ||||
| 88718-95J75 | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 90099-14046 | ||||
| 90179-08123 | ||||
| 91651-60835 | ||||
| 93385-16012 | ||||
| 93385-18016 | ||||

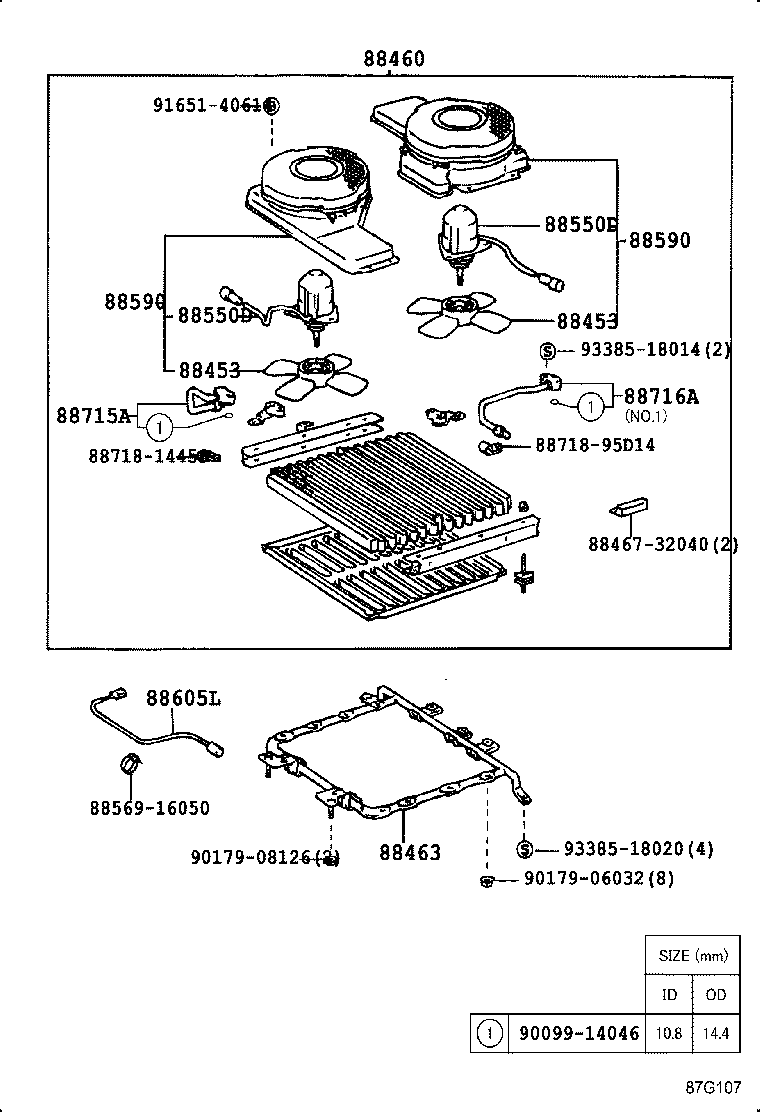

ILLUST NO. 1 OF 5(8908-9308)
CONDENSER--DUAL(DEALER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J01 |
LH129,RZH100;LH113,RZH112..09S..DX;LH102,107,109,113,119,RZH101,102,112..CTM,GL,SCL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ(ﾒ-ｶ ｵﾌﾟｼﾖﾝ) |
1 | ||
| 88460-95J23 |
LH120,RZH100,110..08S,09S,10S;LH113,RZH101..(V1,WG)..(MRF,SMRF,SRF)..4D..(06S,08S)..(DX,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88460-95J23 |
LH113..V1..SRF..4D..06S..DX;LH100,120..(HRF,MRF,SMRF)..5F;LH107,117,RZH100,101,110..08S,09S,10S ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88460-95J01 |
LH129,RZH100;LH113,RZH112..09S..DX;LH102,107,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ(ﾒ-ｶ ｵﾌﾟｼﾖﾝ) |
1 | ||
| 88460-95J23 |
LH119..05S;LH113..V1..SRF..4D..06S..DX;LH107,117,RZH100,101,110..08S,09S,10S;LH100,120..(HRF,MRF,SMRF)..5F..(CTM,DX,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88460-26140 |
RZH100,101;KZH10#,11#,12#..5F |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-95J26 |
LH129,RZH100;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88463-95J26 |
LH129,RZH100;LH113,RZH112..09S..DX;LH102,107,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88463-95J26 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH100,110,115,117,120,125,140,RZH110,124..5F;LH102,107,109,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88463-95J26 |
LH113..5D..GL;RZH112..09S..DX;LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S);LH100,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GCGN,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88463-95J26 |
LH129,RZH100;LH113,RZH112..09S..DX;LH102,107,109,113,119,RZH101,102,112..CTM,GL,SCL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88550D - MOTOR ASSY, BLOWER | ||||
| 88550-26010 |
LH113..V1..SRF..4D..06S..DX;LH107,117,RZH100,101,110..08S,09S,10S;LH100,120..(HRF,MRF,SMRF)..5F..(CTM,DX,SCM,SCMM) 右側 |
1 | ||
| 88550-26010 |
LH100..5F..TD;LH107,120,RZH100,110;LH113,RZH101..(V1,WG)..(MRF,SMRF,SRF)..4D..(06S,07S,08S)..(DX,SCL,SCM,SCMM) 右側 |
1 | ||
| 88550-26010 |
LH100..SMRF;LH100,120..5F..(DX,SCMM)..TDE;LH107,117,RZH100,101,110..08S,09S,10S |
2 | ||
| 88550D - MOTOR ASSY, BLOWER | ||||
| 88550-26010 |
LH113..V1..SRF..4D..06S..DX;LH107,117,RZH100,101,110..08S,09S,10S;LH100,120..(HRF,MRF,SMRF)..5F..(CTM,DX,SCM,SCMM) 右側 |
1 | ||
| 88550-26010 |
LH100..5F..TD;LH107,120,RZH100,110;LH113,RZH101..(V1,WG)..(MRF,SMRF,SRF)..4D..(06S,07S,08S)..(DX,SCL,SCM,SCMM) 右側 |
1 | ||
| 88550-26010 |
LH100..SMRF;LH100,120..5F..(DX,SCMM)..TDE;LH107,117,RZH100,101,110..08S,09S,10S |
2 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-95J01 |
LH113,RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH102,107,109,113,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
2 | ||
| 88590-95J01 |
LH113,RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH102,107,109,113,119,RZH101,102,112..CTM,GL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
2 | ||
| 88590-26050 |
LH100..5F..TD;LH107,120,RZH100,110;LH113,RZH101..(V1,WG)..(MRF,SMRF,SRF)..4D..(06S,07S,08S)..(DX,SCL,SCM,SCMM) 右側 |
1 | ||
| 88590-95J01 |
LH113..5D..GL;RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,110,115,119,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
2 | ||
| 88590-26050 |
LH107,117,RZH100,101,110..08S,09S,10S;LH100,120..(HRF,MRF,SMRF)..5F..(CTM,DX,SCM,SCMM) |
2 | ||
| 88590-26050 |
LH113..V1..SRF..4D..06S..DX;LH107,117,RZH100,101,110..08S,09S,10S;LH100,120..(HRF,MRF,SMRF)..5F..(CTM,DX,SCM,SCMM) 右側 |
1 | ||
| 88590-26080 |
LH119..09S;LH123..4FC;LH113..5D..GL;LH10#,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;KZH10#,11#,12#,LH123,125,RZH112,124..(08S,09S,10S,15S)..5F;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,08S,09S) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-95J01 |
LH113,RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH102,107,109,113,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
2 | ||
| 88590-95J01 |
LH113,RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH102,107,109,113,119,RZH101,102,112..CTM,GL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
2 | ||
| 88590-26050 |
LH100..5F..TD;LH107,120,RZH100,110;LH113,RZH101..(V1,WG)..(MRF,SMRF,SRF)..4D..(06S,07S,08S)..(DX,SCL,SCM,SCMM) 右側 |
1 | ||
| 88590-95J01 |
LH113..5D..GL;RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,110,115,119,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
2 | ||
| 88590-26050 |
LH107,117,RZH100,101,110..08S,09S,10S;LH100,120..(HRF,MRF,SMRF)..5F..(CTM,DX,SCM,SCMM) |
2 | ||
| 88590-26050 |
LH113..V1..SRF..4D..06S..DX;LH107,117,RZH100,101,110..08S,09S,10S;LH100,120..(HRF,MRF,SMRF)..5F..(CTM,DX,SCM,SCMM) 右側 |
1 | ||
| 88590-26080 |
LH119..09S;LH123..4FC;LH113..5D..GL;LH10#,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;KZH10#,11#,12#,LH123,125,RZH112,124..(08S,09S,10S,15S)..5F;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,08S,09S) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88605L - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-95N32 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,左側 |
1 | ||
| 88605-26030 |
LH113,RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH102,107,109,113,119,RZH101,102,112..CTM,GL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) 右側 |
1 | ||
| 88605-26030 |
LH113..5D..GL;RZH112..09S..DX;LH102,107,109,119,140,RZH101,102,112..GL,SCM,SCMM,SGL,SW;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,08S,09S);LH100,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM,SW) 右側 |
1 | ||
| 88605-26030 |
LH113,RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH102,107,109,113,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) 右側 |
1 | ||
| 88605-26030 |
LH113..5D..GL;RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM,SW) 右側 |
1 | ||
| 88605-95N32 |
LH120,129..5F;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,123,125,RZH100,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,左側 |
1 | ||
| 88605-95N32 |
LH113..5D..GL;LH113..V1..SRF..4D..(DX,GL,SGL);LH120,RZH112..(09S,10S)..5F..DX;LH102,109,119,140,RZH102,112..GL,SGL,SW;LH100,107,110,115,117,119,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,左側 |
1 | ||
| 88605-26030 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH102,107,109,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,08S,09S);LH100,110,115,117,120,125,140,RZH110,124..5F..(CTM,DX,GL,SCM,SCMM,SW) 右側 |
1 | ||
| 88605-26790 |
LH10#,11#,RZH102,112..GL,SGL;KZH10#,11#,12#,LH125,RZH100,101,112,124..07S,08S,09S,10S,15S ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88605-26200 |
LH123..4FC;LH113..5D..GL;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,LH119,123,125,RZH100,101,112,124..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88605-95N32 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,左側 |
1 | ||
| 88605-95N32 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124..CTM,DX,GL,SCM,SCMM,SW ﾃﾞﾕｱﾙ ｴｱｺﾝ,左側 |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-26080 |
LH107,117,RZH100,101,110;LH113..V1..SRF..4D..06S..DX;LH100,120..(HRF,MRF,SMRF)..5F |
1 | ||
| 88715-26080 |
LH100..5F..TD;LH107,120,RZH100,110;LH113,RZH101..(V1,WG)..(MRF,SMRF,SRF)..4D..(06S,07S,08S)..(DX,SCL,SCM,SCMM) |
1 | ||
| 88715-26150 |
LH103,11#,123,129,RZH10#,112;KZH10#,11#,12#,LH109,125,RZH124..5F |
1 | ||
| 88715-26080 |
LH119..05S;LH107,117,RZH100,101,110;LH113..V1..SRF..4D..06S..DX;LH100,120..(HRF,MRF,SMRF)..5F |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-26340 |
KZH10#,11#,12#,RZH100,101 NO.2 |
1 | ||
| 88716-26060 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-26060 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-95N10 |
LH113..5D..GL;RZH112..09S..DX;LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S);LH100,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GCGN,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N10 |
LH129,RZH100;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N10 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH100,110,115,117,120,125,140,RZH110,124..5F;LH102,107,109,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-26060 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124 ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-26060 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-26060 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-26260 |
LH103,11#,123,129,RZH10#,112;KZH10#,11#,12#,LH109,125,RZH124..5F NO.1 |
1 | ||
| Common parts | ||||
| 88467-32040 | ||||
| 88569-16050 | ||||
| 88718-14450 | ||||
| 88718-95D14 | ||||
| 90099-14046 | ||||
| 90179-06032 | ||||
| 90179-08126 | ||||
| 91651-40614 | ||||
| 93385-18014 | ||||
| 93385-18020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
