RZH100G-GRMDE (1989)
Toyota Hiace/Regiusace

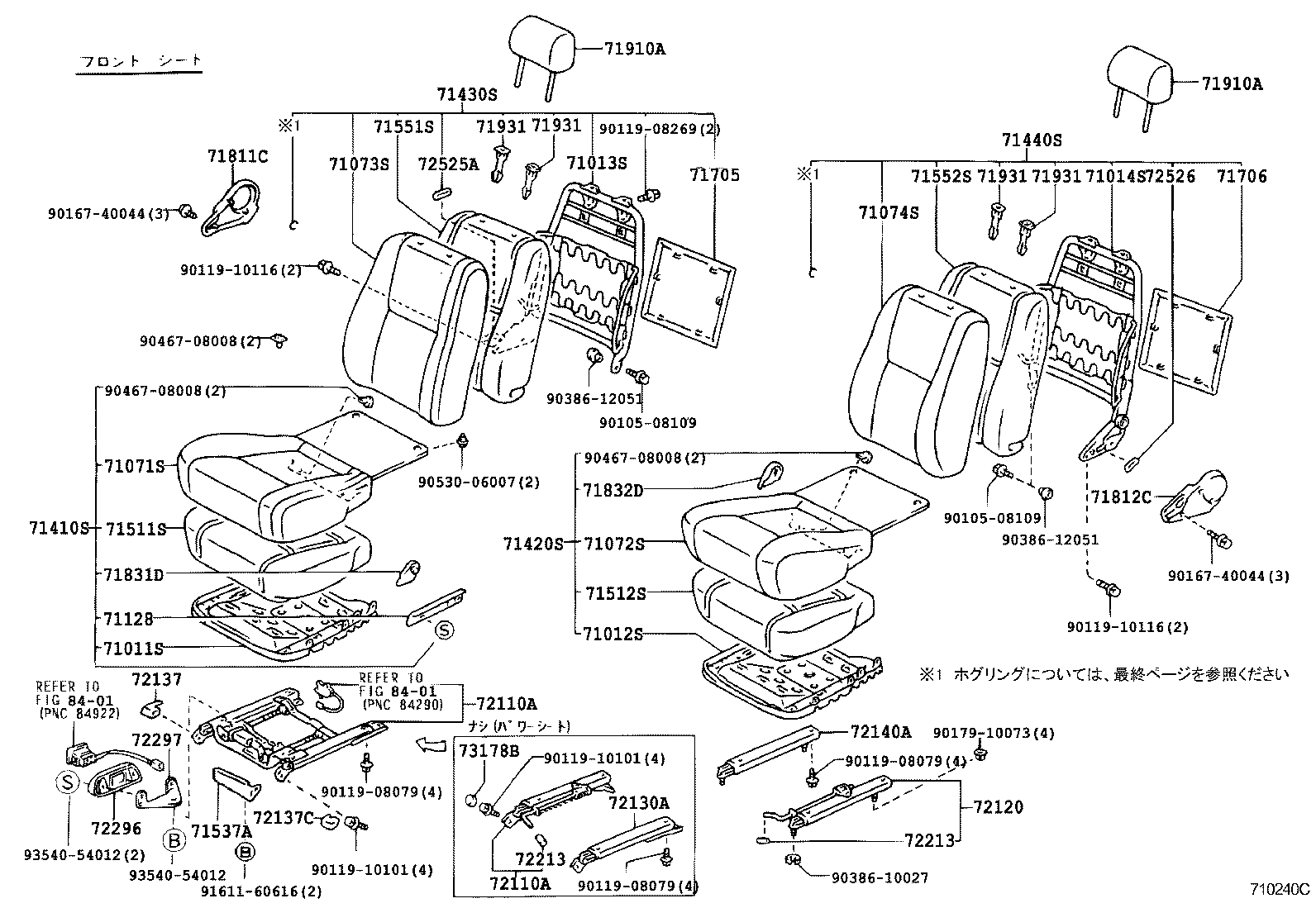

ILLUST NO. 1 OF 4(8908-9907)CD,DX,SW
ﾌﾛﾝﾄ ｼ-ﾄ:ｱﾘ(ｾﾝﾀ ｼ-ﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-95J06 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-95J03 |
LH100,110,117,RZH100,110..DX |
1 | ||
| 71013-95J03 |
LH100,110,117,129,RZH100,110..DX |
1 | ||
| 71013-95J03 |
LH123..4FC;KZH100,11#,LH125,129,RZH100,124..DX ｱﾘ(ﾍﾂﾄﾞﾚｽﾄ ｲﾂﾀｲｼｷ) |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-95J01 |
LH100,110,115,117,125,129,RZH100,110,124..DX |
1 | ||
| 71014-95J01 |
LH100,110,115,117,125,RZH100,110,124..DX |
1 | ||
| 71014-95J01 |
RZH124..CBR;KZH100,11#,LH100,110,115,117,125,RZH100,110..DX |
1 | ||
| 71035S - COVER, FRONT SEAT BACK, CENTER | ||||
| 71095-95J0803 |
LH100,RZH100,101..09S GRAY,TRIM1# |
1 | ||
| 71095-95J08B6 |
KZH100,RZH100..DX;LH10#,113,RZH102,112..GL;LH119..(05S,06S)..5F..(GL,SGL) ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-95J7903 |
LH100,RZH100,101..09S GRAY,TRIM1# |
1 | ||
| 71071-95J79B1 |
LH123..06S;KZH100,RZH100..DX;LH10#,11#,RZH102,112..GL ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-95J8503 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 71072-26150B0 |
KZH100,RZH100..DX ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-95N3403 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 71073-95N34B1 |
KZH100,RZH100..DX ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-95N5003 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 71074-95N50B0 |
KZH100,RZH100..DX ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71128 - PLATE, FRONT SEAT CUSHION COVER SET, OUTSIDE LH | ||||
| 71128-95J0803 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 71128-95J0819 |
KZH10#,LH10#,11#,RZH10#,112..(MRF,SMRF,SRF)..(03S,05S,06S,08S,09S) BLUISH GRAY,TRIM1# |
1 | ||
| 71274 - KNOB, FRONT SEAT HINGE | ||||
| 71274-95J00B0 |
KZH100,LH10#,11#,RZH100,102,112..SRF..(CD,DX) BLUISH GRAY,TRIM1# |
1 | ||
| 71274-95J0003 |
LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(03S,06S,09S)..(CD,DX,SW) GRAY,TRIM1# |
1 | ||
| 71350S - BACK ASSY, FRONT SEAT, CENTER | ||||
| 71350-95J3203 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 71350-95J32B1 |
KZH100,RZH100..DX ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71358 - PAD, CENTER SEAT BACK | ||||
| 71033-95J00 |
LH100,102,109,110,113,115,119,123,125,129,140,RZH10#,112,12#..03S,06S,09S,15S |
1 | ||
| 71033-95J00 |
LH119..05S,06S,09S;KZH10#,LH10#,113,12#,RZH100,102,112,124..CD,CTM,DX,GL |
1 | ||
| 71380 - HINGE ASSY, CENTER SEAT, RH | ||||
| 71380-95J04 |
LH125;LH100,102,109,110,113,115,119,123,129,140,RZH100,102,112,12#..(03S,06S,09S,15S)..(CD,DX,SW) |
1 | ||
| 71380-95J04 |
LH125;KZH100,LH100,102,103,109,110,113,115,119,123,140,RZH100,102,112,12#..(03S,06S,09S,15S)..(CD,DX,SW) |
1 | ||
| 71392 - COVER, CENTER SEAT CUSHION BRACKET, LH | ||||
| 71392-95J04B0 |
KZH10#,RZH100..09S;LH10#,11#,RZH102,112..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71392-95J0303 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 71395B - COVER, CENTER SEAT HINGE, RH | ||||
| 71395-95J0203 |
LH100,102,109,110,113,119,123,140,RZH100,102,112,122..03S,06S,09S GRAY,TRIM1# |
1 | ||
| 71395-95J02B0 |
LH119..05S,06S,09S;KZH10#,LH10#,113,RZH100,102,112..(SMRF,SRF)..(03S,06S,09S) BLUISH GRAY,TRIM1# |
1 | ||
| 71395-95J0203 |
LH100,102,109,110,113,119,123,129,140,RZH10#,112,122..03S,06S,09S GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-95J8003 |
LH100,RZH100,101..09S GRAY,TRIM1# |
1 | ||
| 71410-95J80B1 |
KZH100,RZH100..DX;LH10#,11#,RZH102,112..GL ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-95J8603 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 71420-26140B0 |
KZH100,RZH100..DX ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71401-95N3103 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 71401-95N31B1 |
KZH100,RZH100..DX ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71402-95N3403 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 71402-95N34B1 |
KZH100,RZH100..DX ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-95J11 |
LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,125,RZH100,101,110,124..CTM,DX,GL |
1 | ||
| 71511-95J11 |
LH102,103,109,113,119,RZH102,112..GL,SGL;KZH10#,11#,LH100,110,115,117,125,129,RZH100,110,124..CTM,DX,GL |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-95J01 |
LH100,115,125,RZH100,124..DX,GL ｱﾘ(ﾌﾛﾝﾄﾍﾞﾝﾁｼ-ﾄ) |
1 | ||
| 71502-95J01 |
LH100,115,125,RZH100,124..DX,GL |
1 | ||
| 71502-26020 |
KZH100,RZH100..DX |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-95J25 |
LH100,110,115,117,125,RZH100,110,124..DX |
1 | ||
| 71551-95J25 |
LH100,110,115,117,125,129,RZH100,110,124..DX |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-95J26 |
LH100,110,115,117,125,RZH100,110,124..DX |
1 | ||
| 71551-95J26 |
LH100,110,115,117,125,129,RZH100,110,124..DX |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95J0003 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 71811-95J00B0 |
KZH10#,LH10#,11#,RZH10#,112..(MRF,SMRF,SRF)..(03S,05S,06S,08S,09S) BLUISH GRAY,TRIM1# |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95J0003 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 71811-95J00B0 |
KZH10#,LH10#,11#,RZH10#,112..(MRF,SMRF,SRF)..(03S,05S,06S,08S,09S) BLUISH GRAY,TRIM1# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-95J00B0 |
KZH10#,LH10#,11#,RZH10#,112..(MRF,SMRF,SRF)..(03S,05S,06S,08S,09S) BLUISH GRAY,TRIM1# |
1 | ||
| 71831-95J0003 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-95J02 |
LH100,RZH100..DX |
1 | ||
| 71832-95J0203 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 71832-95J02B0 |
KZH100,RZH100..DX BLUISH GRAY,TRIM1# |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-95J05 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-95J02 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 72130-95J02 |
LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 72213 - KNOB, SEAT TRACK ADJUSTING HANDLE | ||||
| 72213-12040 |
LH10#,11#,123,125,129,140,RZH10#,11#,12# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95J0103 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 72525-95J01B0 |
KZH10#,LH10#,11#,RZH10#,112..(MRF,SMRF,SRF)..(03S,05S,06S,08S,09S) BLUISH GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95J0103 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 72525-95J01B0 |
KZH10#,LH10#,11#,RZH10#,112..(MRF,SMRF,SRF)..(03S,05S,06S,08S,09S) BLUISH GRAY,TRIM1# |
1 | ||
| 72658C - KNOB, FRONT SEAT LOCK HANDLE | ||||
| 72658-9570111 |
LH119..05S,06S,09S;KZH10#,LH10#,113,RZH100,102,112..(SMRF,SRF)..(03S,06S,09S) BLUISH GRAY,TRIM1# |
1 | ||
| 72658-9570113 |
LH100,102,109,110,113,119,123,129,140,RZH10#,112,122..03S,06S,09S GRAY,TRIM1# |
1 | ||
| 72658-9570113 |
LH100,102,109,110,113,119,123,140,RZH100,102,112,122..03S,06S,09S GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-08109 | ||||
| 90119-08079 | ||||
| 90119-10101 | ||||
| 90119-10854 | ||||
| 90119-10855 | ||||
| 90167-40044 | ||||
| 90179-10073 | ||||
| 90386-10027 | ||||
| 90386-12051 | ||||
| 90386-12061 | ||||
| 90467-08008 | ||||
| 90523-08001 | ||||
| 91612-B1020 | ||||
| 93540-54012 | ||||
ILLUST NO. 1 OF 4(8908-9907)
ﾌﾛﾝﾄ ｼ-ﾄ:LH10#,11#,123(ﾚｲﾄｳｼﾔ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-95J06 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-95J03 |
LH100,110,117,RZH100,110..DX |
1 | ||
| 71013-95J03 |
LH100,110,117,129,RZH100,110..DX |
1 | ||
| 71013-95J03 |
LH123..4FC;KZH100,11#,LH125,129,RZH100,124..DX ｱﾘ(ﾍﾂﾄﾞﾚｽﾄ ｲﾂﾀｲｼｷ) |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-95J01 |
LH100,110,115,117,125,129,RZH100,110,124..DX |
1 | ||
| 71014-95J01 |
LH100,110,115,117,125,RZH100,110,124..DX |
1 | ||
| 71014-95J01 |
RZH124..CBR;KZH100,11#,LH100,110,115,117,125,RZH100,110..DX |
1 | ||
| 71035S - COVER, FRONT SEAT BACK, CENTER | ||||
| 71095-95J0803 |
LH100,RZH100,101..09S GRAY,TRIM1# |
1 | ||
| 71095-95J08B6 |
KZH100,RZH100..DX;LH10#,113,RZH102,112..GL;LH119..(05S,06S)..5F..(GL,SGL) ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-95J7903 |
LH100,RZH100,101..09S GRAY,TRIM1# |
1 | ||
| 71071-95J79B1 |
LH123..06S;KZH100,RZH100..DX;LH10#,11#,RZH102,112..GL ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-95J8503 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 71072-26150B0 |
KZH100,RZH100..DX ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-95N3403 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 71073-95N34B1 |
KZH100,RZH100..DX ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-95N5003 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 71074-95N50B0 |
KZH100,RZH100..DX ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71128 - PLATE, FRONT SEAT CUSHION COVER SET, OUTSIDE LH | ||||
| 71128-95J0803 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 71128-95J0819 |
KZH10#,LH10#,11#,RZH10#,112..(MRF,SMRF,SRF)..(03S,05S,06S,08S,09S) BLUISH GRAY,TRIM1# |
1 | ||
| 71274 - KNOB, FRONT SEAT HINGE | ||||
| 71274-95J00B0 |
KZH100,LH10#,11#,RZH100,102,112..SRF..(CD,DX) BLUISH GRAY,TRIM1# |
1 | ||
| 71274-95J0003 |
LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(03S,06S,09S)..(CD,DX,SW) GRAY,TRIM1# |
1 | ||
| 71350S - BACK ASSY, FRONT SEAT, CENTER | ||||
| 71350-95J3203 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 71350-95J32B1 |
KZH100,RZH100..DX ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71358 - PAD, CENTER SEAT BACK | ||||
| 71033-95J00 |
LH100,102,109,110,113,115,119,123,125,129,140,RZH10#,112,12#..03S,06S,09S,15S |
1 | ||
| 71033-95J00 |
LH119..05S,06S,09S;KZH10#,LH10#,113,12#,RZH100,102,112,124..CD,CTM,DX,GL |
1 | ||
| 71380 - HINGE ASSY, CENTER SEAT, RH | ||||
| 71380-95J04 |
LH125;LH100,102,109,110,113,115,119,123,129,140,RZH100,102,112,12#..(03S,06S,09S,15S)..(CD,DX,SW) |
1 | ||
| 71380-95J04 |
LH125;KZH100,LH100,102,103,109,110,113,115,119,123,140,RZH100,102,112,12#..(03S,06S,09S,15S)..(CD,DX,SW) |
1 | ||
| 71392 - COVER, CENTER SEAT CUSHION BRACKET, LH | ||||
| 71392-95J04B0 |
KZH10#,RZH100..09S;LH10#,11#,RZH102,112..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71392-95J0303 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 71395B - COVER, CENTER SEAT HINGE, RH | ||||
| 71395-95J0203 |
LH100,102,109,110,113,119,123,140,RZH100,102,112,122..03S,06S,09S GRAY,TRIM1# |
1 | ||
| 71395-95J02B0 |
LH119..05S,06S,09S;KZH10#,LH10#,113,RZH100,102,112..(SMRF,SRF)..(03S,06S,09S) BLUISH GRAY,TRIM1# |
1 | ||
| 71395-95J0203 |
LH100,102,109,110,113,119,123,129,140,RZH10#,112,122..03S,06S,09S GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-95J8003 |
LH100,RZH100,101..09S GRAY,TRIM1# |
1 | ||
| 71410-95J80B1 |
KZH100,RZH100..DX;LH10#,11#,RZH102,112..GL ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-95J8603 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 71420-26140B0 |
KZH100,RZH100..DX ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71401-95N3103 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 71401-95N31B1 |
KZH100,RZH100..DX ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71402-95N3403 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 71402-95N34B1 |
KZH100,RZH100..DX ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-95J11 |
LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,125,RZH100,101,110,124..CTM,DX,GL |
1 | ||
| 71511-95J11 |
LH102,103,109,113,119,RZH102,112..GL,SGL;KZH10#,11#,LH100,110,115,117,125,129,RZH100,110,124..CTM,DX,GL |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-95J01 |
LH100,115,125,RZH100,124..DX,GL ｱﾘ(ﾌﾛﾝﾄﾍﾞﾝﾁｼ-ﾄ) |
1 | ||
| 71502-95J01 |
LH100,115,125,RZH100,124..DX,GL |
1 | ||
| 71502-26020 |
KZH100,RZH100..DX |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-95J25 |
LH100,110,115,117,125,RZH100,110,124..DX |
1 | ||
| 71551-95J25 |
LH100,110,115,117,125,129,RZH100,110,124..DX |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-95J26 |
LH100,110,115,117,125,RZH100,110,124..DX |
1 | ||
| 71551-95J26 |
LH100,110,115,117,125,129,RZH100,110,124..DX |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95J0003 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 71811-95J00B0 |
KZH10#,LH10#,11#,RZH10#,112..(MRF,SMRF,SRF)..(03S,05S,06S,08S,09S) BLUISH GRAY,TRIM1# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-95J00B0 |
KZH10#,LH10#,11#,RZH10#,112..(MRF,SMRF,SRF)..(03S,05S,06S,08S,09S) BLUISH GRAY,TRIM1# |
1 | ||
| 71831-95J0003 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-95J02 |
LH100,RZH100..DX |
1 | ||
| 71832-95J0203 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 71832-95J02B0 |
KZH100,RZH100..DX BLUISH GRAY,TRIM1# |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-95J05 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-95J02 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 72130-95J02 |
LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 72213 - KNOB, SEAT TRACK ADJUSTING HANDLE | ||||
| 72213-12040 |
LH10#,11#,123,125,129,140,RZH10#,11#,12# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95J0103 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 72525-95J01B0 |
KZH10#,LH10#,11#,RZH10#,112..(MRF,SMRF,SRF)..(03S,05S,06S,08S,09S) BLUISH GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95J0103 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 72525-95J01B0 |
KZH10#,LH10#,11#,RZH10#,112..(MRF,SMRF,SRF)..(03S,05S,06S,08S,09S) BLUISH GRAY,TRIM1# |
1 | ||
| 72658C - KNOB, FRONT SEAT LOCK HANDLE | ||||
| 72658-9570111 |
LH119..05S,06S,09S;KZH10#,LH10#,113,RZH100,102,112..(SMRF,SRF)..(03S,06S,09S) BLUISH GRAY,TRIM1# |
1 | ||
| 72658-9570113 |
LH100,102,109,110,113,119,123,129,140,RZH10#,112,122..03S,06S,09S GRAY,TRIM1# |
1 | ||
| 72658-9570113 |
LH100,102,109,110,113,119,123,140,RZH100,102,112,122..03S,06S,09S GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-08109 | ||||
| 90119-08079 | ||||
| 90119-10101 | ||||
| 90119-10116 | ||||
| 90119-10855 | ||||
| 90167-40044 | ||||
| 90179-10073 | ||||
| 90386-10027 | ||||
| 90386-12051 | ||||
| 90467-08008 | ||||
| 90523-08001 | ||||
| 91612-B1020 | ||||
| 93540-54012 | ||||
ILLUST NO. 1 OF 5(8908-9907)DX,GCGE,GCGN,SCL,SGL,SW
ﾌﾛﾝﾄ ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-95J06 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-95J03 |
LH100,110,117,129,RZH100,110..DX |
1 | ||
| 71013-95J03 |
LH100,110,117,RZH100,110..DX |
1 | ||
| 71013-95J03 |
LH123..4FC;KZH100,11#,LH125,129,RZH100,124..DX ｱﾘ(ﾍﾂﾄﾞﾚｽﾄ ｲﾂﾀｲｼｷ) |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-95J01 |
LH100,110,115,117,125,129,RZH100,110,124..DX |
1 | ||
| 71014-95J01 |
LH100,110,115,117,125,RZH100,110,124..DX |
1 | ||
| 71014-95J01 |
RZH124..CBR;KZH100,11#,LH100,110,115,117,125,RZH100,110..DX |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-95J7903 |
LH100,RZH100,101..09S GRAY,TRIM1# |
1 | ||
| 71071-95J79B1 |
LH123..06S;KZH100,RZH100..DX;LH10#,11#,RZH102,112..GL ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-95J8503 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 71072-26150B0 |
KZH100,RZH100..DX ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-95N3403 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 71073-95N34B1 |
KZH100,RZH100..DX ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-95N5003 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 71074-95N50B0 |
KZH100,RZH100..DX ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71128 - PLATE, FRONT SEAT CUSHION COVER SET, OUTSIDE LH | ||||
| 71128-95J0803 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 71128-95J0819 |
KZH10#,LH10#,11#,RZH10#,112..(MRF,SMRF,SRF)..(03S,05S,06S,08S,09S) BLUISH GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-95J8003 |
LH100,RZH100,101..09S GRAY,TRIM1# |
1 | ||
| 71410-95J80B1 |
KZH100,RZH100..DX;LH10#,11#,RZH102,112..GL ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-95J8603 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 71420-26140B0 |
KZH100,RZH100..DX ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71401-95N3103 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 71401-95N31B1 |
KZH100,RZH100..DX ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71402-95N3403 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 71402-95N34B1 |
KZH100,RZH100..DX ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-95J11 |
LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,125,RZH100,101,110,124..CTM,DX,GL |
1 | ||
| 71511-95J11 |
LH102,103,109,113,119,RZH102,112..GL,SGL;KZH10#,11#,LH100,110,115,117,125,129,RZH100,110,124..CTM,DX,GL |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-95J01 |
LH100,115,125,RZH100,124..DX,GL ｱﾘ(ﾌﾛﾝﾄﾍﾞﾝﾁｼ-ﾄ) |
1 | ||
| 71502-95J01 |
LH100,115,125,RZH100,124..DX,GL |
1 | ||
| 71502-26020 |
KZH100,RZH100..DX |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-95J25 |
LH100,110,115,117,125,RZH100,110,124..DX |
1 | ||
| 71551-95J25 |
LH100,110,115,117,125,129,RZH100,110,124..DX |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-95J26 |
LH100,110,115,117,125,RZH100,110,124..DX |
1 | ||
| 71551-95J26 |
LH100,110,115,117,125,129,RZH100,110,124..DX |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95J0003 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 71811-95J00B0 |
KZH10#,LH10#,11#,RZH10#,112..(MRF,SMRF,SRF)..(03S,05S,06S,08S,09S) BLUISH GRAY,TRIM1# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-95J00B0 |
KZH10#,LH10#,11#,RZH10#,112..(MRF,SMRF,SRF)..(03S,05S,06S,08S,09S) BLUISH GRAY,TRIM1# |
1 | ||
| 71831-95J0003 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-95J02 |
LH100,RZH100..DX |
1 | ||
| 71832-95J0203 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 71832-95J02B0 |
KZH100,RZH100..DX BLUISH GRAY,TRIM1# |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-95J05 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-95J05 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-95J02 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 72130-95J02 |
LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 72213 - KNOB, SEAT TRACK ADJUSTING HANDLE | ||||
| 72213-12040 |
LH10#,11#,123,125,129,140,RZH10#,11#,12# |
1 | ||
| 72213 - KNOB, SEAT TRACK ADJUSTING HANDLE | ||||
| 72213-12040 |
LH10#,11#,123,125,129,140,RZH10#,11#,12# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95J0103 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 72525-95J01B0 |
KZH10#,LH10#,11#,RZH10#,112..(MRF,SMRF,SRF)..(03S,05S,06S,08S,09S) BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-08109 | ||||
| 90119-08079 | ||||
| 90119-08269 | ||||
| 90119-10101 | ||||
| 90119-10116 | ||||
| 90167-40044 | ||||
| 90179-10073 | ||||
| 90386-10027 | ||||
| 90386-12051 | ||||
| 90467-08008 | ||||
| 90530-06007 | ||||
| 91611-60616 | ||||
| 93540-54012 | ||||
| Linked diagrams | ||||
| 8401 | ||||

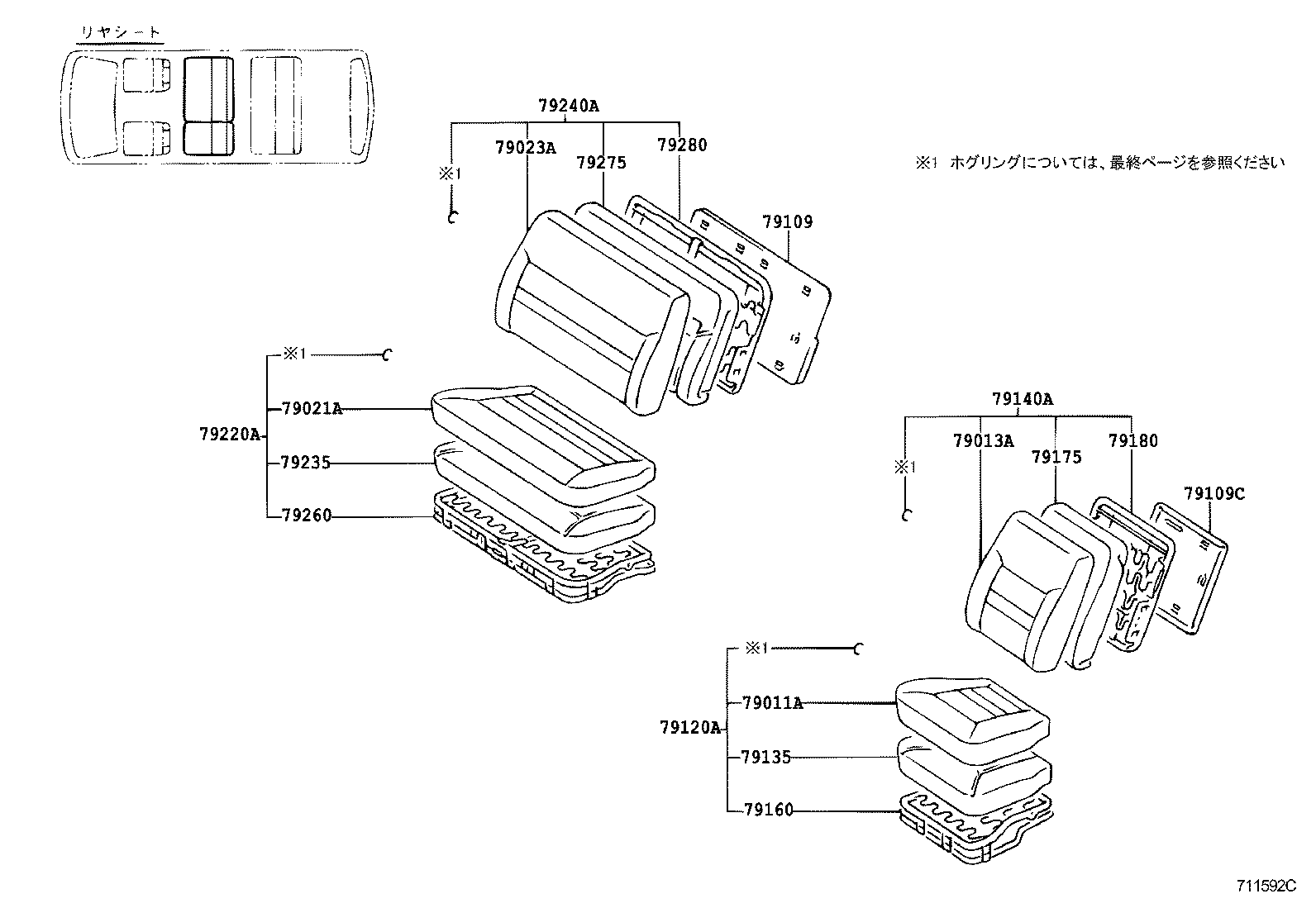

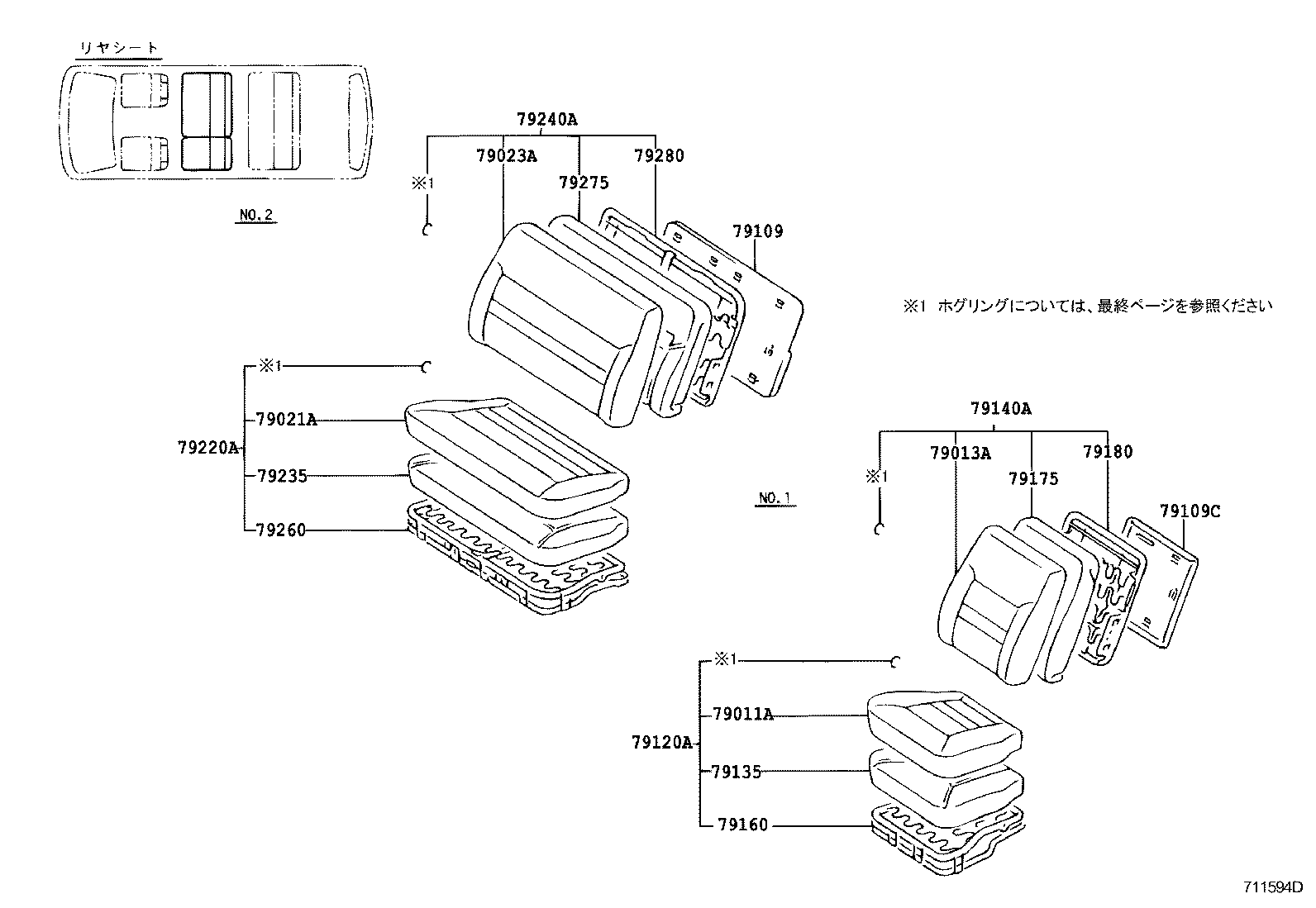

ILLUST NO. 2 OF 4(8908-9308)LH100,RZH100..DX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79011-26130B0 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 79011-95N1703 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 79011-26130B1 |
KZH100,RZH100..DX ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79013-95N0603 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 79013-26200B0 |
KZH100,RZH100..DX ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79021A - COVER SUB-ASSY, NO.2 SEAT CUSHION | ||||
| 79021-95J5103 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 79021-95J51B1 |
KZH100,RZH100..DX ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79023A - COVER SUB-ASSY, NO.2 SEAT BACK | ||||
| 79023-95J4703 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 79023-95J47B0 |
KZH100,RZH100..DX ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79109 - BOARD SUB-ASSY, NO.1 SEAT BACK | ||||
| 79207-95J03B0 |
KZH10#,RZH100,101..08S,09S BLUISH GRAY,TRIM1# |
1 | ||
| 79207-95J0303 |
LH100,107,RZH100,101..08S,09S GRAY,TRIM1# |
1 | ||
| 79109C - BOARD SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79109-95J1603 |
KZH100,LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 79120A - CUSHION ASSY, NO.1 SEAT | ||||
| 79120-95N2703 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 79120-26130B0 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 79120-26130B1 |
KZH100,RZH100..DX ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79135-95J11 |
KZH10#,LH100,RZH100,101..09S |
1 | ||
| 79140A - BACK ASSY, NO.1 SEAT | ||||
| 79140-26150B0 |
KZH100,RZH100..DX ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79140-95N2203 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 79160 - SPRING ASSY, NO.1 SEAT CUSHION | ||||
| 79160-95J43 |
LH100,RZH100..DX |
1 | ||
| 79260-26030 |
KZH100,RZH100..DX |
1 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79175-95J16 |
LH100,RZH100,101..09S |
1 | ||
| 79175-26050 |
KZH10#,RZH100..09S |
1 | ||
| 79180 - SPRING ASSY, NO.1 SEAT BACK | ||||
| 79180-26060 |
KZH100,RZH100..DX |
1 | ||
| 79180-95J19 |
LH100,RZH100..DX |
1 | ||
| 79220A - CUSHION ASSY, NO.2 SEAT | ||||
| 79220-95J6403 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 79220-26090B0 |
KZH100,RZH100..DX ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79235 - PAD, NO.2 SEAT CUSHION | ||||
| 79235-95J06 |
KZH10#,LH100,RZH100,101..09S |
1 | ||
| 79240A - BACK ASSY, NO.2 SEAT | ||||
| 79240-95J4803 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 79240-26060B0 |
KZH100,RZH100..DX ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79260 - SPRING ASSY, NO.2 SEAT CUSHION | ||||
| 79260-95J13 |
LH100,RZH100..DX |
1 | ||
| 79275 - PAD, NO.2 SEAT BACK | ||||
| 79275-95J02 |
KZH10#,LH100,RZH100,101..09S |
1 | ||
| 79280 - SPRING ASSY, NO.2 SEAT BACK | ||||
| 79280-26040 |
KZH100,RZH100..DX |
1 | ||
| 79280-95J07 |
LH100,RZH100..DX |
1 | ||

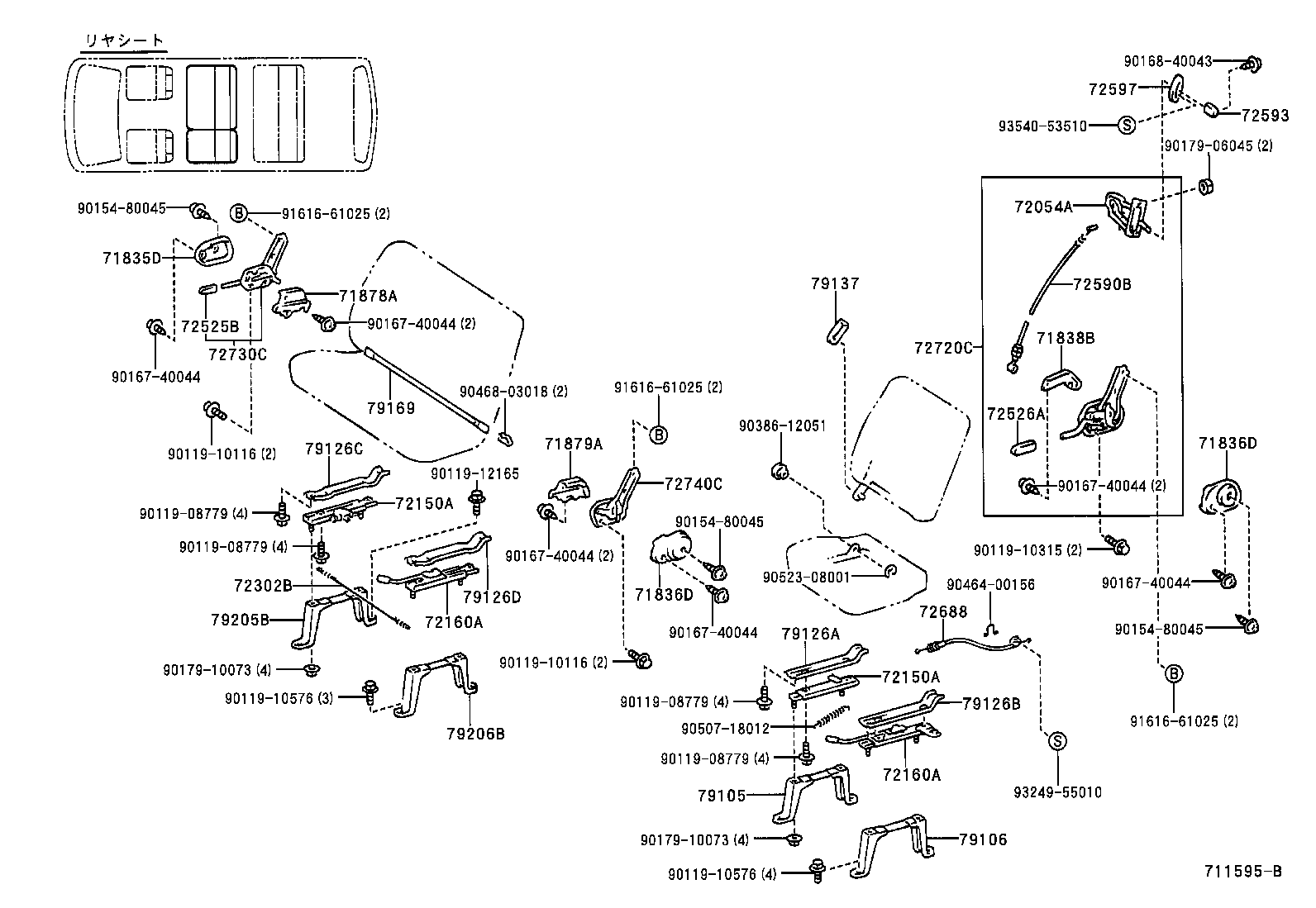

ILLUST NO. 2 OF 4(8908-9308)LH100,RZH100..DX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71835D - COVER, REAR SEAT RECLINING, LOWER RH | ||||
| 71835-95J0203 |
LH100,107,RZH100,101..08S,09S GRAY,TRIM1# |
1 | ||
| 71835-95J02B0 |
KZH10#,RZH100,101..08S,09S BLUISH GRAY,TRIM1# |
1 | ||
| 71836D - COVER, REAR SEAT RECLINING, LOWER LH | ||||
| 71836-95J0103 |
LH100,RZH100..DX GRAY,TRIM1#,NO.2 ｼｰﾄ |
1 | ||
| 71836-95J0013 |
LH100,RZH100..DX GRAY,TRIM1#,NO.1 ｼｰﾄ |
1 | ||
| 71836-95J01B0 |
KZH100,RZH100..DX BLUISH GRAY,TRIM1#,NO.2,3 ﾘﾔ ｼｰﾄ |
1 | ||
| 71836-95J00B0 |
KZH100,RZH100..DX BLUISH GRAY,TRIM1#,NO.1 ｼｰﾄ |
1 | ||
| 71836D - COVER, REAR SEAT RECLINING, LOWER LH | ||||
| 71836-95J0103 |
LH100,RZH100..DX GRAY,TRIM1#,NO.2 ｼｰﾄ |
1 | ||
| 71836-95J0013 |
LH100,RZH100..DX GRAY,TRIM1#,NO.1 ｼｰﾄ |
1 | ||
| 71836-95J01B0 |
KZH100,RZH100..DX BLUISH GRAY,TRIM1#,NO.2,3 ﾘﾔ ｼｰﾄ |
1 | ||
| 71836-95J00B0 |
KZH100,RZH100..DX BLUISH GRAY,TRIM1#,NO.1 ｼｰﾄ |
1 | ||
| 71878A - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-95J0203 |
LH100,107,RZH100,101..08S,09S GRAY,TRIM1#,NO.2 ｼｰﾄ |
1 | ||
| 71878-95J0003 |
LH100,107,RZH100,101..08S,09S GRAY,TRIM1#,NO.3 ｼｰﾄ |
1 | ||
| 71878-95J00B0 |
KZH10#,RZH100,101..08S,09S BLUISH GRAY,TRIM1#,NO.3 ｼｰﾄ |
1 | ||
| 71878-95J02B0 |
KZH10#,RZH100,101..08S,09S BLUISH GRAY,TRIM1#,NO.2 ｼｰﾄ |
1 | ||
| 71879A - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-95J0103 |
LH100,107,RZH100,101..08S,09S GRAY,TRIM1#,NO.2 ｼｰﾄ |
1 | ||
| 71879-95J0003 |
LH100,107,RZH100,101..08S,09S GRAY,TRIM1#,NO.3 ｼｰﾄ |
1 | ||
| 71879-95J00B0 |
KZH10#,RZH100,101..08S,09S BLUISH GRAY,TRIM1#,NO.3 ｼｰﾄ |
1 | ||
| 71879-95J01B0 |
KZH10#,RZH100,101..08S,09S BLUISH GRAY,TRIM1#,NO.2 ｼｰﾄ |
1 | ||
| 71879A - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-95J0103 |
LH100,107,RZH100,101..08S,09S GRAY,TRIM1#,NO.2 ｼｰﾄ |
1 | ||
| 71879-95J0003 |
LH100,107,RZH100,101..08S,09S GRAY,TRIM1#,NO.3 ｼｰﾄ |
1 | ||
| 71879-95J00B0 |
KZH10#,RZH100,101..08S,09S BLUISH GRAY,TRIM1#,NO.3 ｼｰﾄ |
1 | ||
| 71879-95J01B0 |
KZH10#,RZH100,101..08S,09S BLUISH GRAY,TRIM1#,NO.2 ｼｰﾄ |
1 | ||
| 72150A - TRACK ASSY, REAR SEAT, RH | ||||
| 72160-95J09 |
KZH100,LH100,RZH100..DX NO.1 ｼｰﾄ |
1 | ||
| 72160-95J10 |
LH100,RZH100..DX NO.2 ｼｰﾄ |
1 | ||
| 72160-26010 |
KZH100,RZH100..DX NO.2 ｼｰﾄ |
1 | ||
| 72150A - TRACK ASSY, REAR SEAT, RH | ||||
| 72160-95J09 |
KZH100,LH100,RZH100..DX NO.1 ｼｰﾄ |
1 | ||
| 72160-95J10 |
LH100,RZH100..DX NO.2 ｼｰﾄ |
1 | ||
| 72160-26010 |
KZH100,RZH100..DX NO.2 ｼｰﾄ |
1 | ||
| 72160A - TRACK ASSY, REAR SEAT, LH | ||||
| 72170-95J05 |
LH100,RZH100..DX NO.1 ｼｰﾄ |
1 | ||
| 72170-26010 |
LH100,RZH100..DX NO.1 ｼｰﾄ |
1 | ||
| 72170-26030 |
KZH100,RZH100..DX NO.2 ｼｰﾄ |
1 | ||
| 72170-26011 |
KZH100,RZH100..DX NO.1 ｼｰﾄ |
1 | ||
| 72170-95J06 |
LH100,RZH100..DX NO.2 ｼｰﾄ |
1 | ||
| 72160A - TRACK ASSY, REAR SEAT, LH | ||||
| 72170-95J05 |
LH100,RZH100..DX NO.1 ｼｰﾄ |
1 | ||
| 72170-26010 |
LH100,RZH100..DX NO.1 ｼｰﾄ |
1 | ||
| 72170-26030 |
KZH100,RZH100..DX NO.2 ｼｰﾄ |
1 | ||
| 72170-26011 |
KZH100,RZH100..DX NO.1 ｼｰﾄ |
1 | ||
| 72170-95J06 |
LH100,RZH100..DX NO.2 ｼｰﾄ |
1 | ||
| 72302B - WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING | ||||
| 72302-95J02 |
KZH100,LH100,RZH100..DX |
1 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95J0103 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 72525-95J0103 |
LH100,107,RZH100,101..08S,09S GRAY,TRIM1# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72525-95J0103 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 72525-95J0103 |
LH100,107,RZH100,101..08S,09S GRAY,TRIM1# |
1 | ||
| 72525-95J01B0 |
KZH10#,RZH100,101..08S,09S BLUISH GRAY,TRIM1# |
1 | ||
| 72688 - CABLE, REAR SEAT TRACK & TURN CONTROL | ||||
| 72688-95J03 |
KZH100,LH100,RZH100..DX |
1 | ||
| 72720C - ADJUSTER ASSY, NO.1 SEAT RECLINING, LH | ||||
| 72720-95J0803 |
LH100,RZH100,101..09S GRAY,TRIM1# |
1 | ||
| 72720-26020B0 |
KZH10#,RZH100,101..08S,09S BLUISH GRAY,TRIM1# |
1 | ||
| 72730C - ADJUSTER ASSY, NO.2 SEAT RECLINING, RH | ||||
| 72730-95J0603 |
LH100,107,RZH100,101..08S,09S GRAY,TRIM1# |
1 | ||
| 72730-95J06B0 |
KZH10#,RZH100,101..08S,09S BLUISH GRAY,TRIM1# |
1 | ||
| 72740C - ADJUSTER ASSY, NO.2 SEAT RECLINING, LH | ||||
| 72740-95J13 |
KZH100,LH100,RZH100..DX |
1 | ||
| 79105 - LEG SUB-ASSY, NO.1 SEAT, RH | ||||
| 79105-95J1303 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 79105-95J13B0 |
KZH100,RZH100..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79106 - LEG SUB ASSY, NO.1 SEAT, LH | ||||
| 79106-95J2803 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 79106-95J28B0 |
KZH100,RZH100..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79126A - REINFORCEMENT, NO.1 SEAT LEG, NO.1 | ||||
| 79126-95J08 |
KZH100,LH100,RZH100..DX |
1 | ||
| 79126B - REINFORCEMENT, NO.1 SEAT LEG, NO.2 | ||||
| 79126-95J09 |
KZH100,LH100,RZH100..DX |
1 | ||
| 79126C - REINFORCEMENT, NO.2 SEAT LEG, NO.1 | ||||
| 79126-95J13 |
KZH100,LH100,RZH100..DX |
1 | ||
| 79126D - REINFORCEMENT, NO.2 SEAT LEG, NO.2 | ||||
| 79126-95J13 |
KZH100,LH100,RZH100..DX |
1 | ||
| 79137 - COVER, NO.1 SEAT HINGE | ||||
| 79137-95J00B0 |
KZH10#,RZH100,101..08S,09S GRAY,TRIM1# |
1 | ||
| 79137-95J0013 |
LH100,107,RZH100,101..08S,09S GRAY,TRIM1# |
1 | ||
| 79169 - ROD, REAR SEAT HINGE CONNECTOR | ||||
| 79169-95J00 |
LH120..GCGE;KZH10#,120,LH100,107,RZH100,101..CTM,DX,GCGE,SCM,SCMM NO.2 ｼｰﾄ |
1 | ||
| 79169-95J07 |
LH100,RZH100,101..09S NO.3 ｼｰﾄ |
1 | ||
| 79205B - LEG SUB-ASSY, NO.2 SEAT, RH | ||||
| 79205-95J1003 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 79205-95J10B0 |
KZH100,RZH100..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79206B - LEG SUB-ASSY, NO.2 SEAT, LH | ||||
| 79206-95J1203 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 79206-95J12B0 |
KZH100,RZH100..DX BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08779 | ||||
| 90119-10116 | ||||
| 90119-10315 | ||||
| 90119-10576 | ||||
| 90119-12165 | ||||
| 90154-80045 | ||||
| 90167-40044 | ||||
| 90179-10073 | ||||
| 90386-12051 | ||||
| 90464-00156 | ||||
| 90468-03018 | ||||
| 90507-18012 | ||||
| 90523-08001 | ||||
| 91616-61025 | ||||
| 93249-55010 | ||||

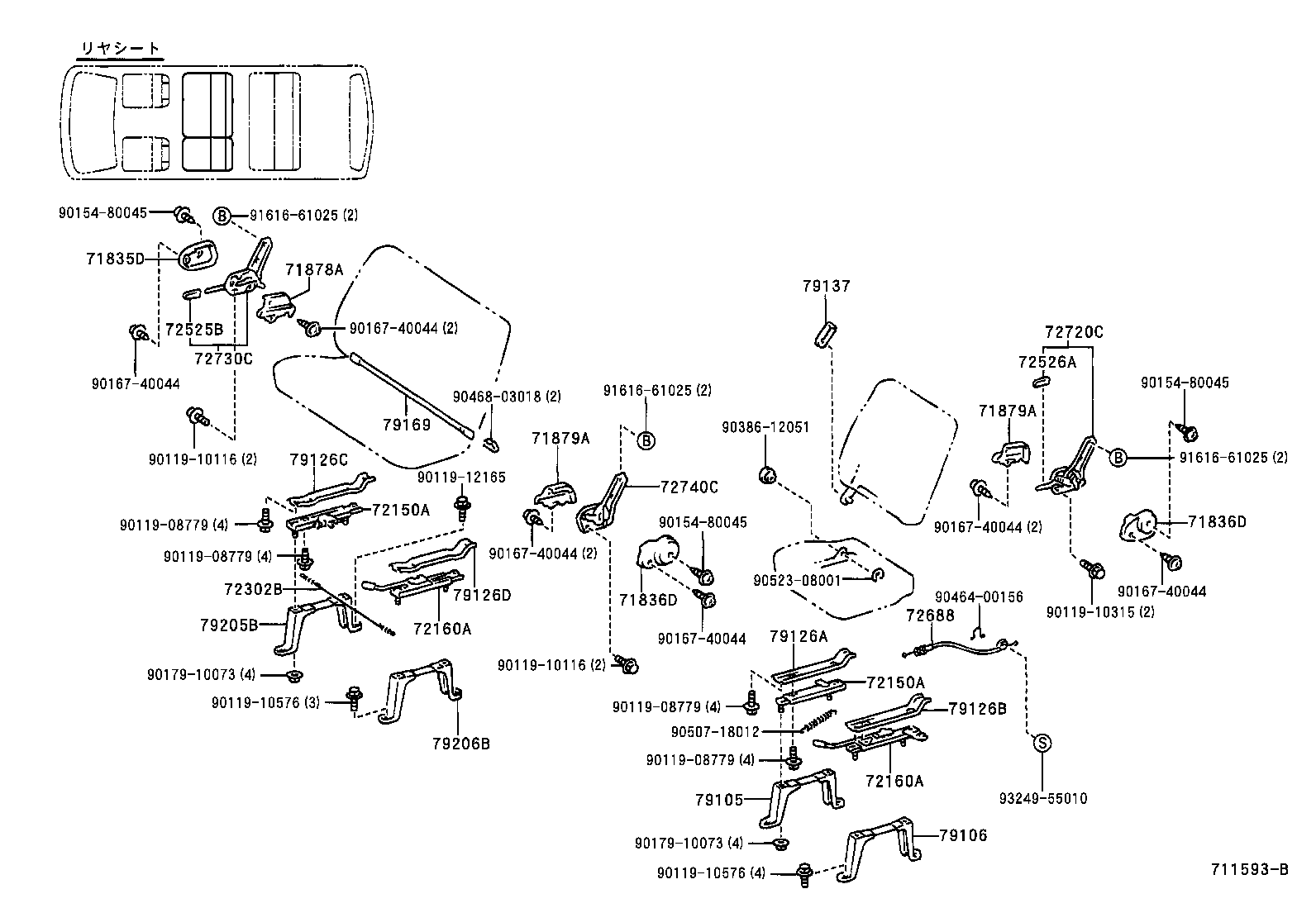

ILLUST NO. 2 OF 4(9308-9508)KZH100,RZH100..DX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79011-26130B0 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 79011-95N1703 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 79011-26130B1 |
KZH100,RZH100..DX ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79013-95N0603 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 79013-26200B0 |
KZH100,RZH100..DX ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79021A - COVER SUB-ASSY, NO.2 SEAT CUSHION | ||||
| 79021-95J5103 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 79021-95J51B1 |
KZH100,RZH100..DX ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79023A - COVER SUB-ASSY, NO.2 SEAT BACK | ||||
| 79023-95J4703 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 79023-95J47B0 |
KZH100,RZH100..DX ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79109 - BOARD SUB-ASSY, NO.1 SEAT BACK | ||||
| 79207-95J03B0 |
KZH10#,RZH100,101..08S,09S BLUISH GRAY,TRIM1# |
1 | ||
| 79207-95J0303 |
LH100,107,RZH100,101..08S,09S GRAY,TRIM1# |
1 | ||
| 79109C - BOARD SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79109-95J1603 |
KZH100,LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 79120A - CUSHION ASSY, NO.1 SEAT | ||||
| 79120-95N2703 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 79120-26130B0 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 79120-26130B1 |
KZH100,RZH100..DX ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79135-95J11 |
KZH10#,LH100,RZH100,101..09S |
1 | ||
| 79140A - BACK ASSY, NO.1 SEAT | ||||
| 79140-26150B0 |
KZH100,RZH100..DX ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79140-95N2203 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 79160 - SPRING ASSY, NO.1 SEAT CUSHION | ||||
| 79160-95J43 |
LH100,RZH100..DX |
1 | ||
| 79260-26030 |
KZH100,RZH100..DX |
1 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79175-95J16 |
LH100,RZH100,101..09S |
1 | ||
| 79175-26050 |
KZH10#,RZH100..09S |
1 | ||
| 79180 - SPRING ASSY, NO.1 SEAT BACK | ||||
| 79180-26060 |
KZH100,RZH100..DX |
1 | ||
| 79180-95J19 |
LH100,RZH100..DX |
1 | ||
| 79220A - CUSHION ASSY, NO.2 SEAT | ||||
| 79220-95J6403 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 79220-26090B0 |
KZH100,RZH100..DX ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79235 - PAD, NO.2 SEAT CUSHION | ||||
| 79235-95J06 |
KZH10#,LH100,RZH100,101..09S |
1 | ||
| 79240A - BACK ASSY, NO.2 SEAT | ||||
| 79240-95J4803 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 79240-26060B0 |
KZH100,RZH100..DX ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79260 - SPRING ASSY, NO.2 SEAT CUSHION | ||||
| 79260-95J13 |
LH100,RZH100..DX |
1 | ||
| 79275 - PAD, NO.2 SEAT BACK | ||||
| 79275-95J02 |
KZH10#,LH100,RZH100,101..09S |
1 | ||
| 79280 - SPRING ASSY, NO.2 SEAT BACK | ||||
| 79280-26040 |
KZH100,RZH100..DX |
1 | ||
| 79280-95J07 |
LH100,RZH100..DX |
1 | ||
ILLUST NO. 2 OF 4(9308-9508)KZH100,RZH100..DX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71835D - COVER, REAR SEAT RECLINING, LOWER RH | ||||
| 71835-95J0203 |
LH100,107,RZH100,101..08S,09S GRAY,TRIM1# |
1 | ||
| 71835-95J02B0 |
KZH10#,RZH100,101..08S,09S BLUISH GRAY,TRIM1# |
1 | ||
| 71836D - COVER, REAR SEAT RECLINING, LOWER LH | ||||
| 71836-95J0103 |
LH100,RZH100..DX GRAY,TRIM1#,NO.2 ｼｰﾄ |
1 | ||
| 71836-95J0013 |
LH100,RZH100..DX GRAY,TRIM1#,NO.1 ｼｰﾄ |
1 | ||
| 71836-95J01B0 |
KZH100,RZH100..DX BLUISH GRAY,TRIM1#,NO.2,3 ﾘﾔ ｼｰﾄ |
1 | ||
| 71836-95J00B0 |
KZH100,RZH100..DX BLUISH GRAY,TRIM1#,NO.1 ｼｰﾄ |
1 | ||
| 71836D - COVER, REAR SEAT RECLINING, LOWER LH | ||||
| 71836-95J0103 |
LH100,RZH100..DX GRAY,TRIM1#,NO.2 ｼｰﾄ |
1 | ||
| 71836-95J0013 |
LH100,RZH100..DX GRAY,TRIM1#,NO.1 ｼｰﾄ |
1 | ||
| 71836-95J01B0 |
KZH100,RZH100..DX BLUISH GRAY,TRIM1#,NO.2,3 ﾘﾔ ｼｰﾄ |
1 | ||
| 71836-95J00B0 |
KZH100,RZH100..DX BLUISH GRAY,TRIM1#,NO.1 ｼｰﾄ |
1 | ||
| 71838B - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71838-95J01B0 |
KZH10#,RZH100,101..08S,09S BLUISH GRAY,TRIM1# |
1 | ||
| 71878A - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-95J0203 |
LH100,107,RZH100,101..08S,09S GRAY,TRIM1#,NO.2 ｼｰﾄ |
1 | ||
| 71878-95J0003 |
LH100,107,RZH100,101..08S,09S GRAY,TRIM1#,NO.3 ｼｰﾄ |
1 | ||
| 71878-95J00B0 |
KZH10#,RZH100,101..08S,09S BLUISH GRAY,TRIM1#,NO.3 ｼｰﾄ |
1 | ||
| 71878-95J02B0 |
KZH10#,RZH100,101..08S,09S BLUISH GRAY,TRIM1#,NO.2 ｼｰﾄ |
1 | ||
| 71879A - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-95J0103 |
LH100,107,RZH100,101..08S,09S GRAY,TRIM1#,NO.2 ｼｰﾄ |
1 | ||
| 71879-95J0003 |
LH100,107,RZH100,101..08S,09S GRAY,TRIM1#,NO.3 ｼｰﾄ |
1 | ||
| 71879-95J00B0 |
KZH10#,RZH100,101..08S,09S BLUISH GRAY,TRIM1#,NO.3 ｼｰﾄ |
1 | ||
| 71879-95J01B0 |
KZH10#,RZH100,101..08S,09S BLUISH GRAY,TRIM1#,NO.2 ｼｰﾄ |
1 | ||
| 72054A - LEVER SUB-ASSY, RECLINING REMOTE CONTROL, LH | ||||
| 72054-26010 |
KZH10#,120,RZH100,101..CTM,DX,GCGE,SCM,SCMM |
1 | ||
| 72150A - TRACK ASSY, REAR SEAT, RH | ||||
| 72160-95J09 |
KZH100,LH100,RZH100..DX NO.1 ｼｰﾄ |
1 | ||
| 72160-95J10 |
LH100,RZH100..DX NO.2 ｼｰﾄ |
1 | ||
| 72160-26010 |
KZH100,RZH100..DX NO.2 ｼｰﾄ |
1 | ||
| 72150A - TRACK ASSY, REAR SEAT, RH | ||||
| 72160-95J09 |
KZH100,LH100,RZH100..DX NO.1 ｼｰﾄ |
1 | ||
| 72160-95J10 |
LH100,RZH100..DX NO.2 ｼｰﾄ |
1 | ||
| 72160-26010 |
KZH100,RZH100..DX NO.2 ｼｰﾄ |
1 | ||
| 72160A - TRACK ASSY, REAR SEAT, LH | ||||
| 72170-95J05 |
LH100,RZH100..DX NO.1 ｼｰﾄ |
1 | ||
| 72170-26010 |
LH100,RZH100..DX NO.1 ｼｰﾄ |
1 | ||
| 72170-26030 |
KZH100,RZH100..DX NO.2 ｼｰﾄ |
1 | ||
| 72170-26011 |
KZH100,RZH100..DX NO.1 ｼｰﾄ |
1 | ||
| 72170-95J06 |
LH100,RZH100..DX NO.2 ｼｰﾄ |
1 | ||
| 72160A - TRACK ASSY, REAR SEAT, LH | ||||
| 72170-95J05 |
LH100,RZH100..DX NO.1 ｼｰﾄ |
1 | ||
| 72170-26010 |
LH100,RZH100..DX NO.1 ｼｰﾄ |
1 | ||
| 72170-26030 |
KZH100,RZH100..DX NO.2 ｼｰﾄ |
1 | ||
| 72170-26011 |
KZH100,RZH100..DX NO.1 ｼｰﾄ |
1 | ||
| 72170-95J06 |
LH100,RZH100..DX NO.2 ｼｰﾄ |
1 | ||
| 72302B - WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING | ||||
| 72302-95J02 |
KZH100,LH100,RZH100..DX |
1 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95J0103 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 72525-95J0103 |
LH100,107,RZH100,101..08S,09S GRAY,TRIM1# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72525-95J0103 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 72525-95J0103 |
LH100,107,RZH100,101..08S,09S GRAY,TRIM1# |
1 | ||
| 72525-95J01B0 |
KZH10#,RZH100,101..08S,09S BLUISH GRAY,TRIM1# |
1 | ||
| 72590B - CABLE ASSY, RECLINING REMOTE CONTROL | ||||
| 72590-95J03 |
KZH10#,120,RZH100,101..CTM,DX,GCGE,SCM,SCMM |
1 | ||
| 72590-26010 |
KZH10#,120,RZH100,101..CTM,DX,GCGE,SCM,SCMM |
1 | ||
| 72688 - CABLE, REAR SEAT TRACK & TURN CONTROL | ||||
| 72688-95J03 |
KZH100,LH100,RZH100..DX |
1 | ||
| 72720C - ADJUSTER ASSY, NO.1 SEAT RECLINING, LH | ||||
| 72720-95J0803 |
LH100,RZH100,101..09S GRAY,TRIM1# |
1 | ||
| 72720-26020B0 |
KZH10#,RZH100,101..08S,09S BLUISH GRAY,TRIM1# |
1 | ||
| 72730C - ADJUSTER ASSY, NO.2 SEAT RECLINING, RH | ||||
| 72730-95J0603 |
LH100,107,RZH100,101..08S,09S GRAY,TRIM1# |
1 | ||
| 72730-95J06B0 |
KZH10#,RZH100,101..08S,09S BLUISH GRAY,TRIM1# |
1 | ||
| 72740C - ADJUSTER ASSY, NO.2 SEAT RECLINING, LH | ||||
| 72740-95J13 |
KZH100,LH100,RZH100..DX |
1 | ||
| 79105 - LEG SUB-ASSY, NO.1 SEAT, RH | ||||
| 79105-95J1303 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 79105-95J13B0 |
KZH100,RZH100..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79106 - LEG SUB ASSY, NO.1 SEAT, LH | ||||
| 79106-95J2803 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 79106-95J28B0 |
KZH100,RZH100..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79126A - REINFORCEMENT, NO.1 SEAT LEG, NO.1 | ||||
| 79126-95J08 |
KZH100,LH100,RZH100..DX |
1 | ||
| 79126B - REINFORCEMENT, NO.1 SEAT LEG, NO.2 | ||||
| 79126-95J09 |
KZH100,LH100,RZH100..DX |
1 | ||
| 79126C - REINFORCEMENT, NO.2 SEAT LEG, NO.1 | ||||
| 79126-95J13 |
KZH100,LH100,RZH100..DX |
1 | ||
| 79126D - REINFORCEMENT, NO.2 SEAT LEG, NO.2 | ||||
| 79126-95J13 |
KZH100,LH100,RZH100..DX |
1 | ||
| 79137 - COVER, NO.1 SEAT HINGE | ||||
| 79137-95J00B0 |
KZH10#,RZH100,101..08S,09S GRAY,TRIM1# |
1 | ||
| 79137-95J0013 |
LH100,107,RZH100,101..08S,09S GRAY,TRIM1# |
1 | ||
| 79169 - ROD, REAR SEAT HINGE CONNECTOR | ||||
| 79169-95J00 |
LH120..GCGE;KZH10#,120,LH100,107,RZH100,101..CTM,DX,GCGE,SCM,SCMM NO.2 ｼｰﾄ |
1 | ||
| 79169-95J07 |
LH100,RZH100,101..09S NO.3 ｼｰﾄ |
1 | ||
| 79205B - LEG SUB-ASSY, NO.2 SEAT, RH | ||||
| 79205-95J1003 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 79205-95J10B0 |
KZH100,RZH100..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79206B - LEG SUB-ASSY, NO.2 SEAT, LH | ||||
| 79206-95J1203 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 79206-95J12B0 |
KZH100,RZH100..DX BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08779 | ||||
| 90119-10116 | ||||
| 90119-10315 | ||||
| 90119-10576 | ||||
| 90119-12165 | ||||
| 90154-80045 | ||||
| 90167-40044 | ||||
| 90168-40043 | ||||
| 90179-06045 | ||||
| 90179-10073 | ||||
| 90386-12051 | ||||
| 90464-00156 | ||||
| 90468-03018 | ||||
| 90507-18012 | ||||
| 90523-08001 | ||||
| 91616-61025 | ||||
| 93249-55010 | ||||
| 93540-53510 | ||||

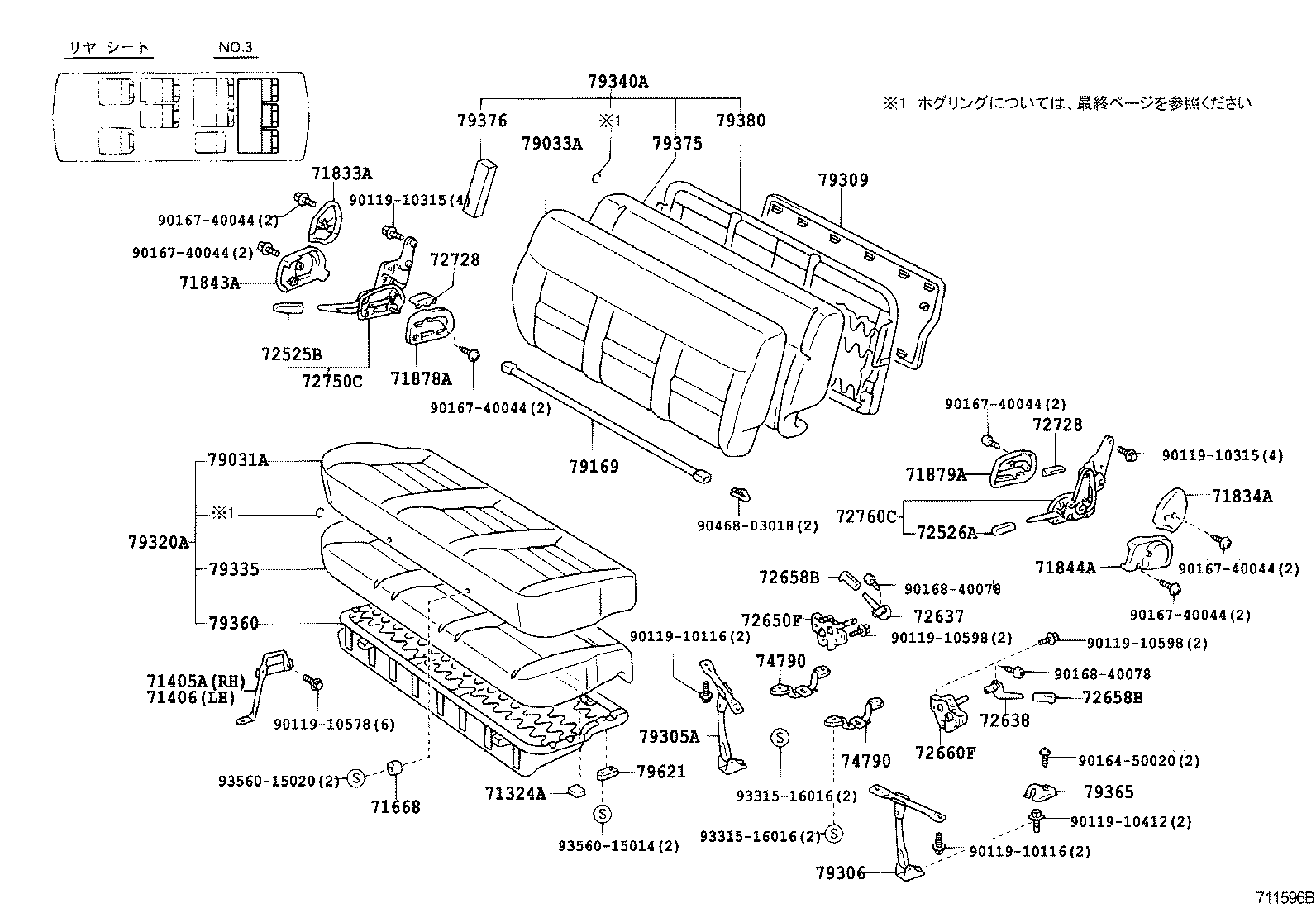

ILLUST NO. 2 OF 4(8908-9308)LH100,RZH100..DX ; (9308-9508)KZH100,RZH100..DX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71405A - STRIKER SUB-ASSY, REAR SEAT LOCK, RH | ||||
| 71405-95J00 |
KZH10#,LH100,RZH100,101..09S |
1 | ||
| 71406 - STRIKER SUB-ASSY, REAR SEAT LOCK, LH | ||||
| 71406-95J00 |
KZH10#,LH100,RZH100,101..09S |
1 | ||
| 71668 - CUSHION, REAR NO.3 SEAT | ||||
| 79382-95J03 |
KZH10#,LH100,RZH100,101..09S |
2 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-9570213 |
LH100,107,RZH100,101..08S,09S GRAY,TRIM1# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-9570113 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 71834-95701B0 |
KZH100,RZH100..DX BLUISH GRAY,TRIM1# |
1 | ||
| 71843A - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-9570013 |
LH113,119..05S;LH100,102,107,RZH100,101..05S,08S,09S GRAY,TRIM1# |
1 | ||
| 71844A - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-9570013 |
LH113,119..05S;LH100,102,107,RZH100,101..05S,08S,09S GRAY,TRIM1# |
1 | ||
| 71878A - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-95J0203 |
LH100,107,RZH100,101..08S,09S GRAY,TRIM1#,NO.2 ｼｰﾄ |
1 | ||
| 71878-95J0003 |
LH100,107,RZH100,101..08S,09S GRAY,TRIM1#,NO.3 ｼｰﾄ |
1 | ||
| 71878-95J00B0 |
KZH10#,RZH100,101..08S,09S BLUISH GRAY,TRIM1#,NO.3 ｼｰﾄ |
1 | ||
| 71878-95J02B0 |
KZH10#,RZH100,101..08S,09S BLUISH GRAY,TRIM1#,NO.2 ｼｰﾄ |
1 | ||
| 71879A - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-95J0103 |
LH100,107,RZH100,101..08S,09S GRAY,TRIM1#,NO.2 ｼｰﾄ |
1 | ||
| 71879-95J0003 |
LH100,107,RZH100,101..08S,09S GRAY,TRIM1#,NO.3 ｼｰﾄ |
1 | ||
| 71879-95J00B0 |
KZH10#,RZH100,101..08S,09S BLUISH GRAY,TRIM1#,NO.3 ｼｰﾄ |
1 | ||
| 71879-95J01B0 |
KZH10#,RZH100,101..08S,09S BLUISH GRAY,TRIM1#,NO.2 ｼｰﾄ |
1 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95J0103 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 72525-95J0103 |
LH100,107,RZH100,101..08S,09S GRAY,TRIM1# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72525-95J0103 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 72525-95J0103 |
LH100,107,RZH100,101..08S,09S GRAY,TRIM1# |
1 | ||
| 72525-95J01B0 |
KZH10#,RZH100,101..08S,09S BLUISH GRAY,TRIM1# |
1 | ||
| 72637 - LEVER, REAR SEAT BACK ROD CONTROL, INNER | ||||
| 72637-95J02 |
KZH10#,LH100,RZH100,101..09S |
1 | ||
| 72638 - HANDLE, REAR SEAT LOCK, LH | ||||
| 72638-95J01 |
KZH10#,LH100,RZH100,101..09S |
1 | ||
| 72650F - LOCK ASSY, REAR SEAT, RH | ||||
| 72650-95J05 |
KZH10#,LH100,RZH100,101..09S |
1 | ||
| 72658B - KNOB, REAR SEAT LOCK HANDLE | ||||
| 72658-9570113 |
LH100,102,110,RZH100,101..05S,09S;LH113,119,140..(05S,06S)..(SGL,SW) GRAY,TRIM1# |
2 | ||
| 72658-9570111 |
LH11#..05S;KZH10#,LH103,RZH100..05S,09S BLUISH GRAY,TRIM1# |
2 | ||
| 72658B - KNOB, REAR SEAT LOCK HANDLE | ||||
| 72658-9570113 |
LH100,102,110,RZH100,101..05S,09S;LH113,119,140..(05S,06S)..(SGL,SW) GRAY,TRIM1# |
2 | ||
| 72658-9570111 |
LH11#..05S;KZH10#,LH103,RZH100..05S,09S BLUISH GRAY,TRIM1# |
2 | ||
| 72660F - LOCK ASSY, REAR SEAT, LH | ||||
| 72660-95J05 |
KZH10#,LH100,RZH100,101..09S |
1 | ||
| 72728 - PROTECTOR, REAR SEAT RECLINING, INNER RH | ||||
| 72728-95J03 |
KZH10#,LH100,107,RZH100,101..08S,09S |
2 | ||
| 72728 - PROTECTOR, REAR SEAT RECLINING, INNER RH | ||||
| 72728-95J03 |
KZH10#,LH100,107,RZH100,101..08S,09S |
2 | ||
| 72750C - ADJUSTER ASSY, NO.3 SEAT RECLINING, RH | ||||
| 72750-95J0803 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 72750-95J0703 |
LH100,107,RZH100,101..08S,09S GRAY,TRIM1# |
1 | ||
| 72760C - ADJUSTER ASSY, NO.3 SEAT RECLINING, LH | ||||
| 72760-95J0803 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 72760-95J0703 |
LH100,107,RZH100,101..08S,09S GRAY,TRIM1# |
1 | ||
| 74790 - HOLDER ASSY, WARNING REFLECTOR | ||||
| 74790-95J01 |
KZH10#,LH100,RZH100,101..09S |
2 | ||
| 74790 - HOLDER ASSY, WARNING REFLECTOR | ||||
| 74790-95J01 |
KZH10#,LH100,RZH100,101..09S |
2 | ||
| 79031A - COVER SUB-ASSY, NO.3 SEAT CUSHION | ||||
| 79031-95J5203 |
LH100,RZH100,101..09S GRAY,TRIM1# |
1 | ||
| 79031-26090B0 |
LH100,RZH100..09S GRAY,TRIM1# |
1 | ||
| 79031-26090B1 |
KZH100,RZH100..DX ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79033A - COVER SUB-ASSY, NO.3 SEAT BACK | ||||
| 79033-95J4803 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 79033-26050B0 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 79033-26050B1 |
KZH100,RZH100..DX ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79169 - ROD, REAR SEAT HINGE CONNECTOR | ||||
| 79169-95J00 |
LH120..GCGE;KZH10#,120,LH100,107,RZH100,101..CTM,DX,GCGE,SCM,SCMM NO.2 ｼｰﾄ |
1 | ||
| 79169-95J07 |
LH100,RZH100,101..09S NO.3 ｼｰﾄ |
1 | ||
| 79305A - LEG SUB-ASSY, NO.3 SEAT, RH | ||||
| 79305-95J0303 |
LH100,RZH100,101..09S GRAY,TRIM1# |
1 | ||
| 79306 - LEG SUB ASSY, NO.3 SEAT, LH | ||||
| 79306-95J0003 |
LH100,RZH100,101..09S GRAY,TRIM1# |
1 | ||
| 79309 - BOARD SUB-ASSY, NO.3 SEAT BACK | ||||
| 79309-95J0503 |
LH100,107,RZH100,101..08S,09S GRAY,TRIM1# |
1 | ||
| 79309-95J0603 |
LH100,RZH100,101..09S GRAY,TRIM1# |
1 | ||
| 79320A - CUSHION ASSY, NO.3 SEAT | ||||
| 79320-95J6203 |
LH100,RZH100,101..09S GRAY,TRIM1# |
1 | ||
| 79320-26090B0 |
LH100,RZH100..09S GRAY,TRIM1# |
1 | ||
| 79320-26091B1 |
KZH100,RZH100..DX ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79340A - BACK ASSY, NO.3 SEAT | ||||
| 79340-26060B0 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 79340-95J5003 |
LH100,RZH100..DX GRAY,TRIM1# |
1 | ||
| 79340-26061B1 |
KZH100,RZH100..DX ｼ-ﾄ = TYPE J-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79360 - SPRING ASSY, NO.3 SEAT CUSHION | ||||
| 79360-26040 |
LH100,RZH100..09S |
1 | ||
| 79365 - COVER, NO.3 SEAT LEG BRACKET | ||||
| 79365-95J0003 |
LH100,RZH100,101..09S GRAY,TRIM1# |
2 | ||
| 79375 - PAD, NO.3 SEAT BACK | ||||
| 79375-95J13 |
LH100,RZH100,101..09S |
1 | ||
| 79376 - PAD, NO.3 SEAT BACK SIDE | ||||
| 79376-95J01 |
KZH10#,LH100,107,RZH100,101..08S,09S |
2 | ||
| 79380 - SPRING ASSY, NO.3 SEAT BACK | ||||
| 79380-95J15 |
LH100,RZH100..DX |
1 | ||
| 79380-26030 |
LH100,RZH100..09S |
1 | ||
| 79621 - STOPPER, NO.2 SEAT CUSHION | ||||
| 79226-95J02 |
KZH10#,LH100,RZH100,101..09S |
2 | ||
| Common parts | ||||
| 90119-10116 | ||||
| 90119-10315 | ||||
| 90119-10412 | ||||
| 90119-10578 | ||||
| 90119-10598 | ||||
| 90164-50020 | ||||
| 90167-40044 | ||||
| 90168-40078 | ||||
| 90468-03018 | ||||
| 93315-16016 | ||||
| 93560-15014 | ||||
| 93560-15020 | ||||
(8908- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
