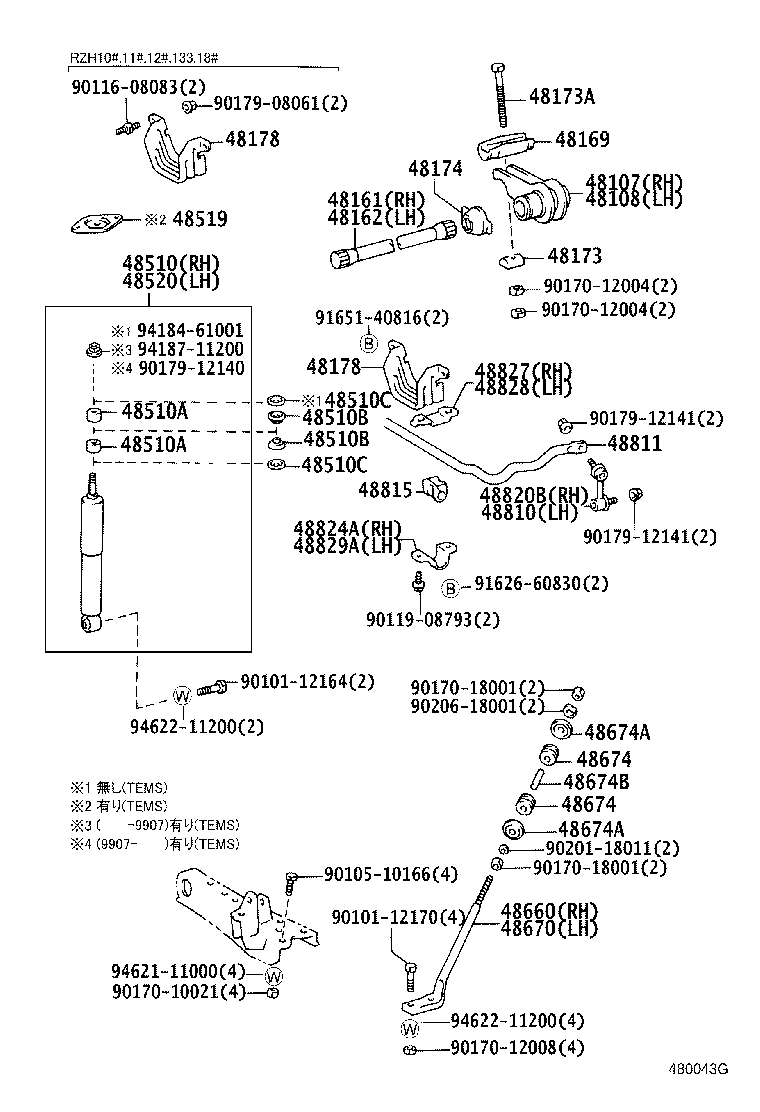

RZH100G-GRMDE (1989)
Toyota Hiace/Regiusace
(8908- )KZH100,110,120,132,LH100,RZH100,101,111..2WD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48107 - ARM SUB-ASSY, ANCHOR, RH | ||||
| 48107-26050 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 48108 - ARM SUB-ASSY, ANCHOR, LH | ||||
| 48108-26050 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 48161 - SPRING, TORSION BAR, RH | ||||
| 48161-26200 |
LH113..V2;LH100,102,RZH10#,112 |
1 | ||
| 48161-26210 |
LH113..V1..SRF;LH100,115,125,RZH100,101,124 |
1 | ||
| 48162 - SPRING, TORSION BAR, LH | ||||
| 48162-26200 |
LH113..V2;LH100,102,RZH10#,112 |
1 | ||
| 48162-26210 |
LH113..V1..SRF;LH100,115,125,RZH100,101,124 |
1 | ||
| 48169 - SWIVEL, ANCHOR ARM | ||||
| 48169-26050 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133 |
2 | ||
| 48173 - SEAT, ANCHOR ARM ADJUSTER | ||||
| 48173-27010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 48173A - BOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING) | ||||
| 90101-12091 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# |
2 | ||
| 48174 - COVER, TORSION BAR DUST | ||||
| 48174-26010 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# |
2 | ||
| 48178 - PROTECTOR, TORSION BAR DUST COVER, RH | ||||
| 48178-26030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 48178 - PROTECTOR, TORSION BAR DUST COVER, RH | ||||
| 48178-26030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-29565 |
LH100,RZH100,101..08S,09S ﾏｰｸ 48511−26280 |
1 | ||
| 48511-29566 |
LH100,RZH100,101..08S,09S ﾏｰｸ 48511−26281 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S |
4 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-29565 |
LH100,RZH100,101..08S,09S ﾏｰｸ 48511−26280 |
1 | ||
| 48511-29566 |
LH100,RZH100,101..08S,09S ﾏｰｸ 48511−26281 |
1 | ||
| 48660 - BAR ASSY, STRUT, RH | ||||
| 48661-26020 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133 |
1 | ||
| 48670 - BAR ASSY, STRUT, LH | ||||
| 48661-26020 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133 |
1 | ||
| 48674 - CUSHION, STRUT BAR | ||||
| 48674-26020 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# ｱﾘ(ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ) |
4 | ||
| 48674-26021 |
KZH100,110,120,RZH100,101 |
4 | ||
| 48674 - CUSHION, STRUT BAR | ||||
| 48674-26020 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# ｱﾘ(ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ) |
4 | ||
| 48674-26021 |
KZH100,110,120,RZH100,101 |
4 | ||
| 48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION) | ||||
| 90948-02062 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133 |
4 | ||
| 48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION) | ||||
| 90948-02062 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133 |
4 | ||
| 48674B - COLLAR(FOR STRUT BAR CUSHION) | ||||
| 90387-18005 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133 |
2 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48810-26010 |
KZH100,110,120,132,LH100,RZH100,101,111 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-26160 |
RZH100,101,111;KZH100,110,120,LH100..5F |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-26090 |
KZH100,110,120,LH100,117,RZH100,101 |
2 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-26010 |
KZH100,110,120,132,LH100,RZH100,101,111 |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-26110 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133 |
1 | ||
| 48827 - BRACKET, FRONT STABILIZER, NO.2 RH | ||||
| 48827-26020 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133 |
1 | ||
| 48828 - BRACKET, FRONT STABILIZER, NO.2 LH | ||||
| 48828-26020 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48829-26080 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133 |
1 | ||
| Common parts | ||||
| 90101-12164 | ||||
| 90101-12170 | ||||
| 90105-10166 | ||||
| 90116-08083 | ||||
| 90119-08793 | ||||
| 90170-10021 | ||||
| 90170-12004 | ||||
| 90170-12008 | ||||
| 90170-18001 | ||||
| 90179-08061 | ||||
| 90179-12140 | ||||
| 90179-12141 | ||||
| 90201-18011 | ||||
| 90206-18001 | ||||
| 91626-60830 | ||||
| 91651-40816 | ||||
| 94184-61001 | ||||
| 94187-11200 | ||||
| 94621-11000 | ||||
| 94622-11200 | ||||
