RZH100G-GRMDE (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1995
Engine 1RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

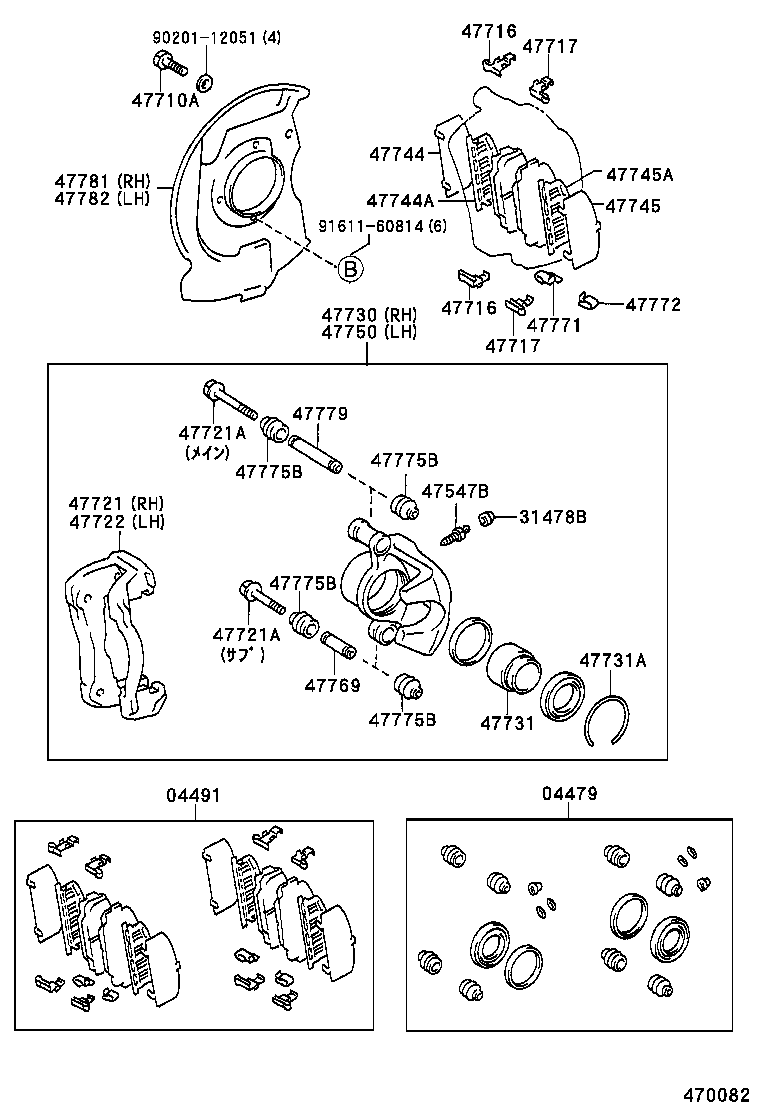

ILLUST NO. 1 OF 2(8908-9201)

Click highlighted areas on diagram

diagram 04479 04491 31478B 47547B 47710A 47716 47716 47717 47717 47721 47721A 47721A 47722 47730 47731 47731A 47745 47750 47755A 47769 47771 47772 47775B 47775B 47775B 47775B 47779 47781 47782 9020112051 9161160814
Part # Description Qty Price
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-26040

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 1
04491 - PAD KIT, DISC BRAKE, FRONT
04491-26240

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 1
04491-26310

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 1
04491-26280

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 1
04491-26340

KZH10#,11#,12#,LH109,119,129,RZH100,101

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-12010

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90101-12132

KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133

*12āˆ’1.25Pāˆ’31X20

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-26040

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-26040

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-26010

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-26010

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 4
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-26080

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 1
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-10388

LH10#,11#,12#,RZH10#,11#,12#

*10āˆ’1.25PX65.5āˆ’30

 2
90119-10389

LH10#,11#,12#,RZH10#,11#,12#

*10āˆ’1.25PX95.5āˆ’30

 2
90119-10249

LH10#,11#,12#,140,RZH10#,11#,12#

*10āˆ’1.25PX95.5āˆ’30

 2
90119-10014

LH10#,11#,12#,140,RZH10#,11#,12#

*10āˆ’1.25PX65.5āˆ’30

 2
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-10388

LH10#,11#,12#,RZH10#,11#,12#

*10āˆ’1.25PX65.5āˆ’30

 2
90119-10389

LH10#,11#,12#,RZH10#,11#,12#

*10āˆ’1.25PX95.5āˆ’30

 2
90119-10249

LH10#,11#,12#,140,RZH10#,11#,12#

*10āˆ’1.25PX95.5āˆ’30

 2
90119-10014

LH10#,11#,12#,140,RZH10#,11#,12#

*10āˆ’1.25PX65.5āˆ’30

 2
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47721-26080

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-26060

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 1
47731 - PISTON, FRONT DISC BRAKE
47731-25010

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 2
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-76001

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 2
47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)
47745-26080

KZH10#,11#,12#,LH109,119,129,RZH100,101

 2
47745-26060

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 2
47744-26060

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-26060

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-40010

LH10#,11#,12#,140,RZH10#,11#,12#

 2
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-35010

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 2
47775B - BOOT, BUSH DUST, NO.1
47775-26020

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 8
47775B - BOOT, BUSH DUST, NO.1
47775-26020

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 8
47775B - BOOT, BUSH DUST, NO.1
47775-26020

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 8
47775B - BOOT, BUSH DUST, NO.1
47775-26020

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 8
47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)
47779-40010

LH10#,11#,12#,140,RZH10#,11#,12#

 2
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-26070

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 1
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-26070

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 1
Common parts
90201-12051
91611-60814

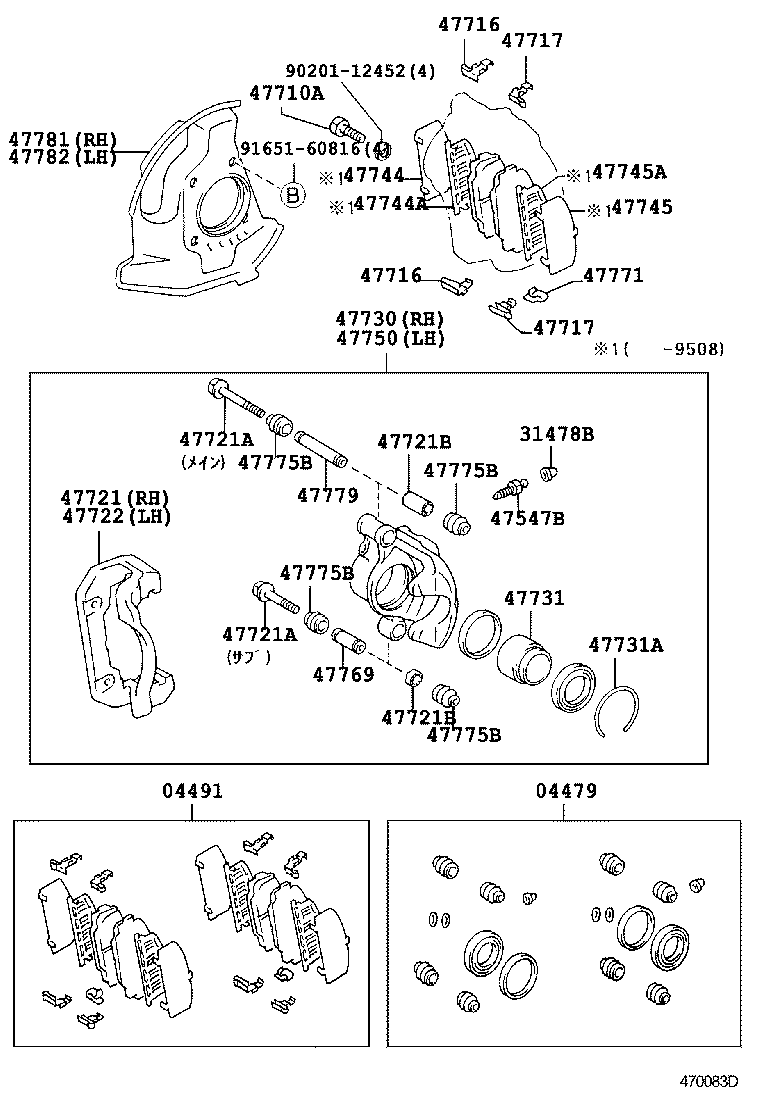

ILLUST NO. 1 OF 2(9201-9308)

Click highlighted areas on diagram

diagram 04479 04491 31478B 47547B 47710A 47716 47716 47717 47717 47721 47721A 47721A 47722 47730 47731 47731A 47744 47744A 47745 47745A 47750 47769 47771 47772 47775B 47775B 47775B 47775B 47779 47781 47782 9020112051 9161160814
Part # Description Qty Price
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-26040

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 1
04491 - PAD KIT, DISC BRAKE, FRONT
04491-26240

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 1
04491-26310

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 1
04491-26280

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 1
04491-26340

KZH10#,11#,12#,LH109,119,129,RZH100,101

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-12010

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90101-12132

KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133

*12āˆ’1.25Pāˆ’31X20

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-26040

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-26040

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-26010

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-26010

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 4
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-26080

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 1
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-10388

LH10#,11#,12#,RZH10#,11#,12#

*10āˆ’1.25PX65.5āˆ’30

 2
90119-10389

LH10#,11#,12#,RZH10#,11#,12#

*10āˆ’1.25PX95.5āˆ’30

 2
90119-10249

LH10#,11#,12#,140,RZH10#,11#,12#

*10āˆ’1.25PX95.5āˆ’30

 2
90119-10014

LH10#,11#,12#,140,RZH10#,11#,12#

*10āˆ’1.25PX65.5āˆ’30

 2
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-10388

LH10#,11#,12#,RZH10#,11#,12#

*10āˆ’1.25PX65.5āˆ’30

 2
90119-10389

LH10#,11#,12#,RZH10#,11#,12#

*10āˆ’1.25PX95.5āˆ’30

 2
90119-10249

LH10#,11#,12#,140,RZH10#,11#,12#

*10āˆ’1.25PX95.5āˆ’30

 2
90119-10014

LH10#,11#,12#,140,RZH10#,11#,12#

*10āˆ’1.25PX65.5āˆ’30

 2
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47721-26080

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-26060

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 1
47731 - PISTON, FRONT DISC BRAKE
47731-25010

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 2
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-76001

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 2
47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
47744-26060

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 2
47745-26060

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 2
47745-26080

KZH10#,11#,12#,LH109,119,129,RZH100,101

 2
47744A - SHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)
47744-26070

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 2
47744-26090

KZH10#,11#,12#,LH109,119,129,RZH100,101

 2
47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)
47745-26080

KZH10#,11#,12#,LH109,119,129,RZH100,101

 2
47745-26060

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 2
47744-26060

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 2
47745A - SHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE)
47744-26070

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 2
47744-26090

KZH10#,11#,12#,LH109,119,129,RZH100,101

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-26060

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-40010

LH10#,11#,12#,140,RZH10#,11#,12#

 2
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-35010

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 2
47775B - BOOT, BUSH DUST, NO.1
47775-26020

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 8
47775B - BOOT, BUSH DUST, NO.1
47775-26020

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 8
47775B - BOOT, BUSH DUST, NO.1
47775-26020

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 8
47775B - BOOT, BUSH DUST, NO.1
47775-26020

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 8
47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)
47779-40010

LH10#,11#,12#,140,RZH10#,11#,12#

 2
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-26070

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 1
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-26070

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 1
Common parts
90201-12051
91611-60814

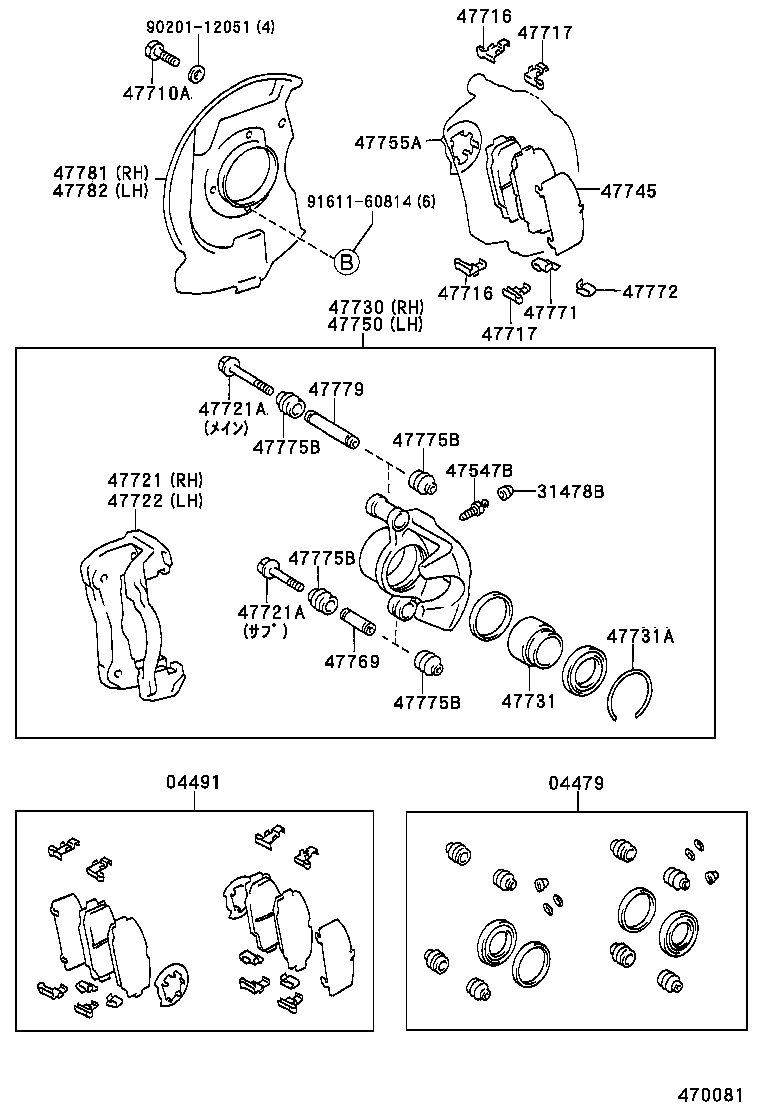

ILLUST NO. 1 OF 2(8908-9308) ; (9308-9608)LH103,113,123,125,RZH102,112,124

Click highlighted areas on diagram

diagram 04479 04491 31478B 47547B 47710A 47716 47716 47717 47717 47721 47721A 47721A 47721B 47721B 47722 47730 47731 47731A 47744 47744A 47745 47745A 47750 47769 47771 47775B 47775B 47775B 47775B 47779 47781 47782 9020112452 9165160816
Part # Description Qty Price
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-26040

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 1
04491 - PAD KIT, DISC BRAKE, FRONT
04491-26240

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 1
04491-26310

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 1
04491-26280

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 1
04491-26340

KZH10#,11#,12#,LH109,119,129,RZH100,101

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-12010

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90101-12132

KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133

*12āˆ’1.25Pāˆ’31X20

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-26040

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-26040

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-26010

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-26010

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 4
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-26080

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 1
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-10388

LH10#,11#,12#,RZH10#,11#,12#

*10āˆ’1.25PX65.5āˆ’30

 2
90119-10389

LH10#,11#,12#,RZH10#,11#,12#

*10āˆ’1.25PX95.5āˆ’30

 2
90119-10249

LH10#,11#,12#,140,RZH10#,11#,12#

*10āˆ’1.25PX95.5āˆ’30

 2
90119-10014

LH10#,11#,12#,140,RZH10#,11#,12#

*10āˆ’1.25PX65.5āˆ’30

 2
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-10388

LH10#,11#,12#,RZH10#,11#,12#

*10āˆ’1.25PX65.5āˆ’30

 2
90119-10389

LH10#,11#,12#,RZH10#,11#,12#

*10āˆ’1.25PX95.5āˆ’30

 2
90119-10249

LH10#,11#,12#,140,RZH10#,11#,12#

*10āˆ’1.25PX95.5āˆ’30

 2
90119-10014

LH10#,11#,12#,140,RZH10#,11#,12#

*10āˆ’1.25PX65.5āˆ’30

 2
47721B - COLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90387-16005

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

ļ¾’ļ½²ļ¾

 2
90387-16004

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

ļ½»ļ¾Œļ¾ž

 2
47721B - COLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90387-16005

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

ļ¾’ļ½²ļ¾

 2
90387-16004

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

ļ½»ļ¾Œļ¾ž

 2
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47721-26080

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-26060

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 1
47731 - PISTON, FRONT DISC BRAKE
47731-25010

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 2
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-76001

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 2
47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
47744-26060

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 2
47745-26060

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 2
47745-26080

KZH10#,11#,12#,LH109,119,129,RZH100,101

 2
47744A - SHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)
47744-26070

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 2
47744-26090

KZH10#,11#,12#,LH109,119,129,RZH100,101

 2
47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)
47745-26080

KZH10#,11#,12#,LH109,119,129,RZH100,101

 2
47745-26060

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 2
47744-26060

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 2
47745A - SHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE)
47744-26070

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 2
47744-26090

KZH10#,11#,12#,LH109,119,129,RZH100,101

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-26060

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-40010

LH10#,11#,12#,140,RZH10#,11#,12#

 2
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-35010

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 2
47775B - BOOT, BUSH DUST, NO.1
47775-26020

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 8
47775B - BOOT, BUSH DUST, NO.1
47775-26020

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 8
47775B - BOOT, BUSH DUST, NO.1
47775-26020

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 8
47775B - BOOT, BUSH DUST, NO.1
47775-26020

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 8
47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)
47779-40010

LH10#,11#,12#,140,RZH10#,11#,12#

 2
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-26070

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 1
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-26070

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 1
Common parts
90201-12452
91651-60816

ILLUST NO. 2 OF 2(8908- )

Click highlighted areas on diagram

diagram 04465 04945 04947
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-26030

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 1
04465-26050

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-26010

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 1
04945-35070

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 1
04945-26140

KZH10#,11#,12#,LH109,119,129,RZH100,101

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-26010

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 1
