LH186B-ZRPDS (1998)

Toyota Hiace/Regiusace

Production Aug 1998 - Aug 2004
Engine 5L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

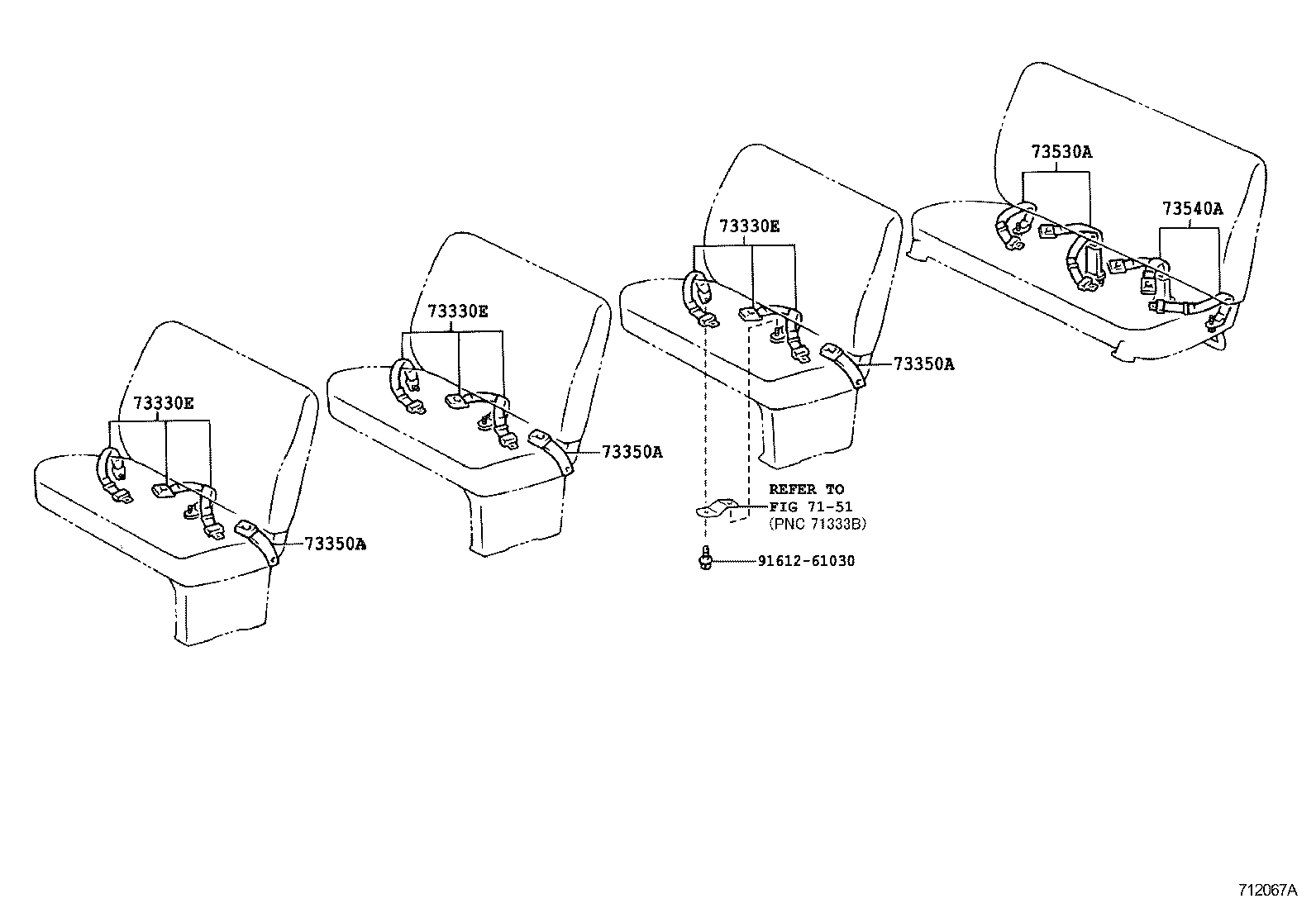

ILLUST NO. 2 OF 2(9808- )LH184,186,RZH12#,TRH124

Click highlighted areas on diagram

diagram 7151 73330E 73330E 73330E 73350A 73350A 73350A 73530A 73540A 9161261030
Part # Description Qty Price
73330E - BELT ASSY, REAR NO.1 SEAT LAP TYPE, RH
73330-26021B0

LH184,186,RZH12#

BLUISH GRAY,TRIM1#,NO.1,2 ｼｰﾄ

 2
73330-26031B0

LH184,186,RZH12#

BLUISH GRAY,TRIM1#,NO.3 ｼｰﾄ

 1
73330E - BELT ASSY, REAR NO.1 SEAT LAP TYPE, RH
73330-26021B0

LH184,186,RZH12#

BLUISH GRAY,TRIM1#,NO.1,2 ｼｰﾄ

 2
73330-26031B0

LH184,186,RZH12#

BLUISH GRAY,TRIM1#,NO.3 ｼｰﾄ

 1
73330E - BELT ASSY, REAR NO.1 SEAT LAP TYPE, RH
73330-26021B0

LH184,186,RZH12#

BLUISH GRAY,TRIM1#,NO.1,2 ｼｰﾄ

 2
73330-26031B0

LH184,186,RZH12#

BLUISH GRAY,TRIM1#,NO.3 ｼｰﾄ

 1
73350A - BELT ASSY, REAR NO.1 SEAT LAP TYPE, CENTER
73350-26160B0

LH184,186,RZH12#

BLUISH GRAY,TRIM1#

 3
73350A - BELT ASSY, REAR NO.1 SEAT LAP TYPE, CENTER
73350-26160B0

LH184,186,RZH12#

BLUISH GRAY,TRIM1#

 3
73350A - BELT ASSY, REAR NO.1 SEAT LAP TYPE, CENTER
73350-26160B0

LH184,186,RZH12#

BLUISH GRAY,TRIM1#

 3
Common parts
91612-61030
Linked diagrams
7151
