LH184B-ZRMNS (1998)

Toyota Hiace/Regiusace

Production Aug 1998 - Aug 2004
Engine 5L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

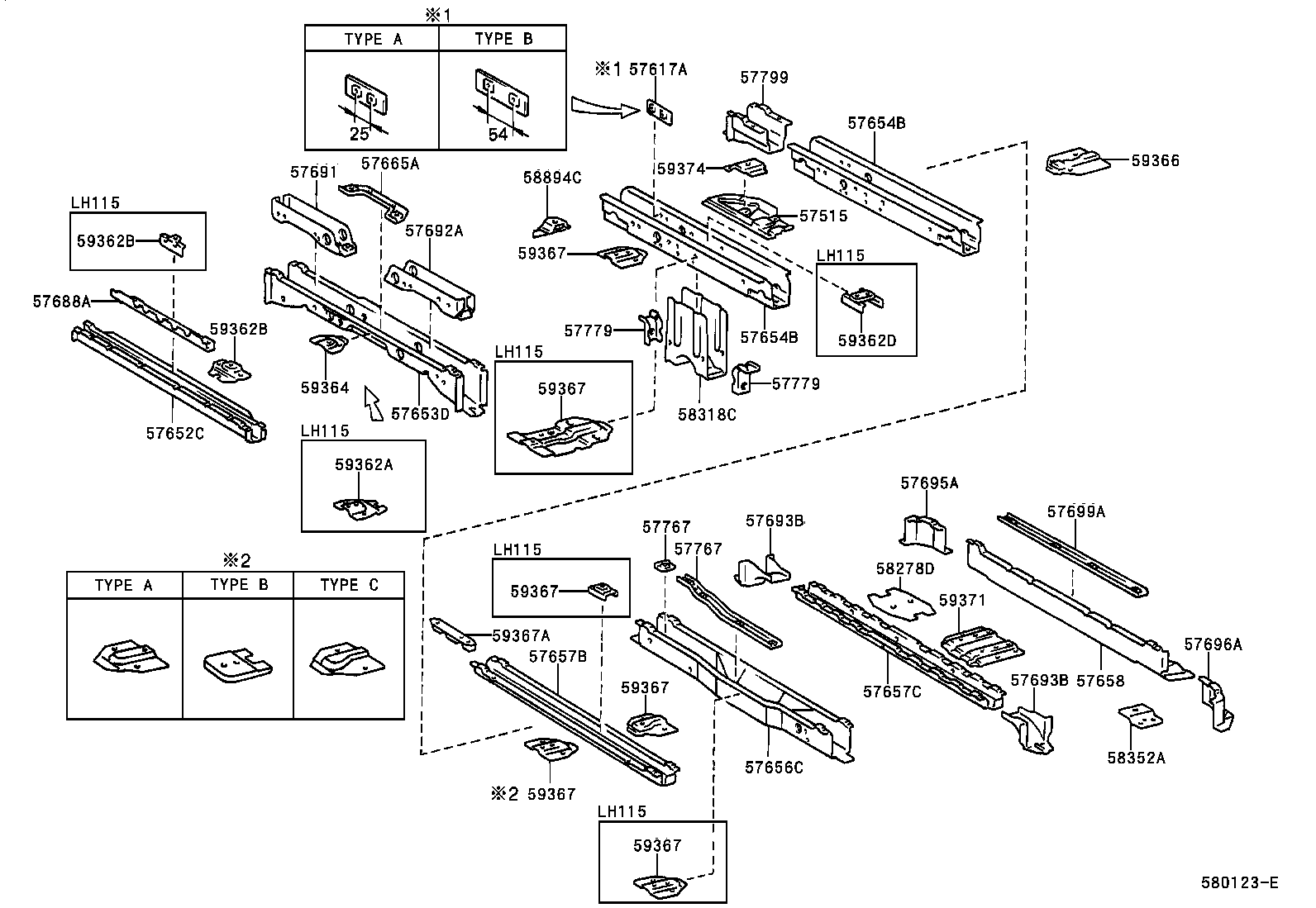

ILLUST NO. 3 OF 4(8908-9907)LH115,125,184,186,RZH124,125

Click highlighted areas on diagram

diagram 57515 57617A 57652C 57653D 57654B 57654B 57656C 57657B 57657C 57658 57665A 57688A 57691 57692A 57693B 57693B 57695A 57696A 57699A 57767 57767 57779 57779 57799 58278D 58318C 58352A 58894C 59362A 59362B 59362B 59362D 59364 59366 59367 59367 59367 59367 59367 59367 59367A 59371 59374
Part # Description Qty Price
57652C - MEMBER, REAR FLOOR CROSS, NO.1
57652-95J04

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
57653D - MEMBER, REAR FLOOR CROSS, NO.2
57653-26110

KZH100,110,120,132,LH162,172,182,184,RZH10#,11#,12#,133..COM,V1,WG

 1
57654B - MEMBER, REAR FLOOR CROSS, NO.3
57654-95J06

LH184,186,RZH12#

 2
57654B - MEMBER, REAR FLOOR CROSS, NO.3
57654-95J06

LH184,186,RZH12#

 2
57688A - REINFORCEMENT, REAR FLOOR CROSSMEMBER
57688-95J02

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG

 1
57691 - BRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER RH
57691-95J01

KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133..COM,V1,WG

 1
57692A - BRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER LH
57692-95J01

KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133..COM,V1,WG

 1
57767 - RETAINER, FUEL TANK BAND
57767-95J02

LH16#,17#,18#,RZH102,112,12#..COM,V1

ｻｲﾄﾞ

 1
57767 - RETAINER, FUEL TANK BAND
57767-95J02

LH16#,17#,18#,RZH102,112,12#..COM,V1

ｻｲﾄﾞ

 1
57779 - RETAINER, UPPER CONTROL LINK, UPPER
57779-95J00

RZH12#,18#

 2
57779-95J00

LH186,188;KZH120,132,LH182,184..2WD

 2
57779 - RETAINER, UPPER CONTROL LINK, UPPER
57779-95J00

RZH12#,18#

 2
57779-95J00

LH186,188;KZH120,132,LH182,184..2WD

 2
57799 - GUSSET, REAR FLOOR CROSSMEMBER
57799-95J00

RZH12#,18#

 1
57799-95J00

KZH120,13#,LH18#

 1
58318C - BRACKET, REAR FLOOR CROSSMEMBER
58318-95J00

RZH12#,18#

 1
58318-95J00

LH186,188;KZH120,132,LH182,184..2WD

 1
58894C - RETAINER, REAR SEAT NO.2, REAR LH
58894-95J02

LH184,186

 1
59362D - RETAINER, REAR SEAT, NO.1 B
59362-95J07

LH184..GL;LH184..4FC;LH186,RZH12#

ｳｴﾙｷﾔﾌﾞ(ﾘﾔ ﾘﾌﾄ ｼ-ﾄ)

 2
59364 - RETAINER, REAR SEAT, NO.1 D
59364-95J01

LH184,186

 1
59364-95J01

LH186;LH184..GL;LH184..4FC

ｳｴﾙｷﾔﾌﾞ(ﾘﾔ ﾘﾌﾄ ｼ-ﾄ)

 4
59367 - RETAINER, REAR SEAT, NO.2 C
59367-95J08

LH125,184,186,RZH124,125

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
59367-95J05

LH184,186,RZH12#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
59367-95J05

LH184,186,RZH12#

 1
59367 - RETAINER, REAR SEAT, NO.2 C
59367-95J08

LH125,184,186,RZH124,125

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
59367-95J05

LH184,186,RZH12#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
59367-95J05

LH184,186,RZH12#

 1
59367 - RETAINER, REAR SEAT, NO.2 C
59367-95J08

LH125,184,186,RZH124,125

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
59367-95J05

LH184,186,RZH12#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
59367-95J05

LH184,186,RZH12#

 1
59367 - RETAINER, REAR SEAT, NO.2 C
59367-95J08

LH125,184,186,RZH124,125

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
59367-95J05

LH184,186,RZH12#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
59367-95J05

LH184,186,RZH12#

 1
59367 - RETAINER, REAR SEAT, NO.2 C
59367-95J08

LH125,184,186,RZH124,125

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
59367-95J05

LH184,186,RZH12#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
59367-95J05

LH184,186,RZH12#

 1
59367 - RETAINER, REAR SEAT, NO.2 C
59367-95J08

LH125,184,186,RZH124,125

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
59367-95J05

LH184,186,RZH12#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
59367-95J05

LH184,186,RZH12#

 1
59371 - RETAINER, REAR SEAT, NO.3
59371-95J00

KZH11#,LH110,117,125,184,186,RZH110,111,124,125..DX,GL

 2
59374 - RETAINER, SEAT BELT ANCHOR, NO.3
59374-95J05

KZH120,13#,LH18#

 1
59374-95J05

RZH12#,18#

 1

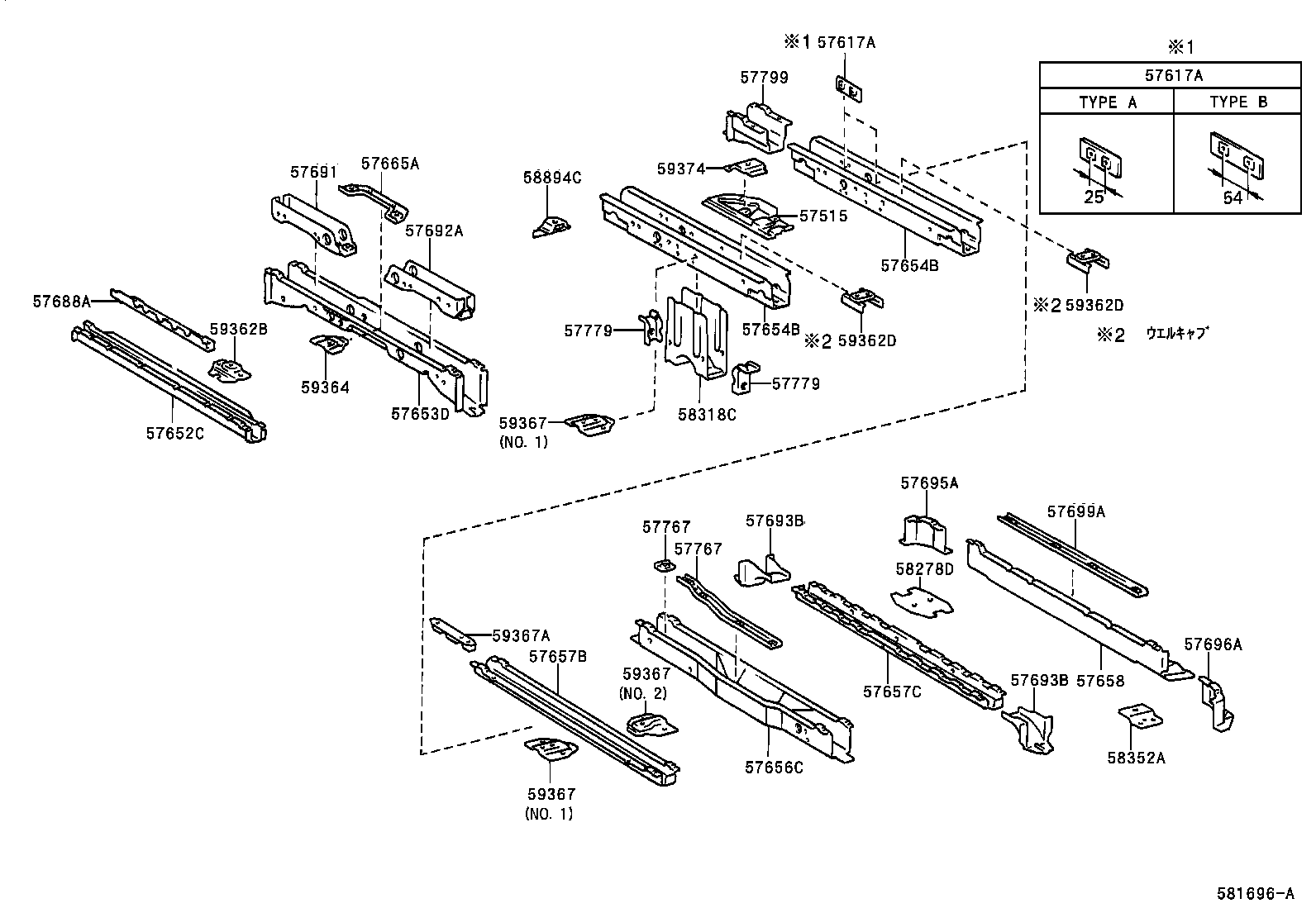

ILLUST NO. 3 OF 4(9907- )LH184,186,RZH12#,TRH124

Click highlighted areas on diagram

diagram 57515 57617A 57617A 57652C 57653D 57654B 57654B 57656C 57657B 57657C 57658 57665A 57688A 57691 57692A 57693B 57693B 57695A 57696A 57699A 57767 57767 57779 57779 57799 58278D 58318C 58352A 58894C 59362B 59362D 59362D 59364 59367 59367 59367 59367A 59374
Part # Description Qty Price
57652C - MEMBER, REAR FLOOR CROSS, NO.1
57652-95J04

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
57653D - MEMBER, REAR FLOOR CROSS, NO.2
57653-26110

KZH100,110,120,132,LH162,172,182,184,RZH10#,11#,12#,133..COM,V1,WG

 1
57654B - MEMBER, REAR FLOOR CROSS, NO.3
57654-95J06

LH184,186,RZH12#

 2
57654B - MEMBER, REAR FLOOR CROSS, NO.3
57654-95J06

LH184,186,RZH12#

 2
57688A - REINFORCEMENT, REAR FLOOR CROSSMEMBER
57688-95J02

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG

 1
57691 - BRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER RH
57691-95J01

KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133..COM,V1,WG

 1
57692A - BRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER LH
57692-95J01

KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133..COM,V1,WG

 1
57767 - RETAINER, FUEL TANK BAND
57767-95J02

LH16#,17#,18#,RZH102,112,12#..COM,V1

ｻｲﾄﾞ

 1
57767 - RETAINER, FUEL TANK BAND
57767-95J02

LH16#,17#,18#,RZH102,112,12#..COM,V1

ｻｲﾄﾞ

 1
57779 - RETAINER, UPPER CONTROL LINK, UPPER
57779-95J00

RZH12#,18#

 2
57779-95J00

LH186,188;KZH120,132,LH182,184..2WD

 2
57779 - RETAINER, UPPER CONTROL LINK, UPPER
57779-95J00

RZH12#,18#

 2
57779-95J00

LH186,188;KZH120,132,LH182,184..2WD

 2
57799 - GUSSET, REAR FLOOR CROSSMEMBER
57799-95J00

RZH12#,18#

 1
57799-95J00

KZH120,13#,LH18#

 1
58318C - BRACKET, REAR FLOOR CROSSMEMBER
58318-95J00

RZH12#,18#

 1
58318-95J00

LH186,188;KZH120,132,LH182,184..2WD

 1
58894C - RETAINER, REAR SEAT NO.2, REAR LH
58894-95J02

LH184,186

 1
59362D - RETAINER, REAR SEAT, NO.1 B
59362-95J07

LH184..GL;LH184..4FC;LH186,RZH12#

ｳｴﾙｷﾔﾌﾞ(ﾘﾔ ﾘﾌﾄ ｼ-ﾄ)

 2
59362D - RETAINER, REAR SEAT, NO.1 B
59362-95J07

LH184..GL;LH184..4FC;LH186,RZH12#

ｳｴﾙｷﾔﾌﾞ(ﾘﾔ ﾘﾌﾄ ｼ-ﾄ)

 2
59364 - RETAINER, REAR SEAT, NO.1 D
59364-95J01

LH184,186

 1
59364-95J01

LH186;LH184..GL;LH184..4FC

ｳｴﾙｷﾔﾌﾞ(ﾘﾔ ﾘﾌﾄ ｼ-ﾄ)

 4
59367 - RETAINER, REAR SEAT, NO.2 C
59367-95J08

LH125,184,186,RZH124,125

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
59367-95J05

LH184,186,RZH12#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
59367-95J05

LH184,186,RZH12#

 1
59367 - RETAINER, REAR SEAT, NO.2 C
59367-95J08

LH125,184,186,RZH124,125

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
59367-95J05

LH184,186,RZH12#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
59367-95J05

LH184,186,RZH12#

 1
59367 - RETAINER, REAR SEAT, NO.2 C
59367-95J08

LH125,184,186,RZH124,125

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
59367-95J05

LH184,186,RZH12#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
59367-95J05

LH184,186,RZH12#

 1
59374 - RETAINER, SEAT BELT ANCHOR, NO.3
59374-95J05

KZH120,13#,LH18#

 1
59374-95J05

RZH12#,18#

 1
