LH182K-ERPDS (1998)

Toyota Hiace/Regiusace

Production Aug 1998 - Aug 2004
Engine 5L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908-9907)

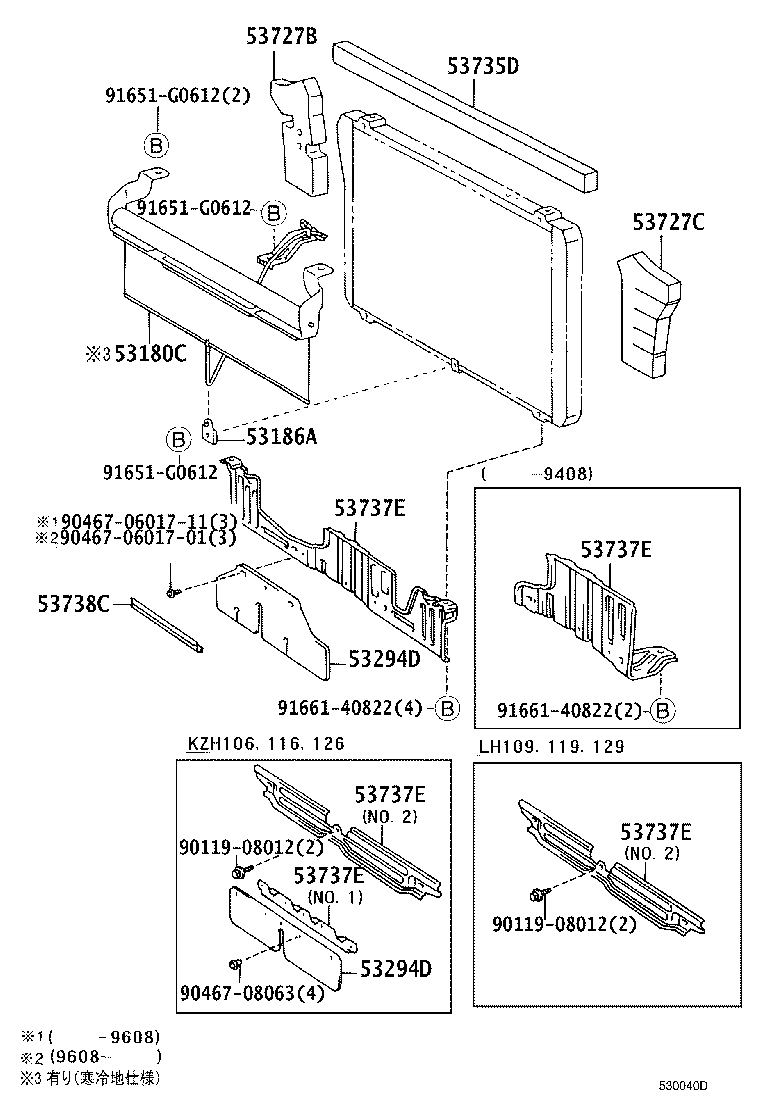

Click highlighted areas on diagram

diagram 53180C 53186A 53294D 53294D 53727B 53727C 53735D 53737E 53737E 53737E 53737E 53737E 53738C 9011908012 9011908012 904670601701 904670601711 9046708063 91651G0612 91651G0612 91651G0612 9166140822 9166140822
Part # Description Qty Price
53180C - SHUTTER ASSY, RADIATOR
53180-26040

LH16#,17#,18#,TRH102,112

ｶﾝﾚｲﾁ ｼﾖｳ

 1
53180-26040

LH16#,17#,18#,RZH10#,11#,12#,133

ｶﾝﾚｲﾁ ｼﾖｳ

 1
53180-26040

RZH102,112,12#,18#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
53186A - HOOK, RADIATOR SHUTTER
53186-95J00

KZH10#,11#,120,13#,LH16#,17#,18#,TRH102,112

 1
53186-95J00

RZH102,112,12#,18#

 1
53186-95J00

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
53294D - DEFLECTOR, RADIATOR LOWER AIR, NO.1
53294-26010

RZH102,112,12#,18#

 1
53294-26010

KZH100,110,120,132,LH162,172,182,184,TRH102,112..2WD

 1
53294D - DEFLECTOR, RADIATOR LOWER AIR, NO.1
53294-26010

RZH102,112,12#,18#

 1
53294-26010

KZH100,110,120,132,LH162,172,182,184,TRH102,112..2WD

 1
53727B - SHUTTER, HOT AIR SIDE, RH
53727-95J04

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
53727C - SHUTTER, HOT AIR SIDE, LH
53728-95J02

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
53738C - SHUTTER, HOT AIR, LOWER LH
53738-95J00

KZH100,110,120,132,LH162,172,182,184,TRH102,112..2WD

 1
53738-95J00

RZH102,112,12#,18#

 1
Common parts
90119-08012
90467-0601701
90467-0601711
90467-08063
91651-G0612
91661-40822

(9907- )

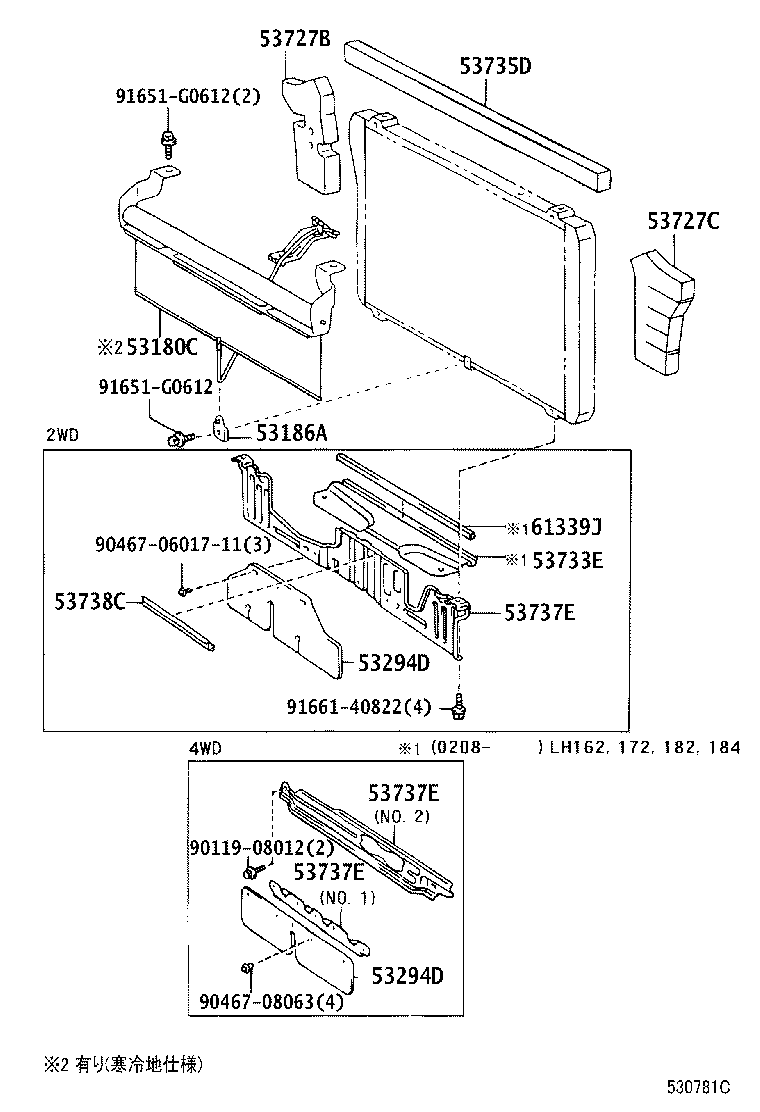

Click highlighted areas on diagram

diagram 53180C 53186A 53294D 53294D 53727B 53727C 53733E 53735D 53737E 53737E 53737E 53738C 61339J 9011908012 904670601711 9046708063 91651G0612 91651G0612 9166140822
Part # Description Qty Price
53180C - SHUTTER ASSY, RADIATOR
53180-26040

LH16#,17#,18#,TRH102,112

ｶﾝﾚｲﾁ ｼﾖｳ

 1
53180-26040

LH16#,17#,18#,RZH10#,11#,12#,133

ｶﾝﾚｲﾁ ｼﾖｳ

 1
53180-26040

RZH102,112,12#,18#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
53186A - HOOK, RADIATOR SHUTTER
53186-95J00

KZH10#,11#,120,13#,LH16#,17#,18#,TRH102,112

 1
53186-95J00

RZH102,112,12#,18#

 1
53186-95J00

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
53294D - DEFLECTOR, RADIATOR LOWER AIR, NO.1
53294-26010

RZH102,112,12#,18#

 1
53294-26010

KZH100,110,120,132,LH162,172,182,184,TRH102,112..2WD

 1
53294D - DEFLECTOR, RADIATOR LOWER AIR, NO.1
53294-26010

RZH102,112,12#,18#

 1
53294-26010

KZH100,110,120,132,LH162,172,182,184,TRH102,112..2WD

 1
53727B - SHUTTER, HOT AIR SIDE, RH
53727-95J04

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
53727C - SHUTTER, HOT AIR SIDE, LH
53728-95J02

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
53733E - SHUTTER, HOT AIR
53733-26020

LH162,172,182,184

 1
53738C - SHUTTER, HOT AIR, LOWER LH
53738-95J00

KZH100,110,120,132,LH162,172,182,184,TRH102,112..2WD

 1
53738-95J00

RZH102,112,12#,18#

 1
61339J - SEAL, CENTER BODY PILLAR, INNER
61339-26030

LH162,172,182,184

 1
Common parts
90119-08012
90467-0601711
90467-08063
91651-G0612
91661-40822
