LH178V-SRPDS (1998)
Toyota Hiace/Regiusace
ILLUST NO. 3 OF 5(9808-9907)
REAR PIPING--DUAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02008 |
LH16#,17#,182,188,RZH102,112..CD,DX 200G |
2 | ||
| 90986-02008 |
LH172..HRF..4D;LH172,RZH112..SRF..DX;LH16#,178,18#,RZH102,12#,133..DX,GL 200G,ﾃﾞﾕｱﾙ ｴｱｺﾝ |
3 | ||
| 90986-02007 |
LH16#,17#,182,188,RZH102,112..CD,DX 250G |
1 | ||
| 90986-02006 |
LH168,178..5D..DX 300G |
3 | ||
| 88721A - HOSE, LIQUID, A | ||||
| 88721-26070 |
RZH112..SRF..06S;RZH112..09S..4FC;LH16#,17#,RZH102..SRF..(06S,08S,09S) |
1 | ||
| 88721-26070 |
LH178..08S;TRH102,112..SGLE;LH16#,17#,RZH102,112..SRF..(DX,SGLE) ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88722A - HOSE, SUCTION, A | ||||
| 88712-26220 |
RZH112..SRF..06S;RZH112..09S..4FC;LH16#,17#,RZH102..SRF..(06S,08S,09S) |
1 | ||
| 88712-26220 |
LH16#,17#,RZH111..SRF..DX;RZH102,112..SRF..(DX,SGLE) |
1 | ||
| 88726B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2F610 |
LH172..HRF..4D;LH172,RZH112..SRF..DX;LH16#,178,18#,RZH102,12#,133..DX,GL |
1 | ||
| 88726F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88710-2F290 |
LH172..HRF..4D;LH172,RZH112..SRF..DX;KZH11#,126,LH168,RZH124..5F;LH162,178,18#,RZH102,125,133..DX,GL |
1 | ||
| 88727B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-2F340 |
LH172..HRF..4D;LH172,RZH112..SRF..DX;LH16#,178,18#,RZH102,12#,133..DX,GL |
1 | ||
| 88717-2F340 |
LH172..SRF..DX;LH172,RZH112..HRF..4D;LH16#,178,182,188,RZH18#..DX |
1 | ||
| Common parts | ||||
| 88688-2F120 | ||||
| 88714-95J00 | ||||
| 88718-26040 | ||||
| 88718-26210 | ||||
| 88718-26230 | ||||
| 88718-26730 | ||||
| 88718-95J39 | ||||
| 88898-26010 | ||||
| 88898-95J21 | ||||
| 90099-14119 | ||||
| 90099-14121 | ||||
| 90480-30015 | ||||
| 91651-60614 | ||||
| 91651-60820 | ||||
| 93315-14012 | ||||
| Linked diagrams | ||||
| 6151 | ||||
ILLUST NO. 1 OF 5(9808-9907)KZH10#,11#,126..5F ; (9808- )LH16#,17#,18#,RZH10#,11#,12#,133,18# ; (
CONDENSER(DEALER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-26020 |
LH178..03S,05S,06S,08S;KZH10#,11#,12#,13#,LH16#,172,182,188,RZH10#,11#,12# |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-26100 |
LH178..03S,05S,06S,08S;LH162,172,182,RZH10#,11#,125;KZH10#,11#,126,LH168,RZH124..5F |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-26510 |
LH172..HRF..4D;LH172,RZH112..SRF..DX;LH16#,178,18#,RZH102,12#..DX,GL ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88460-26530 |
LH16#,17#,182,188,RZH102,112..CD,DX |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-26140 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 |
1 | ||
| 88550D - MOTOR ASSY, BLOWER | ||||
| 88550-26050 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;KZH10#,11#,12#,13#,LH16#,178,18#,RZH10#,111,12#,133..SG ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88550-26110 |
LH16#,17#,182,188,RZH102,112..CD,DX ｼﾝｸﾞﾙ ｴｱｺﾝ |
1 | ||
| 88584B - GUIDE, COOLER AIR | ||||
| 88584-26050 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-26140 |
LH172..HRF..4D;LH172,RZH112..SRF..DX;LH16#,178,18#,RZH102,12#..DX,GL ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88590-26150 |
LH16#,17#,182,188,RZH102,112..CD,DX |
1 | ||
| 88635A - RESISTOR, BLOWER (FOR COOLER CONDENSER MOTOR) | ||||
| 88635-26030 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;KZH10#,11#,12#,13#,LH16#,178,18#,RZH10#,111,12#,133..SG ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-26330 |
RZH112..SRF;KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,111,125,133 |
1 | ||
| Common parts | ||||
| 82711-10380 | ||||
| 88463-26310 | ||||
| 88463-26320 | ||||
| 88463-26350 | ||||
| 88463-26360 | ||||
| 88463-26370 | ||||
| 88463-26380 | ||||
| 88463-35120 | ||||
| 88467-30270 | ||||
| 88578-26080 | ||||
| 88718-26810 | ||||
| 88892-26020 | ||||
| 90091-20609 | ||||
| 90091-20803 | ||||
| 90099-04117 | ||||
| 90099-04376 | ||||
| 90099-05164 | ||||
| 90099-14120 | ||||
| 90119-08354 | ||||
| 90179-06274 | ||||
| 93385-56025 | ||||
ILLUST NO. 3 OF 5(9808-9907)
REAR PIPING--SINGLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02008 |
LH16#,17#,182,188,RZH102,112..CD,DX 200G |
2 | ||
| 90986-02008 |
LH172..HRF..4D;LH172,RZH112..SRF..DX;LH16#,178,18#,RZH102,12#,133..DX,GL 200G,ﾃﾞﾕｱﾙ ｴｱｺﾝ |
3 | ||
| 90986-02007 |
LH16#,17#,182,188,RZH102,112..CD,DX 250G |
1 | ||
| 90986-02006 |
LH168,178..5D..DX 300G |
3 | ||
| 88721A - HOSE, LIQUID, A | ||||
| 88721-26070 |
RZH112..SRF..06S;RZH112..09S..4FC;LH16#,17#,RZH102..SRF..(06S,08S,09S) |
1 | ||
| 88721-26070 |
LH178..08S;TRH102,112..SGLE;LH16#,17#,RZH102,112..SRF..(DX,SGLE) ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88722A - HOSE, SUCTION, A | ||||
| 88712-26220 |
RZH112..SRF..06S;RZH112..09S..4FC;LH16#,17#,RZH102..SRF..(06S,08S,09S) |
1 | ||
| 88712-26220 |
LH16#,17#,RZH111..SRF..DX;RZH102,112..SRF..(DX,SGLE) |
1 | ||
| 88726B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2F610 |
LH172..HRF..4D;LH172,RZH112..SRF..DX;LH16#,178,18#,RZH102,12#,133..DX,GL |
1 | ||
| 88726F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88710-2F290 |
LH172..HRF..4D;LH172,RZH112..SRF..DX;KZH11#,126,LH168,RZH124..5F;LH162,178,18#,RZH102,125,133..DX,GL |
1 | ||
| 88727B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-2F340 |
LH172..HRF..4D;LH172,RZH112..SRF..DX;LH16#,178,18#,RZH102,12#,133..DX,GL |
1 | ||
| 88717-2F340 |
LH172..SRF..DX;LH172,RZH112..HRF..4D;LH16#,178,182,188,RZH18#..DX |
1 | ||
| Common parts | ||||
| 88688-2F120 | ||||
| 88714-95J00 | ||||
| 88718-26040 | ||||
| 88718-26730 | ||||
| 88718-26860 | ||||
| 88718-26870 | ||||
| 88718-26880 | ||||
| 88718-2F010 | ||||
| 88718-2F020 | ||||
| 88898-26010 | ||||
| 88898-95J21 | ||||
| 90099-05192 | ||||
| 90099-14119 | ||||
| 90099-14121 | ||||
| 90480-30015 | ||||
| 91651-60614 | ||||
| 91651-60820 | ||||
| 93315-14012 | ||||
| 93385-16016 | ||||
| Linked diagrams | ||||
| 6151 | ||||

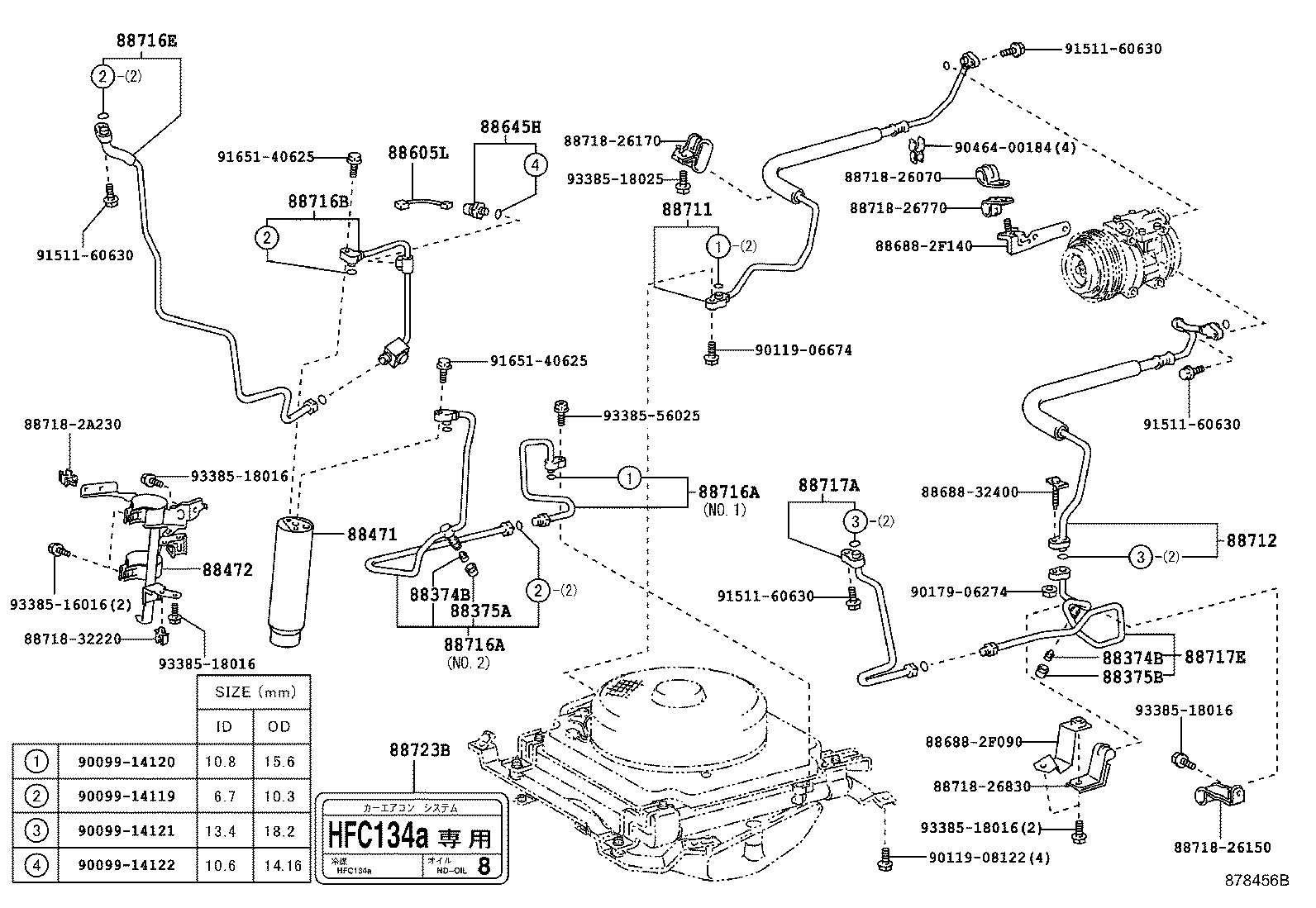

ILLUST NO. 2 OF 5(9808- )LH16#,17#,18#
FRONT PIPING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
LH172,RZH112..SRF..DX;LH172,RZH112..HRF..4D;TRH102,112..SRF..(CD,DX);LH16#,178,182,188,RZH102,12#,18#..DX,GL ﾃﾞﾕｱﾙ ｴｱｺﾝ |
2 | ||
| 88374-30010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
LH172..SRF..DX;LH172..HRF..4D;TRH112..SRF..(CD,DX);LH178,RZH102,112,TRH102..CD,DX;LH16#,182,188,RZH12#,18#..DX,GL ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-28070 |
LH16#,17#,18#,RZH102,112,12#,133..CD,DX,GL ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-26110 |
LH16#,17#,18#,RZH102,112,124;KZH10#,11#,120,13#,RZH125,133..4FC |
1 | ||
| 88472-26110 |
RZH18#..06S;LH16#,17#,182,184,188,RZH102,112,12#..CD,DX,GL |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02008 |
LH16#,17#,182,188,RZH102,112..CD,DX 200G |
2 | ||
| 90986-02008 |
LH172..HRF..4D;LH172,RZH112..SRF..DX;LH16#,178,18#,RZH102,12#,133..DX,GL 200G,ﾃﾞﾕｱﾙ ｴｱｺﾝ |
3 | ||
| 90986-02007 |
LH16#,17#,182,188,RZH102,112..CD,DX 250G |
1 | ||
| 90986-02006 |
LH168,178..5D..DX 300G |
3 | ||
| 88605L - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-26190 |
KZH106,LH168..5F;KZH13#,LH162,17#,182,188,RZH102,112,133..CD,DX |
1 | ||
| 88648-26040 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;KZH10#,11#,12#,13#,LH16#,178,18#,RZH10#,111,12#,133..SG ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88605L - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-26190 |
KZH106,LH168..5F;KZH13#,LH162,17#,182,188,RZH102,112,133..CD,DX |
1 | ||
| 88648-26040 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;KZH10#,11#,12#,13#,LH16#,178,18#,RZH10#,111,12#,133..SG ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-34010 |
KZH106,LH168..5F;KZH13#,LH162,17#,182,188,RZH102,112,133..CD,DX ｼﾝｸﾞﾙ ｴｱｺﾝ |
1 | ||
| 88645-26010 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;KZH10#,11#,12#,13#,LH16#,178,18#,RZH10#,111,12#,133..SG ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-34010 |
KZH106,LH168..5F;KZH13#,LH162,17#,182,188,RZH102,112,133..CD,DX ｼﾝｸﾞﾙ ｴｱｺﾝ |
1 | ||
| 88645-26010 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;KZH10#,11#,12#,13#,LH16#,178,18#,RZH10#,111,12#,133..SG ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-26270 |
LH168,178,186,188 |
1 | ||
| 88711-26270 |
LH168,178,186,188..CD,DX,GL,SGL |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-26170 |
LH168,178,188..CD,DX |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-2F500 |
LH16#,17#,18#,RZH102,112,12#,133..CD,DX,GL NO.2 |
1 | ||
| 88716-2F480 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 NO.1 |
1 | ||
| 88716-2F500 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 NO.2 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-2F500 |
LH16#,17#,18#,RZH102,112,12#,133..CD,DX,GL NO.2 |
1 | ||
| 88716-2F480 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 NO.1 |
1 | ||
| 88716-2F500 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2F590 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;LH16#,178,18#,RZH10#,111,12#,133..SG ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88716-2F060 |
LH16#,17#,182,188,RZH102,112,133..CD,DX ｼﾝｸﾞﾙ ｴｱｺﾝ |
1 | ||
| 88716-2F590 |
LH168,178..5D..DX |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2F590 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;LH16#,178,18#,RZH10#,111,12#,133..SG ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88716-2F060 |
LH16#,17#,182,188,RZH102,112,133..CD,DX ｼﾝｸﾞﾙ ｴｱｺﾝ |
1 | ||
| 88716-2F590 |
LH168,178..5D..DX |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-26850 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-2F150 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 |
1 | ||
| 88717E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-2F170 |
LH178..DX;LH172..HRF..4D;LH172,RZH112..SRF..SG;KZH100,110,LH168,RZH124..5F;LH162,18#,RZH10#,111,125,133..SG ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88717-2F320 |
LH16#,17#,182,188,RZH102,112..CD,DX ｼﾝｸﾞﾙ ｴｱｺﾝ |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88733-30040 |
LH178..CD;LH168,178..5D..DX ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88723-20030 |
LH172..SRF..DX;LH172..HRF..4D;LH168,178..5D..DX;RZH102,112..CD,DX;LH162,182,184,188,RZH12#,18#..DX,GL |
1 | ||
| Common parts | ||||
| 88688-26140 | ||||
| 88688-2F080 | ||||
| 88688-2F090 | ||||
| 88688-2F140 | ||||
| 88688-95J77 | ||||
| 88718-26070 | ||||
| 88718-26120 | ||||
| 88718-26150 | ||||
| 88718-26170 | ||||
| 88718-26770 | ||||
| 88718-26830 | ||||
| 88718-26840 | ||||
| 88718-2A230 | ||||
| 88718-32220 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90119-06088 | ||||
| 90119-06462 | ||||
| 90119-06675 | ||||
| 90179-06274 | ||||
| 90179-08146 | ||||
| 90463-13003 | ||||
| 91651-40816 | ||||
| 91651-60635 | ||||
| 91651-60820 | ||||
| 93385-16016 | ||||
| 93385-16025 | ||||
ILLUST NO. 3 OF 5(9907- )LH16#,178,18#,RZH102,111,12#..DX,GL,SGLE
REAR PIPING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88721A - HOSE, LIQUID, A | ||||
| 88721-26070 |
RZH112..SRF..06S;RZH112..09S..4FC;LH16#,17#,RZH102..SRF..(06S,08S,09S) |
1 | ||
| 88721-26070 |
RZH112..SRF..06S;RZH112..09S..4FC;LH16#,17#,RZH102..SRF..(06S,08S,09S) |
1 | ||
| 88721-26070 |
LH178..08S;TRH102,112..SGLE;LH16#,17#,RZH102,112..SRF..(DX,SGLE) ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88721-26070 |
LH178..08S;TRH102,112..SGLE;LH16#,17#,RZH102,112..SRF..(DX,SGLE) ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88722A - HOSE, SUCTION, A | ||||
| 88712-26220 |
RZH112..SRF..06S;RZH112..09S..4FC;LH16#,17#,RZH102..SRF..(06S,08S,09S) |
1 | ||
| 88712-26220 |
RZH112..SRF..06S;RZH112..09S..4FC;LH16#,17#,RZH102..SRF..(06S,08S,09S) |
1 | ||
| 88712-26220 |
LH16#,17#,RZH111..SRF..DX;RZH102,112..SRF..(DX,SGLE) |
1 | ||
| 88712-26220 |
LH16#,17#,RZH111..SRF..DX;RZH102,112..SRF..(DX,SGLE) |
1 | ||
| 88726B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2F610 |
LH172..HRF..4D;LH172,RZH112..SRF..DX;LH16#,178,18#,RZH102,12#,133..DX,GL |
1 | ||
| 88716-2F610 |
LH172..HRF..4D;LH172,RZH112..SRF..DX;LH16#,178,18#,RZH102,12#,133..DX,GL |
1 | ||
| 88726F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88710-2F290 |
LH172..HRF..4D;LH172,RZH112..SRF..DX;KZH11#,126,LH168,RZH124..5F;LH162,178,18#,RZH102,125,133..DX,GL |
1 | ||
| 88710-2F290 |
LH172..HRF..4D;LH172,RZH112..SRF..DX;KZH11#,126,LH168,RZH124..5F;LH162,178,18#,RZH102,125,133..DX,GL |
1 | ||
| 88727B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-2F340 |
LH172..HRF..4D;LH172,RZH112..SRF..DX;LH16#,178,18#,RZH102,12#,133..DX,GL |
1 | ||
| 88717-2F340 |
LH172..HRF..4D;LH172,RZH112..SRF..DX;LH16#,178,18#,RZH102,12#,133..DX,GL |
1 | ||
| 88717-2F340 |
LH172..SRF..DX;LH172,RZH112..HRF..4D;LH16#,178,182,188,RZH18#..DX |
1 | ||
| 88717-2F340 |
LH172..SRF..DX;LH172,RZH112..HRF..4D;LH16#,178,182,188,RZH18#..DX |
1 | ||
| Common parts | ||||
| 88688-2F170 | ||||
| 88714-95J00 | ||||
| 88718-26040 | ||||
| 88718-26210 | ||||
| 88718-26230 | ||||
| 88718-26730 | ||||
| 88718-95J39 | ||||
| 88898-26010 | ||||
| 88898-95J21 | ||||
| 90099-05192 | ||||
| 90099-14119 | ||||
| 90099-14121 | ||||
| 90480-30015 | ||||
| 91651-60614 | ||||
| 91651-B0822 | ||||
| 93315-14012 | ||||
| Linked diagrams | ||||
| 6151 | ||||
ILLUST NO. 3 OF 5(9907- )LH178..08S ; (9907- )RZH183..SGLE; (9907- )LH172..HRF..4D ; (9907
REAR PIPING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88721A - HOSE, LIQUID, A | ||||
| 88721-26070 |
RZH112..SRF..06S;RZH112..09S..4FC;LH16#,17#,RZH102..SRF..(06S,08S,09S) |
1 | ||
| 88721-26070 |
RZH112..SRF..06S;RZH112..09S..4FC;LH16#,17#,RZH102..SRF..(06S,08S,09S) |
1 | ||
| 88721-26070 |
LH178..08S;TRH102,112..SGLE;LH16#,17#,RZH102,112..SRF..(DX,SGLE) ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88721-26070 |
LH178..08S;TRH102,112..SGLE;LH16#,17#,RZH102,112..SRF..(DX,SGLE) ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88722A - HOSE, SUCTION, A | ||||
| 88712-26220 |
RZH112..SRF..06S;RZH112..09S..4FC;LH16#,17#,RZH102..SRF..(06S,08S,09S) |
1 | ||
| 88712-26220 |
RZH112..SRF..06S;RZH112..09S..4FC;LH16#,17#,RZH102..SRF..(06S,08S,09S) |
1 | ||
| 88712-26220 |
LH16#,17#,RZH111..SRF..DX;RZH102,112..SRF..(DX,SGLE) |
1 | ||
| 88712-26220 |
LH16#,17#,RZH111..SRF..DX;RZH102,112..SRF..(DX,SGLE) |
1 | ||
| 88726B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2F610 |
LH172..HRF..4D;LH172,RZH112..SRF..DX;LH16#,178,18#,RZH102,12#,133..DX,GL |
1 | ||
| 88716-2F610 |
LH172..HRF..4D;LH172,RZH112..SRF..DX;LH16#,178,18#,RZH102,12#,133..DX,GL |
1 | ||
| 88726F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88710-2F290 |
LH172..HRF..4D;LH172,RZH112..SRF..DX;KZH11#,126,LH168,RZH124..5F;LH162,178,18#,RZH102,125,133..DX,GL |
1 | ||
| 88710-2F290 |
LH172..HRF..4D;LH172,RZH112..SRF..DX;KZH11#,126,LH168,RZH124..5F;LH162,178,18#,RZH102,125,133..DX,GL |
1 | ||
| 88727B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-2F340 |
LH172..HRF..4D;LH172,RZH112..SRF..DX;LH16#,178,18#,RZH102,12#,133..DX,GL |
1 | ||
| 88717-2F340 |
LH172..HRF..4D;LH172,RZH112..SRF..DX;LH16#,178,18#,RZH102,12#,133..DX,GL |
1 | ||
| 88717-2F340 |
LH172..SRF..DX;LH172,RZH112..HRF..4D;LH16#,178,182,188,RZH18#..DX |
1 | ||
| 88717-2F340 |
LH172..SRF..DX;LH172,RZH112..HRF..4D;LH16#,178,182,188,RZH18#..DX |
1 | ||
| Common parts | ||||
| 88688-2F170 | ||||
| 88714-95J00 | ||||
| 88718-26040 | ||||
| 88718-26210 | ||||
| 88718-26230 | ||||
| 88718-26730 | ||||
| 88718-95J39 | ||||
| 88898-26010 | ||||
| 88898-95J21 | ||||
| 90099-05192 | ||||
| 90099-14119 | ||||
| 90099-14121 | ||||
| 90480-30015 | ||||
| 91651-60614 | ||||
| 91651-B0822 | ||||
| 93315-14012 | ||||
| Linked diagrams | ||||
| 6151 | ||||
ILLUST NO. 2 OF 5(9808-0408)LH168,178,188..CD,DX
FRONT PIPING(DOP)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
LH172,RZH112..SRF..DX;LH172,RZH112..HRF..4D;TRH102,112..SRF..(CD,DX);LH16#,178,182,188,RZH102,12#,18#..DX,GL ﾃﾞﾕｱﾙ ｴｱｺﾝ |
2 | ||
| 88374-30010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
LH172,RZH112..SRF..DX;LH172,RZH112..HRF..4D;TRH102,112..SRF..(CD,DX);LH16#,178,182,188,RZH102,12#,18#..DX,GL ﾃﾞﾕｱﾙ ｴｱｺﾝ |
2 | ||
| 88374-30010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
LH172..SRF..DX;LH172..HRF..4D;TRH112..SRF..(CD,DX);LH178,RZH102,112,TRH102..CD,DX;LH16#,182,188,RZH12#,18#..DX,GL ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-28070 |
LH16#,17#,18#,RZH102,112,12#,133..CD,DX,GL ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-26110 |
LH16#,17#,18#,RZH102,112,124;KZH10#,11#,120,13#,RZH125,133..4FC |
1 | ||
| 88472-26110 |
RZH18#..06S;LH16#,17#,182,184,188,RZH102,112,12#..CD,DX,GL |
1 | ||
| 88605L - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-26190 |
KZH106,LH168..5F;KZH13#,LH162,17#,182,188,RZH102,112,133..CD,DX |
1 | ||
| 88648-26040 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;KZH10#,11#,12#,13#,LH16#,178,18#,RZH10#,111,12#,133..SG ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-34010 |
KZH106,LH168..5F;KZH13#,LH162,17#,182,188,RZH102,112,133..CD,DX ｼﾝｸﾞﾙ ｴｱｺﾝ |
1 | ||
| 88645-26010 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;KZH10#,11#,12#,13#,LH16#,178,18#,RZH10#,111,12#,133..SG ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-26270 |
LH168,178,186,188 |
1 | ||
| 88711-26270 |
LH168,178,186,188..CD,DX,GL,SGL |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-26170 |
LH168,178,188..CD,DX |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-2F500 |
LH16#,17#,18#,RZH102,112,12#,133..CD,DX,GL NO.2 |
1 | ||
| 88716-2F480 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 NO.1 |
1 | ||
| 88716-2F500 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 NO.2 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-2F500 |
LH16#,17#,18#,RZH102,112,12#,133..CD,DX,GL NO.2 |
1 | ||
| 88716-2F480 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 NO.1 |
1 | ||
| 88716-2F500 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2F590 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;LH16#,178,18#,RZH10#,111,12#,133..SG ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88716-2F060 |
LH16#,17#,182,188,RZH102,112,133..CD,DX ｼﾝｸﾞﾙ ｴｱｺﾝ |
1 | ||
| 88716-2F590 |
LH168,178..5D..DX |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-26850 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-2F150 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 |
1 | ||
| 88717E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-2F170 |
LH178..DX;LH172..HRF..4D;LH172,RZH112..SRF..SG;KZH100,110,LH168,RZH124..5F;LH162,18#,RZH10#,111,125,133..SG ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88717-2F320 |
LH16#,17#,182,188,RZH102,112..CD,DX ｼﾝｸﾞﾙ ｴｱｺﾝ |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88733-30040 |
LH178..CD;LH168,178..5D..DX ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88723-20030 |
LH172..SRF..DX;LH172..HRF..4D;LH168,178..5D..DX;RZH102,112..CD,DX;LH162,182,184,188,RZH12#,18#..DX,GL |
1 | ||
| Common parts | ||||
| 88688-2F090 | ||||
| 88688-2F140 | ||||
| 88688-32400 | ||||
| 88718-26070 | ||||
| 88718-26150 | ||||
| 88718-26170 | ||||
| 88718-26770 | ||||
| 88718-26830 | ||||
| 88718-2A230 | ||||
| 88718-32220 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90119-06674 | ||||
| 90119-08122 | ||||
| 90179-06274 | ||||
| 90464-00184 | ||||
| 91511-60630 | ||||
| 91651-40625 | ||||
| 93385-16016 | ||||
| 93385-18016 | ||||
| 93385-18025 | ||||
| 93385-56025 | ||||
ILLUST NO. 1 OF 5(9808-9907)KZH10#,11#,126..5F ; (9808- )RZH112..V2..4D..DX ; (9808- )RZH112,1
CONDENSER(MAKER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-26020 |
LH178..03S,05S,06S,08S;KZH10#,11#,12#,13#,LH16#,172,182,188,RZH10#,11#,12# |
1 | ||
| 88453-26020 |
LH178..03S,05S,06S,08S;KZH10#,11#,12#,13#,LH16#,172,182,188,RZH10#,11#,12# |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-26100 |
LH178..03S,05S,06S,08S;LH162,172,182,RZH10#,11#,125;KZH10#,11#,126,LH168,RZH124..5F |
1 | ||
| 88454-26100 |
LH178..03S,05S,06S,08S;LH162,172,182,RZH10#,11#,125;KZH10#,11#,126,LH168,RZH124..5F |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-26510 |
LH172..HRF..4D;LH172,RZH112..SRF..DX;LH16#,178,18#,RZH102,12#..DX,GL ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88460-26510 |
LH172..HRF..4D;LH172,RZH112..SRF..DX;LH16#,178,18#,RZH102,12#..DX,GL ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88460-26530 |
LH16#,17#,182,188,RZH102,112..CD,DX |
1 | ||
| 88460-26530 |
LH16#,17#,182,188,RZH102,112..CD,DX |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-26140 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 |
1 | ||
| 88461-26140 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 |
1 | ||
| 88550D - MOTOR ASSY, BLOWER | ||||
| 88550-26050 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;KZH10#,11#,12#,13#,LH16#,178,18#,RZH10#,111,12#,133..SG ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88550-26050 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;KZH10#,11#,12#,13#,LH16#,178,18#,RZH10#,111,12#,133..SG ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88550-26110 |
LH16#,17#,182,188,RZH102,112..CD,DX ｼﾝｸﾞﾙ ｴｱｺﾝ |
1 | ||
| 88550-26110 |
LH16#,17#,182,188,RZH102,112..CD,DX ｼﾝｸﾞﾙ ｴｱｺﾝ |
1 | ||
| 88584B - GUIDE, COOLER AIR | ||||
| 88584-26050 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 |
1 | ||
| 88584-26050 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-26140 |
LH172..HRF..4D;LH172,RZH112..SRF..DX;LH16#,178,18#,RZH102,12#..DX,GL ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88590-26140 |
LH172..HRF..4D;LH172,RZH112..SRF..DX;LH16#,178,18#,RZH102,12#..DX,GL ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88590-26150 |
LH16#,17#,182,188,RZH102,112..CD,DX |
1 | ||
| 88590-26150 |
LH16#,17#,182,188,RZH102,112..CD,DX |
1 | ||
| 88635A - RESISTOR, BLOWER (FOR COOLER CONDENSER MOTOR) | ||||
| 88635-26030 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;KZH10#,11#,12#,13#,LH16#,178,18#,RZH10#,111,12#,133..SG ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88635-26030 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;KZH10#,11#,12#,13#,LH16#,178,18#,RZH10#,111,12#,133..SG ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-26330 |
RZH112..SRF;KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,111,125,133 |
1 | ||
| 88715-26330 |
RZH112..SRF;KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,111,125,133 |
1 | ||
| Common parts | ||||
| 82711-10380 | ||||
| 88463-26310 | ||||
| 88463-26320 | ||||
| 88463-26350 | ||||
| 88463-26360 | ||||
| 88463-26370 | ||||
| 88463-26380 | ||||
| 88463-35120 | ||||
| 88467-30270 | ||||
| 88578-26080 | ||||
| 88718-26810 | ||||
| 88892-26020 | ||||
| 90091-20609 | ||||
| 90099-04117 | ||||
| 90099-04376 | ||||
| 90099-05164 | ||||
| 90099-14120 | ||||
| 90119-08354 | ||||
| 90179-06274 | ||||
| 91651-40820 | ||||
| 93385-56025 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
