LH178V-RHPES (1998)

Toyota Hiace/Regiusace

Production Aug 1998 - Aug 2004
Engine 5L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9808- )LH16#,17#..V1..4D..SG

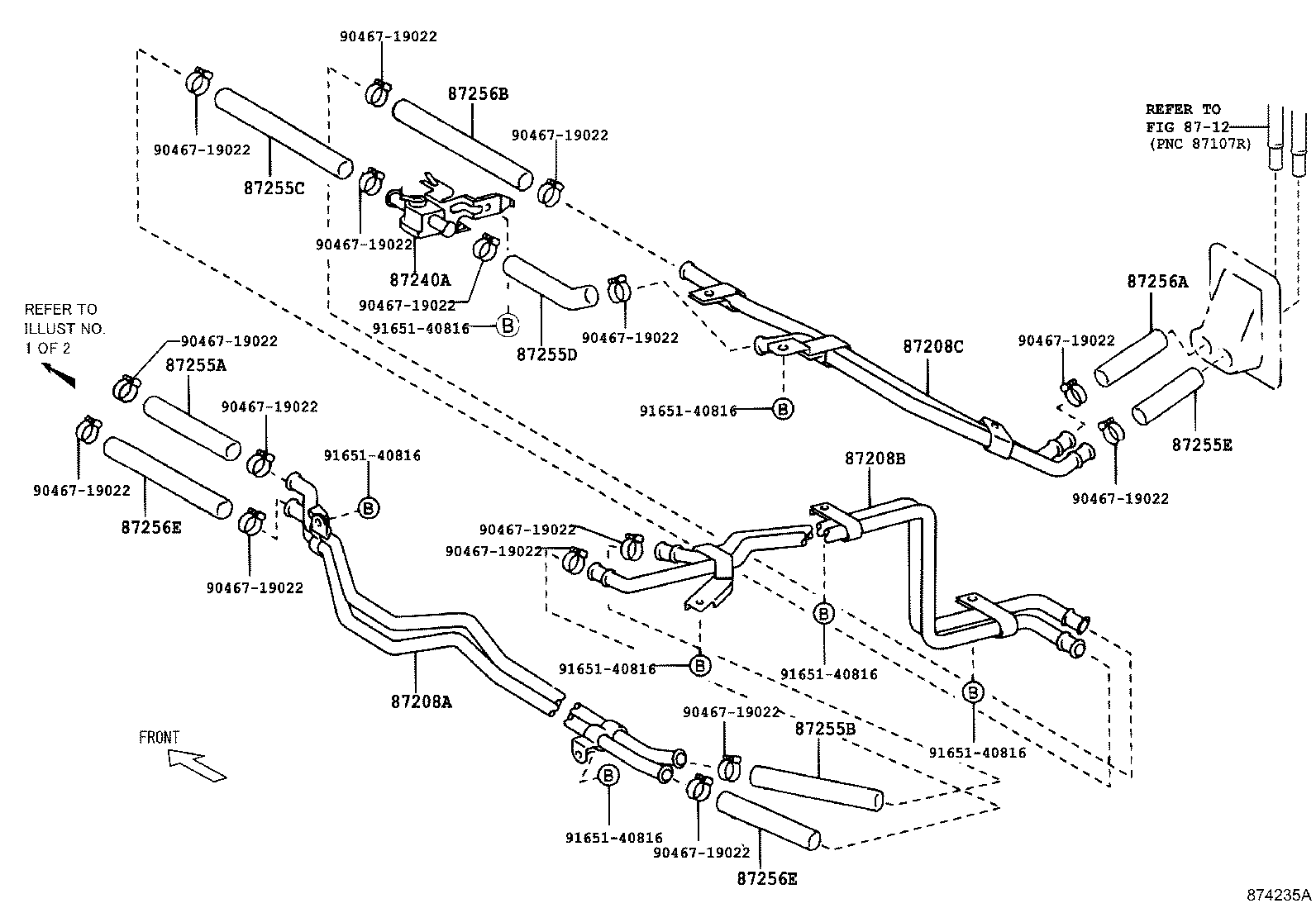

Click highlighted areas on diagram

ﾘﾔ-ﾄﾘﾑ(1)

diagram 8712 87208A 87208B 87208C 87240A 87255A 87255B 87255C 87255D 87255E 87256A 87256B 87256E 87256E 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816
Part # Description Qty Price
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-26820

LH16#,17#,18#..SG

 1
87208-26820

LH16#,17#,18#..SG

 1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-26870

LH16#,17#,18#..(COM,V1)..SG

 1
87208-26870

LH16#,17#,18#..(COM,V1)..SG

 1
87208C - PIPE SUB-ASSY, HEATER WATER, C
87208-2F070

RZH112..V1..SRF..4D..(DX,SGL);KZH10#,11#,LH16#,17#,RZH10#,111..(V1,WG)..4D..(DX,SCL,SCM,SCMM,SGL)

ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔﾋ-ﾀ)

 1
87208-2F070

KZH10#,11#,LH16#,17#,RZH10#,11#..(V1,WG)..4D..SG

ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔﾋ-ﾀ)

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99556-20200

LH16#,17#,18#..SG

*H,L=140

 1
99556-20115

LH16#,17#,18#..SG

*H,L=115

 1
87255D - HOSE, REAR HEATER WATER INLET, D
99556-20200

KZH10#,11#,LH16#,17#,RZH10#,11#,TRH102,112..(V1,WG)..4D..SG

*H,L=145

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
99556-20200

LH16#,17#,18#..SG

*H,L=170

 1
99556-20200

LH16#,17#,18#..SG

*H,L=180

 1
99556-20200

LH16#,17#,18#..SG

*H,L=200

 1
99556-20155

LH16#,17#,18#..SG

*H,L=155

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
99556-20200

LH16#,17#,18#..SG

*H,L=170

 1
99556-20200

LH16#,17#,18#..SG

*H,L=180

 1
99556-20200

LH16#,17#,18#..SG

*H,L=200

 1
99556-20155

LH16#,17#,18#..SG

*H,L=155

 1
Common parts
90467-19022
91651-40816
Linked diagrams
8712
