LH178V-RHPES (1998)

Toyota Hiace/Regiusace

Production Aug 1998 - Aug 2004
Engine 5L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 6(9907- )KZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#

Click highlighted areas on diagram

ﾌﾛﾝﾄｺﾝﾄﾛ-ﾙ(ﾌﾟﾂｼﾕﾀｲﾌﾟ)

diagram 55900B 55900B 55900E 55900E 55902B 55905A 55912A 55941 55941 88326C 88484 88650M 9009490416 9356015020 9356855014 9356855014
Part # Description Qty Price
55900B - BULB, AIR CONDITIONER CONTROL
90010-05104

LH162,17#,RZH102,112,TRH102,112..SGL

14V 1.12W

 2
55900B - BULB, AIR CONDITIONER CONTROL
90010-05104

LH162,17#,RZH102,112,TRH102,112..SGL

14V 1.12W

 2
55902B - CONTROL SUB-ASSY, HEATER
55902-22080

LH162,17#,TRH102,112..SGL

 1
55905A - KNOB, HEATER CONTROL
55905-22260

LH162,17#,RZH102,112..SGL

ﾌﾞﾛﾜ,TEMP

 2
55905-22280

LH162,17#,RZH102,112..SGL

MODE,内外気

 2
55905-22250

LH162,17#,RZH102,112..SGL

NO.1

 1
55905-22260

LH162,17#,RZH102,112..SGL

NO.2

 2
Common parts
90094-90416
93560-15020
93568-55014

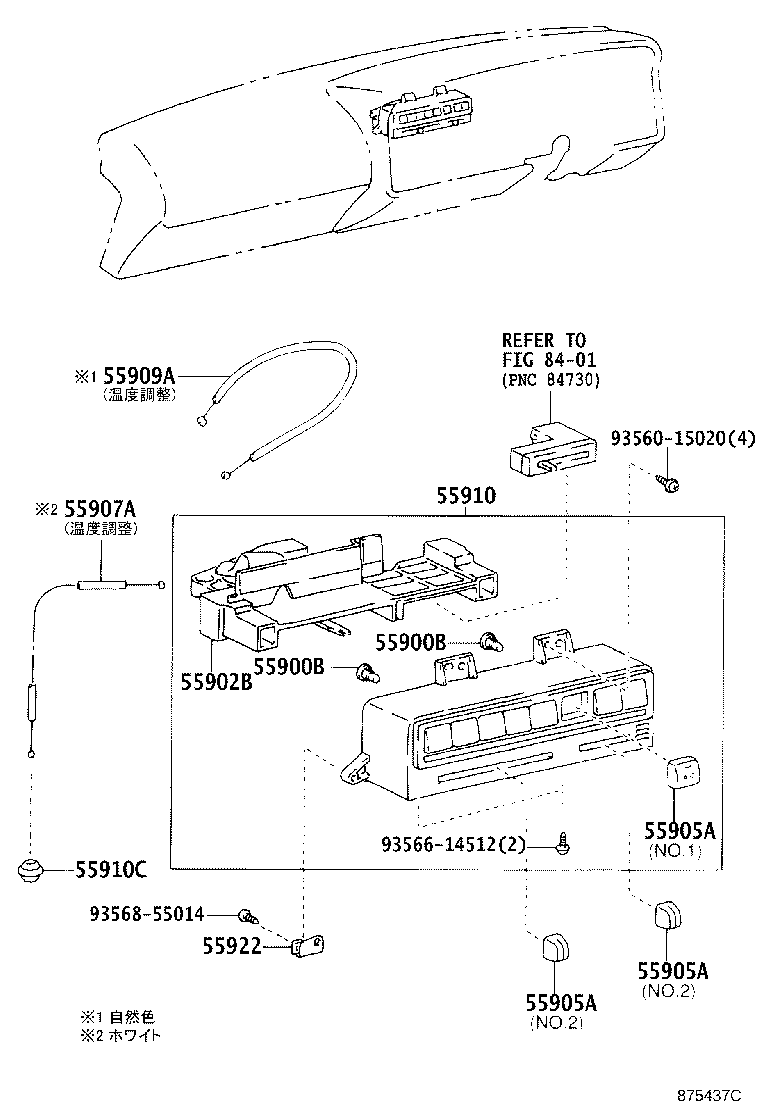

ILLUST NO. 1 OF 6(0108- )LH162,17#,RZH102,112..SGL

Click highlighted areas on diagram

ﾌﾛﾝﾄｺﾝﾄﾛ-ﾙ(ﾌﾟﾂｼﾕﾀｲﾌﾟ)

diagram 55900B 55900B 55902B 55905A 55905A 55905A 55907A 55909A 55910 55910C 55922 8401 9356015020 9356614512 9356855014
Part # Description Qty Price
55900B - BULB, AIR CONDITIONER CONTROL
90010-05104

LH162,17#,RZH102,112,TRH102,112..SGL

14V 1.12W

 2
55900B - BULB, AIR CONDITIONER CONTROL
90010-05104

LH162,17#,RZH102,112,TRH102,112..SGL

14V 1.12W

 2
55902B - CONTROL SUB-ASSY, HEATER
55902-22080

LH162,17#,TRH102,112..SGL

 1
55905A - KNOB, HEATER CONTROL
55905-22260

LH162,17#,RZH102,112..SGL

ﾌﾞﾛﾜ,TEMP

 2
55905-22280

LH162,17#,RZH102,112..SGL

MODE,内外気

 2
55905-22250

LH162,17#,RZH102,112..SGL

NO.1

 1
55905-22260

LH162,17#,RZH102,112..SGL

NO.2

 2
55905A - KNOB, HEATER CONTROL
55905-22260

LH162,17#,RZH102,112..SGL

ﾌﾞﾛﾜ,TEMP

 2
55905-22280

LH162,17#,RZH102,112..SGL

MODE,内外気

 2
55905-22250

LH162,17#,RZH102,112..SGL

NO.1

 1
55905-22260

LH162,17#,RZH102,112..SGL

NO.2

 2
55905A - KNOB, HEATER CONTROL
55905-22260

LH162,17#,RZH102,112..SGL

ﾌﾞﾛﾜ,TEMP

 2
55905-22280

LH162,17#,RZH102,112..SGL

MODE,内外気

 2
55905-22250

LH162,17#,RZH102,112..SGL

NO.1

 1
55905-22260

LH162,17#,RZH102,112..SGL

NO.2

 2
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-26170

LH162,17#,RZH102,112..SGL

ﾌﾞﾗﾂｸ

 1
55907-26200

LH162,17#,RZH102,112,TRH102,112..SGL

ﾎﾜｲﾄ

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-26090

LH162,17#,RZH102,112,TRH102,112..SGL

ﾎﾜｲﾄ

 1
55909-95J01

LH162,17#..SGL

ﾌﾞﾙ-

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-26140

LH162,17#,RZH102,112..SGL

 1
55910-26080

LH162,17#,RZH102,112..SGL

 1
Common parts
93560-15020
93566-14512
93568-55014
Linked diagrams
8401
