Toyota Hiace/regiusace LH178 SWITCH & RELAY & COMPUTER

Part #	Description	Period	Qty
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-26180	KZH10#,11#,12#,LH16#,17#,18#,RZH10#,11#,12#,133..CD,DX,GCGE,GCGN,GL,SCM ｱﾘ(ｺ-ﾅﾘﾝｸﾞﾗﾝﾌﾟ)	08/1998 - 07/1999	1
84140-26180	RZH112..V2..5D;RZH112..V1..SRF..DX;KZH120,RZH102..(06S,10S)..2WD;KZH10#,11#,LH16#,17#,18#,RZH101,111,12#..CD,DX,GL,SCM ｱﾘ(ｺ-ﾅﾘﾝｸﾞﾗﾝﾌﾟ)	07/1999 - 08/2004	1
84140-26190	KZH11#..4FC;KZH10#,13#,LH162,17#,RZH10#,112..(03S,05S,08S)..(DX,SCMM,SGL) ｱﾘ(ﾌﾛﾝﾄﾌｵｸﾞSW. & *80)	08/1998 - 07/1999	1
84140-26190	KZH10#,11#,13#,LH162,17#,RZH10#,112..(03S,05S,08S,10S)..(DX,SCMM,SGL) ｱﾘ(ﾌﾛﾝﾄﾌｵｸﾞSW.)	07/1999 - 08/2004	1
84306 - CABLE SUB-ASSY, SPIRAL
84306-35030	KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S	08/1998 - 07/1999	1
84310 - SWITCH ASSY, TURN SIGNAL
84310-2F310	KZH11#..4FC;KZH10#,13#,LH162,17#,RZH10#,112..(03S,05S,08S)..(DX,SCMM,SGL) ｱﾘ(ｼﾞｶﾝﾁﾖｳｾｲｼｷｶﾝｹﾂﾜｲﾊﾟ & ｶﾝｹﾂﾘﾔﾜｲﾊﾟ & ﾌﾛﾝﾄﾌｵｸﾞSW. & *80)	08/1998 - 07/1999	1
84310-2F440	KZH10#,13#,LH162,17#,RZH10#,112,TRH102,112..(03S,05S,08S)..(DX,SCMM,SGL)	07/1999 - 08/2004	1
84312 - PLATE, HORN CONTACT
84312-26010	KZH13#,LH16#,17#,18#,RZH102,112,12#,133..CD,DX,GL	08/1998 - 07/1999	1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-26500	KZH11#..4FC;KZH10#,13#,LH162,17#,184,186,RZH10#,112..(03S,05S,08S,15S)..(DX,SCMM,SGL) ｱﾘ(ｼﾞｶﾝﾁﾖｳｾｲｼｷｶﾝｹﾂﾜｲﾊﾟ & ｶﾝｹﾂﾘﾔﾜｲﾊﾟ)	08/1998 - 07/1999	1
84652-26500	KZH10#,11#,13#,LH162,17#,RZH10#,112,TRH102,112..(03S,05S,08S,10S)..(DX,SCMM,SGL) ｱﾘ(ｼﾞｶﾝﾁﾖｳｾｲｼｷｶﾝｹﾂﾜｲﾊﾟ & ｶﾝｹﾂﾘﾔﾜｲﾊﾟ)	07/1999 - 08/2004	1
89435 - BRACKET, CONNECTOR COVER
89435-26090	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133	08/1989 - 07/1999	1
Common parts
90149-40013
90464-00551
91651-40816
93319-13008
93319-15012
93383-15012

LH178V-RHPES (1998)

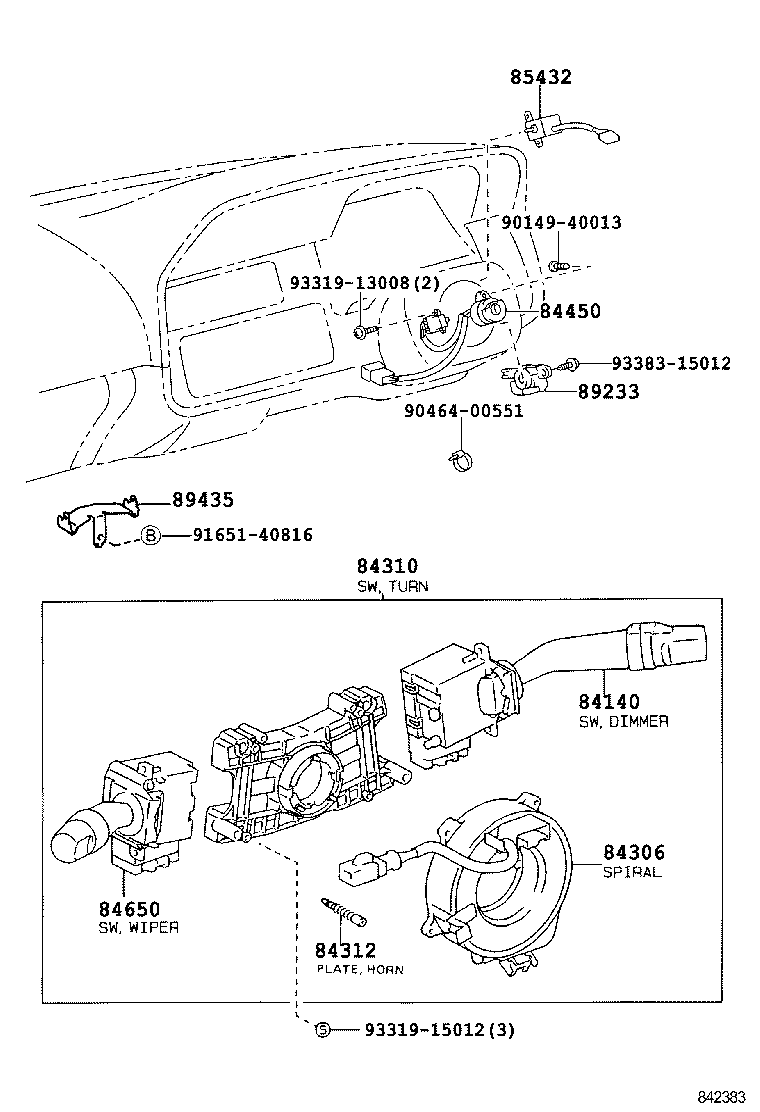

ILLUST NO. 5 OF 9(9808- )03S,05S,06S,08S,09S,10S,15S
