LH178V-RHPES (1998)

Toyota Hiace/Regiusace

Production Aug 1998 - Aug 2004
Engine 5L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9907- )

Click highlighted areas on diagram

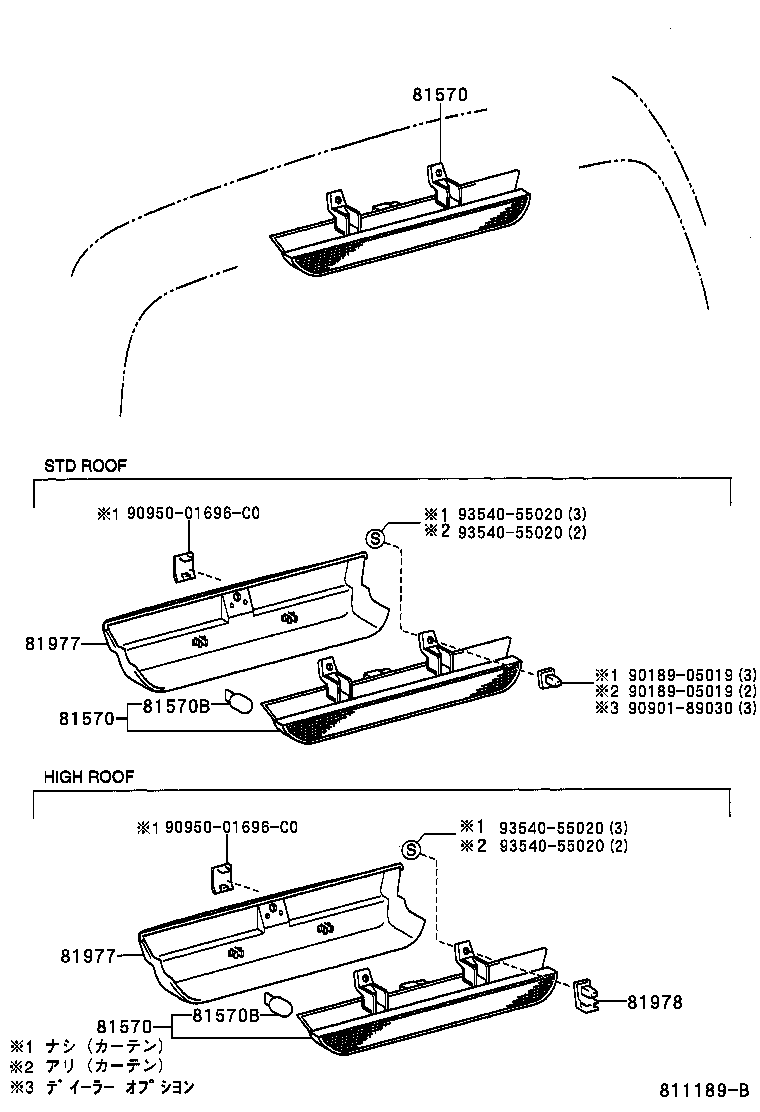

5 BULB

diagram 81570 81570 81570 81570B 81570B 81977 81977 81978 9018905019 9018905019 9090189030 9095001696C0 9095001696C0 9354055020 9354055020 9354055020 9354055020
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-26120

KZH10#,11#,LH162,17#,184,186,RZH10#,112,12#..(05S,07S,08S,10S,15S)..(DX,GL,SCL,SGL)

ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ 5 ﾊﾞﾙﾌﾞｼｷ)

 1
81570-26020

RZH102..V2;LH16#,17#..SRF;RZH102,112..SGL

 1
81570 - LAMP ASSY, CENTER STOP
81570-26120

KZH10#,11#,LH162,17#,184,186,RZH10#,112,12#..(05S,07S,08S,10S,15S)..(DX,GL,SCL,SGL)

ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ 5 ﾊﾞﾙﾌﾞｼｷ)

 1
81570-26020

RZH102..V2;LH16#,17#..SRF;RZH102,112..SGL

 1
81570 - LAMP ASSY, CENTER STOP
81570-26120

KZH10#,11#,LH162,17#,184,186,RZH10#,112,12#..(05S,07S,08S,10S,15S)..(DX,GL,SCL,SGL)

ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ 5 ﾊﾞﾙﾌﾞｼｷ)

 1
81570-26020

RZH102..V2;LH16#,17#..SRF;RZH102,112..SGL

 1
81977 - COVER, CENTER STOP LAMP
81977-26050

KZH11#,LH162,17#,184,186,RZH102,112,12#..(05S,08S,10S,15S)..(DX,GL,SGL)

ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ 5 ﾊﾞﾙﾌﾞｼｷ)

 1
81977 - COVER, CENTER STOP LAMP
81977-26050

KZH11#,LH162,17#,184,186,RZH102,112,12#..(05S,08S,10S,15S)..(DX,GL,SGL)

ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ 5 ﾊﾞﾙﾌﾞｼｷ)

 1
Common parts
90189-05019
90901-89030
90950-01696C0
93540-55020

(9907- )

Click highlighted areas on diagram

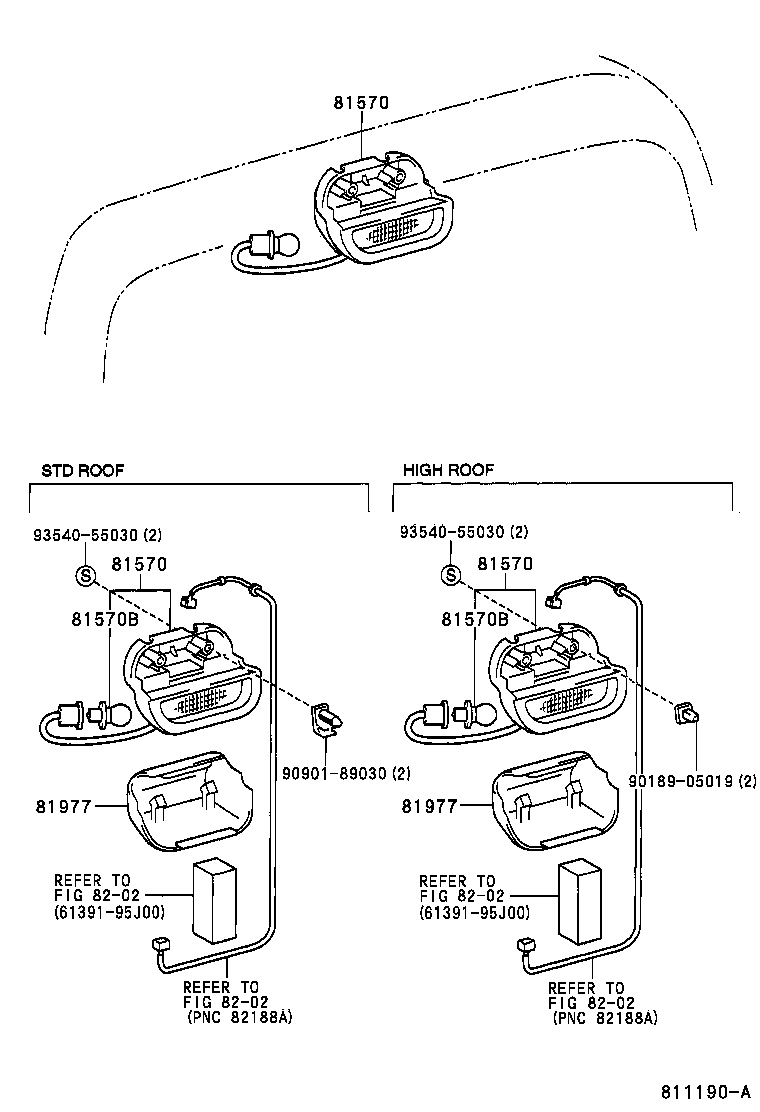

1 BULB

diagram 81570 81570 81570 81570B 81570B 81977 81977 8202 8202 8202 8202 9018905019 9090189030 9354055030 9354055030
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-26120

KZH10#,11#,LH162,17#,184,186,RZH10#,112,12#..(05S,07S,08S,10S,15S)..(DX,GL,SCL,SGL)

ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ 5 ﾊﾞﾙﾌﾞｼｷ)

 1
81570-26020

RZH102..V2;LH16#,17#..SRF;RZH102,112..SGL

 1
81570 - LAMP ASSY, CENTER STOP
81570-26120

KZH10#,11#,LH162,17#,184,186,RZH10#,112,12#..(05S,07S,08S,10S,15S)..(DX,GL,SCL,SGL)

ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ 5 ﾊﾞﾙﾌﾞｼｷ)

 1
81570-26020

RZH102..V2;LH16#,17#..SRF;RZH102,112..SGL

 1
81570 - LAMP ASSY, CENTER STOP
81570-26120

KZH10#,11#,LH162,17#,184,186,RZH10#,112,12#..(05S,07S,08S,10S,15S)..(DX,GL,SCL,SGL)

ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ 5 ﾊﾞﾙﾌﾞｼｷ)

 1
81570-26020

RZH102..V2;LH16#,17#..SRF;RZH102,112..SGL

 1
81977 - COVER, CENTER STOP LAMP
81977-26050

KZH11#,LH162,17#,184,186,RZH102,112,12#..(05S,08S,10S,15S)..(DX,GL,SGL)

ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ 5 ﾊﾞﾙﾌﾞｼｷ)

 1
81977 - COVER, CENTER STOP LAMP
81977-26050

KZH11#,LH162,17#,184,186,RZH102,112,12#..(05S,08S,10S,15S)..(DX,GL,SGL)

ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ 5 ﾊﾞﾙﾌﾞｼｷ)

 1
Common parts
90189-05019
90901-89030
93540-55030
Linked diagrams
8202
