Toyota Hiace/regiusace LH178 SEAT & SEAT TRACK

LH178V-RHPES (1998)

Toyota Hiace/Regiusace

Production Aug 1998 - Aug 2004

Engine 5L

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 4(8908-9907)

Click highlighted areas on diagram

ﾌﾛﾝﾄｼ-ﾄ:LH10#,11#,123(ﾚｲﾄｳｼﾔ)

Part #	Description	Period	Qty
71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH
71013-26070	LH162,17#,184,186,RZH102,112,125..GL,SGL	08/1998 - 07/1999	1
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-26051	LH162,17#,RZH102,112..SGL	08/1998 - 07/1999	1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-26101B2	LH162,17#,RZH102,112..SGL ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71071-26101B2	LH162,17#,RZH102,112..SGL ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-26141B2	LH162,17#,RZH102,112..SGL ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71072-26141B2	LH162,17#,RZH102,112..SGL ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-26181B1	LH162,17#,RZH102,112..SGL ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71073-26181B1	LH162,17#,RZH102,112..SGL ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-26271B1	LH162,17#,RZH102,112..SGL ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71074-26271B1	LH162,17#,RZH102,112..SGL ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71274 - KNOB, FRONT SEAT HINGE
71274-95J00B0	KZH11#,LH16#,17#,18#,RZH102,11#,12#,133..CD,DX,GL BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71358 - PAD, CENTER SEAT BACK
71033-95J00	LH16#,17#,18#,RZH102,112,12#..CD,DX,GL	08/1998 - 07/1999	1
71392 - COVER, CENTER SEAT CUSHION BRACKET, LH
71392-95J04B0	RZH102,112..V2;LH16#,17#,18#,RZH12#..CD,DX,GL BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71395B - COVER, CENTER SEAT HINGE, RH
71395-95J02B0	LH16#,17#,18#,RZH102,112,12#..CD,DX,GL BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-26091B6	LH162,17#,184,186,RZH102,112..(05S,08S,15S)..(DX,SGL) **,ｷﾔﾝﾋﾟﾝｸﾞｶ- & ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71410-26091B8	LH162,17#,RZH102,112..SGL **,ｷﾔﾝﾋﾟﾝｸﾞｶ- & ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-26131B6	LH162,17#,RZH102,112..SGL **,ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71420-26131B8	LH162,17#,RZH102,112..SGL **,ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71401-26091B6	LH162,17#,RZH102,112..SGL **,ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71401-26091B8	LH162,17#,RZH102,112..SGL **,ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71402-26101B6	LH162,17#,RZH102,112..SGL **,ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71402-26101B8	LH162,17#,RZH102,112..SGL **,ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-95J11	RZH102,112..V2;RZH102,112..SGL;LH16#,17#,182,188,RZH12#	08/1998 - 07/1999	1
71511-95J11	RZH102,112..SGL;RZH102,112..V2..5D;LH16#,17#,182,188,RZH111,12#..CD,DX,GL,SGL	07/1999 - 08/2004	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-26050	LH162,17#,RZH102,112..SGL	08/1998 - 07/1999	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-95J18	RZH102,112..V2;LH16#,17#,182,188;RZH102,112,125..GL,SGL GL ﾊﾟﾂｹ-ｼﾞ	08/1998 - 07/1999	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-26100	LH162,17#,RZH102,112..SGL	08/1998 - 07/1999	1
71812C - COVER, RECLINING ADJUSTER, LH
71812-95J00B0	KZH11#..4FC;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,SCM,SCMM,SGL GRAY,TRIM1#,ﾌﾛﾝﾄｼｰﾄ	08/1998 - 07/1999	1
71832D - COVER, FRONT SEAT HINGE, LH
71832-95J01B0	KZH10#,13#,LH162,17#,RZH10#,112..SG..(03S,05S,08S) BLUISH GRAY,TRIM1#,内側	08/1998 - 07/1999	1
71910A - HEADREST ASSY, FRONT SEAT
71910-26041B1	LH162,17#,184,186,RZH102,112..(05S,08S,15S)..(DX,SGL) ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71910-26041B1	LH162,17#,184,186,RZH102,112..(05S,08S,15S)..(DX,SGL) ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71920-26021B1	LH162,17#,184,186,RZH102,112..(05S,08S,15S)..(DX,SGL) ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#,左側	08/1998 - 07/1999	1
71920-26021B1	LH162,17#,184,186,RZH102,112..(05S,08S,15S)..(DX,SGL) ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#,左側	07/1999 - 08/2001	1
71931 - SUPPORT, FRONT SEAT HEADREST
71931-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ無,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71930-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ付,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ無,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71930-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ付,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ無,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71930-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ付,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ無,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71930-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ付,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
72130A - TRACK ASSY, FRONT SEAT, INNER RH
72130-26010	KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S	08/1998 - 07/1999	1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-95J01B0	KZH11#,LH16#,17#,18#,RZH102,11#,12#,133 BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-95J01B0	KZH11#,LH16#,17#,18#,RZH102,11#,12#,133 BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH
72525-95J01B0	LH162,17#,184,186,RZH102,112..(05S,08S,15S)..(DX,SGL) BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
72658C - KNOB, FRONT SEAT LOCK HANDLE
72658-9570111	LH16#,17#,18#,RZH102,112,12#..CD,DX,GL BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
Common parts
90105-08109
90119-08079
90119-10101
90119-10116
90119-10855
90167-40044
90179-10073
90386-10027
90386-12051
90467-08008
90523-08001
91612-B1020
93540-54012

ILLUST NO. 1 OF 5(8908-9907)DX,GCGE,GCGN,SCL,SGL,SW

Click highlighted areas on diagram

ﾌﾛﾝﾄｼ-ﾄ

Part #	Description	Period	Qty
71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH
71013-26070	LH162,17#,184,186,RZH102,112,125..GL,SGL	08/1998 - 07/1999	1
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-26051	LH162,17#,RZH102,112..SGL	08/1998 - 07/1999	1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-26101B2	LH162,17#,RZH102,112..SGL ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71071-26101B2	LH162,17#,RZH102,112..SGL ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-26141B2	LH162,17#,RZH102,112..SGL ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71072-26141B2	LH162,17#,RZH102,112..SGL ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-26181B1	LH162,17#,RZH102,112..SGL ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71073-26181B1	LH162,17#,RZH102,112..SGL ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-26271B1	LH162,17#,RZH102,112..SGL ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71074-26271B1	LH162,17#,RZH102,112..SGL ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-26091B6	LH162,17#,184,186,RZH102,112..(05S,08S,15S)..(DX,SGL) **,ｷﾔﾝﾋﾟﾝｸﾞｶ- & ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71410-26091B8	LH162,17#,RZH102,112..SGL **,ｷﾔﾝﾋﾟﾝｸﾞｶ- & ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-26131B6	LH162,17#,RZH102,112..SGL **,ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71420-26131B8	LH162,17#,RZH102,112..SGL **,ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71401-26091B6	LH162,17#,RZH102,112..SGL **,ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71401-26091B8	LH162,17#,RZH102,112..SGL **,ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71402-26101B6	LH162,17#,RZH102,112..SGL **,ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71402-26101B8	LH162,17#,RZH102,112..SGL **,ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-95J11	RZH102,112..V2;RZH102,112..SGL;LH16#,17#,182,188,RZH12#	08/1998 - 07/1999	1
71511-95J11	RZH102,112..SGL;RZH102,112..V2..5D;LH16#,17#,182,188,RZH111,12#..CD,DX,GL,SGL	07/1999 - 08/2004	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-26050	LH162,17#,RZH102,112..SGL	08/1998 - 07/1999	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-95J18	RZH102,112..V2;LH16#,17#,182,188;RZH102,112,125..GL,SGL GL ﾊﾟﾂｹ-ｼﾞ	08/1998 - 07/1999	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-26100	LH162,17#,RZH102,112..SGL	08/1998 - 07/1999	1
71812C - COVER, RECLINING ADJUSTER, LH
71812-95J00B0	KZH11#..4FC;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,SCM,SCMM,SGL GRAY,TRIM1#,ﾌﾛﾝﾄｼｰﾄ	08/1998 - 07/1999	1
71832D - COVER, FRONT SEAT HINGE, LH
71832-95J01B0	KZH10#,13#,LH162,17#,RZH10#,112..SG..(03S,05S,08S) BLUISH GRAY,TRIM1#,内側	08/1998 - 07/1999	1
71910A - HEADREST ASSY, FRONT SEAT
71910-26041B1	LH162,17#,184,186,RZH102,112..(05S,08S,15S)..(DX,SGL) ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71910-26041B1	LH162,17#,184,186,RZH102,112..(05S,08S,15S)..(DX,SGL) ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71920-26021B1	LH162,17#,184,186,RZH102,112..(05S,08S,15S)..(DX,SGL) ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#,左側	08/1998 - 07/1999	1
71920-26021B1	LH162,17#,184,186,RZH102,112..(05S,08S,15S)..(DX,SGL) ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#,左側	07/1999 - 08/2001	1
71910A - HEADREST ASSY, FRONT SEAT
71910-26041B1	LH162,17#,184,186,RZH102,112..(05S,08S,15S)..(DX,SGL) ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71910-26041B1	LH162,17#,184,186,RZH102,112..(05S,08S,15S)..(DX,SGL) ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71920-26021B1	LH162,17#,184,186,RZH102,112..(05S,08S,15S)..(DX,SGL) ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#,左側	08/1998 - 07/1999	1
71920-26021B1	LH162,17#,184,186,RZH102,112..(05S,08S,15S)..(DX,SGL) ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#,左側	07/1999 - 08/2001	1
71931 - SUPPORT, FRONT SEAT HEADREST
71931-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ無,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71930-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ付,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ無,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71930-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ付,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ無,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71930-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ付,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ無,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71930-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ付,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
72130A - TRACK ASSY, FRONT SEAT, INNER RH
72130-26010	KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S	08/1998 - 07/1999	1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-95J01B0	KZH11#,LH16#,17#,18#,RZH102,11#,12#,133 BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH
72525-95J01B0	LH162,17#,184,186,RZH102,112..(05S,08S,15S)..(DX,SGL) BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
Common parts
90105-08109
90119-08079
90119-08269
90119-10101
90119-10116
90167-40044
90179-10073
90386-10027
90386-12051
90467-08008
90530-06007
91611-60616
93540-54012
Linked diagrams
8401

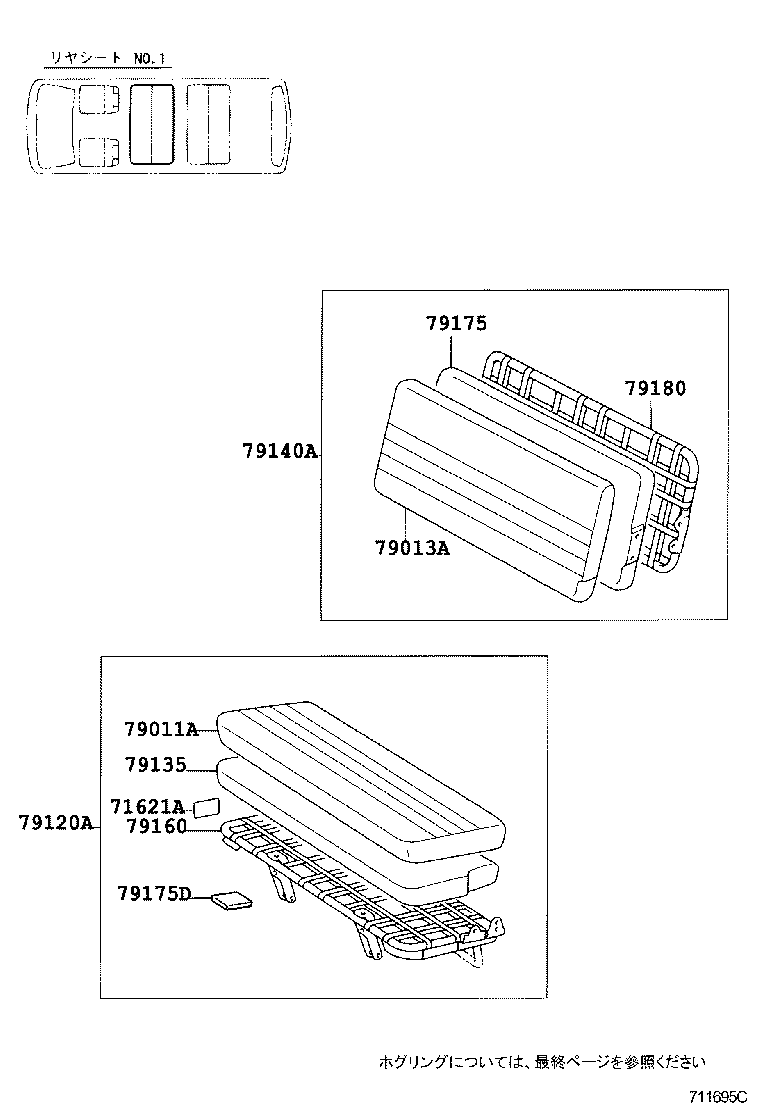

ILLUST NO. 2 OF 4(9808- )LH17#,182,RZH112,18#,TRH112,122..08S,09S

Click highlighted areas on diagram

Part #	Description	Period	Qty
71621A - PAD, REAR SEAT CUSHION SILENCER, A
71621-95701	LH113,119,123,17#,182,RZH112,122..08S,09S	08/1989 - 07/1999	12
79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION
79011-26191B2	LH178..08S ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
79011-26191B2	LH178..08S ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
79011-26192B3	LH178..08S ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	08/2001 - 08/2004	1
79013A - COVER SUB-ASSY, NO.1 SEAT BACK
79013-26112B3	LH178..08S BLUISH GRAY,TRIM1#	08/2001 - 09/2003	1
79013-26111B1	LH178..08S ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
79013-26111B1	LH178..08S ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
79013-26112B3	LH178..08S BLUISH GRAY,TRIM1#	09/2003 - 08/2004	1
79120A - CUSHION ASSY, NO.1 SEAT
79120-26192B7	LH178..08S **,ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	08/2001 - 08/2003	1
79120-26192B7	LH178..08S ***,BLUISH GRAY,TRIM1#	08/2003 - 08/2004	1
79120-26191B4	LH178..08S **,ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
79120-26191B3	LH178..08S **,ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
79135 - PAD, NO.1 SEAT CUSHION
79135-26011	LH16#,17#,182,188,RZH102,112..06S,08S,09S	08/1998 - 07/1999	1
79140A - BACK ASSY, NO.1 SEAT
79140-26131B3	LH178..08S **,ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
79140-26131B4	LH178..08S **,ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
79140-26132B7	LH178..08S **,ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	08/2001 - 08/2003	1
79140-26132	LH178..08S ***	08/2003 - 08/2004	1
79160 - SPRING ASSY, NO.1 SEAT CUSHION
79160-26170	LH17#,182,RZH112..08S,09S	08/1998 - 07/1999	1
79160-26170	LH178..08S	08/2001 - 09/2003	3
79160-26170	LH178..08S	07/1999 - 08/2001	2
79175 - PAD, NO.1 SEAT BACK
79175-26021	LH16#,17#,182,188,RZH102,112..06S,08S,09S	08/1998 - 07/1999	1
79180 - SPRING ASSY, NO.1 SEAT BACK
79103-26150	LH178..08S	08/2001 - 09/2003	2
79103-26150	LH17#,182,RZH112..08S,09S	08/1998 - 07/1999	1
79103-26150	LH178..08S	07/1999 - 08/2001	2

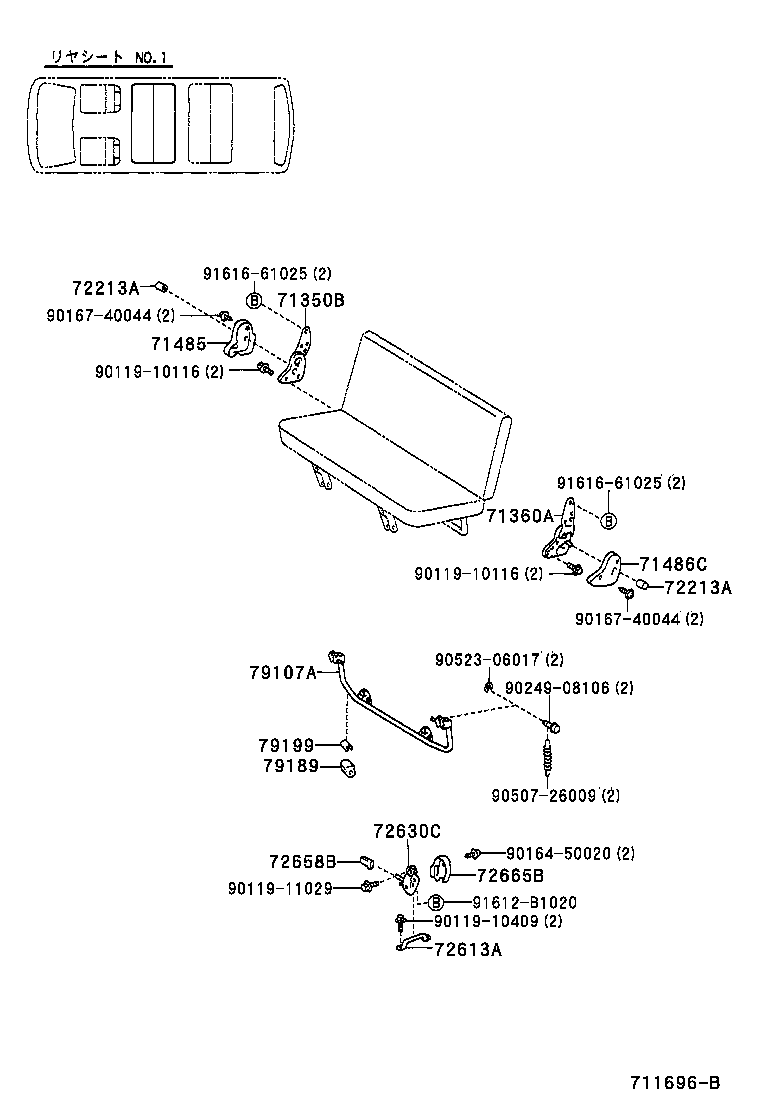

ILLUST NO. 2 OF 4(9808- )LH17#,182,RZH112,18#,TRH112,122..08S,09S

Click highlighted areas on diagram

Part #	Description	Period	Qty
71350B - HINGE ASSY, REAR SEAT, RH
71350-95J45	LH113,119,123,17#,182,RZH112,122..08S,09S	08/1989 - 07/1999	2
71360A - HINGE ASSY, REAR SEAT, LH
71360-95J18	LH113,119,123,17#,182,RZH112,122..08S,09S	08/1989 - 07/1999	2
72613A - STRIKER, FRONT SEAT LOCK
72613-26060	LH17#,182,RZH112..08S,09S	08/1998 - 07/1999	4
72630C - LOCK ASSY, REAR SEAT BACK, RH
72630-26030	LH17#,182,RZH112..08S,09S	08/1998 - 07/1999	4
72658B - KNOB, REAR SEAT LOCK HANDLE
72658-9570111	LH17#,182,RZH112..08S,09S BLUISH GRAY,TRIM1#	08/1998 - 07/1999	4
72665B - COVER, REAR SEAT BACK LOCK
72665-26010B0	LH17#,182,RZH112..08S,09S BLUISH GRAY,TRIM1#	08/1998 - 07/1999	4
79107A - LEG SUB-ASSY, NO.1 SEAT, REAR
79107-26100	LH17#,182,RZH112..08S,09S	08/1998 - 07/1999	1
79189 - STOPPER, NO.1 SEAT LEG
71334-26050	LH16#,17#,182,188,RZH102,112,18#..05S,06S,08S	07/1999 - 08/2002	2
71334-26050	LH17#,182,RZH112..08S,09S	08/1998 - 07/1999	4
Common parts
90119-10116
90119-10409
90119-11029
90164-50020
90167-40044
90249-08106
90507-26009
90523-06017
91612-B1020
91616-61025

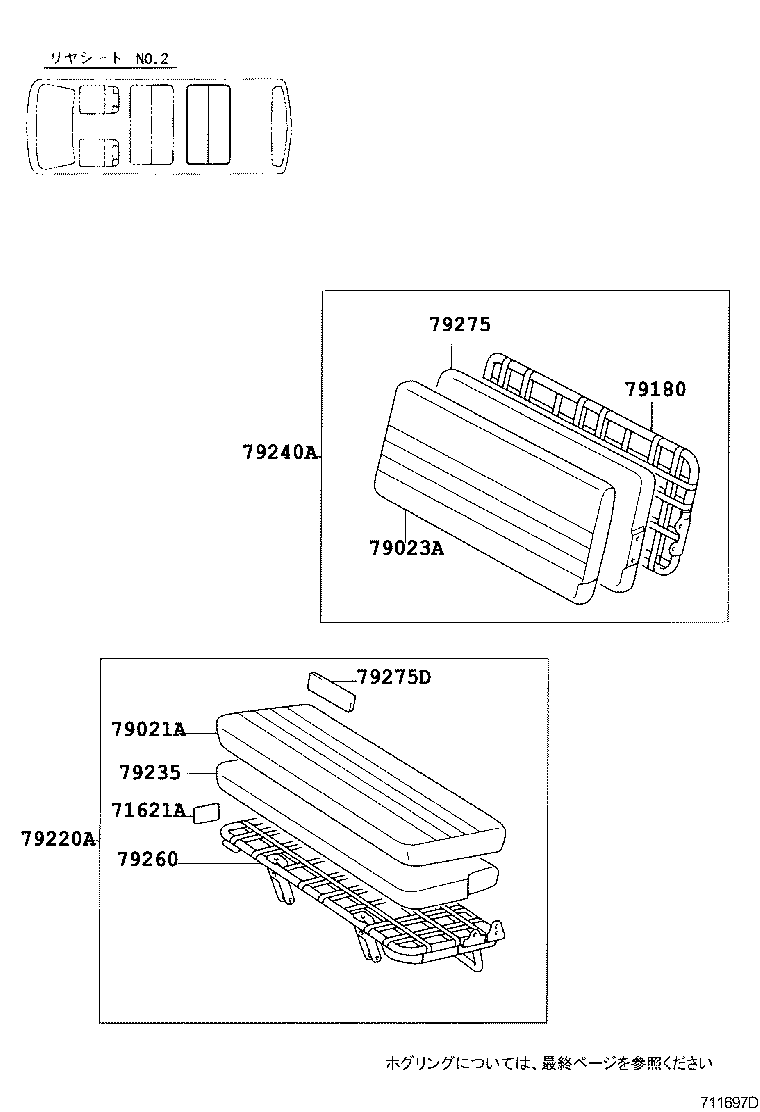

ILLUST NO. 2 OF 4(9808- )LH17#,182,RZH112,18#,TRH112,122..08S,09S

Click highlighted areas on diagram

Part #	Description	Period	Qty
71621A - PAD, REAR SEAT CUSHION SILENCER, A
71621-95701	LH113,119,123,17#,182,RZH112,122..08S,09S	08/1989 - 07/1999	12
79021A - COVER SUB-ASSY, NO.2 SEAT CUSHION
79021-26081B1	LH178..08S ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
79021-26081B1	LH178..08S ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
79021-26082B3	LH178..08S ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	08/2001 - 08/2004	1
79023A - COVER SUB-ASSY, NO.2 SEAT BACK
79013-26111B1	LH178..08S ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
79013-26111B1	LH178..08S ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
79013-26112B3	LH178..08S BLUISH GRAY,TRIM1#	08/2001 - 08/2004	1
79180 - SPRING ASSY, NO.1 SEAT BACK
79103-26150	LH178..08S	08/2001 - 09/2003	2
79103-26150	LH17#,182,RZH112..08S,09S	08/1998 - 07/1999	1
79103-26150	LH178..08S	07/1999 - 08/2001	2
79220A - CUSHION ASSY, NO.2 SEAT
79220-26081B3	LH178..08S **,ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
79220-26081B4	LH178..08S **,ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
79220-26082	LH178..08S ***	08/2003 - 08/2004	1
79220-26082B7	LH178..08S **,ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	08/2001 - 08/2003	1
79235 - PAD, NO.2 SEAT CUSHION
79135-26011	LH17#,182,RZH112..08S,09S	08/1998 - 07/1999	1
79240A - BACK ASSY, NO.2 SEAT
79240-26271B4	LH178..08S **,ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	08/2001 - 08/2003	1
79240-26270B0	LH178..08S **,ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
79240-26270B1	LH178..08S **,ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
79240-26271	LH178..08S ***	08/2003 - 08/2004	1
79260 - SPRING ASSY, NO.2 SEAT CUSHION
79260-26050	LH17#,182,RZH112..08S,09S	08/1998 - 06/1999	1
79160-26170	LH17#,182,RZH112..08S,09S	06/1999 - 07/1999	1
79275 - PAD, NO.2 SEAT BACK
79275-26030	LH17#,182,RZH112..08S,09S	08/1998 - 07/1999	1
79275D - PAD, NO.2 SEAT CUSHION, UNDER
79175-26170	LH178..08S	07/1999 - 08/2004	2

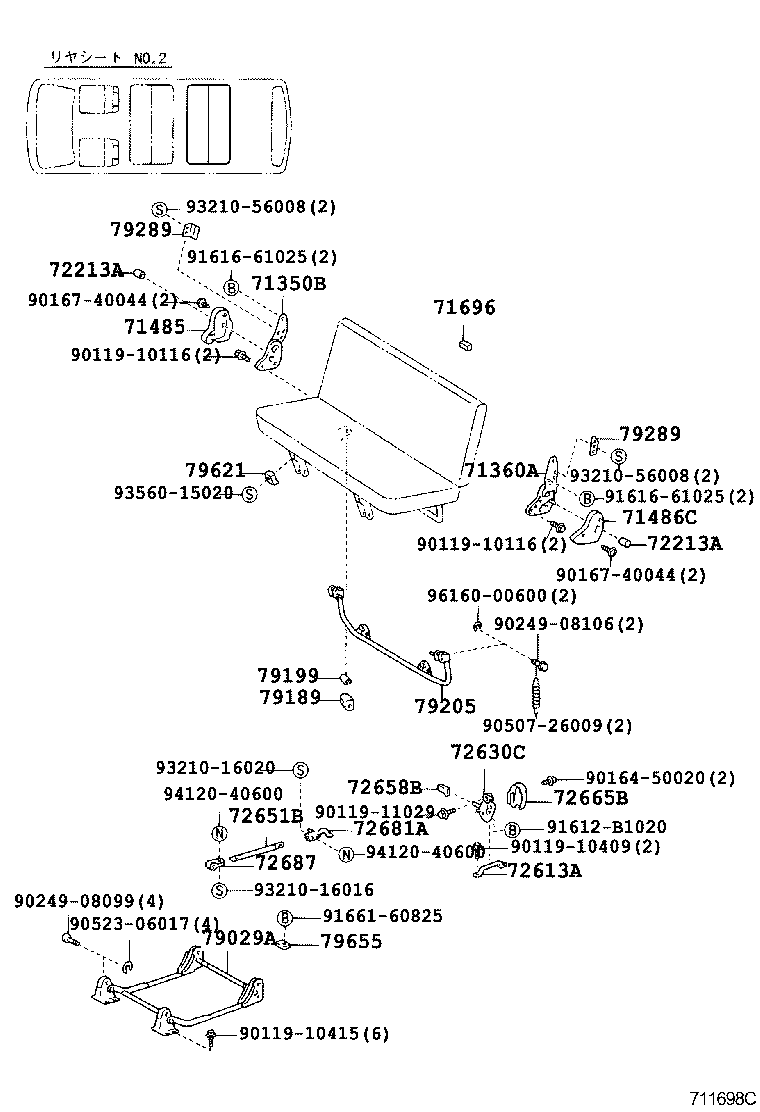

ILLUST NO. 2 OF 4(9808- )LH17#,182,RZH112,18#,TRH112,122..08S,09S

Click highlighted areas on diagram

Part #	Description	Period	Qty
71350B - HINGE ASSY, REAR SEAT, RH
71350-95J45	LH113,119,123,17#,182,RZH112,122..08S,09S	08/1989 - 07/1999	2
71360A - HINGE ASSY, REAR SEAT, LH
71360-95J18	LH113,119,123,17#,182,RZH112,122..08S,09S	08/1989 - 07/1999	2
71696 - PROTECTOR, REAR SEAT, NO.2
71696-28010	LH17#,RZH112,TRH112..08S,09S	07/1999 - 08/2004	2
72613A - STRIKER, FRONT SEAT LOCK
72613-26060	LH17#,182,RZH112..08S,09S	08/1998 - 07/1999	4
72630C - LOCK ASSY, REAR SEAT BACK, RH
72630-26030	LH17#,182,RZH112..08S,09S	08/1998 - 07/1999	4
72651B - ROD, REAR SEAT LOCK
72651-95J04	LH113,119,123,17#,182,RZH112,122..08S,09S	08/1989 - 07/1999	2
72658B - KNOB, REAR SEAT LOCK HANDLE
72658-9570111	LH17#,182,RZH112..08S,09S BLUISH GRAY,TRIM1#	08/1998 - 07/1999	4
72665B - COVER, REAR SEAT BACK LOCK
72665-26010B0	LH17#,182,RZH112..08S,09S BLUISH GRAY,TRIM1#	08/1998 - 07/1999	4
79029A - STAY SUB-ASSY, NO.2 SEAT
79029-26040	LH17#,182,RZH112..08S,09S	08/1998 - 07/1999	1
79189 - STOPPER, NO.1 SEAT LEG
71334-26050	LH16#,17#,182,188,RZH102,112,18#..05S,06S,08S	07/1999 - 08/2002	2
71334-26050	LH17#,182,RZH112..08S,09S	08/1998 - 07/1999	4
79205 - LEG SUB-ASSY, NO.2 SEAT
79206-26050	LH17#,182,RZH112..08S,09S	08/1998 - 07/1999	1
79621 - STOPPER, NO.2 SEAT CUSHION
79621-95J01	LH113,119,123,17#,182,RZH112,122..08S,09S	08/1989 - 07/1999	2
79655 - STRIKER, NO.2 SEAT LEG
79655-95J00	LH17#,182,TRH112..08S,09S	07/1999 - 08/2004	2
79655-95J00	LH113,119,123,17#,182,RZH112,122..08S,09S	08/1989 - 07/1999	2
Common parts
90119-10116
90119-10409
90119-10415
90119-11029
90164-50020
90167-40044
90249-08099
90249-08106
90507-26009
90523-06017
91612-B1020
91616-61025
91661-60825
93210-16016
93210-16020
93210-56008
93560-15020
94120-40600
96160-00600

(9907- )TRH112..SGL,SGLE ; (9907- )KZH10#,11#,120,13#,LH162,17#,182,188,RZH10

Click highlighted areas on diagram

ﾌﾛﾝﾄｼ-ﾄ(ﾍﾂﾄﾞﾚｽﾄﾌﾞﾝﾘｼｷ:2ﾆﾝｶﾞｹｼ-ﾄ)

Part #	Description	Period	Qty
71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH
71013-26070	LH162,17#,184,186,RZH102,112,125..GL,SGL	08/1998 - 07/1999	1
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-26051	LH162,17#,RZH102,112..SGL	08/1998 - 07/1999	1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-26101B2	LH162,17#,RZH102,112..SGL ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71071-26101B2	LH162,17#,RZH102,112..SGL ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-26141B2	LH162,17#,RZH102,112..SGL ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71072-26141B2	LH162,17#,RZH102,112..SGL ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-26181B1	LH162,17#,RZH102,112..SGL ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71073-26181B1	LH162,17#,RZH102,112..SGL ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-26271B1	LH162,17#,RZH102,112..SGL ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71074-26271B1	LH162,17#,RZH102,112..SGL ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-26091B6	LH162,17#,184,186,RZH102,112..(05S,08S,15S)..(DX,SGL) **,ｷﾔﾝﾋﾟﾝｸﾞｶ- & ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71410-26091B8	LH162,17#,RZH102,112..SGL **,ｷﾔﾝﾋﾟﾝｸﾞｶ- & ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-26131B6	LH162,17#,RZH102,112..SGL **,ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71420-26131B8	LH162,17#,RZH102,112..SGL **,ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71401-26091B6	LH162,17#,RZH102,112..SGL **,ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71401-26091B8	LH162,17#,RZH102,112..SGL **,ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71402-26101B6	LH162,17#,RZH102,112..SGL **,ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71402-26101B8	LH162,17#,RZH102,112..SGL **,ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-95J11	RZH102,112..V2;RZH102,112..SGL;LH16#,17#,182,188,RZH12#	08/1998 - 07/1999	1
71511-95J11	RZH102,112..SGL;RZH102,112..V2..5D;LH16#,17#,182,188,RZH111,12#..CD,DX,GL,SGL	07/1999 - 08/2004	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-26050	LH162,17#,RZH102,112..SGL	08/1998 - 07/1999	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-95J18	RZH102,112..V2;LH16#,17#,182,188;RZH102,112,125..GL,SGL GL ﾊﾟﾂｹ-ｼﾞ	08/1998 - 07/1999	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-26100	LH162,17#,RZH102,112..SGL	08/1998 - 07/1999	1
71812C - COVER, RECLINING ADJUSTER, LH
71812-95J00B0	KZH11#..4FC;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,SCM,SCMM,SGL GRAY,TRIM1#,ﾌﾛﾝﾄｼｰﾄ	08/1998 - 07/1999	1
71832D - COVER, FRONT SEAT HINGE, LH
71832-95J01B0	KZH10#,13#,LH162,17#,RZH10#,112..SG..(03S,05S,08S) BLUISH GRAY,TRIM1#,内側	08/1998 - 07/1999	1
71910A - HEADREST ASSY, FRONT SEAT
71910-26041B1	LH162,17#,184,186,RZH102,112..(05S,08S,15S)..(DX,SGL) ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71910-26041B1	LH162,17#,184,186,RZH102,112..(05S,08S,15S)..(DX,SGL) ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71920-26021B1	LH162,17#,184,186,RZH102,112..(05S,08S,15S)..(DX,SGL) ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#,左側	08/1998 - 07/1999	1
71920-26021B1	LH162,17#,184,186,RZH102,112..(05S,08S,15S)..(DX,SGL) ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#,左側	07/1999 - 08/2001	1
71910A - HEADREST ASSY, FRONT SEAT
71910-26041B1	LH162,17#,184,186,RZH102,112..(05S,08S,15S)..(DX,SGL) ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71910-26041B1	LH162,17#,184,186,RZH102,112..(05S,08S,15S)..(DX,SGL) ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71920-26021B1	LH162,17#,184,186,RZH102,112..(05S,08S,15S)..(DX,SGL) ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#,左側	08/1998 - 07/1999	1
71920-26021B1	LH162,17#,184,186,RZH102,112..(05S,08S,15S)..(DX,SGL) ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#,左側	07/1999 - 08/2001	1
71931 - SUPPORT, FRONT SEAT HEADREST
71931-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ無,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71930-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ付,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ無,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71930-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ付,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ無,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71930-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ付,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ無,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71930-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ付,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
72130A - TRACK ASSY, FRONT SEAT, INNER RH
72130-26010	KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S	08/1998 - 07/1999	1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-95J01B0	KZH11#,LH16#,17#,18#,RZH102,11#,12#,133 BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
Common parts
90105-08109
90119-08079
90119-08086
90119-08269
90119-10101
90119-10854
90167-40044
90179-10073
90386-12051
90467-08008
90530-06007
91611-B0616
93540-54012
Linked diagrams
7152
8401

(9907-0208)KZH13#,LH16#,17#,18#,RZH102,112,12#,18# ; (0208- )KZH13#,LH16#,17#,18

Click highlighted areas on diagram

ﾌﾛﾝﾄｼ-ﾄ(ﾍﾂﾄﾞﾚｽﾄｲﾂﾀｲｼｷ:3ﾆﾝｶﾞｹｼ-ﾄ)

Part #	Description	Period	Qty
71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH
71013-26070	LH162,17#,184,186,RZH102,112,125..GL,SGL	08/1998 - 07/1999	1
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-26051	LH162,17#,RZH102,112..SGL	08/1998 - 07/1999	1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-26101B2	LH162,17#,RZH102,112..SGL ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71071-26101B2	LH162,17#,RZH102,112..SGL ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-26141B2	LH162,17#,RZH102,112..SGL ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71072-26141B2	LH162,17#,RZH102,112..SGL ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-26181B1	LH162,17#,RZH102,112..SGL ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71073-26181B1	LH162,17#,RZH102,112..SGL ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-26271B1	LH162,17#,RZH102,112..SGL ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71074-26271B1	LH162,17#,RZH102,112..SGL ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71274 - KNOB, FRONT SEAT HINGE
71274-95J00B0	KZH11#,LH16#,17#,18#,RZH102,11#,12#,133..CD,DX,GL BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71358 - PAD, CENTER SEAT BACK
71033-95J00	LH16#,17#,18#,RZH102,112,12#..CD,DX,GL	08/1998 - 07/1999	1
71392 - COVER, CENTER SEAT CUSHION BRACKET, LH
71392-95J04B0	RZH102,112..V2;LH16#,17#,18#,RZH12#..CD,DX,GL BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71395B - COVER, CENTER SEAT HINGE, RH
71395-95J02B0	LH16#,17#,18#,RZH102,112,12#..CD,DX,GL BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-26091B6	LH162,17#,184,186,RZH102,112..(05S,08S,15S)..(DX,SGL) **,ｷﾔﾝﾋﾟﾝｸﾞｶ- & ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71410-26091B8	LH162,17#,RZH102,112..SGL **,ｷﾔﾝﾋﾟﾝｸﾞｶ- & ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-26131B6	LH162,17#,RZH102,112..SGL **,ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71420-26131B8	LH162,17#,RZH102,112..SGL **,ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71401-26091B6	LH162,17#,RZH102,112..SGL **,ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71401-26091B8	LH162,17#,RZH102,112..SGL **,ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71402-26101B6	LH162,17#,RZH102,112..SGL **,ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71402-26101B8	LH162,17#,RZH102,112..SGL **,ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-95J11	RZH102,112..V2;RZH102,112..SGL;LH16#,17#,182,188,RZH12#	08/1998 - 07/1999	1
71511-95J11	RZH102,112..SGL;RZH102,112..V2..5D;LH16#,17#,182,188,RZH111,12#..CD,DX,GL,SGL	07/1999 - 08/2004	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-26050	LH162,17#,RZH102,112..SGL	08/1998 - 07/1999	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-95J18	RZH102,112..V2;LH16#,17#,182,188;RZH102,112,125..GL,SGL GL ﾊﾟﾂｹ-ｼﾞ	08/1998 - 07/1999	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-26100	LH162,17#,RZH102,112..SGL	08/1998 - 07/1999	1
71832D - COVER, FRONT SEAT HINGE, LH
71832-95J01B0	KZH10#,13#,LH162,17#,RZH10#,112..SG..(03S,05S,08S) BLUISH GRAY,TRIM1#,内側	08/1998 - 07/1999	1
72130A - TRACK ASSY, FRONT SEAT, INNER RH
72130-26010	KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S	08/1998 - 07/1999	1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-95J01B0	KZH11#,LH16#,17#,18#,RZH102,11#,12#,133 BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
72658C - KNOB, FRONT SEAT LOCK HANDLE
72658-9570111	LH16#,17#,18#,RZH102,112,12#..CD,DX,GL BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
Common parts
90105-08109
90119-08079
90119-10101
90119-10854
90119-10855
90167-40044
90179-10073
90386-12051
90467-08008
90523-08001
93540-54012
Linked diagrams
5855
7152

(9907- )GL ; (9907- )LH16#,17#,182,188,RZH102,112,18#,TRH102,112,122..03S,06S

Click highlighted areas on diagram

ﾌﾛﾝﾄｼ-ﾄ(ﾍﾂﾄﾞﾚｽﾄﾌﾞﾝﾘｼｷ:3ﾆﾝｶﾞｹｼ-ﾄ)

Part #	Description	Period	Qty
71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH
71013-26070	LH162,17#,184,186,RZH102,112,125..GL,SGL	08/1998 - 07/1999	1
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-26051	LH162,17#,RZH102,112..SGL	08/1998 - 07/1999	1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-26101B2	LH162,17#,RZH102,112..SGL ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71071-26101B2	LH162,17#,RZH102,112..SGL ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-26141B2	LH162,17#,RZH102,112..SGL ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71072-26141B2	LH162,17#,RZH102,112..SGL ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-26181B1	LH162,17#,RZH102,112..SGL ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71073-26181B1	LH162,17#,RZH102,112..SGL ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-26271B1	LH162,17#,RZH102,112..SGL ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71074-26271B1	LH162,17#,RZH102,112..SGL ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71274 - KNOB, FRONT SEAT HINGE
71274-95J00B0	KZH11#,LH16#,17#,18#,RZH102,11#,12#,133..CD,DX,GL BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71358 - PAD, CENTER SEAT BACK
71033-95J00	LH16#,17#,18#,RZH102,112,12#..CD,DX,GL	08/1998 - 07/1999	1
71392 - COVER, CENTER SEAT CUSHION BRACKET, LH
71392-95J04B0	RZH102,112..V2;LH16#,17#,18#,RZH12#..CD,DX,GL BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71395B - COVER, CENTER SEAT HINGE, RH
71395-95J02B0	LH16#,17#,18#,RZH102,112,12#..CD,DX,GL BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-26091B6	LH162,17#,184,186,RZH102,112..(05S,08S,15S)..(DX,SGL) **,ｷﾔﾝﾋﾟﾝｸﾞｶ- & ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71410-26091B8	LH162,17#,RZH102,112..SGL **,ｷﾔﾝﾋﾟﾝｸﾞｶ- & ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-26131B6	LH162,17#,RZH102,112..SGL **,ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71420-26131B8	LH162,17#,RZH102,112..SGL **,ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71401-26091B6	LH162,17#,RZH102,112..SGL **,ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71401-26091B8	LH162,17#,RZH102,112..SGL **,ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71402-26101B6	LH162,17#,RZH102,112..SGL **,ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71402-26101B8	LH162,17#,RZH102,112..SGL **,ｼ-ﾄ = TYPE F-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-95J11	RZH102,112..V2;RZH102,112..SGL;LH16#,17#,182,188,RZH12#	08/1998 - 07/1999	1
71511-95J11	RZH102,112..SGL;RZH102,112..V2..5D;LH16#,17#,182,188,RZH111,12#..CD,DX,GL,SGL	07/1999 - 08/2004	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-26050	LH162,17#,RZH102,112..SGL	08/1998 - 07/1999	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-95J18	RZH102,112..V2;LH16#,17#,182,188;RZH102,112,125..GL,SGL GL ﾊﾟﾂｹ-ｼﾞ	08/1998 - 07/1999	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-26100	LH162,17#,RZH102,112..SGL	08/1998 - 07/1999	1
71812C - COVER, RECLINING ADJUSTER, LH
71812-95J00B0	KZH11#..4FC;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,SCM,SCMM,SGL GRAY,TRIM1#,ﾌﾛﾝﾄｼｰﾄ	08/1998 - 07/1999	1
71832D - COVER, FRONT SEAT HINGE, LH
71832-95J01B0	KZH10#,13#,LH162,17#,RZH10#,112..SG..(03S,05S,08S) BLUISH GRAY,TRIM1#,内側	08/1998 - 07/1999	1
71910A - HEADREST ASSY, FRONT SEAT
71910-26041B1	LH162,17#,184,186,RZH102,112..(05S,08S,15S)..(DX,SGL) ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71910-26041B1	LH162,17#,184,186,RZH102,112..(05S,08S,15S)..(DX,SGL) ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71920-26021B1	LH162,17#,184,186,RZH102,112..(05S,08S,15S)..(DX,SGL) ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#,左側	08/1998 - 07/1999	1
71920-26021B1	LH162,17#,184,186,RZH102,112..(05S,08S,15S)..(DX,SGL) ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#,左側	07/1999 - 08/2001	1
71910A - HEADREST ASSY, FRONT SEAT
71910-26041B1	LH162,17#,184,186,RZH102,112..(05S,08S,15S)..(DX,SGL) ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71910-26041B1	LH162,17#,184,186,RZH102,112..(05S,08S,15S)..(DX,SGL) ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#	07/1999 - 08/2001	1
71920-26021B1	LH162,17#,184,186,RZH102,112..(05S,08S,15S)..(DX,SGL) ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#,左側	08/1998 - 07/1999	1
71920-26021B1	LH162,17#,184,186,RZH102,112..(05S,08S,15S)..(DX,SGL) ｼ-ﾄ = TYPE F-*104,BLUISH GRAY,TRIM1#,左側	07/1999 - 08/2001	1
71931 - SUPPORT, FRONT SEAT HEADREST
71931-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ無,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71930-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ付,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ無,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71930-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ付,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ無,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71930-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ付,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ無,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71930-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ付,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
72130A - TRACK ASSY, FRONT SEAT, INNER RH
72130-26010	KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S	08/1998 - 07/1999	1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-95J01B0	KZH11#,LH16#,17#,18#,RZH102,11#,12#,133 BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
72658C - KNOB, FRONT SEAT LOCK HANDLE
72658-9570111	LH16#,17#,18#,RZH102,112,12#..CD,DX,GL BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
Common parts
90105-08109
90119-08079
90119-10101
90119-10854
90119-10855
90167-40044
90179-10073
90386-12051
90467-08008
90523-08001
93540-54012
Linked diagrams
5855
7152

LH178V-RHPES (1998)

ILLUST NO. 1 OF 4(8908-9907)

ILLUST NO. 1 OF 5(8908-9907)DX,GCGE,GCGN,SCL,SGL,SW

ILLUST NO. 2 OF 4(9808- )LH17#,182,RZH112,18#,TRH112,122..08S,09S

ILLUST NO. 2 OF 4(9808- )LH17#,182,RZH112,18#,TRH112,122..08S,09S

ILLUST NO. 2 OF 4(9808- )LH17#,182,RZH112,18#,TRH112,122..08S,09S

ILLUST NO. 2 OF 4(9808- )LH17#,182,RZH112,18#,TRH112,122..08S,09S

(9907- )TRH112..SGL,SGLE ; (9907- )KZH10#,11#,120,13#,LH162,17#,182,188,RZH10

(9907-0208)KZH13#,LH16#,17#,18#,RZH102,112,12#,18# ; (0208- )KZH13#,LH16#,17#,18

(9907- )GL ; (9907- )LH16#,17#,182,188,RZH102,112,18#,TRH102,112,122..03S,06S

Part Price Details
