Toyota Hiace/regiusace LH178 BACK DOOR PANEL & GLASS

Manufacturers Home
Toyota
JP
HIACE/REGIUSACE
LH178V-RHPES (1998)
6761 - BACK DOOR PANEL & GLASS

LH178V-RHPES (1998)

Toyota Hiace/Regiusace

Production Aug 1998 - Aug 2004

Engine 5L

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

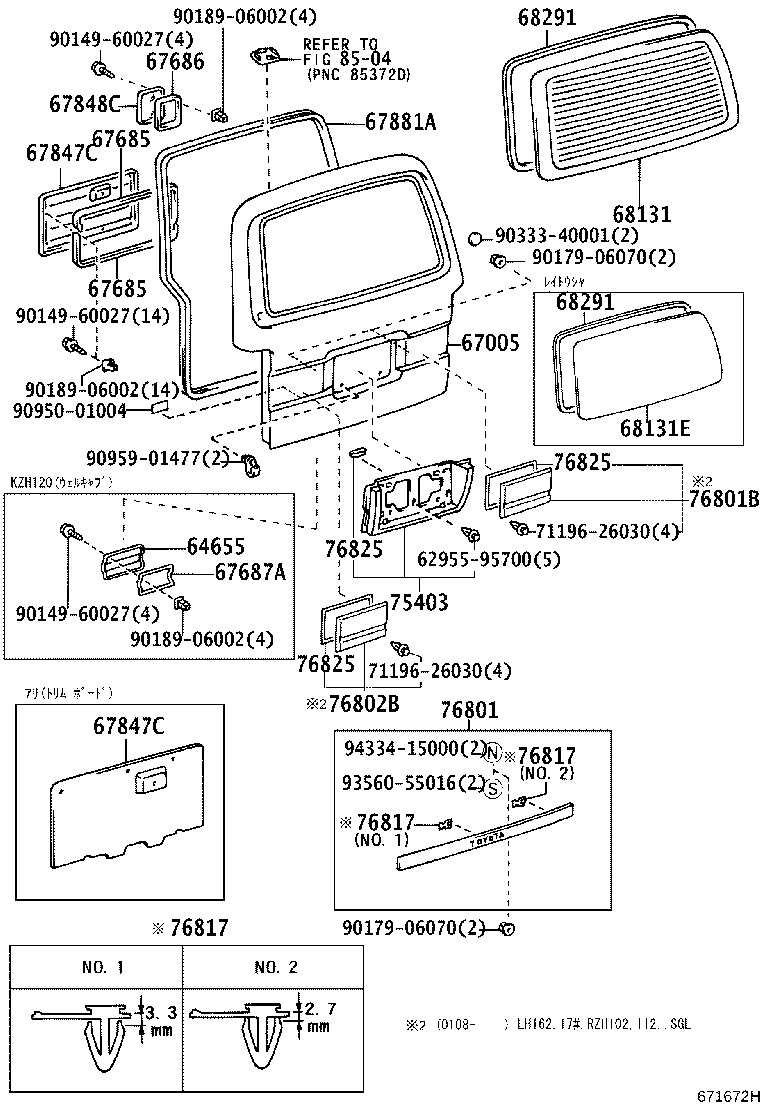

ILLUST NO. 2 OF 2(8908-9907)

Click highlighted areas on diagram

Part #	Description	Period	Qty
67005 - PANEL SUB-ASSY, BACK DOOR
67005-95N63	LH162,17#,RZH102,112..SGL ｱﾘ(RWD & RW & *RUM & ﾊﾞﾂｸﾄﾞｱﾄﾘﾑ)	07/1999 - 08/2001	1
60751-26830	LH162,17#,RZH102,112,TRH102,112..SGL	08/2001 - 08/2004	1
67847C - COVER, BACK DOOR SERVICE HOLE, NO.1
67847-95J09	KZH13#,LH162,17#,RZH102,112,TRH102,112..(03S,05S,08S)..(DX,SGL)	07/1999 - 08/2004	1
67847C - COVER, BACK DOOR SERVICE HOLE, NO.1
67847-95J09	KZH13#,LH162,17#,RZH102,112,TRH102,112..(03S,05S,08S)..(DX,SGL)	07/1999 - 08/2004	1
67881A - WEATHERSTRIP, BACK DOOR
67881-95J16	KZH10#,11#,LH16#,17#,RZH10#,11#,TRH102,112..MRF,SMRF,SRF	07/1999 - 08/2004	1
68131 - GLASS, BACK DOOR
68131-26290	LH16#,17#,182,188,RZH102,112,18# *EHT,厚さ=3.5,ｸﾞﾚｰ	07/1999 - 02/2003	1
76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH
76825-26090	LH162,17#,RZH102,112,TRH102,112..SGL 右側	08/2001 - 08/2004	1
76835-26010	LH162,17#,RZH102,112,TRH102,112..SGL 左側	08/2001 - 08/2004	1
76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH
76825-26090	LH162,17#,RZH102,112,TRH102,112..SGL 右側	08/2001 - 08/2004	1
76835-26010	LH162,17#,RZH102,112,TRH102,112..SGL 左側	08/2001 - 08/2004	1
Common parts
62955-95700
67921-32010
71196-26030
90149-60027
90179-06070
90189-06002
90333-40001
90430-05003
90950-01004
90959-01477
93560-14010
93560-55016
94334-15000
Linked diagrams
7552
8113
8504

ILLUST NO. 2 OF 2(9907- )KZH120,13#,LH16#,17#,18#,RZH102,11#,12#,18#

Click highlighted areas on diagram

Part #	Description	Period	Qty
67005 - PANEL SUB-ASSY, BACK DOOR
67005-95N63	LH162,17#,RZH102,112..SGL ｱﾘ(RWD & RW & *RUM & ﾊﾞﾂｸﾄﾞｱﾄﾘﾑ)	07/1999 - 08/2001	1
60751-26830	LH162,17#,RZH102,112,TRH102,112..SGL	08/2001 - 08/2004	1
67847C - COVER, BACK DOOR SERVICE HOLE, NO.1
67847-95J09	KZH13#,LH162,17#,RZH102,112,TRH102,112..(03S,05S,08S)..(DX,SGL)	07/1999 - 08/2004	1
67847C - COVER, BACK DOOR SERVICE HOLE, NO.1
67847-95J09	KZH13#,LH162,17#,RZH102,112,TRH102,112..(03S,05S,08S)..(DX,SGL)	07/1999 - 08/2004	1
67881A - WEATHERSTRIP, BACK DOOR
67881-95J16	KZH10#,11#,LH16#,17#,RZH10#,11#,TRH102,112..MRF,SMRF,SRF	07/1999 - 08/2004	1
68131 - GLASS, BACK DOOR
68131-26290	LH16#,17#,182,188,RZH102,112,18# *EHT,厚さ=3.5,ｸﾞﾚｰ	07/1999 - 02/2003	1
76801B - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE RH
76801-26161	LH162,17#,RZH102,112,TRH102,112..SGL	08/2001 - 08/2004	1
76802B - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE LH
76802-26021	LH162,17#,RZH102,112,TRH102,112..SGL	08/2001 - 08/2004	1
76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH
76825-26090	LH162,17#,RZH102,112,TRH102,112..SGL 右側	08/2001 - 08/2004	1
76835-26010	LH162,17#,RZH102,112,TRH102,112..SGL 左側	08/2001 - 08/2004	1
76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH
76825-26090	LH162,17#,RZH102,112,TRH102,112..SGL 右側	08/2001 - 08/2004	1
76835-26010	LH162,17#,RZH102,112,TRH102,112..SGL 左側	08/2001 - 08/2004	1
76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH
76825-26090	LH162,17#,RZH102,112,TRH102,112..SGL 右側	08/2001 - 08/2004	1
76835-26010	LH162,17#,RZH102,112,TRH102,112..SGL 左側	08/2001 - 08/2004	1
Common parts
62955-95700
71196-26030
90149-60027
90179-06070
90189-06002
90333-40001
90950-01004
90959-01477
93560-55016
94334-15000
Linked diagrams
8504

LH178V-RHPES (1998)

ILLUST NO. 2 OF 2(8908-9907)

ILLUST NO. 2 OF 2(9907- )KZH120,13#,LH16#,17#,18#,RZH102,11#,12#,18#
