LH178V-RHPES (1998)

Toyota Hiace/Regiusace

Production Aug 1998 - Aug 2004
Engine 5L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9907- )GL ; (9907- )KZH11#

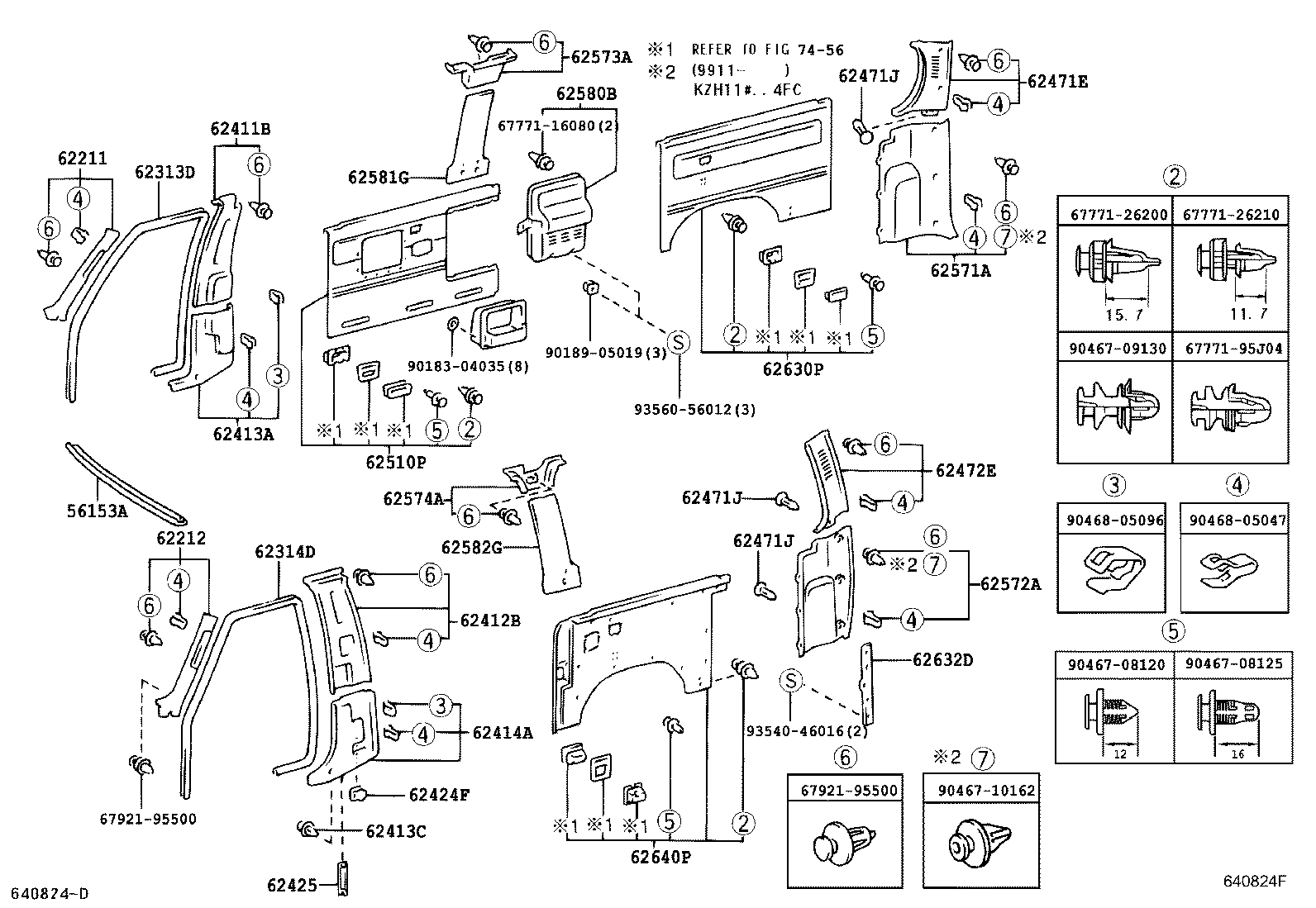

Click highlighted areas on diagram

diagram 56153A 62211 62212 62313D 62314D 62411B 62412B 62413A 62413C 62414A 62424F 62425 62471E 62471J 62471J 62471J 62472E 62510P 62571A 62572A 62573A 62574A 62580B 62581G 62582G 62630P 62632D 62640P 6777116080 6777126200 6777126210 6777195J04 6792195500 6792195500 7456 9018304035 9018905019 9046708120 9046708125 9046709130 9046710162 9046805047 9046805096 9354046016 9356056012
Part # Description Qty Price
62211 - GARNISH, FRONT PILLAR, RH
62211-95J07B1

LH16#,17#,18#,RZH102,112,12#..CD,DX,GL

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1#

 1
62211-95J10B3

KZH11#,13#,LH178,184,186,RZH111,12#,133..SG..(03S,08S,10S,15S)

LT.BLUISH GRAY,TRIM1#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-95J10B3

KZH11#,13#,LH178,184,186,RZH111,12#,133..SG..(03S,08S,10S,15S)

LT.BLUISH GRAY,TRIM1#

 1
62212-95J07B1

LH16#,17#,18#,RZH102,112,12#..CD,DX,GL

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-95J03B1

LH184,186,RZH125..GL;KZH11#,13#,LH178..SG..(03S,08S,10S)

BLUISH GRAY,TRIM1#

 1
62413C - CLIP (FOR CENTER LOWER GARNISH)
90467-10034B0

KZH10#,LH16#,17#,18#,RZH10#,112,12#,133..DX,GL,SCM,SCMM,SGL

BLUISH GRAY,TRIM1#

 1
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-26110B0

LH16#,17#,18#..06S,08S,09S,15S

BLUISH GRAY,TRIM1#

 1
62414-26110B0

LH178..08S;LH16#,17#,18#..CD,DX,GL,SGLE

BLUISH GRAY,TRIM1#

 1
62424F - COVER, CENTER PILLAR GARNISH, LOWER LH
62424-95J01B0

LH16#,17#,18#..SG

BLUISH GRAY,TRIM1#

 1
62425 - COVER, CENTER PILLAR GARNISH
62424-26020B0

LH16#,17#,18#

BLUISH GRAY,TRIM1#

 1
62424-26020B0

LH16#,17#,18#..SG

BLUISH GRAY,TRIM1#

 1
62471E - GARNISH, ROOF SIDE, INNER UPPER RH
62471-26080B1

LH178..08S

LT.BLUISH GRAY,TRIM1#

 1
62472E - GARNISH, ROOF SIDE, INNER UPPER LH
62472-26080B1

LH178..08S

LT.BLUISH GRAY,TRIM1#

 1
62510P - PANEL ASSY, QUARTER TRIM, FRONT RH
62510-26201B0

LH178..08S

BLUISH GRAY,TRIM1#

 1
62510-26660B0

LH178..08S

BLUISH GRAY,TRIM1#

 1
62580B - BOARD ASSY, SIDE HEATER COVER, RH
62580-95J05B0

LH184,186..GL;KZH13#,LH16#,17#,182,188,TRH102,112..V1..4D..SG

BLUISH GRAY,TRIM1#

 1
62630P - PANEL ASSY, QUARTER TRIM, REAR RH
62630-26303B0

LH178..08S

ｱﾘ(ｱｸｾｻﾘ ｿｹﾂﾄ=100V),BLUISH GRAY,TRIM1#

 1
62630-2F340B0

LH178..08S

ｱﾘ(ｱｸｾｻﾘ ｿｹﾂﾄ=100V & ｽﾋﾟ-ｶ),BLUISH GRAY,TRIM1#

 1
62630-2F340B0

LH178..08S

ｱﾘ(ｱｸｾｻﾘ ｿｹﾂﾄ=100V & ｽﾋﾟ-ｶ),BLUISH GRAY,TRIM1#

 1
62630-26303B0

LH178..08S

ｱﾘ(ｱｸｾｻﾘ ｿｹﾂﾄ=100V),BLUISH GRAY,TRIM1#

 1
62630-26302B0

LH178..08S

ｱﾘ(ｽﾋﾟ-ｶ),BLUISH GRAY,TRIM1#

 1
62630-26301B0

LH178..08S

BLUISH GRAY,TRIM1#

 1
62630-26301B2

LH178..08S

BLUISH GRAY,TRIM1#

 1
62630-26303B2

LH178..08S

ｱﾘ(ｱｸｾｻﾘ ｿｹﾂﾄ=100V),BLUISH GRAY,TRIM1#

 1
62630-26302B2

LH178..08S

ｱﾘ(ｽﾋﾟ-ｶ),BLUISH GRAY,TRIM1#

 1
62630-2F340B2

LH178..08S

ｱﾘ(ｱｸｾｻﾘ ｿｹﾂﾄ=100V & ｽﾋﾟ-ｶ),BLUISH GRAY,TRIM1#

 1
62640P - PANEL ASSY, QUARTER TRIM, REAR LH
62640-26222B0

LH178..08S

ｱﾘ(ｽﾋﾟ-ｶ),BLUISH GRAY,TRIM1#

 1
62640-26221B0

LH178..08S

BLUISH GRAY,TRIM1#

 1
62640-26221B2

LH178..08S

BLUISH GRAY,TRIM1#

 1
62640-26222B2

LH178..08S

ｱﾘ(ｽﾋﾟ-ｶ),BLUISH GRAY,TRIM1#

 1
Common parts
67771-16080
67771-26200
67771-26210
67771-95J04
67921-95500
90183-04035
90189-05019
90467-08120
90467-08125
90467-09130
90467-10162
90468-05047
90468-05096
93540-46016
93560-56012
Linked diagrams
7456
