LH178V-RHPES (1998)
Toyota Hiace/Regiusace

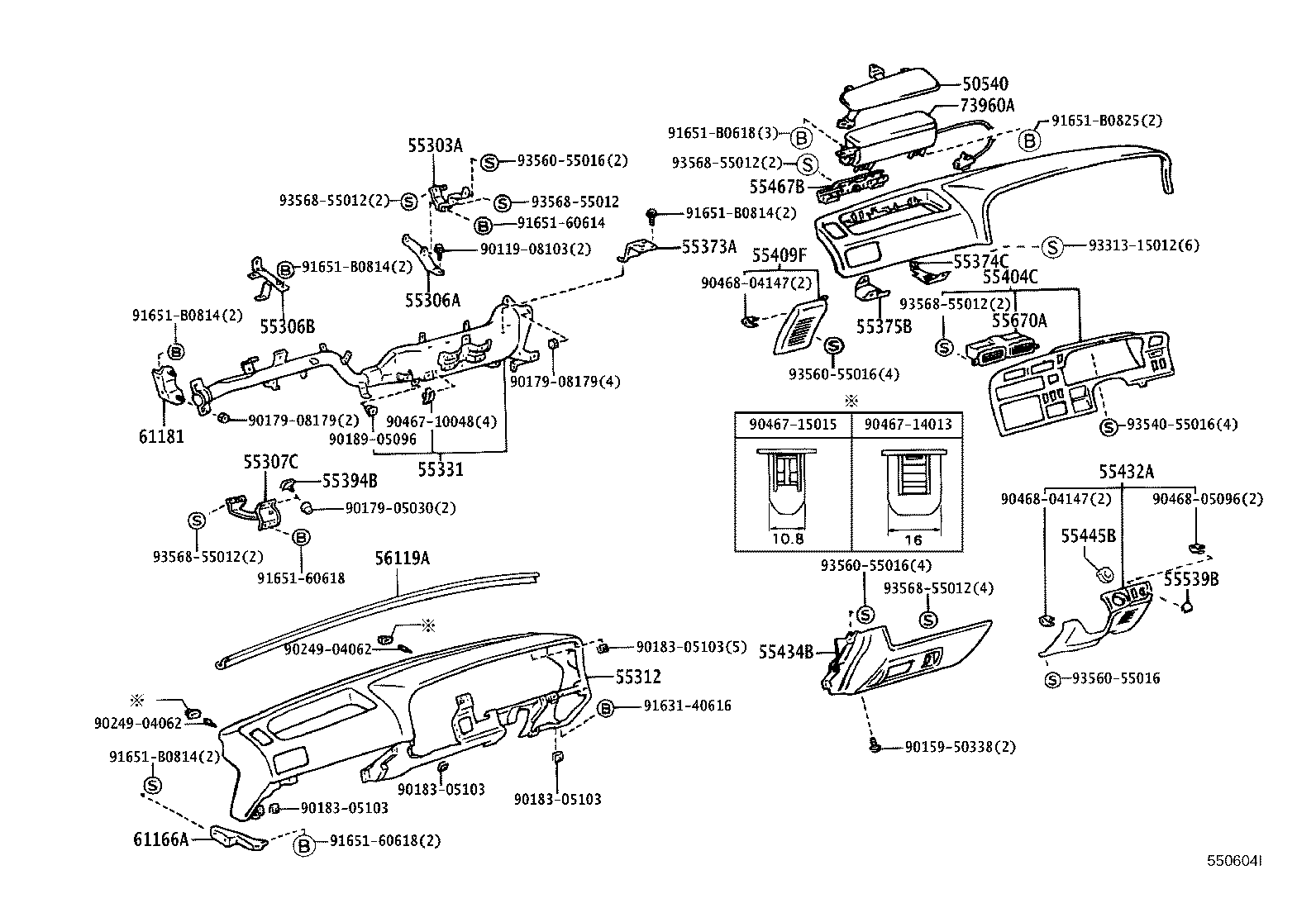

ILLUST NO. 1 OF 2(9907- )LH16#,17#,18#,RZH102,112,12#,18#,TRH102,112,12#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 50540 - DO0R ASSY, AIR BAG PASSENGER | ||||
| 50540-26070B0 |
LH16#,17#,18#,RZH102,112,12# BLUISH GRAY,TRIM1# |
1 | ||
| 50540-26070B0 |
KZH11#,LH16#,17#,18#,TRH102,112 BLUISH GRAY,TRIM1# |
1 | ||
| 55303A - STAY SUB-ASSY, INSTRUMENT PANEL | ||||
| 55303-95J05 |
LH16#,17#,18#,RZH102,112,12# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-95J01 |
KZH10#,11#,120,13#,LH16#,17#,18#,TRH102,112 |
1 | ||
| 55306-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-95J05 |
LH16#,17#,18#,RZH102,112,12# |
1 | ||
| 55312 - PANEL, INSTRUMENT, LOWER | ||||
| 55312-26070B0 |
LH16#,17#,18#,RZH102,112,12# ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1# |
1 | ||
| 55312-95J09B0 |
LH16#,17#,18#,RZH102,112,12# BLUISH GRAY,TRIM1# |
1 | ||
| 55312-26071B0 |
LH16#,17#,18#,RZH102,112,12# ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1# |
1 | ||
| 55312-26110B0 |
LH16#,17#,18#,RZH102,112,12# BLUISH GRAY,TRIM1# |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-26140 |
LH16#,17#,18#,RZH102,112,12# ｱﾘ(ABS OR SRS ｴｱﾊﾞﾂｸﾞ);ｱﾘ(ABS & SRS ｴｱﾊﾞﾂｸﾞ) |
1 | ||
| 55330-26041 |
LH16#,17#,18#,RZH102,112,12#..CD,DX,GL |
1 | ||
| 55330-26141 |
LH16#,17#,18#,RZH102,112,12#,18# ｱﾘ(ABS OR SRS ｴｱﾊﾞﾂｸﾞ);ｱﾘ(ABS & SRS ｴｱﾊﾞﾂｸﾞ) |
1 | ||
| 55330-26042 |
LH16#,17#,18#,RZH102,112,12#,18#..CD,DX,GL,SGLE |
1 | ||
| 55373A - BRACKET, OIL RESERVOIR TANK | ||||
| 55373-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 55374C - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1 | ||||
| 55374-26040 |
LH16#,17#,18#,RZH102,112,12# |
1 | ||
| 55374-26040 |
KZH11#,LH16#,17#,18#,TRH102,112 |
1 | ||
| 55375B - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2 | ||||
| 55375-26020 |
KZH11#,LH16#,17#,18#,TRH102,112 |
1 | ||
| 55375-26020 |
LH16#,17#,18#,RZH102,112,12# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-26260 |
LH162,17#,RZH102,112..SGL |
1 | ||
| 55404-26360 |
LH162,17#,RZH102,112,TRH102,112..SGL |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-26010B0 |
KZH10#,11#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..CD,DX,GL,SCM,SCMM,SGL BLUISH GRAY,TRIM1# |
1 | ||
| 55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55432-26021B0 |
KZH10#,11#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..CD,DX,GL,SCM,SCMM,SGL BLUISH GRAY,TRIM1# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-26031B0 |
LH16#,17#,18#,RZH102,112,12# BLUISH GRAY,TRIM1# |
1 | ||
| 55434-26030B0 |
LH16#,17#,18#,RZH102,112,12# BLUISH GRAY,TRIM1# |
1 | ||
| 55467B - RETAINER, INSTRUMENT PANEL SAFETY PAD, NO.2 | ||||
| 55303-26020 |
KZH11#,LH16#,17#,18#,TRH102,112 |
1 | ||
| 55303-26020 |
LH16#,17#,18#,RZH102,112,12# |
1 | ||
| 56119A - SEAL, WINDSHIELD GLASS | ||||
| 56151-26010 |
KZH11#,LH16#,17#,18#,TRH102,112 |
1 | ||
| 56151-26010 |
LH16#,17#,18#,RZH102,112,12# |
1 | ||
| 61166A - BRACKET, INSTRUMENT PANEL TO COWL SIDE, LH | ||||
| 61166-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 61166-95J00 |
KZH10#,11#,120,13#,LH16#,17#,18#,TRH102,112 |
1 | ||
| 61181 - BRACKET, INSTRUMENT PANEL SIDE | ||||
| 61181-95J04 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 61181-95J04 |
KZH10#,11#,120,13#,LH16#,17#,18#,TRH102,112 |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-26100 |
LH16#,17#,18#,RZH102,112,12# |
1 | ||
| 73960-26130 |
KZH11#,LH16#,17#,18#,TRH102,112 |
1 | ||
| Common parts | ||||
| 90119-08103 | ||||
| 90159-50338 | ||||
| 90179-05030 | ||||
| 90179-08179 | ||||
| 90183-05103 | ||||
| 90189-05096 | ||||
| 90249-04062 | ||||
| 90467-10048 | ||||
| 90467-14013 | ||||
| 90467-15015 | ||||
| 90468-04147 | ||||
| 90468-05096 | ||||
| 91631-40616 | ||||
| 91651-60614 | ||||
| 91651-60618 | ||||
| 91651-B0618 | ||||
| 91651-B0814 | ||||
| 91651-B0825 | ||||
| 93313-15012 | ||||
| 93540-55016 | ||||
| 93560-55016 | ||||
| 93568-55012 | ||||

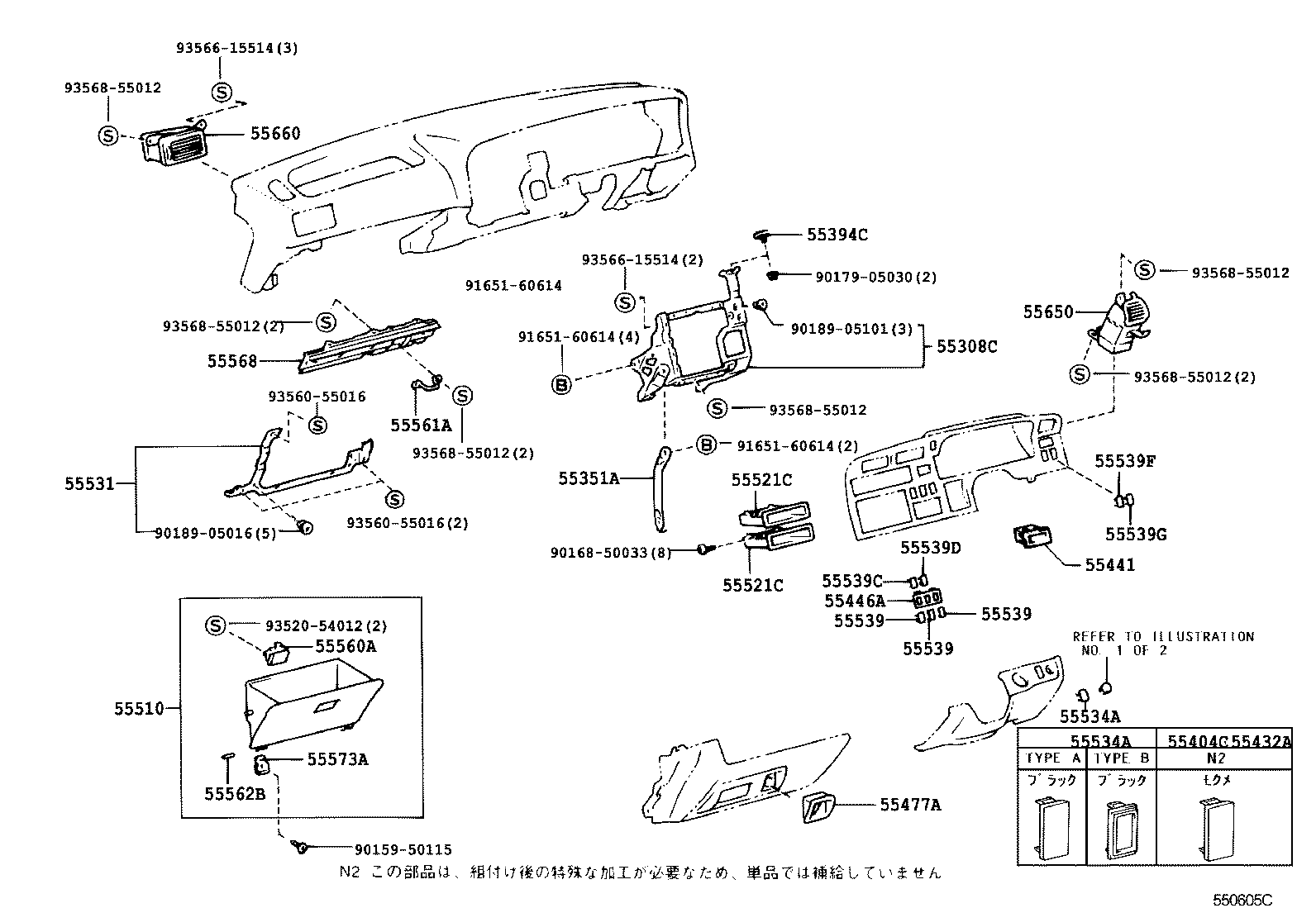

ILLUST NO. 2 OF 2(9907- )LH16#,17#,18#,RZH102,112,12#,18#,TRH102,112,12#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-26020 |
LH16#,17#,18#,RZH102,112,12# |
1 | ||
| 55351A - BRACE, INSTRUMENT PANEL TO FLOOR | ||||
| 55351-26050 |
LH16#,17#,18#,RZH102,112,12# |
1 | ||
| 55351-26050 |
KZH11#,LH16#,17#,18#,TRH102,112 |
1 | ||
| 55394C - BOLT, INSTRUMENT PANEL | ||||
| 55394-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-26260 |
LH162,17#,RZH102,112..SGL |
1 | ||
| 55404-26360 |
LH162,17#,RZH102,112,TRH102,112..SGL |
1 | ||
| 55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55432-26021B0 |
KZH10#,11#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..CD,DX,GL,SCM,SCMM,SGL BLUISH GRAY,TRIM1# |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55440-26050 |
KZH10#,11#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..CD,DX,GL,SCL,SCM,SCMM |
2 | ||
| 55440-26050 |
LH16#,17#,18#,TRH102,112..CD,DX,GL,SGLE |
2 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-95J00 |
KZH10#,12#,13#,LH16#,17#,18#,RZH10#,112,12#,133..CD,DX,GCGE,GCGN,GL,SCL,SCM,SCMM |
1 | ||
| 55446-26010 |
LH184..4FC;LH162,17#,186,TRH102,112..(05S,08S,15S)..(DX,SGL) ｱﾘ(ﾃﾞﾝﾄﾞｳ ﾘﾓｺﾝ ﾐﾗ-) |
1 | ||
| 55446-26010 |
LH178,184,186..(05S,08S,15S)..(DX,SGL);KZH11#,13#,LH162,172,RZH102,112,133..SG..(03S,05S,10S)..4FC ｱﾘ(ﾃﾞﾝﾄﾞｳ ﾘﾓｺﾝ ﾐﾗ-) |
1 | ||
| 55446-95J00 |
LH16#,17#,18#,TRH102,112..CD,DX,GL,SGLE |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-95J01 |
LH16#,17#,18#,RZH102,112,12# |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55501-26010B0 |
KZH10#,11#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..CD,DX,GL,SCM,SCMM,SGL BLUISH GRAY,TRIM1# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 55534A - COVER, ILLUMINATION LAMP HOLE | ||||
| 84656-26020 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..HRF,SMRF,SRF TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 55534A - COVER, ILLUMINATION LAMP HOLE | ||||
| 84656-26020 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..HRF,SMRF,SRF TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010C0 |
KZH11#,LH16#,17#,18#,RZH102,11#,124,133 BLACK,TRIM1# |
1 | ||
| 55539-32010C0 |
RZH112..HRF..5F;RZH102,112..V2..SRF;LH16#,17#,18#,RZH125..CD,DX,GL ｱﾘ(ﾃﾚﾋﾞ),BLACK,TRIM1# |
2 | ||
| 55539-32010C0 |
RZH112..HRF..5F;RZH102,112..V1..CD;RZH102,112..V2..SRF;RZH112..HRF..4D..4FC;LH16#,17#,18#,RZH125,18#..CD,DX,GL ｱﾘ(ﾃﾚﾋﾞ),BLACK,TRIM1# |
2 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010C0 |
KZH11#,LH16#,17#,18#,RZH102,11#,124,133 BLACK,TRIM1# |
1 | ||
| 55539-32010C0 |
RZH112..HRF..5F;RZH102,112..V2..SRF;LH16#,17#,18#,RZH125..CD,DX,GL ｱﾘ(ﾃﾚﾋﾞ),BLACK,TRIM1# |
2 | ||
| 55539-32010C0 |
RZH112..HRF..5F;RZH102,112..V1..CD;RZH102,112..V2..SRF;RZH112..HRF..4D..4FC;LH16#,17#,18#,RZH125,18#..CD,DX,GL ｱﾘ(ﾃﾚﾋﾞ),BLACK,TRIM1# |
2 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010C0 |
KZH11#,LH16#,17#,18#,RZH102,11#,124,133 BLACK,TRIM1# |
1 | ||
| 55539-32010C0 |
RZH112..HRF..5F;RZH102,112..V2..SRF;LH16#,17#,18#,RZH125..CD,DX,GL ｱﾘ(ﾃﾚﾋﾞ),BLACK,TRIM1# |
2 | ||
| 55539-32010C0 |
RZH112..HRF..5F;RZH102,112..V1..CD;RZH102,112..V2..SRF;RZH112..HRF..4D..4FC;LH16#,17#,18#,RZH125,18#..CD,DX,GL ｱﾘ(ﾃﾚﾋﾞ),BLACK,TRIM1# |
2 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010C0 |
LH162,17#,184,186,RZH102,112..(05S,08S,15S)..(DX,SGL) BLACK,TRIM1# |
1 | ||
| 55539-26070 |
LH162,17#,RZH102,112,TRH102,112..SGL ｽﾄ-ﾝ ﾁﾖｳ |
2 | ||
| 55539G - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010C0 |
LH162,17#,RZH102,112..SGL BLACK,TRIM1# |
1 | ||
| 55562B - PIN, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55562-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 55573A - HINGE, GLOVE COMPARTMENT DOOR | ||||
| 55573-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-95J08 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-26010B0 |
LH16#,17#,18#,RZH102,112,12# BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90159-50115 | ||||
| 90168-50033 | ||||
| 90179-05030 | ||||
| 90189-05016 | ||||
| 90189-05101 | ||||
| 91651-60614 | ||||
| 93520-54012 | ||||
| 93560-55016 | ||||
| 93566-15514 | ||||
| 93568-55012 | ||||
