Toyota Hiace/regiusace LH178 SUSPENSION CROSSMEMBER & UNDER COVER

Manufacturers Home
Toyota
JP
HIACE/REGIUSACE
LH178V-RHPES (1998)
5152 - SUSPENSION CROSSMEMBER & UNDER COVER

LH178V-RHPES (1998)

Toyota Hiace/Regiusace

Production Aug 1998 - Aug 2004

Engine 5L

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

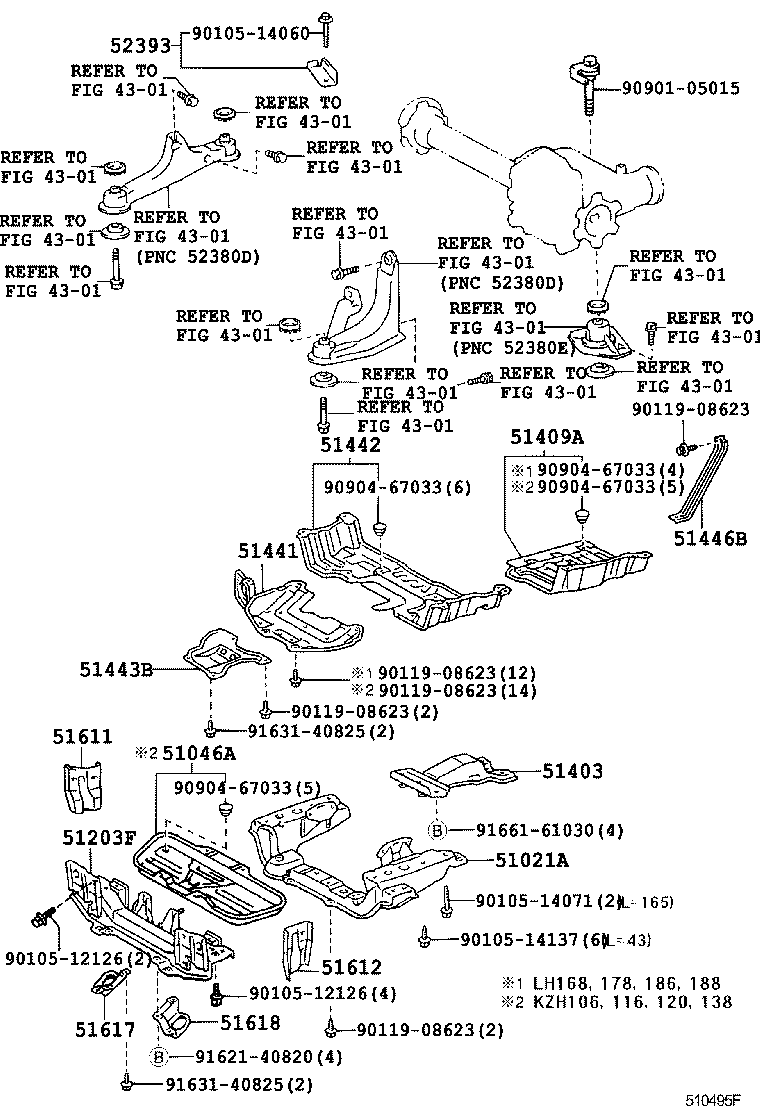

(9907-0208)4WD

Click highlighted areas on diagram

Part #	Description	Period	Qty
51021A - MEMBER SUB-ASSY, ENGINE FRONT SUPPORT
51021-26071	LH168,178,186,188	07/1999 - 08/2004	1
51046A - COVER SUB-ASSY, ENGINE UNDER, NO.5
51046-26010	LH168,178,186,188	08/2002 - 08/2004	1
51203F - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51203-26171	KZH106,116,120,138,LH168,178,186,188..4WD	07/1999 - 08/2004	1
51403 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING
51403-95J04	LH178,186,188..4FC	07/1999 - 08/2004	1
51403-95J04	LH107,119,129,178,186,188..4FC	08/1989 - 07/1999	1
51409A - COVER SUB-ASSY, ENGINE UNDER, NO.4
51409-26050	LH16#,17#,18#	07/1999 - 08/2002	1
51441 - COVER, ENGINE UNDER, NO.1
51405-26130	KZH106,116,120,138,LH168,178,186,188..4WD	08/2002 - 08/2004	1
51405-26030	KZH106,116,120,138,LH168,178,186,188..4WD	07/1999 - 08/2002	1
51442 - COVER, ENGINE UNDER, NO.2
51406-26120	KZH106,116,120,138,LH168,178,186,188..4WD	08/2002 - 08/2004	1
51406-26030	KZH106,116,120,138,LH168,178,186,188..4WD	07/1999 - 08/2002	1
51443B - COVER, ENGINE UNDER, NO.3
51443-95J02	KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188	08/1989 - 07/1999	1
51443-95J02	LH168,178,186,188	07/1999 - 08/2002	1
51611 - STOPPER, FRONT SUSPENSION BOUND, RH
51611-26030	KZH106,116,120,138,LH168,178,186,188..4WD	07/1999 - 08/2004	1
51612 - STOPPER, FRONT SUSPENSION BOUND, LH
51612-26030	KZH106,116,120,138,LH168,178,186,188..4WD	07/1999 - 08/2004	1
51617 - GUARD, FRONT DIFFERENTIAL SUPPORT, RH
51617-95J00	KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188	08/1989 - 07/1999	1
51617-95J00	KZH106,116,120,138,LH168,178,186,188..4WD	07/1999 - 08/2004	1
51618 - GUARD, FRONT DIFFERENTIAL SUPPORT, LH
51618-95J00	KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188	08/1989 - 07/1999	1
51618-95J00	KZH106,116,120,138,LH168,178,186,188..4WD	07/1999 - 08/2004	1
52393 - SUPPORT, FRONT DIFFERENTIAL, NO.2
52393-26030	KZH106,116,120,138,LH168,178,186,188..4WD	07/1999 - 08/2004	1
52393-26030	KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188	08/1989 - 07/1999	1
Common parts
90105-12126
90105-14060
90105-14071
90105-14137
90119-08623
90901-05015
90904-67033
91621-40820
91631-40825
91661-61030
Linked diagrams
4301

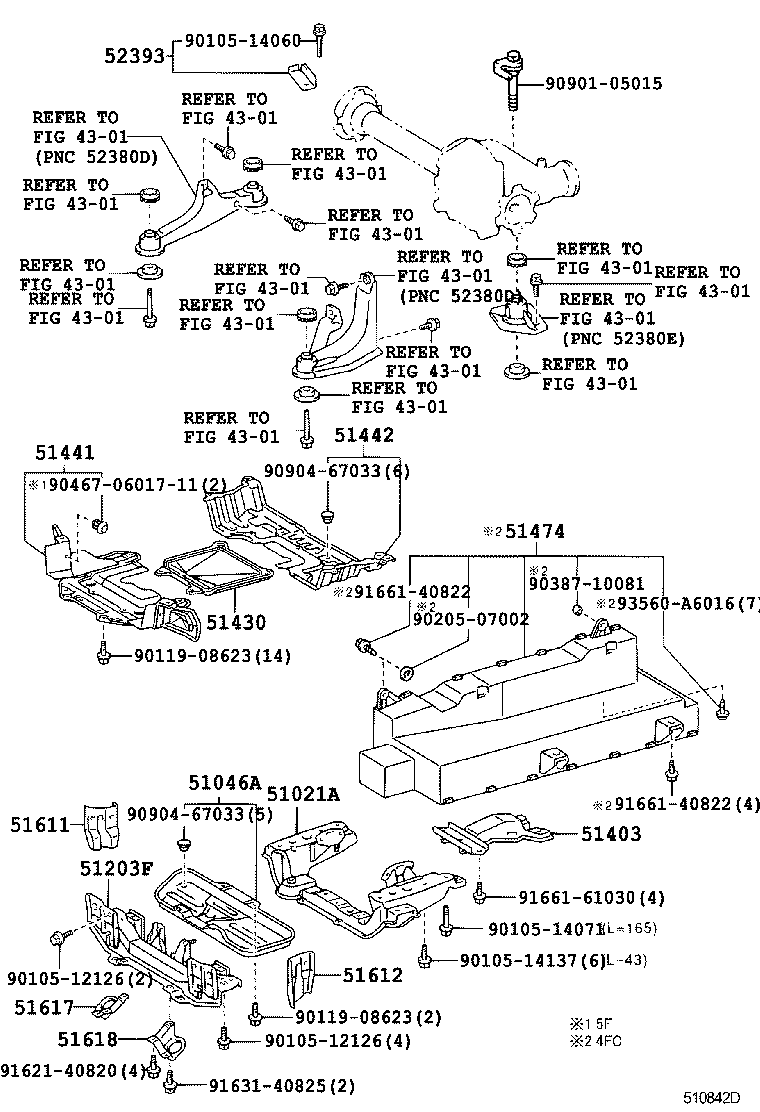

(0208- )LH168,178,186,188

Click highlighted areas on diagram

Part #	Description	Period	Qty
51021A - MEMBER SUB-ASSY, ENGINE FRONT SUPPORT
51021-26071	LH168,178,186,188	07/1999 - 08/2004	1
51046A - COVER SUB-ASSY, ENGINE UNDER, NO.5
51046-26010	LH168,178,186,188	08/2002 - 08/2004	1
51203F - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51203-26171	KZH106,116,120,138,LH168,178,186,188..4WD	07/1999 - 08/2004	1
51403 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING
51403-95J04	LH178,186,188..4FC	07/1999 - 08/2004	1
51403-95J04	LH107,119,129,178,186,188..4FC	08/1989 - 07/1999	1
51430 - COVER ASSY, ENGINE UNDER, CENTER
51430-26010	LH168,178,186,188	08/2002 - 08/2004	1
51441 - COVER, ENGINE UNDER, NO.1
51405-26130	KZH106,116,120,138,LH168,178,186,188..4WD	08/2002 - 08/2004	1
51405-26030	KZH106,116,120,138,LH168,178,186,188..4WD	07/1999 - 08/2002	1
51442 - COVER, ENGINE UNDER, NO.2
51406-26120	KZH106,116,120,138,LH168,178,186,188..4WD	08/2002 - 08/2004	1
51406-26030	KZH106,116,120,138,LH168,178,186,188..4WD	07/1999 - 08/2002	1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51470-26010	LH178,186,188..4FC	08/2002 - 08/2004	1
51611 - STOPPER, FRONT SUSPENSION BOUND, RH
51611-26030	KZH106,116,120,138,LH168,178,186,188..4WD	07/1999 - 08/2004	1
51612 - STOPPER, FRONT SUSPENSION BOUND, LH
51612-26030	KZH106,116,120,138,LH168,178,186,188..4WD	07/1999 - 08/2004	1
51617 - GUARD, FRONT DIFFERENTIAL SUPPORT, RH
51617-95J00	KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188	08/1989 - 07/1999	1
51617-95J00	KZH106,116,120,138,LH168,178,186,188..4WD	07/1999 - 08/2004	1
51618 - GUARD, FRONT DIFFERENTIAL SUPPORT, LH
51618-95J00	KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188	08/1989 - 07/1999	1
51618-95J00	KZH106,116,120,138,LH168,178,186,188..4WD	07/1999 - 08/2004	1
52393 - SUPPORT, FRONT DIFFERENTIAL, NO.2
52393-26030	KZH106,116,120,138,LH168,178,186,188..4WD	07/1999 - 08/2004	1
52393-26030	KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188	08/1989 - 07/1999	1
Common parts
90105-12126
90105-14060
90105-14071
90105-14137
90119-08623
90205-07002
90387-10081
90467-0601711
90901-05015
90904-67033
91621-40820
91631-40825
91661-40822
91661-61030
93560-A6016
Linked diagrams
4301

LH178V-RHPES (1998)

(9907-0208)4WD

(0208- )LH168,178,186,188
