LH178V-RHPES (1998)
Toyota Hiace/Regiusace

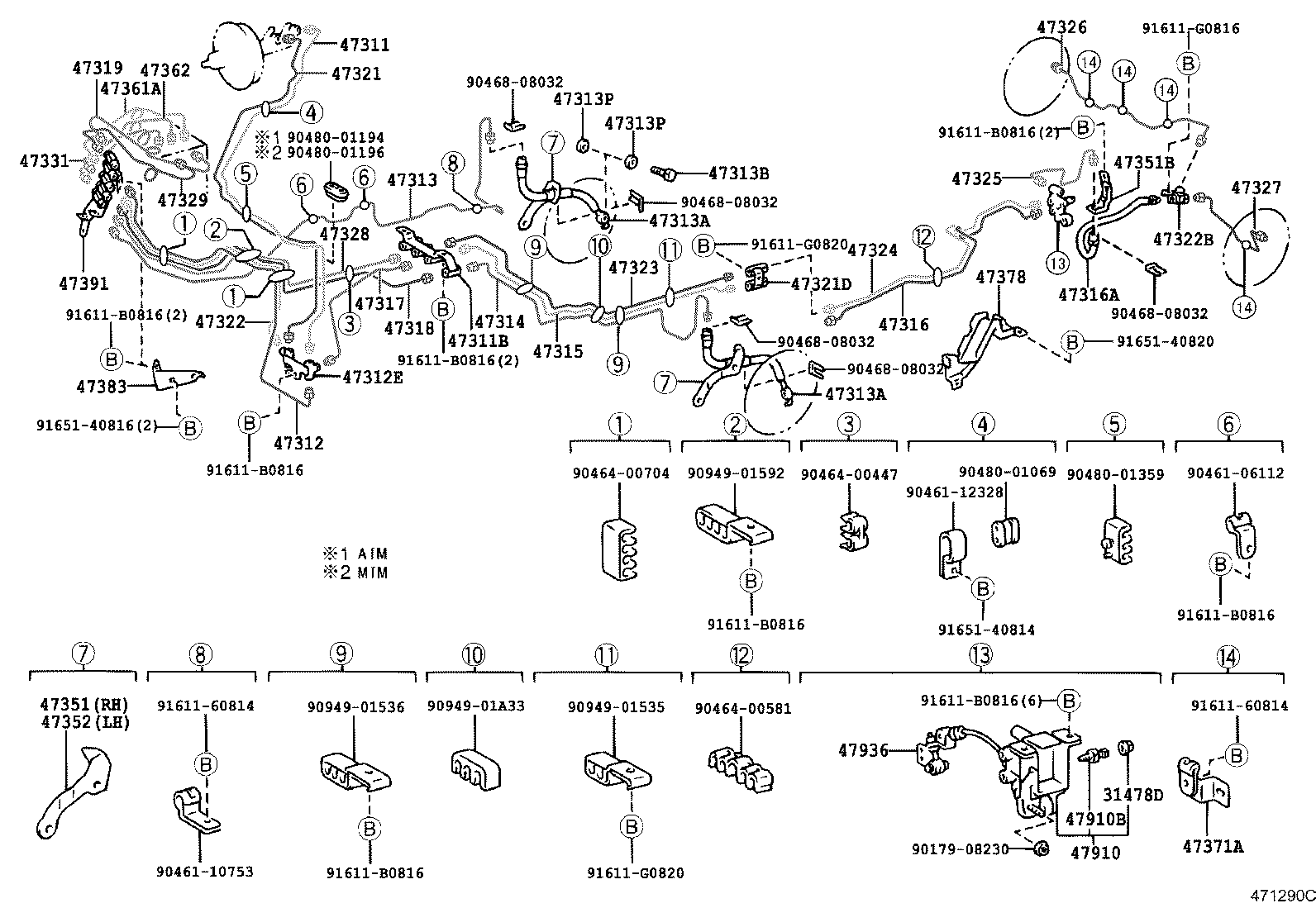

ILLUST NO. 1 OF 3(9808- )LH168,178,186,188
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-26660 |
LH16#,17#,18#,RZH102,112,12# ｱﾘ(ABS) |
1 | ||
| 47311-26441 |
LH16#,17#,18#..CD,DX,GL,SGLE |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90904-12011 |
RZH102,112..4FC;KZH10#,11#,12#,13#,LH16#,17#,18#,RZH101,111,125,133 ｱﾘ(ABS) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-26340 |
LH16#,17#,18#,TRH102,112 |
1 | ||
| 47312-26340 |
LH16#,17#,18#,RZH102,112,12# |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90904-13001 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 90904-13001 |
KZH10#,11#,120,13#,LH16#,17#,18#,TRH102,112 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-26161 |
KZH138,LH168,178,186,188..CD,DX,GL |
1 | ||
| 47313-26260 |
LH168,178,186,188 ｱﾘ(ABS) |
1 | ||
| 47313-26161 |
LH168,178,186,188..CD,DX,GL,SGLE |
1 | ||
| 47313-26260 |
LH168,178,186,188 ｱﾘ(ABS) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02829 |
KZH106,116,126,138,LH168,178,186,188 |
2 | ||
| 90947-02C03 |
KZH106,116,120,138,LH168,178,186,188..4WD |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02829 |
KZH106,116,126,138,LH168,178,186,188 |
2 | ||
| 90947-02C03 |
KZH106,116,120,138,LH168,178,186,188..4WD |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-26200 |
KZH106,116,138,LH168,178,186,188 ｱﾘ(ABS) |
1 | ||
| 47314-26210 |
LH168,178,186,188..CD,DX,GL,SGLE |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-26140 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 ｱﾘ(ABS) |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-26150 |
LH17#,RZH112,TRH112..V1 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-33107 |
RZH102,112..V1..SRF..(DX,SGL);LH16#,17#,18#,RZH12#..(COM,V1)..(CD,DX,GL,SGL) |
1 | ||
| 96940-33105 |
LH16#,17#,18#,RZH102,112,12#..COM,V1 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-26240 |
LH16#,17#,18#,RZH102,112,12# |
1 | ||
| 47317-26240 |
LH16#,17#,18#,TRH102,112 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-26130 |
LH16#,17#,18#,TRH102,112 |
1 | ||
| 47318-26130 |
LH16#,17#,18#,RZH102,112,12# |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-26180 |
LH16#,17#,18#,RZH102,112,12# |
1 | ||
| 47319-26180 |
LH16#,17#,18#,TRH102,112 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-26490 |
LH16#,17#,18#,RZH102,112,12# ｱﾘ(ABS) |
1 | ||
| 47321-26351 |
LH16#,17#,18#..CD,DX,GL,SGLE |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-26290 |
LH16#,17#,18#,RZH102,112,12# |
1 | ||
| 47322-26290 |
LH16#,17#,18#,TRH102,112 |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10243 |
LH102,103,109,11#,12#,140,16#,17#,18#,RZH102,110,112,12#..COM,V1,WG |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-26180 |
LH110,113,115,119,17#,RZH112..(COM,V1,WG)..(03S,05S,06S,08S,09S,15S) |
1 | ||
| 47324-26180 |
LH17#,RZH112,TRH112..V1 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-26350 |
LH16#,17#,18#,RZH102,112,12#..COM,V1 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-26370 |
LH168,178,186,188 |
1 | ||
| 47326-26370 |
LH168,178,186,188 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-26220 |
LH168,178,186,188 |
1 | ||
| 47327-26291 |
LH168,178,186,188 |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-26070 |
LH16#,17#,18#,RZH102,112,12# |
1 | ||
| 47328-26070 |
LH16#,17#,18#,TRH102,112 |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-26220 |
LH16#,17#,18#,RZH102,112,12# |
1 | ||
| 47329-26220 |
LH16#,17#,18#,TRH102,112 |
1 | ||
| 47331 - TUBE, REAR BRAKE, NO.10 | ||||
| 47331-26130 |
LH16#,17#,18#,RZH102,112,12# |
1 | ||
| 47331-26130 |
LH16#,17#,18#,TRH102,112 |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-26160 |
KZH106,116,120,138,LH168,178,186,188..4WD |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-26171 |
LH16#,17#,18#,RZH102,112,12#..COM,V1 |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-26150 |
KZH106,116,120,138,LH168,178,186,188..4WD |
1 | ||
| 47361A - TUBE, FRONT BRAKE, NO.10 | ||||
| 47361-26050 |
LH16#,17#,18#,RZH102,112,12# |
1 | ||
| 47361-26050 |
LH16#,17#,18#,TRH102,112 |
1 | ||
| 47362 - TUBE, FRONT BRAKE, NO.11 | ||||
| 47362-26050 |
LH16#,17#,18#,RZH102,112,12# |
1 | ||
| 47362-26050 |
LH16#,17#,18#,TRH102,112 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-26180 |
LH16#,17#,18#,RZH102,112,12# |
4 | ||
| 47371-26180 |
LH16#,17#,18#,TRH102,112 |
4 | ||
| 47378 - PROTECTOR, BRAKE TUBE | ||||
| 47378-26031 |
KZH10#,11#,12#,13#,LH16#,17#,18# |
1 | ||
| 47383 - BRACKET, CONNECTOR | ||||
| 47383-26070 |
LH16#,17#,18#,RZH102,112,12# |
1 | ||
| 47383-26070 |
LH16#,17#,18#,TRH102,112 |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-26010 |
LH16#,17#,18#,RZH102,112,12# |
1 | ||
| 47391-26010 |
LH16#,17#,18#,TRH102,112 |
1 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-26231 |
LH168,178,188 |
1 | ||
| 47910-26231 |
LH168,178,188 |
1 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-26020 |
LH16#,17#,18#,RZH102,112,12#..COM,V1 |
1 | ||
| Common parts | ||||
| 90179-08230 | ||||
| 90461-06112 | ||||
| 90461-10753 | ||||
| 90461-12328 | ||||
| 90464-00447 | ||||
| 90464-00581 | ||||
| 90464-00704 | ||||
| 90468-08032 | ||||
| 90480-01069 | ||||
| 90480-01194 | ||||
| 90480-01196 | ||||
| 90480-01359 | ||||
| 90949-01535 | ||||
| 90949-01536 | ||||
| 90949-01592 | ||||
| 90949-01A33 | ||||
| 91611-60814 | ||||
| 91611-B0816 | ||||
| 91611-G0816 | ||||
| 91611-G0820 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91651-40820 | ||||
