LH178V-RHPES (1998)
Toyota Hiace/Regiusace
(9808- )LH162,17#,18#..4FC
A45DL,45DF

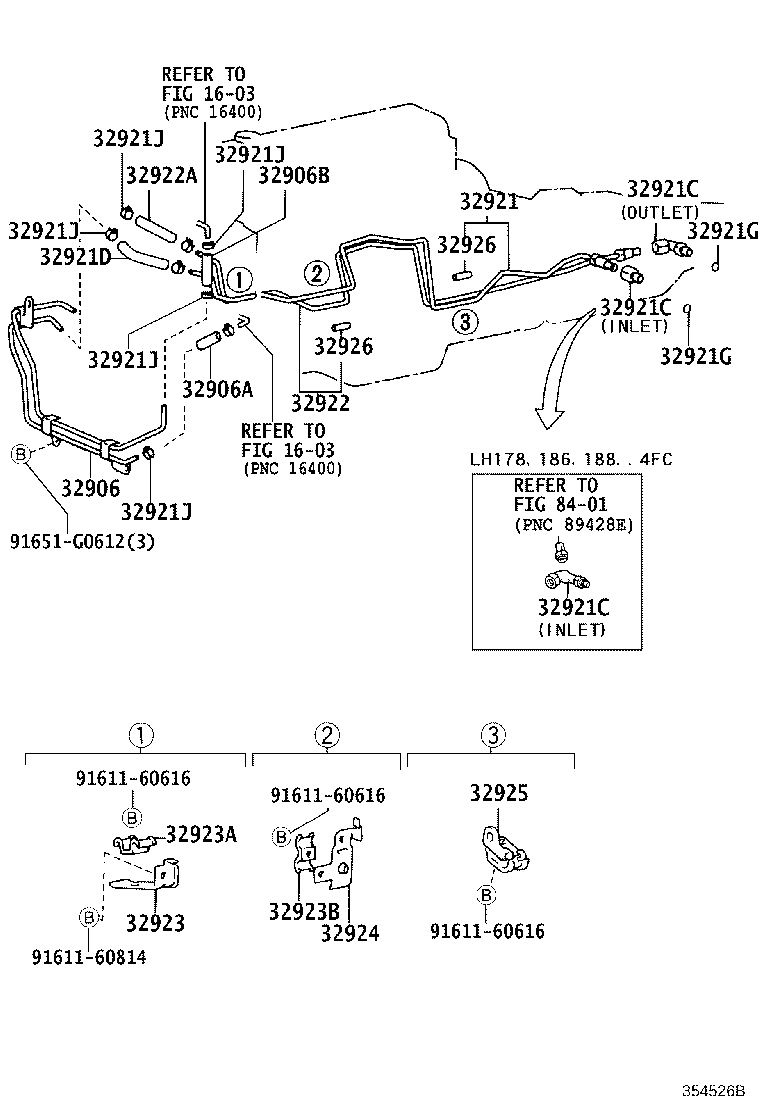

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32906 - TUBE SUB-ASSY, OIL COOLER | ||||
| 32907-26040 |
LH162,17#,18#,RZH10#,11#,125,133..4FC |
1 | ||
| 32907-26040 |
LH162,17#,18#,TRH102,112..4FC |
1 | ||
| 32906A - HOSE, OIL COOLER TUBE(FOR INLET) | ||||
| 90445-17151 |
LH162,17#,18#,TRH102,112..4FC |
1 | ||
| 90445-17151 |
LH162,17#,18#,RZH10#,11#,125,133..4FC |
1 | ||
| 32906B - HOSE, OIL COOLER TUBE(FOR OUTLET) | ||||
| 90445-17125 |
LH162,17#,18#,RZH10#,11#,125,133..4FC |
1 | ||
| 90445-17125 |
LH162,17#,18#,TRH102,112..4FC |
1 | ||
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-26270 |
LH178,186,188..4FC |
1 | ||
| 32921-26270 |
LH178,186,188..4FC |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-16010 |
LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) ｱｳﾄﾚｯﾄ |
1 | ||
| 90407-16028 |
LH178,186,188..4FC ｲﾝﾚｯﾄ |
1 | ||
| 90407-16010 |
LH162,17#,18#,TRH102,112..4FC ｱｳﾄﾚｯﾄ |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-16010 |
LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) ｱｳﾄﾚｯﾄ |
1 | ||
| 90407-16028 |
LH178,186,188..4FC ｲﾝﾚｯﾄ |
1 | ||
| 90407-16010 |
LH162,17#,18#,TRH102,112..4FC ｱｳﾄﾚｯﾄ |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-16010 |
LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) ｱｳﾄﾚｯﾄ |
1 | ||
| 90407-16028 |
LH178,186,188..4FC ｲﾝﾚｯﾄ |
1 | ||
| 90407-16010 |
LH162,17#,18#,TRH102,112..4FC ｱｳﾄﾚｯﾄ |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 90445-17115 |
LH178,186,188..4FC |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
LH162,17#,18#,RZH10#,11#,125,133..4FC |
8 | ||
| 90467-16022 |
LH162,17#,18#,TRH102,112..4FC |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
LH162,17#,18#,RZH10#,11#,125,133..4FC |
8 | ||
| 90467-16022 |
LH162,17#,18#,TRH102,112..4FC |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
LH162,17#,18#,RZH10#,11#,125,133..4FC |
8 | ||
| 90467-16022 |
LH162,17#,18#,TRH102,112..4FC |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
LH162,17#,18#,RZH10#,11#,125,133..4FC |
8 | ||
| 90467-16022 |
LH162,17#,18#,TRH102,112..4FC |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
LH162,17#,18#,RZH10#,11#,125,133..4FC |
8 | ||
| 90467-16022 |
LH162,17#,18#,TRH102,112..4FC |
4 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-26260 |
LH178,186,188..4FC |
1 | ||
| 32922-26260 |
LH178,186,188..4FC |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-17115 |
LH178,186,188..4FC |
1 | ||
| 32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 32925-26101 |
LH178,186,188..4FC |
1 | ||
| 32925-26101 |
LH178,186,188..4FC |
1 | ||
| 32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 90949-01B25 |
LH162,17#,18#..4FC |
1 | ||
| 90949-01B25 |
LH162,17#,18#..4FC |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 90462-12079 |
LH162,17#,18#..4FC |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32924-26120 |
LH162,17#,18#..4FC |
1 | ||
| 32924-26120 |
LH162,17#,18#..4FC |
1 | ||
| 32925 - CLAMP, OIL COOLER TUBE, NO.3 | ||||
| 32909-26130 |
LH162,17#,18#..4FC |
1 | ||
| 32909-26130 |
LH162,17#,18#..4FC |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
KZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,162,17#,18#..4FC 長さ=35,内径=10 |
6 | ||
| 32926-30020 |
LH162,17#,18#..4FC 長さ=35,内径=10 |
6 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
KZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,162,17#,18#..4FC 長さ=35,内径=10 |
6 | ||
| 32926-30020 |
LH162,17#,18#..4FC 長さ=35,内径=10 |
6 | ||
| Common parts | ||||
| 91611-60616 | ||||
| 91611-60814 | ||||
| 91651-G0612 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8401 | ||||
