LH178V-RHPES (1998)

Toyota Hiace/Regiusace

Production Aug 1998 - Aug 2004
Engine 5L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9808- )5L

Click highlighted areas on diagram

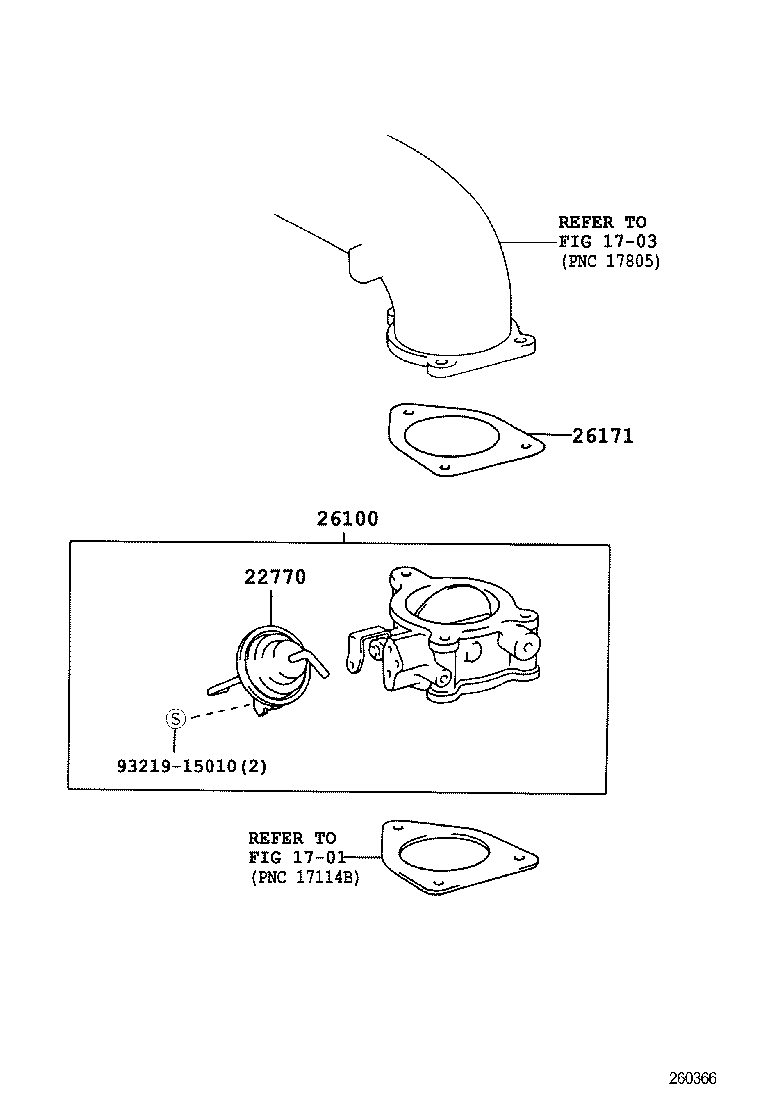

diagram 1701 1703 22770 26100 26171 9321915010
Part # Description Qty Price
22770 - ACTUATOR, IDEL UP
26133-54260

5L..LH16#,17#,18#

 1
26133-54260

5L..LH16#,17#,18#

 1
26100 - VENTURI ASSY
26100-54260

5L..LH16#,17#,18#

 1
26100-54260

5L..LH16#,17#,18#

 1
26171 - GASKET, VENTURI
17116-54021

2LTE,3L,5L..LH100,107,117,120,16#,17#,18#

 1
17116-54021

5L..LH16#,17#,18#

 1
17116-54030

5L..LH16#,17#,18#

 1
Common parts
93219-15010
Linked diagrams
1701
1703
