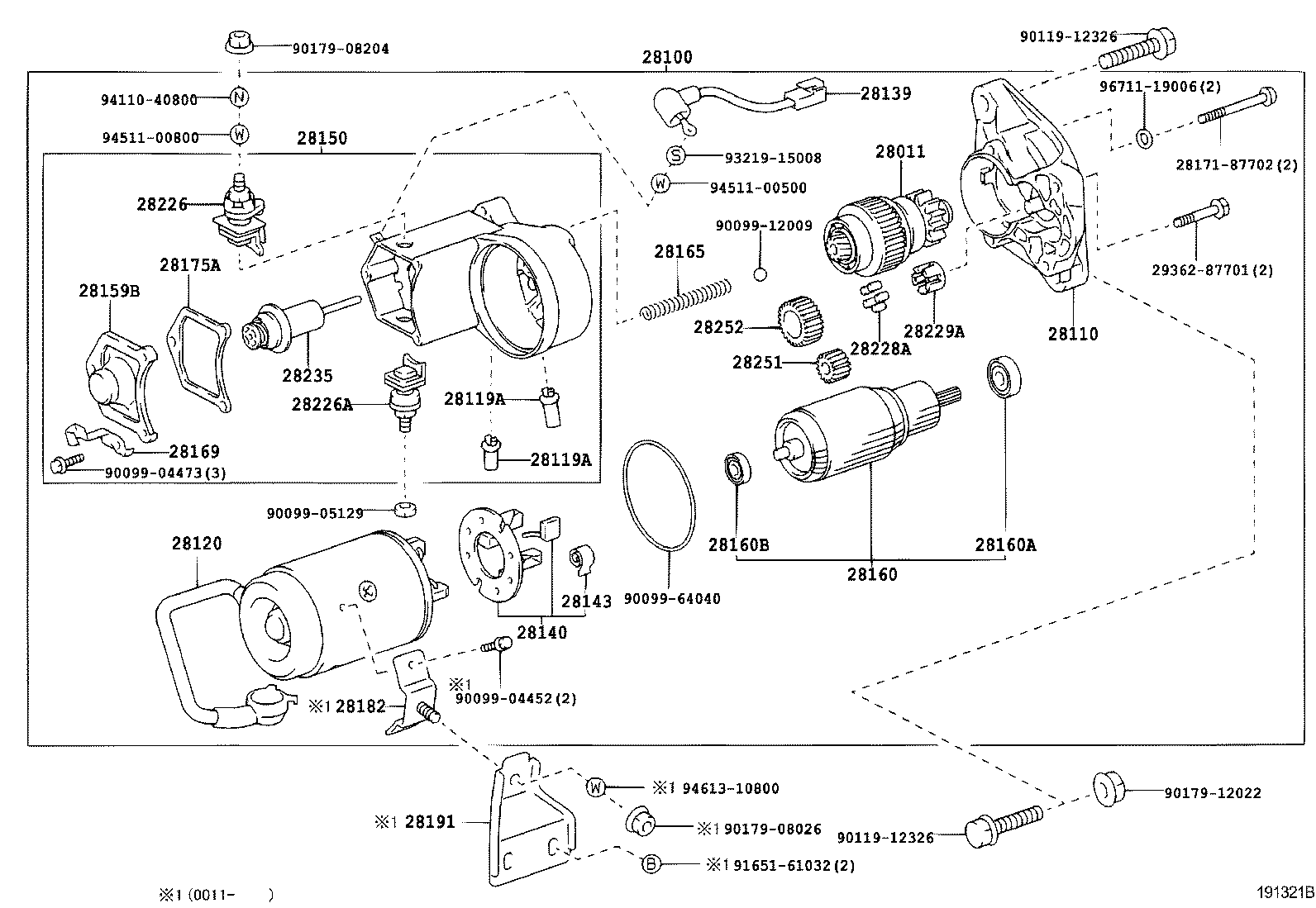

LH178V-RHPES (1998)
Toyota Hiace/Regiusace
(9808- )5L..CD,DX,GL,SGL ; (0108- )5L..LH162,17#,182,188..SGLE
12V 2.2KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-54010 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
1 | ||
| 28011-54010 |
5L..LH16#,17#,18#..CD,DX,GL,SGL 12V 2.7KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-54470 |
5L..LH16#,17#,18# 12V 2.7KW |
1 | ||
| 28100-54320 |
5L..LH16#,17#,18# 12V 2.7KW |
1 | ||
| 28100-54470 |
5L..LH16#,17#,18# 12V 2.7KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-54011 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
1 | ||
| 28115-54011 |
5L..LH16#,17#,18# 12V 2.7KW |
1 | ||
| 28119A - COVER, STARTER END FRAME | ||||
| 28199-46080 |
5L..LH162,172,18#;5L..LH168,178..4D;5L..LH178..5D..4FC 12V 2.7KW |
1 | ||
| 28119A - COVER, STARTER END FRAME | ||||
| 28199-46080 |
5L..LH162,172,18#;5L..LH168,178..4D;5L..LH178..5D..4FC 12V 2.7KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-56081 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
1 | ||
| 28120-56081 |
5L..LH16#,17#,18#..CD,DX,GL,SGL 12V 2.7KW |
1 | ||
| 28139 - WIRE, LEAD, NO.1(FOR STARTER) | ||||
| 28139-54251 |
5L..LH16#,17#,18#..CD,DX,GL,SGL 12V 2.7KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-77090 |
1KZTE,5L..KZH10#,11#,120,13#,LH16#,17#,18#..CD,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL 12V 2.7KW |
1 | ||
| 28140-77090 |
1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-54430 |
5L..LH16#,178,18#..4D;5L..LH172..HRF..5D..4FC;5L..LH162,172..V2..SRF..5D;5L..LH172..4D..(03S,05S,06S) 12V 2.7KW |
1 | ||
| 28150-54430 |
5L..LH16#,17#,18# 12V 2.7KW |
1 | ||
| 28150-54320 |
5L..LH16#,17#,18# 12V 2.7KW |
1 | ||
| 28150-54320 |
5L..LH16#,17#,18# 12V 2.7KW |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-56310 |
5L..LH16#,17#,18#..CD,DX,GL,SGL 12V 2.7KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-54140 |
1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
1 | ||
| 28160-54140 |
1KZTE,5L..KZH10#,11#,120,13#,LH16#,17#,18#..CD,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL 12V 2.7KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10107 |
1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW,ﾌﾛﾝﾄ |
1 | ||
| 90099-10119 |
1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW,ﾘﾔ |
1 | ||
| 90099-10119 |
5L..LH162,172,182,184;5L..LH178,186,188..4FC 12V 2.7KW,ﾘﾔ |
1 | ||
| 90099-10107 |
5L..LH162,172,182,184;5L..LH178,186,188..4FC 12V 2.7KW,ﾌﾛﾝﾄ |
1 | ||
| 90099-10107 |
5L..LH162,172,182,184;5L..LH178,186,188..4FC 12V 2.7KW,ﾌﾛﾝﾄ |
1 | ||
| 90099-10119 |
5L..LH162,172,182,184;5L..LH178,186,188..4FC 12V 2.7KW,ﾘﾔ |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-77090 |
1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
1 | ||
| 28165-77090 |
1KZTE,5L..KZH10#,11#,120,13#,LH16#,17#,18# 12V 2.7KW |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-56310 |
1KZTE,5L..KZH10#,11#,120,13#,LH16#,17#,18# 12V 2.7KW |
1 | ||
| 28191 - STAY, STARTER | ||||
| 28191-54010 |
5L..LH162,172,182,184;5L..LH178,186,188..4FC 12V 2.7KW |
1 | ||
| 28191-54010 |
5L..LH162,172,182,184;5L..LH178,186,188..4FC 12V 2.7KW |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-17030 |
5L..LH17#..5D..SGLE;5L..LH162,182,184..4D;5L..LH172..HRF..5D..4FC;5L..LH178,186,188..4D..4FC;5L..LH162,172..V2..SRF..5D;5L..LH172..4D..(03S,05S,06S) 12V 2.7KW |
1 | ||
| 28226-54320 |
5L..LH16#,17#,18# 12V 2.7KW |
1 | ||
| 28226-54320 |
5L..LH172..4FC..CD;5L..LH17#..5D..SGLE;5L..LH172..HRF..5D..4FC;5L..LH172..4D..(05S,06S);5L..LH162,182,184..4D..SG;5L..LH178,186,188..4D..4FC;5L..LH162,172..V2..SRF..5D 12V 2.7KW & ﾀｸﾊｲ ｼﾖｳ |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-54220 |
1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
1 | ||
| 28226-54220 |
1KZTE,5L..KZH10#,11#,120,13#,LH16#,17#,18# 12V 2.7KW |
1 | ||
| 28228A - ROLLER, STARTER CLUTCH | ||||
| 28228-56080 |
1KZTE,5L..KZH10#,11#,120,13#,LH16#,17#,18# 12V 2.7KW |
5 | ||
| 28228-56080 |
1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
5 | ||
| 28229A - RETAINER, STARTER IDLE GEAR | ||||
| 28229-56080 |
1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
1 | ||
| 28229-56080 |
1KZTE,5L..KZH10#,11#,120,13#,LH16#,17#,18# 12V 2.7KW |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-17030 |
1KZTE,2L,2LTE,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
1 | ||
| 28235-17030 |
1KZTE,5L..KZH10#,11#,120,13#,LH16#,17#,18# 12V 2.7KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-77090 |
1KZTE,5L..KZH10#,11#,120,13#,LH16#,17#,18# 12V 2.7KW |
1 | ||
| 28254-77090 |
1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
1 | ||
| Common parts | ||||
| 28171-87702 | ||||
| 29362-87701 | ||||
| 90099-04452 | ||||
| 90099-04473 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90099-64040 | ||||
| 90119-12326 | ||||
| 90179-08026 | ||||
| 90179-08204 | ||||
| 90179-12022 | ||||
| 91651-61032 | ||||
| 93219-15008 | ||||
| 94110-40800 | ||||
| 94511-00500 | ||||
| 94511-00800 | ||||
| 94613-10800 | ||||
| 96711-19006 | ||||
