LH178V-RHPES (1998)

Toyota Hiace/Regiusace

Production Aug 1998 - Aug 2004
Engine 5L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9808- )5L

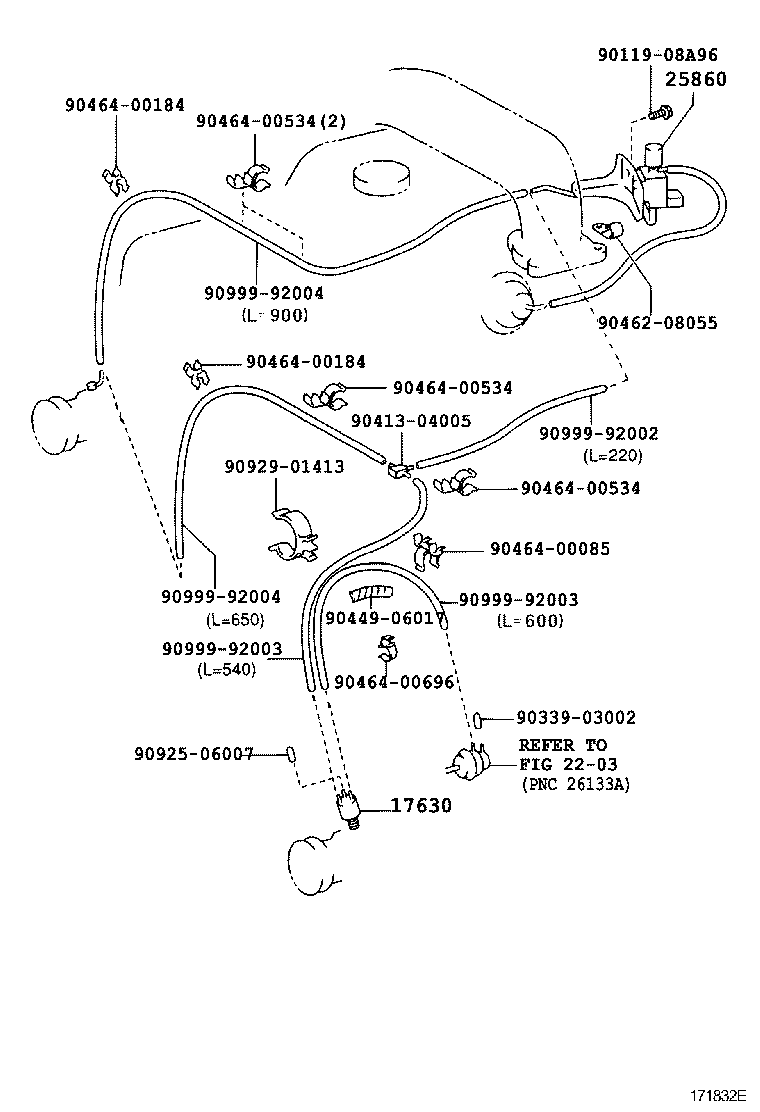

Click highlighted areas on diagram

diagram 17630 2203 25860 9011908A96 9033903002 9041304005 9044906017 9046208055 9046400085 9046400184 9046400184 9046400534 9046400534 9046400534 9046400696 9092506007 9092901413 9099992002 9099992003 9099992003 9099992004 9099992004
Part # Description Qty Price
17630 - VALVE ASSY, AIR CONTROL
17630-54010

5L..LH162,17#,18#..4FC

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-54200

5L..LH16#,17#,18#

 1
25860-54200

5L..LH16#,17#,18#

 1
Common parts
90119-08A96
90339-03002
90413-04005
90449-06017
90462-08055
90464-00085
90464-00184
90464-00534
90464-00696
90925-06007
90929-01413
90999-92002
90999-92003
90999-92004
Linked diagrams
2203

(9808- )5L..LH162,17#,182,188..4FC..SGL,SGLE; (0208- )5L..LH184,186..4FC

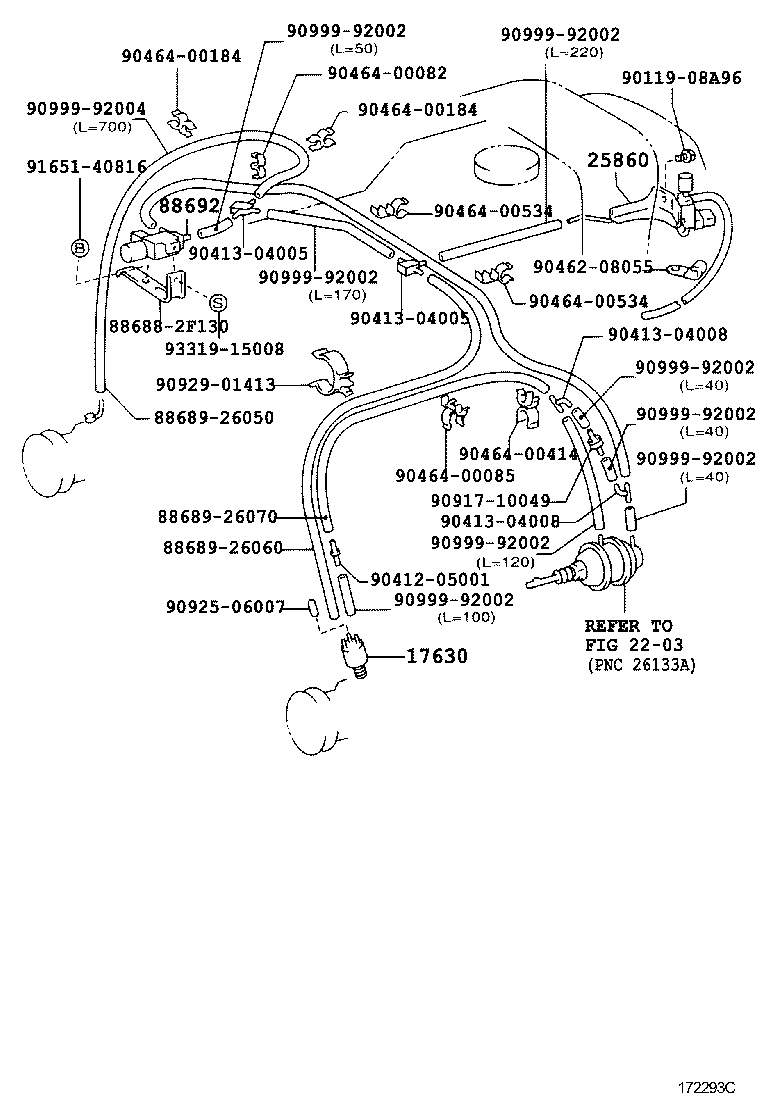

Click highlighted areas on diagram

ｱﾘ(ｴｱｺﾝ & ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ)

diagram 17630 2203 25860 886882F130 8868926050 8868926060 8868926070 88692 9011908A96 9041205001 9041304005 9041304005 9041304008 9041304008 9046208055 9046400082 9046400085 9046400184 9046400184 9046400414 9046400534 9046400534 9091710049 9092506007 9092901413 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992004 9165140816 9331915008
Part # Description Qty Price
17630 - VALVE ASSY, AIR CONTROL
17630-54010

5L..LH162,17#,18#..4FC

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-54200

5L..LH16#,17#,18#

 1
25860-54200

5L..LH16#,17#,18#

 1
88692 - VALVE, MAGNET(FOR IDLE UP DEVICE)
88691-26010

LH162,17#,182,188..SGL,SGLE

 1
88691-26010

LH162,17#..SGL

 1
Common parts
88688-2F130
88689-26050
88689-26060
88689-26070
90119-08A96
90412-05001
90413-04005
90413-04008
90462-08055
90464-00082
90464-00085
90464-00184
90464-00414
90464-00534
90917-10049
90925-06007
90929-01413
90999-92002
90999-92004
91651-40816
93319-15008
Linked diagrams
2203
