LH178V-RHPES (1998)

Toyota Hiace/Regiusace

Production Aug 1998 - Aug 2004
Engine 5L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

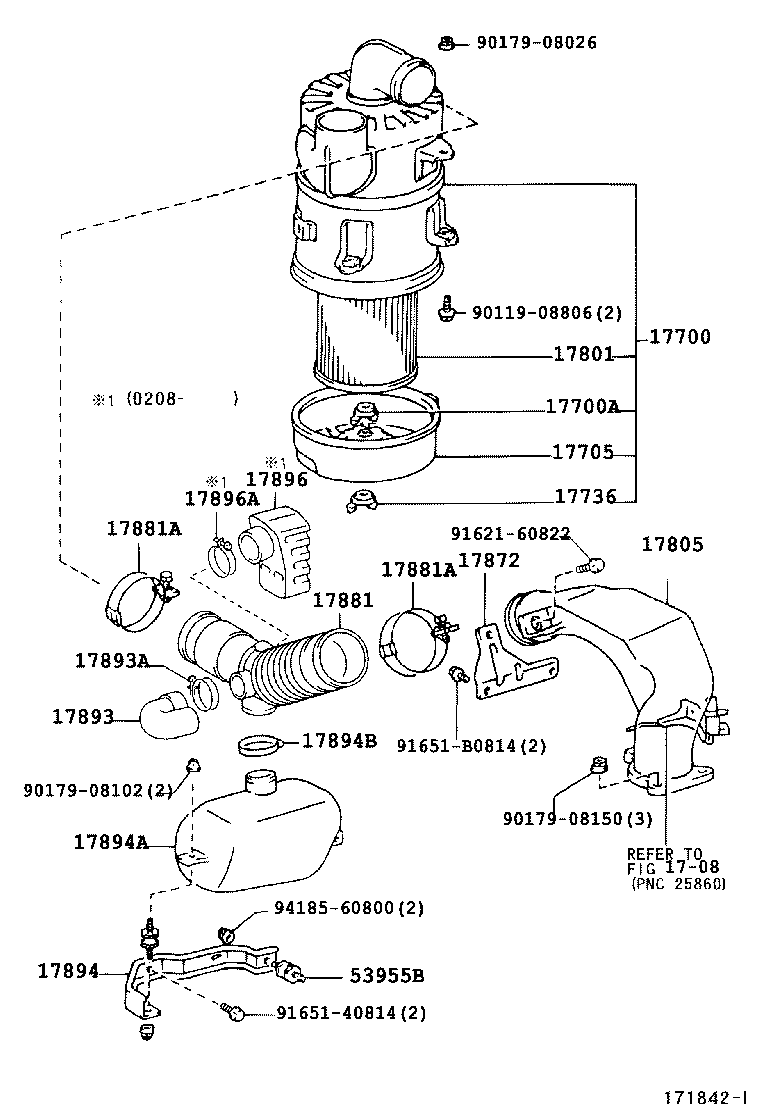

ILLUST NO. 1 OF 2(9808- )5L

Click highlighted areas on diagram

diagram 1708 17700 17700A 17705 17736 17801 17805 17872 17881 17881A 17881A 17893 17893A 17894 17894A 17894B 17896 17896A 53955B 9011908806 9017908026 9017908102 9017908150 9162160822 9165140814 91651B0814 9418560800
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-5B130

5L..LH16#,17#,18#

 1
17700-5B130

5L..LH16#,17#,18#

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-08008

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

 1
90175-08008

5L..LH16#,17#,18#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-75010

5L..LH16#,17#,18#

 1
17705-75010

5L..LH16#,17#,18#

 1
17736 - NUT, AIR CLEANER CASE
90175-06003

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

 1
90175-06003

5L..LH16#,17#,18#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-54100

2L,3L,5L..LH10#,11#,123,125,129,140,16#,17#,18#

 1
17801-54100

5L..LH16#,17#,18#

 1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17805-54350

5L..LH16#,17#,18#

 1
17805-54350

5L..LH16#,17#,18#

 1
17872 - BRACKET, INTAKE AIR CONNECTOR
17872-54030

2L,3L,5L..LH10#,11#,123,125,129,140,16#,17#,18#

 1
17872-54030

5L..LH16#,17#,18#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-54700

5L..LH168,178,186,188

 1
17881-54700

5L..LH168,178,186,188

 1
17881-54850

5L..LH168,178,186,188

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10780

5L..LH16#,17#,18#

ｴｱｸﾘｰﾅ側

 1
96111-10800

5L..LH16#,17#,18#

ｴｱｺﾈｸﾀ側

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10780

5L..LH16#,17#,18#

ｴｱｸﾘｰﾅ側

 1
96111-10800

5L..LH16#,17#,18#

ｴｱｺﾈｸﾀ側

 1
17893 - RESONATOR, INTAKE AIR
17893-62040

5L..LH16#,17#,18#

 1
17893-62040

5L..LH16#,17#,18#

 1
17893A - CLAMP, HOSE
96111-10530

5L..LH16#,17#,18#

 1
96111-10530

5L..LH16#,17#,18#

 1
17894 - BRACKET, RESONATOR
17894-54081

5L..LH16#,17#,18#

 1
17894A - RESONATOR, INTAKE AIR, NO.2
17894-54181

5L..LH16#,17#,18#

 1
17894-54180

5L..LH16#,17#,18#

 1
17894-54180

5L..LH16#,17#,18#

 1
17894B - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)
96111-10480

5L..LH16#,17#,18#

 1
96111-10480

5L..LH16#,17#,18#

 1
17896 - RESONATOR, INTAKE AIR, NO.3
17896-54010

5L..LH16#,17#,18#

 1
17896A - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.3)
90460-75001

5L..LH16#,17#,18#

 1
53955B - CUSHION, AIR CLEANER INLET, NO.1
53955-95402

LH103,107,109,113,115,117,119,123,125,129,16#,17#,18#

 2
53955-95402

LH16#,17#,18#

 2
Common parts
90119-08806
90179-08026
90179-08102
90179-08150
91621-60822
91651-40814
91651-B0814
94185-60800
Linked diagrams
1708

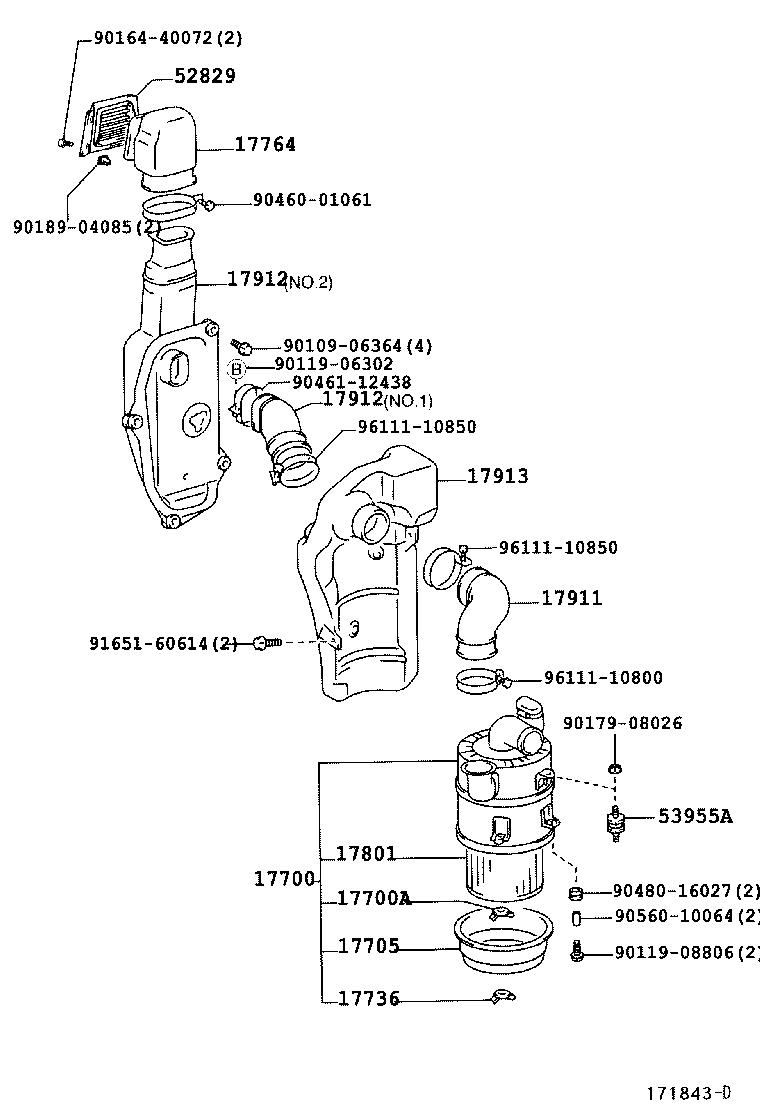

ILLUST NO. 2 OF 2(9808- )5L

Click highlighted areas on diagram

diagram 17700 17700A 17705 17736 17764 17801 17911 17912 17912 17913 52829 53955A 9010906364 9011906302 9011908806 9016440072 9017908026 9018904085 9046001061 9046112438 9048016027 9056010064 9165160614 9611110800 9611110850 9611110850
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-5B130

5L..LH16#,17#,18#

 1
17700-5B130

5L..LH16#,17#,18#

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-08008

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

 1
90175-08008

5L..LH16#,17#,18#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-75010

5L..LH16#,17#,18#

 1
17705-75010

5L..LH16#,17#,18#

 1
17736 - NUT, AIR CLEANER CASE
90175-06003

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

 1
90175-06003

5L..LH16#,17#,18#

 1
17764 - DUCT, AIR CLEANER
52811-26020

5L..LH16#,17#,18#

 1
52811-26020

5L..LH16#,17#,18#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-54100

2L,3L,5L..LH10#,11#,123,125,129,140,16#,17#,18#

 1
17801-54100

5L..LH16#,17#,18#

 1
17911 - DUCT, COOL AIR INTAKE, NO.1
52814-26020

5L..LH16#,17#,18#

 1
52814-26020

5L..LH16#,17#,18#

 1
17912 - DUCT, COOL AIR INTAKE, NO.2
52820-26040

5L..LH16#,17#,18#

NO.2

 1
52815-26020

5L..LH16#,17#,18#

NO.1

 1
52815-26020

5L..LH16#,17#,18#

NO.1

 1
52820-26040

5L..LH16#,17#,18#

NO.2

 1
17912 - DUCT, COOL AIR INTAKE, NO.2
52820-26040

5L..LH16#,17#,18#

NO.2

 1
52815-26020

5L..LH16#,17#,18#

NO.1

 1
52815-26020

5L..LH16#,17#,18#

NO.1

 1
52820-26040

5L..LH16#,17#,18#

NO.2

 1
17913 - DUCT, COOL AIR INTAKE, NO.3
52813-26060

5L..LH16#,17#,18#

 1
52813-26060

5L..LH16#,17#,18#

 1
52829 - GRILLE, COOL AIR INTAKE
52829-95J0001

LH16#,17#,18#

BLACK,TRIM1#

 1
52829-95J0001

LH16#,17#,18#

BLACK,TRIM1#

 1
53955A - CUSHION, AIR CLEANER INLET NO.1
53955-95402

LH10#,11#,12#,140,16#,17#,18#

 1
53955-95402

LH16#,17#,18#

 1
Common parts
90109-06364
90119-06302
90119-08806
90164-40072
90179-08026
90189-04085
90460-01061
90461-12438
90480-16027
90560-10064
91651-60614
96111-10800
96111-10850
