LH178V-RHPDS (1998)

Toyota Hiace/Regiusace

Production Aug 1998 - Aug 2004
Engine 5L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

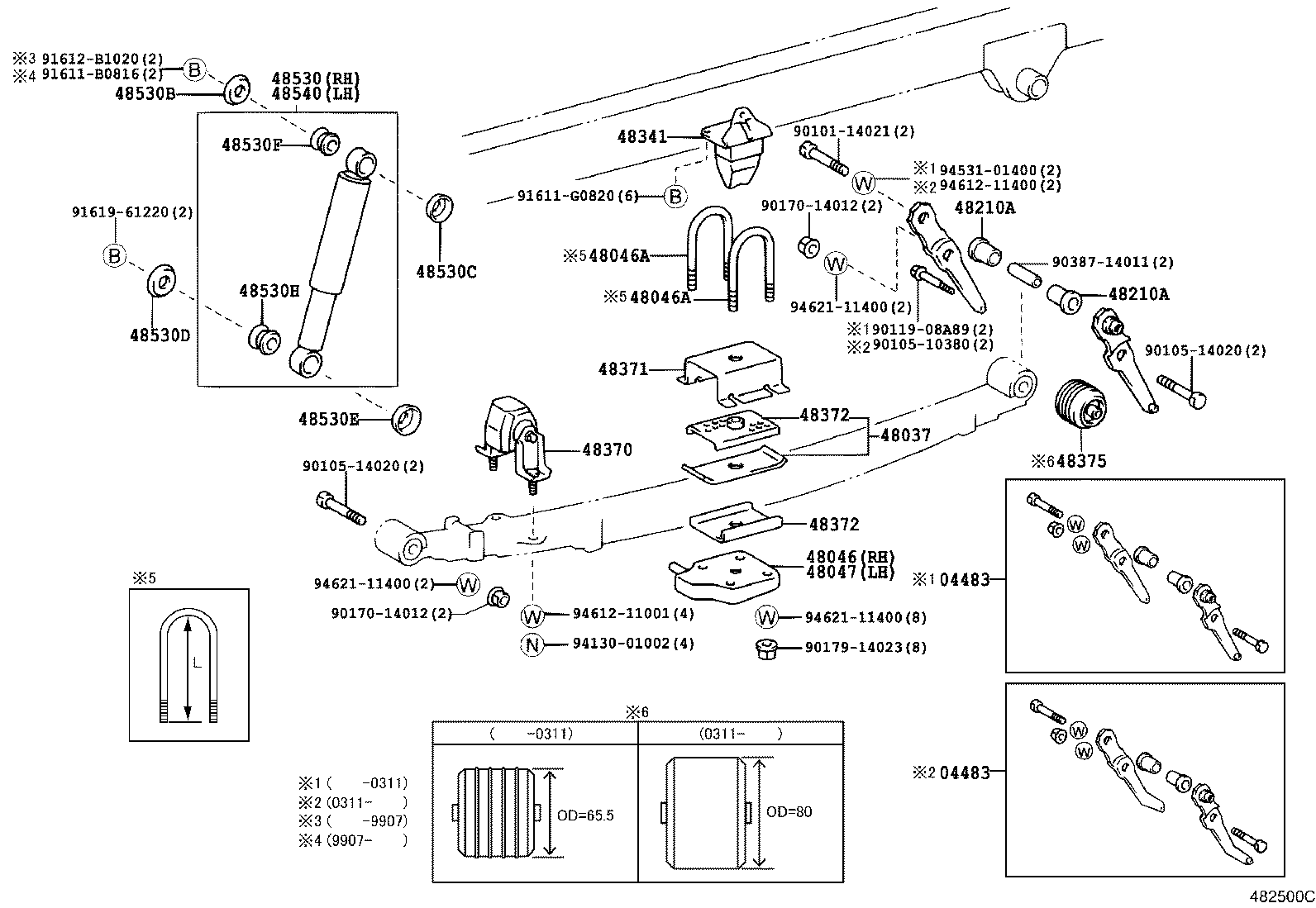

ILLUST NO. 1 OF 2(9808- )LH168,178,186,188

Click highlighted areas on diagram

diagram 04483 04483 48037 48046 48046A 48046A 48047 48210A 48210A 48341 48370 48371 48372 48372 48375 48530 48530B 48530C 48530D 48530E 48530F 48530H 48540 9010114021 9010510380 9010514020 9010514020 9011908A89 9017014012 9017014012 9017914023 9038714011 91611B0816 91611G0820 91612B1020 9161961220 9413001002 9453101400 9461211001 9461211400 9462111400 9462111400 9462111400
Part # Description Qty Price
04483 - SHACKLE KIT, REAR SPRING
04483-26120

LH168,178,186,188

 2
04483-26120

LH168,178,186,188

 2
04483-26160

LH168,178,186,188

右側

 1
04489-26010

LH168,178,186,188

左側

 1
04483 - SHACKLE KIT, REAR SPRING
04483-26120

LH168,178,186,188

 2
04483-26120

LH168,178,186,188

 2
04483-26160

LH168,178,186,188

右側

 1
04489-26010

LH168,178,186,188

左側

 1
48046A - BOLT, U(FOR REAR SPRING)
90117-14059

LH16#,17#,182,188,RZH102,112..V1

長さ=180

 4
48046A - BOLT, U(FOR REAR SPRING)
90117-14059

LH16#,17#,182,188,RZH102,112..V1

長さ=180

 4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18008

LH102,103,109,11#,12#,140,16#,17#,18#,RZH102,110,112,12#..COM,V1,WG

 4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18008

LH102,103,109,11#,12#,140,16#,17#,18#,RZH102,110,112,12#..COM,V1,WG

 4
48341 - BUMPER, REAR SPRING
48341-26170

LH109,117,119,129,168,178,186,188

 2
48341-26170

LH168,178,186,188

 2
48370 - DAMPER ASSY, LEAF SPRING DYNAMIC
48370-26061

LH168,178,186,188

 2
48370-26061

LH168,178,186,188

 2
48375 - DAMPER, LEAF SPRING DYNAMIC
48375-26030

LH168,178,186,188

 2
48375-26030

LH168,178,186,188

 2
48375-26050

LH168,178,186,188

 2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80547

LH168,178,188

ﾏｰｸ 48531−26390

 1
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03012

LH102,103,109,11#,12#,140,16#,17#,18#,RZH102,110,112,12#

 2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03004

LH102,103,109,11#,12#,140,16#,17#,18#,RZH102,110,112,12#

 2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03015

LH102,103,109,11#,12#,140,16#,17#,18#,RZH102,110,112,12#

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03011

LH102,103,109,11#,12#,140,16#,17#,18#,RZH102,110,112,12#

 2
48530F - RETAINER, SHOCK ABSORBER CUSHION(FOR REAR)
90385-16009

LH102,103,109,11#,12#,140,16#,17#,18#,RZH102,110,112,12#

 2
48530H - BUSH, REAR SHOCK ABSORBER
90385-19006

LH102,103,109,11#,12#,140,16#,17#,18#,RZH102,110,112,12#

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-80547

LH168,178,188

ﾏｰｸ 48531−26390

 1
Common parts
90101-14021
90105-10380
90105-14020
90119-08A89
90170-14012
90179-14023
90387-14011
91611-B0816
91611-G0820
91612-B1020
91619-61220
94130-01002
94531-01400
94612-11001
94612-11400
94621-11400
