LH178V-RBPBS (1998)

Toyota Hiace/Regiusace

Production Aug 1998 - Aug 2004
Engine 5L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(9808- )LH16#,17#,18#..CD,DX,GL

Click highlighted areas on diagram

COOLER IDOL UP(DEALER OPT) ATM

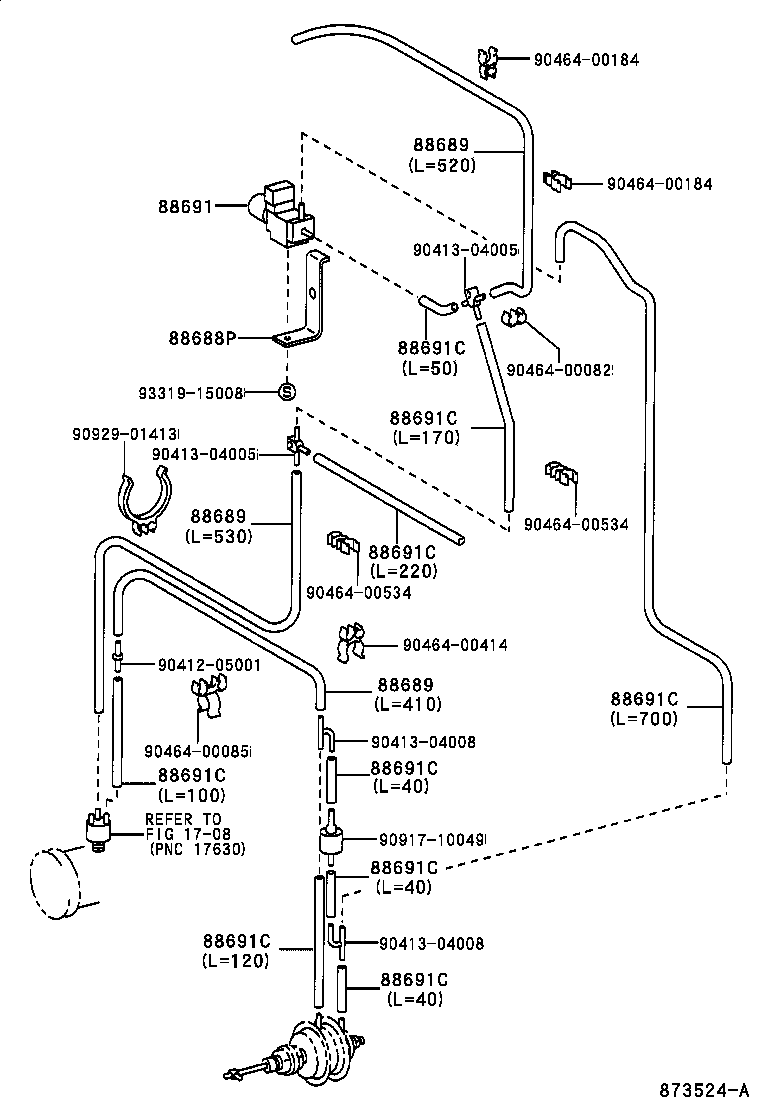

diagram 1708 88688P 88689 88689 88689 88691 88691C 88691C 88691C 88691C 88691C 88691C 88691C 88691C 88691C 9041205001 9041304005 9041304005 9041304008 9041304008 9046400082 9046400085 9046400184 9046400184 9046400414 9046400534 9046400534 9091710049 9092901413 9331915008
Part # Description Qty Price
88688P - BRACKET (FOR MAGNET VALVE)
88688-2F130

LH168,178..03S,06S

 2
88689 - HOSE, DAMPER CONTROL DIAPHRAGM VACUUM
88689-26070

LH16#,17#,18#..CD,DX,GL

長さ=410,ﾏｰｸ=#1

 1
88689-26060

LH16#,17#,18#..CD,DX,GL

長さ=530,ﾏｰｸ=#*

 1
88689-26090

LH16#,17#,18#..CD,DX,GL

長さ=,ﾏｰｸ=#0

 1
88689-26050

LH16#,17#,18#..CD,DX,GL

長さ=520,ﾏｰｸ=#0

 1
88689-26080

LH16#,17#,18#..CD,DX,GL

長さ=780,ﾏｰｸ=#2

 1
88689-26080

LH16#,17#,18#..CD,DX,GL

長さ=780,ﾏｰｸ=#2

 1
88689-26050

LH16#,17#,18#..CD,DX,GL

長さ=520,ﾏｰｸ=#0

 1
88689-26070

LH16#,17#,18#..CD,DX,GL

長さ=410,ﾏｰｸ=#1

 1
88689-26060

LH16#,17#,18#..CD,DX,GL

長さ=530,ﾏｰｸ=#*

 1
88689-26090

LH16#,17#,18#..CD,DX,GL

長さ=,ﾏｰｸ=#0

 1
88689 - HOSE, DAMPER CONTROL DIAPHRAGM VACUUM
88689-26070

LH16#,17#,18#..CD,DX,GL

長さ=410,ﾏｰｸ=#1

 1
88689-26060

LH16#,17#,18#..CD,DX,GL

長さ=530,ﾏｰｸ=#*

 1
88689-26090

LH16#,17#,18#..CD,DX,GL

長さ=,ﾏｰｸ=#0

 1
88689-26050

LH16#,17#,18#..CD,DX,GL

長さ=520,ﾏｰｸ=#0

 1
88689-26080

LH16#,17#,18#..CD,DX,GL

長さ=780,ﾏｰｸ=#2

 1
88689-26080

LH16#,17#,18#..CD,DX,GL

長さ=780,ﾏｰｸ=#2

 1
88689-26050

LH16#,17#,18#..CD,DX,GL

長さ=520,ﾏｰｸ=#0

 1
88689-26070

LH16#,17#,18#..CD,DX,GL

長さ=410,ﾏｰｸ=#1

 1
88689-26060

LH16#,17#,18#..CD,DX,GL

長さ=530,ﾏｰｸ=#*

 1
88689-26090

LH16#,17#,18#..CD,DX,GL

長さ=,ﾏｰｸ=#0

 1
88689 - HOSE, DAMPER CONTROL DIAPHRAGM VACUUM
88689-26070

LH16#,17#,18#..CD,DX,GL

長さ=410,ﾏｰｸ=#1

 1
88689-26060

LH16#,17#,18#..CD,DX,GL

長さ=530,ﾏｰｸ=#*

 1
88689-26090

LH16#,17#,18#..CD,DX,GL

長さ=,ﾏｰｸ=#0

 1
88689-26050

LH16#,17#,18#..CD,DX,GL

長さ=520,ﾏｰｸ=#0

 1
88689-26080

LH16#,17#,18#..CD,DX,GL

長さ=780,ﾏｰｸ=#2

 1
88689-26080

LH16#,17#,18#..CD,DX,GL

長さ=780,ﾏｰｸ=#2

 1
88689-26050

LH16#,17#,18#..CD,DX,GL

長さ=520,ﾏｰｸ=#0

 1
88689-26070

LH16#,17#,18#..CD,DX,GL

長さ=410,ﾏｰｸ=#1

 1
88689-26060

LH16#,17#,18#..CD,DX,GL

長さ=530,ﾏｰｸ=#*

 1
88689-26090

LH16#,17#,18#..CD,DX,GL

長さ=,ﾏｰｸ=#0

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95J40

LH178..CD,DX;LH107,109,117,119,129,168,186,188..SG

 1
88691-26010

LH16#,17#,182,184,188..CD,DX,GL

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 2
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

LH16#,17#,18#..CD,DX,GL

*H,L=100,ﾏｰｸ=#1

 1
90999-92002

LH16#,17#,18#..CD,DX,GL

*H,L=40,ﾏｰｸ=#2

 3
90999-92004

LH16#,17#,18#..CD,DX,GL

*H,L=800,ﾏｰｸ=#*

 1
90999-92002

LH16#,17#,18#..CD,DX,GL

*H,L=40,ﾏｰｸ=#2

 3
90999-92002

LH162,172..CD;LH172..HRF..5D;LH168,178..4D..(03S,06S)

*H,L=50,ﾏｰｸ=#1,ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 1
90999-92004

LH16#,17#,18#..CD,DX,GL

*H,L=700,ﾏｰｸ=#2

 1
90999-92003

LH16#,17#,18#..CD,DX,GL

*H,L=380,ﾏｰｸ=#3

 1
90999-92004

LH16#,17#,18#..CD,DX,GL

*H,L=700,ﾏｰｸ=#2

 1
90999-92002

LH178..CD;LH168,178..5D..DX;LH162,172,182..03S,06S

*H,L=50,ﾏｰｸ=#1

 2
90999-92002

LH16#,17#,18#..CD,DX,GL

*H,L=220,ﾏｰｸ=#3

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

LH16#,17#,18#..CD,DX,GL

*H,L=100,ﾏｰｸ=#1

 1
90999-92002

LH16#,17#,18#..CD,DX,GL

*H,L=40,ﾏｰｸ=#2

 3
90999-92004

LH16#,17#,18#..CD,DX,GL

*H,L=800,ﾏｰｸ=#*

 1
90999-92002

LH16#,17#,18#..CD,DX,GL

*H,L=40,ﾏｰｸ=#2

 3
90999-92002

LH162,172..CD;LH172..HRF..5D;LH168,178..4D..(03S,06S)

*H,L=50,ﾏｰｸ=#1,ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 1
90999-92004

LH16#,17#,18#..CD,DX,GL

*H,L=700,ﾏｰｸ=#2

 1
90999-92003

LH16#,17#,18#..CD,DX,GL

*H,L=380,ﾏｰｸ=#3

 1
90999-92004

LH16#,17#,18#..CD,DX,GL

*H,L=700,ﾏｰｸ=#2

 1
90999-92002

LH178..CD;LH168,178..5D..DX;LH162,172,182..03S,06S

*H,L=50,ﾏｰｸ=#1

 2
90999-92002

LH16#,17#,18#..CD,DX,GL

*H,L=220,ﾏｰｸ=#3

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

LH16#,17#,18#..CD,DX,GL

*H,L=100,ﾏｰｸ=#1

 1
90999-92002

LH16#,17#,18#..CD,DX,GL

*H,L=40,ﾏｰｸ=#2

 3
90999-92004

LH16#,17#,18#..CD,DX,GL

*H,L=800,ﾏｰｸ=#*

 1
90999-92002

LH16#,17#,18#..CD,DX,GL

*H,L=40,ﾏｰｸ=#2

 3
90999-92002

LH162,172..CD;LH172..HRF..5D;LH168,178..4D..(03S,06S)

*H,L=50,ﾏｰｸ=#1,ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 1
90999-92004

LH16#,17#,18#..CD,DX,GL

*H,L=700,ﾏｰｸ=#2

 1
90999-92003

LH16#,17#,18#..CD,DX,GL

*H,L=380,ﾏｰｸ=#3

 1
90999-92004

LH16#,17#,18#..CD,DX,GL

*H,L=700,ﾏｰｸ=#2

 1
90999-92002

LH178..CD;LH168,178..5D..DX;LH162,172,182..03S,06S

*H,L=50,ﾏｰｸ=#1

 2
90999-92002

LH16#,17#,18#..CD,DX,GL

*H,L=220,ﾏｰｸ=#3

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

LH16#,17#,18#..CD,DX,GL

*H,L=100,ﾏｰｸ=#1

 1
90999-92002

LH16#,17#,18#..CD,DX,GL

*H,L=40,ﾏｰｸ=#2

 3
90999-92004

LH16#,17#,18#..CD,DX,GL

*H,L=800,ﾏｰｸ=#*

 1
90999-92002

LH16#,17#,18#..CD,DX,GL

*H,L=40,ﾏｰｸ=#2

 3
90999-92002

LH162,172..CD;LH172..HRF..5D;LH168,178..4D..(03S,06S)

*H,L=50,ﾏｰｸ=#1,ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 1
90999-92004

LH16#,17#,18#..CD,DX,GL

*H,L=700,ﾏｰｸ=#2

 1
90999-92003

LH16#,17#,18#..CD,DX,GL

*H,L=380,ﾏｰｸ=#3

 1
90999-92004

LH16#,17#,18#..CD,DX,GL

*H,L=700,ﾏｰｸ=#2

 1
90999-92002

LH178..CD;LH168,178..5D..DX;LH162,172,182..03S,06S

*H,L=50,ﾏｰｸ=#1

 2
90999-92002

LH16#,17#,18#..CD,DX,GL

*H,L=220,ﾏｰｸ=#3

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

LH16#,17#,18#..CD,DX,GL

*H,L=100,ﾏｰｸ=#1

 1
90999-92002

LH16#,17#,18#..CD,DX,GL

*H,L=40,ﾏｰｸ=#2

 3
90999-92004

LH16#,17#,18#..CD,DX,GL

*H,L=800,ﾏｰｸ=#*

 1
90999-92002

LH16#,17#,18#..CD,DX,GL

*H,L=40,ﾏｰｸ=#2

 3
90999-92002

LH162,172..CD;LH172..HRF..5D;LH168,178..4D..(03S,06S)

*H,L=50,ﾏｰｸ=#1,ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 1
90999-92004

LH16#,17#,18#..CD,DX,GL

*H,L=700,ﾏｰｸ=#2

 1
90999-92003

LH16#,17#,18#..CD,DX,GL

*H,L=380,ﾏｰｸ=#3

 1
90999-92004

LH16#,17#,18#..CD,DX,GL

*H,L=700,ﾏｰｸ=#2

 1
90999-92002

LH178..CD;LH168,178..5D..DX;LH162,172,182..03S,06S

*H,L=50,ﾏｰｸ=#1

 2
90999-92002

LH16#,17#,18#..CD,DX,GL

*H,L=220,ﾏｰｸ=#3

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

LH16#,17#,18#..CD,DX,GL

*H,L=100,ﾏｰｸ=#1

 1
90999-92002

LH16#,17#,18#..CD,DX,GL

*H,L=40,ﾏｰｸ=#2

 3
90999-92004

LH16#,17#,18#..CD,DX,GL

*H,L=800,ﾏｰｸ=#*

 1
90999-92002

LH16#,17#,18#..CD,DX,GL

*H,L=40,ﾏｰｸ=#2

 3
90999-92002

LH162,172..CD;LH172..HRF..5D;LH168,178..4D..(03S,06S)

*H,L=50,ﾏｰｸ=#1,ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 1
90999-92004

LH16#,17#,18#..CD,DX,GL

*H,L=700,ﾏｰｸ=#2

 1
90999-92003

LH16#,17#,18#..CD,DX,GL

*H,L=380,ﾏｰｸ=#3

 1
90999-92004

LH16#,17#,18#..CD,DX,GL

*H,L=700,ﾏｰｸ=#2

 1
90999-92002

LH178..CD;LH168,178..5D..DX;LH162,172,182..03S,06S

*H,L=50,ﾏｰｸ=#1

 2
90999-92002

LH16#,17#,18#..CD,DX,GL

*H,L=220,ﾏｰｸ=#3

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

LH16#,17#,18#..CD,DX,GL

*H,L=100,ﾏｰｸ=#1

 1
90999-92002

LH16#,17#,18#..CD,DX,GL

*H,L=40,ﾏｰｸ=#2

 3
90999-92004

LH16#,17#,18#..CD,DX,GL

*H,L=800,ﾏｰｸ=#*

 1
90999-92002

LH16#,17#,18#..CD,DX,GL

*H,L=40,ﾏｰｸ=#2

 3
90999-92002

LH162,172..CD;LH172..HRF..5D;LH168,178..4D..(03S,06S)

*H,L=50,ﾏｰｸ=#1,ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 1
90999-92004

LH16#,17#,18#..CD,DX,GL

*H,L=700,ﾏｰｸ=#2

 1
90999-92003

LH16#,17#,18#..CD,DX,GL

*H,L=380,ﾏｰｸ=#3

 1
90999-92004

LH16#,17#,18#..CD,DX,GL

*H,L=700,ﾏｰｸ=#2

 1
90999-92002

LH178..CD;LH168,178..5D..DX;LH162,172,182..03S,06S

*H,L=50,ﾏｰｸ=#1

 2
90999-92002

LH16#,17#,18#..CD,DX,GL

*H,L=220,ﾏｰｸ=#3

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

LH16#,17#,18#..CD,DX,GL

*H,L=100,ﾏｰｸ=#1

 1
90999-92002

LH16#,17#,18#..CD,DX,GL

*H,L=40,ﾏｰｸ=#2

 3
90999-92004

LH16#,17#,18#..CD,DX,GL

*H,L=800,ﾏｰｸ=#*

 1
90999-92002

LH16#,17#,18#..CD,DX,GL

*H,L=40,ﾏｰｸ=#2

 3
90999-92002

LH162,172..CD;LH172..HRF..5D;LH168,178..4D..(03S,06S)

*H,L=50,ﾏｰｸ=#1,ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 1
90999-92004

LH16#,17#,18#..CD,DX,GL

*H,L=700,ﾏｰｸ=#2

 1
90999-92003

LH16#,17#,18#..CD,DX,GL

*H,L=380,ﾏｰｸ=#3

 1
90999-92004

LH16#,17#,18#..CD,DX,GL

*H,L=700,ﾏｰｸ=#2

 1
90999-92002

LH178..CD;LH168,178..5D..DX;LH162,172,182..03S,06S

*H,L=50,ﾏｰｸ=#1

 2
90999-92002

LH16#,17#,18#..CD,DX,GL

*H,L=220,ﾏｰｸ=#3

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

LH16#,17#,18#..CD,DX,GL

*H,L=100,ﾏｰｸ=#1

 1
90999-92002

LH16#,17#,18#..CD,DX,GL

*H,L=40,ﾏｰｸ=#2

 3
90999-92004

LH16#,17#,18#..CD,DX,GL

*H,L=800,ﾏｰｸ=#*

 1
90999-92002

LH16#,17#,18#..CD,DX,GL

*H,L=40,ﾏｰｸ=#2

 3
90999-92002

LH162,172..CD;LH172..HRF..5D;LH168,178..4D..(03S,06S)

*H,L=50,ﾏｰｸ=#1,ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 1
90999-92004

LH16#,17#,18#..CD,DX,GL

*H,L=700,ﾏｰｸ=#2

 1
90999-92003

LH16#,17#,18#..CD,DX,GL

*H,L=380,ﾏｰｸ=#3

 1
90999-92004

LH16#,17#,18#..CD,DX,GL

*H,L=700,ﾏｰｸ=#2

 1
90999-92002

LH178..CD;LH168,178..5D..DX;LH162,172,182..03S,06S

*H,L=50,ﾏｰｸ=#1

 2
90999-92002

LH16#,17#,18#..CD,DX,GL

*H,L=220,ﾏｰｸ=#3

 1
Common parts
90412-05001
90413-04005
90413-04008
90464-00082
90464-00085
90464-00184
90464-00414
90464-00534
90917-10049
90929-01413
93319-15008
Linked diagrams
1708

ILLUST NO. 2 OF 3(9808- )LH16#,17#,18#..CD,DX,GL

Click highlighted areas on diagram

COOLER IDOL UP(DEALER OPT) MTM

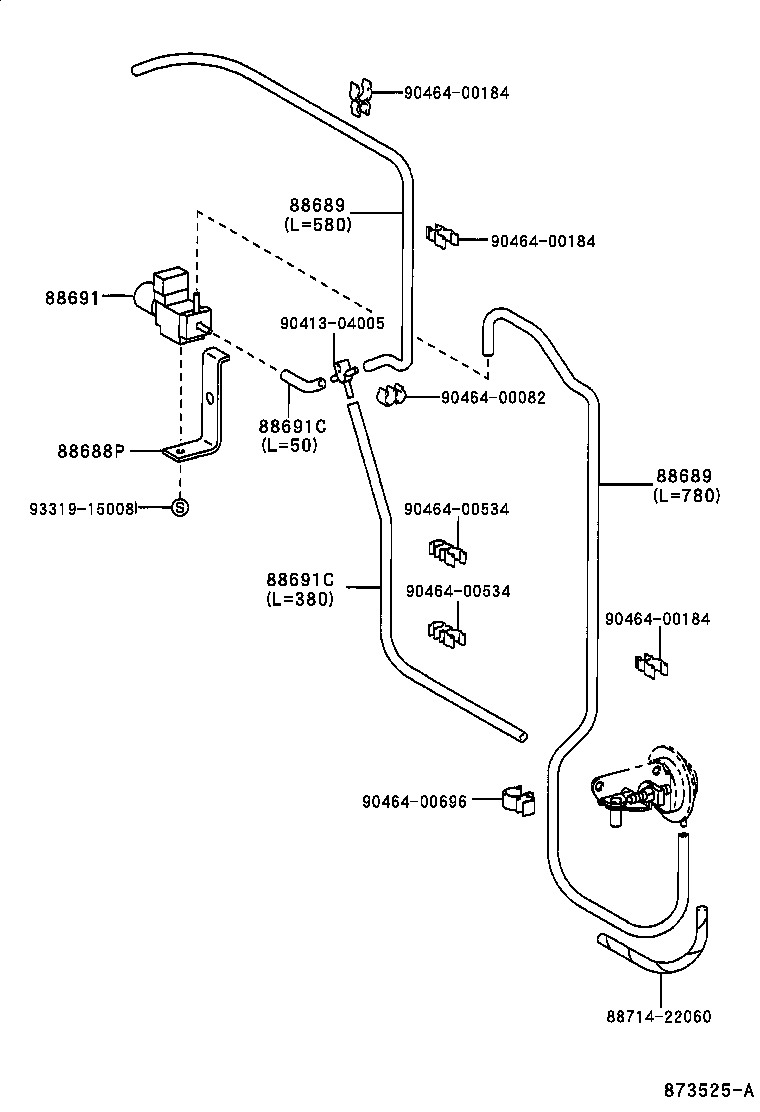

diagram 88688P 88689 88689 88691 88691C 88691C 8871422060 9041304005 9046400082 9046400184 9046400184 9046400184 9046400534 9046400534 9046400696 9331915008
Part # Description Qty Price
88688P - BRACKET (FOR MAGNET VALVE)
88688-2F130

LH168,178..03S,06S

 2
88689 - HOSE, DAMPER CONTROL DIAPHRAGM VACUUM
88689-26070

LH16#,17#,18#..CD,DX,GL

長さ=410,ﾏｰｸ=#1

 1
88689-26060

LH16#,17#,18#..CD,DX,GL

長さ=530,ﾏｰｸ=#*

 1
88689-26090

LH16#,17#,18#..CD,DX,GL

長さ=,ﾏｰｸ=#0

 1
88689-26050

LH16#,17#,18#..CD,DX,GL

長さ=520,ﾏｰｸ=#0

 1
88689-26080

LH16#,17#,18#..CD,DX,GL

長さ=780,ﾏｰｸ=#2

 1
88689-26080

LH16#,17#,18#..CD,DX,GL

長さ=780,ﾏｰｸ=#2

 1
88689-26050

LH16#,17#,18#..CD,DX,GL

長さ=520,ﾏｰｸ=#0

 1
88689-26070

LH16#,17#,18#..CD,DX,GL

長さ=410,ﾏｰｸ=#1

 1
88689-26060

LH16#,17#,18#..CD,DX,GL

長さ=530,ﾏｰｸ=#*

 1
88689-26090

LH16#,17#,18#..CD,DX,GL

長さ=,ﾏｰｸ=#0

 1
88689 - HOSE, DAMPER CONTROL DIAPHRAGM VACUUM
88689-26070

LH16#,17#,18#..CD,DX,GL

長さ=410,ﾏｰｸ=#1

 1
88689-26060

LH16#,17#,18#..CD,DX,GL

長さ=530,ﾏｰｸ=#*

 1
88689-26090

LH16#,17#,18#..CD,DX,GL

長さ=,ﾏｰｸ=#0

 1
88689-26050

LH16#,17#,18#..CD,DX,GL

長さ=520,ﾏｰｸ=#0

 1
88689-26080

LH16#,17#,18#..CD,DX,GL

長さ=780,ﾏｰｸ=#2

 1
88689-26080

LH16#,17#,18#..CD,DX,GL

長さ=780,ﾏｰｸ=#2

 1
88689-26050

LH16#,17#,18#..CD,DX,GL

長さ=520,ﾏｰｸ=#0

 1
88689-26070

LH16#,17#,18#..CD,DX,GL

長さ=410,ﾏｰｸ=#1

 1
88689-26060

LH16#,17#,18#..CD,DX,GL

長さ=530,ﾏｰｸ=#*

 1
88689-26090

LH16#,17#,18#..CD,DX,GL

長さ=,ﾏｰｸ=#0

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95J40

LH178..CD,DX;LH107,109,117,119,129,168,186,188..SG

 1
88691-26010

LH16#,17#,182,184,188..CD,DX,GL

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 2
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

LH16#,17#,18#..CD,DX,GL

*H,L=100,ﾏｰｸ=#1

 1
90999-92002

LH16#,17#,18#..CD,DX,GL

*H,L=40,ﾏｰｸ=#2

 3
90999-92004

LH16#,17#,18#..CD,DX,GL

*H,L=800,ﾏｰｸ=#*

 1
90999-92002

LH16#,17#,18#..CD,DX,GL

*H,L=40,ﾏｰｸ=#2

 3
90999-92002

LH162,172..CD;LH172..HRF..5D;LH168,178..4D..(03S,06S)

*H,L=50,ﾏｰｸ=#1,ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 1
90999-92004

LH16#,17#,18#..CD,DX,GL

*H,L=700,ﾏｰｸ=#2

 1
90999-92003

LH16#,17#,18#..CD,DX,GL

*H,L=380,ﾏｰｸ=#3

 1
90999-92004

LH16#,17#,18#..CD,DX,GL

*H,L=700,ﾏｰｸ=#2

 1
90999-92002

LH178..CD;LH168,178..5D..DX;LH162,172,182..03S,06S

*H,L=50,ﾏｰｸ=#1

 2
90999-92002

LH16#,17#,18#..CD,DX,GL

*H,L=220,ﾏｰｸ=#3

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

LH16#,17#,18#..CD,DX,GL

*H,L=100,ﾏｰｸ=#1

 1
90999-92002

LH16#,17#,18#..CD,DX,GL

*H,L=40,ﾏｰｸ=#2

 3
90999-92004

LH16#,17#,18#..CD,DX,GL

*H,L=800,ﾏｰｸ=#*

 1
90999-92002

LH16#,17#,18#..CD,DX,GL

*H,L=40,ﾏｰｸ=#2

 3
90999-92002

LH162,172..CD;LH172..HRF..5D;LH168,178..4D..(03S,06S)

*H,L=50,ﾏｰｸ=#1,ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 1
90999-92004

LH16#,17#,18#..CD,DX,GL

*H,L=700,ﾏｰｸ=#2

 1
90999-92003

LH16#,17#,18#..CD,DX,GL

*H,L=380,ﾏｰｸ=#3

 1
90999-92004

LH16#,17#,18#..CD,DX,GL

*H,L=700,ﾏｰｸ=#2

 1
90999-92002

LH178..CD;LH168,178..5D..DX;LH162,172,182..03S,06S

*H,L=50,ﾏｰｸ=#1

 2
90999-92002

LH16#,17#,18#..CD,DX,GL

*H,L=220,ﾏｰｸ=#3

 1
Common parts
88714-22060
90413-04005
90464-00082
90464-00184
90464-00534
90464-00696
93319-15008
