LH178V-RBPBS (1998)

Toyota Hiace/Regiusace

Production Aug 1998 - Aug 2004
Engine 5L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

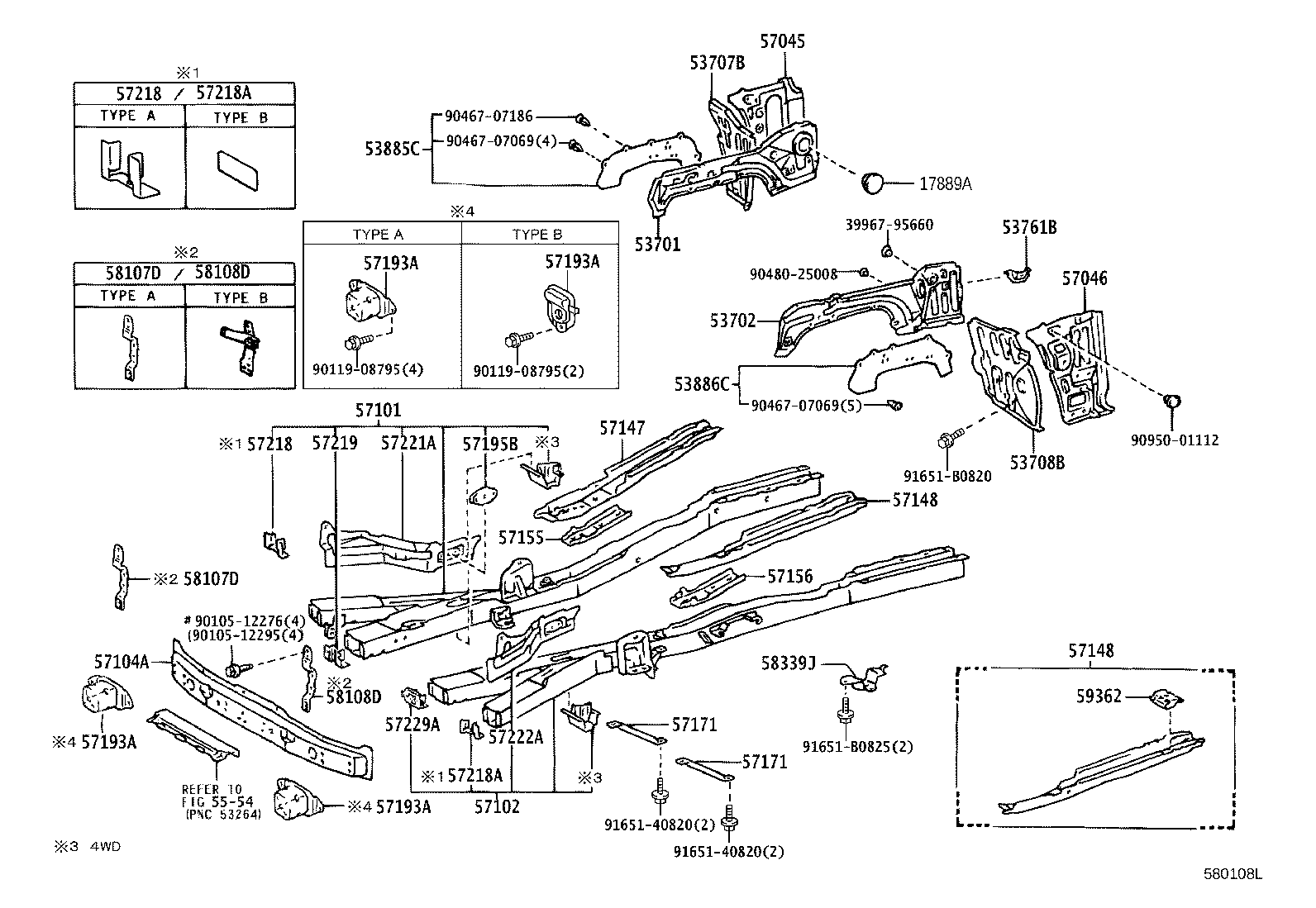

ILLUST NO. 2 OF 2(8908-9907)

Click highlighted areas on diagram

diagram 17889A 3996795660 53701 53702 53707B 53708B 53761B 53885C 53886C 5554 57045 57046 57101 57102 57104A 57147 57148 57148 57155 57156 57171 57171 57193A 57193A 57193A 57193A 57195B 57218 57218 57218A 57218A 57219 57221A 57222A 57229A 58107D 58107D 58108D 58108D 58339J 59362 9010512276 9010512295 9011908795 9011908795 9046707069 9046707069 9046707186 9048025008 9095001112 9165140820 9165140820 91651B0820 91651B0825
Part # Description Qty Price
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-95J09

KZH10#,11#,12#,13#,LH10#,11#,123,125,129,140,16#,17#,18#..COM,V1,WG

ｱﾘ(ﾊﾞﾂﾃﾘ=80D26L-MF X 2)

 1
53702-95J09

KZH10#,11#,120,13#,LH16#,17#,18#..COM,V1,WG

ｱﾘ(ﾊﾞﾂﾃﾘ=80D26L-MF X 2)

 1
53708B - APRON SUB-ASSY, FENDER SIDE, LH
53708-26090

LH172..SRF..(CD,DX);LH16#,178,188..CD,DX

 1
53885C - SEAL, FENDER APRON MUDGUARD, RH
53885-95J03

KZH106,116,120,138,LH168,178,186,188..4WD

 1
53885-95J03

KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188

 1
53886C - SEAL, FENDER APRON MUDGUARD, LH
53886-95J03

KZH106,116,120,138,LH168,178,186,188..4WD

 1
53886-95J03

KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188

 1
57046 - PLATE SUB-ASSY, FLOOR SIDE RAIL, LH
57046-26111

LH172,RZH112..SRF;KZH10#,11#,12#,13#,LH16#,178,184,186,RZH10#,111,12#

 1
57046-26023

LH172,RZH112..SRF;KZH10#,11#,12#,13#,LH16#,178,184,186,RZH10#,111,12#

ｱﾘ(ﾊﾞﾂﾃﾘ X 2)

 1
57046-26023

RZH112,125,TRH112..HRF..DX;KZH10#,11#,120,13#,LH16#,17#,184,186,RZH124

ｱﾘ(ﾊﾞﾂﾃﾘ X 2)

 1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-26450

LH168,178,186,188

 1
57101-26450

LH168,178,186,188

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-26470

LH168,178,186,188

 1
57102-26470

LH168,178,186,188

 1
57104A - MEMBER SUB-ASSY, FRONT CROSS
57104-26110

LH16#,17#,RZH102,112..SRF..(CD,DX)

 1
57104-26140

LH16#,17#,RZH102,112,TRH102,112..SRF..(CD,DX,SGLE)

ｱﾘ(ABS)

 1
57104-26110

LH16#,17#,RZH102,112,TRH102,112..SRF..(CD,DX,SGLE)

 1
57104-26140

RZH112..5F;RZH112..V2..4FC;RZH112..4D..4FC;LH16#,17#,18#,RZH102,12#

ｱﾘ(ABS)

 1
57147 - PLATE, FRONT SIDE MEMBER, REAR RH
57105-26090

KZH10#,11#,126,LH182,188..DX,GCGN,SCL;KZH13#,LH162,17#,184,186,RZH10#,11#,12#,133..(COM,V1,WG)..(03S,05S,07S,08S,09S,10S,15S)..(CD,DX,GL,SCL,SGL)

製造工場NO.C31

 1
57148 - PLATE, FRONT SIDE MEMBER, REAR LH
57106-26070

KZH10#,11#,126,LH182,188..DX,GCGN,SCL;KZH13#,LH162,17#,184,186,RZH10#,11#,12#,133..(COM,V1,WG)..(03S,05S,07S,08S,09S,10S,15S)..(CD,DX,GL,SCL,SGL)

製造工場NO.C31

 1
57148 - PLATE, FRONT SIDE MEMBER, REAR LH
57106-26070

KZH10#,11#,126,LH182,188..DX,GCGN,SCL;KZH13#,LH162,17#,184,186,RZH10#,11#,12#,133..(COM,V1,WG)..(03S,05S,07S,08S,09S,10S,15S)..(CD,DX,GL,SCL,SGL)

製造工場NO.C31

 1
57155 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH
57155-26010

KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133

 1
57156 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH
57155-26010

KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133

 1
57171 - BRACKET, CROSSMEMBER FLOOR, NO.1
57171-95J00

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG

 2
57171 - BRACKET, CROSSMEMBER FLOOR, NO.1
57171-95J00

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG

 2
57193A - BLOCK, FRONT CROSSMEMBER, NO.1
57193-26060

LH16#,17#,18#,RZH102,112,12#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 2
57193-26060

LH16#,17#,18#,TRH102,112

 2
57193A - BLOCK, FRONT CROSSMEMBER, NO.1
57193-26060

LH16#,17#,18#,RZH102,112,12#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 2
57193-26060

LH16#,17#,18#,TRH102,112

 2
57193A - BLOCK, FRONT CROSSMEMBER, NO.1
57193-26060

LH16#,17#,18#,RZH102,112,12#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 2
57193-26060

LH16#,17#,18#,TRH102,112

 2
57193A - BLOCK, FRONT CROSSMEMBER, NO.1
57193-26060

LH16#,17#,18#,RZH102,112,12#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 2
57193-26060

LH16#,17#,18#,TRH102,112

 2
57195B - BRACKET, SHIFT CONTROL CABLE
57195-95J02

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
57218A - GUSSET, FRONT SIDE MEMBER, NO.1 LH
57218-95J01

LH10#,11#,12#,16#,17#,18#,RZH102,112,12#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
57218A - GUSSET, FRONT SIDE MEMBER, NO.1 LH
57218-95J01

LH10#,11#,12#,16#,17#,18#,RZH102,112,12#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
57221A - BRACKET, FRONT SIDE MEMBER, RH
57221-26010

LH16#,17#,18#,RZH102,112,12#

 1
57222A - BRACKET, FRONT SIDE MEMBER, LH
57222-95J00

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
58107D - REINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH
58127-26021

LH16#,17#,18#,RZH102,112,12#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
58107D - REINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH
58127-26021

LH16#,17#,18#,RZH102,112,12#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
58108D - REINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH
58127-26021

LH16#,17#,18#,RZH102,112,12#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
58108D - REINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH
58127-26021

LH16#,17#,18#,RZH102,112,12#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
58339J - BRACKET, JACK UP
58339-95J00

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 2
Common parts
39967-95660
90105-12276
90105-12295
90119-08795
90467-07069
90467-07186
90480-25008
90950-01112
91651-40820
91651-B0820
91651-B0825
Linked diagrams
5554

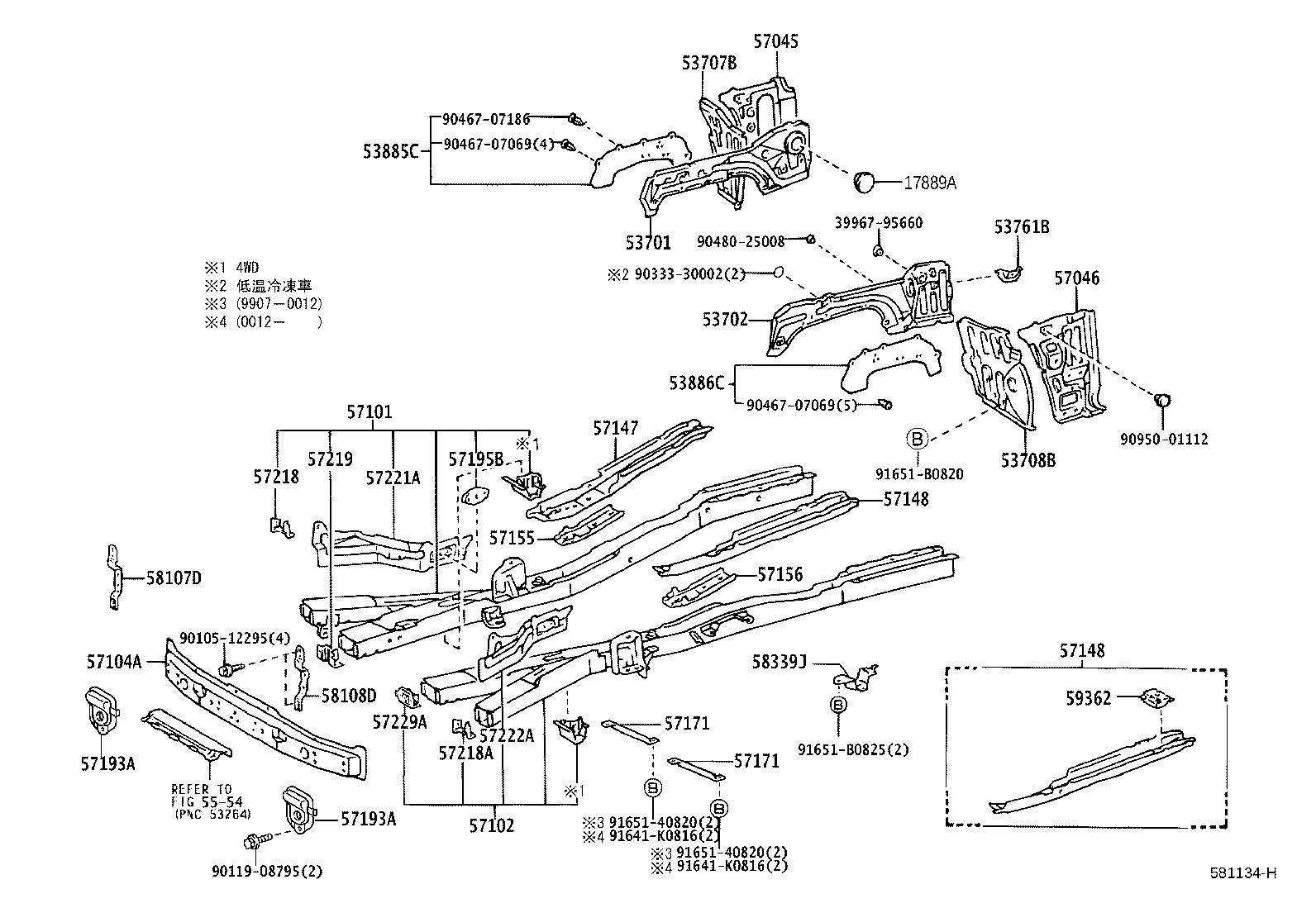

ILLUST NO. 2 OF 2(9907- )LH16#,17#,18#,RZH102,112,12#,18#,TRH102,112,12#

Click highlighted areas on diagram

diagram 17889A 3996795660 53701 53702 53707B 53708B 53761B 53885C 53886C 5554 57045 57046 57101 57102 57104A 57147 57148 57148 57155 57156 57171 57171 57193A 57195B 57218 57218A 57219 57221A 57222A 57229A 58107D 58108D 58339J 59362 9010512295 9011908795 9033330002 9046707069 9046707069 9046707186 9048025008 9095001112 91641K0816 91641K0816 9165140820 9165140820 91651B0820 91651B0825
Part # Description Qty Price
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-95J09

KZH10#,11#,12#,13#,LH10#,11#,123,125,129,140,16#,17#,18#..COM,V1,WG

ｱﾘ(ﾊﾞﾂﾃﾘ=80D26L-MF X 2)

 1
53702-95J09

KZH10#,11#,120,13#,LH16#,17#,18#..COM,V1,WG

ｱﾘ(ﾊﾞﾂﾃﾘ=80D26L-MF X 2)

 1
53708B - APRON SUB-ASSY, FENDER SIDE, LH
53708-26090

LH172..SRF..(CD,DX);LH16#,178,188..CD,DX

 1
53885C - SEAL, FENDER APRON MUDGUARD, RH
53885-95J03

KZH106,116,120,138,LH168,178,186,188..4WD

 1
53885-95J03

KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188

 1
53886C - SEAL, FENDER APRON MUDGUARD, LH
53886-95J03

KZH106,116,120,138,LH168,178,186,188..4WD

 1
53886-95J03

KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188

 1
57046 - PLATE SUB-ASSY, FLOOR SIDE RAIL, LH
57046-26111

LH172,RZH112..SRF;KZH10#,11#,12#,13#,LH16#,178,184,186,RZH10#,111,12#

 1
57046-26023

LH172,RZH112..SRF;KZH10#,11#,12#,13#,LH16#,178,184,186,RZH10#,111,12#

ｱﾘ(ﾊﾞﾂﾃﾘ X 2)

 1
57046-26023

RZH112,125,TRH112..HRF..DX;KZH10#,11#,120,13#,LH16#,17#,184,186,RZH124

ｱﾘ(ﾊﾞﾂﾃﾘ X 2)

 1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-26450

LH168,178,186,188

 1
57101-26450

LH168,178,186,188

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-26470

LH168,178,186,188

 1
57102-26470

LH168,178,186,188

 1
57104A - MEMBER SUB-ASSY, FRONT CROSS
57104-26110

LH16#,17#,RZH102,112..SRF..(CD,DX)

 1
57104-26140

LH16#,17#,RZH102,112,TRH102,112..SRF..(CD,DX,SGLE)

ｱﾘ(ABS)

 1
57104-26110

LH16#,17#,RZH102,112,TRH102,112..SRF..(CD,DX,SGLE)

 1
57104-26140

RZH112..5F;RZH112..V2..4FC;RZH112..4D..4FC;LH16#,17#,18#,RZH102,12#

ｱﾘ(ABS)

 1
57147 - PLATE, FRONT SIDE MEMBER, REAR RH
57105-26090

KZH10#,11#,126,LH182,188..DX,GCGN,SCL;KZH13#,LH162,17#,184,186,RZH10#,11#,12#,133..(COM,V1,WG)..(03S,05S,07S,08S,09S,10S,15S)..(CD,DX,GL,SCL,SGL)

製造工場NO.C31

 1
57148 - PLATE, FRONT SIDE MEMBER, REAR LH
57106-26070

KZH10#,11#,126,LH182,188..DX,GCGN,SCL;KZH13#,LH162,17#,184,186,RZH10#,11#,12#,133..(COM,V1,WG)..(03S,05S,07S,08S,09S,10S,15S)..(CD,DX,GL,SCL,SGL)

製造工場NO.C31

 1
57148 - PLATE, FRONT SIDE MEMBER, REAR LH
57106-26070

KZH10#,11#,126,LH182,188..DX,GCGN,SCL;KZH13#,LH162,17#,184,186,RZH10#,11#,12#,133..(COM,V1,WG)..(03S,05S,07S,08S,09S,10S,15S)..(CD,DX,GL,SCL,SGL)

製造工場NO.C31

 1
57155 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH
57155-26010

KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133

 1
57156 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH
57155-26010

KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133

 1
57171 - BRACKET, CROSSMEMBER FLOOR, NO.1
57171-95J00

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG

 2
57171 - BRACKET, CROSSMEMBER FLOOR, NO.1
57171-95J00

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG

 2
57193A - BLOCK, FRONT CROSSMEMBER, NO.1
57193-26060

LH16#,17#,18#,RZH102,112,12#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 2
57193-26060

LH16#,17#,18#,TRH102,112

 2
57195B - BRACKET, SHIFT CONTROL CABLE
57195-95J02

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
57218A - GUSSET, FRONT SIDE MEMBER, NO.1 LH
57218-95J01

LH10#,11#,12#,16#,17#,18#,RZH102,112,12#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
57221A - BRACKET, FRONT SIDE MEMBER, RH
57221-26010

LH16#,17#,18#,RZH102,112,12#

 1
57222A - BRACKET, FRONT SIDE MEMBER, LH
57222-95J00

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
58107D - REINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH
58127-26021

LH16#,17#,18#,RZH102,112,12#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
58108D - REINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH
58127-26021

LH16#,17#,18#,RZH102,112,12#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
58339J - BRACKET, JACK UP
58339-95J00

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 2
Common parts
39967-95660
90105-12295
90119-08795
90333-30002
90467-07069
90467-07186
90480-25008
90950-01112
91641-K0816
91651-40820
91651-B0820
91651-B0825
Linked diagrams
5554
