LH172V-SRMDS (1998)

Toyota Hiace/Regiusace

Production Aug 1998 - Aug 2004
Engine 5L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9907-0208)KZH100,110,120,132,LH162,172,182,184..2WD

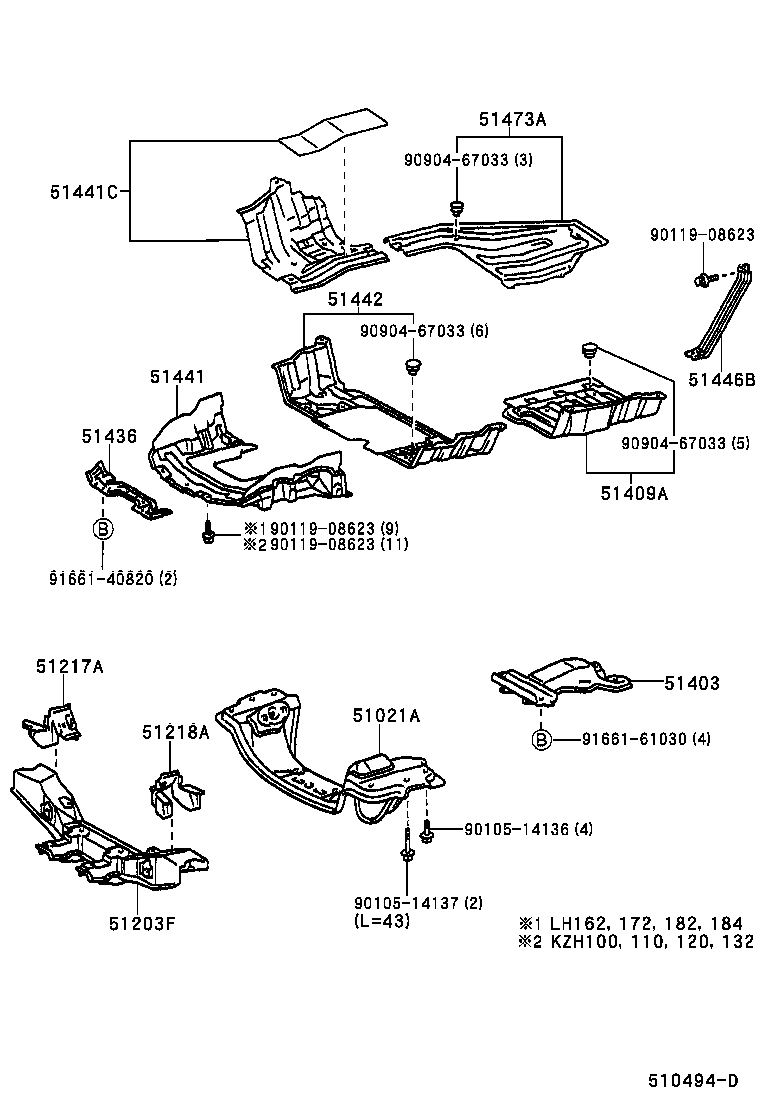

Click highlighted areas on diagram

diagram 51021A 51203F 51217A 51218A 51403 51409A 51436 51441 51441C 51442 51446B 51473A 9010514136 9010514137 9011908623 9011908623 9011908623 9090467033 9090467033 9090467033 9166140820 9166161030
Part # Description Qty Price
51021A - MEMBER SUB-ASSY, ENGINE FRONT SUPPORT
51021-95J08

LH100,102,103,110,113,115,120,123,125,140,162,172,182,184

 1
51021-95J08

LH162,172,182,184

 1
51403 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING
51403-95J00

RZH100,102,112,124..5F;LH100,120..(08S,10S)..4FC;LH100,102,103,110,113,115,123,125,140,162,172,182,184,RZH110,122..CD,CTM,DX,GL,SCL,SGL,SW

 1
51409A - COVER SUB-ASSY, ENGINE UNDER, NO.4
51409-26050

LH16#,17#,18#

 1
51436 - PROTECTOR, ENGINE FRONT SUPPORT
51436-26070

LH162,172,182

 1
51441 - COVER, ENGINE UNDER, NO.1
51405-26020

LH162,172,182,184

 1
51405-26120

LH162,172,182,184

 1
51442 - COVER, ENGINE UNDER, NO.2
51406-26020

LH162,172,182,184

 1
51406-26110

LH162,172,182,184

 1
Common parts
90105-14136
90105-14137
90119-08623
90904-67033
91661-40820
91661-61030

(0208- )LH162,172,182,184

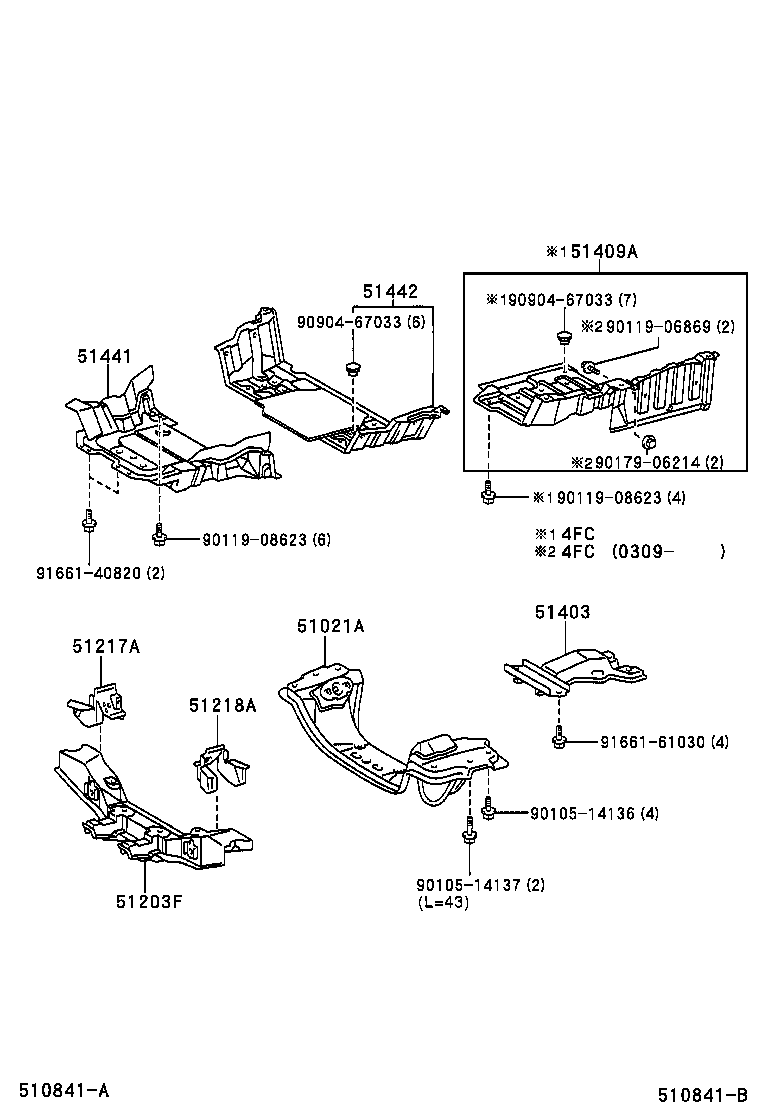

Click highlighted areas on diagram

diagram 51021A 51203F 51217A 51218A 51403 51409A 51441 51442 9010514136 9010514137 9011906869 9011908623 9011908623 9017906214 9090467033 9090467033 9166140820 9166161030
Part # Description Qty Price
51021A - MEMBER SUB-ASSY, ENGINE FRONT SUPPORT
51021-95J08

LH100,102,103,110,113,115,120,123,125,140,162,172,182,184

 1
51021-95J08

LH162,172,182,184

 1
51403 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING
51403-95J00

RZH100,102,112,124..5F;LH100,120..(08S,10S)..4FC;LH100,102,103,110,113,115,123,125,140,162,172,182,184,RZH110,122..CD,CTM,DX,GL,SCL,SGL,SW

 1
51409A - COVER SUB-ASSY, ENGINE UNDER, NO.4
51409-26050

LH16#,17#,18#

 1
51441 - COVER, ENGINE UNDER, NO.1
51405-26020

LH162,172,182,184

 1
51405-26120

LH162,172,182,184

 1
51442 - COVER, ENGINE UNDER, NO.2
51406-26020

LH162,172,182,184

 1
51406-26110

LH162,172,182,184

 1
Common parts
90105-14136
90105-14137
90119-06869
90119-08623
90179-06214
90904-67033
91661-40820
91661-61030
