LH172V-RMMDS (1998)
Toyota Hiace/Regiusace

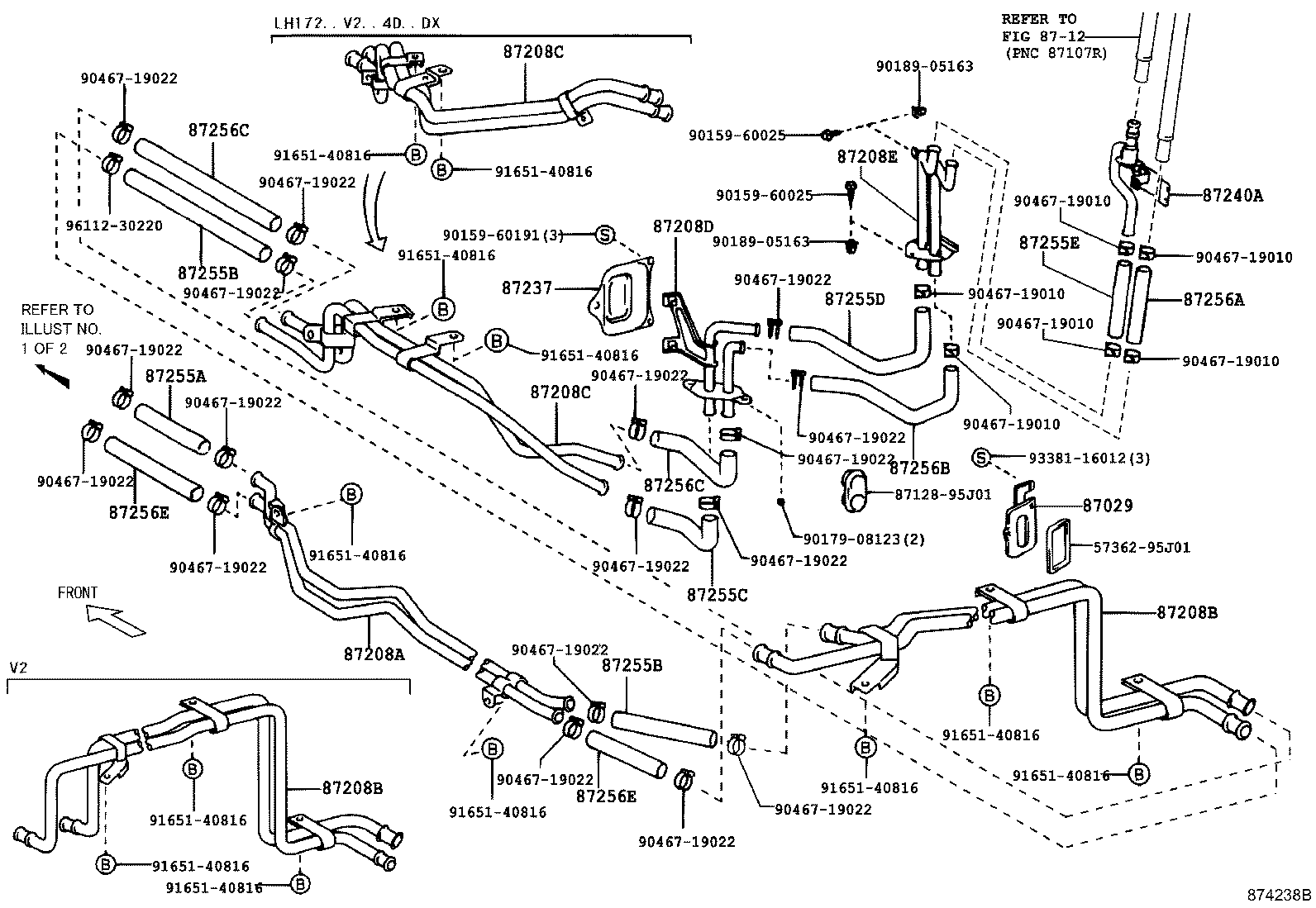

ILLUST NO. 2 OF 2(9808- )LH16#,178..5D ; (9808- )LH172..V2..DX ; (9808- )LH172..V1..5D..DX
ﾘﾔ-ﾄﾘﾑ(2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87029 - COVER SUB-ASSY, HEATER INLET HOLE | ||||
| 87029-95J01 |
LH113,172,RZH112..V2..4D..DX;LH102,103,109,113,119,16#,17#,RZH102,112..V1..5D..06S |
1 | ||
| 87029-95J01 |
LH172,TRH112..V2..4D..DX;LH16#,17#,TRH102,112..V1..5D |
1 | ||
| 87208A - PIPE SUB-ASSY, HEATER WATER, A | ||||
| 87208-26820 |
LH16#,17#,18#..SG |
1 | ||
| 87208-26820 |
LH16#,17#,18#..SG |
1 | ||
| 87208B - PIPE SUB-ASSY, HEATER WATER, B | ||||
| 87208-26890 |
LH162,172..V2..DX |
1 | ||
| 87208-26890 |
LH162,172..V2..DX |
1 | ||
| 87208B - PIPE SUB-ASSY, HEATER WATER, B | ||||
| 87208-26890 |
LH162,172..V2..DX |
1 | ||
| 87208-26890 |
LH162,172..V2..DX |
1 | ||
| 87208C - PIPE SUB-ASSY, HEATER WATER, C | ||||
| 87208-2F170 |
LH172..V2..4D..DX |
1 | ||
| 87208-2F170 |
LH172,RZH112,TRH112..V2..4D..DX |
1 | ||
| 87208C - PIPE SUB-ASSY, HEATER WATER, C | ||||
| 87208-2F170 |
LH172..V2..4D..DX |
1 | ||
| 87208-2F170 |
LH172,RZH112,TRH112..V2..4D..DX |
1 | ||
| 87208E - PIPE SUB-ASSY, HEATER WATER, E | ||||
| 87208-2F150 |
LH162,172,TRH102,112..V2..DX |
1 | ||
| 87208-2F150 |
LH162,172,RZH102,112..V2..DX |
1 | ||
| 87240A - VALVE ASSY, REAR HEATER WATER | ||||
| 87240-26040 |
LH113..V2..4D..DX;LH172,RZH112..V2..DX;LH172,RZH112..V1..5D..06S;LH102,103,109,113,119,16#,178,RZH102..5D..06S |
1 | ||
| 87240-26100 |
RZH112..V2..4D..DX;LH172,TRH112..V1..5D;LH172,TRH112..V2..DX;LH16#,178,RZH102,112,TRH102..5D |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 99556-20200 |
LH16#,17#,18#..SG *H,L=140 |
1 | ||
| 99556-20115 |
LH16#,17#,18#..SG *H,L=115 |
1 | ||
| 87255B - HOSE, REAR HEATER WATER INLET, B | ||||
| 99556-20490 |
RZH112..V2..4D..DX;LH172,TRH112..V1..5D;LH172,TRH112..V2..DX;LH16#,178,RZH102,112,TRH102..5D *H,L=370 |
1 | ||
| 87255B - HOSE, REAR HEATER WATER INLET, B | ||||
| 99556-20490 |
RZH112..V2..4D..DX;LH172,TRH112..V1..5D;LH172,TRH112..V2..DX;LH16#,178,RZH102,112,TRH102..5D *H,L=370 |
1 | ||
| 87255D - HOSE, REAR HEATER WATER INLET, D | ||||
| 87245-95J61 |
LH102,103,113,162,172,RZH102,112..V2..06S |
1 | ||
| 87245-95J61 |
LH162,172,RZH102,112,TRH102,112..V2..DX |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 99556-20200 |
LH16#,178..5D;LH172..V1..5D;LH172,RZH102..V2..DX *H,L=140 |
1 | ||
| 99556-20200 |
RZH112..V2..4D..DX;LH172,TRH112..V1..5D;RZH102,112..5D..SGLE;LH16#,178,TRH102..5D;LH172,RZH102,TRH112..V2..DX *H,L=140 |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 99556-20200 |
RZH112..V2..4D..DX;LH172,TRH112..V1..5D;LH172,TRH112..V2..DX;LH16#,178,RZH102,112,TRH102..5D *H,L=140 |
1 | ||
| 87256B - HOSE, REAR HEATER WATER OUTLET, B | ||||
| 87245-95J51 |
LH162,172,RZH102,112,TRH102,112..V2..DX |
1 | ||
| 87245-95J51 |
LH102,103,113,162,172,RZH102,112..V2..06S |
1 | ||
| 87256C - HOSE, REAR HEATER WATER OUTLET, C | ||||
| 99556-20500 |
LH16#,178,TRH102..5D;LH172,TRH112..V2..DX;LH172,TRH112..V1..5D *H,L=350 |
1 | ||
| 87256C - HOSE, REAR HEATER WATER OUTLET, C | ||||
| 99556-20500 |
LH16#,178,TRH102..5D;LH172,TRH112..V2..DX;LH172,TRH112..V1..5D *H,L=350 |
1 | ||
| 87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE) | ||||
| 99556-20200 |
LH16#,17#,18#..SG *H,L=170 |
1 | ||
| 99556-20200 |
LH16#,17#,18#..SG *H,L=180 |
1 | ||
| 99556-20200 |
LH16#,17#,18#..SG *H,L=200 |
1 | ||
| 99556-20155 |
LH16#,17#,18#..SG *H,L=155 |
1 | ||
| 87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE) | ||||
| 99556-20200 |
LH16#,17#,18#..SG *H,L=170 |
1 | ||
| 99556-20200 |
LH16#,17#,18#..SG *H,L=180 |
1 | ||
| 99556-20200 |
LH16#,17#,18#..SG *H,L=200 |
1 | ||
| 99556-20155 |
LH16#,17#,18#..SG *H,L=155 |
1 | ||
| Common parts | ||||
| 57362-95J01 | ||||
| 87128-95J01 | ||||
| 90159-60025 | ||||
| 90159-60191 | ||||
| 90179-08123 | ||||
| 90189-05163 | ||||
| 90467-19010 | ||||
| 90467-19022 | ||||
| 91651-40816 | ||||
| 93381-16012 | ||||
| 96112-30220 | ||||
| Linked diagrams | ||||
| 8712 | ||||
