Toyota Hiace/regiusace LH172 SEAT & SEAT TRACK

LH172V-RKMBS (1998)

Toyota Hiace/Regiusace

Production Aug 1998 - Aug 2004

Engine 5L

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

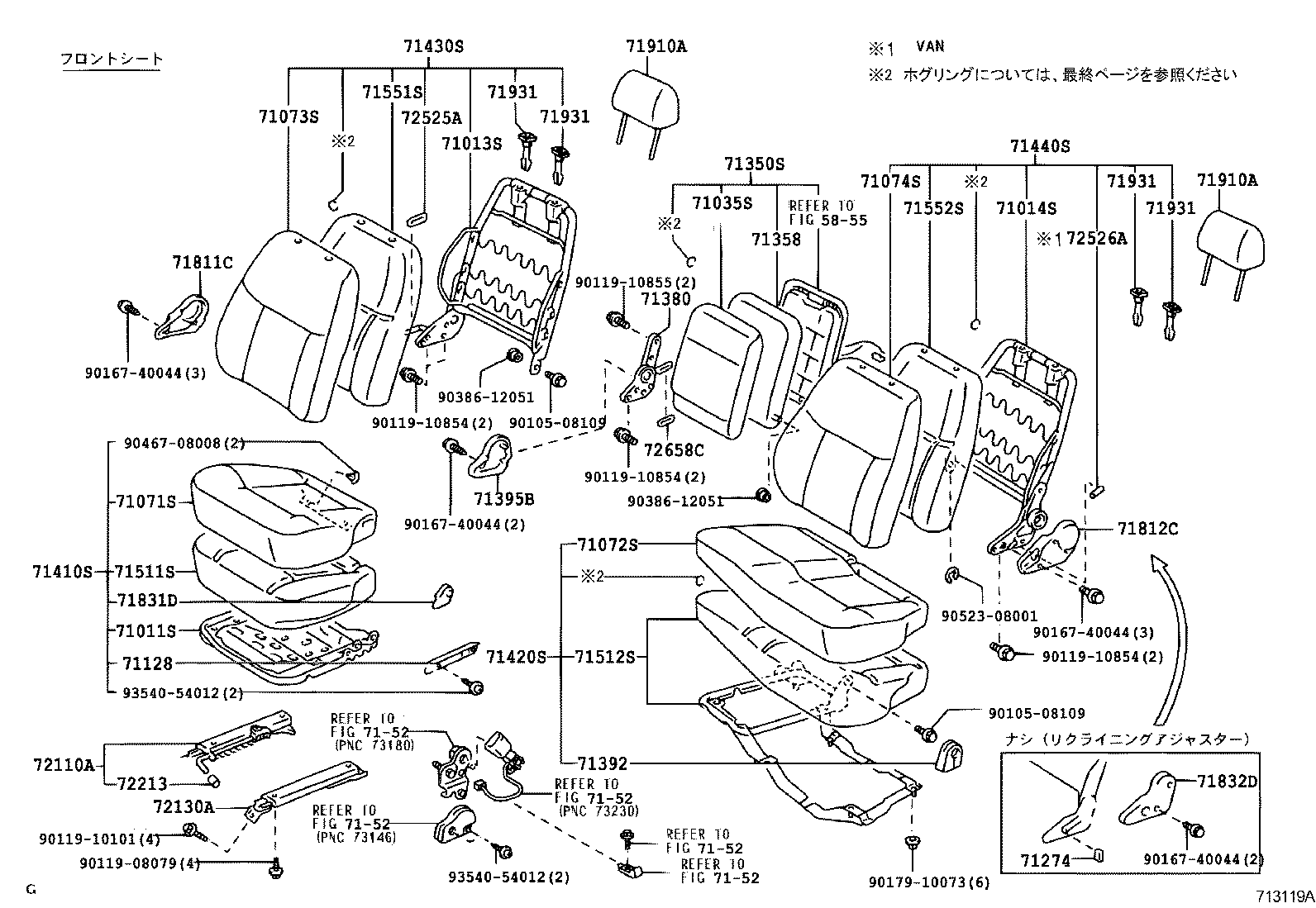

ILLUST NO. 1 OF 4(8908-9907)CD,DX,SW

Click highlighted areas on diagram

ﾌﾛﾝﾄｼ-ﾄ:ｱﾘ(ｾﾝﾀｼ-ﾄ)

Part #	Description	Period	Qty
71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH
71013-26070	RZH102..DX;RZH112..V2..5D;RZH112..V1..SRF..DX;LH16#,17#,182,188..CD,DX ｱﾘ(ﾍﾂﾄﾞﾚｽﾄﾌﾞﾝﾘｼｷ)	07/1999 - 08/2004	1
71013-26070	LH16#,17#,18#,RZH102,112..CD,DX ｱﾘ(ﾍﾂﾄﾞﾚｽﾄﾌﾞﾝﾘｼｷ)	08/1998 - 07/1999	1
71013-26080	LH16#,17#,182,188,RZH102,112,18#..CD,DX ｱﾘ(ﾍﾂﾄﾞﾚｽﾄｲﾂﾀｲｼｷ)	07/1999 - 08/2004	1
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-26100	LH16#,17#,182,188,RZH102,112..CD,DX ｳｴﾙｷﾔﾌﾞ	08/1998 - 07/1999	1
71014-26100	RZH102,112..DX;LH16#,17#,182,188,RZH18#..CD,DX ｱﾘ(ｼﾞﾖｼﾕｾｷﾌﾙﾘｸﾗｲﾆﾝｸﾞ)	07/1999 - 08/2004	1
71035S - COVER, FRONT SEAT BACK, CENTER
71095-26110B0	LH16#,17#,18#,RZH102,112,12#..CD,DX GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71095-26071B2	LH16#,17#,182,188,RZH102,112..CD,DX ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-26251B1	LH16#,17#,182,188,RZH102,112..CD,DX ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71071-26480B2	LH162,17#..CD ｼ-ﾄ = TYPE H-104;ﾎﾚｲｼｬ OR ﾚｲﾄｳｼｬ & ｼｰﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-26320B0	LH16#,17#,182,188,RZH102,112..CD,DX GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71072-26231B1	LH16#,17#,182,188,RZH102,112..CD,DX ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-26171B5	LH16#,17#,182,188,RZH102,112..CD,DX GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71073-26331B1	LH16#,17#,182,188,RZH102,112..CD,DX ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71073-26171B5	RZH102,112..DX;LH16#,17#,182,188,RZH18#..CD,DX GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	07/1999 - 08/2004	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-26261B5	LH16#,17#,182,188,RZH102,112..CD,DX GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71074-26331B1	LH16#,17#,182,188,RZH102,112..CD,DX ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71274 - KNOB, FRONT SEAT HINGE
71274-95J00B0	KZH11#,LH16#,17#,18#,RZH102,11#,12#,133..CD,DX,GL BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71350S - BACK ASSY, FRONT SEAT, CENTER
71350-26131B4	LH16#,17#,182,188,RZH102,112..CD,DX **,ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71350-26190B3	LH162,17#,TRH102,112..CD **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2004	1
71350-26190B0	LH16#,17#,182,188,RZH102,112..CD,DX **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71358 - PAD, CENTER SEAT BACK
71033-95J00	LH16#,17#,18#,RZH102,112,12#..CD,DX,GL	08/1998 - 07/1999	1
71380 - HINGE ASSY, CENTER SEAT, RH
71380-95J05	LH16#,17#,182,188,RZH102,112..CD,DX GL ﾊﾟﾂｹ-ｼﾞ	08/1998 - 07/1999	1
71392 - COVER, CENTER SEAT CUSHION BRACKET, LH
71392-95J04B0	RZH102,112..V2;LH16#,17#,18#,RZH12#..CD,DX,GL BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71395B - COVER, CENTER SEAT HINGE, RH
71395-95J02B0	LH16#,17#,18#,RZH102,112,12#..CD,DX,GL BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-26490B0	LH16#,17#,182,188,RZH102,112..CD,DX **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71410-26261B4	LH16#,17#,182,188,RZH102,112..CD,DX **,ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71410-26490B8	LH162,17#,TRH102,112..CD **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2004	1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-26231B4	LH16#,17#,182,188,RZH102,112..CD,DX **,ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71420-26320B0	LH16#,17#,182,188,RZH102,112..CD,DX **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71420-26750B0	LH162,172..5F..CD **,ﾚｲﾄｳｼﾔ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/2000 - 08/2004	1
71420-26320B3	LH162,17#,TRH102,112..CD **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2004	1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71401-26081B6	LH16#,17#,182,188,RZH102,112..CD,DX **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71430-26501B4	LH16#,17#,182,188,RZH102,112..CD,DX **,ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71401-26081B9	LH162,17#..CD **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2004	1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71402-26091B6	LH16#,17#,182,188,RZH102,112..CD,DX **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71440-26461B4	LH16#,17#,182,188,RZH102,112..CD,DX **,ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71402-26091B9	LH162,17#..CD **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2004	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-95J11	RZH102,112..V2;RZH102,112..SGL;LH16#,17#,182,188,RZH12#	08/1998 - 07/1999	1
71511-95J11	RZH102,112..SGL;RZH102,112..V2..5D;LH16#,17#,182,188,RZH111,12#..CD,DX,GL,SGL	07/1999 - 08/2004	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-26030	LH162,172..5F..CD	08/1998 - 07/1999	1
71502-26011	LH16#,17#,182,188,RZH102,112..CD,DX GL ﾊﾟﾂｹ-ｼﾞ	08/1998 - 07/1999	1
71502-26040	LH162,172..5F..CD ﾚｲﾄｳｼﾔ	08/2000 - 08/2004	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-95J18	RZH102,112..V2;LH16#,17#,182,188;RZH102,112,125..GL,SGL GL ﾊﾟﾂｹ-ｼﾞ	08/1998 - 07/1999	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-95J20	LH16#,17#,182,188,RZH102,112..CD,DX GL ﾊﾟﾂｹ-ｼﾞ	08/1998 - 07/1999	1
72130A - TRACK ASSY, FRONT SEAT, INNER RH
72130-26010	KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S	08/1998 - 07/1999	1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-95J01B0	KZH11#,LH16#,17#,18#,RZH102,11#,12#,133 BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-95J01B0	KZH11#,LH16#,17#,18#,RZH102,11#,12#,133 BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
72658C - KNOB, FRONT SEAT LOCK HANDLE
72658-9570111	LH16#,17#,18#,RZH102,112,12#..CD,DX,GL BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
Common parts
90105-08109
90119-08079
90119-10101
90119-10854
90119-10855
90167-40044
90179-10073
90386-10027
90386-12051
90386-12061
90467-08008
90523-08001
91612-B1020
93540-54012

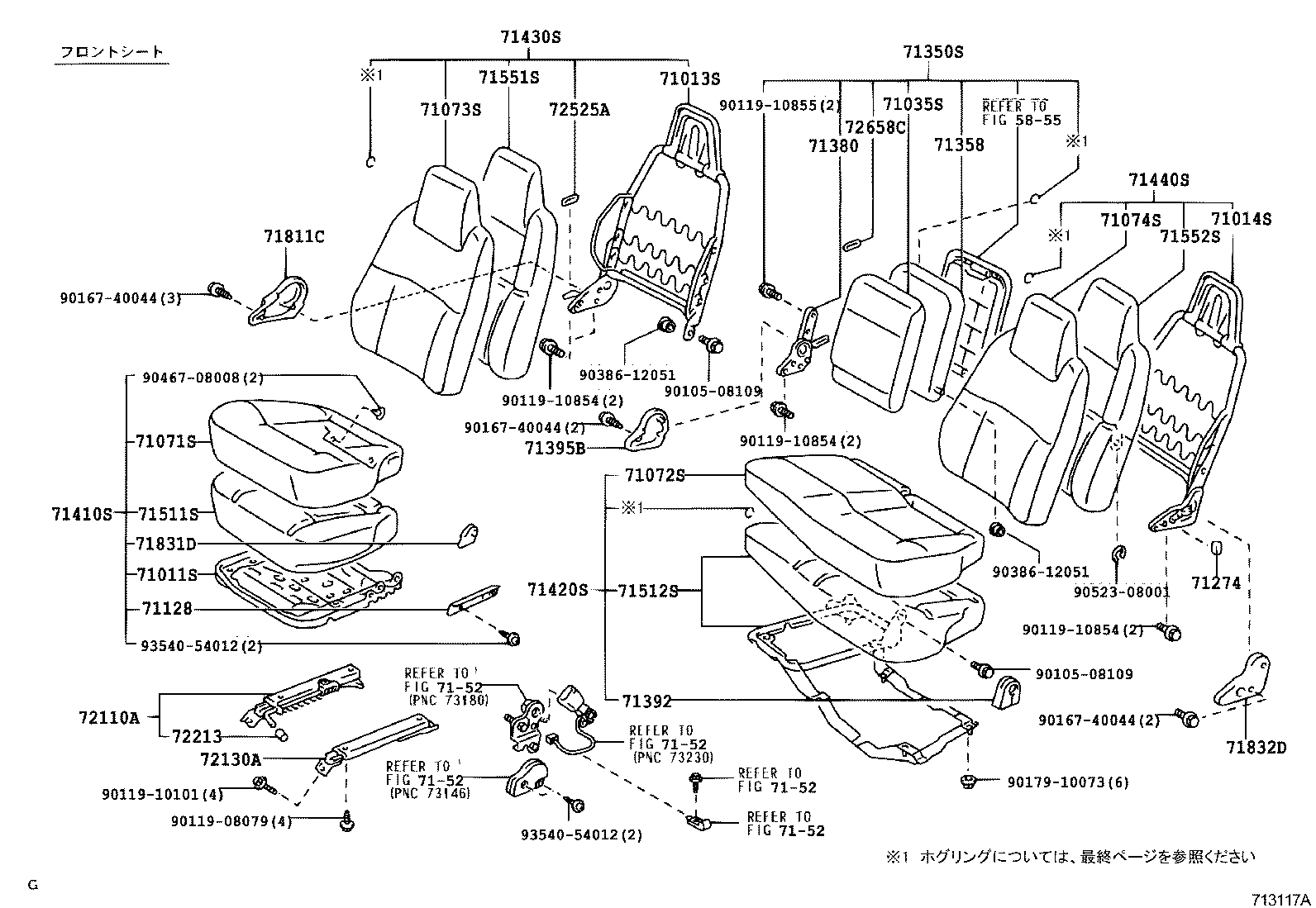

ILLUST NO. 1 OF 4(8908-9907)

Click highlighted areas on diagram

ﾌﾛﾝﾄｼ-ﾄ:LH10#,11#,123(ﾚｲﾄｳｼﾔ)

Part #	Description	Period	Qty
71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH
71013-26070	RZH102..DX;RZH112..V2..5D;RZH112..V1..SRF..DX;LH16#,17#,182,188..CD,DX ｱﾘ(ﾍﾂﾄﾞﾚｽﾄﾌﾞﾝﾘｼｷ)	07/1999 - 08/2004	1
71013-26070	LH16#,17#,18#,RZH102,112..CD,DX ｱﾘ(ﾍﾂﾄﾞﾚｽﾄﾌﾞﾝﾘｼｷ)	08/1998 - 07/1999	1
71013-26080	LH16#,17#,182,188,RZH102,112,18#..CD,DX ｱﾘ(ﾍﾂﾄﾞﾚｽﾄｲﾂﾀｲｼｷ)	07/1999 - 08/2004	1
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-26100	LH16#,17#,182,188,RZH102,112..CD,DX ｳｴﾙｷﾔﾌﾞ	08/1998 - 07/1999	1
71014-26100	RZH102,112..DX;LH16#,17#,182,188,RZH18#..CD,DX ｱﾘ(ｼﾞﾖｼﾕｾｷﾌﾙﾘｸﾗｲﾆﾝｸﾞ)	07/1999 - 08/2004	1
71035S - COVER, FRONT SEAT BACK, CENTER
71095-26110B0	LH16#,17#,18#,RZH102,112,12#..CD,DX GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71095-26071B2	LH16#,17#,182,188,RZH102,112..CD,DX ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-26251B1	LH16#,17#,182,188,RZH102,112..CD,DX ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71071-26480B2	LH162,17#..CD ｼ-ﾄ = TYPE H-104;ﾎﾚｲｼｬ OR ﾚｲﾄｳｼｬ & ｼｰﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-26320B0	LH16#,17#,182,188,RZH102,112..CD,DX GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71072-26231B1	LH16#,17#,182,188,RZH102,112..CD,DX ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-26171B5	LH16#,17#,182,188,RZH102,112..CD,DX GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71073-26331B1	LH16#,17#,182,188,RZH102,112..CD,DX ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71073-26171B5	RZH102,112..DX;LH16#,17#,182,188,RZH18#..CD,DX GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	07/1999 - 08/2004	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-26261B5	LH16#,17#,182,188,RZH102,112..CD,DX GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71074-26331B1	LH16#,17#,182,188,RZH102,112..CD,DX ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71274 - KNOB, FRONT SEAT HINGE
71274-95J00B0	KZH11#,LH16#,17#,18#,RZH102,11#,12#,133..CD,DX,GL BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71350S - BACK ASSY, FRONT SEAT, CENTER
71350-26131B4	LH16#,17#,182,188,RZH102,112..CD,DX **,ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71350-26190B3	LH162,17#,TRH102,112..CD **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2004	1
71350-26190B0	LH16#,17#,182,188,RZH102,112..CD,DX **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71358 - PAD, CENTER SEAT BACK
71033-95J00	LH16#,17#,18#,RZH102,112,12#..CD,DX,GL	08/1998 - 07/1999	1
71380 - HINGE ASSY, CENTER SEAT, RH
71380-95J05	LH16#,17#,182,188,RZH102,112..CD,DX GL ﾊﾟﾂｹ-ｼﾞ	08/1998 - 07/1999	1
71392 - COVER, CENTER SEAT CUSHION BRACKET, LH
71392-95J04B0	RZH102,112..V2;LH16#,17#,18#,RZH12#..CD,DX,GL BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71395B - COVER, CENTER SEAT HINGE, RH
71395-95J02B0	LH16#,17#,18#,RZH102,112,12#..CD,DX,GL BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-26490B0	LH16#,17#,182,188,RZH102,112..CD,DX **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71410-26261B4	LH16#,17#,182,188,RZH102,112..CD,DX **,ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71410-26490B8	LH162,17#,TRH102,112..CD **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2004	1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-26231B4	LH16#,17#,182,188,RZH102,112..CD,DX **,ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71420-26320B0	LH16#,17#,182,188,RZH102,112..CD,DX **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71420-26750B0	LH162,172..5F..CD **,ﾚｲﾄｳｼﾔ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/2000 - 08/2004	1
71420-26320B3	LH162,17#,TRH102,112..CD **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2004	1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71401-26081B6	LH16#,17#,182,188,RZH102,112..CD,DX **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71430-26501B4	LH16#,17#,182,188,RZH102,112..CD,DX **,ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71401-26081B9	LH162,17#..CD **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2004	1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71402-26091B6	LH16#,17#,182,188,RZH102,112..CD,DX **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71440-26461B4	LH16#,17#,182,188,RZH102,112..CD,DX **,ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71402-26091B9	LH162,17#..CD **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2004	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-95J11	RZH102,112..V2;RZH102,112..SGL;LH16#,17#,182,188,RZH12#	08/1998 - 07/1999	1
71511-95J11	RZH102,112..SGL;RZH102,112..V2..5D;LH16#,17#,182,188,RZH111,12#..CD,DX,GL,SGL	07/1999 - 08/2004	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-26030	LH162,172..5F..CD	08/1998 - 07/1999	1
71502-26011	LH16#,17#,182,188,RZH102,112..CD,DX GL ﾊﾟﾂｹ-ｼﾞ	08/1998 - 07/1999	1
71502-26040	LH162,172..5F..CD ﾚｲﾄｳｼﾔ	08/2000 - 08/2004	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-95J18	RZH102,112..V2;LH16#,17#,182,188;RZH102,112,125..GL,SGL GL ﾊﾟﾂｹ-ｼﾞ	08/1998 - 07/1999	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-95J20	LH16#,17#,182,188,RZH102,112..CD,DX GL ﾊﾟﾂｹ-ｼﾞ	08/1998 - 07/1999	1
71812C - COVER, RECLINING ADJUSTER, LH
71812-95J00B0	KZH11#..4FC;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,SCM,SCMM,SGL GRAY,TRIM1#,ﾌﾛﾝﾄｼｰﾄ	08/1998 - 07/1999	1
71910A - HEADREST ASSY, FRONT SEAT
71910-95J35B0	LH184,186,RZH125..GL;LH16#,17#,182,188,RZH102,112..CD,DX ｼ-ﾄ = TYPE B OR TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71910-95J35B0	RZH102..DX;RZH112..V2..5D;RZH112..V1..SRF..DX;LH184,186,RZH125..GL;LH16#,17#,182,188..CD,DX ｼ-ﾄ = TYPE B OR TYPE C-*104,BLUISH GRAY,TRIM1#	07/1999 - 08/2004	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ無,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71930-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ付,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ無,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71930-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ付,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ無,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71930-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ付,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ無,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71930-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ付,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
72130A - TRACK ASSY, FRONT SEAT, INNER RH
72130-26010	KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S	08/1998 - 07/1999	1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-95J01B0	KZH11#,LH16#,17#,18#,RZH102,11#,12#,133 BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-95J01B0	KZH11#,LH16#,17#,18#,RZH102,11#,12#,133 BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
72658C - KNOB, FRONT SEAT LOCK HANDLE
72658-9570111	LH16#,17#,18#,RZH102,112,12#..CD,DX,GL BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
Common parts
90105-08109
90119-08079
90119-10101
90119-10116
90119-10855
90167-40044
90179-10073
90386-10027
90386-12051
90467-08008
90523-08001
91612-B1020
93540-54012

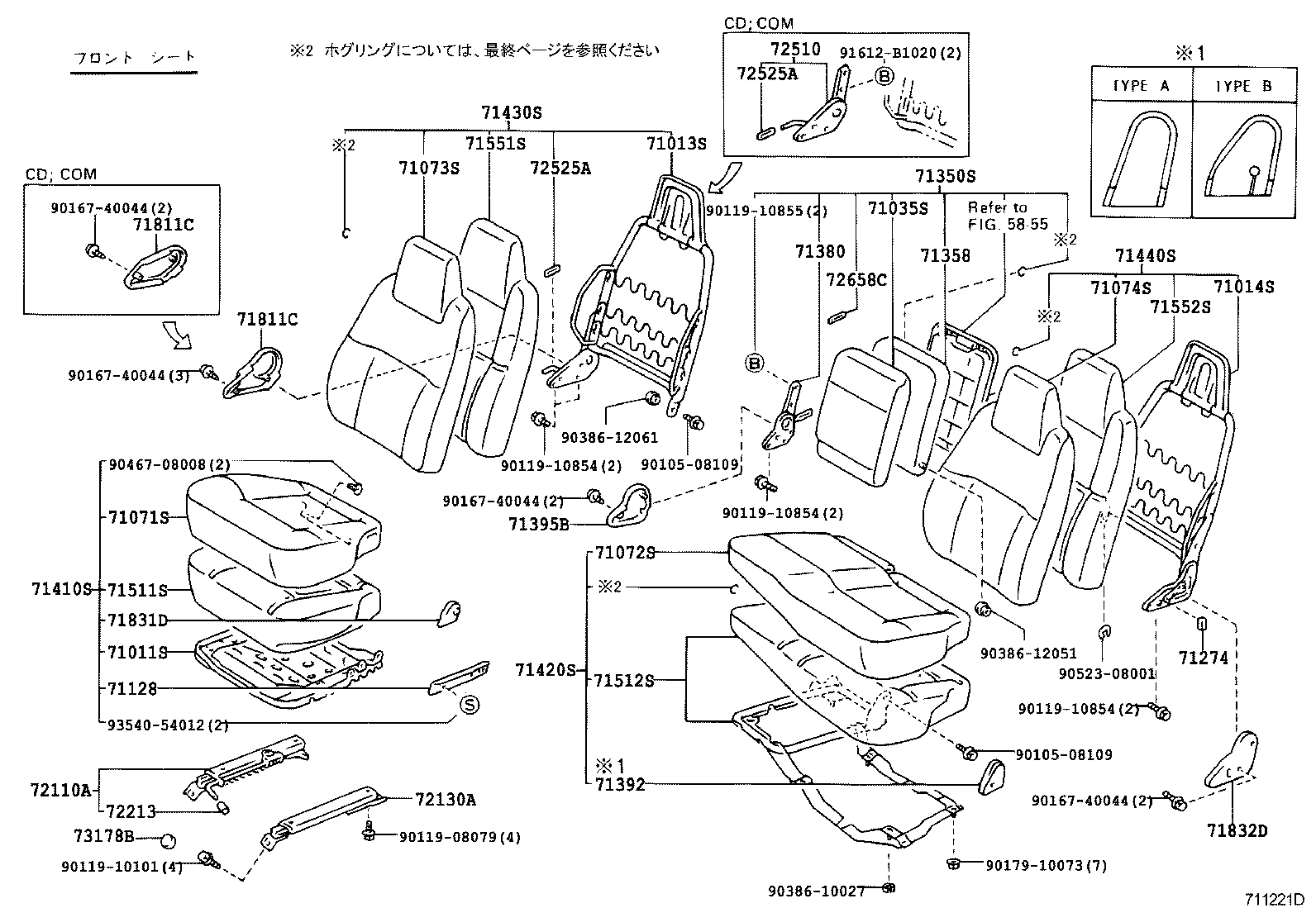

(9907- )TRH112..SGL,SGLE ; (9907- )KZH10#,11#,120,13#,LH162,17#,182,188,RZH10

Click highlighted areas on diagram

ﾌﾛﾝﾄｼ-ﾄ(ﾍﾂﾄﾞﾚｽﾄﾌﾞﾝﾘｼｷ:2ﾆﾝｶﾞｹｼ-ﾄ)

Part #	Description	Period	Qty
71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH
71013-26070	RZH102..DX;RZH112..V2..5D;RZH112..V1..SRF..DX;LH16#,17#,182,188..CD,DX ｱﾘ(ﾍﾂﾄﾞﾚｽﾄﾌﾞﾝﾘｼｷ)	07/1999 - 08/2004	1
71013-26070	LH16#,17#,18#,RZH102,112..CD,DX ｱﾘ(ﾍﾂﾄﾞﾚｽﾄﾌﾞﾝﾘｼｷ)	08/1998 - 07/1999	1
71013-26080	LH16#,17#,182,188,RZH102,112,18#..CD,DX ｱﾘ(ﾍﾂﾄﾞﾚｽﾄｲﾂﾀｲｼｷ)	07/1999 - 08/2004	1
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-26100	LH16#,17#,182,188,RZH102,112..CD,DX ｳｴﾙｷﾔﾌﾞ	08/1998 - 07/1999	1
71014-26100	RZH102,112..DX;LH16#,17#,182,188,RZH18#..CD,DX ｱﾘ(ｼﾞﾖｼﾕｾｷﾌﾙﾘｸﾗｲﾆﾝｸﾞ)	07/1999 - 08/2004	1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-26251B1	LH16#,17#,182,188,RZH102,112..CD,DX ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71071-26480B2	LH162,17#..CD ｼ-ﾄ = TYPE H-104;ﾎﾚｲｼｬ OR ﾚｲﾄｳｼｬ & ｼｰﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-26320B0	LH16#,17#,182,188,RZH102,112..CD,DX GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71072-26231B1	LH16#,17#,182,188,RZH102,112..CD,DX ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-26171B5	LH16#,17#,182,188,RZH102,112..CD,DX GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71073-26331B1	LH16#,17#,182,188,RZH102,112..CD,DX ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71073-26171B5	RZH102,112..DX;LH16#,17#,182,188,RZH18#..CD,DX GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	07/1999 - 08/2004	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-26261B5	LH16#,17#,182,188,RZH102,112..CD,DX GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71074-26331B1	LH16#,17#,182,188,RZH102,112..CD,DX ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-26490B0	LH16#,17#,182,188,RZH102,112..CD,DX **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71410-26261B4	LH16#,17#,182,188,RZH102,112..CD,DX **,ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71410-26490B8	LH162,17#,TRH102,112..CD **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2004	1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-26231B4	LH16#,17#,182,188,RZH102,112..CD,DX **,ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71420-26320B0	LH16#,17#,182,188,RZH102,112..CD,DX **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71420-26750B0	LH162,172..5F..CD **,ﾚｲﾄｳｼﾔ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/2000 - 08/2004	1
71420-26320B3	LH162,17#,TRH102,112..CD **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2004	1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71401-26081B6	LH16#,17#,182,188,RZH102,112..CD,DX **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71430-26501B4	LH16#,17#,182,188,RZH102,112..CD,DX **,ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71401-26081B9	LH162,17#..CD **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2004	1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71402-26091B6	LH16#,17#,182,188,RZH102,112..CD,DX **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71440-26461B4	LH16#,17#,182,188,RZH102,112..CD,DX **,ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71402-26091B9	LH162,17#..CD **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2004	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-95J11	RZH102,112..V2;RZH102,112..SGL;LH16#,17#,182,188,RZH12#	08/1998 - 07/1999	1
71511-95J11	RZH102,112..SGL;RZH102,112..V2..5D;LH16#,17#,182,188,RZH111,12#..CD,DX,GL,SGL	07/1999 - 08/2004	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-26030	LH162,172..5F..CD	08/1998 - 07/1999	1
71502-26011	LH16#,17#,182,188,RZH102,112..CD,DX GL ﾊﾟﾂｹ-ｼﾞ	08/1998 - 07/1999	1
71502-26040	LH162,172..5F..CD ﾚｲﾄｳｼﾔ	08/2000 - 08/2004	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-95J18	RZH102,112..V2;LH16#,17#,182,188;RZH102,112,125..GL,SGL GL ﾊﾟﾂｹ-ｼﾞ	08/1998 - 07/1999	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-95J20	LH16#,17#,182,188,RZH102,112..CD,DX GL ﾊﾟﾂｹ-ｼﾞ	08/1998 - 07/1999	1
71812C - COVER, RECLINING ADJUSTER, LH
71812-95J00B0	KZH11#..4FC;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,SCM,SCMM,SGL GRAY,TRIM1#,ﾌﾛﾝﾄｼｰﾄ	08/1998 - 07/1999	1
71910A - HEADREST ASSY, FRONT SEAT
71910-95J35B0	LH184,186,RZH125..GL;LH16#,17#,182,188,RZH102,112..CD,DX ｼ-ﾄ = TYPE B OR TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71910-95J35B0	RZH102..DX;RZH112..V2..5D;RZH112..V1..SRF..DX;LH184,186,RZH125..GL;LH16#,17#,182,188..CD,DX ｼ-ﾄ = TYPE B OR TYPE C-*104,BLUISH GRAY,TRIM1#	07/1999 - 08/2004	2
71910A - HEADREST ASSY, FRONT SEAT
71910-95J35B0	LH184,186,RZH125..GL;LH16#,17#,182,188,RZH102,112..CD,DX ｼ-ﾄ = TYPE B OR TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71910-95J35B0	RZH102..DX;RZH112..V2..5D;RZH112..V1..SRF..DX;LH184,186,RZH125..GL;LH16#,17#,182,188..CD,DX ｼ-ﾄ = TYPE B OR TYPE C-*104,BLUISH GRAY,TRIM1#	07/1999 - 08/2004	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ無,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71930-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ付,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ無,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71930-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ付,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ無,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71930-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ付,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ無,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71930-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ付,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
72130A - TRACK ASSY, FRONT SEAT, INNER RH
72130-26010	KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S	08/1998 - 07/1999	1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-95J01B0	KZH11#,LH16#,17#,18#,RZH102,11#,12#,133 BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
Common parts
90105-08109
90119-08079
90119-08086
90119-08269
90119-10101
90119-10854
90167-40044
90179-10073
90386-12051
90467-08008
90530-06007
91611-B0616
93540-54012
Linked diagrams
7152
8401

(9907-0208)KZH13#,LH16#,17#,18#,RZH102,112,12#,18# ; (0208- )KZH13#,LH16#,17#,18

Click highlighted areas on diagram

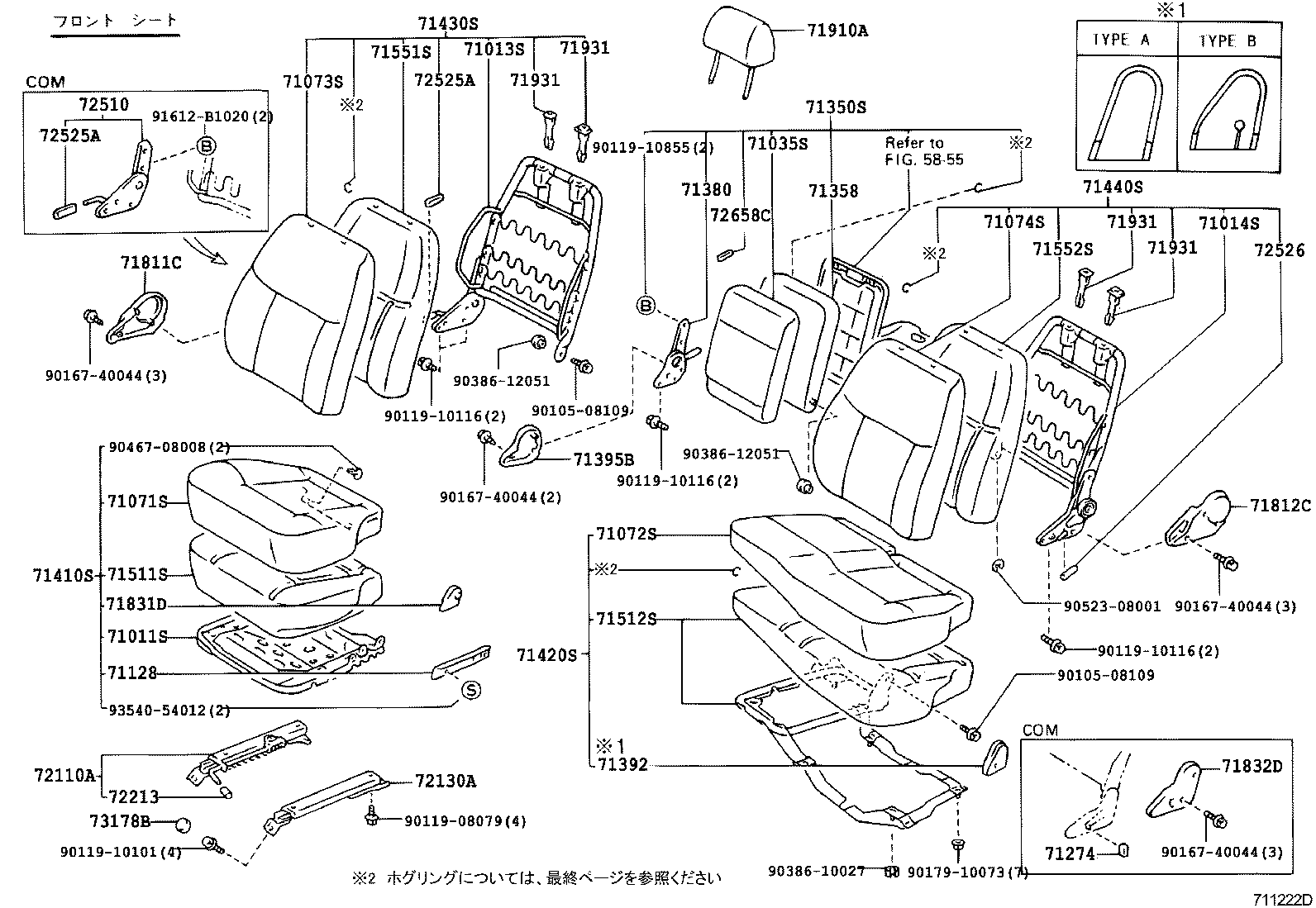

ﾌﾛﾝﾄｼ-ﾄ(ﾍﾂﾄﾞﾚｽﾄｲﾂﾀｲｼｷ:3ﾆﾝｶﾞｹｼ-ﾄ)

Part #	Description	Period	Qty
71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH
71013-26070	RZH102..DX;RZH112..V2..5D;RZH112..V1..SRF..DX;LH16#,17#,182,188..CD,DX ｱﾘ(ﾍﾂﾄﾞﾚｽﾄﾌﾞﾝﾘｼｷ)	07/1999 - 08/2004	1
71013-26070	LH16#,17#,18#,RZH102,112..CD,DX ｱﾘ(ﾍﾂﾄﾞﾚｽﾄﾌﾞﾝﾘｼｷ)	08/1998 - 07/1999	1
71013-26080	LH16#,17#,182,188,RZH102,112,18#..CD,DX ｱﾘ(ﾍﾂﾄﾞﾚｽﾄｲﾂﾀｲｼｷ)	07/1999 - 08/2004	1
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-26100	LH16#,17#,182,188,RZH102,112..CD,DX ｳｴﾙｷﾔﾌﾞ	08/1998 - 07/1999	1
71014-26100	RZH102,112..DX;LH16#,17#,182,188,RZH18#..CD,DX ｱﾘ(ｼﾞﾖｼﾕｾｷﾌﾙﾘｸﾗｲﾆﾝｸﾞ)	07/1999 - 08/2004	1
71035S - COVER, FRONT SEAT BACK, CENTER
71095-26110B0	LH16#,17#,18#,RZH102,112,12#..CD,DX GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71095-26071B2	LH16#,17#,182,188,RZH102,112..CD,DX ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-26251B1	LH16#,17#,182,188,RZH102,112..CD,DX ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71071-26480B2	LH162,17#..CD ｼ-ﾄ = TYPE H-104;ﾎﾚｲｼｬ OR ﾚｲﾄｳｼｬ & ｼｰﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-26320B0	LH16#,17#,182,188,RZH102,112..CD,DX GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71072-26231B1	LH16#,17#,182,188,RZH102,112..CD,DX ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-26171B5	LH16#,17#,182,188,RZH102,112..CD,DX GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71073-26331B1	LH16#,17#,182,188,RZH102,112..CD,DX ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71073-26171B5	RZH102,112..DX;LH16#,17#,182,188,RZH18#..CD,DX GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	07/1999 - 08/2004	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-26261B5	LH16#,17#,182,188,RZH102,112..CD,DX GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71074-26331B1	LH16#,17#,182,188,RZH102,112..CD,DX ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71274 - KNOB, FRONT SEAT HINGE
71274-95J00B0	KZH11#,LH16#,17#,18#,RZH102,11#,12#,133..CD,DX,GL BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71350S - BACK ASSY, FRONT SEAT, CENTER
71350-26131B4	LH16#,17#,182,188,RZH102,112..CD,DX **,ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71350-26190B3	LH162,17#,TRH102,112..CD **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2004	1
71350-26190B0	LH16#,17#,182,188,RZH102,112..CD,DX **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71358 - PAD, CENTER SEAT BACK
71033-95J00	LH16#,17#,18#,RZH102,112,12#..CD,DX,GL	08/1998 - 07/1999	1
71380 - HINGE ASSY, CENTER SEAT, RH
71380-95J05	LH16#,17#,182,188,RZH102,112..CD,DX GL ﾊﾟﾂｹ-ｼﾞ	08/1998 - 07/1999	1
71392 - COVER, CENTER SEAT CUSHION BRACKET, LH
71392-95J04B0	RZH102,112..V2;LH16#,17#,18#,RZH12#..CD,DX,GL BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71395B - COVER, CENTER SEAT HINGE, RH
71395-95J02B0	LH16#,17#,18#,RZH102,112,12#..CD,DX,GL BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-26490B0	LH16#,17#,182,188,RZH102,112..CD,DX **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71410-26261B4	LH16#,17#,182,188,RZH102,112..CD,DX **,ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71410-26490B8	LH162,17#,TRH102,112..CD **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2004	1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-26231B4	LH16#,17#,182,188,RZH102,112..CD,DX **,ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71420-26320B0	LH16#,17#,182,188,RZH102,112..CD,DX **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71420-26750B0	LH162,172..5F..CD **,ﾚｲﾄｳｼﾔ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/2000 - 08/2004	1
71420-26320B3	LH162,17#,TRH102,112..CD **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2004	1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71401-26081B6	LH16#,17#,182,188,RZH102,112..CD,DX **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71430-26501B4	LH16#,17#,182,188,RZH102,112..CD,DX **,ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71401-26081B9	LH162,17#..CD **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2004	1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71402-26091B6	LH16#,17#,182,188,RZH102,112..CD,DX **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71440-26461B4	LH16#,17#,182,188,RZH102,112..CD,DX **,ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71402-26091B9	LH162,17#..CD **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2004	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-95J11	RZH102,112..V2;RZH102,112..SGL;LH16#,17#,182,188,RZH12#	08/1998 - 07/1999	1
71511-95J11	RZH102,112..SGL;RZH102,112..V2..5D;LH16#,17#,182,188,RZH111,12#..CD,DX,GL,SGL	07/1999 - 08/2004	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-26030	LH162,172..5F..CD	08/1998 - 07/1999	1
71502-26011	LH16#,17#,182,188,RZH102,112..CD,DX GL ﾊﾟﾂｹ-ｼﾞ	08/1998 - 07/1999	1
71502-26040	LH162,172..5F..CD ﾚｲﾄｳｼﾔ	08/2000 - 08/2004	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-95J18	RZH102,112..V2;LH16#,17#,182,188;RZH102,112,125..GL,SGL GL ﾊﾟﾂｹ-ｼﾞ	08/1998 - 07/1999	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-95J20	LH16#,17#,182,188,RZH102,112..CD,DX GL ﾊﾟﾂｹ-ｼﾞ	08/1998 - 07/1999	1
72130A - TRACK ASSY, FRONT SEAT, INNER RH
72130-26010	KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S	08/1998 - 07/1999	1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-95J01B0	KZH11#,LH16#,17#,18#,RZH102,11#,12#,133 BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
72658C - KNOB, FRONT SEAT LOCK HANDLE
72658-9570111	LH16#,17#,18#,RZH102,112,12#..CD,DX,GL BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
Common parts
90105-08109
90119-08079
90119-10101
90119-10854
90119-10855
90167-40044
90179-10073
90386-12051
90467-08008
90523-08001
93540-54012
Linked diagrams
5855
7152

(9907- )GL ; (9907- )LH16#,17#,182,188,RZH102,112,18#,TRH102,112,122..03S,06S

Click highlighted areas on diagram

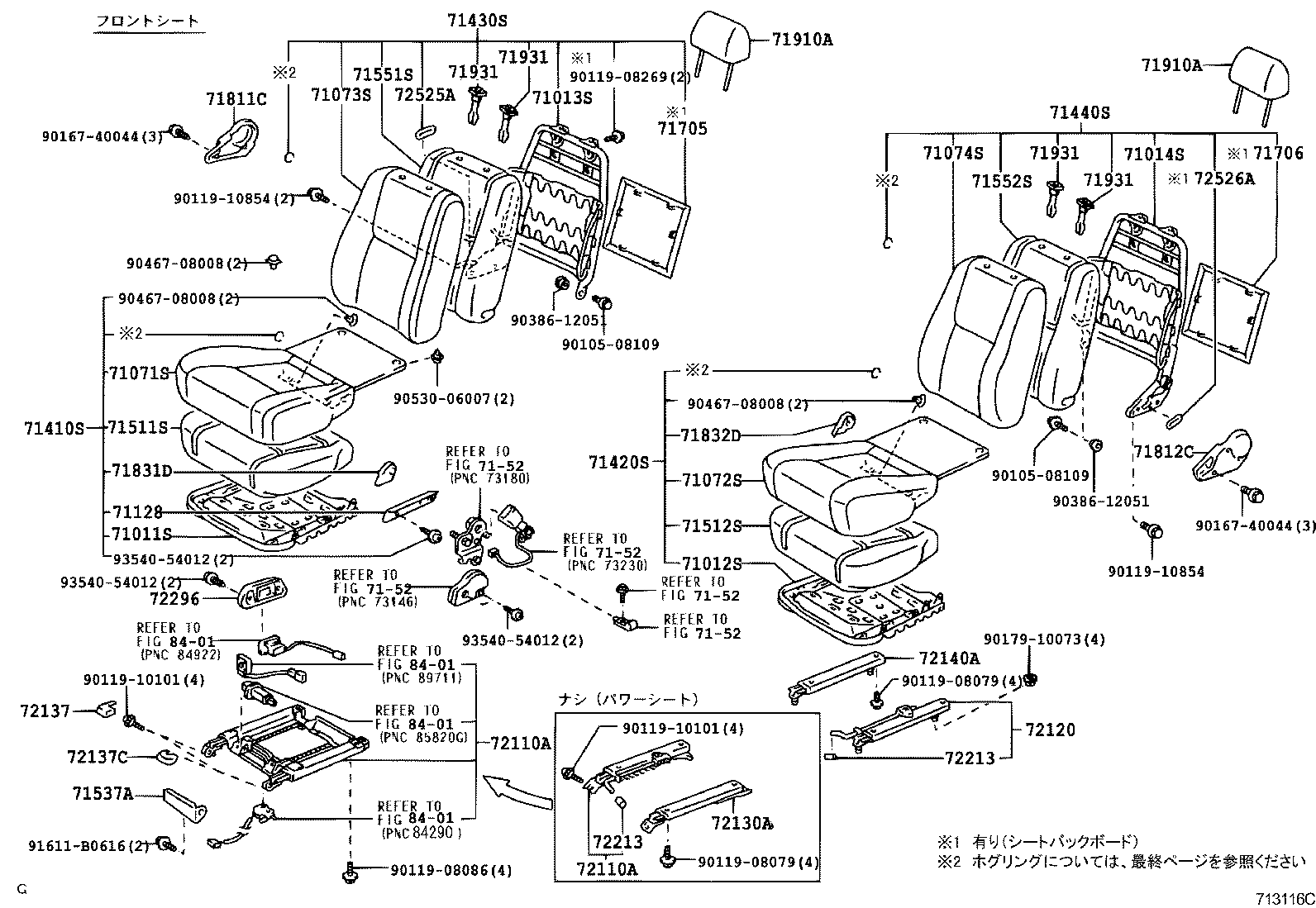

ﾌﾛﾝﾄｼ-ﾄ(ﾍﾂﾄﾞﾚｽﾄﾌﾞﾝﾘｼｷ:3ﾆﾝｶﾞｹｼ-ﾄ)

Part #	Description	Period	Qty
71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH
71013-26070	RZH102..DX;RZH112..V2..5D;RZH112..V1..SRF..DX;LH16#,17#,182,188..CD,DX ｱﾘ(ﾍﾂﾄﾞﾚｽﾄﾌﾞﾝﾘｼｷ)	07/1999 - 08/2004	1
71013-26070	LH16#,17#,18#,RZH102,112..CD,DX ｱﾘ(ﾍﾂﾄﾞﾚｽﾄﾌﾞﾝﾘｼｷ)	08/1998 - 07/1999	1
71013-26080	LH16#,17#,182,188,RZH102,112,18#..CD,DX ｱﾘ(ﾍﾂﾄﾞﾚｽﾄｲﾂﾀｲｼｷ)	07/1999 - 08/2004	1
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-26100	LH16#,17#,182,188,RZH102,112..CD,DX ｳｴﾙｷﾔﾌﾞ	08/1998 - 07/1999	1
71014-26100	RZH102,112..DX;LH16#,17#,182,188,RZH18#..CD,DX ｱﾘ(ｼﾞﾖｼﾕｾｷﾌﾙﾘｸﾗｲﾆﾝｸﾞ)	07/1999 - 08/2004	1
71035S - COVER, FRONT SEAT BACK, CENTER
71095-26110B0	LH16#,17#,18#,RZH102,112,12#..CD,DX GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71095-26071B2	LH16#,17#,182,188,RZH102,112..CD,DX ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-26251B1	LH16#,17#,182,188,RZH102,112..CD,DX ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71071-26480B2	LH162,17#..CD ｼ-ﾄ = TYPE H-104;ﾎﾚｲｼｬ OR ﾚｲﾄｳｼｬ & ｼｰﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-26320B0	LH16#,17#,182,188,RZH102,112..CD,DX GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71072-26231B1	LH16#,17#,182,188,RZH102,112..CD,DX ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-26171B5	LH16#,17#,182,188,RZH102,112..CD,DX GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71073-26331B1	LH16#,17#,182,188,RZH102,112..CD,DX ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71073-26171B5	RZH102,112..DX;LH16#,17#,182,188,RZH18#..CD,DX GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	07/1999 - 08/2004	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-26261B5	LH16#,17#,182,188,RZH102,112..CD,DX GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71074-26331B1	LH16#,17#,182,188,RZH102,112..CD,DX ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71274 - KNOB, FRONT SEAT HINGE
71274-95J00B0	KZH11#,LH16#,17#,18#,RZH102,11#,12#,133..CD,DX,GL BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71350S - BACK ASSY, FRONT SEAT, CENTER
71350-26131B4	LH16#,17#,182,188,RZH102,112..CD,DX **,ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71350-26190B3	LH162,17#,TRH102,112..CD **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2004	1
71350-26190B0	LH16#,17#,182,188,RZH102,112..CD,DX **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71358 - PAD, CENTER SEAT BACK
71033-95J00	LH16#,17#,18#,RZH102,112,12#..CD,DX,GL	08/1998 - 07/1999	1
71380 - HINGE ASSY, CENTER SEAT, RH
71380-95J05	LH16#,17#,182,188,RZH102,112..CD,DX GL ﾊﾟﾂｹ-ｼﾞ	08/1998 - 07/1999	1
71392 - COVER, CENTER SEAT CUSHION BRACKET, LH
71392-95J04B0	RZH102,112..V2;LH16#,17#,18#,RZH12#..CD,DX,GL BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71395B - COVER, CENTER SEAT HINGE, RH
71395-95J02B0	LH16#,17#,18#,RZH102,112,12#..CD,DX,GL BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-26490B0	LH16#,17#,182,188,RZH102,112..CD,DX **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71410-26261B4	LH16#,17#,182,188,RZH102,112..CD,DX **,ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71410-26490B8	LH162,17#,TRH102,112..CD **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2004	1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-26231B4	LH16#,17#,182,188,RZH102,112..CD,DX **,ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71420-26320B0	LH16#,17#,182,188,RZH102,112..CD,DX **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71420-26750B0	LH162,172..5F..CD **,ﾚｲﾄｳｼﾔ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/2000 - 08/2004	1
71420-26320B3	LH162,17#,TRH102,112..CD **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2004	1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71401-26081B6	LH16#,17#,182,188,RZH102,112..CD,DX **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71430-26501B4	LH16#,17#,182,188,RZH102,112..CD,DX **,ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71401-26081B9	LH162,17#..CD **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2004	1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71402-26091B6	LH16#,17#,182,188,RZH102,112..CD,DX **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71440-26461B4	LH16#,17#,182,188,RZH102,112..CD,DX **,ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
71402-26091B9	LH162,17#..CD **,GL ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE C-104,BLUISH GRAY,TRIM1#	07/1999 - 08/2004	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-95J11	RZH102,112..V2;RZH102,112..SGL;LH16#,17#,182,188,RZH12#	08/1998 - 07/1999	1
71511-95J11	RZH102,112..SGL;RZH102,112..V2..5D;LH16#,17#,182,188,RZH111,12#..CD,DX,GL,SGL	07/1999 - 08/2004	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-26030	LH162,172..5F..CD	08/1998 - 07/1999	1
71502-26011	LH16#,17#,182,188,RZH102,112..CD,DX GL ﾊﾟﾂｹ-ｼﾞ	08/1998 - 07/1999	1
71502-26040	LH162,172..5F..CD ﾚｲﾄｳｼﾔ	08/2000 - 08/2004	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-95J18	RZH102,112..V2;LH16#,17#,182,188;RZH102,112,125..GL,SGL GL ﾊﾟﾂｹ-ｼﾞ	08/1998 - 07/1999	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-95J20	LH16#,17#,182,188,RZH102,112..CD,DX GL ﾊﾟﾂｹ-ｼﾞ	08/1998 - 07/1999	1
71812C - COVER, RECLINING ADJUSTER, LH
71812-95J00B0	KZH11#..4FC;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,SCM,SCMM,SGL GRAY,TRIM1#,ﾌﾛﾝﾄｼｰﾄ	08/1998 - 07/1999	1
71910A - HEADREST ASSY, FRONT SEAT
71910-95J35B0	LH184,186,RZH125..GL;LH16#,17#,182,188,RZH102,112..CD,DX ｼ-ﾄ = TYPE B OR TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71910-95J35B0	RZH102..DX;RZH112..V2..5D;RZH112..V1..SRF..DX;LH184,186,RZH125..GL;LH16#,17#,182,188..CD,DX ｼ-ﾄ = TYPE B OR TYPE C-*104,BLUISH GRAY,TRIM1#	07/1999 - 08/2004	2
71910A - HEADREST ASSY, FRONT SEAT
71910-95J35B0	LH184,186,RZH125..GL;LH16#,17#,182,188,RZH102,112..CD,DX ｼ-ﾄ = TYPE B OR TYPE C-*104,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71910-95J35B0	RZH102..DX;RZH112..V2..5D;RZH112..V1..SRF..DX;LH184,186,RZH125..GL;LH16#,17#,182,188..CD,DX ｼ-ﾄ = TYPE B OR TYPE C-*104,BLUISH GRAY,TRIM1#	07/1999 - 08/2004	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ無,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71930-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ付,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ無,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71930-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ付,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ無,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71930-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ付,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ無,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
71930-26010B0	RZH125..GL;KZH10#,13#,LH16#,17#,18#,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL ﾛｯｸ付,BLUISH GRAY,TRIM1#	08/1998 - 07/1999	2
72130A - TRACK ASSY, FRONT SEAT, INNER RH
72130-26010	KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S	08/1998 - 07/1999	1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-95J01B0	KZH11#,LH16#,17#,18#,RZH102,11#,12#,133 BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
72658C - KNOB, FRONT SEAT LOCK HANDLE
72658-9570111	LH16#,17#,18#,RZH102,112,12#..CD,DX,GL BLUISH GRAY,TRIM1#	08/1998 - 07/1999	1
Common parts
90105-08109
90119-08079
90119-10101
90119-10854
90119-10855
90167-40044
90179-10073
90386-12051
90467-08008
90523-08001
93540-54012
Linked diagrams
5855
7152

LH172V-RKMBS (1998)

ILLUST NO. 1 OF 4(8908-9907)CD,DX,SW

ILLUST NO. 1 OF 4(8908-9907)

(9907- )TRH112..SGL,SGLE ; (9907- )KZH10#,11#,120,13#,LH162,17#,182,188,RZH10

(9907-0208)KZH13#,LH16#,17#,18#,RZH102,112,12#,18# ; (0208- )KZH13#,LH16#,17#,18

(9907- )GL ; (9907- )LH16#,17#,182,188,RZH102,112,18#,TRH102,112,122..03S,06S

Part Price Details
