LH172V-RBPBS (1998)

Toyota Hiace/Regiusace

Production Aug 1998 - Aug 2004
Engine 5L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

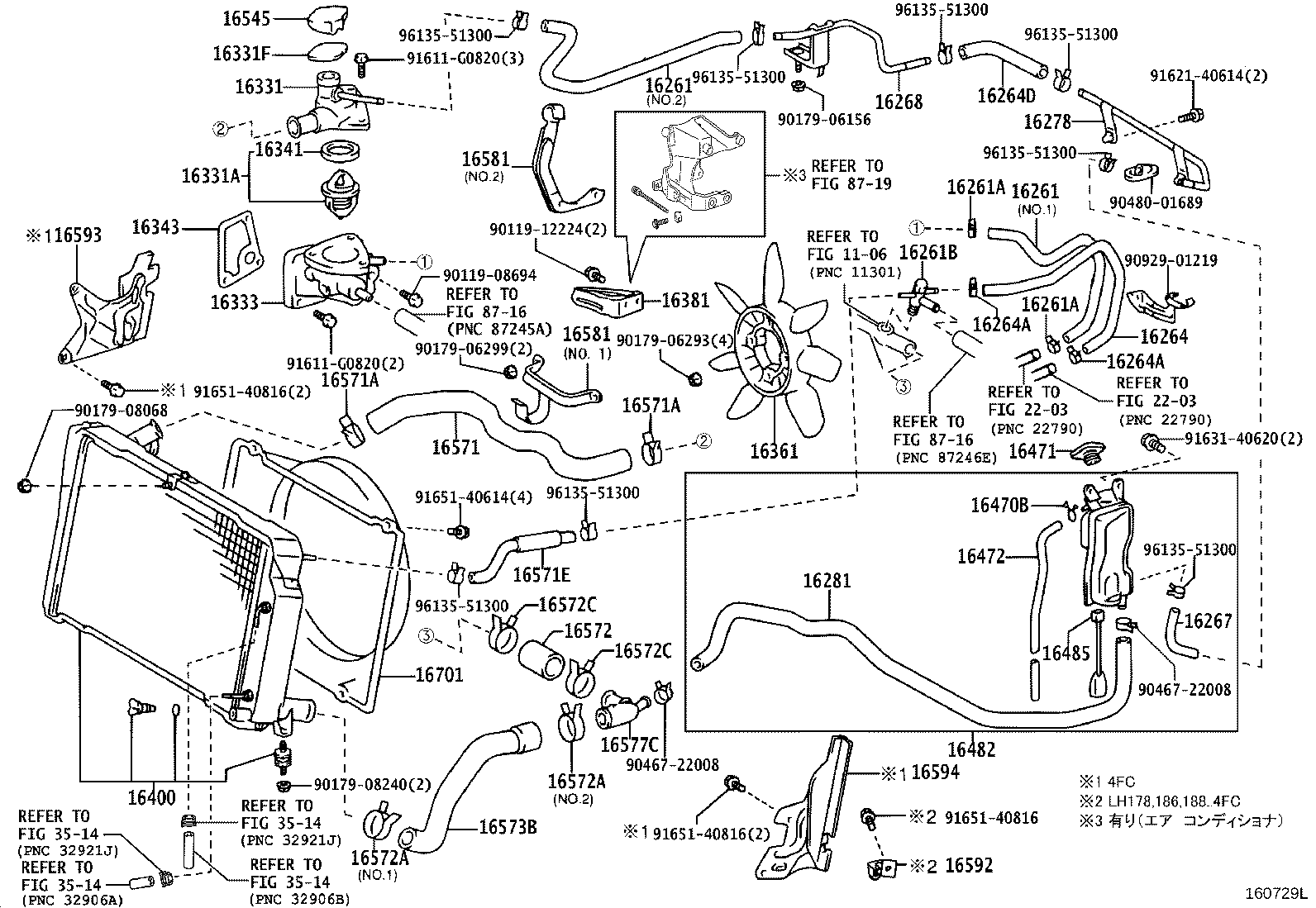

ILLUST NO. 1 OF 2(9808- )5L

Click highlighted areas on diagram

diagram 1106 16261 16261 16261A 16261A 16261B 16264 16264A 16264A 16264D 16267 16268 16278 16281 16331 16331A 16331F 16333 16341 16343 16361 16381 16400 16470B 16471 16472 16482 16485 16545 16571 16571A 16571A 16571E 16572 16572A 16572A 16572C 16572C 16573B 16577C 16581 16581 16592 16593 16594 16701 2203 2203 3514 3514 3514 3514 8716 8716 8719 9011908694 9011912224 9017906156 9017906293 9017906299 9017908068 9017908240 9046722008 9046722008 9048001689 9092901219 91611G0820 91611G0820 9162140614 9163140620 9165140614 9165140816 9165140816 9165140816 9613551300 9613551300 9613551300 9613551300 9613551300 9613551300 9613551300 9613551300
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-54120

5L..LH16#,17#,18#

NO.1

 1
16261-54120

5L..LH16#,17#,18#

NO.1

 1
16261-54130

5L..LH16#,17#,18#

NO.2

 1
16261-54130

5L..LH16#,17#,18#

NO.2

 1
16261-54121

5L..LH16#,17#,18#

NO.1

 1
16261 - HOSE, WATER BY-PASS
16261-54120

5L..LH16#,17#,18#

NO.1

 1
16261-54120

5L..LH16#,17#,18#

NO.1

 1
16261-54130

5L..LH16#,17#,18#

NO.2

 1
16261-54130

5L..LH16#,17#,18#

NO.2

 1
16261-54121

5L..LH16#,17#,18#

NO.1

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-15022

5L..LH16#,17#,18#

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-15022

5L..LH16#,17#,18#

 2
16261B - UNION(FOR WATER BY-PASS HOSE)
90404-54046

5L..LH16#,17#,18#

 1
90404-54046

5L..LH16#,17#,18#

 1
16264 - HOSE, WATER BY-PASS, NO.2
16264-54121

5L..LH16#,17#,18#

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-15022

5L..LH16#,17#,18#

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-15022

5L..LH16#,17#,18#

 2
16264D - HOSE, WATER BY-PASS, NO.2
16264-54140

5L..LH16#,17#,18#

 1
16264-54140

5L..LH16#,17#,18#

 1
16267 - HOSE, WATER BY-PASS, NO.3
16267-54080

5L..LH16#,17#,18#

 1
16267-54080

5L..LH16#,17#,18#

 1
16268 - PIPE, WATER BY-PASS, NO.1
16268-54050

5L..LH16#,17#,18#

 1
16268-54050

5L..LH16#,17#,18#

 1
16278 - PIPE, WATER BY-PASS, NO.2
16278-54010

5L..LH16#,17#,18#

 1
16278-54010

5L..LH16#,17#,18#

 1
16281 - HOSE, WATER BY-PASS, NO.4
16281-54030

5L..LH16#,17#,18#

 1
16281-54030

5L..LH16#,17#,18#

 1
16331 - OUTLET, WATER
16331-54112

5L..LH16#,17#,18#

 1
16331-54112

5L..LH16#,17#,18#

 1
16331A - THERMOSTAT
16340-54010

5L..LH16#,17#,18#

*WAX 88−100

 1
16331F - CAP SUB-ASSY(FOR WATER OUTLET)
16401-5B680

5L..LH16#,17#,18#

 1
16401-5B680

5L..LH16#,17#,18#

 1
16333 - HOUSING, WATER OUTLET
16333-54113

5L..LH16#,17#,18#

 1
16341 - GASKET, WATER OUTLET
16341-05020

5L..LH162..V2;5L..LH168,178,18#;5L..LH172..4D..SG;5L..LH162..V1..4FC;5L..LH172..5D..4FC;5L..LH172..4FC..CD;5L..LH172..V2..5D..5F;5L..LH162..4D..5F..DX

(L)

 1
16341-35010

5L..LH16#,17#,18#

(J)

 1
16341-35010

5L..LH16#,17#,18#

 1
16343 - GASKET, WATER OUTLET HOUSING
16343-54040

5L..LH16#,17#,18#

 1
16361 - FAN
16361-67030

5L..LH16#,17#,18#

 1
16361-67030

5L..LH16#,17#,18#

 1
16381 - BAR, FAN BELT ADJUSTING
16381-54071

5L..LH162,172,182,184

 1
16381-54070

2L,2LT#,3L,5L..LH100,102,103,110,113,115,120,123,125,140,162,172,182,184

 1
16381-54071

5L..LH162,172,182,184

 1
16400 - RADIATOR ASSY
16400-5B750

5L..LH162,17#,18#..4FC

 1
16400-5B750

5L..LH162,17#,18#..4FC

 1
16400-5B751

5L..LH162,17#,18#..4FC

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

5L..LH16#,17#,18#

 1
90467-11085

5L..LH16#,17#,18#

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16401-63010

5L..LH16#,17#,18#

 1
16401-63010

5L..LH16#,17#,18#

 1
16472 - HOSE, BREATHER
16477-54380

5L..LH16#,17#,18#

 1
16477-54380

5L..LH16#,17#,18#

 1
16482 - TANK SUB-ASSY, RADIATOR RESERVE
16480-54230

5L..LH16#,17#,18#

 1
16480-54230

5L..LH16#,17#,18#

 1
16485 - SWITCH ASSY, LEVEL WARNING
16485-54380

5L..LH16#,17#,18#

 1
16485-54380

5L..LH16#,17#,18#

 1
16545 - COVER, RADIATOR CAP
16545-54010

5L..LH16#,17#,18#

 1
16545-54010

5L..LH16#,17#,18#

 1
16571 - HOSE, RADIATOR, INLET
16571-54320

2L,2LT#,3L,5L..LH100,102,103,110,113,115,120,123,125,140,162,172,182,184

 1
16571-54320

5L..LH162,172,182,184

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37001

5L..LH16#,17#,18#

 2
90467-37005

5L..LH16#,17#,18#

 2
90467-37001

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37001

5L..LH16#,17#,18#

 2
90467-37005

5L..LH16#,17#,18#

 2
90467-37001

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

 2
16571E - HOSE, WATER
90447-21021

5L..LH16#,17#,18#

 1
90447-21021

5L..LH16#,17#,18#

 1
16572 - HOSE, RADIATOR, OUTLET
16572-54620

5L..LH162,172,182,184

 1
16572-54620

5L..LH162,172,182,184

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37001

5L..LH16#,17#,18#

NO.1

 1
90466-41008

5L..LH16#,17#,18#

NO.2

 1
90467-37001

5L..LH16#,17#,18#

NO.1

 1
90466-41008

5L..LH162,172,182,184

NO.2

 1
90467-37005

5L..LH16#,17#,18#

NO.1

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37001

5L..LH16#,17#,18#

NO.1

 1
90466-41008

5L..LH16#,17#,18#

NO.2

 1
90467-37001

5L..LH16#,17#,18#

NO.1

 1
90466-41008

5L..LH162,172,182,184

NO.2

 1
90467-37005

5L..LH16#,17#,18#

NO.1

 1
16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)
90466-41008

5L..LH16#,17#,18#

 2
90466-41008

5L..LH162,172,182,184

 2
16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)
90466-41008

5L..LH16#,17#,18#

 2
90466-41008

5L..LH162,172,182,184

 2
16573B - HOSE, RADIATOR, NO.3
16573-54140

5L..LH162,172,182,184

 1
16573-54140

5L..LH162,172,182,184

 1
16577C - PIPE, RADIATOR
16577-54240

5L..LH16#,17#,18#

 1
16577-54240

5L..LH16#,17#,18#

 1
16581 - CLAMP, HOSE(FOR WATER HOSE)
16581-54081

5L..LH16#,17#,18#

NO.2

 1
16581-54010

5L..LH16#,17#,18#

NO.1

 1
16581-54080

5L..LH16#,17#,18#

NO.2

 1
16581 - CLAMP, HOSE(FOR WATER HOSE)
16581-54081

5L..LH16#,17#,18#

NO.2

 1
16581-54010

5L..LH16#,17#,18#

NO.1

 1
16581-54080

5L..LH16#,17#,18#

NO.2

 1
16593 - GUIDE, RADIATOR AIR, NO.1
16593-54100

5L..LH162,17#,18#..4FC

 1
16593-54100

5L..LH162,17#,18#..4FC

 1
16594 - GUIDE, RADIATOR AIR, NO.2
16594-54110

5L..LH162,17#,18#..4FC

 1
16594-54110

5L..LH162,17#,18#..4FC

 1
16701 - SHROUD SUB-ASSY, FAN
16701-54290

5L..LH162,172,182,184

 1
16701-54290

5L..LH162,172,182,184

 1
Common parts
90119-08694
90119-12224
90179-06156
90179-06293
90179-06299
90179-08068
90179-08240
90467-22008
90480-01689
90929-01219
91611-G0820
91621-40614
91631-40620
91651-40614
91651-40816
96135-51300
Linked diagrams
1106
2203
3514
8716
8719

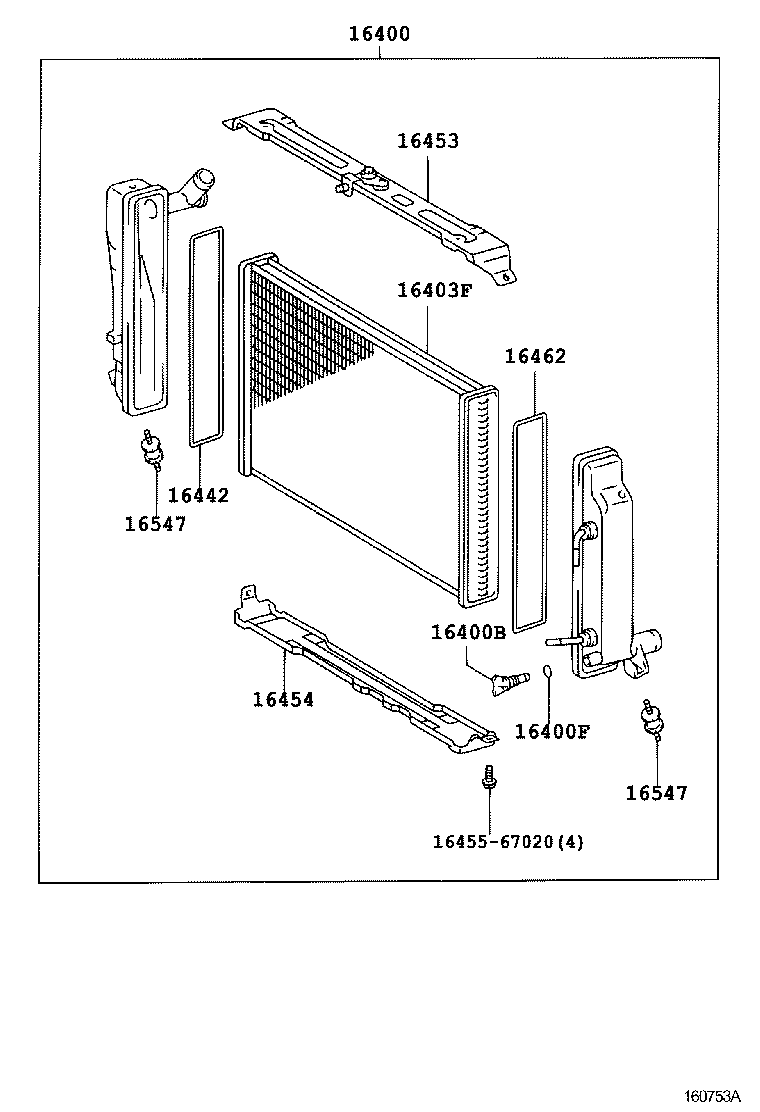

ILLUST NO. 2 OF 2(9808- )5L

Click highlighted areas on diagram

diagram 16400 16400B 16400F 16403F 16442 16453 16454 1645567020 16462 16547 16547
Part # Description Qty Price
16400 - RADIATOR ASSY
16400-5B750

5L..LH162,17#,18#..4FC

 1
16400-5B750

5L..LH162,17#,18#..4FC

 1
16400-5B751

5L..LH162,17#,18#..4FC

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-15210

5L..LH16#,17#,18#

 1
16417-15210

5L..LH16#,17#,18#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16418-15520

5L..LH16#,17#,18#

 1
16418-15520

5L..LH16#,17#,18#

 1
16403F - CORE SUB-ASSY, RADIATOR
16403-5B750

5L..LH16#,17#,18#

 1
16403-5B750

5L..LH16#,17#,18#

 1
16403-5B751

5L..LH16#,17#,18#

 1
16442 - RING, O(FOR RADIATOR UPPER TANK)
16442-5B750

5L..LH16#,17#,18#

 1
16442-5B750

5L..LH16#,17#,18#

 1
16453 - PLATE, RADIATOR SIDE
16453-5B750

5L..LH16#,17#,18#

 1
16453-5B750

5L..LH16#,17#,18#

 1
16454 - PLATE, RADIATOR SIDE
16454-5B750

5L..LH16#,17#,18#

 1
16454-5B750

5L..LH16#,17#,18#

 1
16462 - RING, O(FOR RADIATOR LOWER TANK)
16442-5B750

5L..LH16#,17#,18#

 1
16442-5B750

5L..LH16#,17#,18#

 1
16547 - BUSH, RADIATOR SUPPORT, NO.1
16547-67040

5L..LH16#,17#,18#

 2
16547 - BUSH, RADIATOR SUPPORT, NO.1
16547-67040

5L..LH16#,17#,18#

 2
Common parts
16455-67020
