LH162V-RRPNS (2001)

Toyota Hiace/Regiusace

Production Aug 2001 - Aug 2004
Engine 5L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0208- )SGL,SGLE

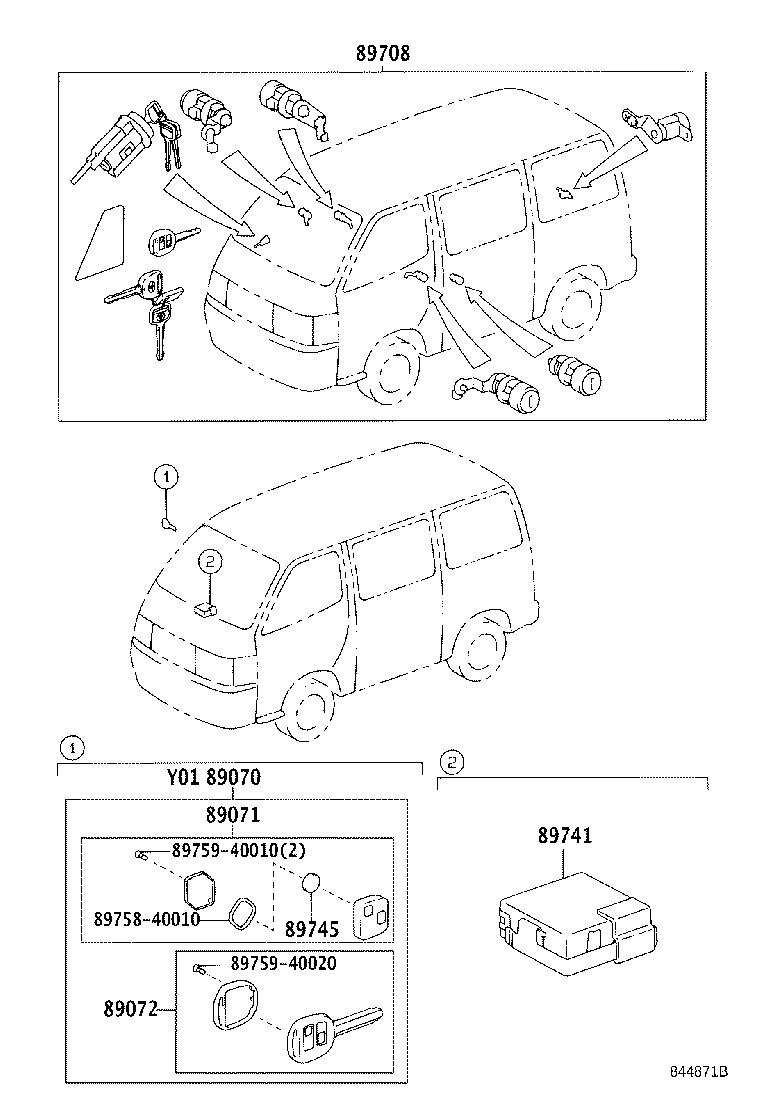

Click highlighted areas on diagram

diagram 89070 89071 89072 89708 89741 89745 8975840010 8975940010 8975940020
Part # Description Qty Price
89070 - TRANSMITTER ASSY, DOOR CONTROL
89070-33070

LH162,17#,182,188,TRH102,112..SGL,SGLE

 1
89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-33030

LH162,17#,182,188,TRH102,112..SGL,SGLE

 1
89708 - CYLINDER SET, WIRELESS DOOR LOCK
89708-26080

LH162,17#,182,188,TRH102,112..4D..(SGL,SGLE)

 1
89741 - RECEIVER, DOOR CONTROL
89741-26150

LH162,17#,182,188,TRH102,112..SGL,SGLE

 1
89745 - BATTERY, TRANSMITTER
89745-40010

LH162,17#,182,188,TRH102,112..SGL,SGLE

 1
Common parts
89758-40010
89759-40010
89759-40020
