LH162V-RBMBS (1998)
Toyota Hiace/Regiusace
(9808- )5L..CD,DX,GL,SGL
12V 80A

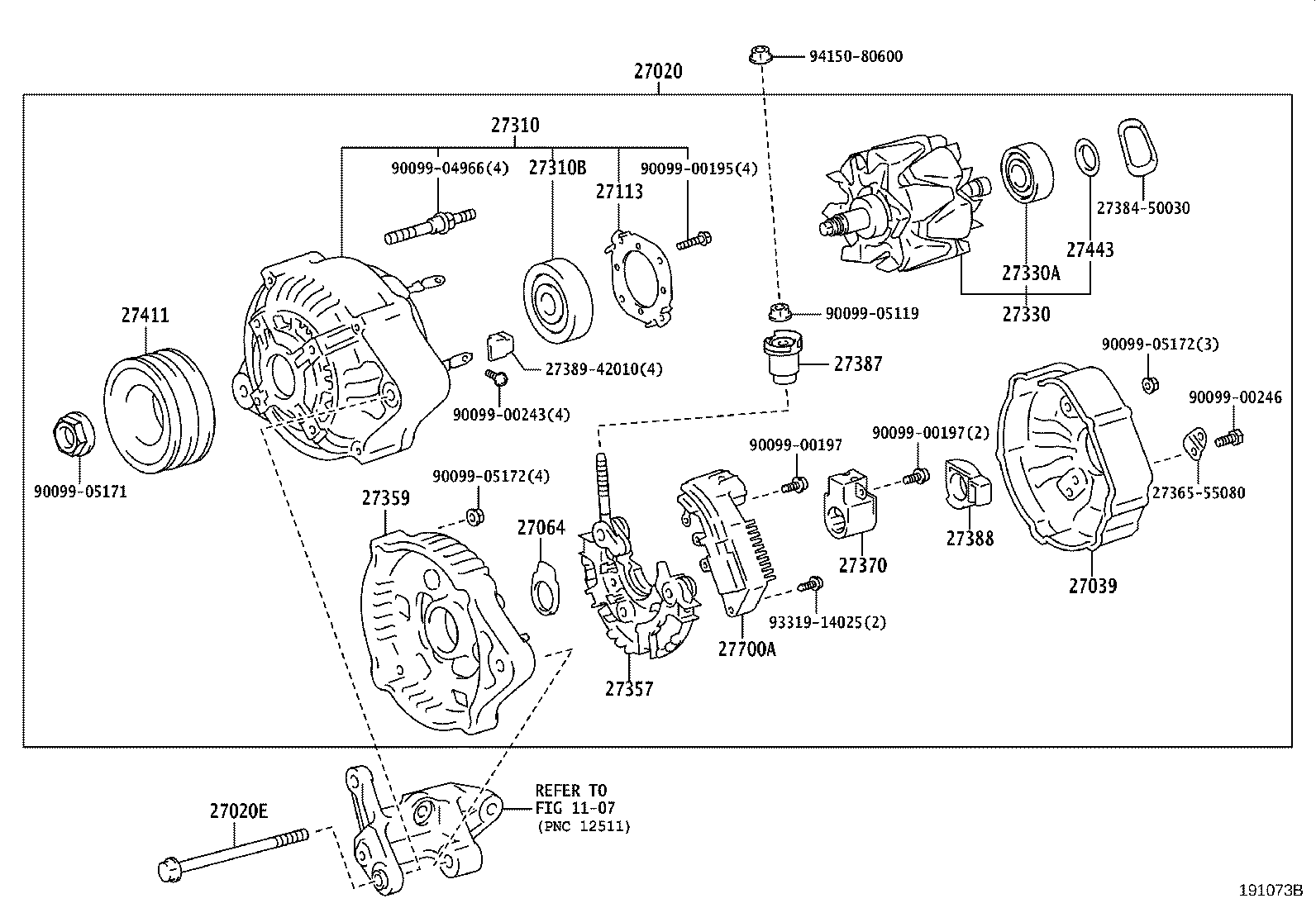

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-54300 |
5L..LH16#,17#,18# 12V 80A |
1 | ||
| 27060-54210 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27060-54300 |
5L..LH16#,17#,18# 12V 80A |
1 | ||
| 27060-54360 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-55080 |
5L..LH16#,17#,18# 12V 80A |
1 | ||
| 27039-16380 |
5L..LH16#,17#,182,188..(03S,06S)..5F 12V 70A |
1 | ||
| 27039-70470 |
5L..LH16#,17#,18#..CD,DX,GL,SGL |
1 | ||
| 27039-16380 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
1KZTE,5L,1RZE,2RZE..KZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18# |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-64130 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 27312-64130 |
5L..LH16#,17#,18# |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-54710 |
5L..LH16#,17#,18# 12V 80A |
1 | ||
| 27310-54710 |
5L..LH16#,17#,18# 12V 80A |
1 | ||
| 27310-54500 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27310-54470 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10165 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 90099-10165 |
5L..LH16#,17#,18# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-64300 |
5L..LH16#,17#,18# 12V 80A |
1 | ||
| 27330-64300 |
5L..LH16#,17#,18# 12V 80A |
1 | ||
| 27330-64190 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27330-64130 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
1RZE..RZH102,112..SGL;1RZE..RZH102..V2..4FC;5L,2RZE..LH16#,17#,18#,RZH101,125 |
1 | ||
| 90099-10140 |
1RZE..RZH112..HRF..4D..4FC;1RZE..RZH112..V2..4D..4FC..DX;1RZE..RZH102,112..4FC..(CD,SGLE);5L,2RZE..LH162,172,182,184,RZH183;1KZTE,5L..KZH120,LH168,178,186,188..4WD |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-16380 |
5L..LH16#,17#,182,188..(03S,06S)..5F 12V 70A |
1 | ||
| 27357-16380 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27357-55080 |
1RZE..RZH112..5D..4FC..DX;1RZE..RZH102..4FC..(DX,SGL);1RZE..RZH112..V1..SRF..4D..4FC..(DX,SGL);5L,2RZE..LH16#,17#,18#,RZH101,111,125..CD,DX,GL,SCL,SCM,SCMM,SGL 12V 80A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-54420 |
5L..LH16#,17#,18#..CD,DX,GL,SGL 12V 80A |
1 | ||
| 27359-16182 |
5L..LH16#,17#,182,188..(03S,06S)..5F 12V 70A |
1 | ||
| 27359-16182 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-58320 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27370-75060 |
1RZE..RZH102..4FC;1RZE..RZH112..HRF..4FC;1RZE..RZH112..V2..4D..4FC;1RZE..RZH112..V1..SRF..4FC;5L,2RZE..LH162,172,182,184,RZH125,183;1KZTE,5L..KZH120,LH168,178,186,188..4WD |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-70171 |
5L..LH17#,182..(03S,06S)..5F;5L,1RZE..LH16#,188,RZH102,112,124..5F 12V 70A |
1 | ||
| 27387-70171 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27387-42021 |
1RZE..RZH102,112..4FC..(CD,DX,SGL);1KZTE,5L,2RZE..KZH10#,11#,120,13#,LH16#,17#,18#,RZH101,111,125,183..CD,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL 12V 80A |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
1KZTE,5L,1RZE,2RZE..KZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18# |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1RZE..RZH112..V2..4D..4FC;1RZE..RZH112..V1..4FC..CD;1RZE..RZH112..HRF..4D..4FC;1RZE..RZH102,112,182..(03S,06S)..5F;1KZTE,5L,2RZE..KZH10#,11#,120,13#,LH16#,17#,18#,RZH101,111,183..CD,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL 12V 70A |
1 | ||
| 27443-63020 |
1KZTE,2L,2LT#,3L,5L,1RZ#,2RZE..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 12V 70A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-35040 |
5L..LH16#,17#,18#..CD,DX,GL,SGL 12V 110A |
1 | ||
| 29341 - SEAL, ALTERNATOR OIL | ||||
| 29341-64130 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# 12V 70A |
1 | ||
| 29341-64130 |
5L..LH16#,17#,18#..CD,DX,GL,SGL 12V 70A |
1 | ||
| Common parts | ||||
| 27365-55080 | ||||
| 27384-50030 | ||||
| 27389-42010 | ||||
| 27445-54450 | ||||
| 90099-00167 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05172 | ||||
| 90105-10287 | ||||
| 90119-08654 | ||||
| 93319-14025 | ||||
| 94150-80600 | ||||
(0012- )1RZE..RZH112..V2..4D..4FC ; (0012-)1RZE..RZH112..V1..4FC..CD ; (0012
12V 70A,90A,120A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-54300 |
5L..LH16#,17#,18# 12V 80A |
1 | ||
| 27060-54300 |
5L..LH16#,17#,18# 12V 80A |
1 | ||
| 27060-54210 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27060-54210 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27060-54300 |
5L..LH16#,17#,18# 12V 80A |
1 | ||
| 27060-54300 |
5L..LH16#,17#,18# 12V 80A |
1 | ||
| 27060-54360 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27060-54360 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-55080 |
5L..LH16#,17#,18# 12V 80A |
1 | ||
| 27039-55080 |
5L..LH16#,17#,18# 12V 80A |
1 | ||
| 27039-16380 |
5L..LH16#,17#,182,188..(03S,06S)..5F 12V 70A |
1 | ||
| 27039-16380 |
5L..LH16#,17#,182,188..(03S,06S)..5F 12V 70A |
1 | ||
| 27039-70470 |
5L..LH16#,17#,18#..CD,DX,GL,SGL |
1 | ||
| 27039-70470 |
5L..LH16#,17#,18#..CD,DX,GL,SGL |
1 | ||
| 27039-16380 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27039-16380 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
1KZTE,5L,1RZE,2RZE..KZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18# |
1 | ||
| 27064-42010 |
1KZTE,5L,1RZE,2RZE..KZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18# |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-64130 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 27312-64130 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 27312-64130 |
5L..LH16#,17#,18# |
1 | ||
| 27312-64130 |
5L..LH16#,17#,18# |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-54710 |
5L..LH16#,17#,18# 12V 80A |
1 | ||
| 27310-54710 |
5L..LH16#,17#,18# 12V 80A |
1 | ||
| 27310-54710 |
5L..LH16#,17#,18# 12V 80A |
1 | ||
| 27310-54710 |
5L..LH16#,17#,18# 12V 80A |
1 | ||
| 27310-54500 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27310-54500 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27310-54470 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27310-54470 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10165 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 90099-10165 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 90099-10165 |
5L..LH16#,17#,18# |
1 | ||
| 90099-10165 |
5L..LH16#,17#,18# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-64300 |
5L..LH16#,17#,18# 12V 80A |
1 | ||
| 27330-64300 |
5L..LH16#,17#,18# 12V 80A |
1 | ||
| 27330-64300 |
5L..LH16#,17#,18# 12V 80A |
1 | ||
| 27330-64300 |
5L..LH16#,17#,18# 12V 80A |
1 | ||
| 27330-64190 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27330-64190 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27330-64130 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27330-64130 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
1RZE..RZH102,112..SGL;1RZE..RZH102..V2..4FC;5L,2RZE..LH16#,17#,18#,RZH101,125 |
1 | ||
| 90099-10140 |
1RZE..RZH102,112..SGL;1RZE..RZH102..V2..4FC;5L,2RZE..LH16#,17#,18#,RZH101,125 |
1 | ||
| 90099-10140 |
1RZE..RZH112..HRF..4D..4FC;1RZE..RZH112..V2..4D..4FC..DX;1RZE..RZH102,112..4FC..(CD,SGLE);5L,2RZE..LH162,172,182,184,RZH183;1KZTE,5L..KZH120,LH168,178,186,188..4WD |
1 | ||
| 90099-10140 |
1RZE..RZH112..HRF..4D..4FC;1RZE..RZH112..V2..4D..4FC..DX;1RZE..RZH102,112..4FC..(CD,SGLE);5L,2RZE..LH162,172,182,184,RZH183;1KZTE,5L..KZH120,LH168,178,186,188..4WD |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-16380 |
5L..LH16#,17#,182,188..(03S,06S)..5F 12V 70A |
1 | ||
| 27357-16380 |
5L..LH16#,17#,182,188..(03S,06S)..5F 12V 70A |
1 | ||
| 27357-16380 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27357-16380 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27357-55080 |
1RZE..RZH112..5D..4FC..DX;1RZE..RZH102..4FC..(DX,SGL);1RZE..RZH112..V1..SRF..4D..4FC..(DX,SGL);5L,2RZE..LH16#,17#,18#,RZH101,111,125..CD,DX,GL,SCL,SCM,SCMM,SGL 12V 80A |
1 | ||
| 27357-55080 |
1RZE..RZH112..5D..4FC..DX;1RZE..RZH102..4FC..(DX,SGL);1RZE..RZH112..V1..SRF..4D..4FC..(DX,SGL);5L,2RZE..LH16#,17#,18#,RZH101,111,125..CD,DX,GL,SCL,SCM,SCMM,SGL 12V 80A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-54420 |
5L..LH16#,17#,18#..CD,DX,GL,SGL 12V 80A |
1 | ||
| 27359-54420 |
5L..LH16#,17#,18#..CD,DX,GL,SGL 12V 80A |
1 | ||
| 27359-16182 |
5L..LH16#,17#,182,188..(03S,06S)..5F 12V 70A |
1 | ||
| 27359-16182 |
5L..LH16#,17#,182,188..(03S,06S)..5F 12V 70A |
1 | ||
| 27359-16182 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27359-16182 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-58320 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27370-58320 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27370-75060 |
1RZE..RZH102..4FC;1RZE..RZH112..HRF..4FC;1RZE..RZH112..V2..4D..4FC;1RZE..RZH112..V1..SRF..4FC;5L,2RZE..LH162,172,182,184,RZH125,183;1KZTE,5L..KZH120,LH168,178,186,188..4WD |
1 | ||
| 27370-75060 |
1RZE..RZH102..4FC;1RZE..RZH112..HRF..4FC;1RZE..RZH112..V2..4D..4FC;1RZE..RZH112..V1..SRF..4FC;5L,2RZE..LH162,172,182,184,RZH125,183;1KZTE,5L..KZH120,LH168,178,186,188..4WD |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-70171 |
5L..LH17#,182..(03S,06S)..5F;5L,1RZE..LH16#,188,RZH102,112,124..5F 12V 70A |
1 | ||
| 27387-70171 |
5L..LH17#,182..(03S,06S)..5F;5L,1RZE..LH16#,188,RZH102,112,124..5F 12V 70A |
1 | ||
| 27387-70171 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27387-70171 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27387-42021 |
1RZE..RZH102,112..4FC..(CD,DX,SGL);1KZTE,5L,2RZE..KZH10#,11#,120,13#,LH16#,17#,18#,RZH101,111,125,183..CD,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL 12V 80A |
1 | ||
| 27387-42021 |
1RZE..RZH102,112..4FC..(CD,DX,SGL);1KZTE,5L,2RZE..KZH10#,11#,120,13#,LH16#,17#,18#,RZH101,111,125,183..CD,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL 12V 80A |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
1KZTE,5L,1RZE,2RZE..KZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18# |
1 | ||
| 27388-42010 |
1KZTE,5L,1RZE,2RZE..KZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18# |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1RZE..RZH112..V2..4D..4FC;1RZE..RZH112..V1..4FC..CD;1RZE..RZH112..HRF..4D..4FC;1RZE..RZH102,112,182..(03S,06S)..5F;1KZTE,5L,2RZE..KZH10#,11#,120,13#,LH16#,17#,18#,RZH101,111,183..CD,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL 12V 70A |
1 | ||
| 27443-63020 |
1RZE..RZH112..V2..4D..4FC;1RZE..RZH112..V1..4FC..CD;1RZE..RZH112..HRF..4D..4FC;1RZE..RZH102,112,182..(03S,06S)..5F;1KZTE,5L,2RZE..KZH10#,11#,120,13#,LH16#,17#,18#,RZH101,111,183..CD,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL 12V 70A |
1 | ||
| 27443-63020 |
1KZTE,2L,2LT#,3L,5L,1RZ#,2RZE..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 12V 70A |
1 | ||
| 27443-63020 |
1KZTE,2L,2LT#,3L,5L,1RZ#,2RZE..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 12V 70A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-35040 |
5L..LH16#,17#,18#..CD,DX,GL,SGL 12V 110A |
1 | ||
| 27700-35040 |
5L..LH16#,17#,18#..CD,DX,GL,SGL 12V 110A |
1 | ||
| Common parts | ||||
| 27365-55080 | ||||
| 27384-50030 | ||||
| 27389-42010 | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 93319-14025 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 1107 | ||||
(9907- )2RZE..RZH101..08S ; (9907- )1KZTE,5L,1RZE,2RZE..KZH10#,11#,120,13#,LH
12V 70A,90A,120A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-54300 |
5L..LH16#,17#,18# 12V 80A |
1 | ||
| 27060-54300 |
5L..LH16#,17#,18# 12V 80A |
1 | ||
| 27060-54210 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27060-54210 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27060-54300 |
5L..LH16#,17#,18# 12V 80A |
1 | ||
| 27060-54300 |
5L..LH16#,17#,18# 12V 80A |
1 | ||
| 27060-54360 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27060-54360 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-55080 |
5L..LH16#,17#,18# 12V 80A |
1 | ||
| 27039-55080 |
5L..LH16#,17#,18# 12V 80A |
1 | ||
| 27039-16380 |
5L..LH16#,17#,182,188..(03S,06S)..5F 12V 70A |
1 | ||
| 27039-16380 |
5L..LH16#,17#,182,188..(03S,06S)..5F 12V 70A |
1 | ||
| 27039-70470 |
5L..LH16#,17#,18#..CD,DX,GL,SGL |
1 | ||
| 27039-70470 |
5L..LH16#,17#,18#..CD,DX,GL,SGL |
1 | ||
| 27039-16380 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27039-16380 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
1KZTE,5L,1RZE,2RZE..KZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18# |
1 | ||
| 27064-42010 |
1KZTE,5L,1RZE,2RZE..KZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18# |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-64130 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 27312-64130 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 27312-64130 |
5L..LH16#,17#,18# |
1 | ||
| 27312-64130 |
5L..LH16#,17#,18# |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-54710 |
5L..LH16#,17#,18# 12V 80A |
1 | ||
| 27310-54710 |
5L..LH16#,17#,18# 12V 80A |
1 | ||
| 27310-54710 |
5L..LH16#,17#,18# 12V 80A |
1 | ||
| 27310-54710 |
5L..LH16#,17#,18# 12V 80A |
1 | ||
| 27310-54500 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27310-54500 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27310-54470 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27310-54470 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10165 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 90099-10165 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 90099-10165 |
5L..LH16#,17#,18# |
1 | ||
| 90099-10165 |
5L..LH16#,17#,18# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-64300 |
5L..LH16#,17#,18# 12V 80A |
1 | ||
| 27330-64300 |
5L..LH16#,17#,18# 12V 80A |
1 | ||
| 27330-64300 |
5L..LH16#,17#,18# 12V 80A |
1 | ||
| 27330-64300 |
5L..LH16#,17#,18# 12V 80A |
1 | ||
| 27330-64190 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27330-64190 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27330-64130 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27330-64130 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
1RZE..RZH102,112..SGL;1RZE..RZH102..V2..4FC;5L,2RZE..LH16#,17#,18#,RZH101,125 |
1 | ||
| 90099-10140 |
1RZE..RZH102,112..SGL;1RZE..RZH102..V2..4FC;5L,2RZE..LH16#,17#,18#,RZH101,125 |
1 | ||
| 90099-10140 |
1RZE..RZH112..HRF..4D..4FC;1RZE..RZH112..V2..4D..4FC..DX;1RZE..RZH102,112..4FC..(CD,SGLE);5L,2RZE..LH162,172,182,184,RZH183;1KZTE,5L..KZH120,LH168,178,186,188..4WD |
1 | ||
| 90099-10140 |
1RZE..RZH112..HRF..4D..4FC;1RZE..RZH112..V2..4D..4FC..DX;1RZE..RZH102,112..4FC..(CD,SGLE);5L,2RZE..LH162,172,182,184,RZH183;1KZTE,5L..KZH120,LH168,178,186,188..4WD |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-16380 |
5L..LH16#,17#,182,188..(03S,06S)..5F 12V 70A |
1 | ||
| 27357-16380 |
5L..LH16#,17#,182,188..(03S,06S)..5F 12V 70A |
1 | ||
| 27357-16380 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27357-16380 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27357-55080 |
1RZE..RZH112..5D..4FC..DX;1RZE..RZH102..4FC..(DX,SGL);1RZE..RZH112..V1..SRF..4D..4FC..(DX,SGL);5L,2RZE..LH16#,17#,18#,RZH101,111,125..CD,DX,GL,SCL,SCM,SCMM,SGL 12V 80A |
1 | ||
| 27357-55080 |
1RZE..RZH112..5D..4FC..DX;1RZE..RZH102..4FC..(DX,SGL);1RZE..RZH112..V1..SRF..4D..4FC..(DX,SGL);5L,2RZE..LH16#,17#,18#,RZH101,111,125..CD,DX,GL,SCL,SCM,SCMM,SGL 12V 80A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-54420 |
5L..LH16#,17#,18#..CD,DX,GL,SGL 12V 80A |
1 | ||
| 27359-54420 |
5L..LH16#,17#,18#..CD,DX,GL,SGL 12V 80A |
1 | ||
| 27359-16182 |
5L..LH16#,17#,182,188..(03S,06S)..5F 12V 70A |
1 | ||
| 27359-16182 |
5L..LH16#,17#,182,188..(03S,06S)..5F 12V 70A |
1 | ||
| 27359-16182 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27359-16182 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-58320 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27370-58320 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27370-75060 |
1RZE..RZH102..4FC;1RZE..RZH112..HRF..4FC;1RZE..RZH112..V2..4D..4FC;1RZE..RZH112..V1..SRF..4FC;5L,2RZE..LH162,172,182,184,RZH125,183;1KZTE,5L..KZH120,LH168,178,186,188..4WD |
1 | ||
| 27370-75060 |
1RZE..RZH102..4FC;1RZE..RZH112..HRF..4FC;1RZE..RZH112..V2..4D..4FC;1RZE..RZH112..V1..SRF..4FC;5L,2RZE..LH162,172,182,184,RZH125,183;1KZTE,5L..KZH120,LH168,178,186,188..4WD |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-70171 |
5L..LH17#,182..(03S,06S)..5F;5L,1RZE..LH16#,188,RZH102,112,124..5F 12V 70A |
1 | ||
| 27387-70171 |
5L..LH17#,182..(03S,06S)..5F;5L,1RZE..LH16#,188,RZH102,112,124..5F 12V 70A |
1 | ||
| 27387-70171 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27387-70171 |
5L..LH16#,17#,182..(03S,06S)..5F 12V 70A |
1 | ||
| 27387-42021 |
1RZE..RZH102,112..4FC..(CD,DX,SGL);1KZTE,5L,2RZE..KZH10#,11#,120,13#,LH16#,17#,18#,RZH101,111,125,183..CD,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL 12V 80A |
1 | ||
| 27387-42021 |
1RZE..RZH102,112..4FC..(CD,DX,SGL);1KZTE,5L,2RZE..KZH10#,11#,120,13#,LH16#,17#,18#,RZH101,111,125,183..CD,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL 12V 80A |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
1KZTE,5L,1RZE,2RZE..KZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18# |
1 | ||
| 27388-42010 |
1KZTE,5L,1RZE,2RZE..KZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18# |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1RZE..RZH112..V2..4D..4FC;1RZE..RZH112..V1..4FC..CD;1RZE..RZH112..HRF..4D..4FC;1RZE..RZH102,112,182..(03S,06S)..5F;1KZTE,5L,2RZE..KZH10#,11#,120,13#,LH16#,17#,18#,RZH101,111,183..CD,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL 12V 70A |
1 | ||
| 27443-63020 |
1RZE..RZH112..V2..4D..4FC;1RZE..RZH112..V1..4FC..CD;1RZE..RZH112..HRF..4D..4FC;1RZE..RZH102,112,182..(03S,06S)..5F;1KZTE,5L,2RZE..KZH10#,11#,120,13#,LH16#,17#,18#,RZH101,111,183..CD,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL 12V 70A |
1 | ||
| 27443-63020 |
1KZTE,2L,2LT#,3L,5L,1RZ#,2RZE..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 12V 70A |
1 | ||
| 27443-63020 |
1KZTE,2L,2LT#,3L,5L,1RZ#,2RZE..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 12V 70A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-35040 |
5L..LH16#,17#,18#..CD,DX,GL,SGL 12V 110A |
1 | ||
| 27700-35040 |
5L..LH16#,17#,18#..CD,DX,GL,SGL 12V 110A |
1 | ||
| Common parts | ||||
| 27365-55080 | ||||
| 27384-50030 | ||||
| 27389-42010 | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 93319-14025 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 1107 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
