LH125B-ZRMNS (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1998
Engine 3L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908-9608)

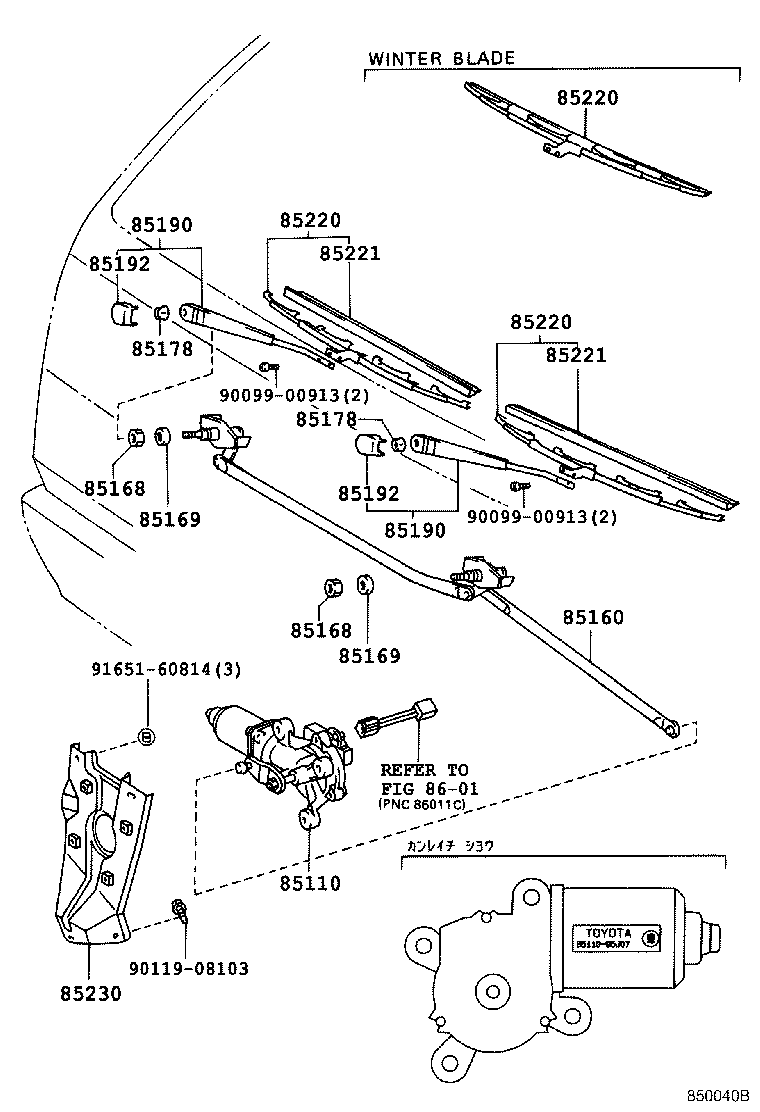

Click highlighted areas on diagram

diagram 85110 85160 85168 85168 85169 85169 85178 85178 85190 85190 85192 85192 85220 85220 85220 85221 85221 85230 8601 9009900913 9009900913 9011908103 9165160814
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-95J07

LH10#,11#,12#,140,RZH10#,11#,12#

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
85110-95J06

LH10#,11#,12#

 1
85110-95J06

LH10#,11#,12#,140,RZH10#,11#,12#

 1
85110-95J07

KZH10#,11#,12#,13#,RZH10#,11#,124,133

 1
85110-95J07

LH10#,11#,12#

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-95J02

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
85168 - NUT, WINDSHIELD WIPER LINK PIVOT
85168-95700

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 2
85168 - NUT, WINDSHIELD WIPER LINK PIVOT
85168-95700

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 2
85169 - WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1
85179-95J00

KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133

 2
85169 - WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1
85179-95J00

KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-08123

LH10#,11#,12#,RZH10#,11#,12#

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-08123

LH10#,11#,12#,RZH10#,11#,12#

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-95J12

LH10#,11#,12#,140,RZH10#,11#,12#

右側

 1
85190-95J15

KZH10#,11#,12#,13#,RZH10#,11#,124,133

右側

 1
85210-95J12

KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133

左側

 1
85190-95J12

LH10#,11#,12#

右側

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85190-95J12

LH10#,11#,12#,140,RZH10#,11#,12#

右側

 1
85190-95J15

KZH10#,11#,12#,13#,RZH10#,11#,124,133

右側

 1
85210-95J12

KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133

左側

 1
85190-95J12

LH10#,11#,12#

右側

 1
85192 - COVER, WINDSHIELD WIPER ARM
85192-28020

KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133

 2
85192 - COVER, WINDSHIELD WIPER ARM
85192-28020

KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85291-32020

KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133

ｳｲﾝﾀ- ﾌﾞﾚ-ﾄﾞ

 2
85220-32560

LH10#,11#,12#,RZH10#,11#,12#

ｳｲﾝﾀ- ﾌﾞﾚ-ﾄﾞ

 2
85212-26010

KZH10#,11#,12#,13#,RZH10#,11#,124,133

右側

 1
85220-3A130

LH10#,11#,12#,140,RZH10#,11#,12#

右側

 1
85220-3A120

KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133

左側

 1
85220-3A130

LH10#,11#,12#

右側

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85291-32020

KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133

ｳｲﾝﾀ- ﾌﾞﾚ-ﾄﾞ

 2
85220-32560

LH10#,11#,12#,RZH10#,11#,12#

ｳｲﾝﾀ- ﾌﾞﾚ-ﾄﾞ

 2
85212-26010

KZH10#,11#,12#,13#,RZH10#,11#,124,133

右側

 1
85220-3A130

LH10#,11#,12#,140,RZH10#,11#,12#

右側

 1
85220-3A120

KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133

左側

 1
85220-3A130

LH10#,11#,12#

右側

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85291-32020

KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133

ｳｲﾝﾀ- ﾌﾞﾚ-ﾄﾞ

 2
85220-32560

LH10#,11#,12#,RZH10#,11#,12#

ｳｲﾝﾀ- ﾌﾞﾚ-ﾄﾞ

 2
85212-26010

KZH10#,11#,12#,13#,RZH10#,11#,124,133

右側

 1
85220-3A130

LH10#,11#,12#,140,RZH10#,11#,12#

右側

 1
85220-3A120

KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133

左側

 1
85220-3A130

LH10#,11#,12#

右側

 1
85221 - BLADE, WINDSHIELD WIPER
85221-30110

LH10#,11#,12#,140,RZH10#,11#,12#

 2
85221-30130

KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133

 2
85221 - BLADE, WINDSHIELD WIPER
85221-30110

LH10#,11#,12#,140,RZH10#,11#,12#

 2
85221-30130

KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133

 2
85230 - BRACKET ASSY, WINDSHIELD WIPER
85269-95J01

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
Common parts
90099-00913
90119-08103
91651-60814
Linked diagrams
8601

(9608- )

Click highlighted areas on diagram

diagram 85110 85154 85154 85160 85168 85168 85178 85178 85190 85190 85214A 85214B 85220 85220 85220 85224A 85224B 85224C 85224D 85230 9011908063 9011908103 9165160814
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-95J07

LH10#,11#,12#,140,RZH10#,11#,12#

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
85110-95J06

LH10#,11#,12#

 1
85110-95J06

LH10#,11#,12#,140,RZH10#,11#,12#

 1
85110-95J07

KZH10#,11#,12#,13#,RZH10#,11#,124,133

 1
85110-95J07

LH10#,11#,12#

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-95J02

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
85168 - NUT, WINDSHIELD WIPER LINK PIVOT
85168-95700

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 2
85168 - NUT, WINDSHIELD WIPER LINK PIVOT
85168-95700

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-08123

LH10#,11#,12#,RZH10#,11#,12#

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-08123

LH10#,11#,12#,RZH10#,11#,12#

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-95J12

LH10#,11#,12#,140,RZH10#,11#,12#

右側

 1
85190-95J15

KZH10#,11#,12#,13#,RZH10#,11#,124,133

右側

 1
85210-95J12

KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133

左側

 1
85190-95J12

LH10#,11#,12#

右側

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85190-95J12

LH10#,11#,12#,140,RZH10#,11#,12#

右側

 1
85190-95J15

KZH10#,11#,12#,13#,RZH10#,11#,124,133

右側

 1
85210-95J12

KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133

左側

 1
85190-95J12

LH10#,11#,12#

右側

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85291-32020

KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133

ｳｲﾝﾀ- ﾌﾞﾚ-ﾄﾞ

 2
85220-32560

LH10#,11#,12#,RZH10#,11#,12#

ｳｲﾝﾀ- ﾌﾞﾚ-ﾄﾞ

 2
85212-26010

KZH10#,11#,12#,13#,RZH10#,11#,124,133

右側

 1
85220-3A130

LH10#,11#,12#,140,RZH10#,11#,12#

右側

 1
85220-3A120

KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133

左側

 1
85220-3A130

LH10#,11#,12#

右側

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85291-32020

KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133

ｳｲﾝﾀ- ﾌﾞﾚ-ﾄﾞ

 2
85220-32560

LH10#,11#,12#,RZH10#,11#,12#

ｳｲﾝﾀ- ﾌﾞﾚ-ﾄﾞ

 2
85212-26010

KZH10#,11#,12#,13#,RZH10#,11#,124,133

右側

 1
85220-3A130

LH10#,11#,12#,140,RZH10#,11#,12#

右側

 1
85220-3A120

KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133

左側

 1
85220-3A130

LH10#,11#,12#

右側

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85291-32020

KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133

ｳｲﾝﾀ- ﾌﾞﾚ-ﾄﾞ

 2
85220-32560

LH10#,11#,12#,RZH10#,11#,12#

ｳｲﾝﾀ- ﾌﾞﾚ-ﾄﾞ

 2
85212-26010

KZH10#,11#,12#,13#,RZH10#,11#,124,133

右側

 1
85220-3A130

LH10#,11#,12#,140,RZH10#,11#,12#

右側

 1
85220-3A120

KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133

左側

 1
85220-3A130

LH10#,11#,12#

右側

 1
85230 - BRACKET ASSY, WINDSHIELD WIPER
85269-95J01

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
Common parts
90119-08063
90119-08103
91651-60814
