LH125B-ZRMNS (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1998
Engine 3L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )2L,2LT#,3L,5L

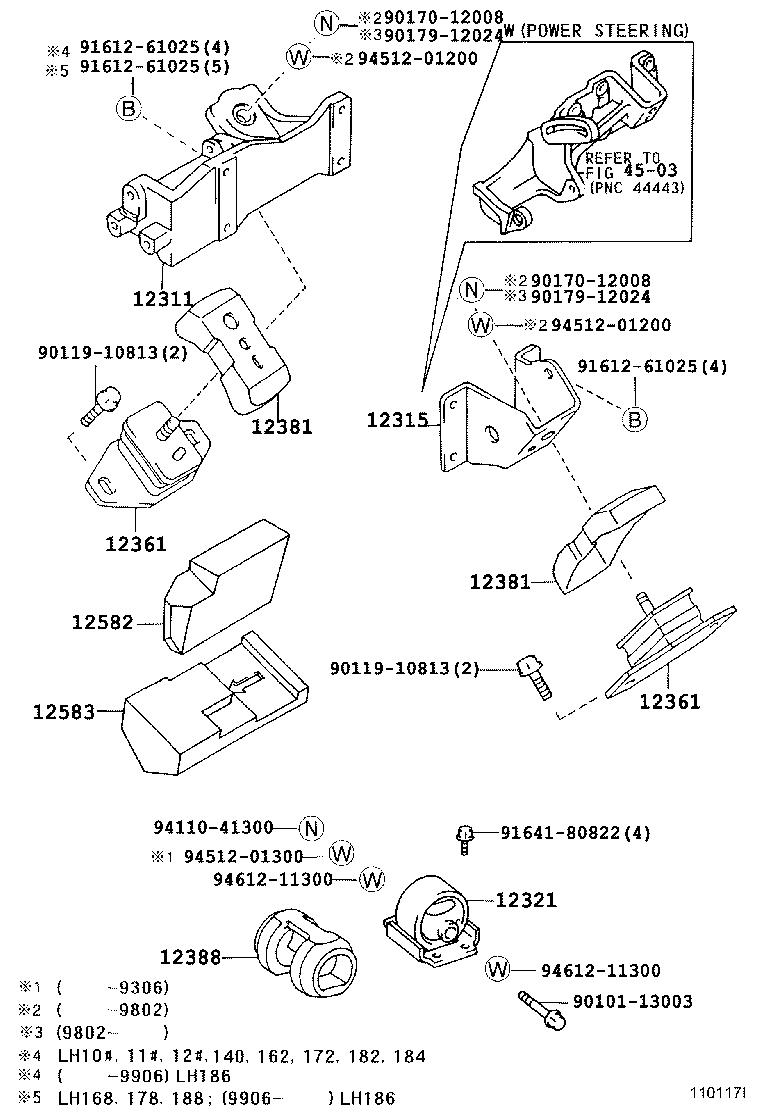

Click highlighted areas on diagram

diagram 12311 12315 12321 12361 12361 12381 12381 12388 12582 12583 4503 9010113003 9011910813 9011910813 9017012008 9017012008 9017912024 9017912024 9161261025 9161261025 9161261025 9164180822 9411041300 9451201200 9451201200 9451201300 9461211300 9461211300
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-54140

2L,2LT#,3L,5L..LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,186

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12303-54020

2L,2LT#,3L..LH100,102,110,113,115,120,123,125,140..5F

 1
12303-67020

3L..LH103,113,123,125..5F

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54142

2L#,3L..LH10#,11#,12#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54142

2L#,3L..LH10#,11#,12#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-54040

2L#,3L..LH100,102,103,110,113,115,120,123,125,140

 2
12381-54060

2L,2LT#,3L..LH10#,11#,12#,140

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-54040

2L#,3L..LH100,102,103,110,113,115,120,123,125,140

 2
12381-54060

2L,2LT#,3L..LH10#,11#,12#,140

 2
12388 - STOPPER, ENGINE MOUNTING BRACKET, REAR
12388-67010

3L..LH10#,11#,12#

 1
Common parts
90101-13003
90119-10813
90170-12008
90179-12024
91612-61025
91641-80822
94110-41300
94512-01200
94512-01300
94612-11300
Linked diagrams
4503
