LH120G-HHMNT (1992)

Toyota Hiace/Regiusace

Production May 1992 - Aug 1993
Engine 2LTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908-9308)2L,2LT,3L..LH100,107,110,117,120,140

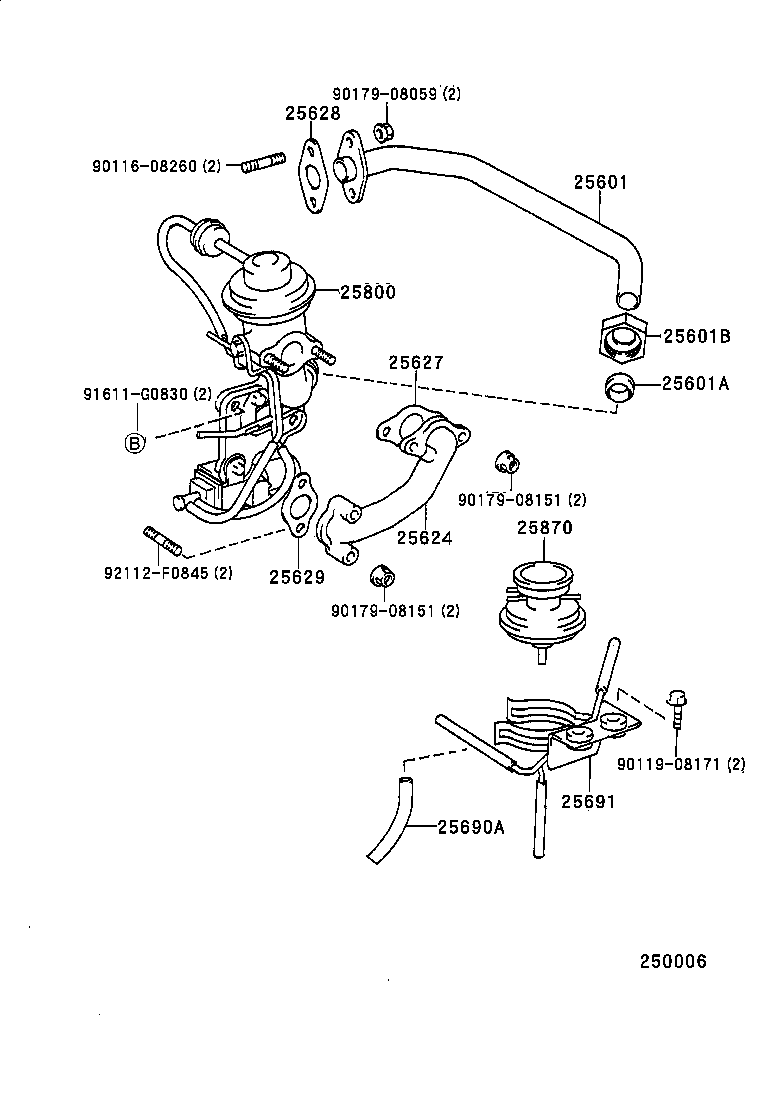

Click highlighted areas on diagram

diagram 25601 25601A 25601B 25624 25627 25628 25629 25690A 25691 25800 25870 9011608260 9011908171 9017908059 9017908151 9017908151 91611G0830 92112F0845
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-54080

2LT#..LH100,120

 1
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-25001

2L,2LT#,3L..LH100,107,110,117,120,140

 1
25601B - NUT, UNION, EGR PIPE, NO.1
90402-33001

2L,2LT#,3L..LH100,107,110,117,120,140

 1
25624 - ADAPTER, EGR VALVE
25624-54040

2L,2LT#,3L..LH100,107,110,117,120,140

 1
25627 - GASKET, EGR VALVE
25627-54011

2L,2LT#,3L..LH100,107,110,117,120,140

 1
25628 - GASKET, EGR INLET
25628-54012

2L,2LT#,3L..LH100,107,110,117,120,140

 1
25629 - GASKET, EGR VALVE ADAPTER
25629-54011

2L,2LT#,3L..LH100,107,110,117,120,140

 1
25800 - VALVE ASSY, ELECTRIC EGR CONTROL
25800-54110

2LT..LH100,120

 1
Common parts
90116-08260
90119-08171
90179-08059
90179-08151
91611-G0830
92112-F0845
