LH120G-HHMNT (1992)
Toyota Hiace/Regiusace
(8908-9808)2L,3L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-54100 |
2LT..LH100,120 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15004 |
2L#,3L..LH10#,11#,12# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15004 |
2L#,3L..LH10#,11#,12# |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-54037 |
2L,2LT#,3L..LH10#,11#,12#,140 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-54090 |
2LT..LH100,120 |
4 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15004 |
2LT..LH100,120 |
8 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15004 |
2LT..LH100,120 |
8 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-54110 |
2L,2LT,3L..LH10#,11#,12#,140 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03099 |
2L,2LT#,3L..LH10#,11#,12#,140 *WAX 88−100 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03099 |
2L,2LT#,3L..LH10#,11#,12#,140 *WAX 88−100 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-54111 |
2L,3L..LH102,107,113,119,123;2L,2LT#,3L..LH100,109,110,115,117,120,125,129,140..5F |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-54030 |
2L,2LT#,3L..LH10#,11#,12#,140 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-54030 |
2L,2LT#,3L..LH10#,11#,12#,140 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-54030 |
2L,2LT#,3L..LH10#,11#,12#,140 |
1 | ||
| 16361 - FAN | ||||
| 16361-54050 |
2L,2LT#,3L..LH100,107,110,117,120,140 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-54070 |
2L,2LT#,3L,5L..LH100,102,103,110,113,115,120,123,125,140,162,172,182,184 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-54760 |
2LT#..LH100,120..5F |
1 | ||
| 16400-54761 |
2LTE..LH100,120..5F |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-75010 |
2L,2LT#,3L..LH10#,11#,12#,140 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
2L,2LT#,3L..LH10#,11#,12#,140 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-71010 |
2L,2LT#,3L..LH10#,11#,12#,140 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-54210 |
2L#,3L..LH100,107,110,120 |
1 | ||
| 16470-54213 |
2L#,3L..LH10#,11#,12#,140 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
2L,2LT#,3L..LH10#,11#,12#,140 *H,L=155,NO.2 |
1 | ||
| 85338-54190 |
2L,2LT#,3L..LH10#,11#,12#,140 NO.1 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
2L,2LT#,3L..LH10#,11#,12#,140 *H,L=155,NO.2 |
1 | ||
| 85338-54190 |
2L,2LT#,3L..LH10#,11#,12#,140 NO.1 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
2L,2LT#,3L..LH10#,11#,12#,140 *H,L=155,NO.2 |
1 | ||
| 85338-54190 |
2L,2LT#,3L..LH10#,11#,12#,140 NO.1 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
2L,2LT#,3L..LH10#,11#,12#,140 *H,L=155,NO.2 |
1 | ||
| 85338-54190 |
2L,2LT#,3L..LH10#,11#,12#,140 NO.1 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2L,2LT#,3L..LH10#,11#,12#,140 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2L,2LT#,3L..LH10#,11#,12#,140 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2L,2LT#,3L..LH10#,11#,12#,140 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2L,2LT#,3L..LH10#,11#,12#,140 |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-54200 |
2L#,3L..LH10#,11#,12# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-54200 |
2L#,3L..LH10#,11#,12# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-71030 |
2L#,3L..LH100,107,110,120 |
1 | ||
| 16547 - BUSH, RADIATOR SUPPORT, NO.1 | ||||
| 16547-67040 |
2L,2LT#,3L..LH10#,11#,12#,140 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-54320 |
2L,2LT#,3L,5L..LH100,102,103,110,113,115,120,123,125,140,162,172,182,184 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-54320 |
2L,2LT#,3L..LH100,102,103,110,113,115,120,123,125,140 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37001 |
2L,2LT#,3L..LH100,102,110,113,115,120,123,125,140 ﾗｼﾞｪｰﾀ側 |
1 | ||
| 96111-10500 |
2L#,3L..LH10#,11#,12# ｴﾝｼﾞﾝ側 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37001 |
2L,2LT#,3L..LH100,102,110,113,115,120,123,125,140 ﾗｼﾞｪｰﾀ側 |
1 | ||
| 96111-10500 |
2L#,3L..LH10#,11#,12# ｴﾝｼﾞﾝ側 |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-54010 |
2L,2LT#,3L..LH10#,11#,12#,140 |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-54010 |
2L,2LT#,3L..LH10#,11#,12#,140 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16701-54220 |
2L,2LT#,3L..LH100,102,103,110,113,115,120,123,125,140 |
1 | ||
| Common parts | ||||
| 90099-04565 | ||||
| 90116-08366 | ||||
| 90119-08694 | ||||
| 90119-12224 | ||||
| 90179-06080 | ||||
| 90179-06156 | ||||
| 90179-06293 | ||||
| 90179-08068 | ||||
| 90179-08150 | ||||
| 90929-01219 | ||||
| 91611-G0820 | ||||
| 91651-40614 | ||||
| 96135-51300 | ||||
| 99555-10300 | ||||

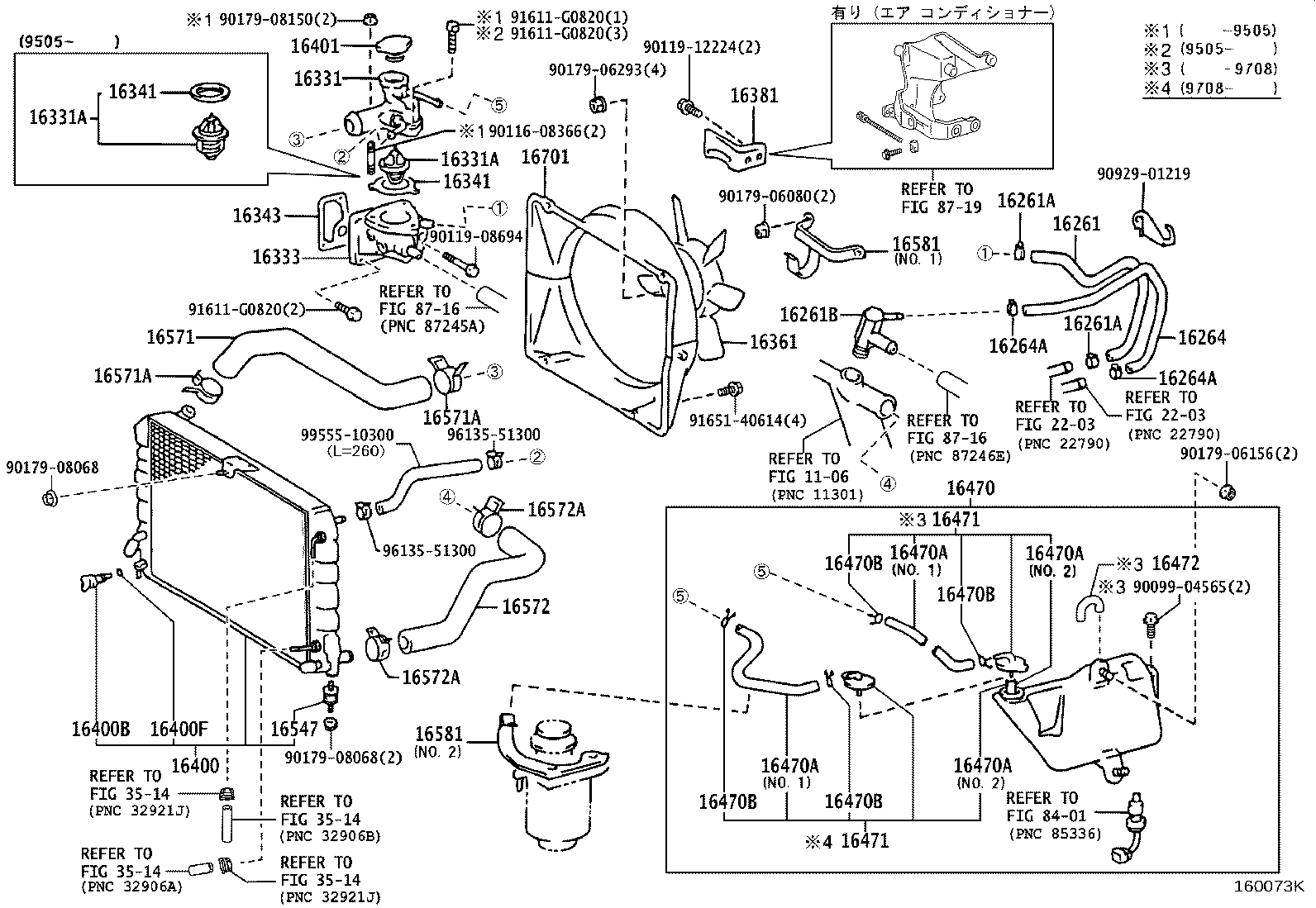

| Linked diagrams | ||||
| 1106 | ||||
| 2203 | ||||
| 3514 | ||||
| 8401 | ||||
| 8716 | ||||
| 8719 | ||||
