LH120G-HHMNT (1992)

Toyota Hiace/Regiusace

Production May 1992 - Aug 1993
Engine 2LTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908-9308)2LT#

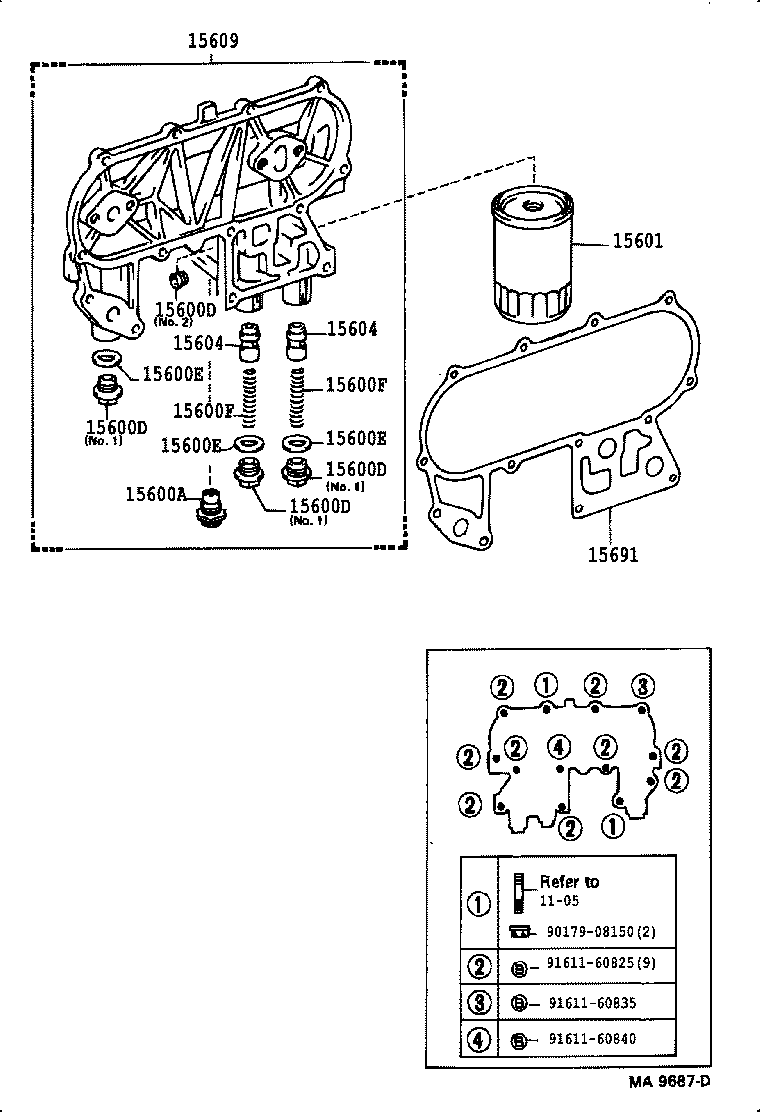

Click highlighted areas on diagram

diagram 1105 15600A 15600D 15600D 15600D 15600D 15600E 15600E 15600E 15600F 15600F 15601 15604 15604 15609 15691 9017908150 9161160825 9161160835 9161160840
Part # Description Qty Price
15600A - UNION(FOR OIL FILTER)
15116-54020

2L,2LT#,3L..LH100,107,110,117,120,140

 1
15600D - PLUG(FOR OIL FILTER)
90341-18015

2L,2LT#,3L..LH10#,11#,12#,140

NO.1

 3
90072-34402

2L,2LT#,3L..LH100,107,110,117,120,140

NO.2

 1
15600D - PLUG(FOR OIL FILTER)
90341-18015

2L,2LT#,3L..LH10#,11#,12#,140

NO.1

 3
90072-34402

2L,2LT#,3L..LH100,107,110,117,120,140

NO.2

 1
15600D - PLUG(FOR OIL FILTER)
90341-18015

2L,2LT#,3L..LH10#,11#,12#,140

NO.1

 3
90072-34402

2L,2LT#,3L..LH100,107,110,117,120,140

NO.2

 1
15600D - PLUG(FOR OIL FILTER)
90341-18015

2L,2LT#,3L..LH10#,11#,12#,140

NO.1

 3
90072-34402

2L,2LT#,3L..LH100,107,110,117,120,140

NO.2

 1
15600E - WASHER(FOR OIL FILTER)
90430-18001

2L,2LT#,3L..LH10#,11#,12#,140

 3
15600E - WASHER(FOR OIL FILTER)
90430-18001

2L,2LT#,3L..LH10#,11#,12#,140

 3
15600E - WASHER(FOR OIL FILTER)
90430-18001

2L,2LT#,3L..LH10#,11#,12#,140

 3
15600F - SPRING, COMPRESSION(FOR OIL FILTER)
90501-16026

2L,2LT#,3L..LH10#,11#,12#,140

 2
15600F - SPRING, COMPRESSION(FOR OIL FILTER)
90501-16026

2L,2LT#,3L..LH10#,11#,12#,140

 2
15601 - FILTER SUB-ASSY, OIL
90915-03006

2L,2LT#,3L..LH100,107,110,117,120,140

 1
15604 - VALVE SUB-ASSY, OIL SAFETY
15131-54010

2L,2LT#,3L..LH10#,11#,12#,140

 2
15604 - VALVE SUB-ASSY, OIL SAFETY
15131-54010

2L,2LT#,3L..LH10#,11#,12#,140

 2
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-54061

2LT#..LH100,120

 1
15691 - GASKET, OIL FILTER
15692-54030

2L,2LT#,3L..LH10#,11#,12#,140

 1
Common parts
90179-08150
91611-60825
91611-60835
91611-60840
Linked diagrams
1105
