LH120G-HHMDX (1989)
Toyota Hiace/Regiusace
ILLUST NO. 1 OF 2(8908-9308)2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-54570 |
2LT..LH100,120 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 17700-54590 |
2LT..LH100,120 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ, ｻｲｸﾛﾝﾀｲﾌﾟ |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-75020 |
2L,2LT#,3L..LH10#,11#,12#,140 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ, ｻｲｸﾛﾝﾀｲﾌﾟ |
1 | ||
| 17705-75010 |
2L,2LT#,3L..LH10#,11#,12#,140 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 17736 - NUT, AIR CLEANER CASE | ||||
| 90175-06003 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-54110 |
2LT#..LH100,120 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-54430 |
2LT#..LH100,120 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10800 |
2LT..LH100,120 ｴｱｸﾘｰﾅ側 |
2 | ||
| 90460-75001 |
2LT#..LH100,120 ｴｱｺﾈｸﾀ側 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10800 |
2LT..LH100,120 ｴｱｸﾘｰﾅ側 |
2 | ||
| 90460-75001 |
2LT#..LH100,120 ｴｱｺﾈｸﾀ側 |
1 | ||
| Common parts | ||||
| 90119-08714 | ||||
| 90119-08806 | ||||
| 90179-08026 | ||||
| 90179-08150 | ||||
| 91611-G0825 | ||||

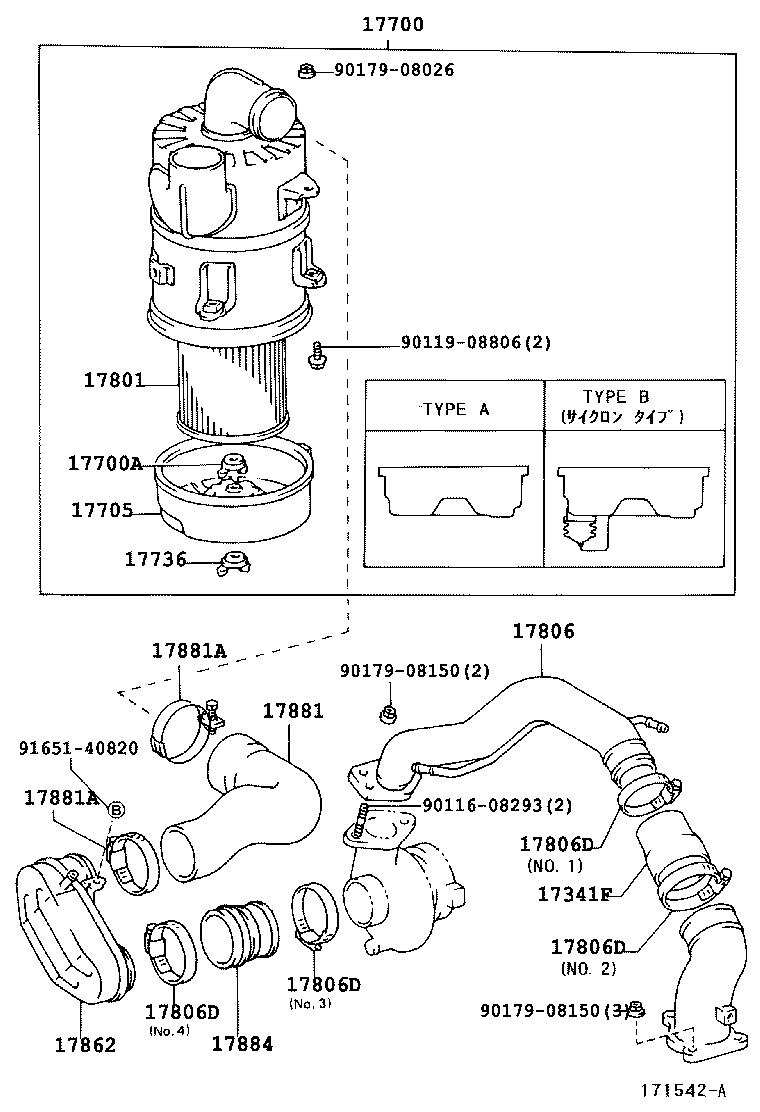

ILLUST NO. 1 OF 2(8908-9010)2LT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341F - HOSE, AIR, NO.1 | ||||
| 17341-54020 |
2LT..LH100,120 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-54570 |
2LT..LH100,120 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 17700-54590 |
2LT..LH100,120 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ, ｻｲｸﾛﾝﾀｲﾌﾟ |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-75020 |
2L,2LT#,3L..LH10#,11#,12#,140 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ, ｻｲｸﾛﾝﾀｲﾌﾟ |
1 | ||
| 17705-75010 |
2L,2LT#,3L..LH10#,11#,12#,140 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 17736 - NUT, AIR CLEANER CASE | ||||
| 90175-06003 |
2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-54110 |
2LT#..LH100,120 |
1 | ||
| 17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17103-54080 |
2LT..LH100,120 |
1 | ||
| 17806D - CLAMP(FOR AIR CLEANER PIPE) | ||||
| 90460-65004 |
2LT..LH100,120 NO.1 |
1 | ||
| 90460-70001 |
2LT..LH100,120 NO.2 |
1 | ||
| 90460-75001 |
2LT#..LH100,120 NO.3 |
1 | ||
| 90460-75004 |
2LT#..LH100,120 NO.4 |
1 | ||
| 90460-67004 |
2LT..LH100,120 |
2 | ||
| 17806D - CLAMP(FOR AIR CLEANER PIPE) | ||||
| 90460-65004 |
2LT..LH100,120 NO.1 |
1 | ||
| 90460-70001 |
2LT..LH100,120 NO.2 |
1 | ||
| 90460-75001 |
2LT#..LH100,120 NO.3 |
1 | ||
| 90460-75004 |
2LT#..LH100,120 NO.4 |
1 | ||
| 90460-67004 |
2LT..LH100,120 |
2 | ||
| 17806D - CLAMP(FOR AIR CLEANER PIPE) | ||||
| 90460-65004 |
2LT..LH100,120 NO.1 |
1 | ||
| 90460-70001 |
2LT..LH100,120 NO.2 |
1 | ||
| 90460-75001 |
2LT#..LH100,120 NO.3 |
1 | ||
| 90460-75004 |
2LT#..LH100,120 NO.4 |
1 | ||
| 90460-67004 |
2LT..LH100,120 |
2 | ||
| 17806D - CLAMP(FOR AIR CLEANER PIPE) | ||||
| 90460-75004 |
2LT#..LH100,120 NO.4 |
1 | ||
| 90460-65004 |
2LT..LH100,120 NO.1 |
1 | ||
| 90460-70001 |
2LT..LH100,120 NO.2 |
1 | ||
| 90460-75001 |
2LT#..LH100,120 NO.3 |
1 | ||
| 90460-67004 |
2LT..LH100,120 |
2 | ||
| 17862 - CONNECTOR, INTAKE AIR, NO.2 | ||||
| 17862-54020 |
2LT..LH100,120 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-54430 |
2LT#..LH100,120 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10800 |
2LT..LH100,120 ｴｱｸﾘｰﾅ側 |
2 | ||
| 90460-75001 |
2LT#..LH100,120 ｴｱｺﾈｸﾀ側 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10800 |
2LT..LH100,120 ｴｱｸﾘｰﾅ側 |
2 | ||
| 90460-75001 |
2LT#..LH100,120 ｴｱｺﾈｸﾀ側 |
1 | ||
| 17884 - HOSE, AIR CLEANER, NO.4 | ||||
| 17884-54011 |
2LT#..LH100,120 |
1 | ||
| Common parts | ||||
| 90116-08293 | ||||
| 90119-08806 | ||||
| 90179-08026 | ||||
| 90179-08150 | ||||
| 91651-40820 | ||||
ILLUST NO. 2 OF 2(8908-9808)2L,2LT#,3L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17764 - DUCT, AIR CLEANER | ||||
| 52811-95J00 |
2L,2LT#,3L..LH10#,11#,12#,140 |
1 | ||
| 17911 - DUCT, COOL AIR INTAKE, NO.1 | ||||
| 52814-95J00 |
2L,2LT#,3L..LH10#,11#,12#,140 |
1 | ||
| 17912 - DUCT, COOL AIR INTAKE, NO.2 | ||||
| 52815-95J00 |
2L,2LT#,3L..LH10#,11#,12#,140 NO.1 |
1 | ||
| 52820-95J00 |
2L,2LT#,3L..LH10#,11#,12#,140 NO.2 |
1 | ||
| 17912 - DUCT, COOL AIR INTAKE, NO.2 | ||||
| 52815-95J00 |
2L,2LT#,3L..LH10#,11#,12#,140 NO.1 |
1 | ||
| 52820-95J00 |
2L,2LT#,3L..LH10#,11#,12#,140 NO.2 |
1 | ||
| 17913 - DUCT, COOL AIR INTAKE, NO.3 | ||||
| 52830-95J00 |
2L,2LT#,3L..LH10#,11#,12#,140 |
1 | ||
| 52829 - GRILLE, COOL AIR INTAKE | ||||
| 52829-95J0001 |
LH113,120,123,129..HRF BLACK,045 |
1 | ||
| 53955A - CUSHION, AIR CLEANER INLET NO.1 | ||||
| 53955-95402 |
LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 53955-95402 |
RZH10#,11#,12#,133 |
1 | ||
| Common parts | ||||
| 57442-95700 | ||||
| 90109-06209 | ||||
| 90164-40072 | ||||
| 90189-04085 | ||||
| 90460-01056 | ||||
| 90480-16027 | ||||
| 90560-10064 | ||||
| 91651-60614 | ||||
| 96111-10750 | ||||
