LH120G-HHMDT (1990)
Toyota Hiace/Regiusace
Production
Oct 1990
-
Aug 1993
Engine
2LTE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9010-9308)TDE

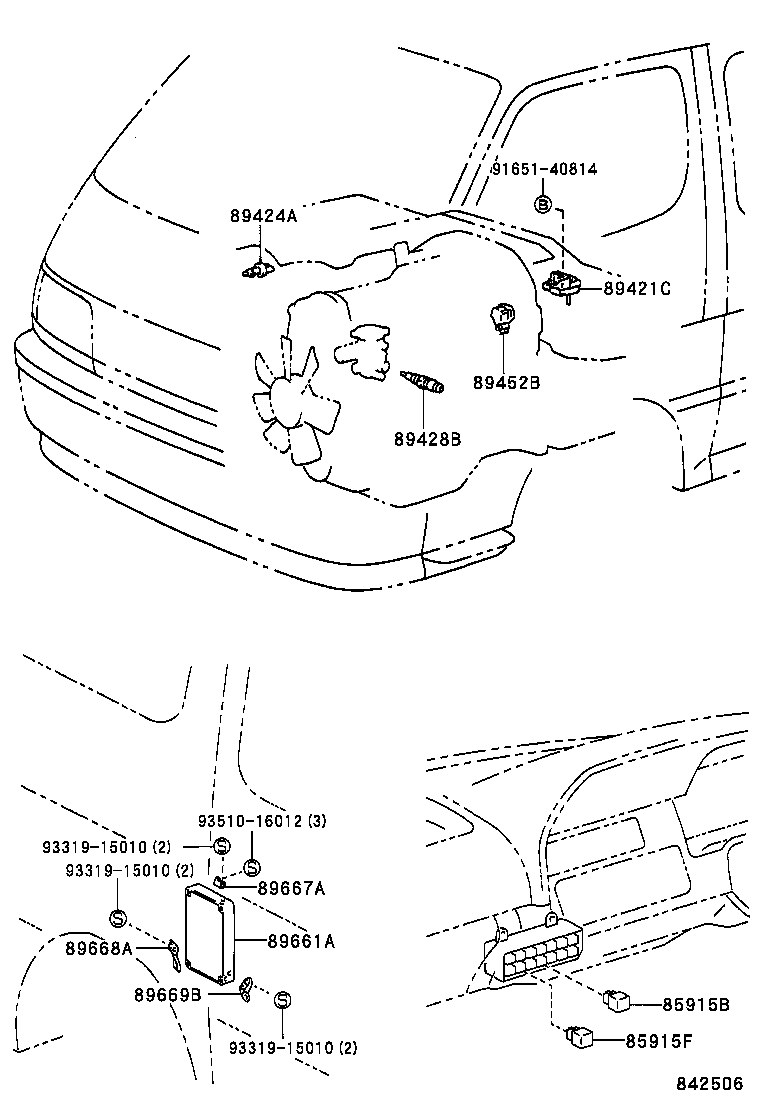

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85915B - RELAY, MAIN (FOR DIESEL TURBO) | ||||
| 85915-30050 |
LH100,120..TDE |
1 | ||
| 85915F - RELAY, SPILL VALVE | ||||
| 85915-30050 |
LH100,120..TDE |
1 | ||
| 89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO) | ||||
| 89420-26040 |
LH100,120..TDE |
1 | ||
| 89428B - SWITCH, TEMPERATURE | ||||
| 89428-30090 |
LH100,120..TDE |
1 | ||
| 89452B - SENSOR, THROTTLE POSITION | ||||
| 89452-12040 |
LH100,120..TDE |
1 | ||
| 89661A - COMPUTER, ENGINE CONTROL | ||||
| 89661-26140 |
LH100,120..5F..TDE DENSO |
1 | ||
| 89661-26060 |
LH100,120..5F..TDE DENSO |
1 | ||
| Common parts | ||||
| 91651-40814 | ||||
| 93319-15010 | ||||
| 93510-16012 | ||||
