LH119V-SRMNS (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1996
Engine 3L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(8908- )RZH10#,11#,12#,133..SG..CD,CTM,DX,GL,SCL,SCM,SCMM,SGL

Click highlighted areas on diagram

COOLER IDLE UP(MAKER OPT)

diagram 1708 1708 1708 1708 1708 1708 1708 1708 88031A 88645B 88645B 88645D 88645D 88645E 88691 88691C 88691C 9033907001 9046400432 9046400534
Part # Description Qty Price
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95J40

LH178..CD,DX;LH107,109,117,119,129,168,186,188..SG

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92003

LH107,109,117,119,129

*H,L=390,ﾏｰｸ=#0

 1
90999-92004

LH100..(08S,09S)..(DSL,TD);LH102,107,109,11#,12#,140..DSL,TD

*H,L=800,ﾏｰｸ=#*

 1
90999-92003

LH109,119,129..SG

*H,L=390,ﾏｰｸ=#0

 1
90999-92004

LH10#,12#;LH11#..SG;LH113..SP..5F

*H,L=800,ﾏｰｸ=#*

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92003

LH107,109,117,119,129

*H,L=390,ﾏｰｸ=#0

 1
90999-92004

LH100..(08S,09S)..(DSL,TD);LH102,107,109,11#,12#,140..DSL,TD

*H,L=800,ﾏｰｸ=#*

 1
90999-92003

LH109,119,129..SG

*H,L=390,ﾏｰｸ=#0

 1
90999-92004

LH10#,12#;LH11#..SG;LH113..SP..5F

*H,L=800,ﾏｰｸ=#*

 1
Common parts
90339-07001
90464-00432
90464-00534
Linked diagrams
1708

ILLUST NO. 1 OF 3(8908- )RZH102..V1..SG..5F..EFI ; (8908- )RZH112..SRF..SG..5F..EFI ; (8908-

Click highlighted areas on diagram

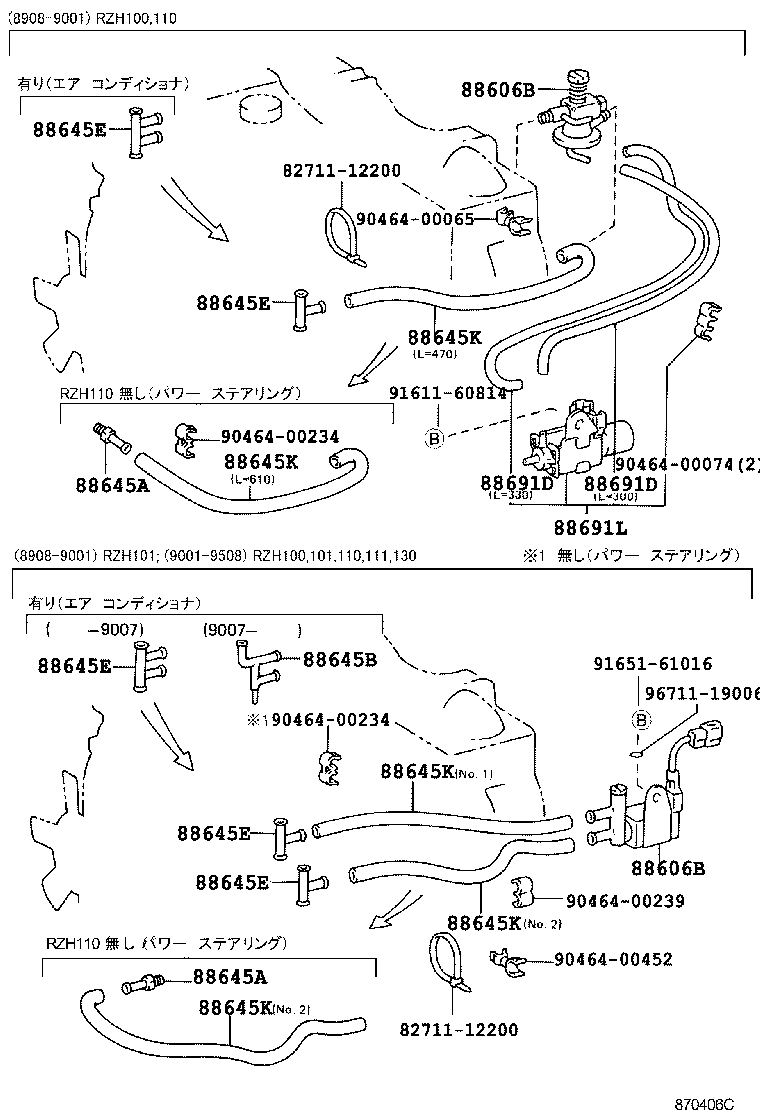

HEATER IDLE UP

diagram 8271112200 8271112200 88606B 88606B 88645A 88645A 88645B 88645E 88645E 88645E 88645E 88645E 88645K 88645K 88645K 88645K 88645K 88691D 88691D 88691L 9046400065 9046400074 9046400234 9046400234 9046400239 9046400452 9161160814 9165161016 9671119006
Part # Description Qty Price
Common parts
82711-12200
90464-00065
90464-00074
90464-00234
90464-00239
90464-00452
91611-60814
91651-61016
96711-19006

ILLUST NO. 1 OF 3(8908- )RZH10#,11#,12#,133..SG..CD,CTM,DX,GL,SCL,SCM,SCMM,SGL

Click highlighted areas on diagram

HEATER IDLE UP

diagram 8271112200 8271112200 88031K 88031K 88691D 88691D 88691D 88691D 88691D 88691D 88691D 88691L 88691L 9041304004 9046400074 9046400074 9046400082 9046400082 9046400082 9161160814 9331915014 9338115014
Part # Description Qty Price
Common parts
82711-12200
90413-04004
90464-00074
90464-00082
91611-60814
93319-15014
93381-15014

ILLUST NO. 2 OF 3(8908- )RZH10#,11#,12#,133..SG..CD,CTM,DX,GL,SCL,SCM,SCMM,SGL

Click highlighted areas on diagram

COOLER IDLE UP(DEALER OPT)

diagram 1708 1708 1708 1708 1708 1708 1708 88031A 88645B 88645D 88645E 88691 88691C 88691C 9046400534
Part # Description Qty Price
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95J40

LH178..CD,DX;LH107,109,117,119,129,168,186,188..SG

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92003

LH107,109,117,119,129

*H,L=390,ﾏｰｸ=#0

 1
90999-92004

LH100..(08S,09S)..(DSL,TD);LH102,107,109,11#,12#,140..DSL,TD

*H,L=800,ﾏｰｸ=#*

 1
90999-92003

LH109,119,129..SG

*H,L=390,ﾏｰｸ=#0

 1
90999-92004

LH10#,12#;LH11#..SG;LH113..SP..5F

*H,L=800,ﾏｰｸ=#*

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92003

LH107,109,117,119,129

*H,L=390,ﾏｰｸ=#0

 1
90999-92004

LH100..(08S,09S)..(DSL,TD);LH102,107,109,11#,12#,140..DSL,TD

*H,L=800,ﾏｰｸ=#*

 1
90999-92003

LH109,119,129..SG

*H,L=390,ﾏｰｸ=#0

 1
90999-92004

LH10#,12#;LH11#..SG;LH113..SP..5F

*H,L=800,ﾏｰｸ=#*

 1
Common parts
90464-00534
Linked diagrams
1708

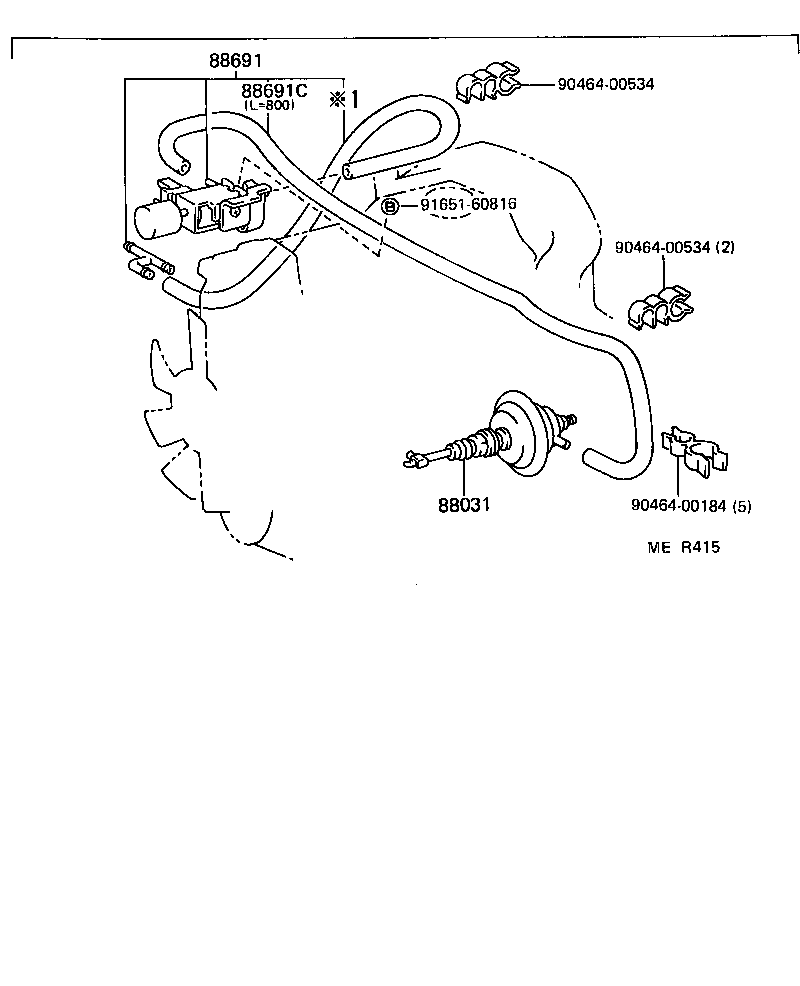

ILLUST NO. 2 OF 3(8908- )LH10#,11#,12#,140,16#,17#,18#..CD,CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL,S

Click highlighted areas on diagram

COOLER IDLE UP(MAKER OPT)

diagram 88031 88031 88645B 88691 88691 88691C 88691C 88691C 88691C 88691C 9046400074 9046400301 9046400534 9046400534 9046400534 9046400534 9165140816 9165160816
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-25020

LH10#,11#,12#,140..DSL,TD

 1
88031-25020

LH11#..SG;LH10#,123,129;LH113..SP..5F

ﾒ-ｶ- ｵﾌﾟｼﾖﾝ

 1
88031 - ACTUATOR SET, IDLE-UP
88031-25020

LH10#,11#,12#,140..DSL,TD

 1
88031-25020

LH11#..SG;LH10#,123,129;LH113..SP..5F

ﾒ-ｶ- ｵﾌﾟｼﾖﾝ

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95J40

LH178..CD,DX;LH107,109,117,119,129,168,186,188..SG

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95J40

LH178..CD,DX;LH107,109,117,119,129,168,186,188..SG

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92003

LH107,109,117,119,129

*H,L=390,ﾏｰｸ=#0

 1
90999-92004

LH100..(08S,09S)..(DSL,TD);LH102,107,109,11#,12#,140..DSL,TD

*H,L=800,ﾏｰｸ=#*

 1
90999-92003

LH109,119,129..SG

*H,L=390,ﾏｰｸ=#0

 1
90999-92004

LH10#,12#;LH11#..SG;LH113..SP..5F

*H,L=800,ﾏｰｸ=#*

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92003

LH107,109,117,119,129

*H,L=390,ﾏｰｸ=#0

 1
90999-92004

LH100..(08S,09S)..(DSL,TD);LH102,107,109,11#,12#,140..DSL,TD

*H,L=800,ﾏｰｸ=#*

 1
90999-92003

LH109,119,129..SG

*H,L=390,ﾏｰｸ=#0

 1
90999-92004

LH10#,12#;LH11#..SG;LH113..SP..5F

*H,L=800,ﾏｰｸ=#*

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92003

LH107,109,117,119,129

*H,L=390,ﾏｰｸ=#0

 1
90999-92004

LH100..(08S,09S)..(DSL,TD);LH102,107,109,11#,12#,140..DSL,TD

*H,L=800,ﾏｰｸ=#*

 1
90999-92003

LH109,119,129..SG

*H,L=390,ﾏｰｸ=#0

 1
90999-92004

LH10#,12#;LH11#..SG;LH113..SP..5F

*H,L=800,ﾏｰｸ=#*

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92003

LH107,109,117,119,129

*H,L=390,ﾏｰｸ=#0

 1
90999-92004

LH100..(08S,09S)..(DSL,TD);LH102,107,109,11#,12#,140..DSL,TD

*H,L=800,ﾏｰｸ=#*

 1
90999-92003

LH109,119,129..SG

*H,L=390,ﾏｰｸ=#0

 1
90999-92004

LH10#,12#;LH11#..SG;LH113..SP..5F

*H,L=800,ﾏｰｸ=#*

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92003

LH107,109,117,119,129

*H,L=390,ﾏｰｸ=#0

 1
90999-92004

LH100..(08S,09S)..(DSL,TD);LH102,107,109,11#,12#,140..DSL,TD

*H,L=800,ﾏｰｸ=#*

 1
90999-92003

LH109,119,129..SG

*H,L=390,ﾏｰｸ=#0

 1
90999-92004

LH10#,12#;LH11#..SG;LH113..SP..5F

*H,L=800,ﾏｰｸ=#*

 1
Common parts
90464-00074
90464-00301
90464-00534
91651-40816
91651-60816

ILLUST NO. 2 OF 3(8908- )RZH10#,11#,12#,133..CD,CTM,DX,GL,SCL,SCM,SCMM,SGL

Click highlighted areas on diagram

COOLER IDLE UP(DEALER OPT)

diagram 1708 88031 88645B 88691 88691C 88691C 9046400074 9046400082 9338115014 9338518016
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-25020

LH10#,11#,12#,140..DSL,TD

 1
88031-25020

LH11#..SG;LH10#,123,129;LH113..SP..5F

ﾒ-ｶ- ｵﾌﾟｼﾖﾝ

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95J40

LH178..CD,DX;LH107,109,117,119,129,168,186,188..SG

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92003

LH107,109,117,119,129

*H,L=390,ﾏｰｸ=#0

 1
90999-92004

LH100..(08S,09S)..(DSL,TD);LH102,107,109,11#,12#,140..DSL,TD

*H,L=800,ﾏｰｸ=#*

 1
90999-92003

LH109,119,129..SG

*H,L=390,ﾏｰｸ=#0

 1
90999-92004

LH10#,12#;LH11#..SG;LH113..SP..5F

*H,L=800,ﾏｰｸ=#*

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92003

LH107,109,117,119,129

*H,L=390,ﾏｰｸ=#0

 1
90999-92004

LH100..(08S,09S)..(DSL,TD);LH102,107,109,11#,12#,140..DSL,TD

*H,L=800,ﾏｰｸ=#*

 1
90999-92003

LH109,119,129..SG

*H,L=390,ﾏｰｸ=#0

 1
90999-92004

LH10#,12#;LH11#..SG;LH113..SP..5F

*H,L=800,ﾏｰｸ=#*

 1
Common parts
90464-00074
90464-00082
93381-15014
93385-18016
Linked diagrams
1708

ILLUST NO. 3 OF 3(8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133,18#.

Click highlighted areas on diagram

COOL BOX IDLE UP(MAKER OPTION)

diagram 8271112200 8271112200 88606C 88606C 88645L 88645L 88645L 88645M 88645M 88645M 88691E 88691E 88691M 9046400065 9046400074 9046400239 9046400452 9165140816 9165140816
Part # Description Qty Price
Common parts
82711-12200
90464-00065
90464-00074
90464-00239
90464-00452
91651-40816

ILLUST NO. 2 OF 3(8908- )LH107,109,117,119,129,168,178,186,188..CD,DX,GL,SCL,SCM,SCMM,SGL

Click highlighted areas on diagram

COOLER IDLE UP(DEALER OPT)

diagram 88031 88691 88691C 9046400184 9046400534 9046400534 9165160816
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-25020

LH10#,11#,12#,140..DSL,TD

 1
88031-25020

LH11#..SG;LH10#,123,129;LH113..SP..5F

ﾒ-ｶ- ｵﾌﾟｼﾖﾝ

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95J40

LH178..CD,DX;LH107,109,117,119,129,168,186,188..SG

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92003

LH107,109,117,119,129

*H,L=390,ﾏｰｸ=#0

 1
90999-92004

LH100..(08S,09S)..(DSL,TD);LH102,107,109,11#,12#,140..DSL,TD

*H,L=800,ﾏｰｸ=#*

 1
90999-92003

LH109,119,129..SG

*H,L=390,ﾏｰｸ=#0

 1
90999-92004

LH10#,12#;LH11#..SG;LH113..SP..5F

*H,L=800,ﾏｰｸ=#*

 1
Common parts
90464-00184
90464-00534
91651-60816

ILLUST NO. 3 OF 3(8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133,18#.

Click highlighted areas on diagram

COOLER BOX IDLE UP(DEALER OPT)

diagram 88606C 88645L 88645L 88645M 88645M 9046400065 9046400239 9046400452 9161160816
Part # Description Qty Price
Common parts
90464-00065
90464-00239
90464-00452
91611-60816
